Manufacturer
Rheem
Model Number
RGEA14060AJT101AA
Description
Commercial Packaged Gas Electric
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
1/2-INCH HSI/DSI GAS VALVE |
|
|
1/2-INCH SLOW OPEN NG GAS VALVE |
|
|
1/3HP 208-230V 1SPD 1075 MOTOR |
|
|
1/8-INCH COPPER TUBE |
|
|
100F-OPN 80F-CLS AUTO LIMIT SW |
|
|
1HP 208-230V UNPROGRAMMED MTR |
|
|
1HP 208/230V VAR MOTOR BLANK |
|
|
208-230V SPST N/O RELAY |
|
|
208-240V-PRI 24V-SEC 40VA TRAN |
|
|
230V 1HP VS 48Y MOTOR |
|
|
24V 30A 1POLE CONTACTOR |
|
|
3/16X18-INCH RUBBER SILICONE TUBING |
|
|
3/8-INCH 8CUIN LIQUIDLINEDRIER |
|
|
300F M/R LIMIT SWITCH |
|
|

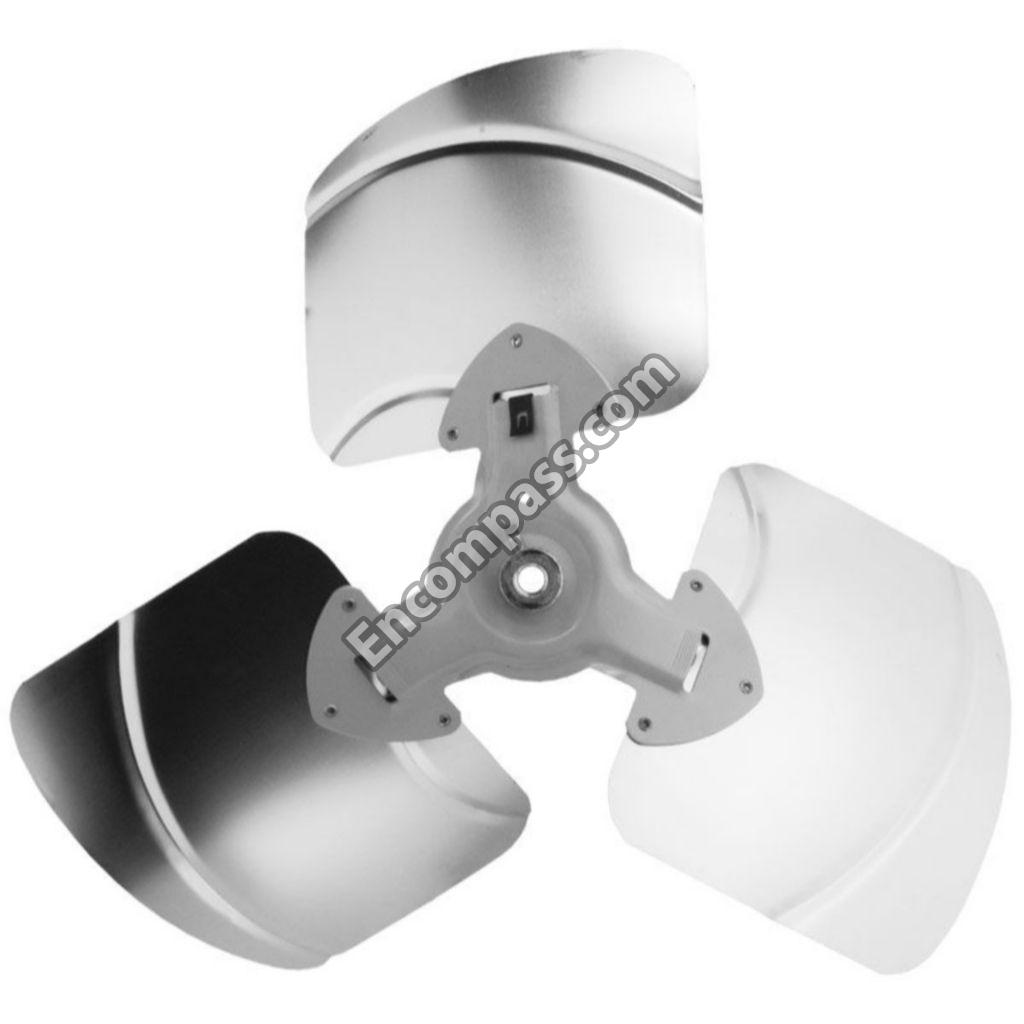

3BLD 21 11/16-INCHDIA 27DEGCCW1/2-INCH |
|
|
45 NATURAL GAS ORIFICE |
|
|
5TUBE BURNER ASSEMBLY |
|
|
7/8-INCH DIAMETER VINYL GROMMET |
|
|
70/10MFD 370V DUAL ROUND CAP |
|
|
A/R HIGH # LIMIT; 610OP 420CL |
|
|
BULKHEAD VALVE |
|
|
BURNER BRACKET |
|
|
BURNER FLOOR |
|
|
COLLECTOR BOX |
|
|
COMBUSTION AIR INLET HOOD |
|
|
COMPRESSOR MOUNTING GROMMET |
|
|
COMPRESSOR WIRING HARNESS |
|
|

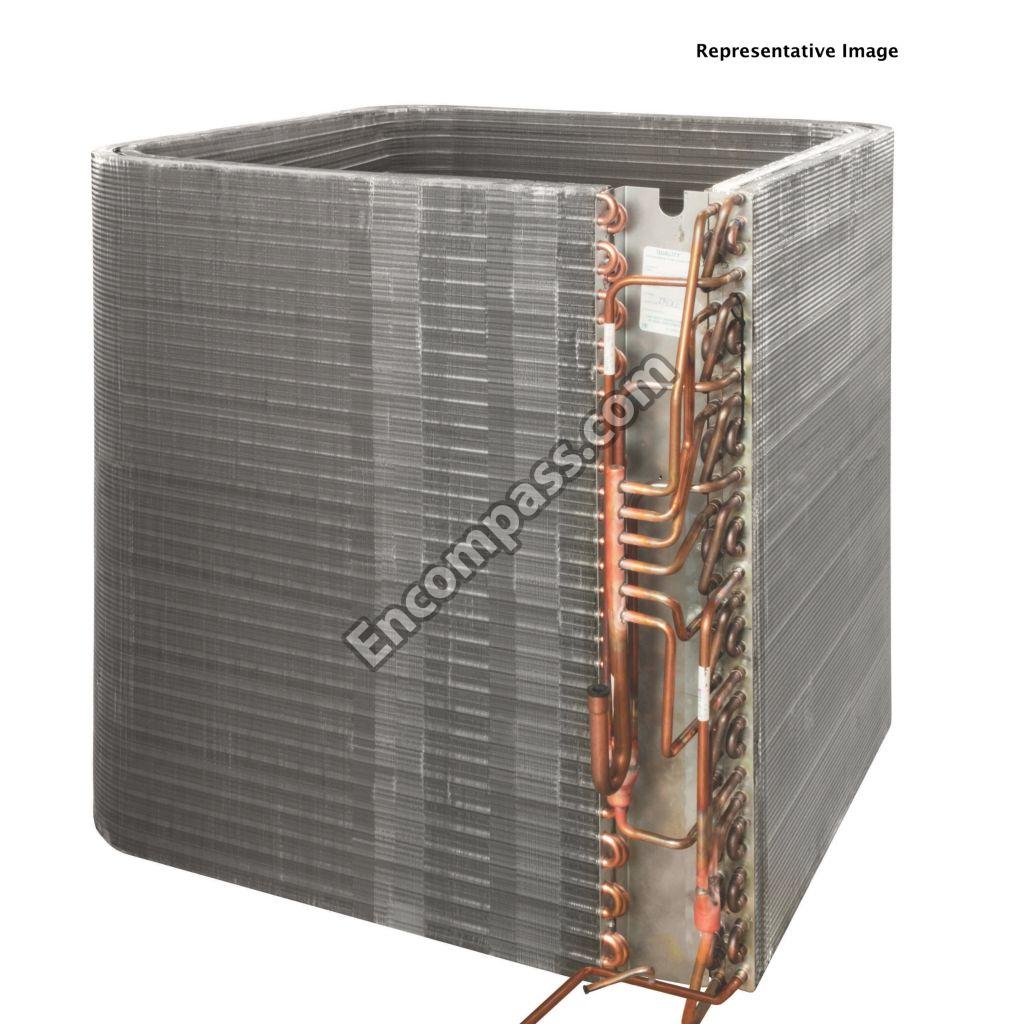

CONDENSER COIL |
|
|
DIRECT SPARK IGNITOR |
|
|
DRAIN PAN FITTING GROMMET |
|
|
EXHAUST HOOD ASSEMBLY |
|
|
EXHAUST TRANSITION ASSEMBLY |
|
|
FLAME SENSOR |
|
|
FLAME SENSOR WIRE |
|
|
GASKET - COLLECTOR BOX |
|
|
HEAT EXCHANGER ASSEMBLY SS |
|
|
INDUCED DRAFT BLOWER W/GASKET |
|
|
INDUCER BLOWER GASKET |
|
|
INTEGRATED FURNACE CONTROL |
|
|
LIQUID LINE FILTER DRIER |
|
|
MANIFOLD |
|
|
MICRO CHANNEL EVAP COIL |
|
|
MOTOR MOUNT ARM W/ GROMMET |
|
|
MOTOR MOUNT BAND |
|
|
NATURAL GAS VALVE |
|
|
PVC TRAP |
|
|
RADIATION SHIELD |
|
|
SPSP PRESSURE SWITCH -.45WC |
|
|
TURBULATOR |
|
|
TXV BULB STRAP MOUNTING KIT |
|
|
TXV VALVE R410A 4TON 3/8X3/8 |
|
|
VALVE CORE |
|
|
WIRE GRILLE |
|
|
WIRE HARNESS 9PIN TO 9INSTERMS |
|
|
X-13 MOTOR W/ROTOR 230V 1 HP |
