Manufacturer
Rheem
Model Number
RGEA15060AJV10XAB
Description
Residential Gas Electric - Packaged Unit
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
1/2-INCH SLOW OPEN NG GAS VALVE |
|
|
1/3HP 208-230V 1SPD 1075 MOTOR |
|
|
1/8-INCH COPPER TUBE |
|
|
120/230V 1HP ECM MOTOR(NON-PR) |
|
|
2-STAGE COMFORT ALERT MODULE |
|
|
208-230V SPST N/O RELAY |
|
|
208-240V-PRI 24V-SEC 40VA TRAN |
|
|
24V 30A 1POLE CONTACTOR |
|
|
3/16X18-INCH RUBBER SILICONE TUBING |
|
|
3/8-INCH 8CUIN LIQUIDLINEDRIER |
|
|
300F M/R LIMIT SWITCH |
|
|
3BLD 21 11/16-INCH DIA 27DEGCCW1/2-INCH |
|
|
40/10MFD 440V RND RUN CAPAC. |
|
|
45 NATURAL GAS ORIFICE |
|
|
5TUBE BURNER ASSEMBLY |
|
|
7/8-INCH DIAMETER VINYL GROMMET |
|
|
70/10MFD 370V DUAL ROUND CAP |
|
|
88/106MFD 330V RND START CAPAC |
|
|
A/R HIGH # LIMIT; 610OP 420CL |
|
|

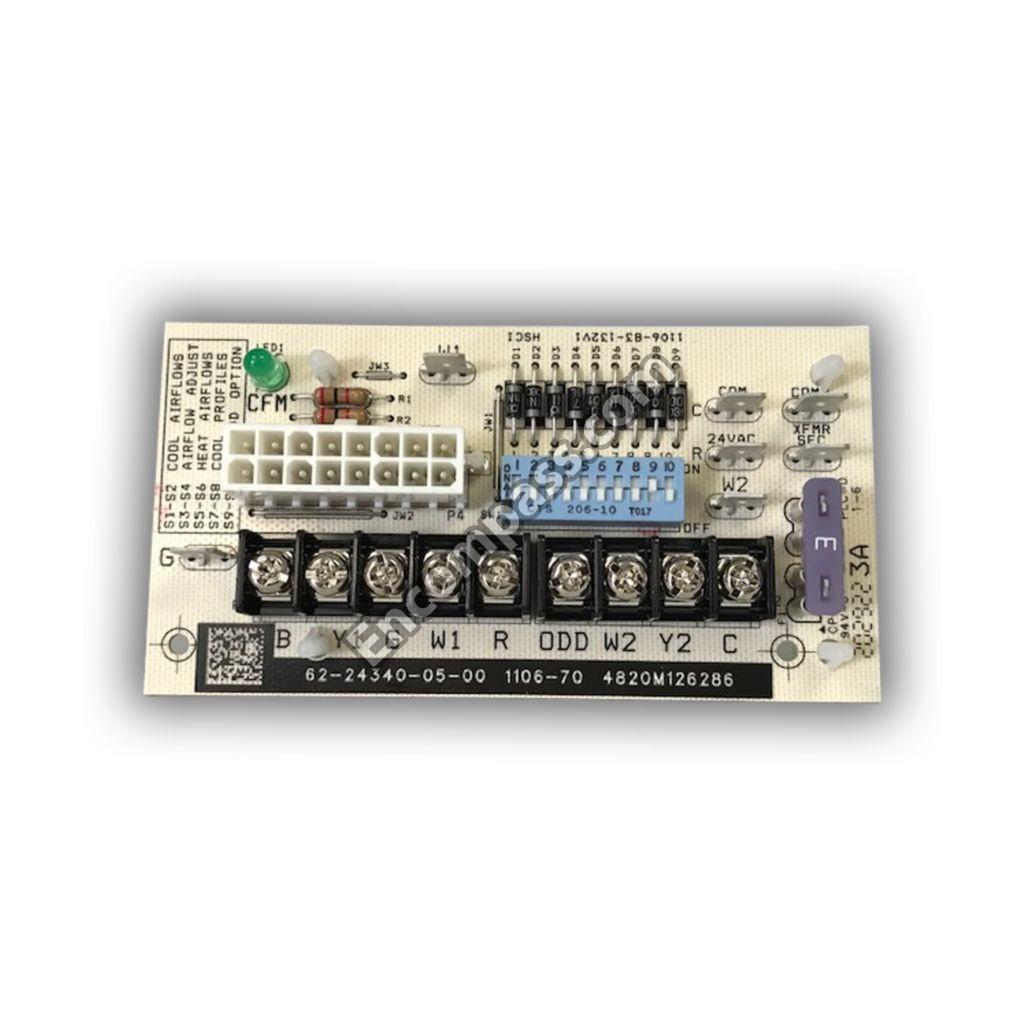

BLOWER CONTROL BOARD |
|
|
BLOWER WHEEL AND HOUSING |
|
|
BULKHEAD VALVE |
|
|
BURNER BRACKET |
|
|
BURNER FLOOR |
|
|
BURNER SHIELD |
|
|
COLLECTOR BOX |
|
|
COMBUSTION AIR INLET HOOD |
|
|
COMPRESSOR MOUNTING GROMMET |
|
|
COMPRESSOR WIRING HARNESS |
|
|
CONDENSER COIL |
|
|
DIRECT SPARK IGNITOR |
|
|
DRAIN PAN FITTING GROMMET |
|
|
EXHAUST HOOD ASSEMBLY |
|
|
EXHAUST TRANSITION ASSEMBLY |
|
|
FLAME SENSOR |
|
|
FLAME SENSOR WIRE |
|
|
GASKET - COLLECTOR BOX |
|
|
HEAT EXCHANGER ASSEMBLY SS |
|
|
INDUCER BLOWER GASKET |
|
|
INTEGRATED FURNACE CONTROL |
|
|
L110F LIMIT SWITCH AUTO RESET |
|
|
LIQUID LINE FILTER DRIER |
|
|
LOW VOLTAGE MOLDED PLUG |
|
|
LOW#LIMIT OPEN50 CLOSE95 |
|
|
MANIFOLD |
|
|

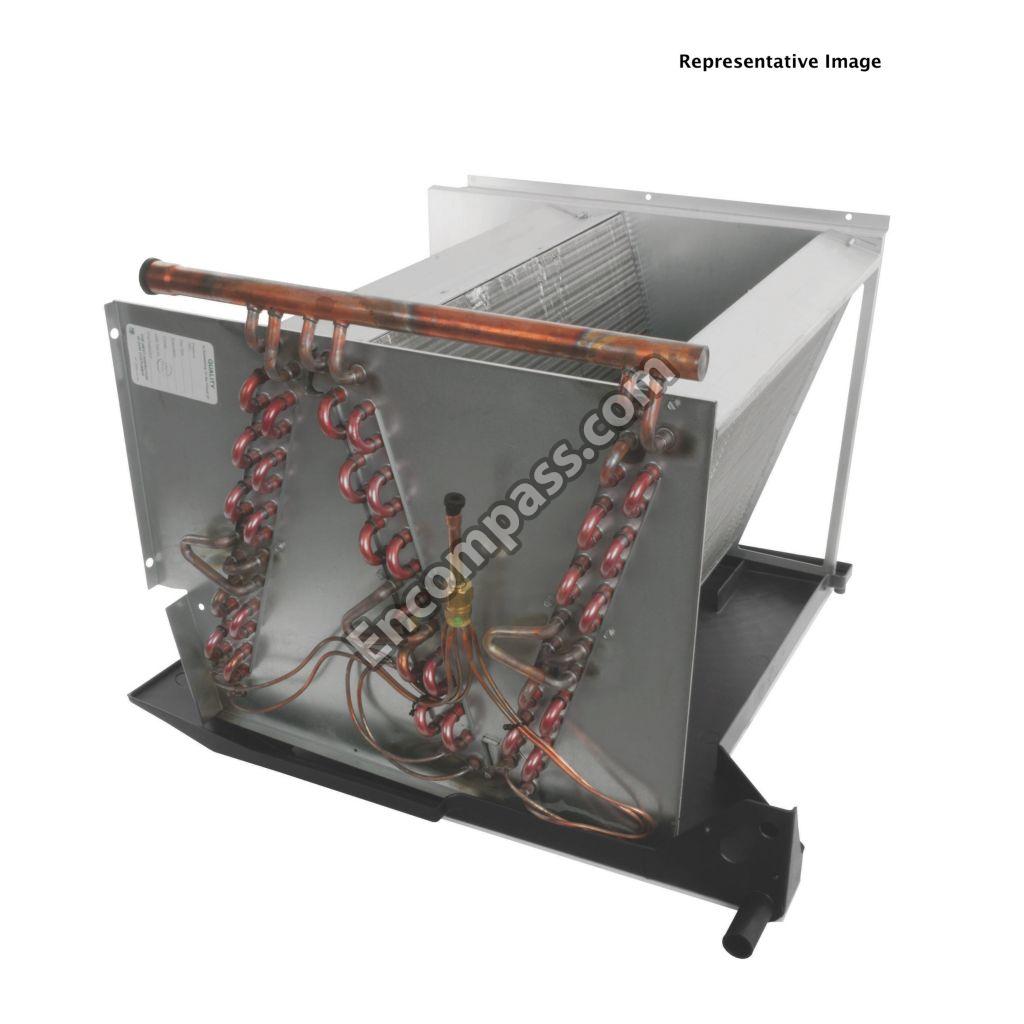

MICRO CHANNEL EVAP COIL |
|
|
MOLDED PLUG |
|
|
MOTOR MOUNT ARM W/ GROMMET |
|
|
MOTOR MOUNT BAND |
|
|
NOX INSERT |
|
|
PVC TRAP |
|
|
RADIATION SHIELD |
|
|
SPSP PRESSURE SWITCH -.45WC |
|
|
START RELAY |
|
|
TURBULATOR |
|
|
TXV BULB STRAP MOUNTING KIT |
|
|
TXV VALVE R410A 4TON 3/8X3/8 |
|
|
VALVE CORE |
|
|
WIRE GRILLE |
|
|
WIRE HARNESS 9PIN TO 9INSTERMS |
