Model Image
Manufacturer

Rheem

Model Number

RHLLHM6024DA

Description

Heat Pump - Residential Air Handler

Interactive Exploded View

Parts List

Part Number Description

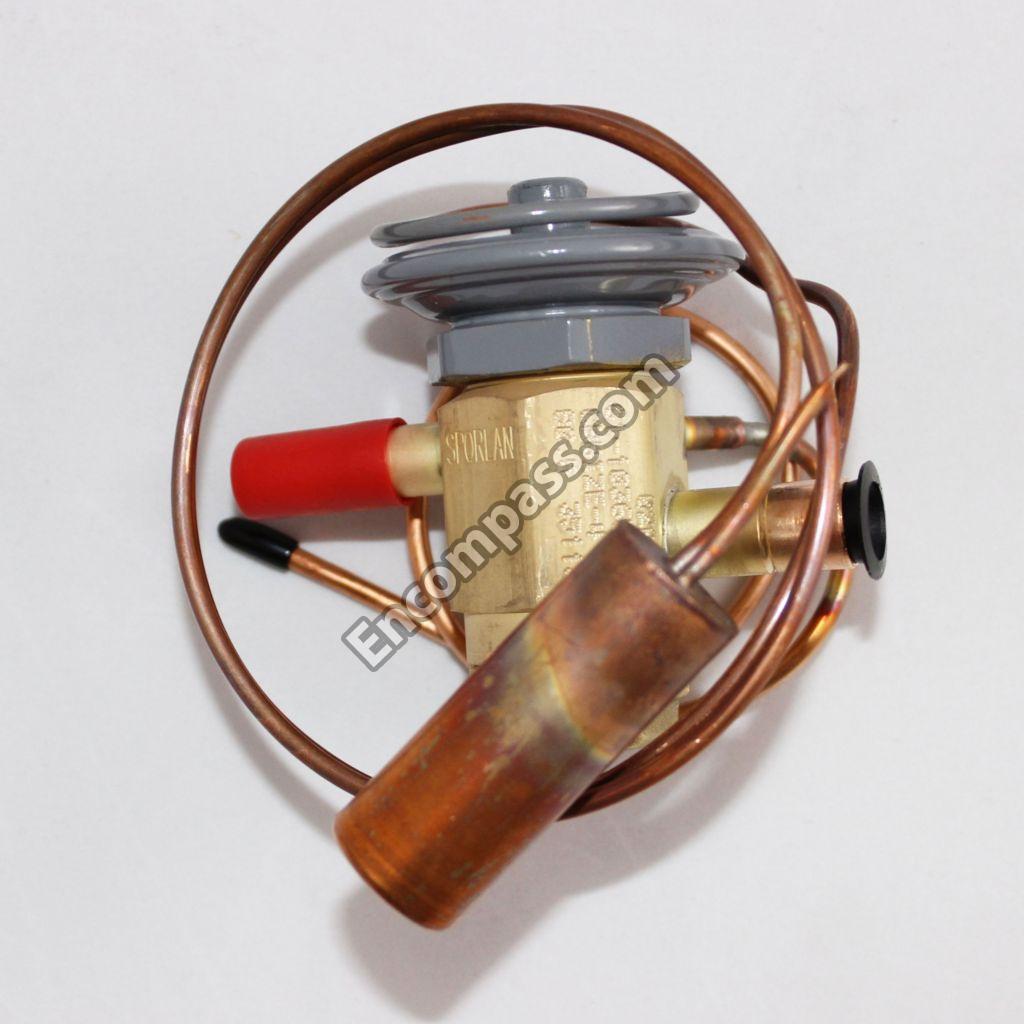

61-103652-03 61-103652-03 3/8-INCH SWT 5T R410A 30-INCH EXTEQ TXV
46-101946-01 46-101946-01 460VPRI 24VSEC XFRMR 40VA
AE-101133-31 AE-101133-31 ACCESS PANEL (GRAY)
70-101729-04 70-101729-04 BLOWER WHEEL W/ HOUSING
47-100436-02 47-100436-02 CONTROL BOARD

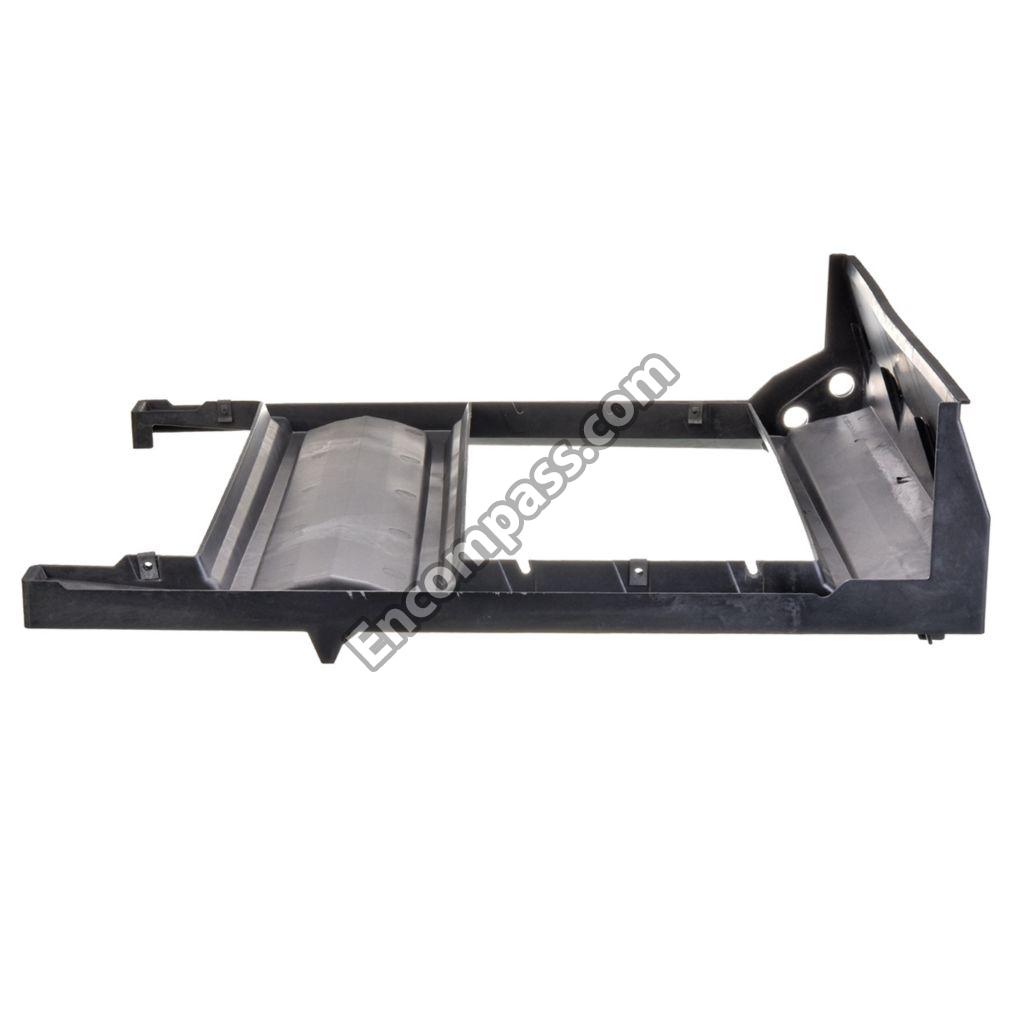

68-104822-04 68-104822-04 DRAIN PAN - 24 IN. VERTICAL
AS-101128-33H AS-101128-33H HORIZONTAL DRAIN PAN
70-19929-10 70-19929-10 MOTOR ARM W/GROMMET
70-19927-04 70-19927-04 MOTOR MOUNT BAND
AE-101049-01 AE-101049-01 MOTOR MOUNTING BRACKET
45-23222-02 45-23222-02 TERMINAL BLOCK
64-21106-02 64-21106-02 TXV BULB STRAP MOUNTING KIT
51-103253-01 51-103253-01 X-13 MOTOR 460V 3/4 HP
51-103253-00 51-103253-00 X-13 MOTOR 460V 3/4 HP BLANK
