Manufacturer
Rheem
Model Number
RHSLHM2417JA
Description
Heat Pump - Residential Air Handler
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
17-INCH VERTICAL DRAIN PAN |
|
|
208-230V1PH 1/5HP 1075RPM 2SPD |
|
|
2T R410A 3/8 SWT 30-INCH CAP TXV |
|
|
3A FUSE; 5PK 44-ATC3-5PK |
|
|
ACCESS PANEL (GRAY) |
|
|
BLOWER ASSEMBLY |
|
|

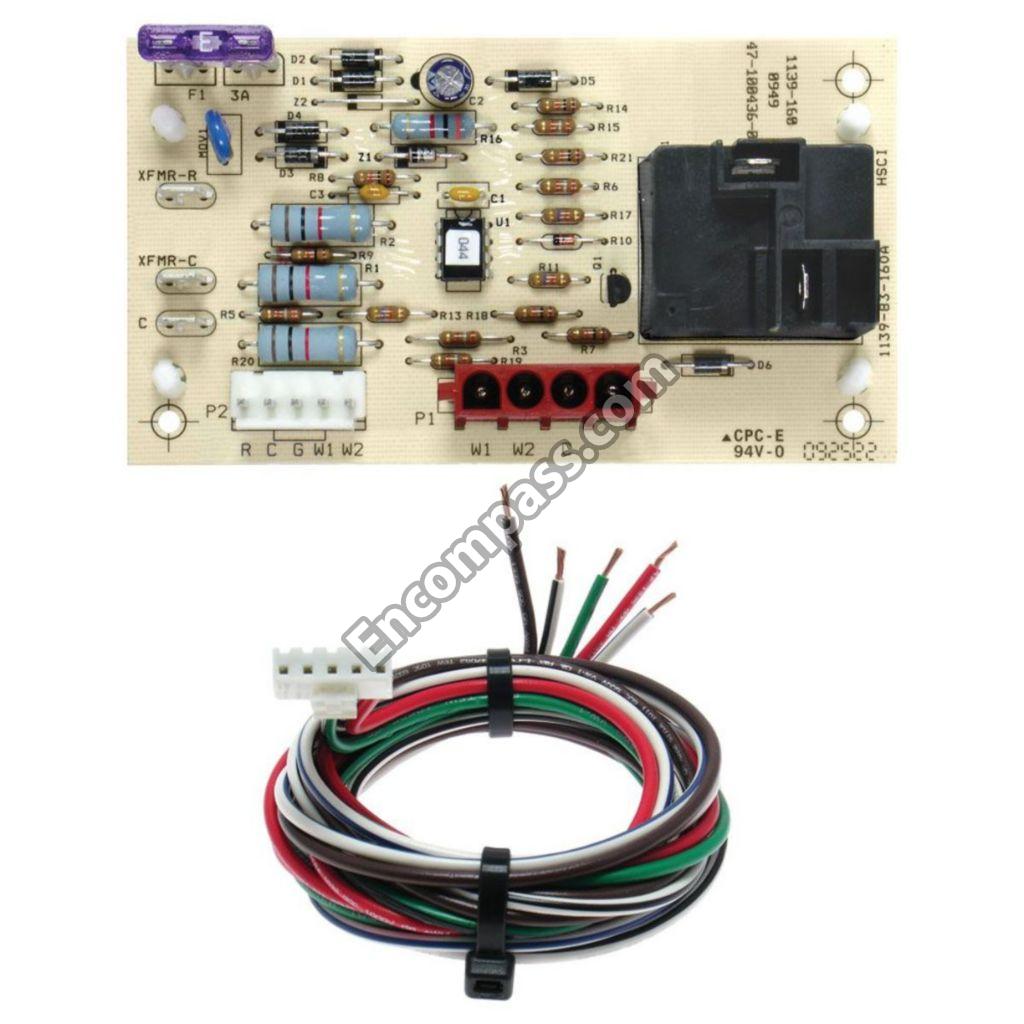

BLOWER BOARD KIT FOR 208-230V |
|
|
BLOWER HOUSING WITH WHEEL |
|
|
BULB STRAINER |
|
|
CAPACITOR STRAP |
|
|

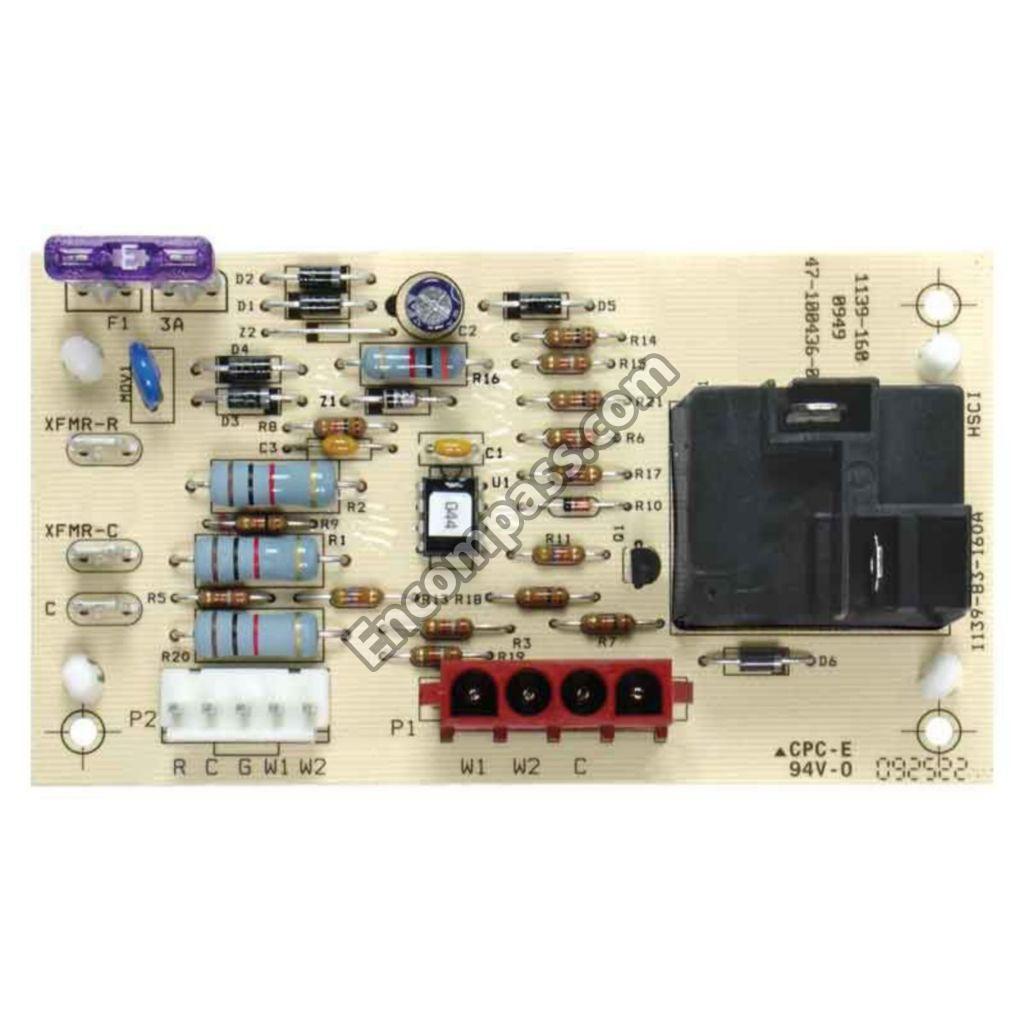

CONTROL BOARD |
|
|
EXPANSION VALVE KIT (TXV) |
|
|
HORIZONTAL DRAIN PAN |
|
|
MOTOR ARM W/GROMMET |
|
|
MOTOR MOUNT BAND |
|
|
MOTOR MOUNTING BRACKET |
|
|
TERMINAL BLOCK |
|
|
TRANSFORMER 40V BE40137001 BAS |
|
|
TXV BULB STRAP MOUNTING KIT |
|
|
WIRING HARNESS |
