Manufacturer
Rheem
Model Number
RJPLA060JK000
Description
Commercial Packaged Heat Pump
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
1/2X1/2 SWEAT R410A 30-INCHEXP VLV |
|
|
1/3HP 208-230V 1075RPM 48 MTR |
|
|
1HP 208-230V UNPROGRAMMED MTR |
|
|
1HP 208/230V1PH VAR SPEED MTR |
|
|
208/240V-PRI 24V-SEC 50VA |
|
|

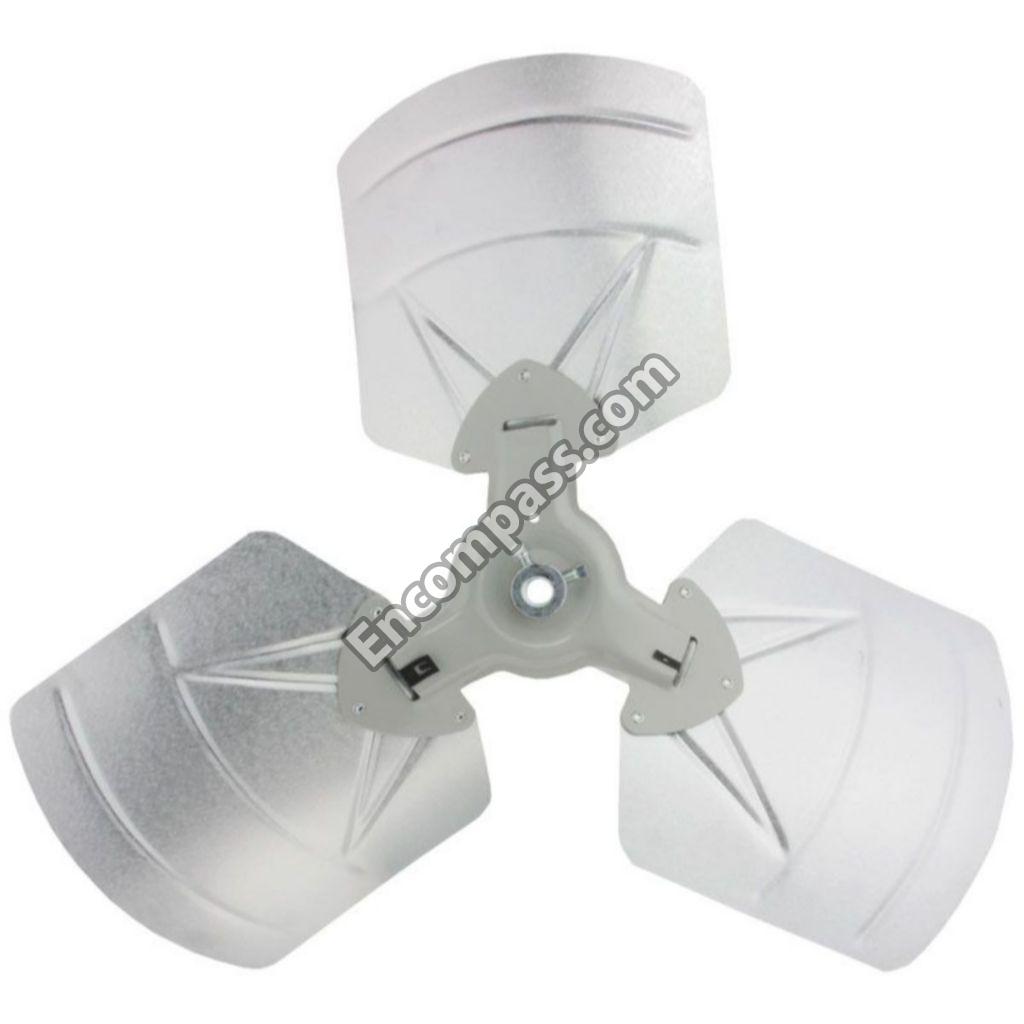

24-INCHDIA 25DEG 1/2-INCH CCW 3BLD FAN |
|
|

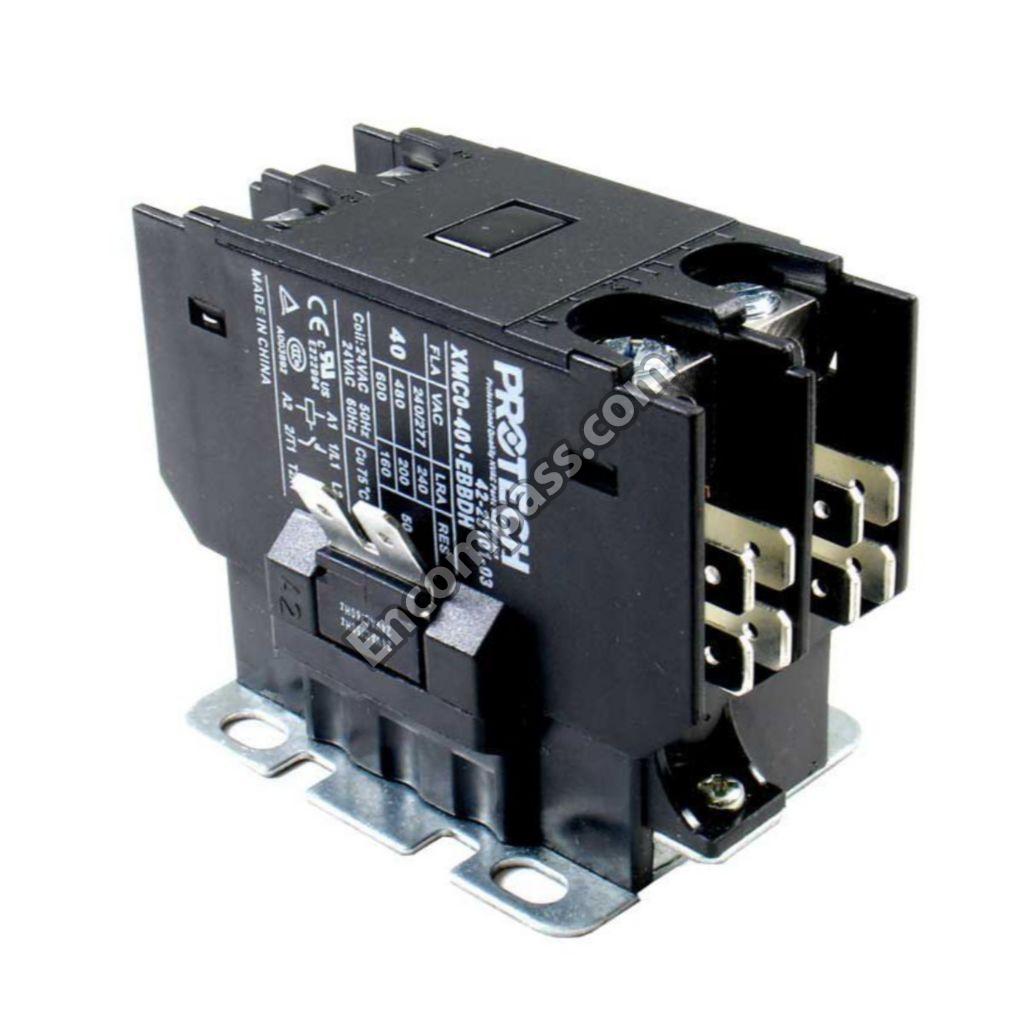

24V 40AMP 1POLE CONTACTOR |
|
|
24V SPST N/O RELAY |
|
|
3A FUSE; 5PK 44-ATC3-5PK |
|
|
5/8X3/8-INCH 2TON REVERSING VALVE |
|
|
7/8X1/2 24V 3.3/6.6T REV VALVE |
|
|
7/8X1/2 24V REVERSING VALVE |
|
|
7/8X1/2 24V REVERSING VALVE |
|
|
70/10MFD 370V DUAL ROUND CAP |
|
|
A/R HI LIMIT 610OP 420CL |
|
|
A/R HIGH # LIMIT; 610OP 420CL |
|
|
A/R LOW # LIMIT; 15OP 40CL |
|
|
ACCESS PANEL |
|
|
BLOWER HOUSING |
|
|
BLOWER SUPPORT BRACKET |
|
|
BLOWER WHEEL CCW 11-INCH X 9-INCH |
|
|
COMPRESSOR MOUNTING GROMMET |
|
|
COMPRESSOR WIRING HARNESS |
|
|
CONTACTOR 40A 1POLE 24V COIL |
|
|
DEFROST AND AMBIENT SENSOR KIT |
|
|
DEFROST CONTROL BOARD KIT |
|
|
DEFROST CONTROL BOARD KIT |
|
|
DEFROST CONTROL BOARD KIT |
|
|
DEFROST CONTROL BOARD KIT |
|
|
DEFROST CONTROL KIT |
|
|
DISTRIBUTOR ASSEMBLY |
|
|
DRAIN PAN |
|
|
EVAPORATOR COIL |
|
|
FILTER |
|
|
FILTER CHANNEL |
|
|
LIMITSHIELDASSEMLBY |
|
|
MOTOR MOUNT ARM W/ GROMMET |
|
|
MOTOR MOUNT BAND |
|
|
TOP WIRE GRILL |
|
|
TXV BULB STRAP MOUNTING KIT |
|
|
VALVE CORE |
|
|
X-13 MOTOR W/ROTOR 230V 1 HP |
