Manufacturer
Rheem
Model Number
RKNLB085CM15E
Description

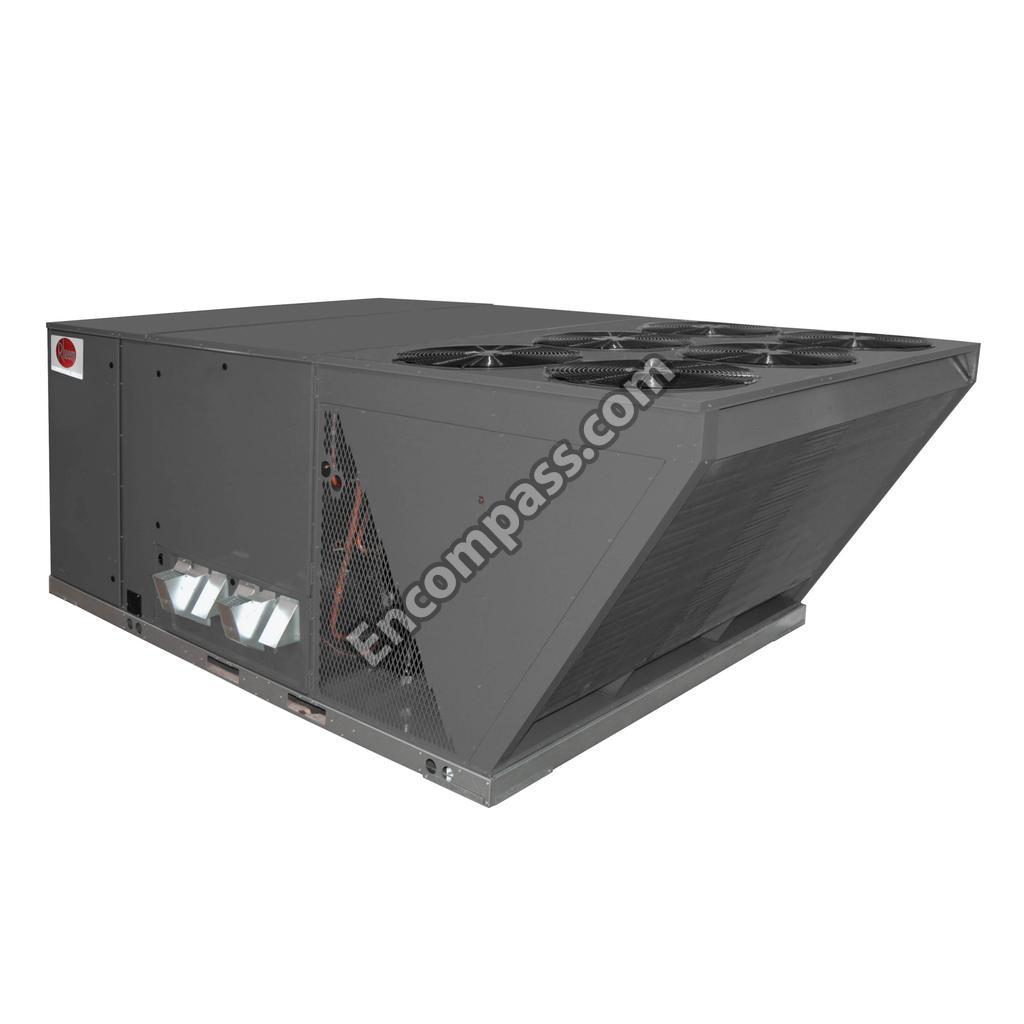

Commercial Packaged Gas Electric
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
-.35-INCH WC SPST PRESSURE SWITCH |
|
|
1/3HP 460V 1075RPM 1PH 48 MTR |
|
|
1/8-INCH COPPER TUBE |
|
|
1/8HP 208-230V 1075RPM CONDMTR |
|
|
120-140F AUTO LIMIT SWITCH |
|
|
15X15 1-INCH BORE CW/CCW BLWR WHEEL |
|
|
208-230 1PH 1075RPM 1/3HP |
|
|
208/230-24V 75VA TRANSFORMER |
|
|
208/230V 1PH 1/2HP 1075RPM CCW |
|
|
22 7/8-INCH X 1-INCH BLOWER SHAFT |
|
|
230V3PH R410A 72000BTU SCROLL |
|
|
24-INCHDIA 22DEG 1/2-INCH CCW 3 BLADE FAN |
|
|
24V 30A 3P CONTACTOR W/AUX |
|
|
24V 32A 3POLE CONTACTOR |
|
|
2HP 208-230/460V 1725RPM MOTOR |
|
|
350F M/R LIMIT SWITCH |
|
|
8.75-INCH FIXED SHEAVE; 1-INCH BORE |
|
|
90 LOW PRESSURE SWITCH |
|
|
ADJUSTABLE SHEAVE |
|
|
BEARING W/CUSHING; 1-INCH BORE |
|
|
BULKHEAD VALVE |
|
|
CAPAC 10 MFD 440V OVAL |
|
|
CAPACITOR STRAP |
|
|
COMPRESSOR MOUNTING GROMMET |
|
|
CRANKCASE HEATER |
|
|
DSI IGNITOR |
|
|
FLAME SENSOR |
|
|
FLOW CHECK DISTRIBUTOR ASSEMBLY |
|
|
HEAT EXCHANGER |
|
|
HI PRESSURE LIMIT M/R 610# |
|
|
HSI/DSI GAS VALVE |
|
|
INDUCED DRAFT BLOWER W/GASKET |
|
|
INTEGRATED FURNACE CONTROL |
|
|
LIQUID LINE FILTER DRIER |
|
|
LOW#LIMIT OPEN50 CLOSE95 |
|
|
MANIFOLD |
|
|
MANIFOLD PLUG 1/8-INCH |
|
|
MOLDED PLUG |
|
|
NATURAL GAS BURNER ORIFICE |
|
|
REMOVEABLE DRAIN PAN |
|
|
RUN CAPAC 10 MFD 370V OVAL |
|
|
SPST N/C M/R LIMIT; 400OP |
|
|
TRI-ARM ASSEMBLY |
|
|
VALVE CORE |
|
|
VARIABLEPITCHSHEAVE 7/8-INCH BORE |
