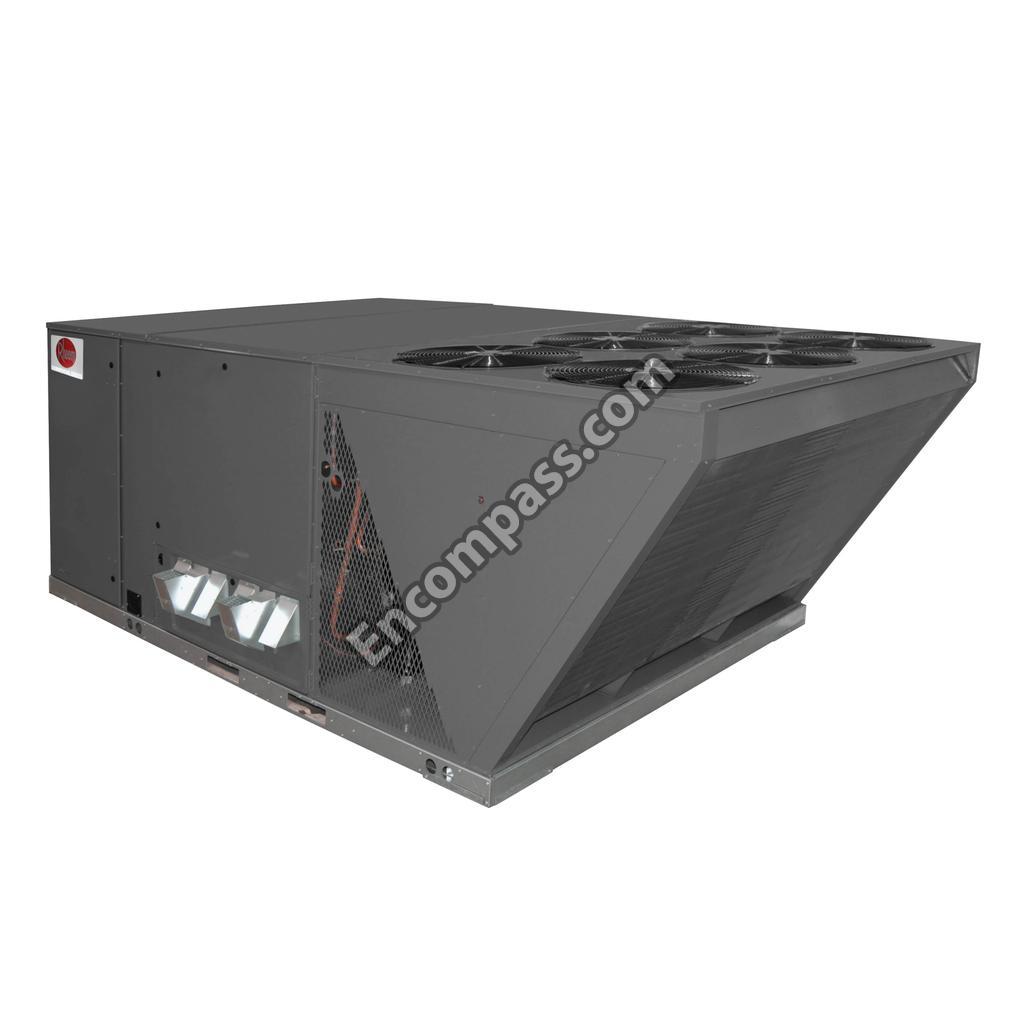

Model Image
Manufacturer

Rheem

Model Number

RKNLB120CL15E

Description

Commercial Packaged Gas Electric

Interactive Exploded View

Parts List

Part Number Description
42-105601-25 42-105601-25 -.35-INCH WC SPST PRESSURE SWITCH
83-CD3608-6PK 83-CD3608-6PK 1/8-INCH COPPER TUBE
51-102008-17 51-102008-17 1/8HP 208-230V 1075RPM CONDMTR
47-25349-09 47-25349-09 120-140F AUTO LIMIT SWITCH
70-42540-02 70-42540-02 15X15 1-INCH BORE CW/CCW BLWR WHEEL
54-42541-01 54-42541-01 17 7/8-INCH X17 7/8-INCH X1 7/8-INCH FILTER
51-42534-24 51-42534-24 208-230 1PH 1075RPM 1/3HP
46-42515-01 46-42515-01 208/230-24V 75VA TRANSFORMER
70-42540-04 70-42540-04 22 7/8-INCH X 1-INCH BLOWER SHAFT
70-42572-04 70-42572-04 24-INCH DIA 22DEG 1/2-INCH CCW 3 BLADE FAN
42-25103-01 42-25103-01 24V 32A 3POLE CONTACTOR
51-42536-01 51-42536-01 2HP 208-230/460V 1725RPM MOTOR
79-21491-83 79-21491-83 3/16X18-INCH RUBBER SILICONE TUBING
83-25151-41 83-25151-41 3/8-INCH 8CUIN LIQUIDLINEDRIER
PD710003 PD710003 8.75-INCH FIXED SHEAVE; 1-INCH BORE
47-101529-05 47-101529-05 90 LOW PRESSURE SWITCH
71-40427-05 71-40427-05 ADJUSTABLE SHEAVE
AE-90708-01 AE-90708-01 ANGLE BLOWER MOUNTING
70-41854-02 70-41854-02 BEARING W/CUSHING; 1-INCH BORE
AS-90757-01 AS-90757-01 BLOWER ASSEMBLY
61-22369-04 61-22369-04 BULKHEAD VALVE
AE-90642-02 AE-90642-02 BURNER BRACKET
AS-60993-06 AS-60993-06 BURNER CLUSTER
AE-90644-02 AE-90644-02 BURNER SHIELD
AE-90643-01 AE-90643-01 BURNER SUPPORT
43-25134-22 43-25134-22 CAPAC 10 MFD 440V OVAL
AE-50892-81 AE-50892-81 CAPACITOR STRAP
56-18518-06 56-18518-06 COMPRESSOR MOUNTING GROMMET
AS-90656-42 AS-90656-42 CONDENSER COIL
AS-90756-03A AS-90756-03A DISCONNECT PLATE
62-23556-08 62-23556-08 DSI IGNITOR
AS-90656-69 AS-90656-69 EVAPORATOR COIL
61-42662-19 61-42662-19 EXPANSION VALVE
62-23543-02 62-23543-02 FLAME SENSOR
68-23643-03 68-23643-03 GASKET
AS-90645-07 AS-90645-07 HEAT EXCHANGER
47-23699-06 47-23699-06 HI PRESSURE LIMIT M/R 610#
60-102405-01 60-102405-01 HSI/DSI GAS VALVE
70-23641-86 70-23641-86 INDUCED DRAFT BLOWER W/GASKET
68-23643-02 68-23643-02 INDUCER GASKET
68-42518-02 68-42518-02 INDUCER MOUNTING PLATE GASKET
62-102860-01 62-102860-01 INTEGRATED FURNACE CONTROL
94-42551-09 94-42551-09 KEY
AS-59152-01 AS-59152-01 LIMITSHIELDASSEMLBY
83-ADK-083S 83-ADK-083S LIQUID LINE FILTER DRIER
47-101529-09 47-101529-09 LOW#LIMIT OPEN50 CLOSE95
81-42509-03 81-42509-03 MANIFOLD
81-23593-01 81-23593-01 MANIFOLD PLUG 1/8-INCH
45-102708-04 45-102708-04 MOLDED PLUG
AS-90824-01 AS-90824-01 MOTOR MOUNT ASSEMBLY
62-21551-42 62-21551-42 NATURAL GAS BURNER ORIFICE
68-102699-02 68-102699-02 REMOVEABLE DRAIN PAN
47-22861-01 47-22861-01 RHEEM 47-22861-01 LIMIT SWITCH - L350F MANUAL RESE
43-25134-04 43-25134-04 RUN CAPAC 10 MFD 370V OVAL
47-100241-01 47-100241-01 SPST N/C M/R LIMIT; 400OP
45-42548-02 45-42548-02 TERMINAL BLOCK
70-42540-05 70-42540-05 TRI-ARM ASSEMBLY
AE-58922-01 AE-58922-01 TURBULATOR
64-21106-02 64-21106-02 TXV BULB STRAP MOUNTING KIT
61-18551-01 61-18551-01 VALVE CORE
71-104625-01 71-104625-01 VARIABLEPITCHSHEAVE 7/8-INCH BORE
95-100906-09 95-100906-09 WIRE GRILL
