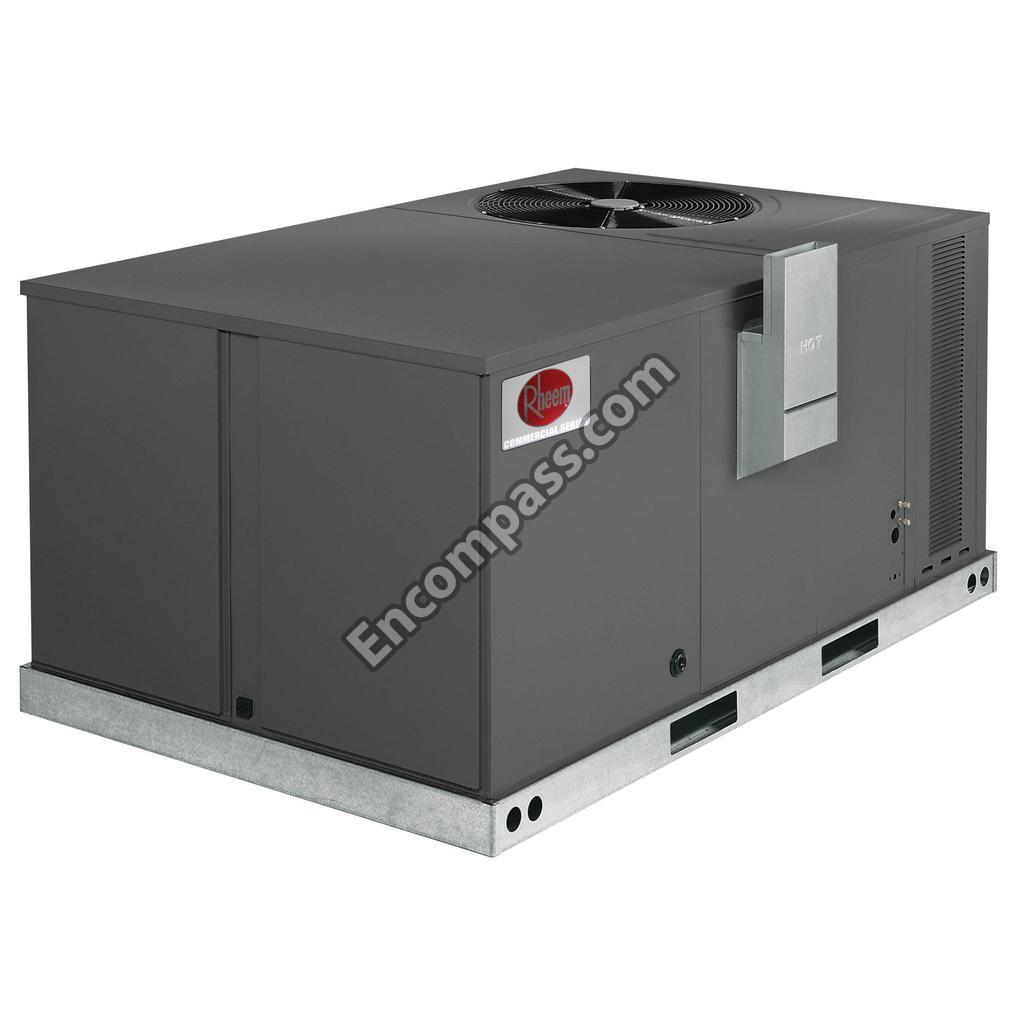

Model Image
Manufacturer

Rheem

Model Number

RKPNA048CM08E

Description

Commercial Packaged Gas Electric

Interactive Exploded View

Parts List

Part Number Description
62-21551-45 62-21551-45 #45 NATURAL GAS BURNER ORIFICE
60-105055-01 60-105055-01 1/2-INCH HSI/DSI GAS VALVE
60-106207-01 60-106207-01 1/2-INCH SLOW OPEN NG GAS VALVE
51-42579-01 51-42579-01 1/2HP 208/230/460V3PH 1725RPM
51-100998-30 51-100998-30 1/3HP 208-230V 1075RPM 48 MTR
70-23589-01 70-23589-01 10-INCH DIA 10-INCH W CCW 3/4-INCH WHEEL
47-23610-19 47-23610-19 145-165F AUTO LIMIT SWITCH
47-17359-30 47-17359-30 180-200F AUTO LIMIT SWITCH
55-102045-11S 55-102045-11S 208-230V3PH R410A SCROLL COMPR
46-25107-03 46-25107-03 208-240V-PRI 24V-SEC 40VA TRAN
70-23137-01 70-23137-01 24-INCH DIA 19DEG 1/2-INCH CCW 2BLD FAN
42-25103-01 42-25103-01 24V 32A 3POLE CONTACTOR
42-25103-02 42-25103-02 3 POLE 208/230V 32A CONTACTOR
61-102258-02 61-102258-02 3 TON R410A 3/8-INCH TXV
79-21491-83 79-21491-83 3/16X18-INCH RUBBER SILICONE TUBING
70-21933-02 70-21933-02 3/4-INCH X17 3/8-INCH BLOWER SHAFT
51-21909-01 51-21909-01 3/4HP 208-230/460V 1725RPM MTR
83-25151-41 83-25151-41 3/8-INCH 8CUIN LIQUIDLINEDRIER
61-102211-33 61-102211-33 3/8-INCHX3/8-INCH 3TON R-410A TXV
47-22861-02 47-22861-02 300F M/R LIMIT SWITCH
44-ATC3-5PK 44-ATC3-5PK 3A FUSE; 5PK 44-ATC3-5PK
61-102258-03 61-102258-03 4-1/2 TON R410A TXV
62-22175-45 62-22175-45 45 NATURAL GAS ORIFICE
71-104625-06 71-104625-06 5.35-INCH ADJ. SHEAVE; 5/8-INCH BORE
47-102240-03 47-102240-03 95#-CLS 50#-OPN AUTO RESET LMT
47-23699-04 47-23699-04 A/R HI LIMIT 610OP 420CL
AS-58990-01HT AS-58990-01HT ACCESS PANEL
70-41911-01 70-41911-01 BEARING & CUSHION
AS-101336-85 AS-101336-85 BLOWER ASSEMBLY - BELT DRIVE
AE-101124-01 AE-101124-01 BLOWER BRACKET
AE-64401-05 AE-64401-05 BLOWER CUT-OFF
AS-101341-01 AS-101341-01 BLOWER HOUSING
AE-58950-02 AE-58950-02 BLOWER SUPPORT
AS-60993-04 AS-60993-04 BURNER ASSEMBLY
AE-61588-02 AE-61588-02 BURNER BRACKET
AE-58932-02 AE-58932-02 BURNER COMPARTMENT FLOOR
AE-58886-01 AE-58886-01 BURNER SHIELD
AE-59068-01 AE-59068-01 COLLECTOR BOX
68-23680-01 68-23680-01 COLLECTOR BOX GASKET
56-18518-06 56-18518-06 COMPRESSOR MOUNTING GROMMET
45-100834-80 45-100834-80 COMPRESSOR WIRING HARNESS
AS-104518-01 AS-104518-01 CONDENSER COIL
42-102664-03 42-102664-03 CONTCTR 25A 3P 24VAC COIL
AE-101467-01 AE-101467-01 CROSS BRACE
62-23556-82 62-23556-82 DIRECT SPARK IGNITOR
AE-59067-01 AE-59067-01 DIVIDER PLATE
68-23680-02 68-23680-02 DIVIDER PLATE GASKET
68-23559-01 68-23559-01 DRAIN PAN
AS-102352-03 AS-102352-03 EVAPORATOR COIL
AS-104531-01 AS-104531-01 EVAPORATOR COIL
54-17531-10 54-17531-10 FILTER
AE-58934-01 AE-58934-01 FILTER CHANNEL
71-104627-04 71-104627-04 FIXED PITCH SHEAVE
71-104627-05 71-104627-05 FIXED SHEAVE
62-23543-02 62-23543-02 FLAME SENSOR
68-23680-03 68-23680-03 FLUE DUCT GASKET
AS-58945-01 AS-58945-01 FLUE HOOD ASSEMBLY
AS-59066-86 AS-59066-86 HEAT EXCHANGER
47-23699-06 47-23699-06 HI PRESSURE LIMIT M/R 610#
70-23641-86 70-23641-86 INDUCED DRAFT BLOWER W/GASKET
70-101087-82 70-101087-82 INDUCED DRAFT BLWR W/GASKET
68-23643-01 68-23643-01 INDUCER BLOWER GASKET
75-22840-02 75-22840-02 INSHOT BURNER TUBE
62-23599-05 62-23599-05 INTEGRATED FURNACE CONTROL
94-22030-01 94-22030-01 KEY 3/16-INCH X 3/16-INCH X 1 1/4-INCH
AS-59152-01 AS-59152-01 LIMITSHIELDASSEMLBY
83-ADK-083S 83-ADK-083S LIQUID LINE FILTER DRIER
81-101153-01 81-101153-01 MANIFOLD
81-23593-01 81-23593-01 MANIFOLD PLUG 1/8-INCH
AS-101340-01 AS-101340-01 MOTOR MOUNT ASSEMBLY
60-103901-01K 60-103901-01K NATURAL GAS VALVE
42-104851-01 42-104851-01 PRESSURE SWITCH
47-22861-01 47-22861-01 RHEEM 47-22861-01 LIMIT SWITCH - L350F MANUAL RESE
43-25134-02 43-25134-02 RUN CAPAC 5 MFD 370V OVAL
42-105601-20 42-105601-20 SPSP PRESSURE SWITCH -.45WC
47-23683-04 47-23683-04 SPST A/R N/O LIMIT; 30OP 40CL
47-100241-01 47-100241-01 SPST N/C M/R LIMIT; 400OP
95-101660-01 95-101660-01 TOP WIRE GRILL
70-41723-03 70-41723-03 TRI-ARM ASSEMBLY
AE-58922-01 AE-58922-01 TURBULATOR
64-21106-02 64-21106-02 TXV BULB STRAP MOUNTING KIT
61-18551-01 61-18551-01 VALVE CORE
71-104625-05 71-104625-05 VARIABLEPITCHSHEAVE 5/8-INCH BORE
