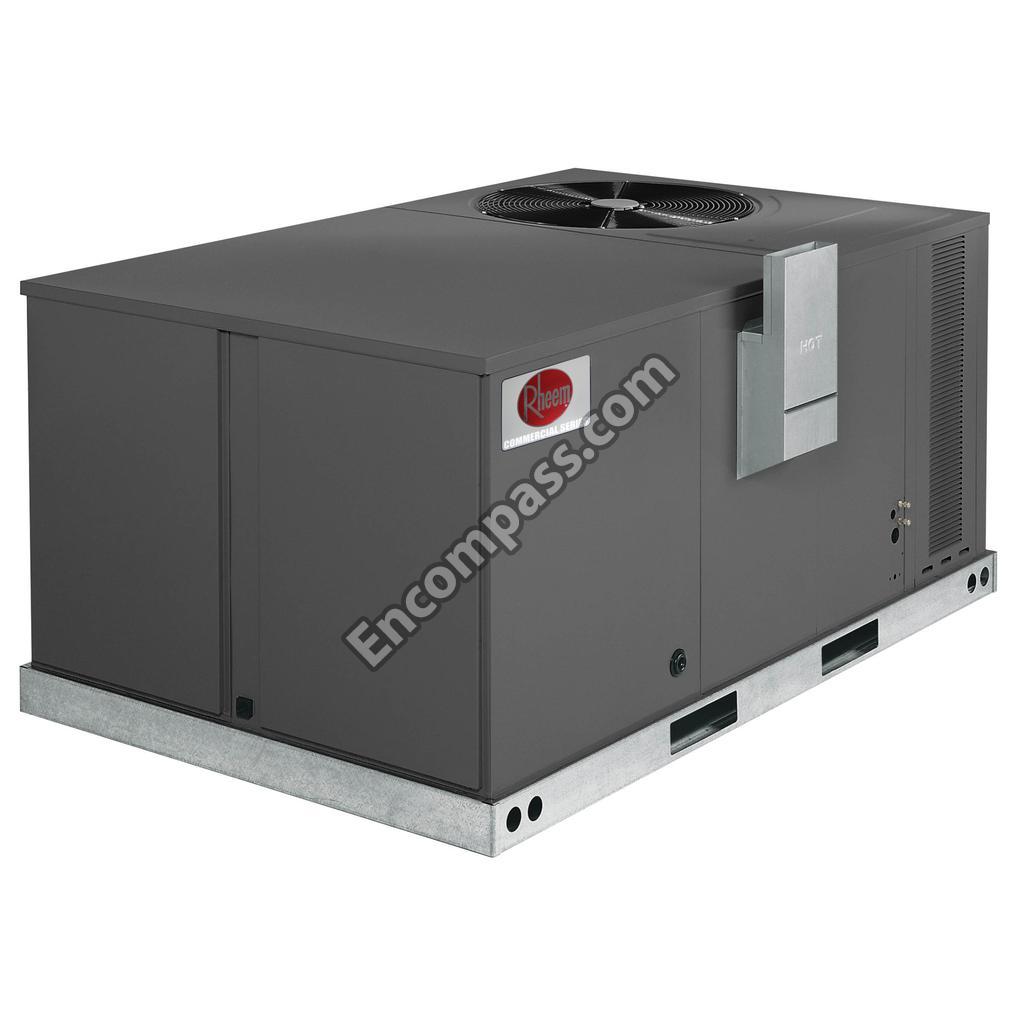

Model Image
Manufacturer

Rheem

Model Number

RKQNA036DL08E

Description

Commercial Packaged Gas Electric

Interactive Exploded View

Parts List

Part Number Description
62-21551-45 62-21551-45 #45 NATURAL GAS BURNER ORIFICE
60-105055-01 60-105055-01 1/2-INCH HSI/DSI GAS VALVE
60-106207-01 60-106207-01 1/2-INCH SLOW OPEN NG GAS VALVE
51-42579-01 51-42579-01 1/2HP 208/230/460V3PH 1725RPM
51-100998-31 51-100998-31 1/3HP 1075RPM 460V COND. MOTOR
70-23589-01 70-23589-01 10-INCH DIA 10-INCH W CCW 3/4-INCH WHEEL
47-23610-19 47-23610-19 145-165F AUTO LIMIT SWITCH
47-17359-30 47-17359-30 180-200F AUTO LIMIT SWITCH
70-23137-01 70-23137-01 24-INCH DIA 19DEG 1/2-INCH CCW 2BLD FAN
42-25103-01 42-25103-01 24V 32A 3POLE CONTACTOR
42-19736-02 42-19736-02 24V SPDT RELAY
79-21491-83 79-21491-83 3/16X18-INCH RUBBER SILICONE TUBING
70-21933-02 70-21933-02 3/4-INCH X17 3/8-INCH BLOWER SHAFT
83-25151-41 83-25151-41 3/8-INCH 8CUIN LIQUIDLINEDRIER
47-22861-02 47-22861-02 300F M/R LIMIT SWITCH
62-22175-45 62-22175-45 45 NATURAL GAS ORIFICE
46-102027-01 46-102027-01 460/575VPRIM 24VSEC 50VA TRANS
70-23641-92 70-23641-92 460V INDUCED DRAFT BLWR W/GSKT
47-102240-03 47-102240-03 95#-CLS 50#-OPN AUTO RESET LMT
AS-58990-01HT AS-58990-01HT ACCESS PANEL
70-41911-01 70-41911-01 BEARING & CUSHION
AS-101336-85 AS-101336-85 BLOWER ASSEMBLY - BELT DRIVE
AE-101124-01 AE-101124-01 BLOWER BRACKET
AE-64401-05 AE-64401-05 BLOWER CUT-OFF
AS-101341-01 AS-101341-01 BLOWER HOUSING
AE-58950-02 AE-58950-02 BLOWER SUPPORT
AS-60993-04 AS-60993-04 BURNER ASSEMBLY
AE-61588-02 AE-61588-02 BURNER BRACKET
AE-58932-02 AE-58932-02 BURNER COMPARTMENT FLOOR
AE-58886-01 AE-58886-01 BURNER SHIELD
AE-59068-01 AE-59068-01 COLLECTOR BOX
68-23680-01 68-23680-01 COLLECTOR BOX GASKET
56-18518-06 56-18518-06 COMPRESSOR MOUNTING GROMMET
45-100834-80 45-100834-80 COMPRESSOR WIRING HARNESS
AS-101714-03 AS-101714-03 CONDENSER COIL
AE-101467-01 AE-101467-01 CROSS BRACE
62-23556-82 62-23556-82 DIRECT SPARK IGNITOR
AE-59067-01 AE-59067-01 DIVIDER PLATE
68-23680-02 68-23680-02 DIVIDER PLATE GASKET
68-23559-01 68-23559-01 DRAIN PAN
AS-102260-03 AS-102260-03 EVAPORATOR COIL
54-17531-10 54-17531-10 FILTER
AE-58934-01 AE-58934-01 FILTER CHANNEL
71-104627-05 71-104627-05 FIXED SHEAVE
62-23543-02 62-23543-02 FLAME SENSOR
68-23680-03 68-23680-03 FLUE DUCT GASKET
AS-58945-01 AS-58945-01 FLUE HOOD ASSEMBLY
AS-59066-86 AS-59066-86 HEAT EXCHANGER
47-23699-06 47-23699-06 HI PRESSURE LIMIT M/R 610#
68-23643-01 68-23643-01 INDUCER BLOWER GASKET
75-22840-02 75-22840-02 INSHOT BURNER TUBE
62-23599-05 62-23599-05 INTEGRATED FURNACE CONTROL
94-22030-01 94-22030-01 KEY 3/16-INCH X 3/16-INCH X 1 1/4-INCH
AS-59152-01 AS-59152-01 LIMITSHIELDASSEMLBY
83-ADK-083S 83-ADK-083S LIQUID LINE FILTER DRIER
81-101153-01 81-101153-01 MANIFOLD
81-23593-01 81-23593-01 MANIFOLD PLUG 1/8-INCH
AS-101340-01 AS-101340-01 MOTOR MOUNT ASSEMBLY
60-103901-01K 60-103901-01K NATURAL GAS VALVE
47-22861-01 47-22861-01 RHEEM 47-22861-01 LIMIT SWITCH - L350F MANUAL RESE
43-25134-02 43-25134-02 RUN CAPAC 5 MFD 370V OVAL
42-105601-20 42-105601-20 SPSP PRESSURE SWITCH -.45WC
47-23683-04 47-23683-04 SPST A/R N/O LIMIT; 30OP 40CL
47-100241-01 47-100241-01 SPST N/C M/R LIMIT; 400OP
95-101660-01 95-101660-01 TOP WIRE GRILL
70-41723-03 70-41723-03 TRI-ARM ASSEMBLY
AE-58922-01 AE-58922-01 TURBULATOR
64-21106-02 64-21106-02 TXV BULB STRAP MOUNTING KIT
61-18551-01 61-18551-01 VALVE CORE
