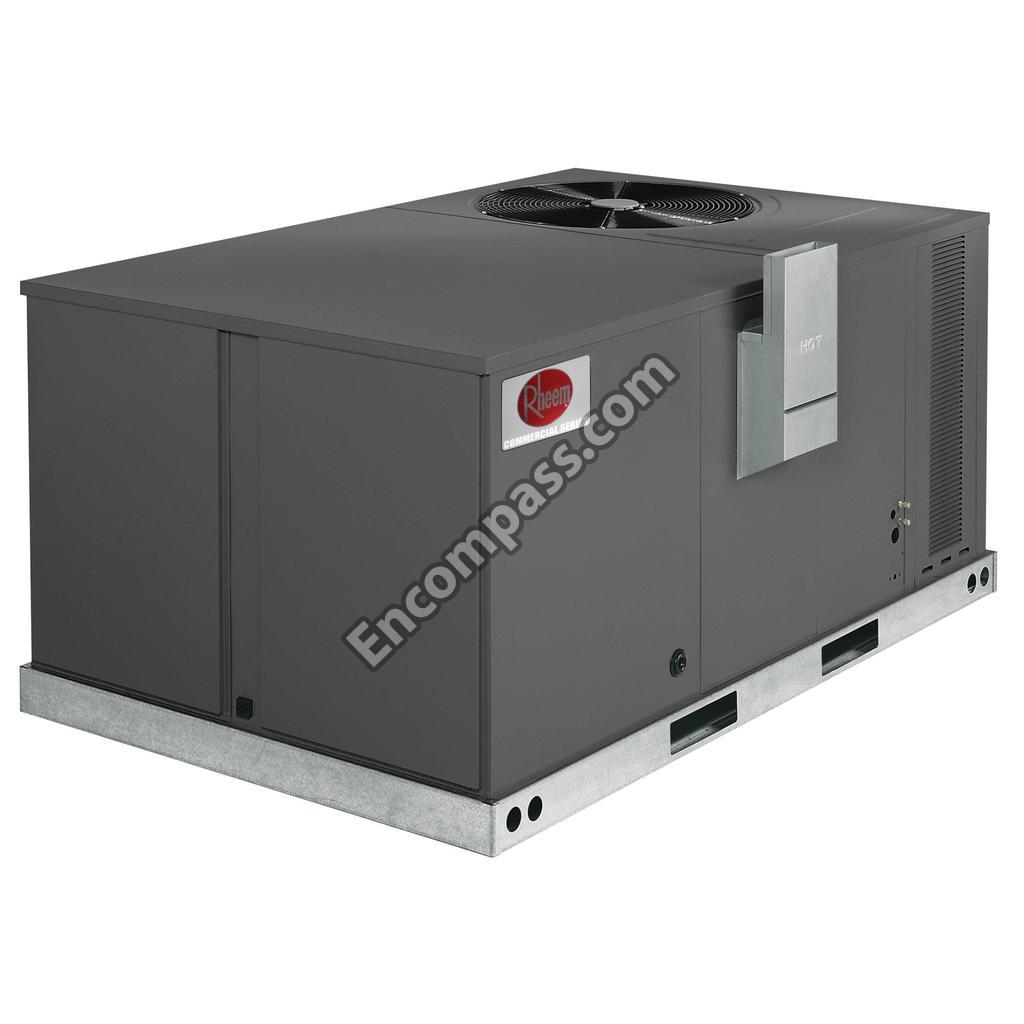

Model Image
Manufacturer

Rheem

Model Number

RKQNA048CK10E

Description

Commercial Packaged Gas Electric

Interactive Exploded View

Parts List

Part Number Description
62-21551-45 62-21551-45 #45 NATURAL GAS BURNER ORIFICE
60-105055-01 60-105055-01 1/2-INCH HSI/DSI GAS VALVE
60-106207-01 60-106207-01 1/2-INCH SLOW OPEN NG GAS VALVE

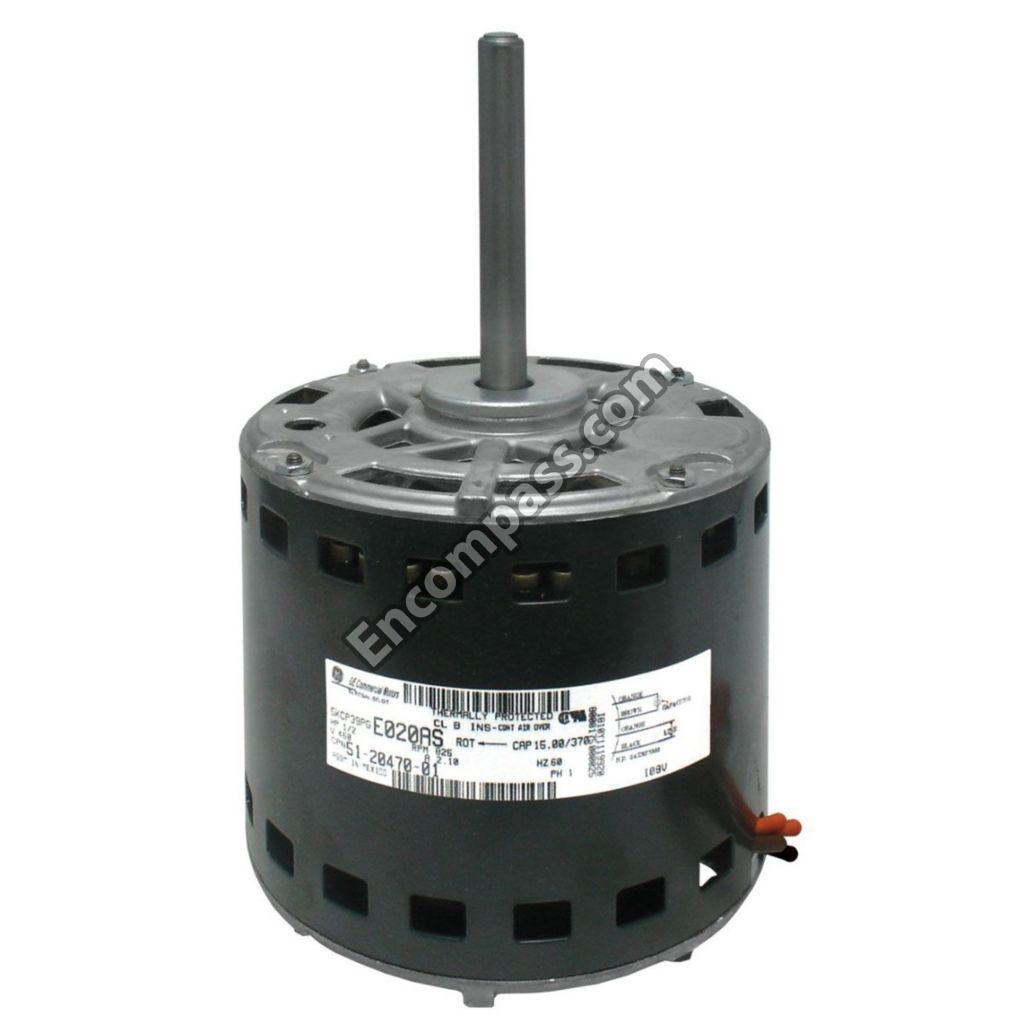

51-23679-01 51-23679-01 1/2HP 208-230V 1075RPM 48 MTR
51-100998-30 51-100998-30 1/3HP 208-230V 1075RPM 48 MTR
70-23110-30 70-23110-30 10X10 CCW BLOWER WHEEL;1/2BORE
47-23610-21 47-23610-21 175-20F SPST LIMIT SWITCH
47-17359-30 47-17359-30 180-200F AUTO LIMIT SWITCH
55-102045-11S 55-102045-11S 208-230V3PH R410A SCROLL COMPR
46-25107-03 46-25107-03 208-240V-PRI 24V-SEC 40VA TRAN
70-23137-01 70-23137-01 24-INCH DIA 19DEG 1/2-INCH CCW 2BLD FAN
42-25103-01 42-25103-01 24V 32A 3POLE CONTACTOR
79-21491-83 79-21491-83 3/16X18-INCH RUBBER SILICONE TUBING
83-25151-41 83-25151-41 3/8-INCH 8CUIN LIQUIDLINEDRIER
61-102211-33 61-102211-33 3/8-INCHX3/8-INCH 3TON R-410A TXV
47-22861-02 47-22861-02 300F M/R LIMIT SWITCH
61-102258-03 61-102258-03 4-1/2 TON R410A TXV
62-22175-45 62-22175-45 45 NATURAL GAS ORIFICE
AS-60993-05 AS-60993-05 5TUBE BURNER ASSEMBLY
47-102240-03 47-102240-03 95#-CLS 50#-OPN AUTO RESET LMT
AS-58990-01HT AS-58990-01HT ACCESS PANEL
AS-59050-03 AS-59050-03 BLOWER ASSEMBLY
AE-64401-05 AE-64401-05 BLOWER CUT-OFF
AS-58944-01 AS-58944-01 BLOWER HOUSING
AE-58950-02 AE-58950-02 BLOWER SUPPORT
AE-59174-01 AE-59174-01 BLOWER SUPPORT BRACKET
AE-61588-02 AE-61588-02 BURNER BRACKET
AE-58932-02 AE-58932-02 BURNER COMPARTMENT FLOOR
AE-58886-01 AE-58886-01 BURNER SHIELD
43-25134-22 43-25134-22 CAPAC 10 MFD 440V OVAL
AE-50892-81 AE-50892-81 CAPACITOR STRAP
AE-59068-02 AE-59068-02 COLLECTOR BOX COVER
68-23680-01 68-23680-01 COLLECTOR BOX GASKET
56-18518-06 56-18518-06 COMPRESSOR MOUNTING GROMMET
45-100834-80 45-100834-80 COMPRESSOR WIRING HARNESS
62-23556-82 62-23556-82 DIRECT SPARK IGNITOR
AE-59067-01 AE-59067-01 DIVIDER PLATE
68-23680-02 68-23680-02 DIVIDER PLATE GASKET
68-23559-01 68-23559-01 DRAIN PAN
AS-102352-03 AS-102352-03 EVAPORATOR COIL
54-17531-10 54-17531-10 FILTER
AE-58934-01 AE-58934-01 FILTER CHANNEL
62-23543-02 62-23543-02 FLAME SENSOR
68-23680-03 68-23680-03 FLUE DUCT GASKET
AS-58945-01 AS-58945-01 FLUE HOOD ASSEMBLY
AS-59066-90 AS-59066-90 HEAT EXCHANGER W/ GASKETS
47-23699-06 47-23699-06 HI PRESSURE LIMIT M/R 610#
70-23641-86 70-23641-86 INDUCED DRAFT BLOWER W/GASKET
68-23643-01 68-23643-01 INDUCER BLOWER GASKET
75-22840-02 75-22840-02 INSHOT BURNER TUBE
62-23599-05 62-23599-05 INTEGRATED FURNACE CONTROL
AS-59152-01 AS-59152-01 LIMITSHIELDASSEMLBY
83-ADK-083S 83-ADK-083S LIQUID LINE FILTER DRIER
81-101153-01 81-101153-01 MANIFOLD
81-23593-01 81-23593-01 MANIFOLD PLUG 1/8-INCH
70-19929-02 70-19929-02 MOTOR MOUNT ARM W/GROMMET
70-19927-01 70-19927-01 MOTOR MOUNT BAND
60-103901-01K 60-103901-01K NATURAL GAS VALVE
47-22861-01 47-22861-01 RHEEM 47-22861-01 LIMIT SWITCH - L350F MANUAL RESE
43-25134-04 43-25134-04 RUN CAPAC 10 MFD 370V OVAL
43-25134-02 43-25134-02 RUN CAPAC 5 MFD 370V OVAL
42-105601-20 42-105601-20 SPSP PRESSURE SWITCH -.45WC
47-23683-04 47-23683-04 SPST A/R N/O LIMIT; 30OP 40CL
47-100241-01 47-100241-01 SPST N/C M/R LIMIT; 400OP
95-101660-01 95-101660-01 TOP WIRE GRILL
AE-58922-01 AE-58922-01 TURBULATOR
64-21106-02 64-21106-02 TXV BULB STRAP MOUNTING KIT
61-18551-01 61-18551-01 VALVE CORE
