Manufacturer
Rheem
Model Number
RLNLH090DS000
Description

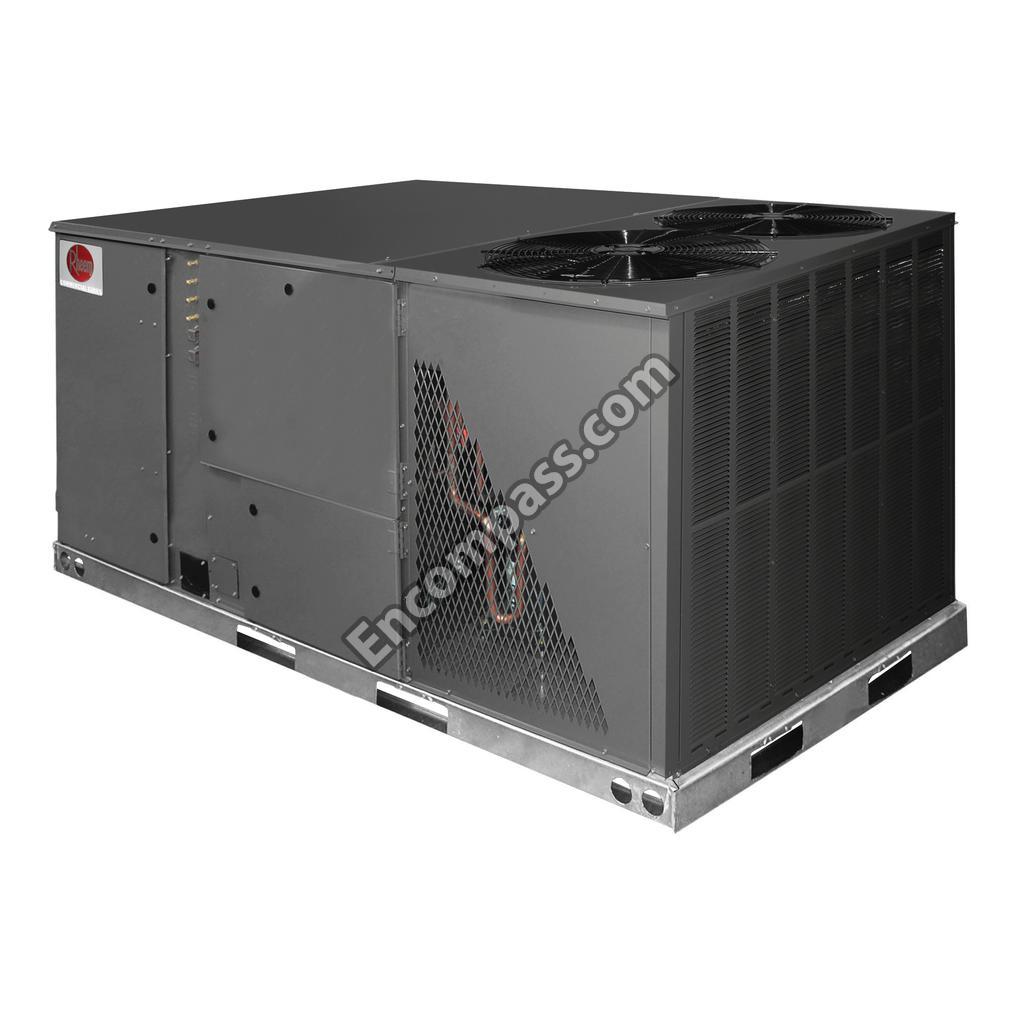

Commercial Packaged Ac
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
1/2-INCH R410A SWEAT TXV |
|
|
1/3HP 460V 1075RPM 1PH 48 MTR |
|
|
1/8-INCH COPPER TUBE |
|
|
15X15 1-INCH BORE CW/CCW BLWR WHEEL |
|
|
17 7/8-INCH X17 7/8-INCH X1 7/8-INCH FILTER |
|
|
22 7/8-INCH X 1-INCH BLOWER SHAFT |
|
|
24-INCHDIA 22DEG 1/2-INCH CCW 3 BLADE FAN |
|
|
24V 30A 3P CONTACTOR W/AUX |
|
|
24V 32A 3POLE CONTACTOR |
|
|
24V SPST N/O RELAY |
|
|
2HP 208-230/460V3PH 1725RPM |
|
|
3/8-INCH 8CUIN LIQUIDLINEDRIER |
|
|
3/8-INCH SWT TXV R-410A W/DISTRIBUT |
|
|
460/575VPRI 25VSEC 100VA XFRMR |
|
|
460V3PH 39000BTU R-410A COMP |
|
|
8.75-INCH FIXED SHEAVE; 1-INCH BORE |
|
|
A/R HI LIMIT 610OP 420CL |
|
|
ADJUSTABLE SHEAVE |
|
|
ANGLE BLOWER MOUNTING |
|
|
BEARING W/CUSHING; 1-INCH BORE |
|
|
BLOWER ASSEMBLY |
|
|
BULKHEAD VALVE |
|
|
CAPAC 10 MFD 440V OVAL |
|
|
CAPACITOR STRAP |
|
|
COMPRESSOR MOUNTING GROMMET |
|
|
CONDENSER COIL |
|
|
DISCONNECT PLATE |
|
|
DISTRIBUTOR ASSEMBLY |
|
|
EVAPORATOR COIL |
|
|
KEY |
|
|
LIQUID LINE FILTER DRIER |
|
|
LOW#LIMIT OPEN50 CLOSE95 |
|
|
MOLDED PLUG |
|
|
MOTOR MOUNT ASSEMBLY |
|
|
OUTDOOR FAN MTR CONTROLLER |
|
|
PRESSURE SWITCH KIT |
|
|
REMOVEABLE DRAIN PAN |
|
|
ROOFTOP UNIT CONTROLLER BOARD |
|
|
RUN CAPAC 10 MFD 370V OVAL |
|
|
TERMINAL BLOCK |
|
|
TERMINAL BLOCK |
|
|
TRI-ARM ASSEMBLY |
|
|
TXV BULB STRAP MOUNTING KIT |
|
|
VALVE CORE |
|
|
VARIABLEPITCHSHEAVE 7/8-INCH BORE |
|
|
WIRE GRILL |
|
|
WIRING HARNESS |
