Model Image
Manufacturer

Rheem

Model Number

RLNNC036DL000

Description

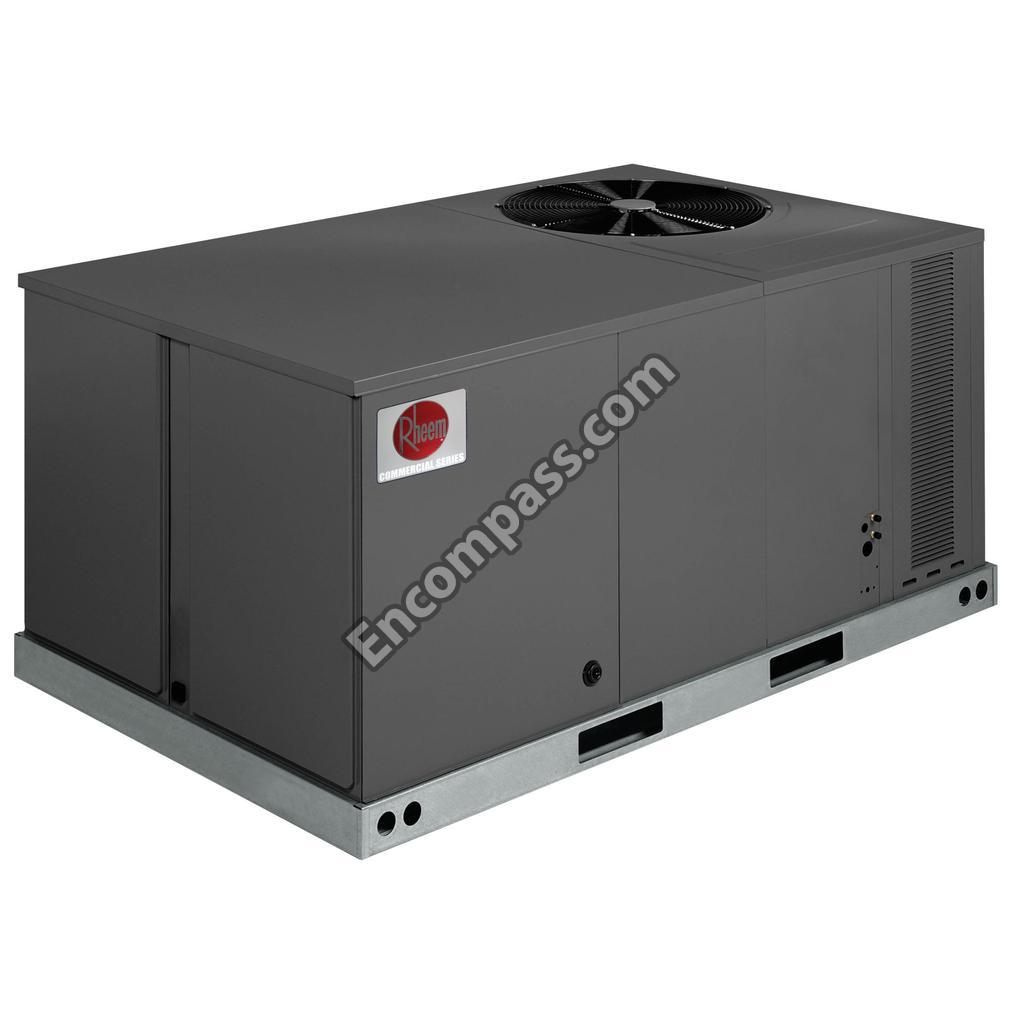

Commercial Packaged Ac

Interactive Exploded View

Parts List

Part Number Description
51-42579-01 51-42579-01 1/2HP 208/230/460V3PH 1725RPM

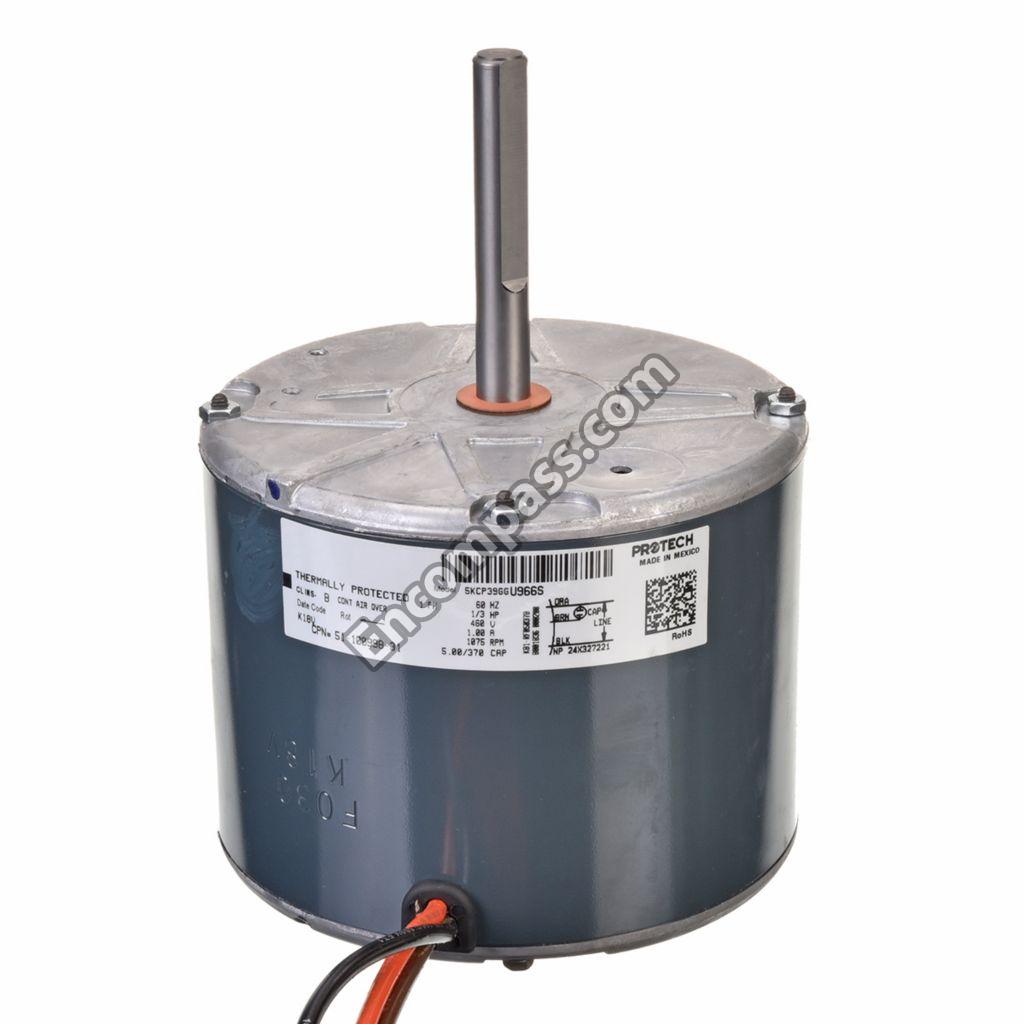

51-100998-31 51-100998-31 1/3HP 1075RPM 460V COND. MOTOR
70-23589-01 70-23589-01 10-INCHDIA 10-INCHW CCW 3/4-INCHWHEEL
70-23137-01 70-23137-01 24-INCH DIA 19DEG 1/2-INCH CCW 2BLD FAN
42-25103-01 42-25103-01 24V 32A 3POLE CONTACTOR
70-21933-02 70-21933-02 3/4-INCHX17 3/8-INCH BLOWER SHAFT
83-25151-41 83-25151-41 3/8-INCH 8CUIN LIQUIDLINEDRIER
44-ATC3-5PK 44-ATC3-5PK 3A FUSE; 5PK 44-ATC3-5PK
47-102240-03 47-102240-03 95#-CLS 50#-OPN AUTO RESET LMT
47-23699-04 47-23699-04 A/R HI LIMIT 610OP 420CL
AS-58990-01HT AS-58990-01HT ACCESS PANEL
70-41911-01 70-41911-01 BEARING & CUSHION
AS-101336-85 AS-101336-85 BLOWER ASSEMBLY - BELT DRIVE
AE-101124-01 AE-101124-01 BLOWER BRACKET
AE-64401-05 AE-64401-05 BLOWER CUT-OFF
AS-101341-01 AS-101341-01 BLOWER HOUSING
AE-58950-02 AE-58950-02 BLOWER SUPPORT
AE-50892-81 AE-50892-81 CAPACITOR STRAP
56-18518-06 56-18518-06 COMPRESSOR MOUNTING GROMMET
45-100834-80 45-100834-80 COMPRESSOR WIRING HARNESS
AE-101467-01 AE-101467-01 CROSS BRACE
68-23559-01 68-23559-01 DRAIN PAN
AS-104531-02 AS-104531-02 EVAPORATOR COIL
54-17531-10 54-17531-10 FILTER
AE-58934-01 AE-58934-01 FILTER CHANNEL
71-104627-05 71-104627-05 FIXED SHEAVE
94-22030-01 94-22030-01 KEY 3/16-INCH X 3/16-INCH X 1 1/4-INCH
83-ADK-083S 83-ADK-083S LIQUID LINE FILTER DRIER
AS-104518-02 AS-104518-02 MICRO CHANNEL COIL
AS-101340-01 AS-101340-01 MOTOR MOUNT ASSEMBLY
42-103320-108 42-103320-108 PRESSURE SWITCH KIT
47-102883-02 47-102883-02 ROOFTOP UNIT CONTROLLER BOARD
43-25134-02 43-25134-02 RUN CAPAC 5 MFD 370V OVAL
95-101660-01 95-101660-01 TOP WIRE GRILL
70-41723-03 70-41723-03 TRI-ARM ASSEMBLY
64-21106-02 64-21106-02 TXV BULB STRAP MOUNTING KIT
61-102211-34 61-102211-34 TXV VALVE 3/8 X 3/8 2TON
61-18551-01 61-18551-01 VALVE CORE
