Manufacturer
Rheem
Model Number
RLPNA048DL000
Description

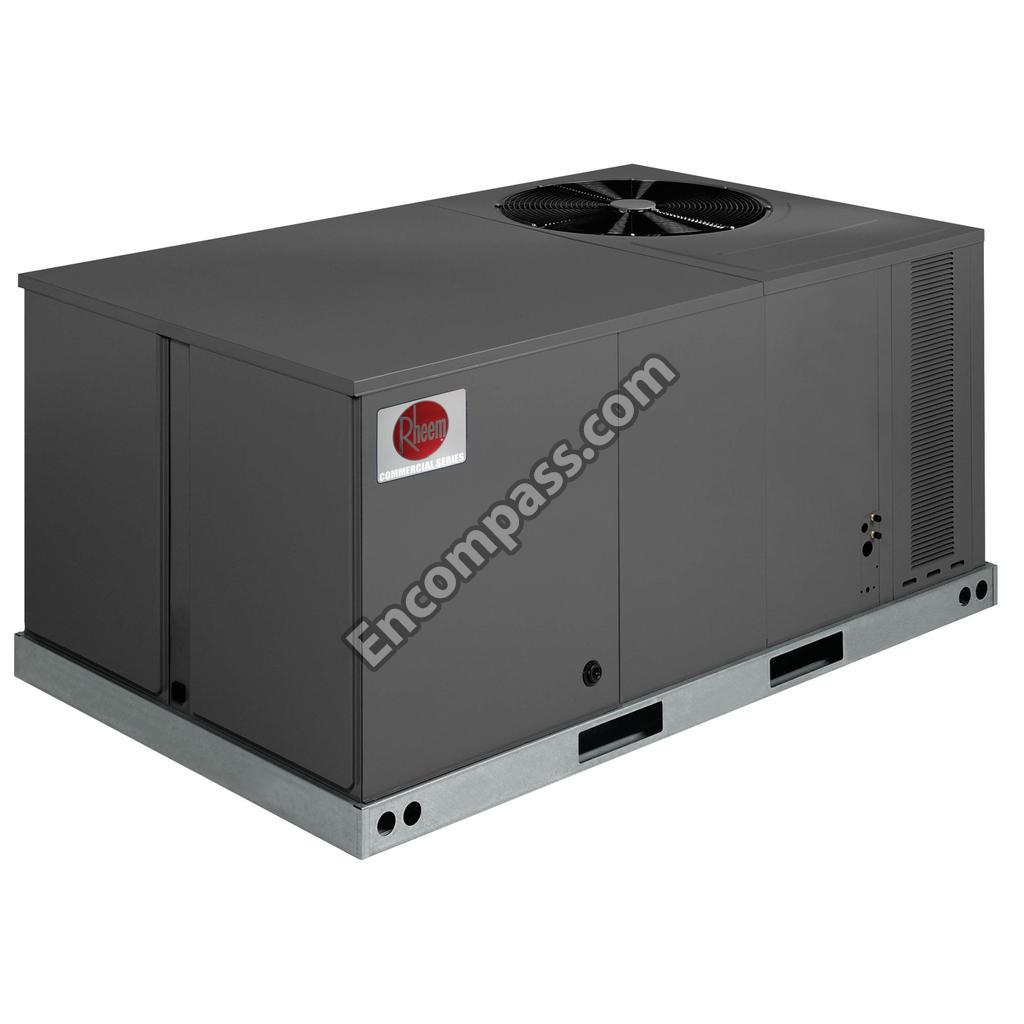

Commercial Packaged Ac
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
1/2HP 208/230/460V3PH 1725RPM |
|
|
1/3HP 1075RPM 460V COND. MOTOR |
|
|
10-INCHDIA 10-INCHW CCW 3/4-INCHWHEEL |
|
|
24-INCH DIA 19DEG 1/2-INCH CCW 2BLD FAN |
|
|
24V 32A 3POLE CONTACTOR |
|
|
24V SPDT NO/NC RELAY |
|
|
3 TON R410A 3/8-INCH TXV |
|
|
3/4-INCHX17 3/8-INCH BLOWER SHAFT |
|
|
3/8-INCH 8CUIN LIQUIDLINEDRIER |
|
|
3/8-INCHX3/8-INCH 3TON R-410A TXV |
|
|
4-1/2 TON R410A TXV |
|
|
460/575VPRI 25VSEC 100VA XFRMR |
|
|
460/575VPRIM 24VSEC 50VA TRANS |
|
|
6.45-INCH FIXED SHEAVE; 3/4-INCH BORE |
|
|
95#-CLS 50#-OPN AUTO RESET LMT |
|
|
A/R HI LIMIT 610OP 420CL |
|
|
ACCESS PANEL |
|
|
BEARING & CUSHION |
|
|
BLOWER ASSEMBLY - BELT DRIVE |
|
|
BLOWER BRACKET |
|
|
BLOWER CUT-OFF |
|
|
BLOWER HOUSING |
|
|
BLOWER SUPPORT |
|
|
CAPACITOR STRAP |
|
|
COMPRESSOR MOUNTING GROMMET |
|
|
COMPRESSOR WIRING HARNESS |
|
|
CROSS BRACE |
|
|
DRAIN PAN |
|
|
EVAPORATOR COIL |
|
|
FILTER |
|
|
FILTER CHANNEL |
|
|
FIXED SHEAVE |
|
|
HI PRESSURE LIMIT M/R 610# |
|
|
KEY 3/16-INCH X 3/16-INCH X 1 1/4-INCH |
|
|
LIMITSHIELDASSEMLBY |
|
|
LIQUID LINE FILTER DRIER |
|
|
MOTOR MOUNT ASSEMBLY |
|
|
OUTDOOR FAN MTR CONTROLLER |
|
|
PRESSURE SWITCH KIT |
|
|
ROOFTOP UNIT CONTROLLER BOARD |
|
|
RUN CAPAC 5 MFD 370V OVAL |
|
|
SPST A/R N/O LIMIT; 30OP 40CL |
|
|
TIME DELAY RELAY |
|
|
TOP WIRE GRILL |
|
|
TRI-ARM ASSEMBLY |
|
|
TXV BULB STRAP MOUNTING KIT |
|
|
VALVE CORE |
|
|
VARIABLE PITCH SHEAVE |
