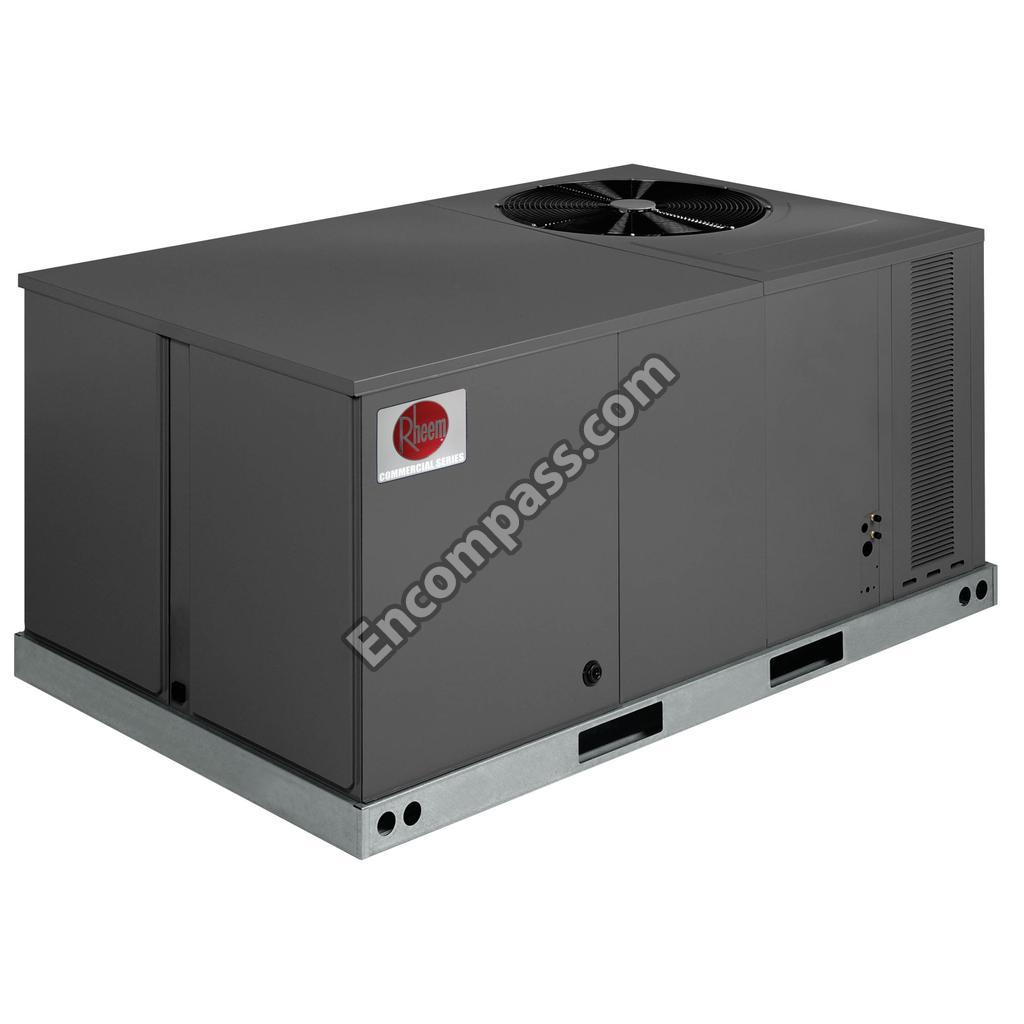

Model Image
Manufacturer

Rheem

Model Number

RLPNA060DM000

Description

Commercial Packaged Ac

Interactive Exploded View

Parts List

Part Number Description
51-100998-33 51-100998-33 1/3HP 460V 1075RPM 1SPD MOTOR
70-23589-01 70-23589-01 10-INCH DIA 10-INCH W CCW 3/4-INCH WHEEL
70-21773-01 70-21773-01 11X10 REV BLOWER WHEEL;3/4BORE
51-41936-01 51-41936-01 1HP 208-230/460V 1725RPM MOTOR
70-42484-01 70-42484-01 24-INCH DIA 25DEG 1/2-INCH CCW 3BLD FAN
42-25103-01 42-25103-01 24V 32A 3POLE CONTACTOR

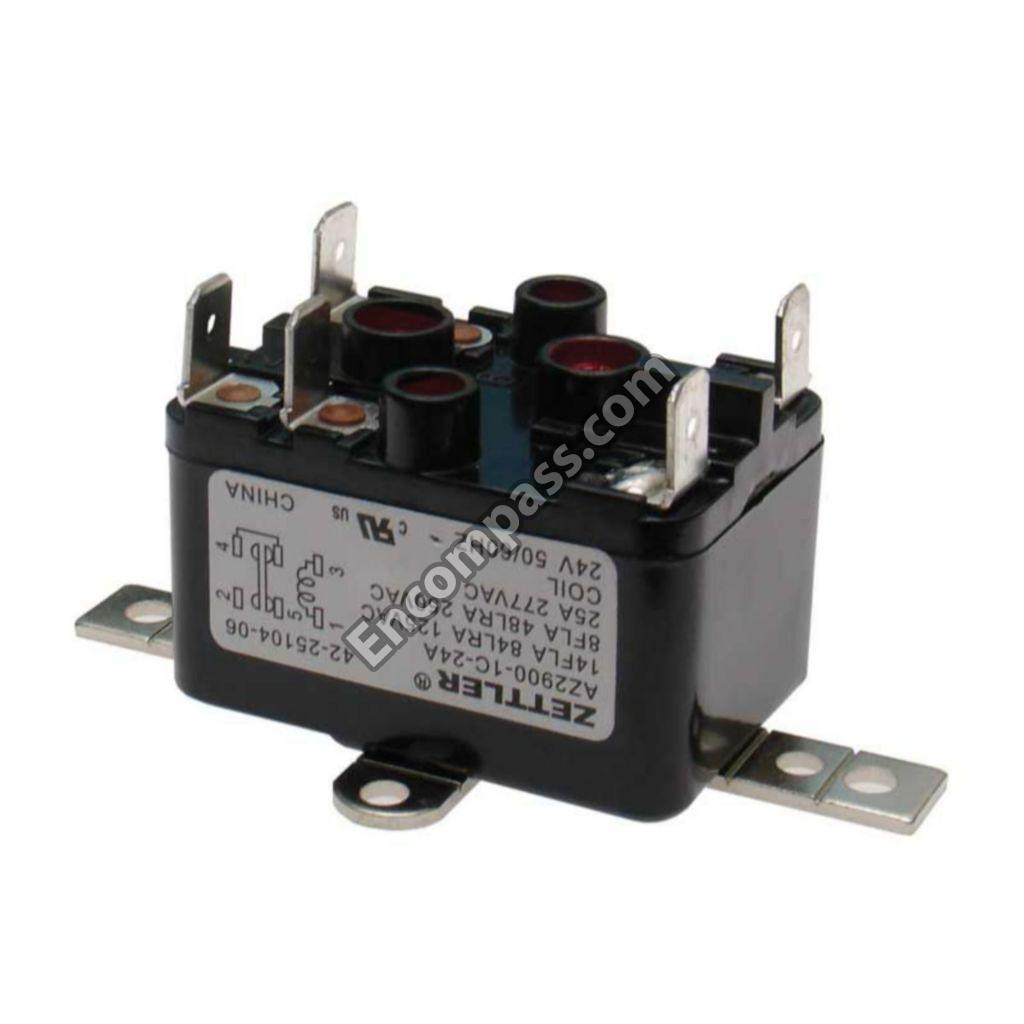

42-25104-06 42-25104-06 24V SPDT NO/NC RELAY
70-21933-02 70-21933-02 3/4-INCHX17 3/8-INCH BLOWER SHAFT
83-25151-41 83-25151-41 3/8-INCH 8CUIN LIQUIDLINEDRIER
61-102211-32 61-102211-32 3/8-INCH R410A TXV
44-ATC3-5PK 44-ATC3-5PK 3A FUSE; 5PK 44-ATC3-5PK
46-102027-01 46-102027-01 460/575VPRIM 24VSEC 50VA TRANS
71-104625-06 71-104625-06 5.35-INCH ADJ. SHEAVE; 5/8-INCH BORE
71-104627-01 71-104627-01 6.45-INCH FIXED SHEAVE; 3/4-INCH BORE
47-102240-03 47-102240-03 95#-CLS 50#-OPN AUTO RESET LMT
47-23699-04 47-23699-04 A/R HI LIMIT 610OP 420CL
AS-58990-01HT AS-58990-01HT ACCESS PANEL
70-41911-01 70-41911-01 BEARING & CUSHION
AS-101336-85 AS-101336-85 BLOWER ASSEMBLY - BELT DRIVE
AE-101124-01 AE-101124-01 BLOWER BRACKET
AE-101124-05 AE-101124-05 BLOWER BRACKET
AE-64401-05 AE-64401-05 BLOWER CUT-OFF
AE-64401-18 AE-64401-18 BLOWER CUT-OFF
AS-101341-01 AS-101341-01 BLOWER HOUSING
AE-58950-02 AE-58950-02 BLOWER SUPPORT
43-25134-22 43-25134-22 CAPAC 10 MFD 440V OVAL
56-18518-06 56-18518-06 COMPRESSOR MOUNTING GROMMET
45-100834-80 45-100834-80 COMPRESSOR WIRING HARNESS
AS-101717-01 AS-101717-01 CONDENSER COIL
AS-104518-01 AS-104518-01 CONDENSER COIL
AE-101467-01 AE-101467-01 CROSS BRACE
68-23559-01 68-23559-01 DRAIN PAN
AS-102353-03 AS-102353-03 EVAPORATOR COIL
AS-102354-03 AS-102354-03 EVAPORATOR COIL
AS-104531-01 AS-104531-01 EVAPORATOR COIL
61-102258-04 61-102258-04 EXPANSION VALVE (TXV)
61-102258-05 61-102258-05 EXPANSION VALVE W/ DISTRIBUTOR
54-17531-10 54-17531-10 FILTER
AE-58934-01 AE-58934-01 FILTER CHANNEL
71-104627-05 71-104627-05 FIXED SHEAVE
47-23699-06 47-23699-06 HI PRESSURE LIMIT M/R 610#
94-22030-01 94-22030-01 KEY 3/16-INCH X 3/16-INCH X 1 1/4-INCH
AS-59152-01 AS-59152-01 LIMITSHIELDASSEMLBY
83-ADK-083S 83-ADK-083S LIQUID LINE FILTER DRIER
AS-101340-01 AS-101340-01 MOTOR MOUNT ASSEMBLY
43-25134-04 43-25134-04 RUN CAPAC 10 MFD 370V OVAL
47-23683-04 47-23683-04 SPST A/R N/O LIMIT; 30OP 40CL
42-21593-03 42-21593-03 TIME DELAY RELAY
95-101660-01 95-101660-01 TOP WIRE GRILL
70-41723-02 70-41723-02 TRI-ARM ASSEMBLY
70-41723-03 70-41723-03 TRI-ARM ASSEMBLY
64-21106-02 64-21106-02 TXV BULB STRAP MOUNTING KIT
61-18551-01 61-18551-01 VALVE CORE
71-104625-05 71-104625-05 VARIABLEPITCHSHEAVE 5/8-INCH BORE
