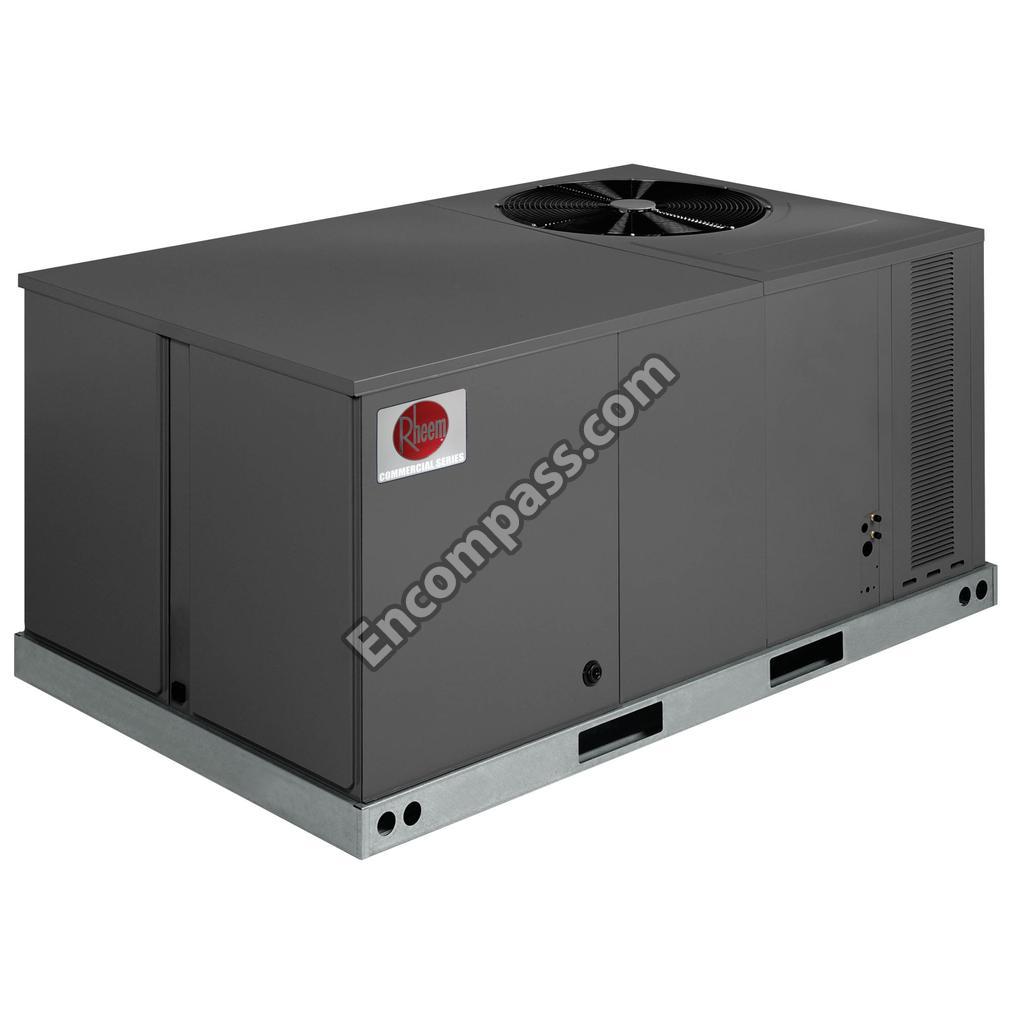

Manufacturer
Rheem
Model Number
RLQNA060CK000
Description
Commercial Packaged Ac
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
1/3HP 208-230V 1075RPM 48 MTR |
|
|
10X10 CCW BLOWER WHEEL;1/2BORE |
|
|
1HP 208-230V UNPROGRAMMED MTR |
|
|
1HP 208-230V VARIABLE SPD MTR |
|
|
208/240V-PRI 24V-SEC 50VA |
|
|
24-INCHDIA 25DEG 1/2-INCH CCW 3BLD FAN |
|
|
24V 32A 3POLE CONTACTOR |
|
|
24V SPST N/O RELAY |
|
|
3/8-INCH 8CUIN LIQUIDLINEDRIER |
|
|
3/8-INCH R410A TXV |
|
|
95#-CLS 50#-OPN AUTO RESET LMT |
|
|
ACCESS PANEL |
|
|
BLOWER ASSEMBLY - DIRECT DRIVE |
|
|
BLOWER CUT-OFF |
|
|
BLOWER HOUSING |
|
|
BLOWER SUPPORT |
|
|
BLOWER SUPPORT BRACKET |
|
|
CAPAC 10 MFD 440V OVAL |
|
|
COMPRESSOR MOUNTING GROMMET |
|
|
COMPRESSOR WIRING HARNESS |
|
|
CONDENSER COIL |
|
|
DRAIN PAN |
|
|
EVAPORATOR COIL |
|
|
EXPANSION VALVE (TXV) |
|
|
FILTER |
|
|
FILTER CHANNEL |
|
|
HI PRESSURE LIMIT M/R 610# |
|
|
LIMITSHIELDASSEMLBY |
|
|
LIQUID LINE FILTER DRIER |
|
|
MOTOR MOUNT ARM W/ GROMMET |
|
|
MOTOR MOUNT BAND |
|
|
RUN CAPAC 10 MFD 370V OVAL |
|
|
SPST A/R N/O LIMIT; 30OP 40CL |
|
|
TOP WIRE GRILL |
|
|
TXV BULB STRAP MOUNTING KIT |
|
|
VALVE CORE |
