Manufacturer
Rheem
Model Number
RPNL031JAZ
Description
Heat Pump - Residential Condenser
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
1/2X3/4 6TON REV. VLV W/O COIL |
|
|

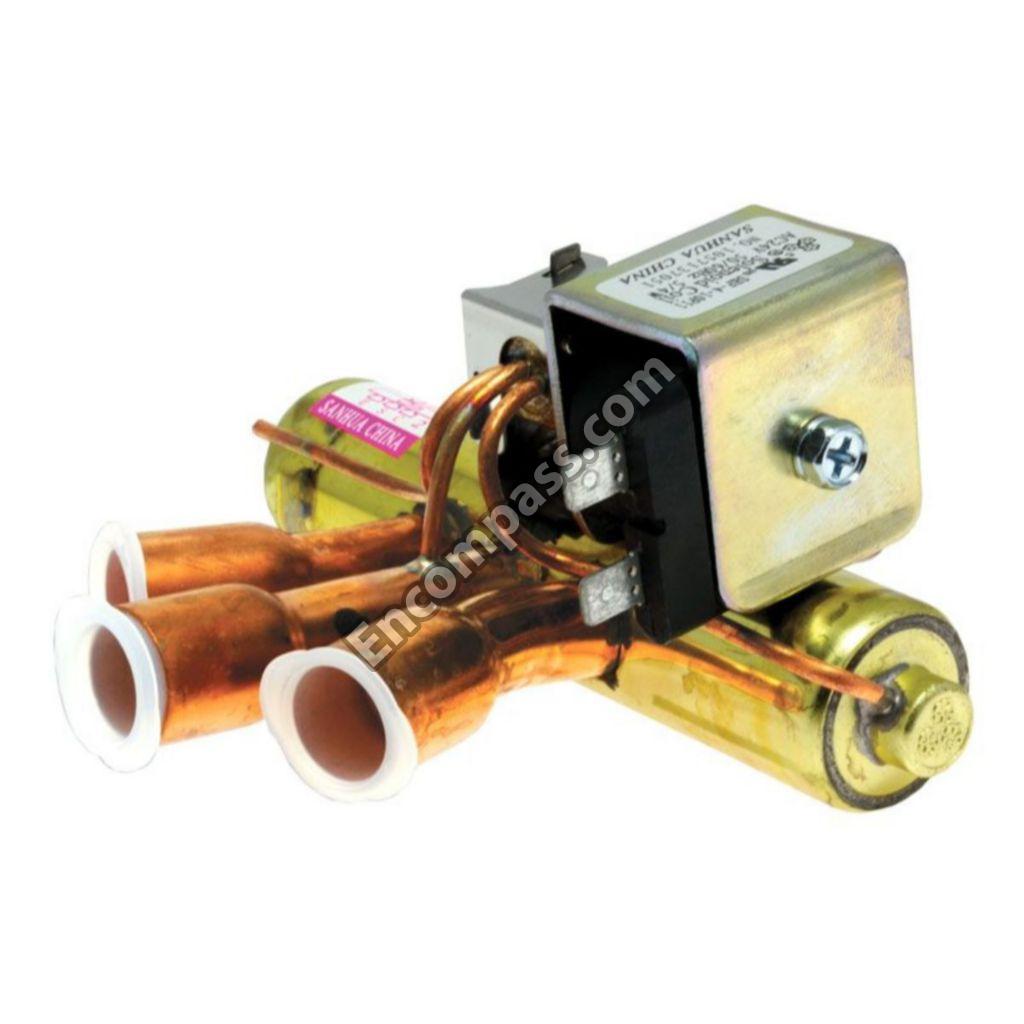

1/2X5/8 24V REVERSING VALVE |
|
|
1/5HP 208-230V 825RPM 48 MOTOR |
|
|
1/6HP 208-230V 825RPM 1SPD MTR |
|
|
1/8-INCH COPPER TUBE |
|
|
230V1PH 25200BTU R410A COMP. |
|
|
24-INCH DIA 22DEG 1/2-INCH CCW 2BLD FAN |
|
|
24V 30A 1POLE CONTACTOR |
|
|
26-INCH WIRE GRILLE |
|
|
3/4-INCH OD SUCTION LINE VALVE |
|
|
3/8-INCH BI-FLOW FILTER DRIER |
|
|
3/8-INCH LIQUID LINE FILTER DRIER |
|
|
3/8-INCH SWEATODF 600# LIQ SRVC VLV |
|
|
3/8X1/2 680# MUFFLER KIT |
|
|
40/5/370 DUAL ROUND CAPACITOR |
|
|
40/5MFD 370V RND RUN CAPACITOR |
|
|
40/5MFD 440V ROUND CAPACITOR |
|
|
A/R HIGH # LIMIT; 610OP 420CL |
|
|
BULB STRAINER |
|
|
CHARGE COMPENSATOR |
|
|
COMPRESSOR MOUNTING GROMMET |
|
|
COMPRESSOR WIRING HARNESS |
|
|
DEFROST AND AMBIENT SENSOR KIT |
|
|
DEFROST CONTROL BOARD KIT |
|
|
DEFROST CONTROL BOARD KIT |
|
|
DEFROST CONTROL KIT |
|
|
DISTRIBUTOR ASSEMBLY |
|
|
HIGH PRESSURE LIMIT-AUTO RESET |
|
|
LOW PRESSURE LIMIT/AUTO RESET |
|
|
LOW PRESSURE SW 15#OP 40#CL |
|
|
TOP PANEL |
|
|
TOP PANEL - NEUTRA GREEN |
|
|
TOPPANEL 16X32 |
|
|
TXV BULB STRAP MOUNTING KIT |
|
|
VALVE CORE |
