Model Image
Manufacturer

Rheem

Model Number

RQPMA024JK000

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
51-101880-00 51-101880-00 1/2HP 208-230V NON-PROGRAM MTR
51-102500-10 51-102500-10 1/3HP 208-230V 825RPM 1PH MTR
51-101879-00 51-101879-00 1/3HP 230V X13BLANKUNPROGMOTOR
83-CD3608-6PK 83-CD3608-6PK 1/8-INCH COPPER TUBE
51-100999-04 51-100999-04 208-230V1PH 1/5HP 1075RPM MTR
46-100836-01 46-100836-01 208/230-24V 40VA TRANSFORMER
55-102045-01S 55-102045-01S 208/230V1PH 21300BTU R410A
70-21858-06 70-21858-06 22-INCH DIA 21DEG 1/2-INCH CCW 2BLD FAN
70-101323-19 70-101323-19 22-INCH DIA 28DEG 1/2-INCH CCW 3BLD FAN
70-100580-08 70-100580-08 24-INCH DIA 23DEG 1/2-INCH CCW 3BLD FAN
42-25101-01 42-25101-01 24V 30A 1POLE CONTACTOR
61-101713-01 61-101713-01 24V REVERSING VALVE COIL
42-21571-08 42-21571-08 24V SPST N/O RELAY
61-102498-09 61-102498-09 3/4X1/2 24V 4TON REVERSING VLV
61-102498-02 61-102498-02 3/4X1/2 24V REVERSING VALVE
83-41714-03 83-41714-03 3/8-INCH BI-FLOW FILTER DRIER
83-25152-09 83-25152-09 3/8-INCH LIQUID LINE FILTER DRIER
61-102211-29 61-102211-29 3/8X3/8 R410A 2TON TXV; 30-INCH CAP
61-102211-07 61-102211-07 3/8X3/8 R410A 2TON TXV; 30-INCHCAP
43-25133-35 43-25133-35 35/5MFD 370V RND RUN CAPACITOR
43-25133-44 43-25133-44 40/5/370 DUAL ROUND CAPACITOR
43-25133-22 43-25133-22 40/5MFD 370V RND RUN CAPACITOR
43-25133-14 43-25133-14 40/5MFD 440V ROUND CAPACITOR
AS-53148-83 AS-53148-83 48FR BELLY BAND MOTOR MT KIT
61-101684-91 61-101684-91 5/8X3/8-INCH 2TON REVERSING VALVE
70-18631-01 70-18631-01 9-INCH DIA 7-INCH W CW 1/2-INCH WHEEL
47-102240-02 47-102240-02 A/R LOW # LIMIT; 15OP 40CL
AE-58611-01 AE-58611-01 AUXILIARY DRAIN PIPE
AE-64401-10 AE-64401-10 BLOWER CUT OFF
AS-58619-01 AS-58619-01 BLOWER HOUSING
70-100840-01 70-100840-01 BLOWER HOUSING AND WHEEL
83-26020-02 83-26020-02 BULB STRAINER
61-22369-04 61-22369-04 BULKHEAD VALVE
AE-50892-81 AE-50892-81 CAPACITOR STRAP
83-104499-01 83-104499-01 CHARGE COMPENSATOR
56-18518-06 56-18518-06 COMPRESSOR MOUNTING GROMMET
45-100834-80 45-100834-80 COMPRESSOR WIRING HARNESS
AS-102015-03 AS-102015-03 CONDENSER COIL
45-102303-01 45-102303-01 DANFOSS/BRISTOL MOLDED PLUG
PD476604 PD476604 DEFROST AND AMBIENT SENSOR KIT
47-102684-194 47-102684-194 DEFROST CONTROL BOARD KIT
47-102684-204 47-102684-204 DEFROST CONTROL BOARD KIT
47-102684-83 47-102684-83 DEFROST CONTROL BOARD KIT
47-21517-82 47-21517-82 DEFROST CONTROL BOARD KIT
47-102684-104 47-102684-104 DEFROST CONTROL KIT
83-102202-01 83-102202-01 DISTRIBUTOR ASSEMBLY
68-100808-02 68-100808-02 DRAIN PAN
68-23602-02 68-23602-02 DRAIN PAN
56-23601-01 56-23601-01 DRAIN PAN FITTING GROMMET

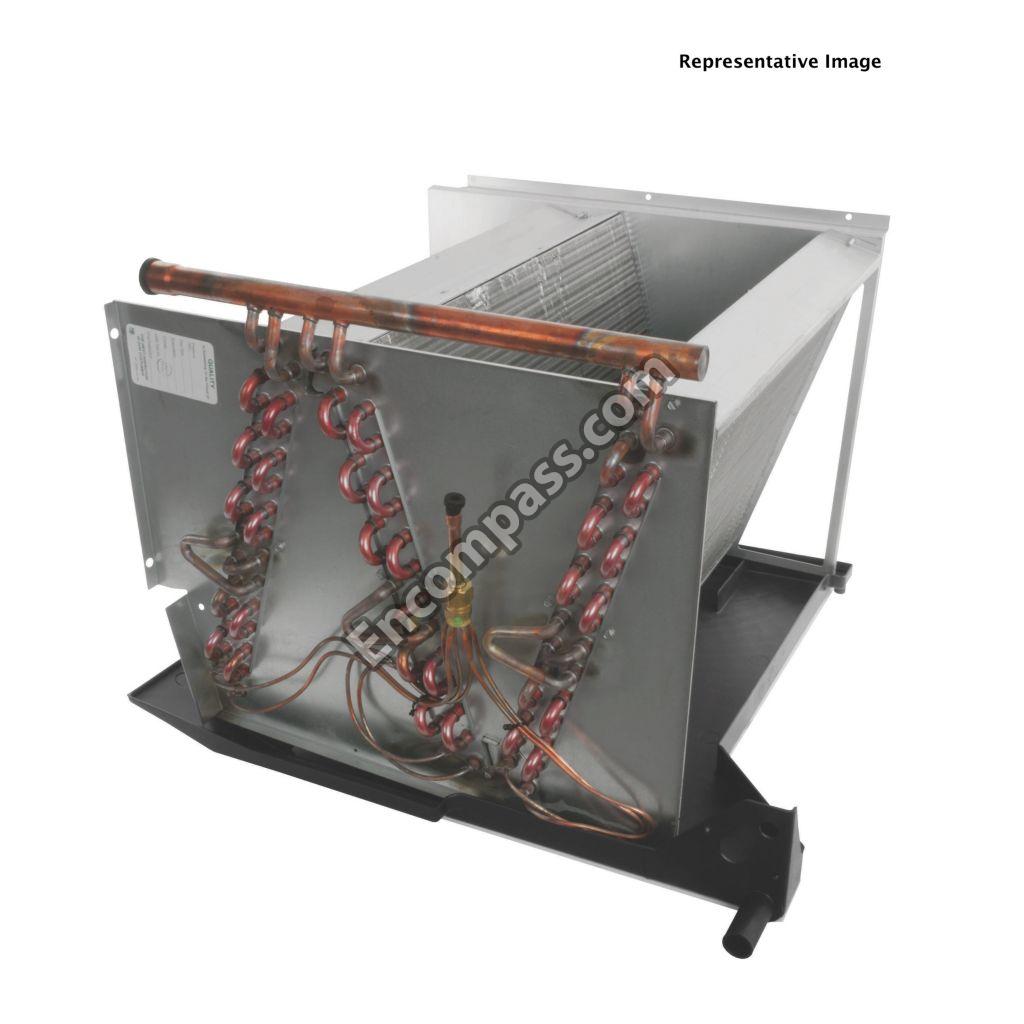

AS-104684-14 AS-104684-14 EVAPORATOR COIL
AS-104668-05 AS-104668-05 EVAPORATOR COIL W/DRAIN PAN
70-19929-09 70-19929-09 MOTOR MOUNT ARM W/ GROMMET
70-19929-02 70-19929-02 MOTOR MOUNT ARM W/GROMMET
70-19927-01 70-19927-01 MOTOR MOUNT BAND
70-19927-03 70-19927-03 MOTOR MOUNT BAND
68-23603-01 68-23603-01 PVC TRAP
55-102045-24S 55-102045-24S R410A 1P 208/230V SCROLL
47-25334-01 47-25334-01 SPST N/C A/R LIMIT;145OP 125CL
46-100836-05 46-100836-05 TRANSFORMER
64-21106-02 64-21106-02 TXV BULB STRAP MOUNTING KIT
61-18551-01 61-18551-01 VALVE CORE
95-100906-07 95-100906-07 WIRE GRILLE
95-100906-08 95-100906-08 WIRE GRILLE
51-104337-00 51-104337-00 X-13 BLANK ECM CONTROL MODULE
51-101880-07 51-101880-07 X-13 MOTOR 230V 1/2 HP

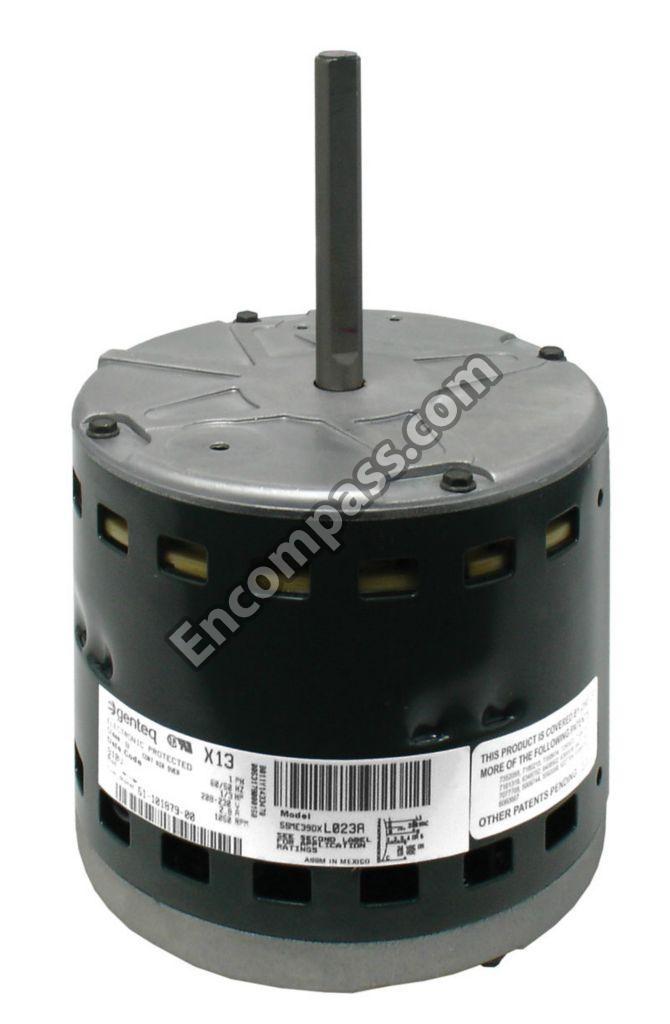

51-101879-02 51-101879-02 X-13 MOTOR 230V 1/3 HP
