Manufacturer
Rheem
Model Number
RQPMA036JK000
Description
Commercial Packaged Heat Pump
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
1/2HP 208-230V NON-PROGRAM MTR |
|
|
1/2HP 208-230V VAR SPEED MOTOR |
|
|
1/2HP 208-230V VAR SPEED MOTOR |
|
|
1/3HP 208-230V 825RPM 1PH MTR |
|
|
1/8-INCH COPPER TUBE |
|
|
10-INCH DIA 9-INCH W CW 1/2-INCH WHEEL |
|
|
208-230V1PH 1/5HP 1075RPM MTR |
|
|
208/230-24V 40VA TRANSFORMER |
|
|
22-INCH DIA 21DEG 1/2-INCH CCW 2BLD FAN |
|
|
22-INCH DIA 28DEG 1/2-INCH CCW 3BLD FAN |
|
|

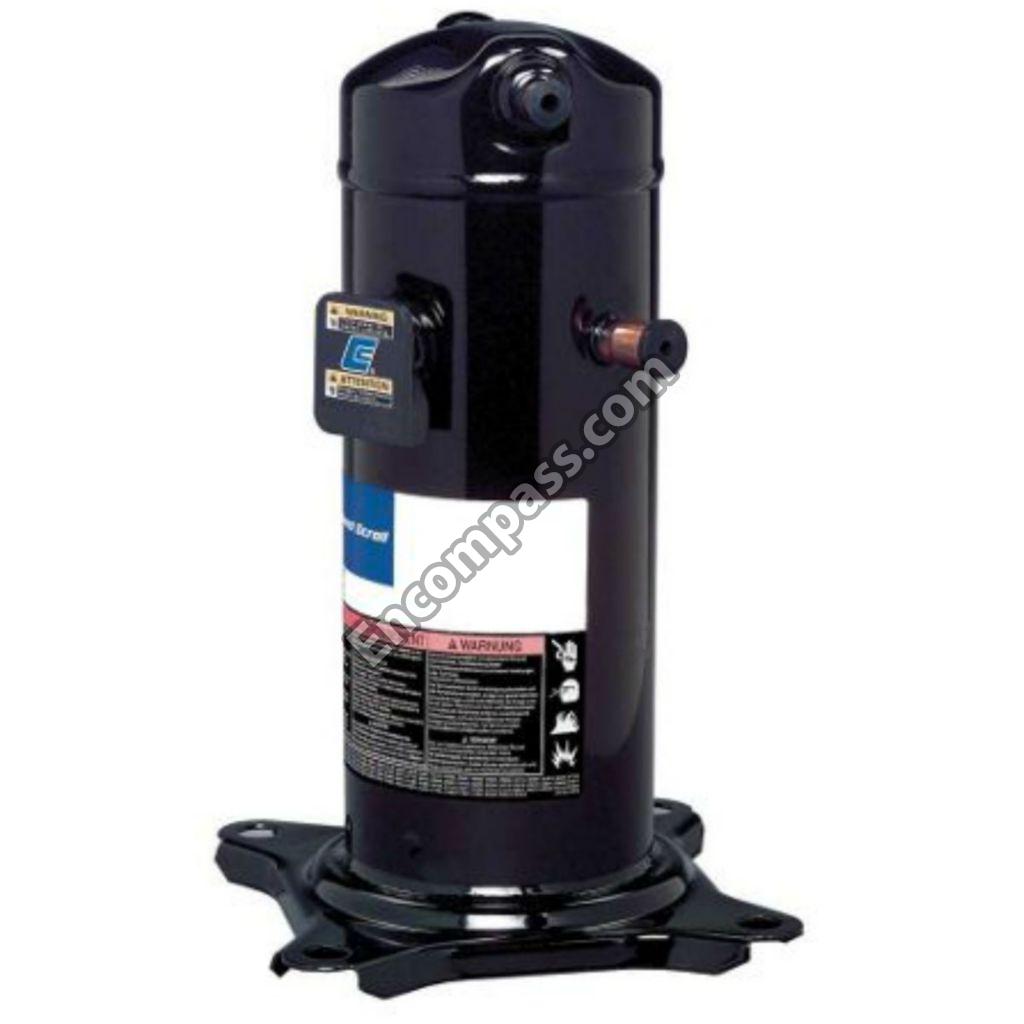

230V1PH 31000BTU R410A COMP |
|
|
24-INCH DIA 23DEG 1/2-INCH CCW 3BLD FAN |
|
|
24V 30A 1POLE CONTACTOR |
|
|
24V REVERSING VALVE COIL |
|
|
24V SPST N/O RELAY |
|
|
3/4X 3/8 CHARGE COMPENSATOR |
|
|
3/4X1/2 24V 4TON REVERSING VLV |
|
|
3/4X1/2 24V REVERSING VALVE |
|
|
3/8-INCH BI-FLOW FILTER DRIER |
|
|
3/8-INCH LIQUID LINE FILTER DRIER |
|
|
3/8-INCHX3/8-INCHODF 3TON R410A TXV |
|
|
3/8X3/8 R410A 2TON TXV; 30-INCH CAP |
|
|
45/10MFD 370V ROUND RUN CAPAC. |
|
|
5/8X3/8-INCH 2TON REVERSING VALVE |
|
|
A/R LOW # LIMIT; 15OP 40CL |
|
|
AUXILIARY DRAIN PIPE |
|
|
BLOWER CUT-OFF |
|
|
BLOWER HOUSING |
|
|
BLOWER HOUSING |
|
|
BLOWER HOUSING AND WHEEL |
|
|
BULB STRAINER |
|
|
BULKHEAD VALVE |
|
|
CAP TUBE ASSEMBLY |
|
|
CAPACITOR STRAP |
|
|
CHARGE COMPENSATOR |
|
|
COMPRESSOR MOUNTING GROMMET |
|
|
COMPRESSOR WIRING HARNESS |
|
|
DEFROST AND AMBIENT SENSOR KIT |
|
|
DEFROST CONTROL BOARD KIT |
|
|
DEFROST CONTROL BOARD KIT |
|
|
DEFROST CONTROL BOARD KIT |
|
|
DEFROST CONTROL BOARD KIT |
|
|
DEFROST CONTROL KIT |
|
|
DISTRIBUTOR ASSEMBLY |
|
|
DRAIN PAN |
|
|
DRAIN PAN |
|
|
DRAIN PAN FITTING GROMMET |
|
|
DUAL CAPAC 45/5 MFD 370V ROUND |
|
|

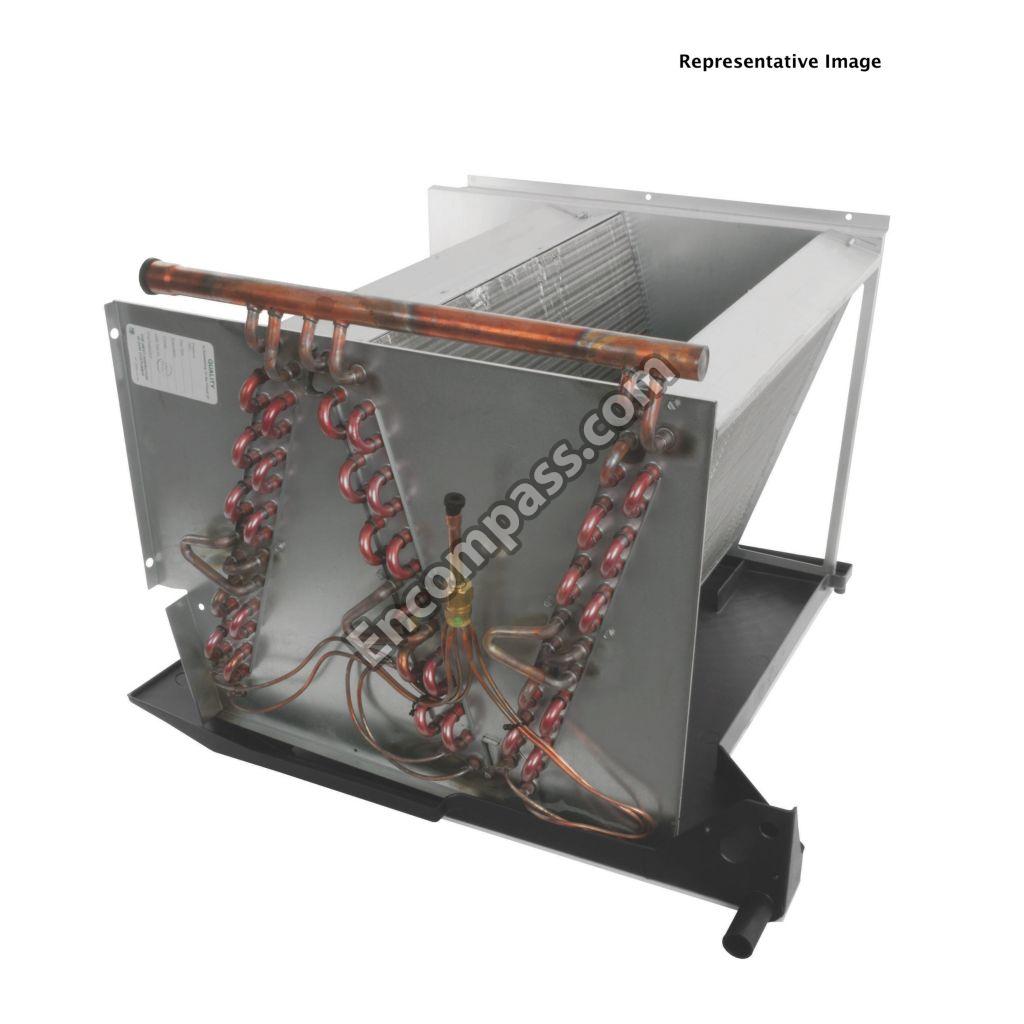

EVAPORATOR COIL |
|
|
EVAPORATOR COIL W/DRAIN PAN |
|
|
MOTOR MOUNT ARM W/ GROMMET |
|
|
MOTOR MOUNT BAND |
|
|
PVC TRAP |
|
|
SPST N/C A/R LIMIT;145OP 125CL |
|
|
TRANSFORMER |
|
|
TXV BULB STRAP MOUNTING KIT |
|
|
VALVE CORE |
|
|
WIRE GRILLE |
|
|
WIRE GRILLE |
