Model Image
Manufacturer

Rheem

Model Number

RQPWB036JK10E

Description

Residential Dual Fuel - Packaged Unit

Interactive Exploded View

Parts List

Part Number Description
62-21551-45 62-21551-45 #45 NATURAL GAS BURNER ORIFICE
60-105055-01 60-105055-01 1/2-INCH HSI/DSI GAS VALVE
60-106207-01 60-106207-01 1/2-INCH SLOW OPEN NG GAS VALVE
51-101880-00 51-101880-00 1/2HP 208-230V NON-PROGRAM MTR
51-101880-13 51-101880-13 1/2HP 230V X-13 BLOWER MOTOR
51-102500-10 51-102500-10 1/3HP 208-230V 825RPM 1PH MTR
83-CD3608-6PK 83-CD3608-6PK 1/8-INCH COPPER TUBE
70-18625-01 70-18625-01 10-INCH DIA 9-INCH W CW 1/2-INCH WHEEL
42-101208-02 42-101208-02 208-230V SPST N/O RELAY
51-100999-04 51-100999-04 208-230V1PH 1/5HP 1075RPM MTR
46-100836-01 46-100836-01 208/230-24V 40VA TRANSFORMER
70-21858-06 70-21858-06 22-INCH DIA 21DEG 1/2-INCH CCW 2BLD FAN
70-101323-19 70-101323-19 22-INCH DIA 28DEG 1/2-INCH CCW 3BLD FAN
55-102045-03S 55-102045-03S 230V1PH 31000BTU R410A COMP
79-21491-83 79-21491-83 3/16X18-INCH RUBBER SILICONE TUBING
83-104499-02 83-104499-02 3/4X 3/8 CHARGE COMPENSATOR
61-102498-09 61-102498-09 3/4X1/2 24V 4TON REVERSING VLV
61-102498-02 61-102498-02 3/4X1/2 24V REVERSING VALVE
83-41714-03 83-41714-03 3/8-INCH BI-FLOW FILTER DRIER
83-25152-09 83-25152-09 3/8-INCH LIQUID LINE FILTER DRIER

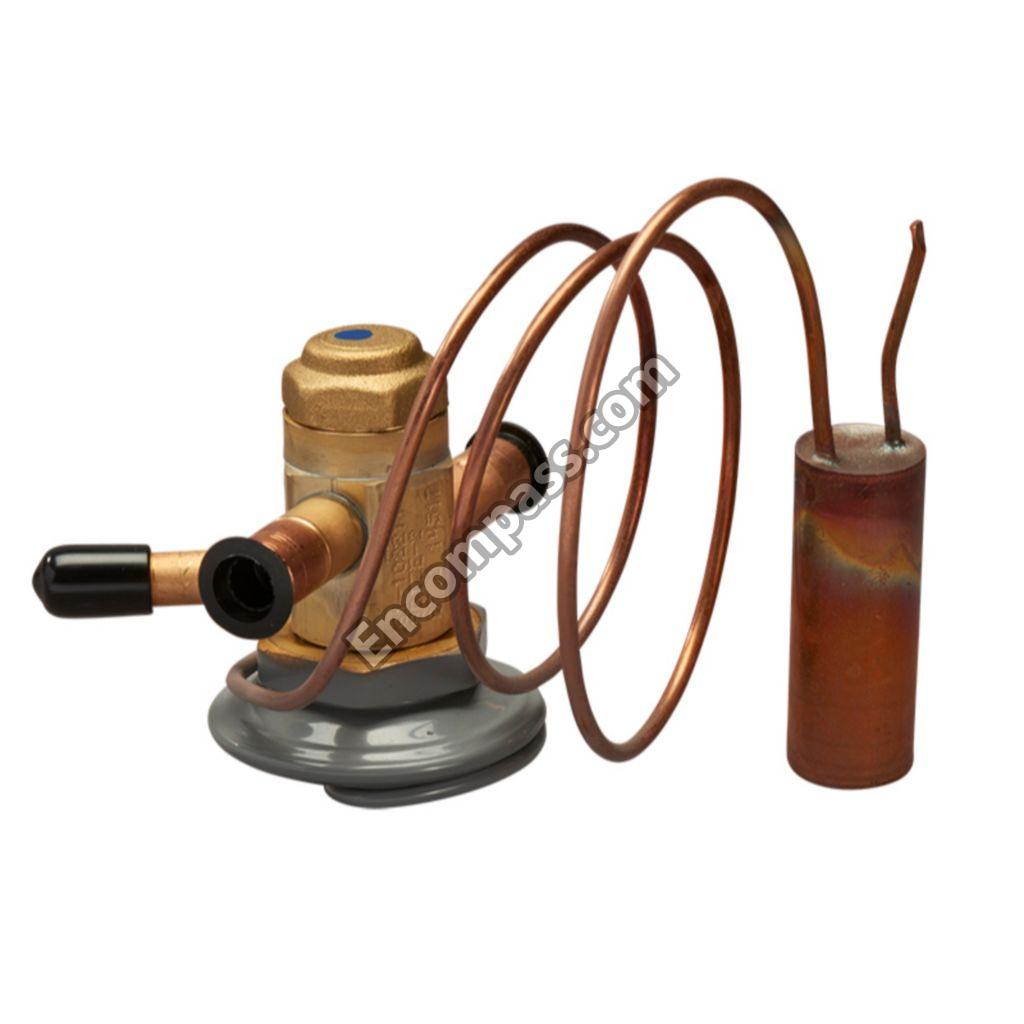

61-102211-07 61-102211-07 3/8X3/8 R410A 2TON TXV; 30-INCH CAP
47-22861-02 47-22861-02 300F M/R LIMIT SWITCH
62-22175-45 62-22175-45 45 NATURAL GAS ORIFICE
61-101684-91 61-101684-91 5/8X3/8-INCH 2TON REVERSING VALVE
AS-60993-05 AS-60993-05 5TUBE BURNER ASSEMBLY
56-22114-01 56-22114-01 7/8-INCH DIAMETER VINYL GROMMET
47-102240-02 47-102240-02 A/R LOW # LIMIT; 15OP 40CL
AE-58611-01 AE-58611-01 AUXILIARY DRAIN PIPE
AE-64401-06 AE-64401-06 BLOWER CUT-OFF
AS-58619-02 AS-58619-02 BLOWER HOUSING
83-26020-02 83-26020-02 BULB STRAINER
61-22369-04 61-22369-04 BULKHEAD VALVE
AE-61588-02 AE-61588-02 BURNER BRACKET
AE-58594-01 AE-58594-01 BURNER FLOOR
AE-58588-01 AE-58588-01 COLLECTOR BOX
AE-58599-01HT AE-58599-01HT COMBUSTION AIR INLET HOOD
56-18518-06 56-18518-06 COMPRESSOR MOUNTING GROMMET
45-100834-80 45-100834-80 COMPRESSOR WIRING HARNESS
42-102664-15 42-102664-15 CONTACTOR 30A 2-POLE 24V W/AUX
PD476604 PD476604 DEFROST AND AMBIENT SENSOR KIT
47-21517-82 47-21517-82 DEFROST CONTROL BOARD KIT
47-102684-83 47-102684-83 DEFROST CONTROL BOARD KIT
47-102684-204 47-102684-204 DEFROST CONTROL BOARD KIT
47-102684-194 47-102684-194 DEFROST CONTROL BOARD KIT
47-102684-104 47-102684-104 DEFROST CONTROL KIT
62-23556-82 62-23556-82 DIRECT SPARK IGNITOR
83-102202-02 83-102202-02 DISTRIBUTOR ASSEMBLY
68-23602-02 68-23602-02 DRAIN PAN
56-23601-01 56-23601-01 DRAIN PAN FITTING GROMMET
43-25133-06 43-25133-06 DUAL CAPAC 45/5 MFD 370V ROUND
AS-104668-06 AS-104668-06 EVAPORATOR COIL W/DRAIN PAN
AS-104910-01 AS-104910-01 EXHAUST HOOD ASSEMBLY
AS-58607-36 AS-58607-36 EXHAUST TRANSITION ASSEMBLY
62-23543-02 62-23543-02 FLAME SENSOR
45-25323-02 45-25323-02 FLAME SENSOR WIRE
68-23644-01 68-23644-01 GASKET - COLLECTOR BOX
AS-58632-88 AS-58632-88 HEAT EXCHANGER ASSEMBLY SS
70-23641-86 70-23641-86 INDUCED DRAFT BLOWER W/GASKET
68-23643-01 68-23643-01 INDUCER BLOWER GASKET
75-22840-02 75-22840-02 INSHOT BURNER TUBE
62-23599-05 62-23599-05 INTEGRATED FURNACE CONTROL
81-101154-01 81-101154-01 MANIFOLD
70-19929-09 70-19929-09 MOTOR MOUNT ARM W/ GROMMET
70-19927-03 70-19927-03 MOTOR MOUNT BAND
60-103901-01 60-103901-01 NATURAL GAS VALVE
68-23603-01 68-23603-01 PVC TRAP
AE-58595-01 AE-58595-01 RADIATION SHIELD
47-22861-01 47-22861-01 RHEEM 47-22861-01 LIMIT SWITCH - L350F MANUAL RESE
42-105601-20 42-105601-20 SPSP PRESSURE SWITCH -.45WC
47-100241-01 47-100241-01 SPST N/C M/R LIMIT; 400OP
46-100836-05 46-100836-05 TRANSFORMER
AE-58591-02 AE-58591-02 TURBULATOR
64-21106-02 64-21106-02 TXV BULB STRAP MOUNTING KIT
61-18551-01 61-18551-01 VALVE CORE
95-100906-08 95-100906-08 WIRE GRILLE
45-102393-82 45-102393-82 WIRE HARNESS 9PIN TO 9INSTERMS
