Manufacturer
Rheem
Model Number
RQRMA036JK000AUA
Description

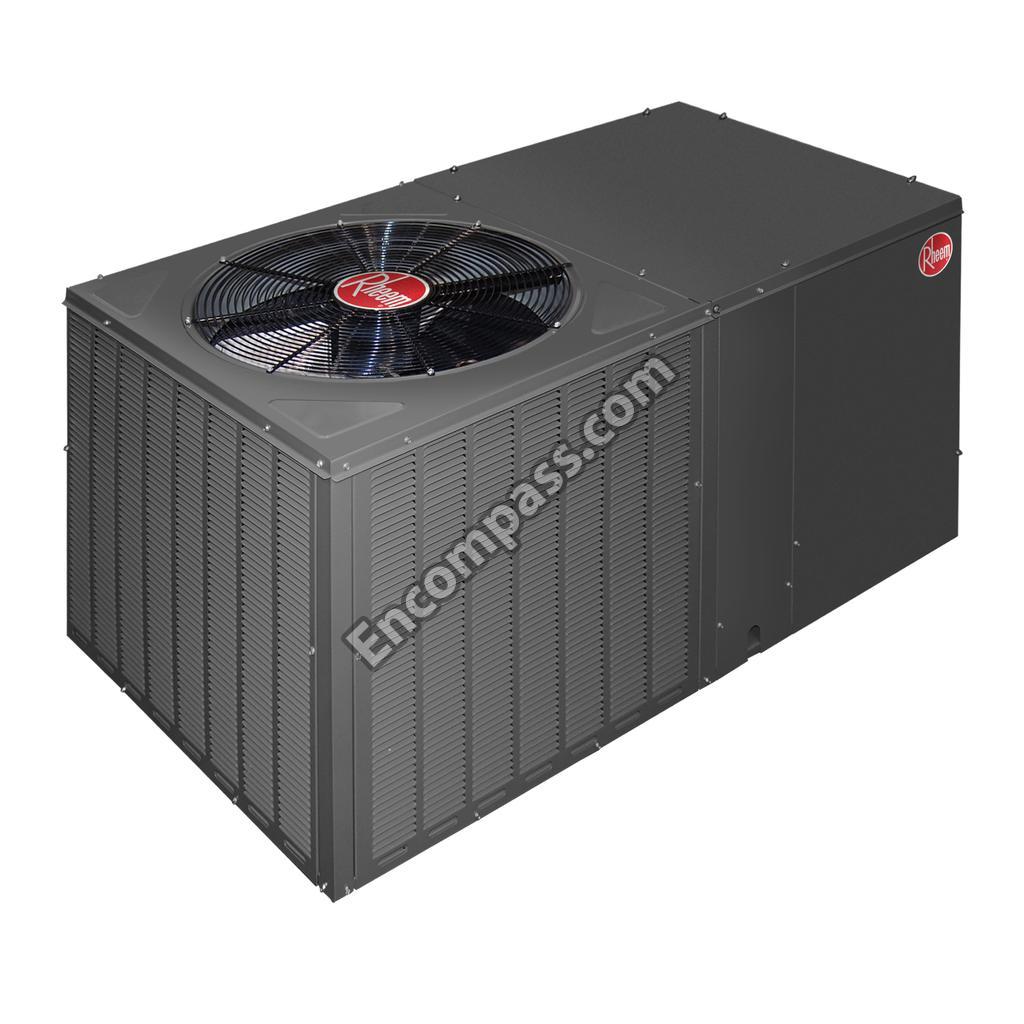

Commercial Packaged Heat Pump
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
1/2HP 208-230V 1075RPM 2SP MTR |
|
|
1/2HP 208-230V NON-PROGRAM MTR |
|
|
1/3HP 208-230V 825RPM 1PH MTR |
|
|
15MFD 370V OVAL CAPACITOR |
|
|
208/230-24V 40VA TRANSFORMER |
|
|
208/230V 3PH R410A SCROLL COMP |
|
|
230V1PH 31000BTU R410A COMP |
|
|

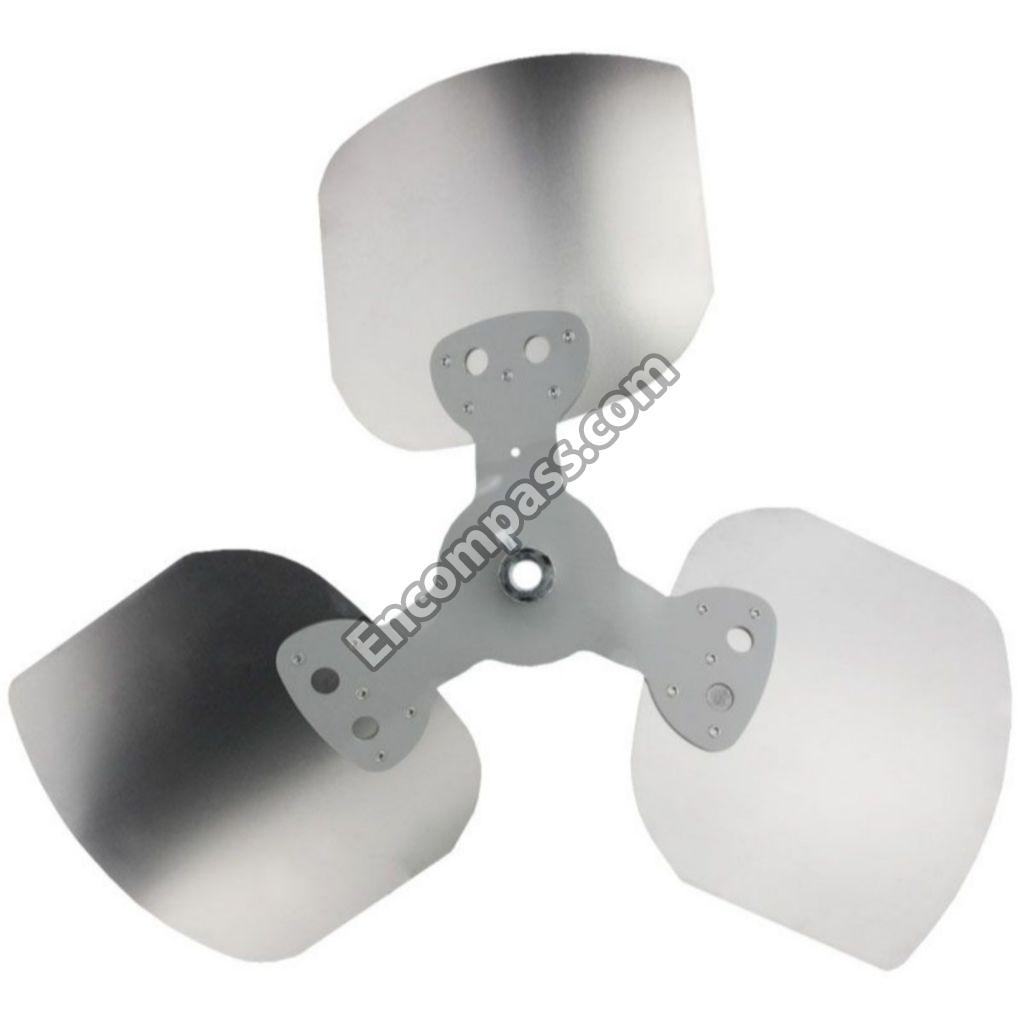

24-INCH DIA 23DEG 1/2-INCH CCW 3BLD FAN |
|
|
24V 30A 1POLE CONTACTOR |
|
|
24V 32A 3POLE CONTACTOR |
|
|
24V REVERSING VALVE COIL KIT |
|
|
24V SPDT NO/NC RELAY |
|
|
24V SPST N/O RELAY |
|
|
3/4X1/2 24V 4TON REVERSING VLV |
|
|
3/4X1/2 24V REVERSING VALVE |
|
|
3/8-INCH BI-FLOW FILTER DRIER |
|
|
3/8-INCH LIQUID LINE FILTER DRIER |
|
|
3/8-INCH SW BIFLOWFILTERDRIER 163S |
|
|
3/8-INCH X3/8-INCH ODF 3TON R410A TXV |
|
|
5/8X3/8-INCH 2TON REVERSING VALVE |
|
|
A/R HIGH # LIMIT; 610OP 420CL |
|
|
A/R LOW # LIMIT; 15OP 40CL |
|
|
BLOWER ASSEMBLY |
|
|
BLOWER HOUSING AND WHEEL |
|
|
BLOWER WHEEL AND HOUSING |
|
|
BULKHEAD VALVE |
|
|
CAP TUBE ASSEMBLY |
|
|
CAP TUBE ASSEMBLY |
|
|
CAPACITOR STRAP |
|
|
CHARGE COMPENSATOR |
|
|
COMPRESSOR MOUNTING GROMMET |
|
|
COMPRESSOR WIRING HARNESS |
|
|
CONDENSER COIL |
|
|
DEFROST AND AMBIENT SENSOR KIT |
|
|
DEFROST CONTROL BOARD KIT |
|
|
DEFROST CONTROL BOARD KIT |
|
|
DEFROST CONTROL BOARD KIT |
|
|
DEFROST CONTROL KIT |
|
|
DELAY ON BREAK TIME DELAY RLY |
|
|
DRAIN PAN |
|
|
DUAL CAPAC 45/5 MFD 370V ROUND |
|
|
EVAP COIL TIN PLATED |
|
|

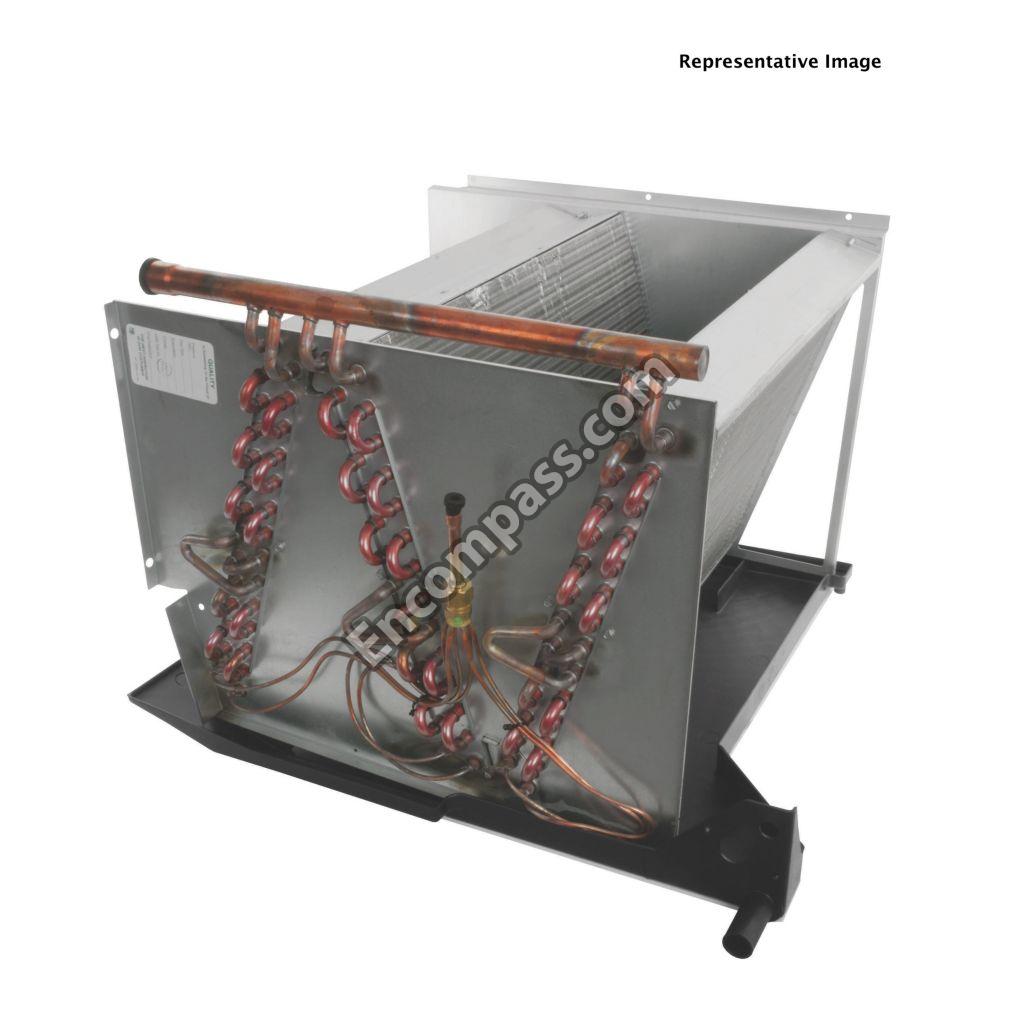

EVAPORATOR COIL |
|
|
MOTOR MOUNT ARM W/ GROMMET |
|
|
MOTOR MOUNT BAND |
|
|
MOTOR MOUNT BAND |
|
|
RUN CAPAC 5 MFD 370V OVAL |
|
|
TRANSFORMER |
|
|

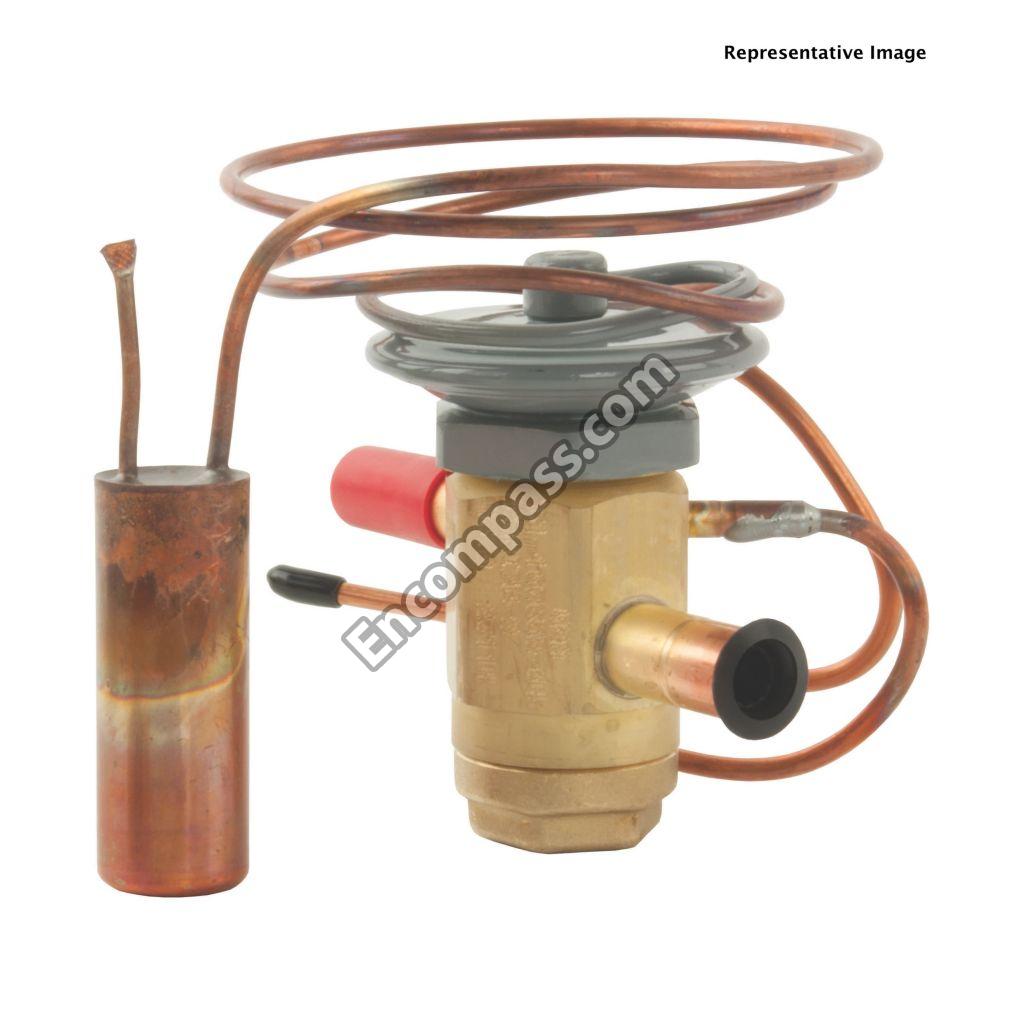

TXV 3TON R410A 3/8-INCH X3/8-INCH |
|
|
TXV BULB STRAP MOUNTING KIT |
|
|

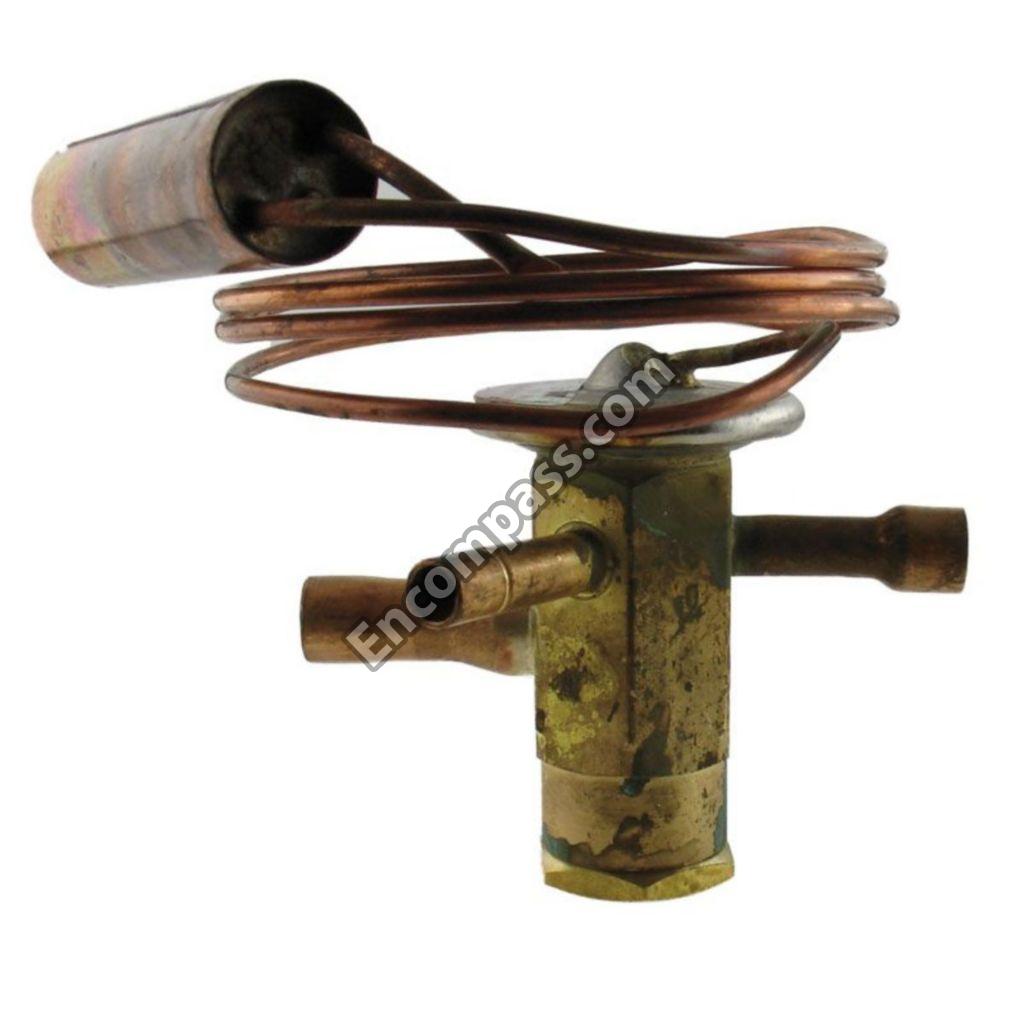

TXV R410A |
|
|
VALVE CORE |
|
|
WIRE GRILLE |
