Manufacturer
Rheem
Model Number
RRRLB036JK10EBVA
Description
Residential Gas Electric - Packaged Unit
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
1/2HP EON ECM MOTOR (BLANK) |
|
|
1/5HP 208-230V 825RPM 48 MOTOR |
|
|
1/6HP 208-230V 825RPM 1SPD MTR |
|
|
1/6HP 208-230V 825RPM MOTOR |
|
|
1/8-INCH COPPER TUBE |
|
|
10-INCH DIA 9-INCH W CW 1/2-INCH WHEEL |
|
|
2-STAGE COMFORT ALERT MODULE |
|
|
208-230V SPST N/O RELAY |
|
|

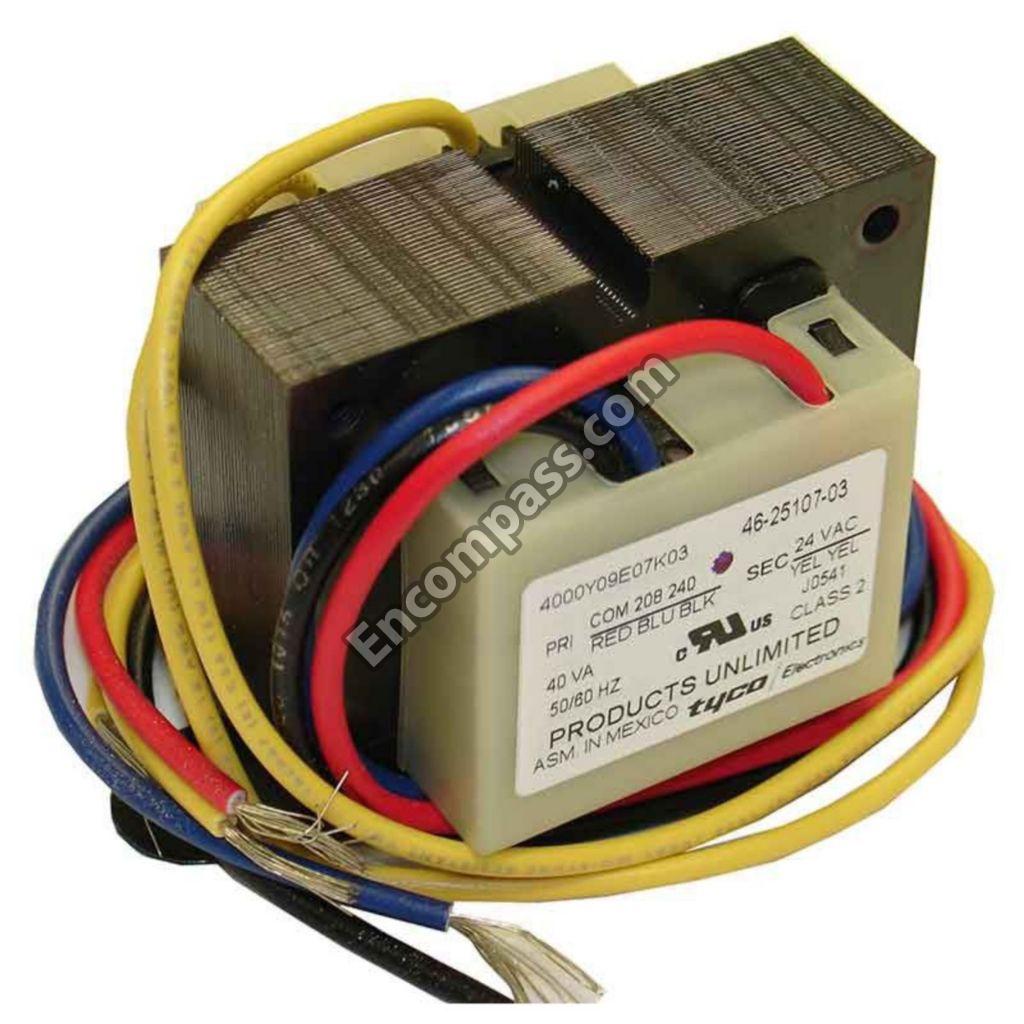

208-240V-PRI 24V-SEC 40VA TRAN |
|
|
208/240V-PRI 24V-SEC 50VA |
|
|
24V 30A 1POLE CONTACTOR |
|
|
3/8-INCH 8CUIN LIQUIDLINEDRIER |
|
|
3/8-INCH SWT 3TON R410 TXV |
|
|
300F M/R LIMIT SWITCH |
|
|
40/5/370 DUAL ROUND CAPACITOR |
|
|
40/5MFD 370V RND RUN CAPACITOR |
|
|
45 NATURAL GAS ORIFICE |
|
|
88/106MFD 330V RND START CAPAC |
|
|
90 LOW PRESSURE SWITCH |
|
|
A/R HIGH # LIMIT; 610OP 420CL |
|
|
BULKHEAD VALVE |
|
|
COMFORT ALERT MODULE |
|
|
COMPRESSOR MOUNTING GROMMET |
|
|
COMPRESSOR WIRING HARNESS |
|
|
DIRECT SPARK IGNITOR |
|
|
EON ECM MOTOR 1/2 HP |
|
|
FLAME SENSOR |
|
|

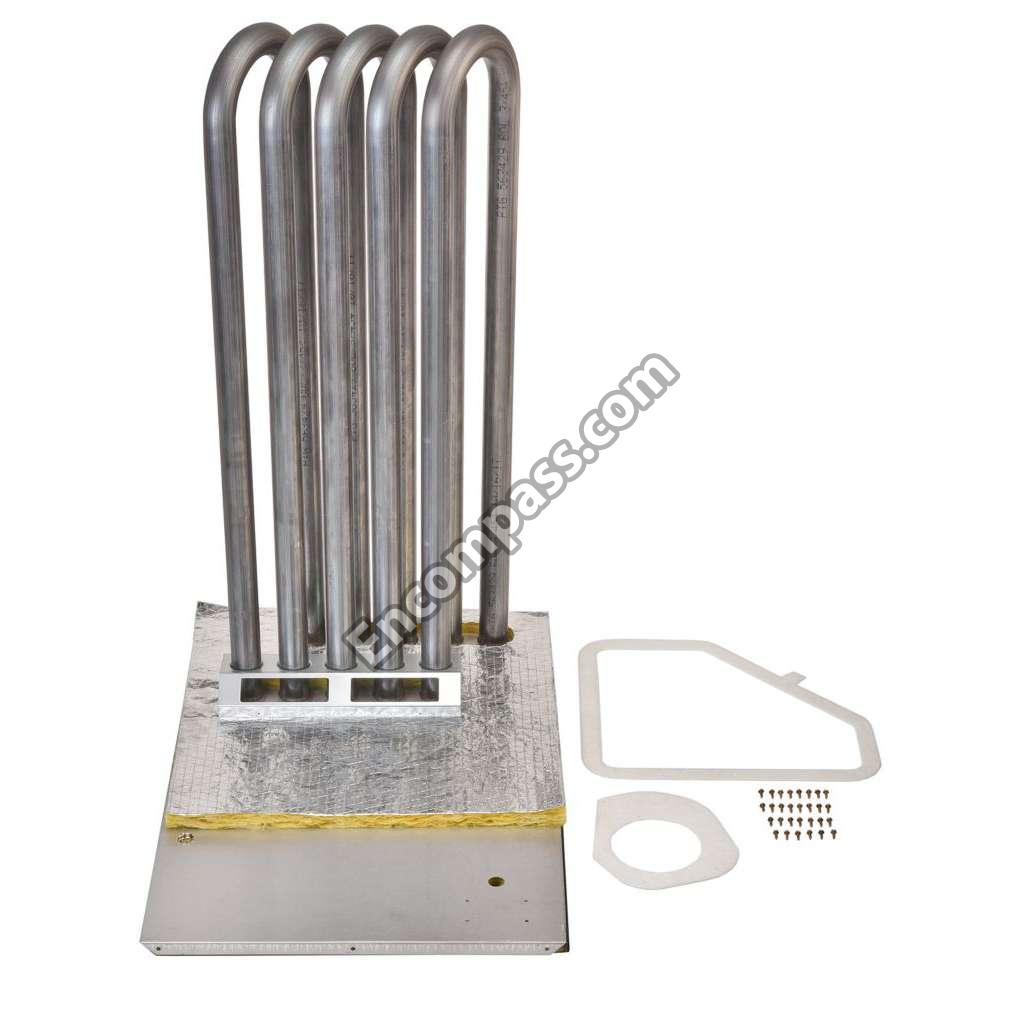

HEAT EXCHANGER ASSEMBLY SS |
|
|

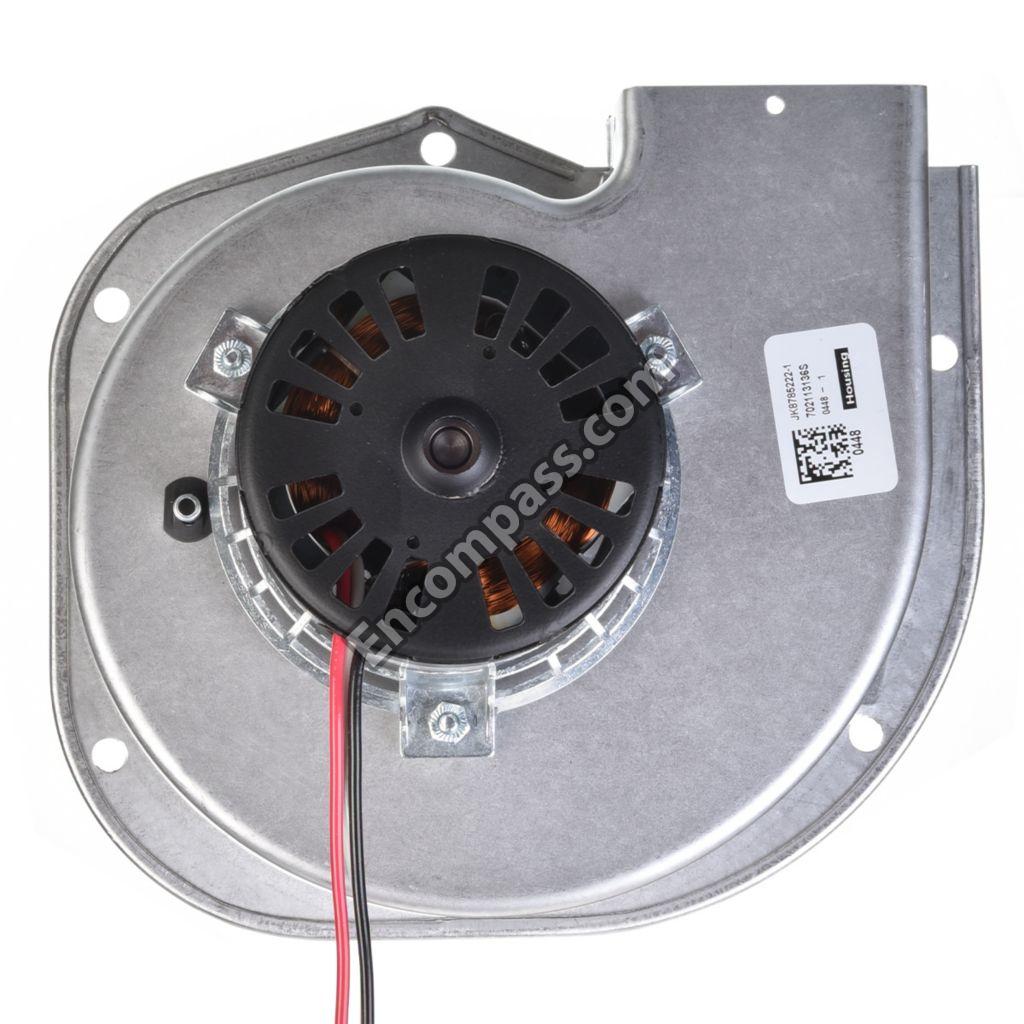

INDUCED DRAFT BLOWER W/GASKET |
|
|
INTEGRATED FURNACE CONTROL |
|
|
LIQUID LINE FILTER DRIER |
|
|
LOW#LIMIT OPEN50 CLOSE95 |
|
|
MANIFOLD |
|
|

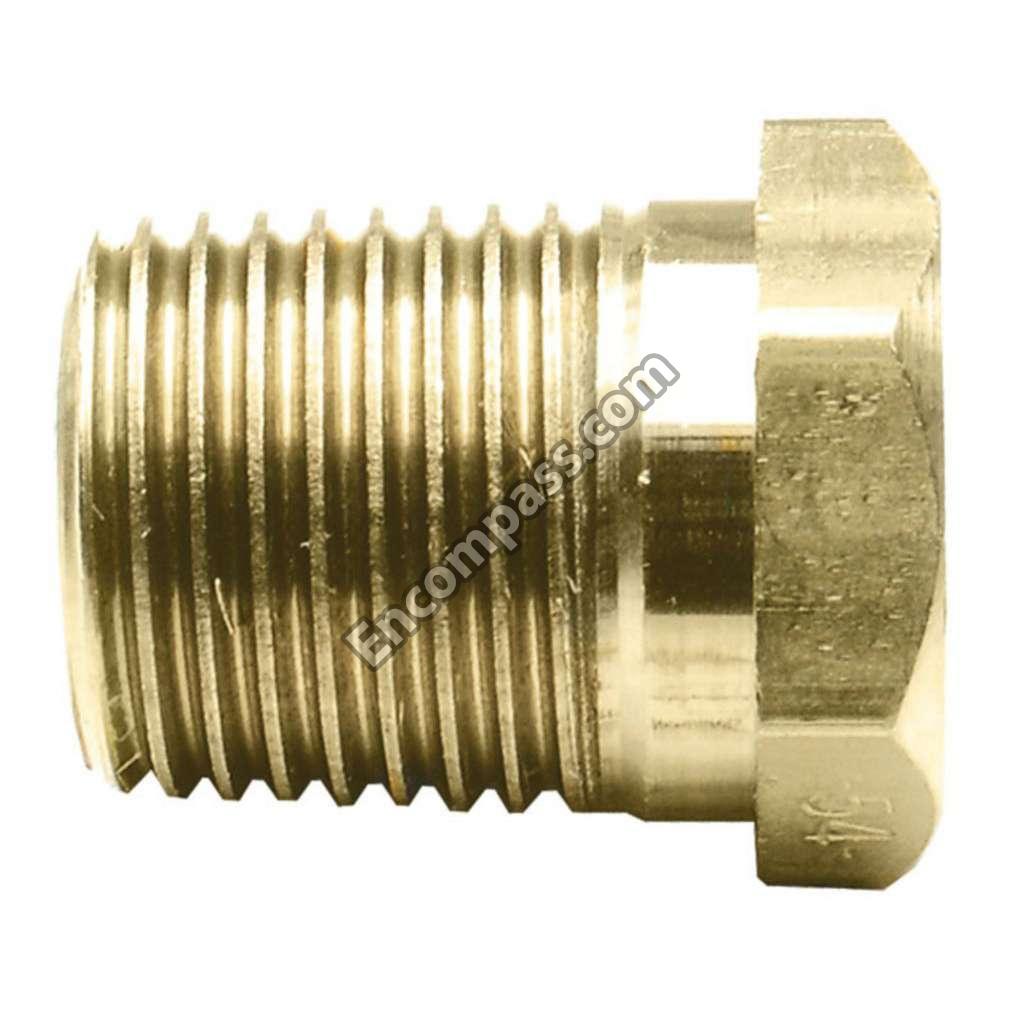

MOLDED PLUG |
|
|
MOTOR MOUNT ARM W/ GROMMET |
|
|
MOTOR MOUNT BAND |
|
|

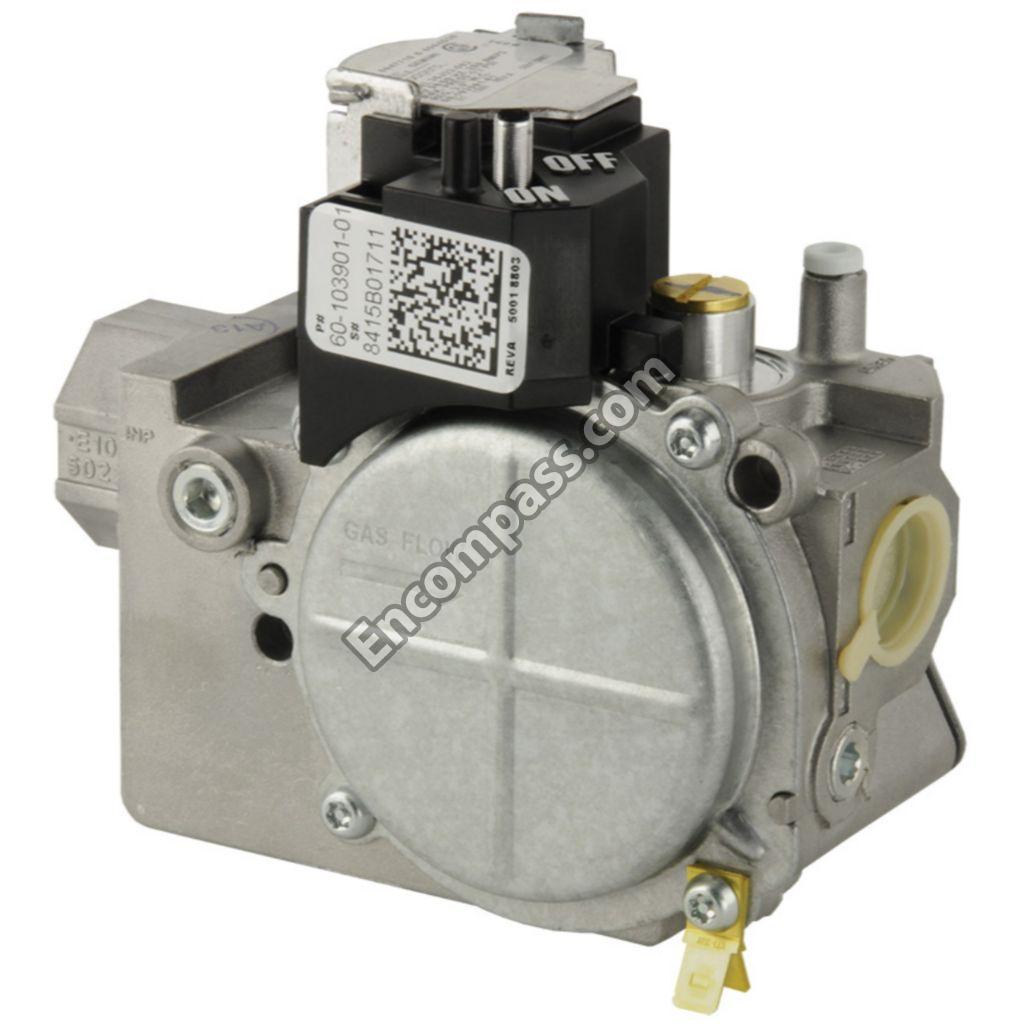

NATURAL GAS VALVE |
|
|
SPSP PRESSURE SWITCH -.45WC |
|
|
START RELAY |
|
|
TURBULATOR |
|
|
VALVE CORE |
