Manufacturer
Rheem
Model Number
RSNLB048JK000
Description
Residential Straight Cool - Packaged Unit
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|

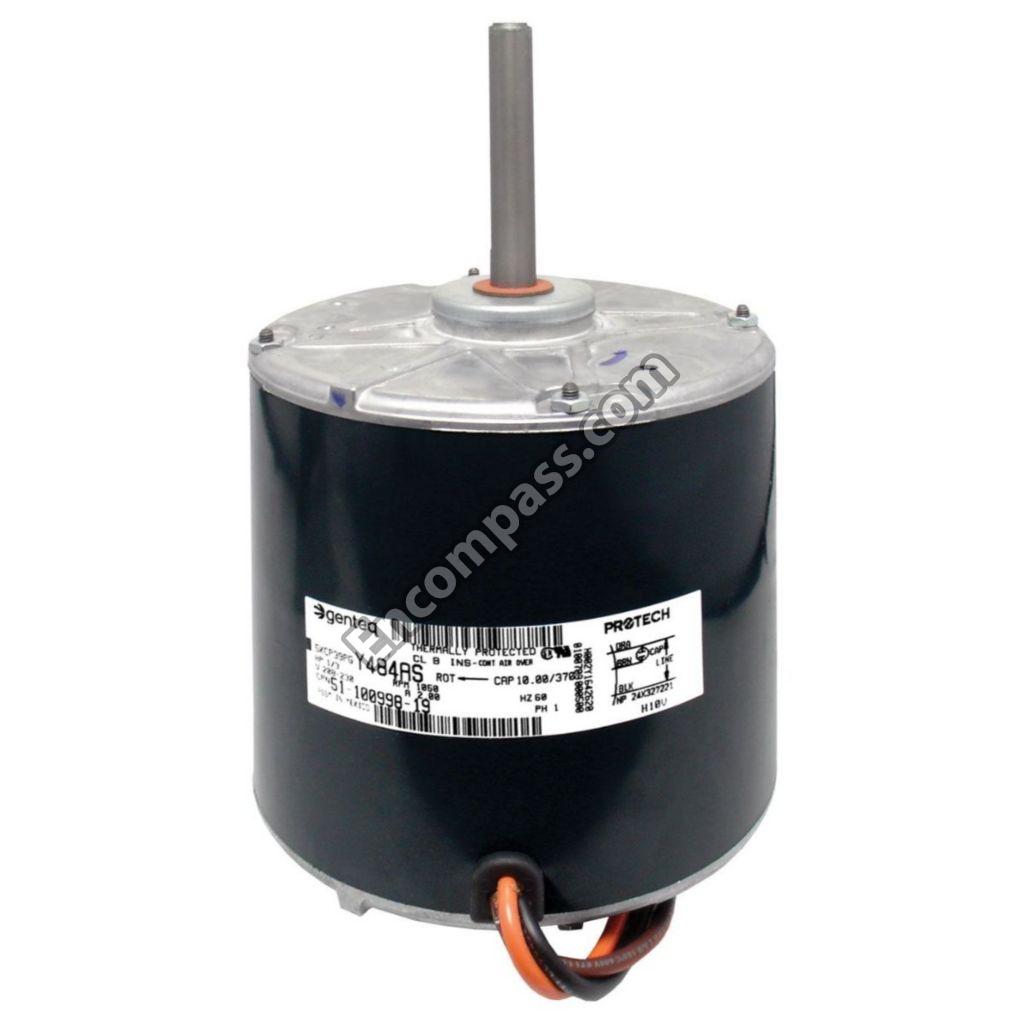

1/3HP 208/230V CCW FAN MOTOR |
|
|
1/8-INCH COPPER TUBE |
|
|

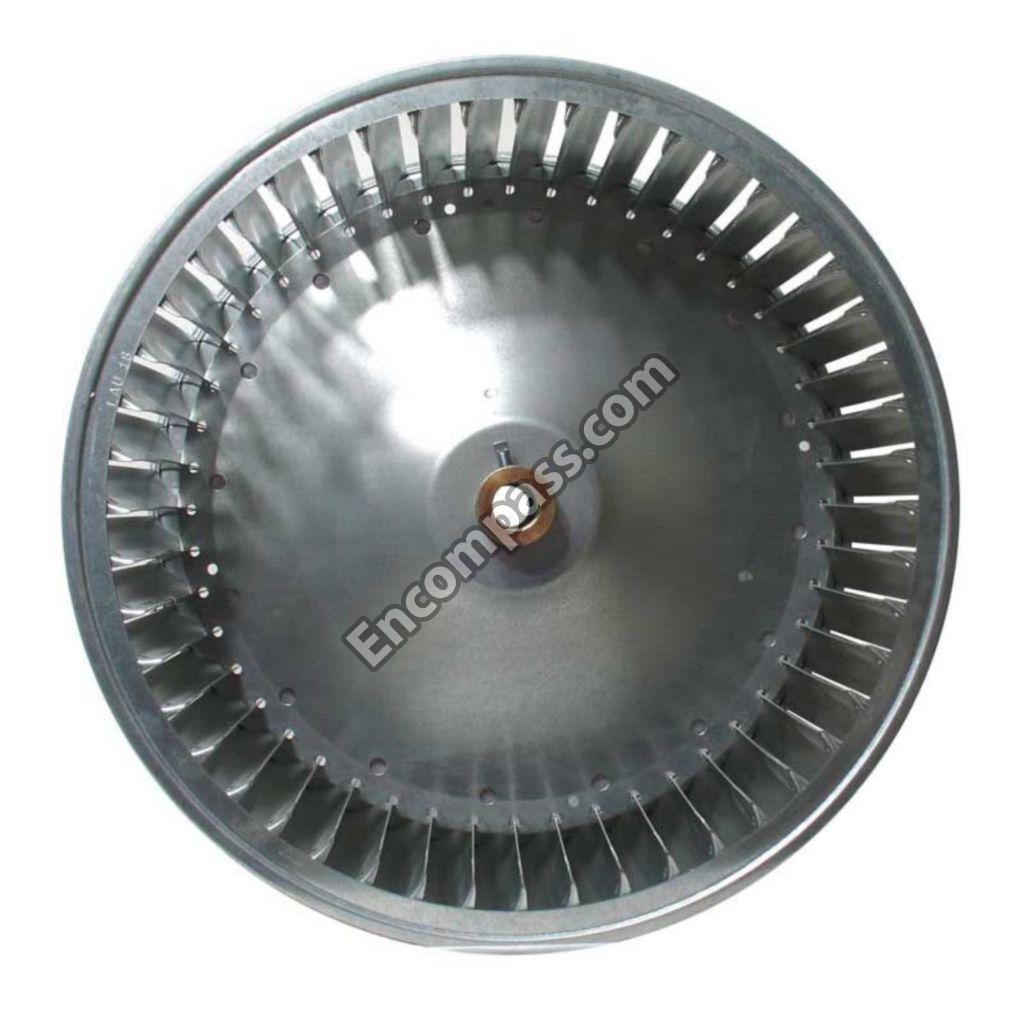

10-INCH DIA 9-INCH W CW 1/2-INCH WHEEL |
|
|

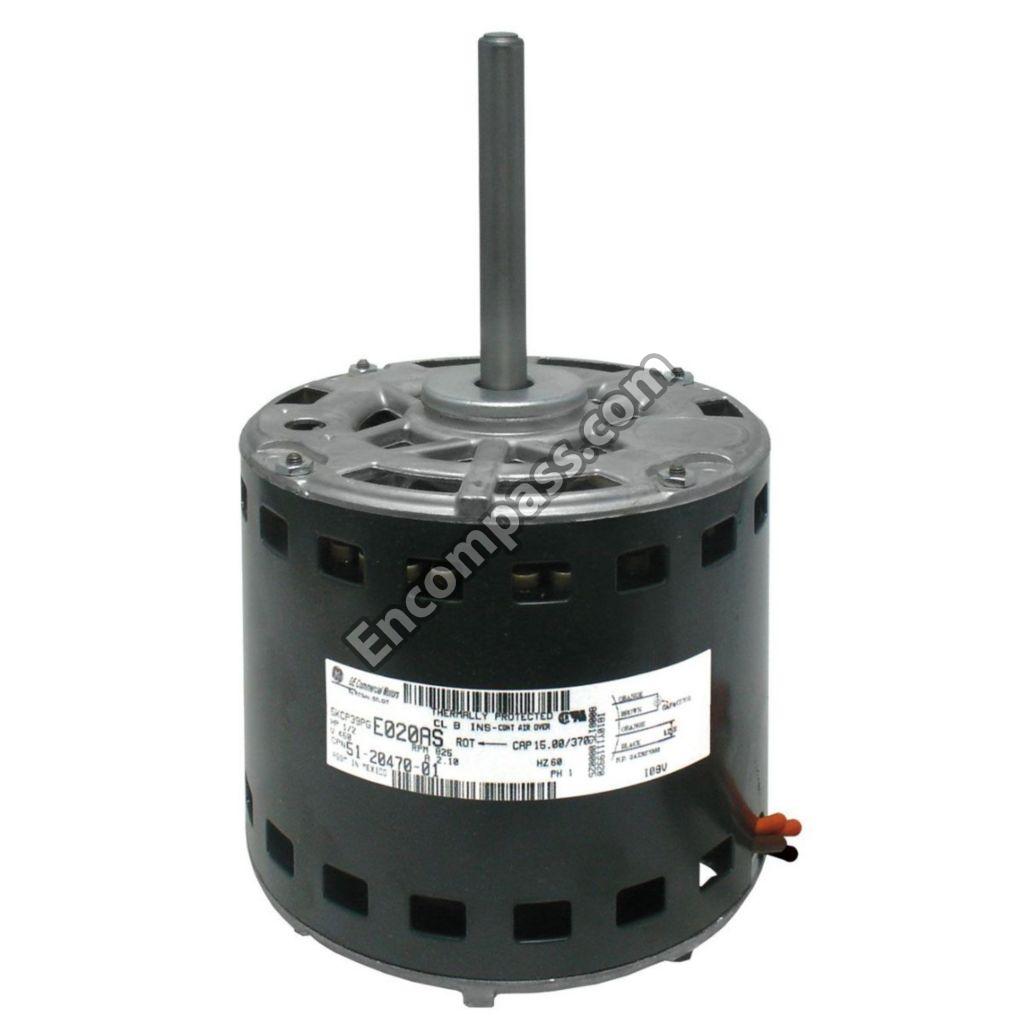

208-230V1PH 3/4HP 1075RPM MTR |
|
|
208-240V-PRI 24V-SEC 40VA TRAN |
|
|
208/230-24V 40VA TRANSFORMER |
|
|

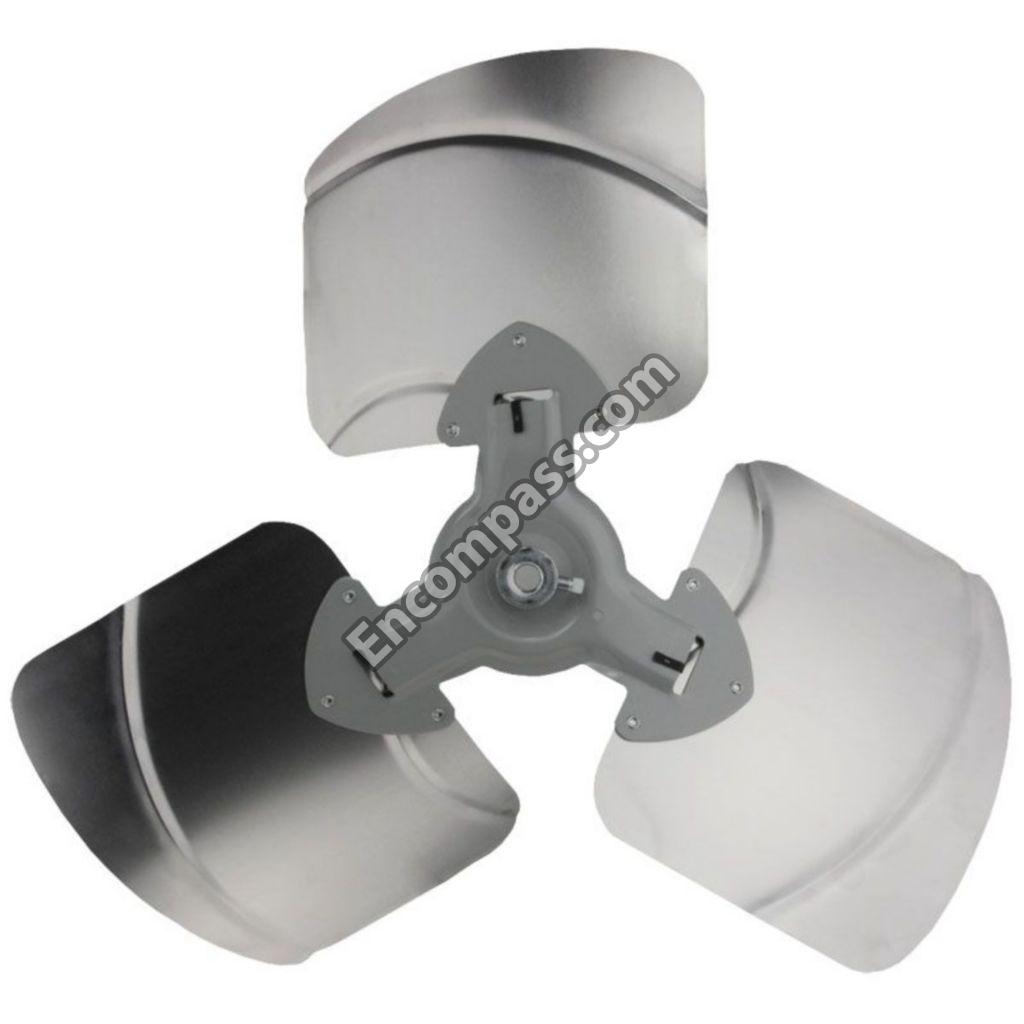

22-INCH DIA 24DEG 1/2-INCH CCW 3BLD FAN |
|
|

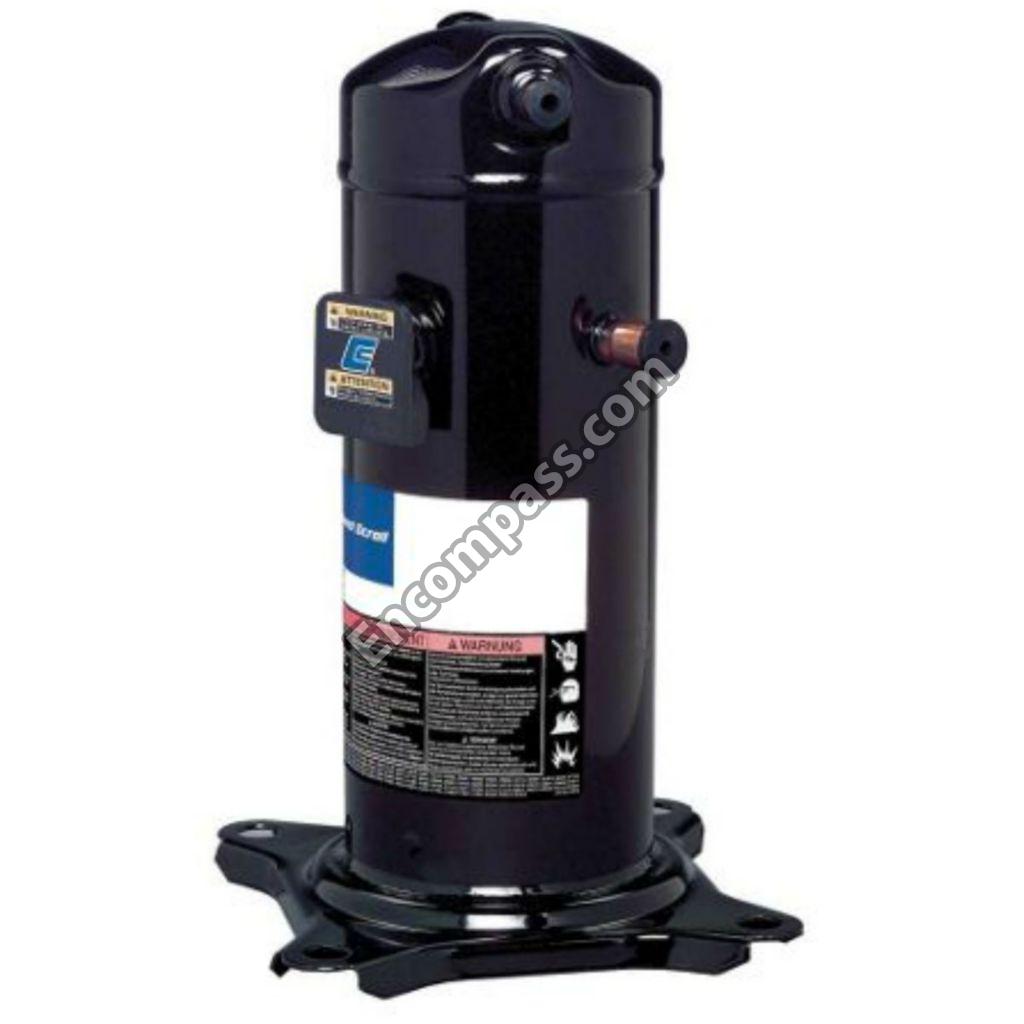

230V1PH 57100BTU R-410A COMP. |
|
|
24V 30A 1POLE CONTACTOR |
|
|
24V SPDT NO/NC RELAY |
|
|
3/8-INCH 8CUIN LIQUIDLINEDRIER |
|
|

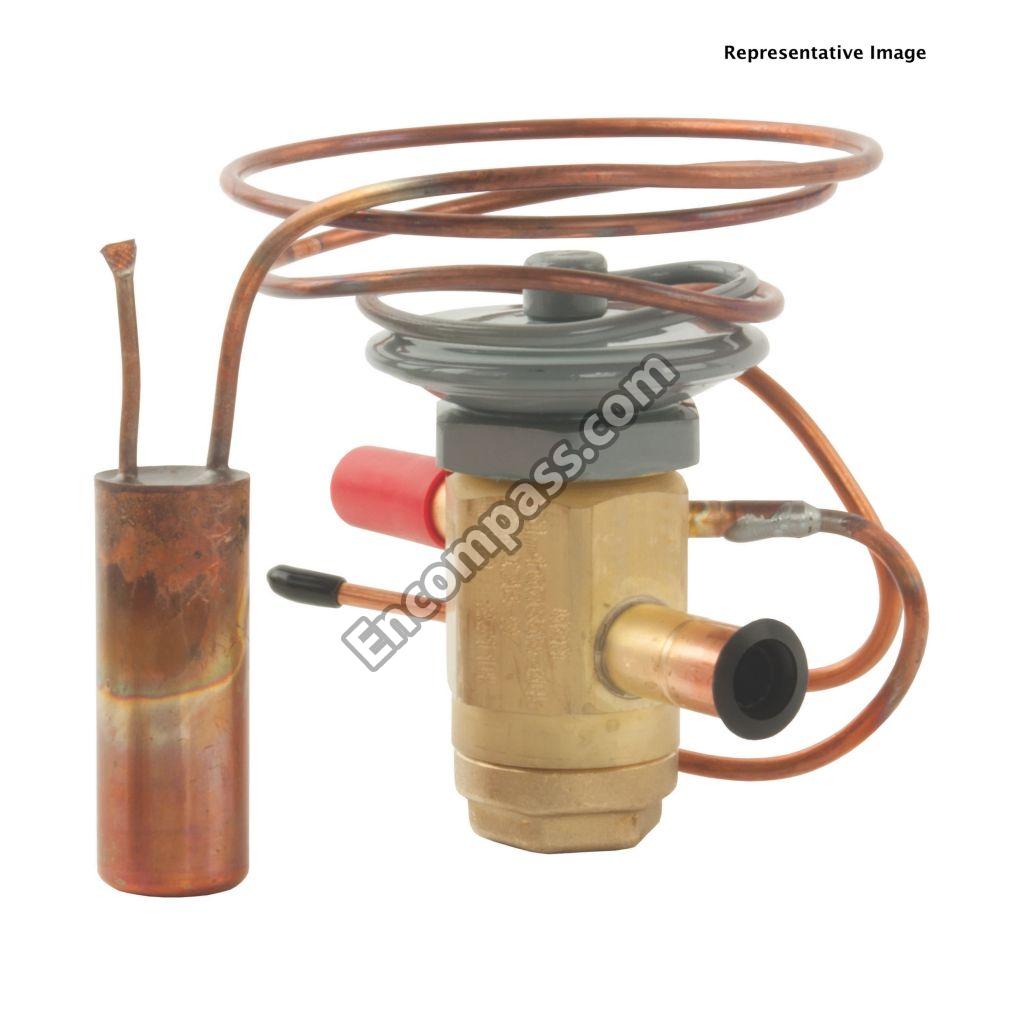

3/8SW TXV R41 EXTEQ 4 TON |
|
|
70/10MFD 370V DUAL ROUND CAP |
|
|
AUXILIARY DRAIN PIPE |
|
|
BLOWER CUT-OFF |
|
|
BLOWER HOUSING |
|
|
BULKHEAD VALVE |
|
|
CAPAC 10 MFD 440V OVAL |
|
|
COMPRESSOR MOUNTING GROMMET |
|
|
COMPRESSOR WIRING HARNESS |
|
|
CONDENSER COIL |
|
|
DRAIN PAN |
|
|
DRAIN PAN FITTING GROMMET |
|
|

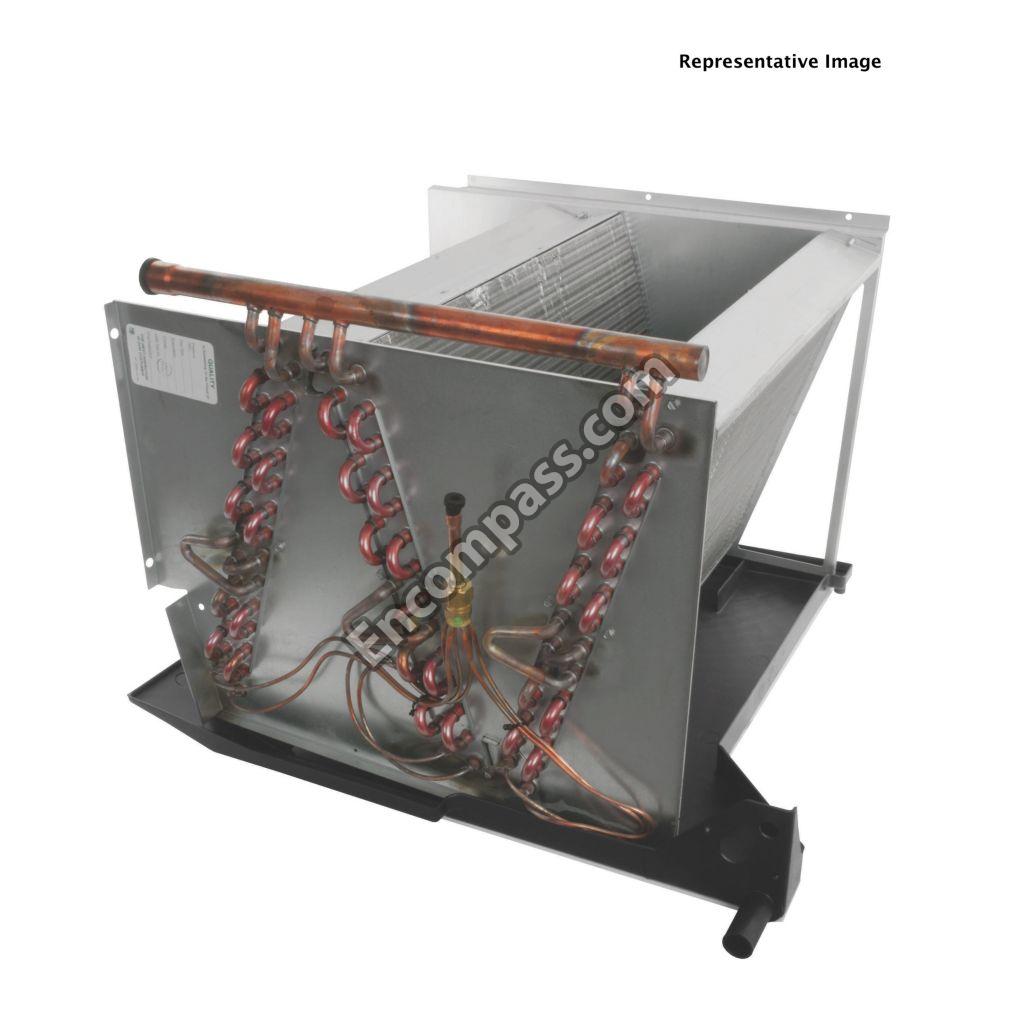

EVAP COIL/DRAIN PAN |
|
|
LIQUID LINE FILTER DRIER |
|
|
MOTOR MOUNT ARM W/GROMMET |
|
|
MOTOR MOUNT BAND |
|
|
PVC TRAP |
|
|
RUN CAPAC 10 MFD 370V OVAL |
|
|
SEQUENCING RELAY |
|
|
SPST N/C A/R LIMIT;145OP 125CL |
|
|
TXV BULB STRAP MOUNTING KIT |
|
|
VALVE CORE |
|
|
WIRE GRILLE |
