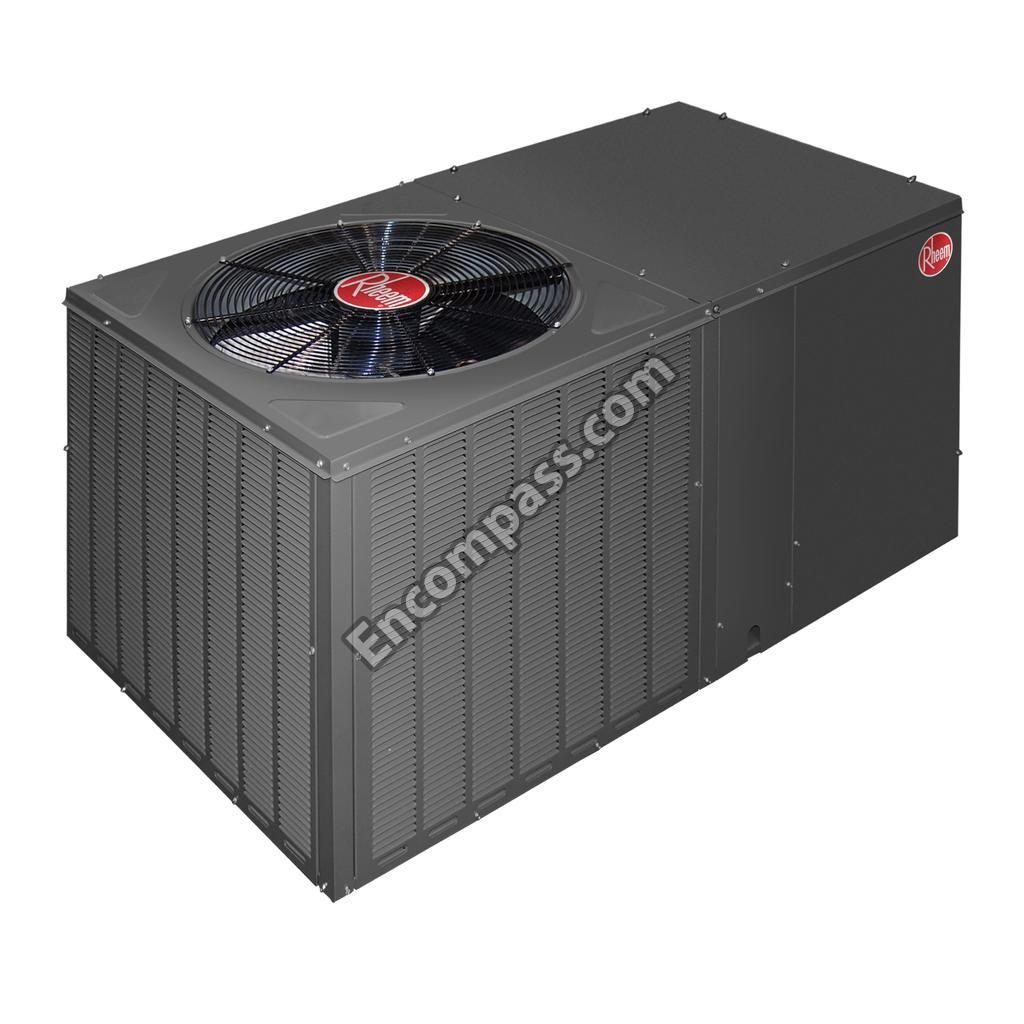

Model Image
Manufacturer

Rheem

Model Number

RSPMA024JK000

Description

Commercial Packaged Ac

Interactive Exploded View

Parts List

Part Number Description
51-101880-00 51-101880-00 1/2HP 208-230V NON-PROGRAM MTR
51-100998-30 51-100998-30 1/3HP 208-230V 1075RPM 48 MTR
51-102500-10 51-102500-10 1/3HP 208-230V 825RPM 1PH MTR
51-101879-00 51-101879-00 1/3HP 230V X13BLANKUNPROGMOTOR
51-100837-01 51-100837-01 1/4HP 208-230V 1075RPM 48 MTR
83-CD3608-6PK 83-CD3608-6PK 1/8-INCH COPPER TUBE
51-100999-04 51-100999-04 208-230V1PH 1/5HP 1075RPM MTR
46-25107-03 46-25107-03 208-240V-PRI 24V-SEC 40VA TRAN
46-100836-01 46-100836-01 208/230-24V 40VA TRANSFORMER
55-102045-01S 55-102045-01S 208/230V1PH 21300BTU R410A
70-21858-06 70-21858-06 22-INCH DIA 21DEG 1/2-INCH CCW 2BLD FAN
70-101323-19 70-101323-19 22-INCH DIA 28DEG 1/2-INCH CCW 3BLD FAN
70-23137-01 70-23137-01 24-INCH DIA 19DEG 1/2-INCH CCW 2BLD FAN
70-100580-08 70-100580-08 24-INCHDIA 23DEG 1/2-INCH CCW 3BLD FAN
42-25101-01 42-25101-01 24V 30A 1POLE CONTACTOR
42-25104-06 42-25104-06 24V SPDT NO/NC RELAY
42-21571-08 42-21571-08 24V SPST N/O RELAY
83-25151-41 83-25151-41 3/8-INCH 8CUIN LIQUIDLINEDRIER
61-102211-01 61-102211-01 3/8X3/8 R-410A 2TON TXV;30-INCH CAP
43-25133-35 43-25133-35 35/5MFD 370V RND RUN CAPACITOR
43-25133-44 43-25133-44 40/5/370 DUAL ROUND CAPACITOR
43-25133-22 43-25133-22 40/5MFD 370V RND RUN CAPACITOR
43-25133-14 43-25133-14 40/5MFD 440V ROUND CAPACITOR
AS-53148-83 AS-53148-83 48FR BELLY BAND MOTOR MT KIT
70-18631-01 70-18631-01 9-INCH DIA 7-INCH W CW 1/2-INCH WHEEL
AE-58611-01 AE-58611-01 AUXILIARY DRAIN PIPE
AS-100841-01 AS-100841-01 BLOWER ASSEMBLY
AE-64401-10 AE-64401-10 BLOWER CUT OFF
AS-58619-01 AS-58619-01 BLOWER HOUSING
70-100840-01 70-100840-01 BLOWER HOUSING AND WHEEL
703016 703016 BLOWER WHEEL 11 X 9-INCH 1/2-INCHBORE
83-26020-02 83-26020-02 BULB STRAINER
61-22369-04 61-22369-04 BULKHEAD VALVE
43-25134-22 43-25134-22 CAPAC 10 MFD 440V OVAL
AE-50892-81 AE-50892-81 CAPACITOR STRAP
83-104499-01 83-104499-01 CHARGE COMPENSATOR
56-18518-06 56-18518-06 COMPRESSOR MOUNTING GROMMET
45-100834-80 45-100834-80 COMPRESSOR WIRING HARNESS
47-23433-05 47-23433-05 DELAY ON BREAK TIME DELAY RLY
68-100808-02 68-100808-02 DRAIN PAN
68-23602-02 68-23602-02 DRAIN PAN
56-23601-01 56-23601-01 DRAIN PAN FITTING GROMMET
43-25133-04 43-25133-04 DUAL CAPAC 40/3 MFD 370V ROUND
43-25133-13 43-25133-13 DUAL CAPAC 40/3 MFD 440V ROUND
AS-104684-18 AS-104684-18 EVAPORATOR COIL
AS-104668-04 AS-104668-04 EVAPORATOR COIL W/DRAIN PAN
61-101351-01 61-101351-01 EXPANSION VALVE
83-ADK-083S 83-ADK-083S LIQUID LINE FILTER DRIER
70-19929-09 70-19929-09 MOTOR MOUNT ARM W/ GROMMET
70-19929-02 70-19929-02 MOTOR MOUNT ARM W/GROMMET
70-19927-01 70-19927-01 MOTOR MOUNT BAND
70-19927-03 70-19927-03 MOTOR MOUNT BAND
45-22926-01 45-22926-01 PLASTIC (SNAP-IN) BUTTON PLUG
68-23603-01 68-23603-01 PVC TRAP
55-102045-24S 55-102045-24S R410A 1P 208/230V SCROLL
43-25134-04 43-25134-04 RUN CAPAC 10 MFD 370V OVAL
47-25334-01 47-25334-01 SPST N/C A/R LIMIT;145OP 125CL

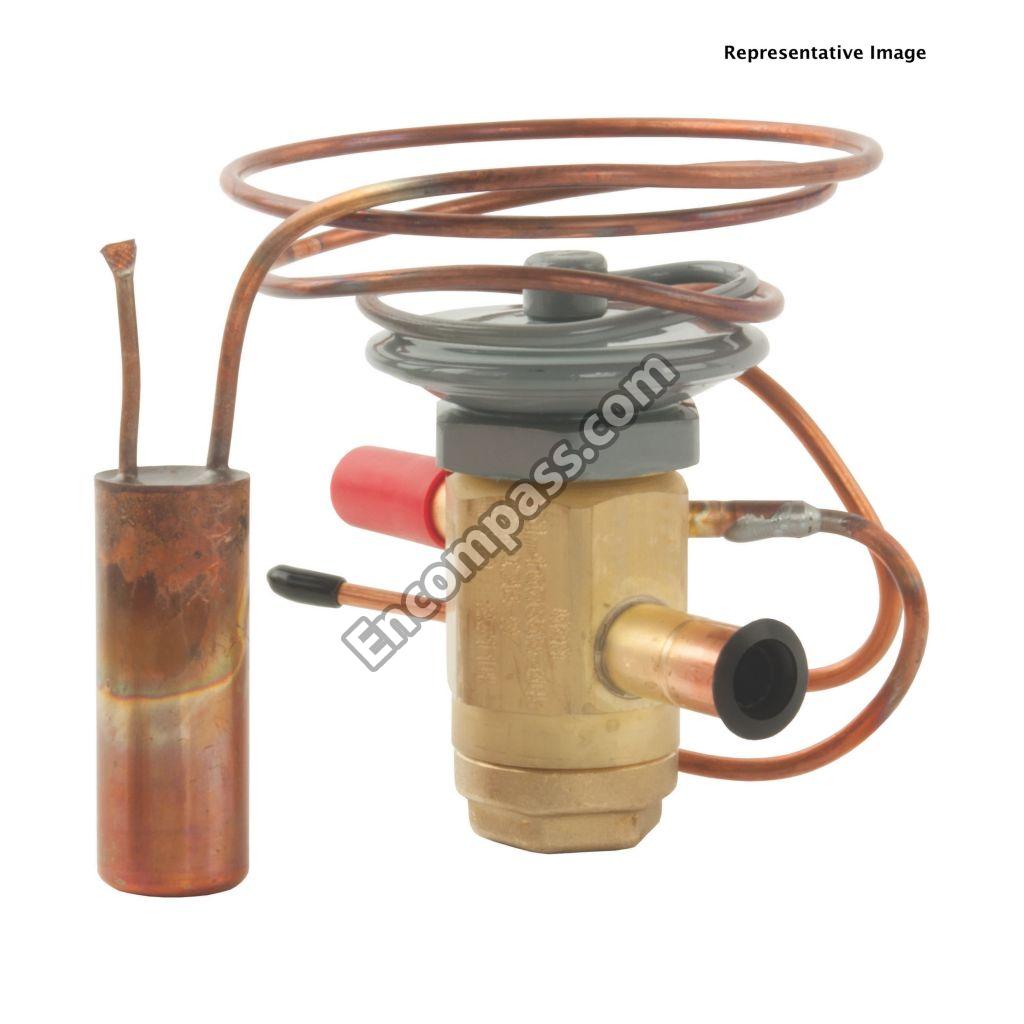

61-102213-09 61-102213-09 THERMAL EXPANSION VALVE
64-21106-02 64-21106-02 TXV BULB STRAP MOUNTING KIT
61-18551-01 61-18551-01 VALVE CORE
95-100906-07 95-100906-07 WIRE GRILLE
95-100906-08 95-100906-08 WIRE GRILLE
51-104337-00 51-104337-00 X-13 BLANK ECM CONTROL MODULE
51-101880-07 51-101880-07 X-13 MOTOR 230V 1/2 HP
