Manufacturer
Rheem
Model Number
RSPMA036CK000
Description

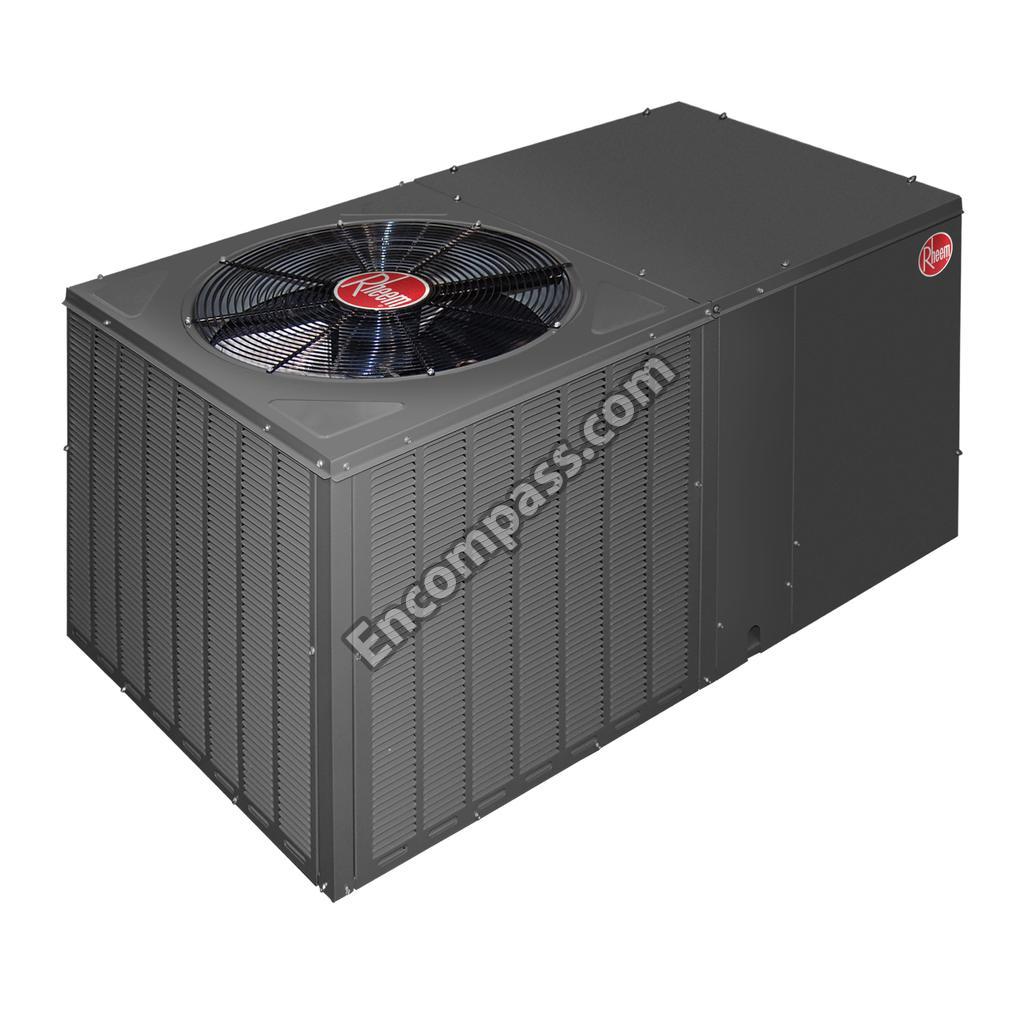

Commercial Packaged Ac
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
1/2HP 208-230V 1075RPM 2SP MTR |
|
|
1/2HP 208-230V NON-PROGRAM MTR |
|
|

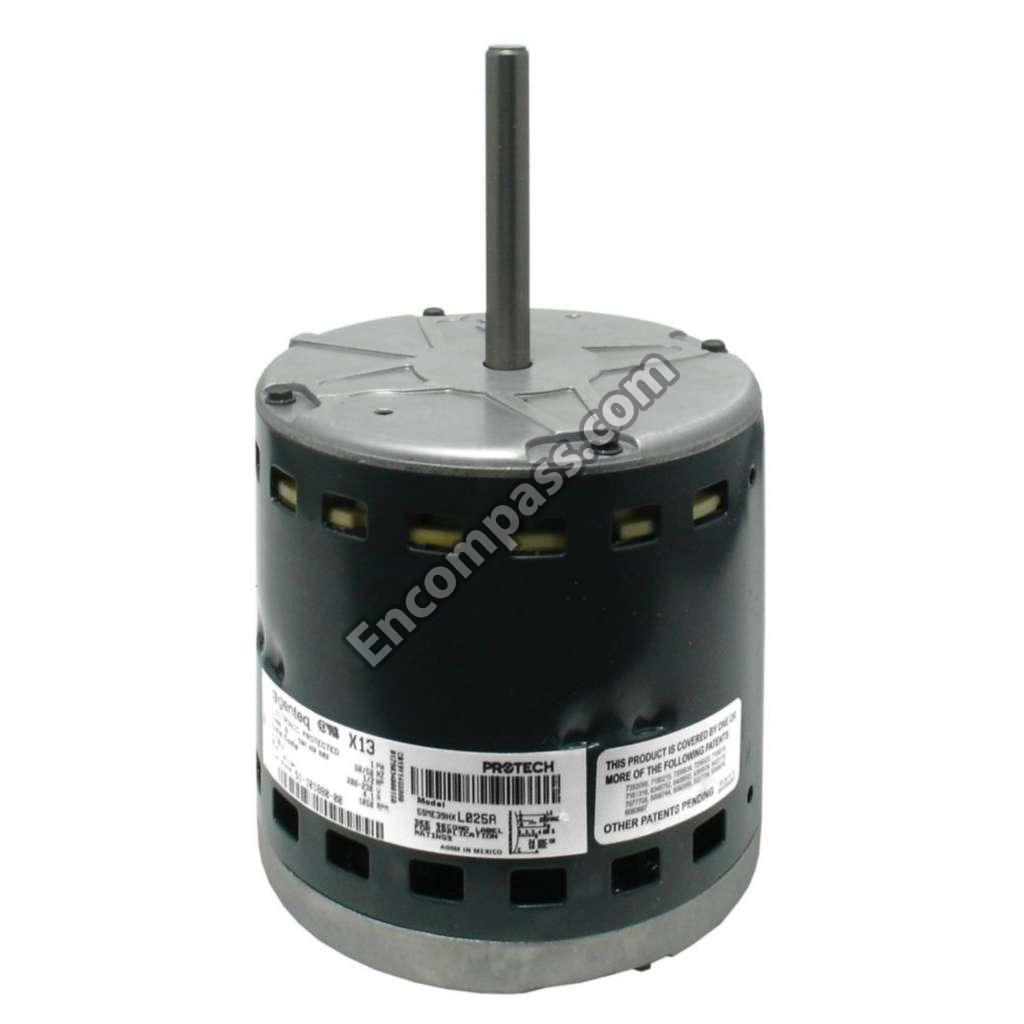

1/2HP 208-230V VAR SPEED MOTOR |
|
|
1/3HP 208-230V 1075RPM 48 MTR |
|
|

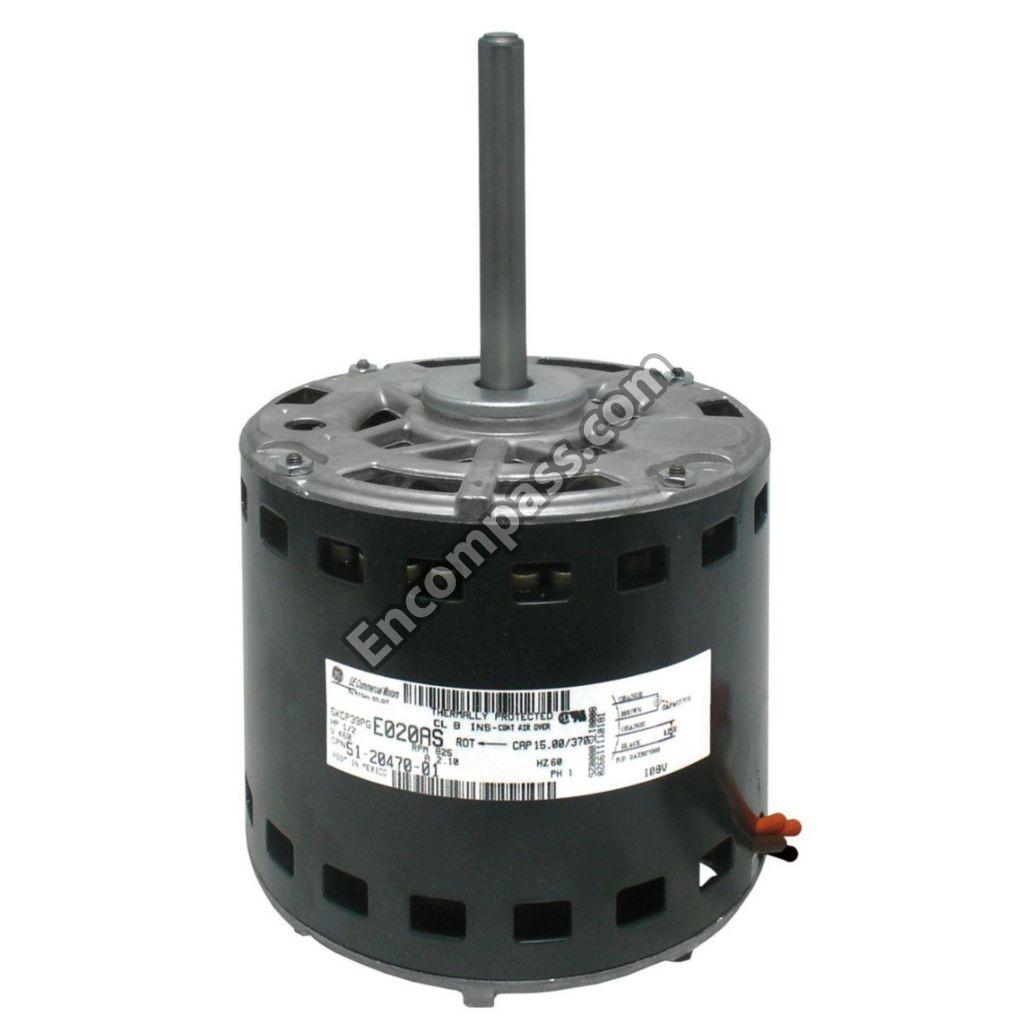

1/3HP 208-230V 825RPM 1PH MTR |
|
|
15MFD 370V OVAL CAPACITOR |
|
|
208/230-24V 40VA TRANSFORMER |
|
|
208/230V 3PH R410A SCROLL COMP |
|
|
24-INCH DIA 19DEG 1/2-INCH CCW 2BLD FAN |
|
|
24-INCHDIA 23DEG 1/2-INCH CCW 3BLD FAN |
|
|
24V 32A 3POLE CONTACTOR |
|
|
24V SPDT NO/NC RELAY |
|
|
24V SPST N/O RELAY |
|
|
3/8-INCH 8CUIN LIQUIDLINEDRIER |
|
|
3/8X3/8 R-410A 3TON TXV |
|
|
BLOWER HOUSING AND WHEEL |
|
|
BLOWER WHEEL 11 X 9-INCH 1/2-INCHBORE |
|
|
BULB STRAINER |
|
|
BULKHEAD VALVE |
|
|
CAPACITOR STRAP |
|
|
CHARGE COMPENSATOR |
|
|
COMPRESSOR MOUNTING GROMMET |
|
|
COMPRESSOR WIRING HARNESS |
|
|
DANFOSS/BRISTOL MOLDED PLUG |
|
|

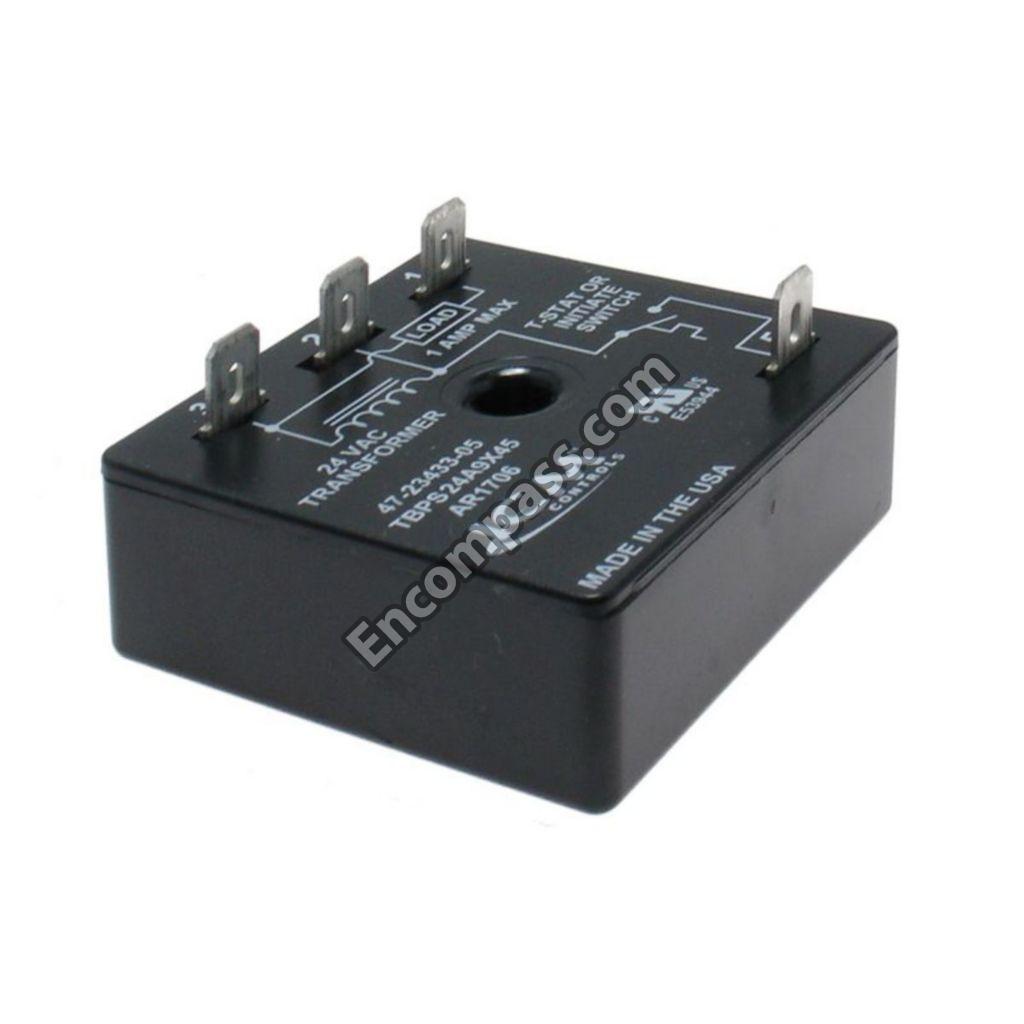

DELAY ON BREAK TIME DELAY RLY |
|
|
DRAIN PAN |
|
|
LIQUID LINE FILTER DRIER |
|
|
MOTOR MOUNT ARM W/ GROMMET |
|
|
MOTOR MOUNT BAND |
|
|
MOTOR MOUNT BAND |
|
|
PLASTIC (SNAP-IN) BUTTON PLUG |
|
|
RUN CAPAC 5 MFD 370V OVAL |
|
|

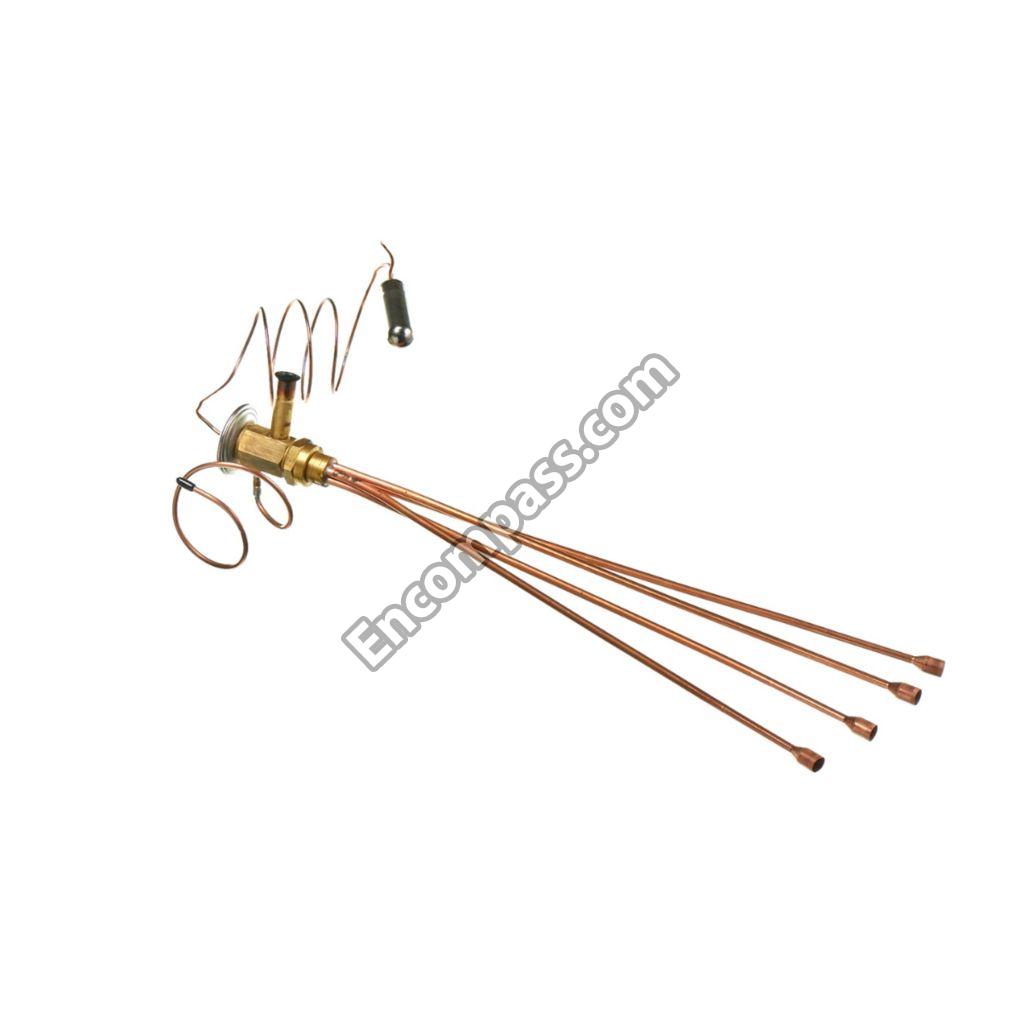

THERMAL EXPANSION VALVE |
|
|

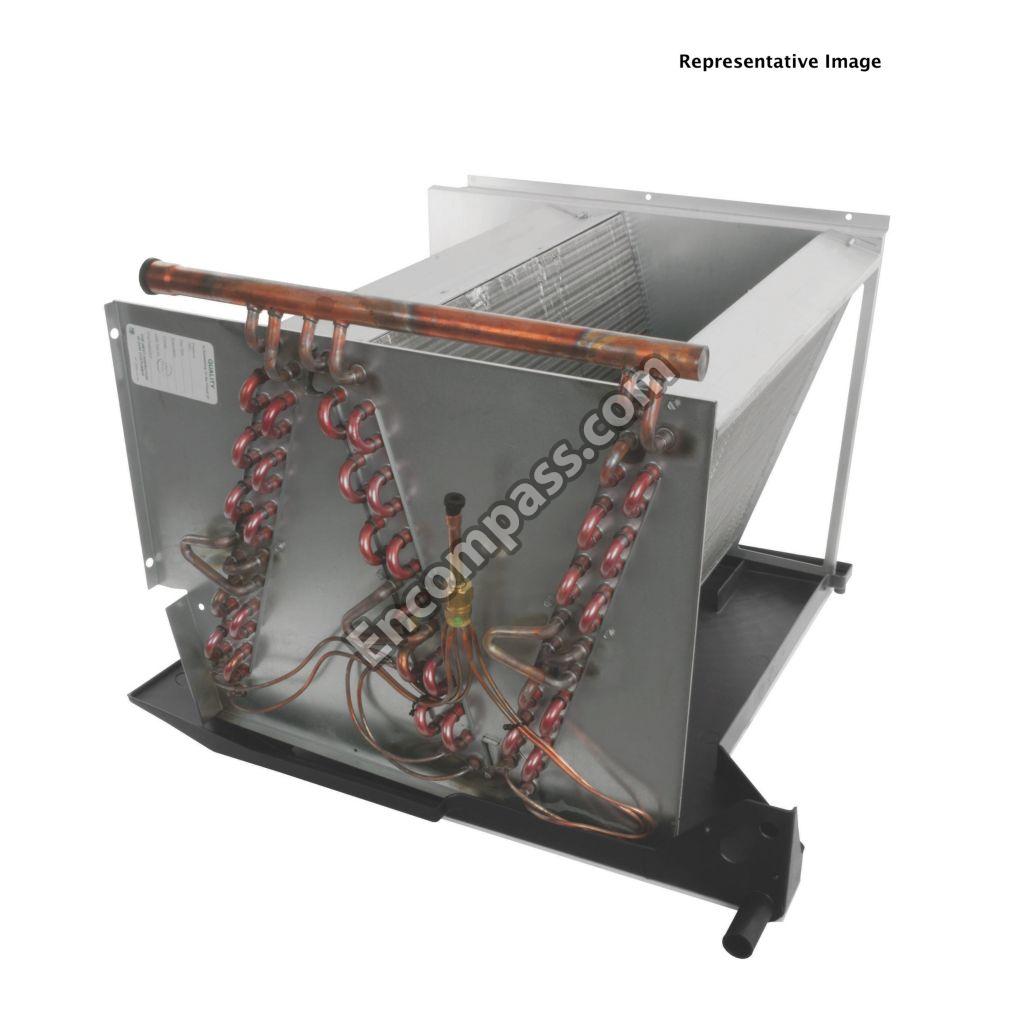

TIN PLATED EVAPORATOR COIL |
|
|
TXV BULB STRAP MOUNTING KIT |
|
|
VALVE CORE |
|
|
WIRE GRILLE |
