Manufacturer
Rheem
Model Number
WA1436AJ1NA
Description
Straight Cool - Residential Condenser
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
1/5HP 208-230V 825RPM 48 MOTOR |
|
|
1/8-INCH COPPER TUBE |
|
|
189-227 250V START CAPACITOR |
|
|
230V1PH 31000BTU R410A COMP |
|
|
24-INCH DIA 22DEG 1/2-INCH CCW 3BLD FAN |
|
|
24V 30A 1POLE CONTACTOR |
|
|
26-INCH WIRE GRILLE |
|
|

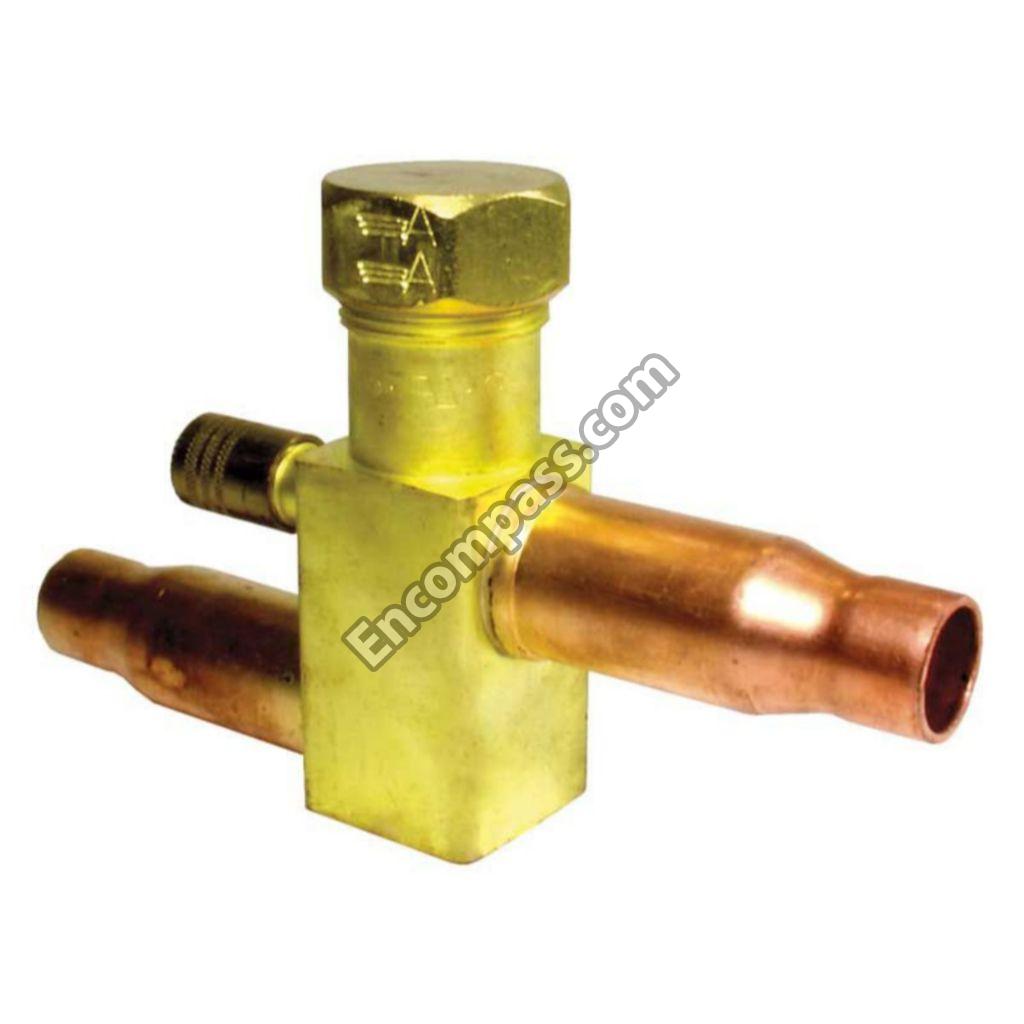

3/4-INCH SW 600# SERVICE VALVE |
|
|
3/8-INCH 8CUIN LIQUIDLINEDRIER |
|
|
3/8-INCH SWT 600# SERVICE VALVE |
|
|
BASE PAN |
|
|
COMPRESSOR MOUNTING GROMMET |
|
|
COMPRESSOR WIRING HARNESS |
|
|
CONTROL BOX COVER |
|
|
DUAL CAPAC 45/5 MFD 370V ROUND |
|
|
LIQUID LINE FILTER DRIER |
|
|
START RELAY |
|
|
TOP PANEL |
|
|
TOP PANEL 32X32X4 |
|
|
VALVE CORE |
