Manufacturer
Rheem
Model Number
WH1T6024STANJA
Description
Heat Pump - Residential Air Handler
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
11X11 1/2-INCH BORE CW CONVEX WHEEL |
|
|

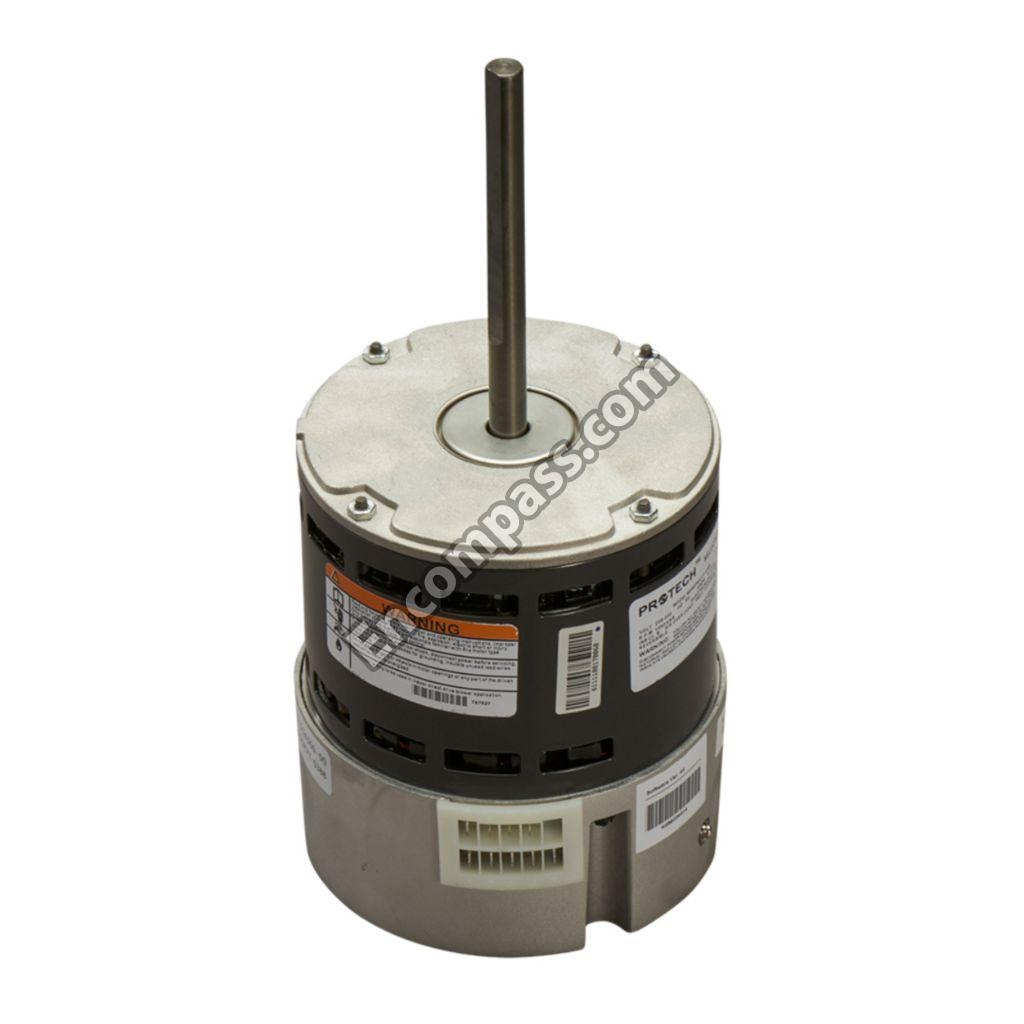

208/230V1PH 3/4HP VAR SPD MTR |
|
|

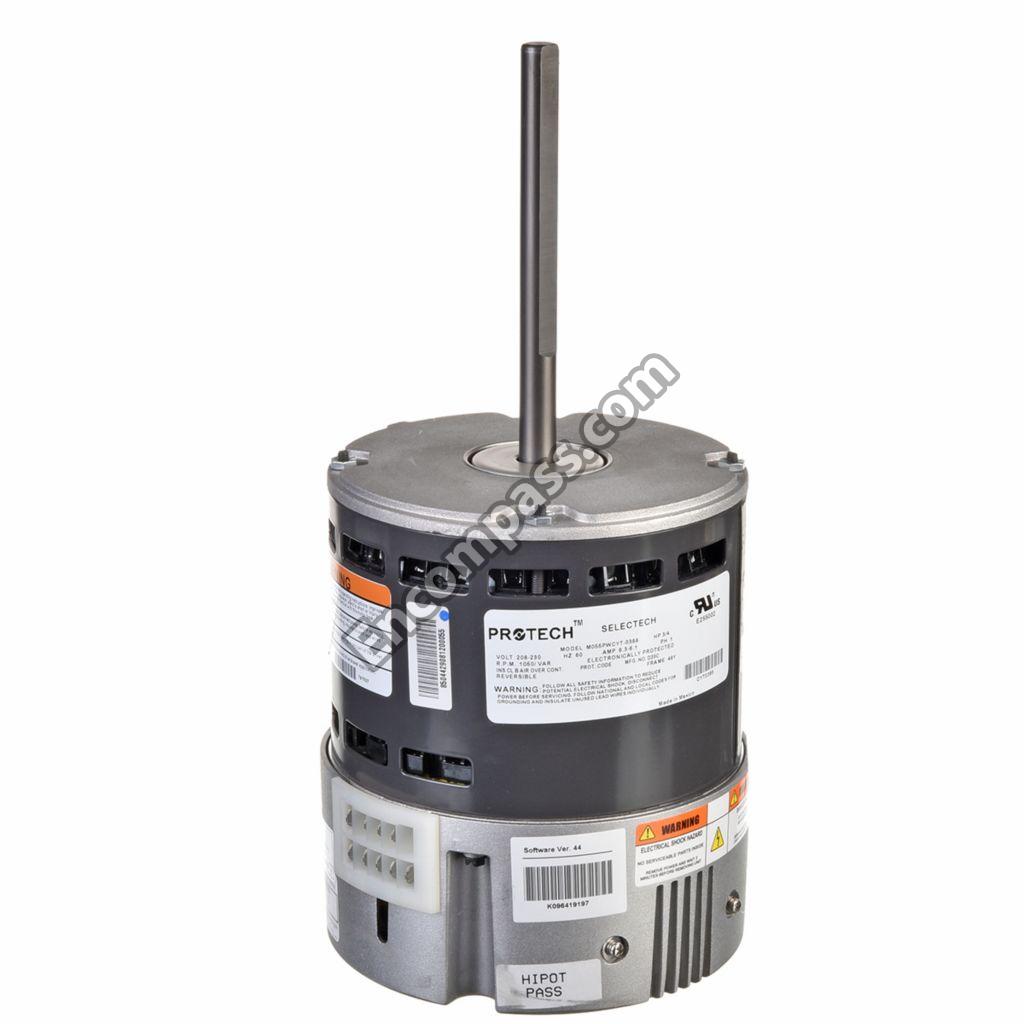

208/230V1PH 3/4HP VAR SPD MTR |
|
|
3/4HP 208-230V VAR SPEED MOTOR |
|
|
3/4HP 208-230V VARSP 48Y BLMTR |
|
|
3/4HP 208-230V VARSP 48Y BLMTR |
|
|
3/4HP 208/230V BLANK VARSPD MT |
|
|
3/4HP 208/230V UNPROG BLW MTR |
|
|
3/4HP 208/230V UNPROG BLW MTR |
|
|

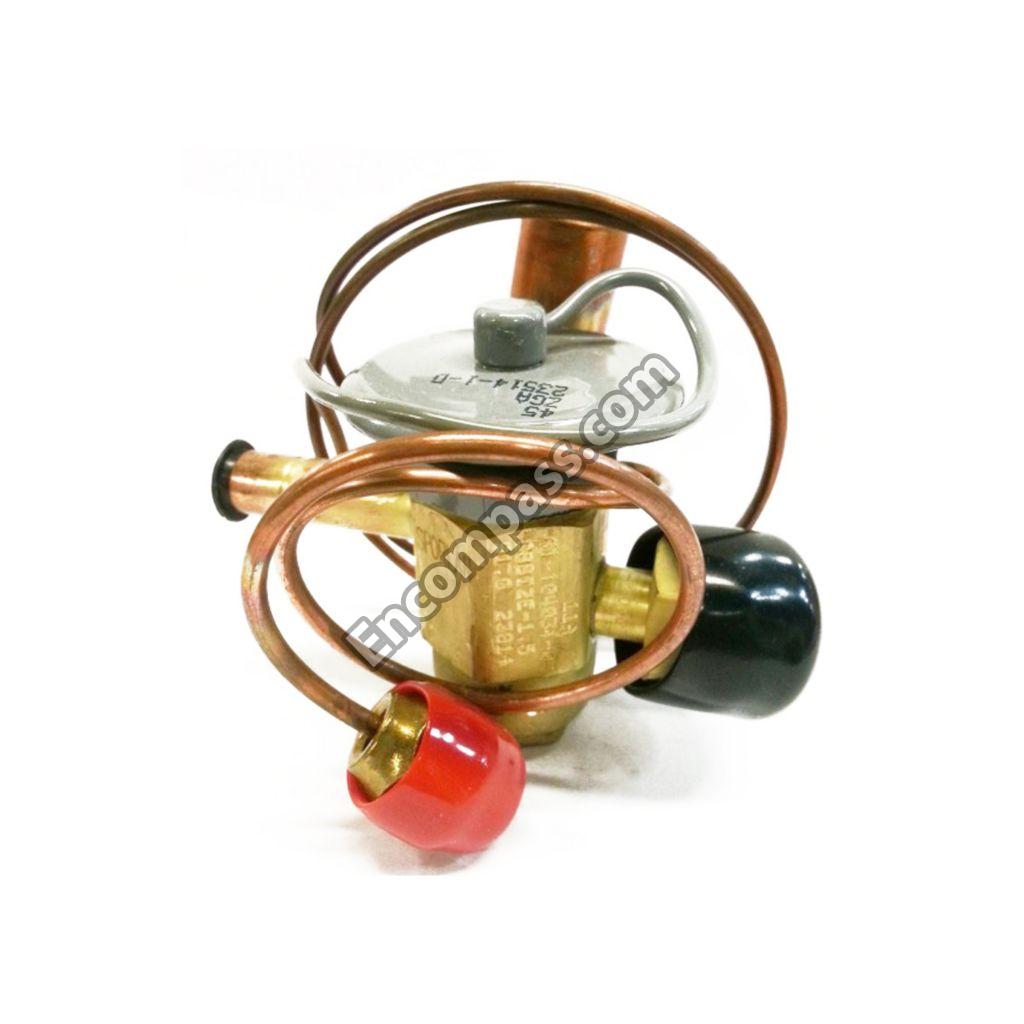

3/8-INCH SWTXTHRDCHTLF R410A 5T TXV |
|
|
ACCESS PANEL |
|
|
BLOWER ASSEMBLY |
|
|
BLOWER WHEEL W/ HOUSING |
|
|
BOLT |
|
|
BRACE 24 |
|
|
COIL BRACE |
|
|
CONTROL BOARD |
|
|
CONTROL BOARD |
|
|
COVER - MOUNTING BRACKET |
|
|
DRAIN PAN - 24 IN. VERTICAL |
|
|
DRAIN PAN - 24 IN. VERTICAL |
|
|
DUCT FLANGE |
|
|
GROUND LUG |
|
|
HEAT BARRIER |
|
|
HORIZONTAL DRAIN PAN |
|
|
INSULATION |
|
|
INSULATION |
|
|
INSULATION - BLOWER DOOR |
|
|
INSULATION - CABINET |
|
|
INSULATION - TOP PANEL |
|
|
LOCKING WING PUSH MOUNT TIE |
|
|
MACHINE SCREW |
|
|
MIDDLE BRACE 24 |
|
|
MOTOR ARM W/GROMMET |
|
|
MOTOR MOUNT BAND |
|
|
MOTOR MOUNTING BRACKET |
|
|
NUT |
|
|
NUT ELECTRIC WIRE |
|
|
PARTS BAG |
|
|
PLATE - BLOCK OFF |
|
|
PLUG - COIL (4/PACKAGE) |
|
|
QUICK CONNECT TERMINAL |
|
|
RAIL - COIL |
|
|
RAIL - COIL TOP |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
STRAP |
|
|
TERMINAL BLOCK |
|
|
TOP COVER PLATE 24 |
|
|
TRANSFORMER 40V BE40137001 BAS |
|
|
TXV BULB STRAP MOUNTING KIT |
|
|
WASHER |
|
|
WIRE & CABLE TIE - NYLON BLACK - 8 IN. |
|
|
WIRE INSULATION RETAINER |
|
|
WIRING HARNESS |
