Manufacturer
Saeco
Model Number
10002799
Description
Saeco Odea Go V2 Grey Sup031o
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
2POLES CONNECT.SENSOR REED DOOR P0049 UL |
|
|
2POLES CONNECTOR PUMP P0049 UL 100V-230V |
|
|
5POLES CONNECTOR MC SENSORS P0049 UL 100V230V |
|
|
5X8,9 SILICONE TUBE IN ROLL |
|
|
6 POLES CONNECT.LEVEL+FLOWMETER P0049 UL 110V - 230V |
|
|
90 INLET PUMP CONNECTOR |
|
|
AMBRA COFFEE DISPENSER LENS P0049 |
|
|
ANTIDISTURB FILTER 10A FNC 1005474103P 230V |
|
|
AS.GEN.MOTORE MC COST.P0049 230V FROM S/N TW901325341717 |
|
|
AXIAL BEARING EKKO 342.35252 |
|
|
BAKED CLAY GRINDER 48X28 KEEP FOR 120V FOR 230V UP TO S/N TW9013253417 |
|
|
BLACK ALLARMS BUTTON P0049 |
|
|
BLACK BEAN COFFEE GRINDER INSERT P0049 |
|
|
BLACK BOILER-FAUCET-VALVE SUPPORT P0049 |
|
|
BLACK BREW UNIT 8GR/SBS P124 UP TO S/N 9008SA40436654 |
|
|
BLACK BREW UNIT CONDENSE CONVEYOR P0049 |
|
|
BLACK BREW UNIT COUPLING PLATE SMART |
|
|
BLACK BREW UNIT DRILLED BLOCK |
|
|
BLACK BREW UNIT ELBOW SHAFT M5000 |
|
|
BLACK BREW UNIT FRONT PLATE S/SCR.SMART |
|
|
BLACK BREW UNIT REAR PLATE SMART |
|
|
BLACK COFFEE BUTTON SPACER P0049/A |
|
|
BLACK COFFEE CONNECTOR INSERT SEAL P124 |
|
|
BLACK COFFEE CONTAINER BREW UNIT P124 |
|
|
BLACK COFFEE DISPENSER INNER TUBE P0049 |
|
|
BLACK COFFEE GRINDER SUPPORT P0049 |
|
|
BLACK CONNECTING ROD BREW UNIT 8GR. |
|
|
BLACK CONNECTOR FOR PIN BOILER P0049 |
|
|

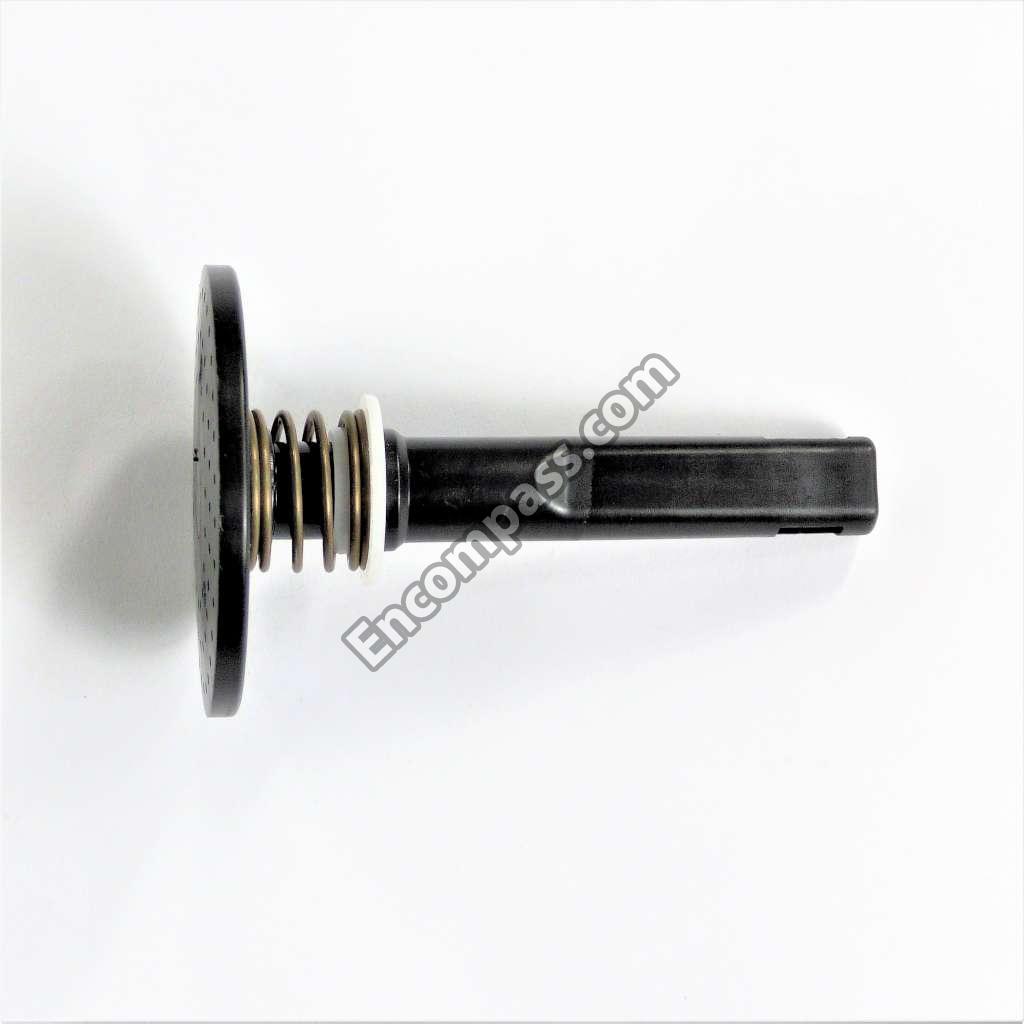

BLACK COUNTER PISTON BREW UNIT 8GR.P124 |
|
|
BLACK DOOR INSIDE COVER P0049 |
|
|
BLACK DOOR PIN P0049 |
|
|
BLACK DRIP TRAY GUIDE P0049 |
|
|
BLACK DRIP TRAY PIN INSERT P0049 |
|
|
BLACK DRIP TRAY SUPPORT V2 P0049 |
|
|
BLACK DUMP BOX P0049 ASSY. |
|
|
BLACK FAUCET CONNECTOR P0049 |
|
|
BLACK FAUCET STRAIGHT CONNECTOR P0049 |
|
|
BLACK GEAR Z=19 P0049 |
|
|
BLACK GRINDER ADJUSTMENT KEY P0049 |
|
|
BLACK HOPPER DOSER BREW UNIT SMART1 |
|
|
BLACK INSIDE COVER DOOR P0049 UL |
|
|
BLACK LID FOR DUCKBILL VALVE P0049 |
|
|
BLACK PANNARELLO COVER P0049 |
|
|
BLACK PANNARELLO INNER TUBE P0049 |
|
|

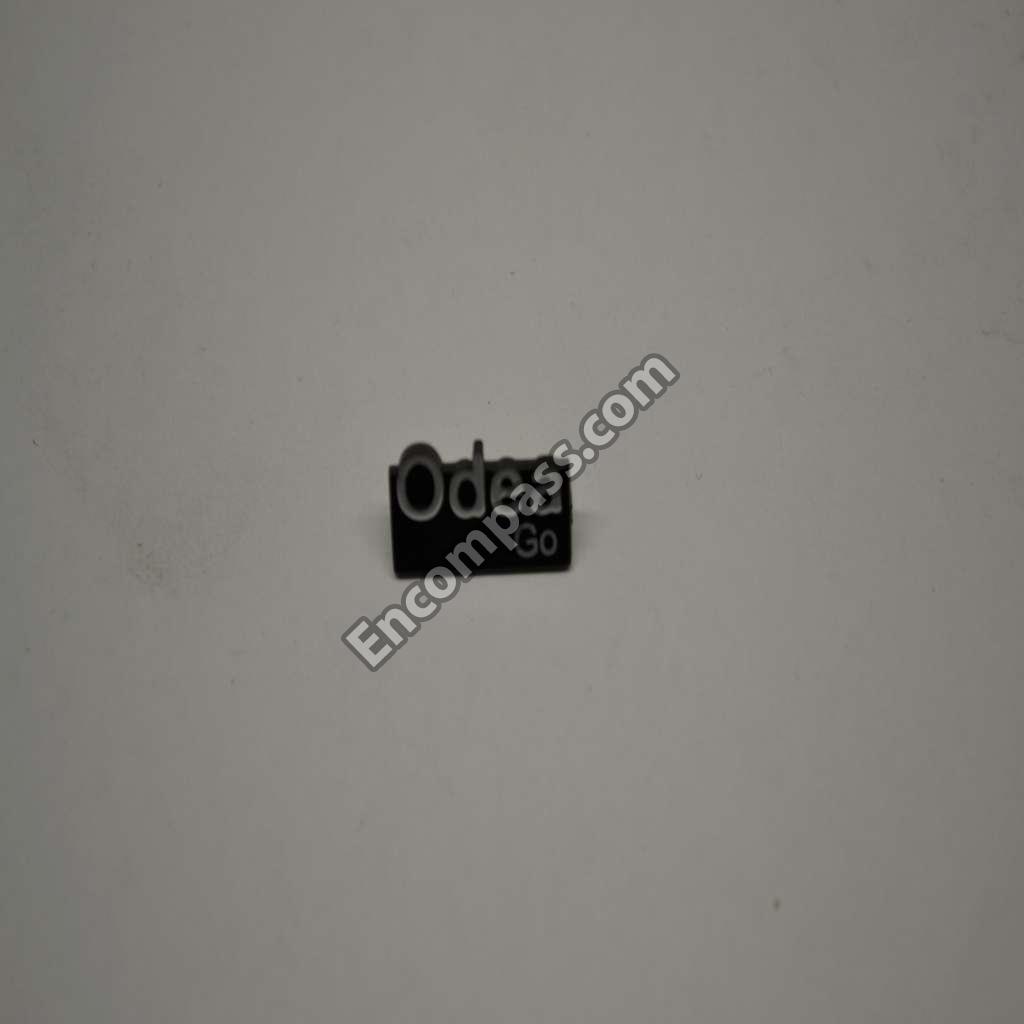

BLACK PLATE WITH LOGO ODEA P0049 GO UP TO S/N TW901248583301 |
|
|

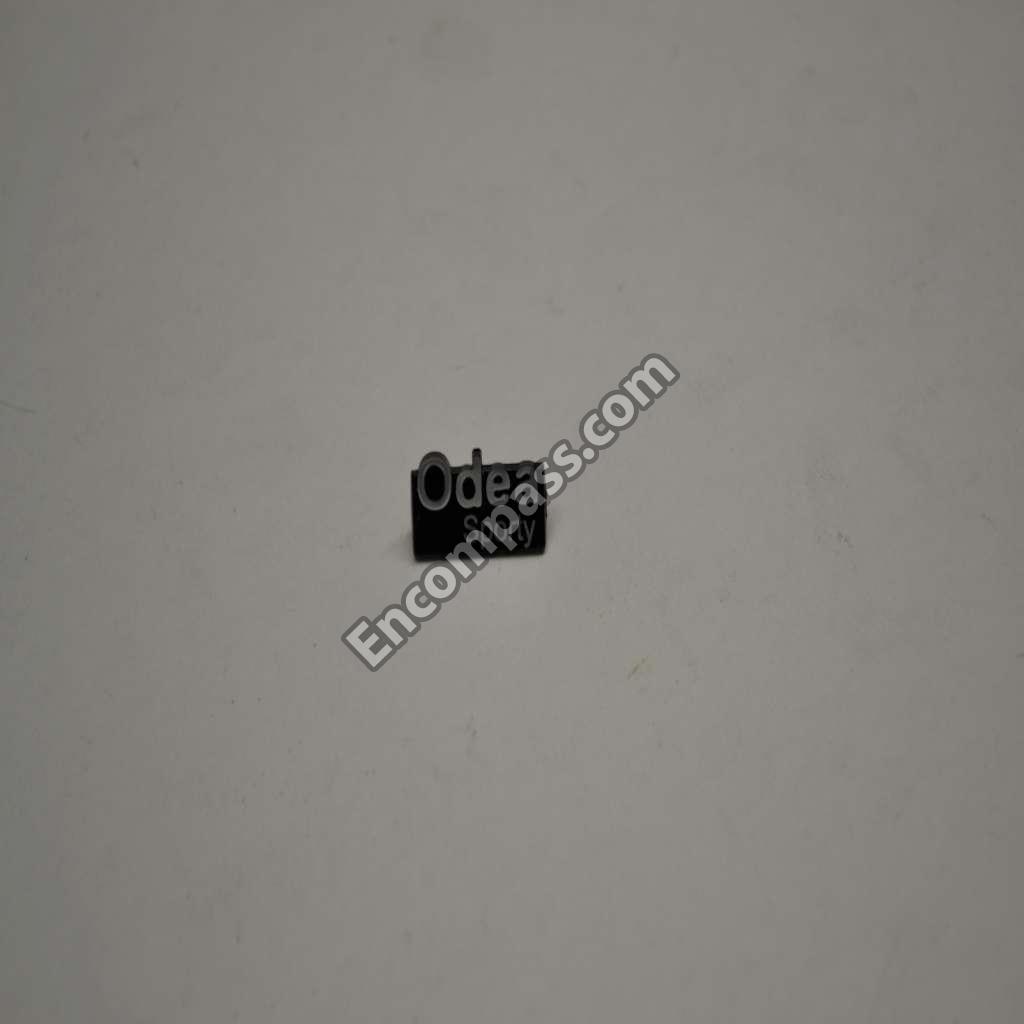

BLACK PLATE WITH LOGO ODEA P0049 SPORTY UP TO S/N TW901248583301 |
|
|
BLACK POWER BOARD PROTECTION V2 P0049 |
|
|
BLACK POWER CABLE AUSTRALIA L=1200 |
|
|
BLACK POWER CABLE BRAZIL L=1200 127V |
|
|
BLACK POWER CABLE BRAZIL L=1200 220V |
|
|
BLACK POWER CABLE JAPPON VCTF L=1200MM |
|
|
BLACK POWER CABLE KOREA L=1200 |
|
|
BLACK POWER CABLE RVV 3X1 CHINA L=1200 |
|
|
BLACK POWER CABLE TAIWAN HVCTF L=1200 |
|
|
BLACK PUMP SUPPORT P0049 ASSY. |
|
|
BLACK REAR CPU CARD SUPPORT P0049. |
|
|
BLACK SCRAPER FOR BREW UNIT M5000 |
|
|
BLACK STEAM BUTTON P0049 |
|
|
BLACK STEAM KNOB BUSH P0053 |
|
|
BLACK STEAM TUBE WASHER P0049 |
|
|
BLACK SUPPORT FOR RING NUT P0049 |
|
|
BLACK TURBINE SUPPORT V2 P0049 |
|
|
BLACK WATER INLET SLEEVE BREW UNIT ASSY. |
|
|
BLACK WATER INLET SLEEVE BREW UNIT ROYAL |
|
|
BLACK WHEEL FOR CASING BOTTOM P124 |
|
|
BLACKBOILER CONNECTORS COVER P0049/P0053 STD BOILER |
|
|
BLK 8GR.BREW UNIT NTEGR.PISTON GEN.ASSY. |
|
|
BLK BOILER CONNECTORS COVER P0049/P0053 SLIM BOILER |
|
|
BLK BRASS FAUCET BLOCK INSERT P0049/A |
|
|
BLK BREW UNIT 8GR.5BAR V3 P0057 FROM S/N 9008SA40436655 |
|
|
BLK BREW UNIT 8GR.INT.PISTON GEN.V3 ASSY |
|
|
BLK BREW UNIT INTEGR.PISTON 8GR.V3 ASSY. |
|
|
BLK BREW UNIT INTEGRAL PISTON 8GR.ASSY. |
|
|
BLK BREWUNIT HOPPER BLOCKING PLATE SMART |
|
|
BLK CAPACIT.SENSOR DEADLOCK INSERT P0049 |
|
|
BLK COF.CONTAIN.BREW UNIT V2 M5000 ASSY. |
|
|
BLK COF.GRINDER LOWER GRINDER SUPPORT V3 KEEP FOR 120V FOR 230V UP TO |
|
|
BLK COF.GRINDER UPPER GRINDER SUPPORT V2 KEEP FOR 120V FOR 230V UP TO |
|
|
BLK COF.OUTLET SLEEVE BREW UNIT S0053 AS |
|
|
BLK COFFEE CONNECTION BREW UNIT P124 |
|
|
BLK COUNTER PISTON TUBE BREW UNIT S0053 |
|
|
BLK GROUND COFF.OUTLET CONVEYOR V4 ASSY. |
|
|
BLK LOWER SUPPORT WITH COMOLDED MILL V2 ONLY 230V FROM S/N TW901325341 |
|
|
BLK MILK ISLAND DESCARG.WATER CONN.P0049 |
|
|

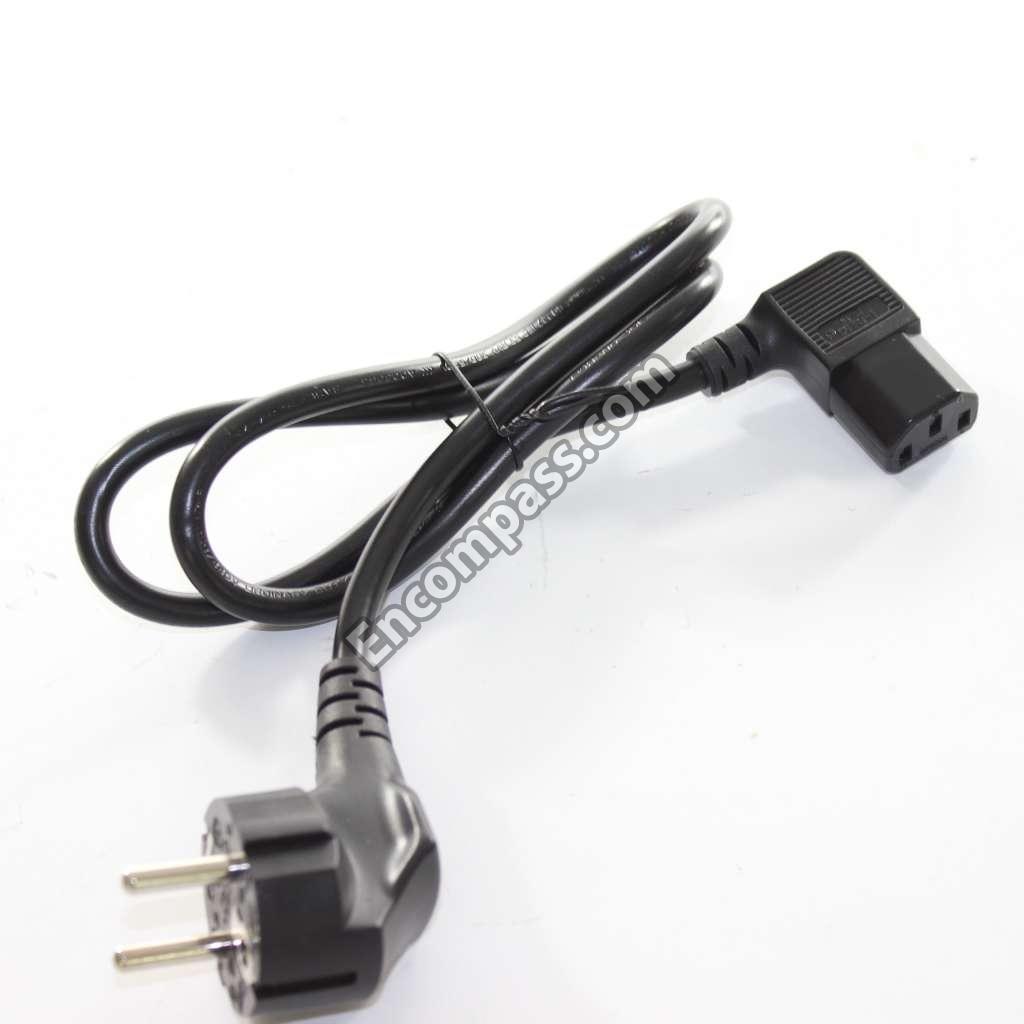

BLK POWER CABLE SCHUKO L=800 |
|
|
BLK PUMP WATER DESCARGING CONNECT.P0049 |
|
|
BLK REED SENSOR SUPPORT V2 P0049 |
|
|
BLK SENSOR SUPPORT FOR COF.GRINDER MOTOR |
|
|
BLK UPPER BODY WITH COFFEE GROUND OUTLET |
|
|
BLK UPPER SUPPORT WITH COMOLDED MILL V2 ONLY 230V FROM S/N TW901325341 |
|
|
BLK WIRING FIX INSERT FOR GRINDER BOARD |
|
|
BLK/SIL.STEAM TUBE HANDGRIP P0049 |
|
|
BOROSILICATE SPHERE D.5 MM |
|
|
BRASS NCREMENT SCREW MC UP TO S/N. 9008SA40315750 |
|
|
CARBONA COFFEE BUTTON S/SCR.P0049/A |
|
|
CARBONA COFFEE UNIT DRIP TRAY V2 P0049 |
|
|
CARBONA DOOR P0049 |
|
|
CARBONA DRIP TRAY P0049 |
|
|
CARBONA LEFT SIDE CASING P0049 |
|
|
CARBONA ON-OFF BUTTON INSERT P0049 |
|
|
CARBONA RIGHT SIDE CASING P0049 |
|
|
CARBONA WATER TANK OUTLET COVER P0049 |
|
|
CHROM.COFFEE HEIGHT REGULATION NUT P0049 |
|
|
CHROM.LOWER STEAM TUBE COVER P0049 |
|
|
CHROM.UPPER STEAM TUBE COVER P0049 |
|
|
CHROM.WATER-STEAM KNOB P0049 |
|
|
COFFEE GRINDER SOUNDPROOFING COVER P0053 |
|
|
COFFEE GRINDER SUPPORT SPRING P124 |
|
|
COFFEE GRINDING ADJUSTMENT GEAR P0049 |
|
|
COFFEEGRINDER REGULATION SPRING P124 |
|
|
CUP SOCKET V3 EN 60320 C 13 |
|
|
ELECTR.BOARD WITH SENSOR HAL506 SF-K |
|
|
FAUCET ELECTRONIC CARD G0053 ASSY. |
|
|
FELT RING 45,4X39,4X4 |
|
|
G/URBAN DOOR P0049 |
|
|
GALV.SELF LOCK NUT HIGH M4 DIN 982 UP TO S/N. 9008SA40315750 |
|
|
GALV.WASHER UNI 8842 A4 FROM S/N. 9008SA40315751 |
|
|
GEAR SX Z=38 FOR GRINDER MOTION ASSY. |
|
|
GEN.MOTOR COF.GRINDER V2 P0049 100V ASSY |
|
|
GEN.MOTOR COF.GRINDER V2 P0049 120V ASSY |
|
|
GEN.MOTOR COF.GRINDER V2 P0049 230V ASSY UP TO S/N TW901325341716 |
|
|
GENERAL SWITCH P124 |
|
|
GLOSS/URBAN COFF.UNIT DRIP TRAY V2 P0049 |
|
|
GLOSS/URBAN LEFT SIDE CASING P0049 |
|
|
GLOSS/URBAN ON-OFF BUTTON INSERT P0049 |
|
|
GLOSS/URBAN RIGHT SIDE CASING P0049 |
|
|
GREY BREW UNIT DRILLED BLOCK |
|
|
GREY WATER CONTAINER VALVE INSERT P0049 |
|
|
GRY GROUND COFFEE CONT.LOWER SEAL SMART1 |
|
|
INS.TASTO ON-OFF P0049 VANILLA |
|
|
INSULATOR BUSH FOR GRINDER MOTOR P124 |
|
|
KIT SPARES CPU+SW SB P0049 ASSY. FROM S/N. TW901249599457 |
|
|
KIT SPARES CPU+SW V2 P0049 ASSY. UP TO S/N. TW901249599456 |
|
|
KIT SPARES FOR PACKAGING V3 P0049 |
|
|
KLUBERLUB NH1 11-222 TUBE 5GR. |
|
|
LOWER COFFEEGRINDER GEAR SUPPORT P124 |
|
|
LOWER INSULATE SHEET PWR ELE.BOARD P0053 (ONLY 120V) |
|
|
MAGNET FOR FLOAT SUPERAUT. |
|
|
MANUAL V4 SAE SUP031O P0049/A GB/CHN |
|
|
MANUAL V4 SAE SUP031O P0049/A GB/KOR |
|
|
MANUAL V4 SAE SUP031O P0049/A GB/P |
|
|
MANUAL V6 SAE SUP031O P0049/A D/I |
|
|
MANUAL V6 SAE SUP031O P0049/A E/P |
|
|
MANUAL V6 SAE SUP031O P0049/A GB/F |
|
|
MANUAL V6 SAE SUP031O P0049/A NL/PL |
|
|
MC V3 MOD=1,25 WORM SCREW CENTRING CAP |
|
|
MOTOR COFFEEGRINDER V3.1 ASSY. 100V |
|
|
MOTOR COFFEEGRINDER V3.1 ASSY. 120V |
|
|
MOTOR COFFEEGRINDER V3.1 ASSY. 230V |
|
|
MOUNTING PLATE W/PIN V3 P0049 ASSY. |
|
|
MOUNTING PLATE W/PIN V3 P0049 UL ASSY. |
|
|
NAT/GREY BEAN COFFEE CONT.LID P0049 ASSY |
|
|
NAT/GREY WATER CONTAINER LID P0049 |
|
|
O-RING 108 EPDM PEROX.FOOD 70 SH |
|
|
O-RING 2031 TERMOIL WITH PART.N 37 |
|
|
OETIKER CLAMP D=9,5 16700004 |
|
|
OETIKER CLIP |
|
|
OR 2012 IN EPDM PEROX.FOOD 70 SH |
|
|
OR 2025 IN EPDM PEROX.FOOD 70 SH |
|
|
OR 2025 IN TERMOIL |
|
|
OR ORM 0060-15 TERMOIL |
|
|
OR ORM 0190-10 EPDM |
|
|
OR ORM 0320-40 SILICONE PTFE/FDA |
|
|
OR ORM 0530-15 NBR FDA |
|
|
PERCOLATOR DE=35,8 ELFO |
|
|
PHOSPH/STEEL FOLK SPRING |
|
|
PIN WITH BLACK INSERT P0049 ASSY. |
|
|
POWER BOARD SB P0049 230V FROM S/N. TW901249599457 |
|
|
POWER CABLE CH BLACK 3X1 H05VV-F L=1200 |
|
|
POWER CABLE SJT3 USA BLACK UL L=1200 |
|
|
PWR BOARD P0049/P0053 100V-120V |
|
|
PWR BOARD V2 P0053 230V UP TO S/N. TW901249599456 |
|
|
QUICK-LOCK ANTIDISTURB FILTER 16A 100V |
|
|
QUICK-LOCK ANTIDISTURB FILTER 16A 120V |
|
|
RADIAL BEARING 61900.2RS1 |
|
|
SBS VALVE STD ASSY. |
|
|
SCREW TCB TORX 10 3,5X16 PLAST.ZN-B |
|
|
SCREW TCB TORX 10 3,5X20 PLAST.SS |
|
|
SCREW TCB TORX 10 3X12 PLAST.ZN-B |
|
|
SCREW TCB TORX 10 3X25 PLAST.SS |
|
|
SCREW TCB TORX 10 3X8 PLAST.ZN-B |
|
|
SCREW TCB TORX 20 M4X30 ZN-B FROM S/N. 9008SA40315751 |
|
|
SCREW TCB TORX 20 M4X8 AUTOFORMING ZN-B |
|
|
SCREW TCB TORX 3,5X30 PLAST.ZN-B |
|
|
SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N |
|
|
SCREW TCBR TORX 10 3,5X14 PLAST.SS |
|
|
SCREW TSP 5X30 PLAST.ZN-B STD BOILER |
|
|
SCREW TSP TORX 10 3X10 PLAST.SS |
|
|
SCREW TSP TORX 10 5X35 PLAST.SS SLIM BOILER |
|
|
SILICONE TUBE 5X10 60SH IN ROLL |
|
|
SILICONE TUBE 5X8 70SR IN ROLL |
|
|
SILVER PLATE LOGO SAECO NEW P0049/P0053 UP TO S/N TW901248583301 |
|
|
SLIM TUB.BOILER 1300W 230V ASSY. SLIM BOILER FROM S/N. TW901249599457 |
|
|
SLIM TUB.BOILER P0049/A 230V ASSY. SLIM BOILER FROM S/N. TW90124959945 |
|
|
SPEC.CASING COV.V4 S/S.ODEA SPORTY P0049 |
|
|
SPEC.CASING COVER V4 S/SCR.ODEA GO P0049 |
|
|
SPEC.FRONT COFF.DISPENS.COVER S/SC.P0049 |
|
|
SPECCH.COFF.HEIGHT REGULATION NUT P0049 |
|
|
SPECCH.REAR COF.DISPENSER COVER P0049 |
|
|
SPECCHIATO DRIP TRAY GRATE P0049 |
|
|
SPECCHIATO DRIP TRAY PROTECTION V2 P0049 |
|
|
SPECCHIATO FRONT CPU CARD SUPPORT P0049 |
|
|
SPECCHIATO ON-OFF SWITCH BUTTON P0049 |
|
|
SPECCHIATO WATER-STEAM KNOB P0049 |
|
|
SS BREW UNIT SPRING H=49 SMART |
|
|
SS BUTTONS SPRING P0049 |
|
|
SS COFFEE UNIT CONTERPISTON SPRING S0053 |
|
|
SS DESCARGING WATER CONNECT.SPRING P0049 |
|
|
SS DOOR LOCK SPRING G0053 |
|
|
SS DRIP TRAY MOVE SPRING P0049 |
|
|
SS FAUCET FORK SPRING P0049 |
|
|
SS HOPPER SPRING FOR BREW UNIT SMART |
|
|
SS PANNARELLO COVER P0049 |
|
|
SS SCRAPER SPRING FOR BREW UNIT |
|
|
SS SPRING FOR WATER CONTAIN.VALVE P0049 |
|
|
SS.8GR.BREW UNIT PISTON SPRING |
|
|
SS.FAUCET FOR SPRING P0049 |
|
|
STEEL CRINKLE WASHER 21,8X14X0,25 |
|
|
STEEL FLAT WASHER DI=4,3 DE=14 SP=1,5 |
|
|
STEEL PIN M4-M6 FOR INCREMENT SCREW UP TO S/N. 9008SA40315750 |
|
|
TEA ZAMA INCREASE SCREW GRINDER FROM S/N. 9008SA40315751 |
|
|
TEA/BRASS FAUCET SHAFT P0049 |
|
|
TEA/BRASS FAUCET V2 P0049-P0053 ASSY. COMPLETE |
|
|
TEA/BRASS SAFETY VALVE 16-18 BAR ASSY. |
|
|
TEMPERATURE SENSOR NTC UL L=280MM |
|
|
TF/CHROM.STEAM TUBE V2 P0049/P0053 ASSY. |
|
|

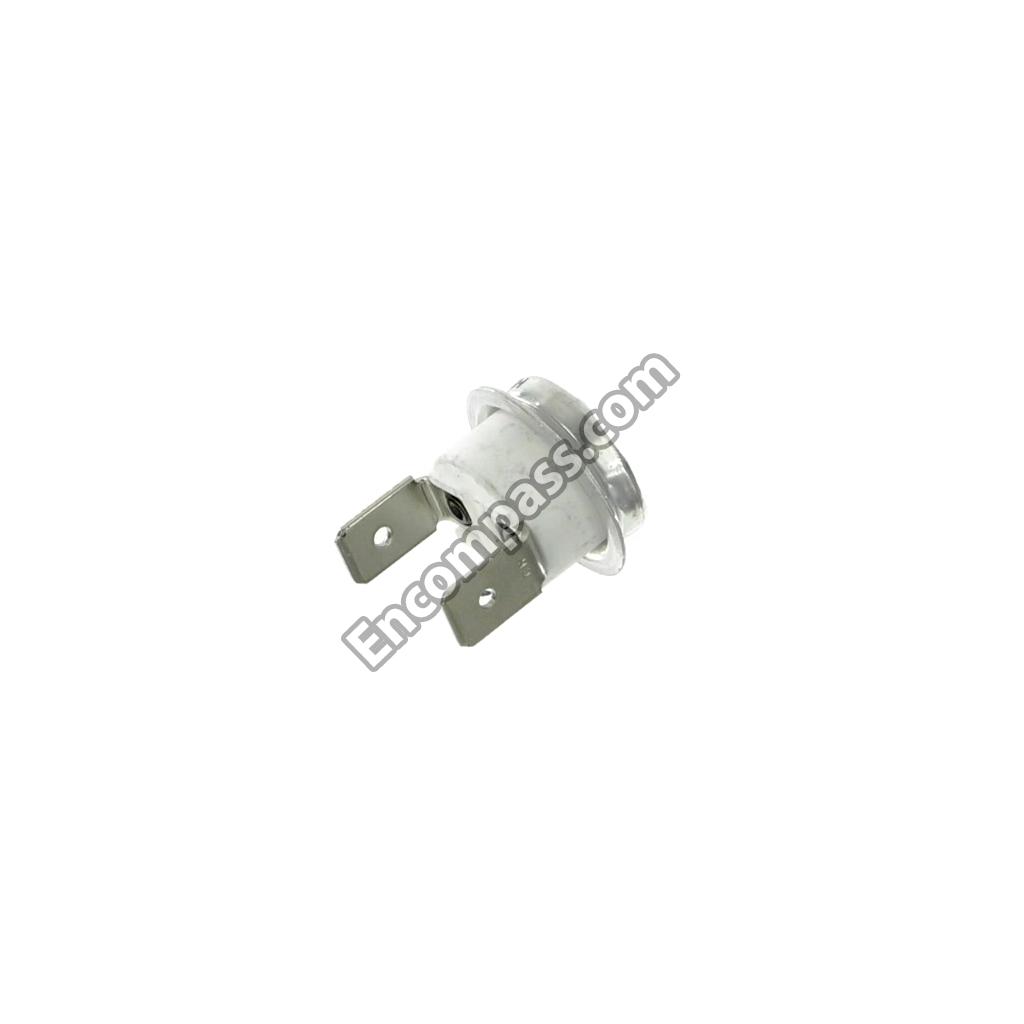

THERMOSTAT 175 1NT-08L-5125 (ONLY FOR 120V) UP TO S/N.9008SA40365462 |
|
|
THERMOSTAT ONE SHOT 175 STD BOILER FROM S/N.9008SA40365463 |
|
|
THERMOSTAT OPEN/CLOSE 190/-35DEGC B SLIM BOILER |
|
|
TITANIO COFFEE UNIT DRIP TRAY V2 P0049 |
|
|
TITANIO DOOR P0049 |
|
|
TITANIO LEFT SIDE CASING P0049 |
|
|
TITANIO ON-OFF BUTTON INSERT P0049 |
|
|
TITANIO RIGHT SIDE CASING P0049 |
|
|
TITANIO WATER TANK OUTLET COVER P0049 |
|
|
TRANSP.BEAN CONTAINER V2 P0049 |
|
|
TRANSP.INFRAREDS PLATE P0049 |
|
|
TRANSP.VALVE FOR WATER CONTAINER P0049 |
|
|
TUB.BOILER P0049/A 100V ASSY COMPLETE |
|
|
TUB.BOILER P0049/A 120V ASSY. COMPLETE |
|
|
TUB.BOILER P0049/A 230V ASSY. STD BOILER UP TO S/N. TW901249599456 |
|
|
TUB.BOILER V3 UPPER THERM.FIXING SPRING |
|
|
TURBINE D=1,2 932-8521/90 ASSY. |
|
|
ULKA PUMP EAP5/S 120V-60HZ |
|
|
ULKA PUMP EP5/S GW 100V-50/60HZ |
|
|
ULKA PUMP EP5/S GW 220V-60HZ |
|
|
ULKA PUMP EP5FMGW 230V-50HZ 230V-50HZ |
|
|
UPPER COFFEEGRINDER GEAR SUPPORT P124 |
|
|
UPPER INSULATE SHEET PWR ELE.BOARD P0053 (ONLY 120V) |
|
|
V3 TUB.BOILER ASSY. 100V 1300W |
|
|
V3 TUB.BOILER ASSY. 120V 1300W |
|
|
V4 TUB.BOILER ASSY. STD BOILER UP TO S/N. TW901249599456 |
|
|
VANILLA COFFEE UNIT DRIP TRAY V2 P0049 |
|
|
VANILLA DOOR P0049 |
|
|
VANILLA LEFT SIDE CASING P0049 |
|
|
VANILLA RIGHT SIDE CASING P0049 |
|
|
VANILLA WATER TANK OUTLET COVER P0049 |
|
|
WATER LEVEL SENSOR BOARD P124 100V -120V |
|
|
WHITE 8GR.-12GR.BREW UNIT PISTON BUSH |
|
|
WHITE WATER CONTAINER EXT.FILTER ASSY. WITH PART.N 10 |
|
|
WHT CASING COVER V4 S/SCR.ODEA GO P0049 |
