Manufacturer
Smeg
Model Number
FAB50URCR3
Description

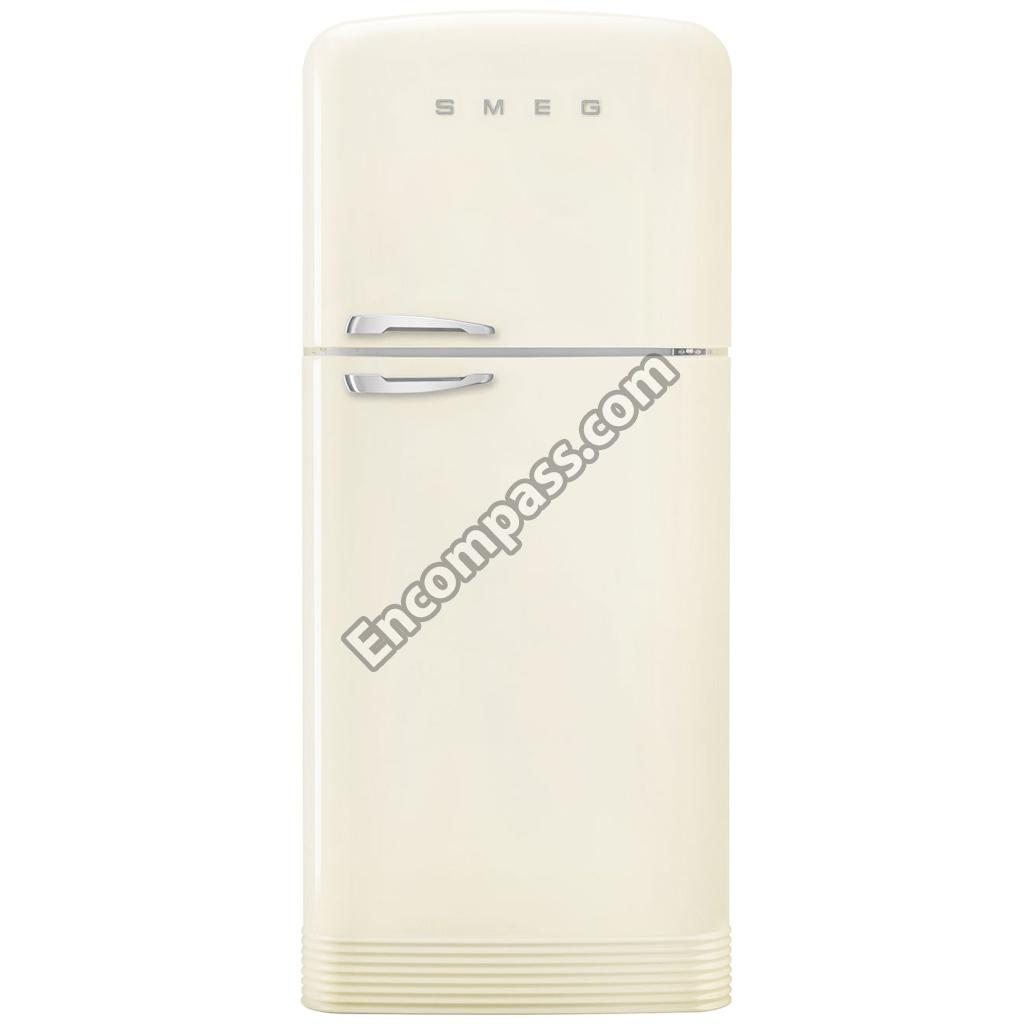

Lh L0 Refrigerator Fab50
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ADHESIVE STICKERS |
|
|
ASSY FILTER + PIPE |
|
|
ASSY VALVE |
|
|
B.KABINET DC FAN MOTOR GR |
|
|
BOTTLE HOLDER |
|
|
BRACKET WHEEL FD48APSNF |
|
|
CARTER COMPRESSOR |
|
|
CHILLER GR |
|
|
COMP.VESD11C/VCC/EO |
|
|
COMPRESSOR RUBBER |
|
|
COOLER AIR DUCT GR 643 NF |
|
|
CRISPER FLAP |
|
|
CRISPER GLASS SHELF/543 |
|
|
CRISPER ROLLER |
|
|
DEFROST HOSE |
|
|
DISPLAY BYZH JULY 2021 |
|
|
DOOR HOOK |
|
|
DOOR HOOK FIXING BUSHING |
|
|
DOOR HOOK INSERT |
|
|
DOORLOCK |
|
|
DOOR_SELF |
|
|
DOOR_SELF |
|
|
DOOR_SELF |
|
|
DRYER FILTER |
|
|
EGGS TRAY |
|
|
EVAPO. TRAY GR |
|
|
EVAPORATOR TRAY |
|
|
F SHELF TOP/543 |
|
|
F.GLASS SHELF PRF |
|
|
FAN FIXING SPRING |
|
|
FAN KOND. GR 543/6 PASS |
|
|
FAN MOTOR SEAL |
|
|
FAN PROPELLER |
|
|
FIN EVAP GR/543 |
|
|
FIN HEATER/543/115V/174W |
|
|
FOOT M8X35 |
|
|
FR AIR DUCT (BOTTOM) 543 |
|
|
FRE.AIR.DUCT.GR/543 RADYA |
|
|
FREEZ GLASS SHELF BACK |
|
|
FREEZER SENSOR |
|
|
FRIDGE DOOR GASKET |
|
|
FRIDGE DOOR GASKET |
|
|
FRONT WHEEL GR. |
|
|
FRUITS AND VEGETABLES BOX |
|
|
GLASS SHELF 553 |
|
|
HANDLE FIXING PIN |
|
|
HANDLE SCREW M4X6 INX304 |
|
|
HINGE BUSHING |
|
|
HINGE COVER CAP |
|
|
HINGE PIN |
|
|
HOLDER PIN |
|
|
ICEMATIC GR |
|
|
KROSE |
|
|
LED CAP GR |
|
|
LED COVER GR |
|
|
LEFT DRAWER GUIDE/643 |
|
|
LEFT DRAWER SUPPORT/643 |
|
|
LEFT HINGE |
|
|
LEFT SIDE PANEL |
|
|
LOWER RIGHT DOOR HANDLE |
|
|
MAIN BOARD COVER |
|
|
MAINBOARD COV GR |
|
|
MID/HINGE CAP CLINC. |
|
|
MOTOR FAN KAU.916-NEW |
|
|
PIN WHEEL FD54APXNF |
|
|
PLAQUE LETTER "E" |
|
|
PLAQUE LETTER "G" |
|
|
PLAQUE LETTER "M" |
|
|
PLAQUE LETTER "S" |
|
|
POW,CORD 60CM |
|
|
POW.CORD 2.1M |
|
|
R GLASS SHELF PRF BACK |
|
|
R MULTIFLOW CAP |
|
|
R.GLASS SHELF PRF |
|
|
REED SW/SENSOR/TYPE |
|
|
REED SWITCH COVER |
|
|
REF FAN COVER |
|
|
REFRIGERATOR FAN MOTOR |
|
|
REFRIGERATOR SENSOR |
|
|
RIGHT DRAWER RAIL |
|
|
RIGHT DRAWER SUPPORT/643 |
|
|
RIGHT HINGE |
|
|
RIGHT LOWER DOOR |
|
|
RIGHT SIDE PANEL |
|
|
RIGHT UPPER DOOR |
|
|
RINF FIAN FAB50URCR3 |
|
|
SCREW |
|
|
SENSOR COVER |
|
|
SID FIXING LEFT COLOMUN |
|
|
SIDE FIXING RIGHT COLUMN |
|
|
SMEG MARK |
|
|
SPACER |
|
|
SPACER |
|
|
THERMAL FUSE DOUBLE |
|
|
TOP |
|
|
TOP FIXING PROFILE |
|
|
UPPER RIGHT DOOR HANDLE |
|
|
VESD11C /115-127V INVERTE |
|
|
WASHER |
