Manufacturer
Sharp
Model Number
LC70LE660U
Description
70-inch Class Aquos Hd Series Led Smart Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
70" POLARIZER ***REPAIR PARTS*** |
|
|
AC CORD |
|
|
AC CORD COVER |
|
|
B/L LED UNIT, X3 |
|
|
BEZEL UNIT ASS'Y |
|
|
BL CHASSIS UNIT ASS'Y |
|
|
BOTTOM COVER, X2 |
|
|
CABLE CLAMP, X2 |
|
|
CASE LABEL (NOT REPLACEMENT ITEM) |
|
|
CASE NO. LABEL (NOT REPLACEMENT ITEM) |
|
|
CAUTION SHEET |
|
|
CONNECTING CORD (FFC 80P), X2 |
|
|
CONNECTING CORD (LW) |
|
|
CONNECTING CORD (PD) |
|
|
CONNECTING CORD (SP) |
|
|
CONNECTING CORD (UB) |
|
|
COOLER, X2 |
|
|
DIFFUSION SHEET |
|
|
DIFFUSION SHEET |
|
|
EDGE BOARD (BOTTOM) (NOT REPLACEMENT ITEM) |
|
|
EDGE BOARD (TOP) (NOT REPLACEMENT ITEM) |
|
|
ENERGY GUIDE LABEL |
|
|
ENQUETE CARD |
|
|
FERRITE CORE, X2 |
|
|
FRONT PAD (BASE) (NOT REPLACEMENT ITEM) |
|
|
FRONT PAD (NOT REPLACEMENT ITEM) |
|
|
GASKET |
|
|
GASKET |
|
|
KEY COVER ASS'Y |
|
|
KEY UNIT |
|
|
LABEL |
|
|
LCD CONTROL UNIT (LC70LE660U/C6600U) |
|
|
LED DECORATION SHEET |
|
|
LED HARNESS |
|
|
LENS SHEET |
|
|
LGP |
|
|
LGP HOLDER (LEFT) |
|
|
LGP HOLDER (RIGHT) |
|
|
LICENCE LABEL |
|
|
MAIN UNIT (660U N1 VERSION) SUMI |
|
|
MAIN UNIT (LC70LE660U/C6600U) |
|
|
MIDDLE CABINET ASS'Y (LC70LE660U) |
|
|
MODEL LABEL |
|
|
MODULE LABEL |
|
|
PACKING CASE (BOTTOM) (NOT REPLACEMENT ITEM) |
|
|
PACKING CASE (NOT REPLACEMENT ITEM) |
|
|
PACKING FORM (BOTTOM) (NOT REPLACEMENT ITEM) |
|
|
PACKING FORM (SIDE L/R) (NOT REPLACEMENT ITEM) |
|
|
PACKING FORM (TOP) (NOT REPLACEMENT ITEM) |
|
|
PCHASSIS UNIT (BOTTOM/LEFT) |
|
|
PCHASSIS UNIT (BOTTOM/RIGHT) |
|
|
PCHASSIS UNIT (LEFT) |
|
|
PCHASSIS UNIT (RIGHT) |
|
|
PCHASSIS UNIT (TOP/LEFT) |
|
|
PCHASSIS UNIT (TOP/RIGHT) |
|
|
POLYETHYLENE BAG (NOT REPLACEMENT ITEM) |
|
|
POWER/LED DRIVER UNIT (LC70LE660U/C6600U) |
|
|

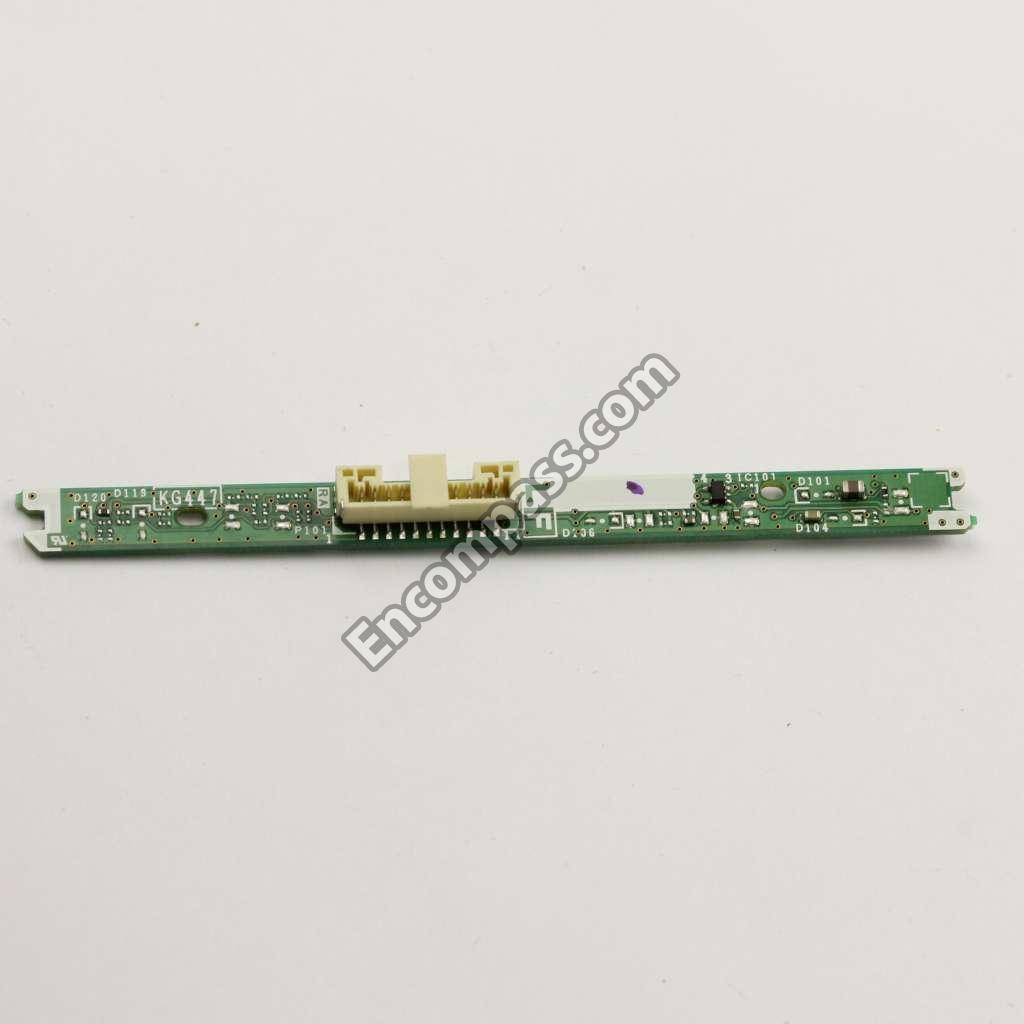

RC/ICON UNIT |
|
|
REAR CABINET ASS'Y |
|
|
REFLECTOR SHEET |
|
|
REMOTE CONTROL UNIT |
|
|
S-PWB ***REPAIR PARTS*** |
|
|
S-PWB ***REPAIR PARTS*** |
|
|
S-PWB ***REPAIR PARTS*** |
|
|
S-PWB ***REPAIR PARTS*** |
|
|

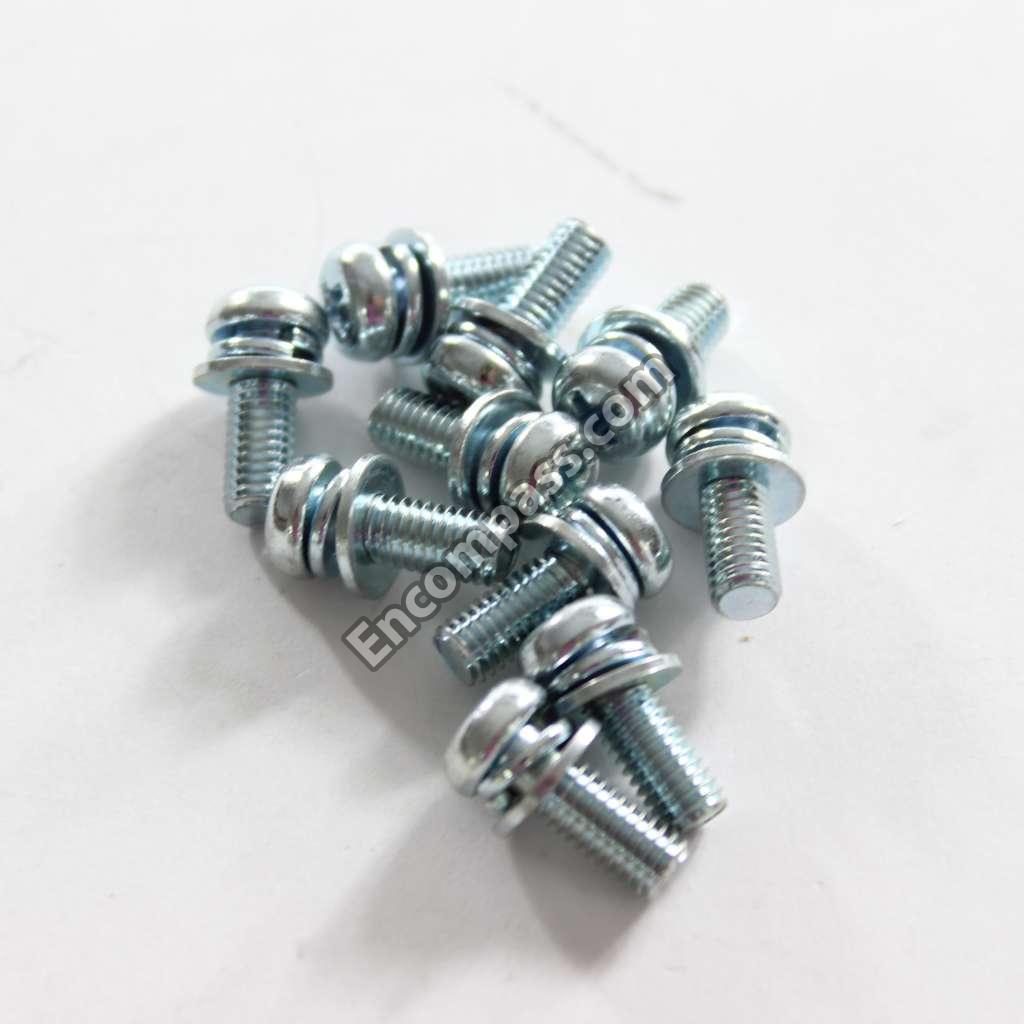

SCREW, X2 |
|
|
SCREW, X24 |
|
|
SCREW, X30 |
|
|
SCREW, X6 |
|
|
SCREW, X8 |
|
|
SET UP GUIDE |
|
|
SETUP GUIDE (LC70LE660U) |
|
|
SPEAKER UNIT (RIGHT) |
|
|
STAND BASE ASS'Y (LC70LE660U) |
|
|
STAND FIX ANGLE, X2 |
|
|
STAND SCREW ASS'Y |
|
|
STAND SURRORT ASS'Y (LEFT) |
|
|
STAND SURRORT ASS'Y (RIGHT) |
|
|
TERMINAL ANGLE (BOTTOM) |
|
|
TERMINAL ANGLE(SIDE) |
|
|
VESA ANGLE ASS'Y, X4 |
|
|
WIFI UNIT |
|
|
WIRE HOLDER |
|
|
WIRE HOLDER |
