Manufacturer
Sharp
Model Number
R1821
Description
Over The Range
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
12-PIN CONNECTOR (G)3-1D |
|
|
6-2 LOW NET AKA BROILING RACK |
|
|
AIR GUIDE LM4-13 |
|
|
CAPACITOR 0.015 UF 50VC21 |
|
|
CAPACITOR 3.3 UF 50VC3 |
|
|
CAPACITOR 33 UF 50VC82 |
|
|
CAPACITOR 47 UF 16VC5 |
|
|
CAPACITOR O.01 UF 16VC6 |
|
|
CAVITY CUSHION4-29 |
|
|
CERAMIC FILTER (4.00MHZ)CF1 |
|
|
CONVECTION MOTOR DUCT4-49 |
|
|
COOKBOOK |
|
|
COOLING FAN MOTOR |
|
|
CORD BUSHING2-13 |
|
|
COVER I/O PCOVPA180WRF04-27 |
|
|
DIODE (1SS270A)D7 |
|
|
DOOR ASSY I\O GWAKPB007MRJ0,GW5-3 |
|
|
DOOR SASH I\O HDECQA122WRF05-4 |
|
|

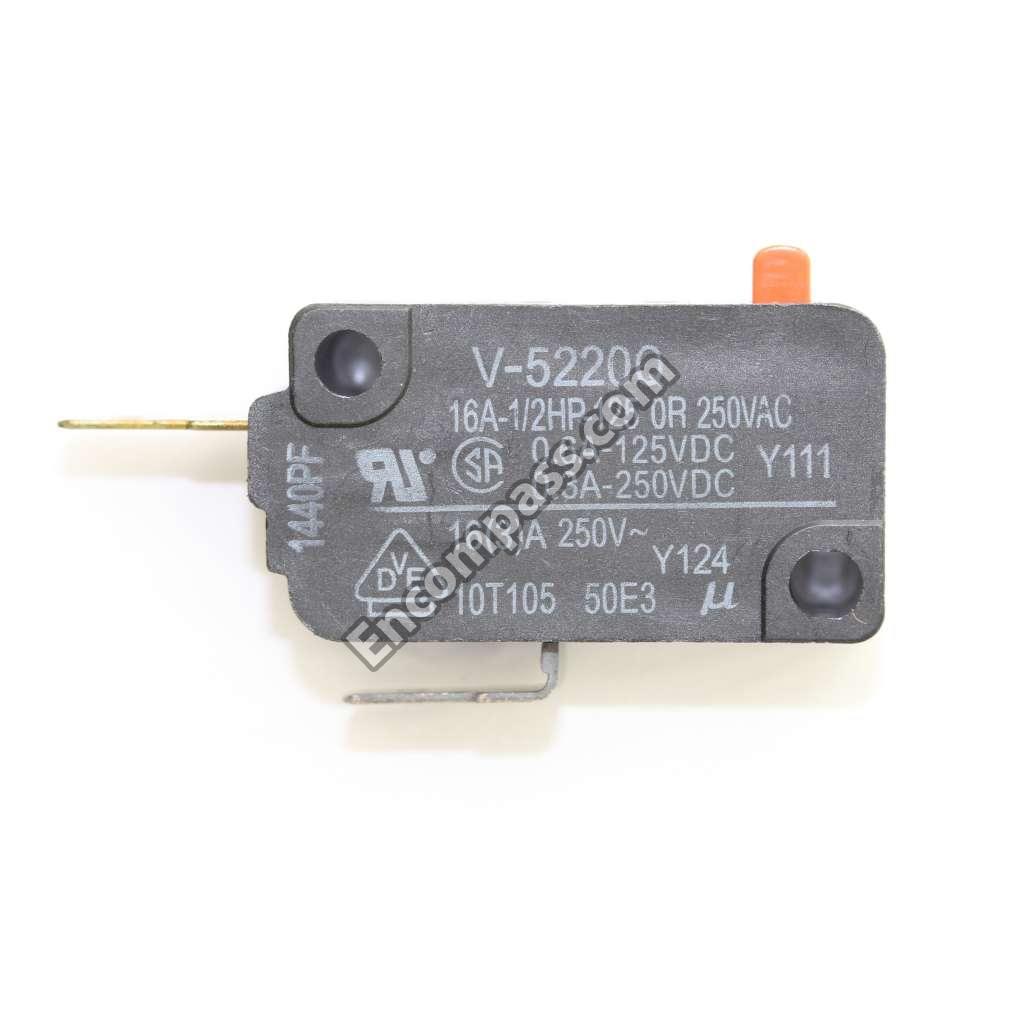

DOOR SENSING SWITCH (V-10-3C251-14 |
|
|
EXHAUST GUIDE L4-51 |
|
|
FUSE HOLDER1-11 |
|
|
GREASE FILTERS 2 USED |
|
|
H.V. RECTIFIER ASSY(DIODE) |
|
|
HOOD EXAUST I/O PDIF-A001WRJ04-43 |
|
|
HOOD LAMP |
|
|
HOOD LAMP SOCKET1-17 |
|
|
HOOD MOT I\O FFANJA025WRK01-21 |
|
|
HOOD THERMAL CUT-OUT |
|
|
INSTALLATION MANUAL SAME AS R16-10 |
|
|
INSTRUCTION BOOK-NR TINSEA440W6-9 |
|
|
LAMP |
|
|
LATCH SPRING |
|
|
LEFT GRILL (NEXT TO DOOR) |
|
|
MAGNETRON |
|
|
MOUNTING PLATE ( YOU NEED2) USE WITH HARDWARE |
|
|
NUT CONVECTION FAN MOUNTING7-5 |
|
|
OC CABINET I/O GCABUA257WRP02-5 |
|
|
OVEN LAMP SCREEN |
|
|
RESISTOR 1M OHM 1/4WR200 |
|
|
RESISTOR 47K OHM 1/4WR67 |
|
|
RESISTOR 9.53K OHM (F) 1/4WR66 |
|
|
RIGHT CUSHION L4-36 |
|
|
RING 4MM X 0.6MM7-7 |
|
|
RY2 RELAY |
|
|
SCREW (FOR DAMPER ASSY)2 USED |
|
|

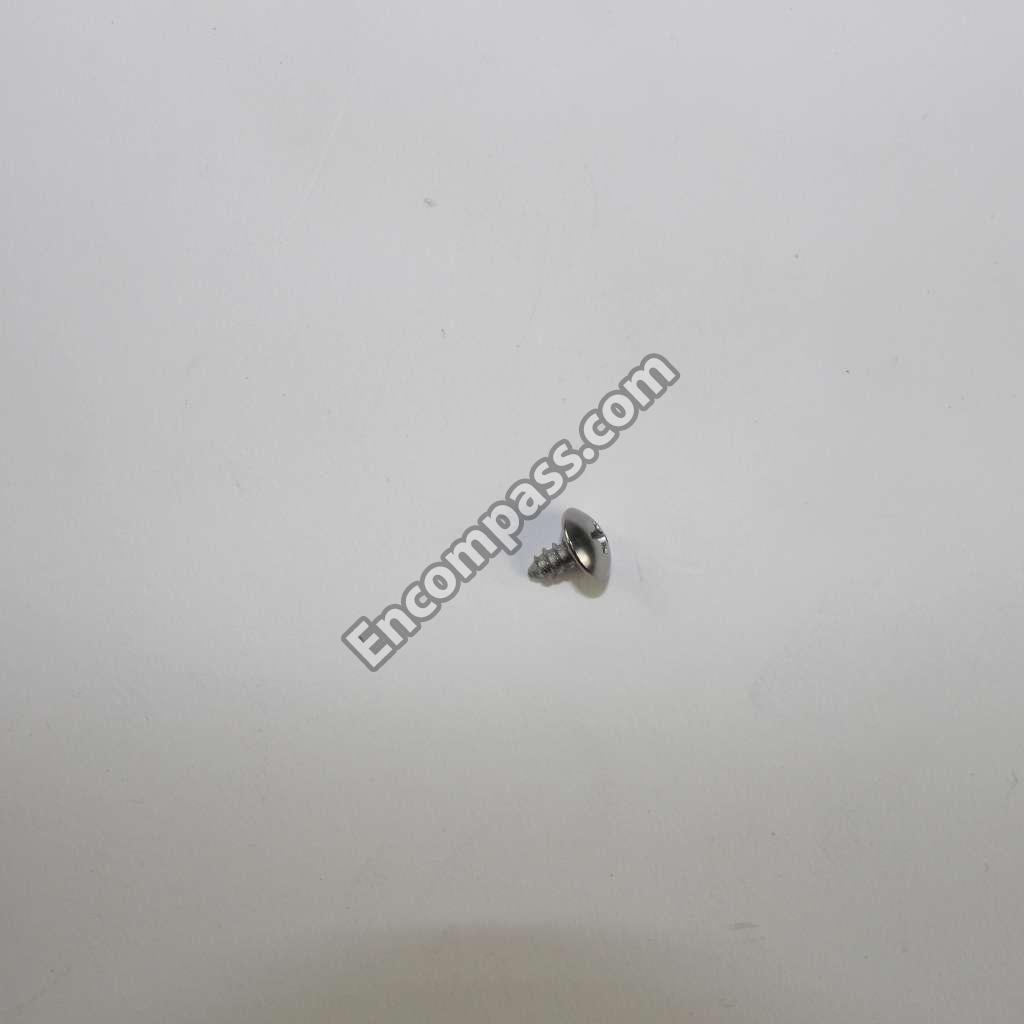

SCREW 3MM X 8MM7-14 |
|
|
SCREW 3MM X 8MM7-29 |
|
|
SCREW 3MM X 8MM7-3 |
|
|
SCREW 4MM X 12MM (R-1821)7-23 |
|
|
SCREW 4MM X 8MM7-17 |
|
|
SCREW 5MM X 60MM6-1E |
|
|
SCREW I/O XCPSD40P08000 T/R SP7-4 |
|
|
SCREW LATCH HOOK ASSEMBLY MOUN7-28 |
|
|
SCREW MAGNETRON MOUNTING7-26 |
|
|
SCREW OUTER CASE CABINET AND B7-27 |
|
|
SECONDARY INTERLOCK SWITCH (V-1-13 |
|
|
SUPPORT, TURNTABLE |
|
|
SWITCH I/O QSW-MA017WRE01-12 |
|
|
TRANSISTOR 2SA933SQ30 |
|
|
TURNTABLE COUPLING |
|
|
WASHER CONVECTION FAN MOUNTING7-9 |
