Manufacturer
Sharp
Model Number
R23GT
Description
Sharp Microwave
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
1-10 VOLTAGE SELECT SWITCH |
|
|
1-11 SEC.INTER LOK SW. AND DOOR SENSING - USES 3 |
|
|
1-9 MONITOR FUSE & SWITCH ASSY. KIT - USES 2 |
|
|
12-PIN CONNECTOR (G)3-1D |
|
|
3-2 CONTROL PANEL FRAME WITHKEY UNIT |
|
|
3-2-1 UNIT KEY ONLY- KEYPAD WITH NO FRAME |
|
|
3-PIN CONNECTOR (B)3-1B |
|
|
3-PIN CONNECTOR (H)3-1C |
|
|
3-VRS1 VARISTOR (10G471K) |
|
|
4-PIN CONNECTOR (A)3-1A |
|
|
5-0 DOOR ASSEMBLY COMPLETE |
|
|
5-5 DOOR HANDLE - OUTER SIDE |
|
|
AIR INTAKE FILTER ASSEMBLY4-35 |
|
|
ANTENNA SHAFT ASSY |
|
|
BASE PLATE ASSEMBLY2-1 |
|
|
BLOWER MOTOR THERMAL CUT-OUT1-17 |
|
|
BLOWER MOTOR1-4 |
|
|
CABINET INSULATION SHEET2-7 |
|
|
CAPACITOR 0.01 UF 16V3-C7 |
|
|
CAPACITOR 0.1 UF 50V3-C2 |
|
|
CAPACITOR 10 UF 25V3-C21 |
|
|
CAPACITOR 2200 UF 25V3-C1 |
|
|
CAPACITOR 47 UF 10V3-C3 |
|
|
CAPACITOR HOLDER4-19 |
|
|
CERAMIC RESONATOR CST4.00MGW3-CF1 |
|
|
CERAMIC SHELF (TRAY) |
|
|
CHOKE COVER5-4 |
|
|
CLIP L4-39 |
|
|
CONTROL PANEL MOUNTING ANGLE3-3 |
|
|
CORD BUSHING4-33 |
|
|
CORD HOLDER6-16 |
|
|
CORNER CAP LEFT4-37 |
|
|
CORNER CAP RIGHT4-31 |
|
|
CURRENT TRANSFORMER3-CT1 |
|
|
CUSHION2-5-1 |
|
|
CUSHION3-2-3 |
|
|
CUSHION4-25 |
|
|
CUSHION4-26 |
|
|
CUSHION4-27 |
|
|
CUSHION4-38 |
|
|
CUSHION5-7 |
|
|
DECORATION SASH4-36 |
|
|
DHHS CAUTION LABEL6-11 |
|
|
DIODE (1SS270A)3-D20 |
|
|
DOOR CASE PACKING5-9 |
|
|
DOOR GLASS5-8 |
|
|

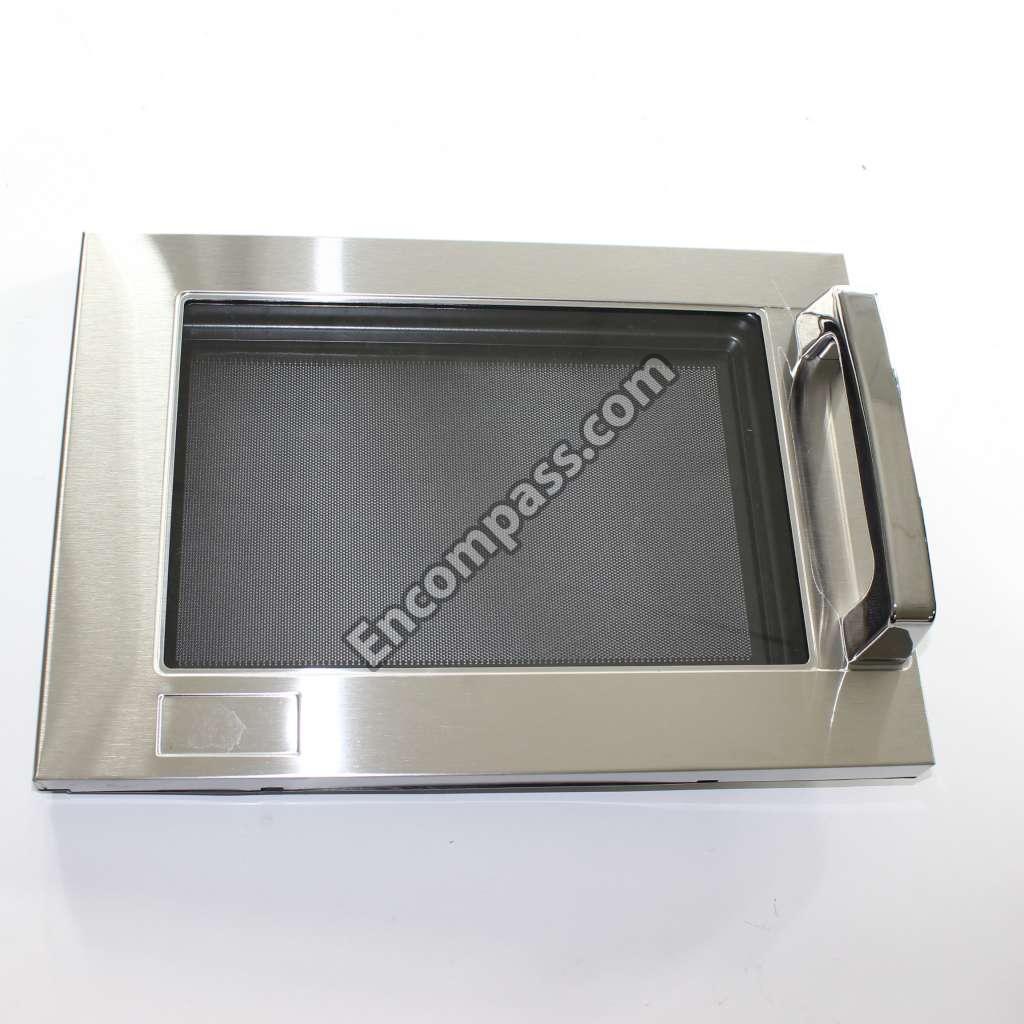

DOOR PANEL ASSEMBLY5-1 |
|
|
EXHAUST DUCT ASSEMBLY4-2 |
|
|
FILTER CAUTION LABEL6-14 |
|
|
FIXING ANGLE S4-30 |
|
|
HEAD LEVER |
|
|
HIGH VOLTAGE RECTIFIER ASSEMBL1-8 |
|
|
IC (X24C02P)3-IC2 |
|
|
INNER SIDE FOR DOOR HANDLE |
|
|
INSERTION SHEET4-40 |
|
|
INSTRUCTION MANUAL6-1 |
|
|
JOINT LEVER |
|
|
JOINT LEVER SPRING |
|
|
LAMP CAUTION6-8 |
|
|
LATCH FIXING ANGLE5-14 |
|
|

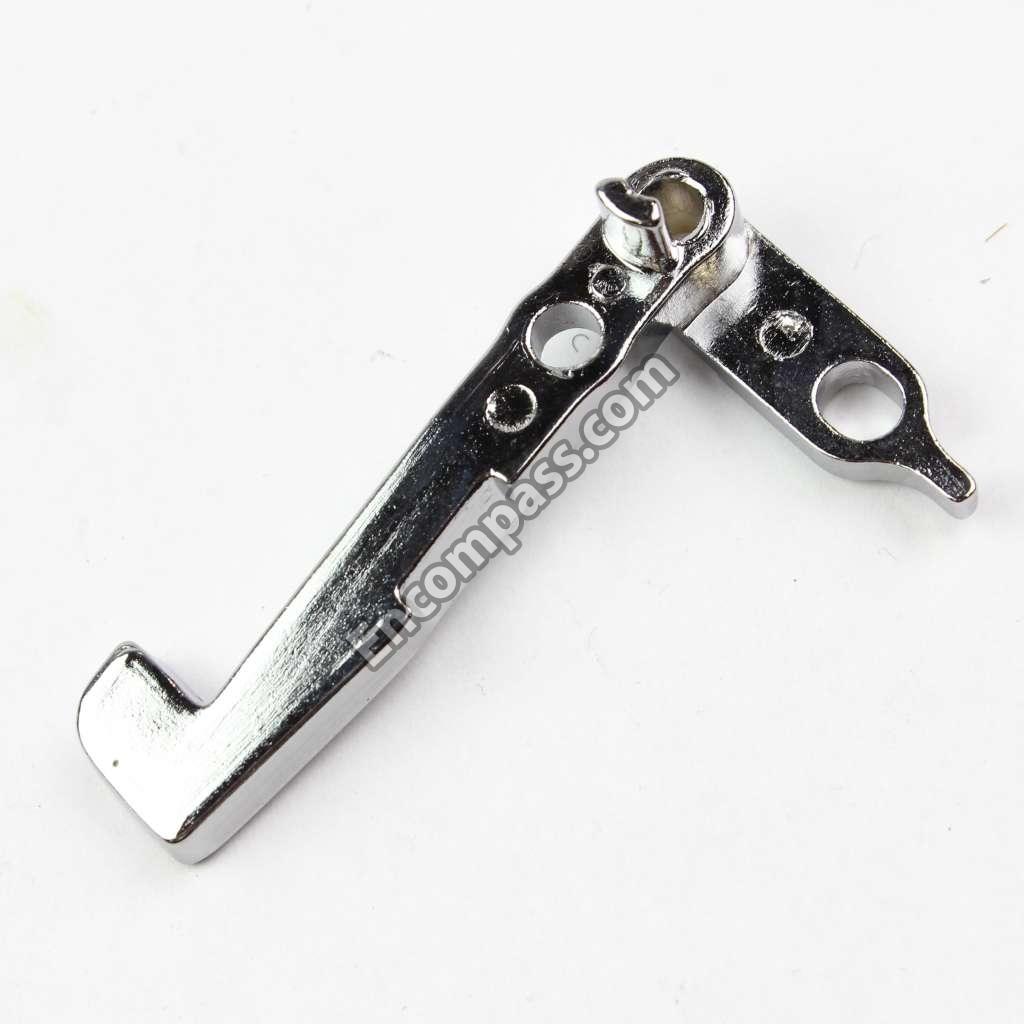

LATCH HEAD |
|
|
LATCH HOOK4-10 |
|
|
LIGHT EMITTING DIODE3-LED1 |
|
|
LOWER OVEN HINGE4-11 |
|
|
LSI3-IC1 |
|
|
MAGNATRON FOR SERIAL# FROM 16003 |
|
|

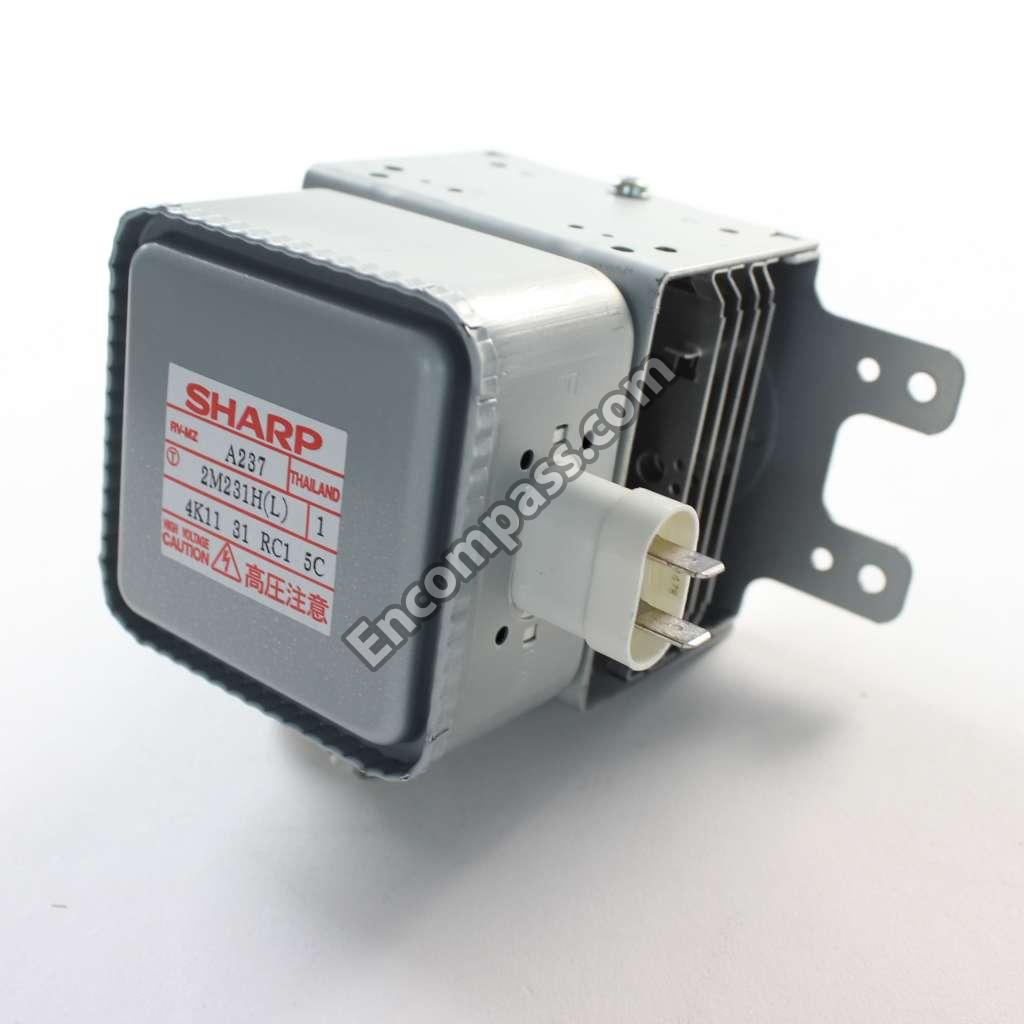

MAGNETRON |
|
|
MAGNETRON- 2 IN UNIT |
|
|
MAIN WIRE HARNESS6-4 |
|
|
MENU STICKER6-2 |
|
|

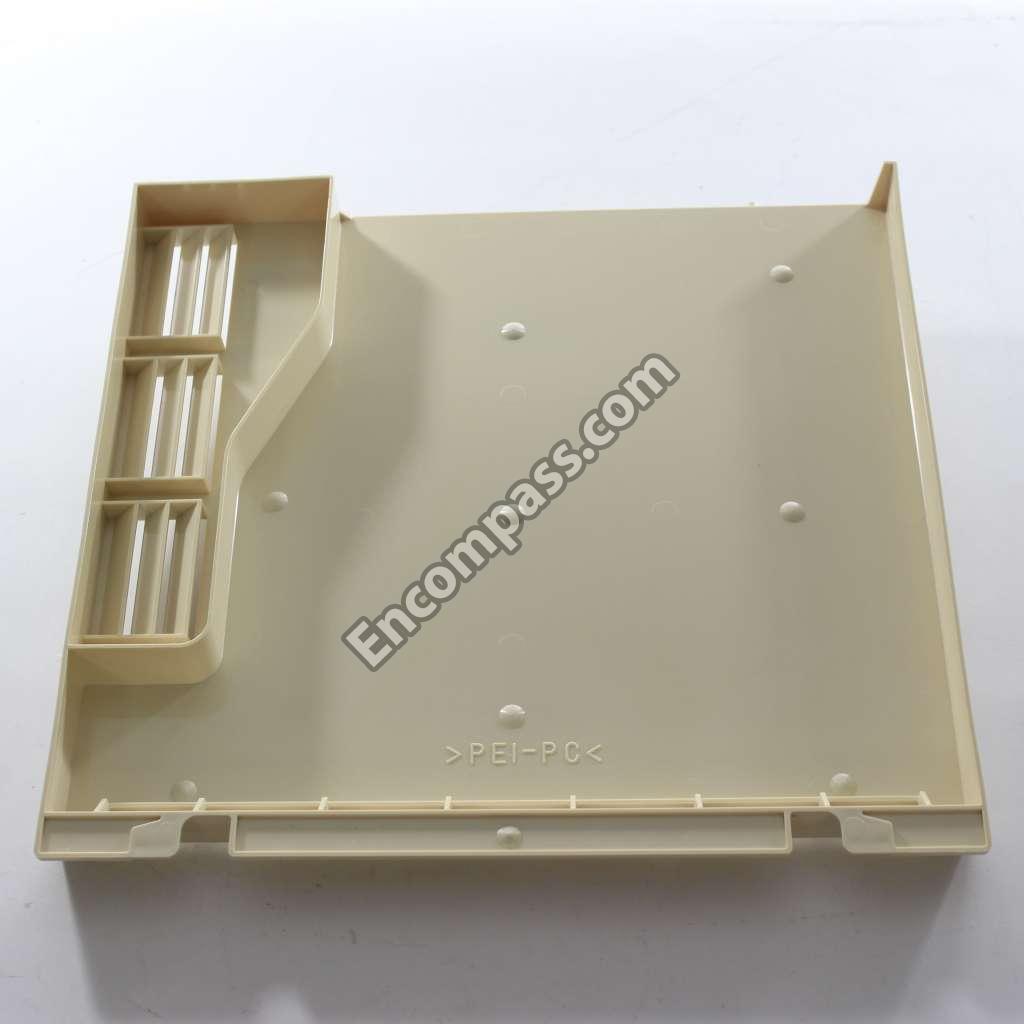

MG AIR GUIDE COVER4-13 |
|
|
MONITOR CAUTION LABEL6-10 |
|
|
NUT : 3MM X 2.4MM7-3 |
|
|
OUTER CASE CABINET2-6 |
|
|
OUTER PANEL WITH METAL FRAME |
|
|
OUTSIDE WINDOW FIXING PLATE5-6 |
|
|
OVEN LAMP ACCESS COVER ASSEMBL 2-5 |
|
|
OVEN LAMP EHKN-122, 7/91 <ABC>1-13 |
|
|
OVEN LAMP MOUNTING PLATE4-18 |
|
|
OVEN LAMP SOCKET1-2 |
|
|
OVEN LIGHT SCREEN (INSIDE)4-4 |
|
|
OVEN THERMAL CUT-OUT 115 C1-18 |
|
|
OVN THERMISTOR K |
|
|
PARTITION ANGLE R4-17 |
|
|
PLATE |
|
|
POWER TRANSFORMER |
|
|
REAR CABINET2-4 |
|
|
RELAY (OMIF-S-112LM)3-RY2 |
|
|
RESISTOR 1.1K OHM 1/4W3-R60 |
|
|
RESISTOR 1.5K OHM 1/4W3-R63 |
|
|
RESISTOR 100 OHM 1/4W3-R30 |
|
|
RESISTOR 100K OHM 1/4W3-R101 |
|
|
RESISTOR 10K OHM 1/4W3-(J5) |
|
|
RESISTOR 15K OHM 1/4W3-R31 |
|
|
RESISTOR 2.7K OHM 1/4W3-R32 |
|
|
RESISTOR 20K OHM 1/4W3-R62 |
|
|
RESISTOR 4.7K OHM 1/4W3-R3 |
|
|
RESISTOR 470 OHM 1/4W3-R1 |
|
|
RESISTOR 6.8 OHM 1/4W3-R65 |
|
|
RESISTOR 820 OHM (F) 1/43-R100 |
|
|
RUBBER SHEET A2-2 |
|
|
RUBBER SHEET B2-3 |
|
|
SCREW |
|
|
SCREW : 3MM X 28MM7-2 |
|
|
SCREW : 3MM X 8MM7-1 |
|
|
SCREW : 4MM X 10MM7-13 |
|
|
SCREW : 4MM X 10MM7-18 |
|
|
SCREW : 4MM X 12MM7-17 |
|
|
SCREW : 4MM X 12MM7-33 |
|
|
SCREW : 4MM X 4MM7-6 |
|
|
SCREW : 4MM X 6MM7-11 |
|
|
SCREW : 4MM X 8MM5-12 |
|
|
SCREW : 4MM X 8MM5-13 |
|
|
SCREW : 4MM X 8MM7-22 |
|
|
SCREW : 4MM X 8MM7-28 |
|
|
SCREW FOR HANDLE |
|
|
SCREW I/O XCPSD40P08000 T/R SP7-20 |
|
|
SCREW; CONTROL UNIT MOUNTING3-4 |
|
|
SCREW; DECORATION PANEL MOUNTI3-6 |
|
|
SEALER FILM (ON DOOR) |
|
|
SPECIAL SCREW7-10 |
|
|
SPECIAL SCREW7-32 |
|
|
SPECIAL SCREW7-5 |
|
|
SPECIAL WASHER7-23 |
|
|
SPLASH COVER -- STIRRER COVER IN TOP OF CAVITY |
|
|
STIRRER ANTENNA LOWER |
|
|

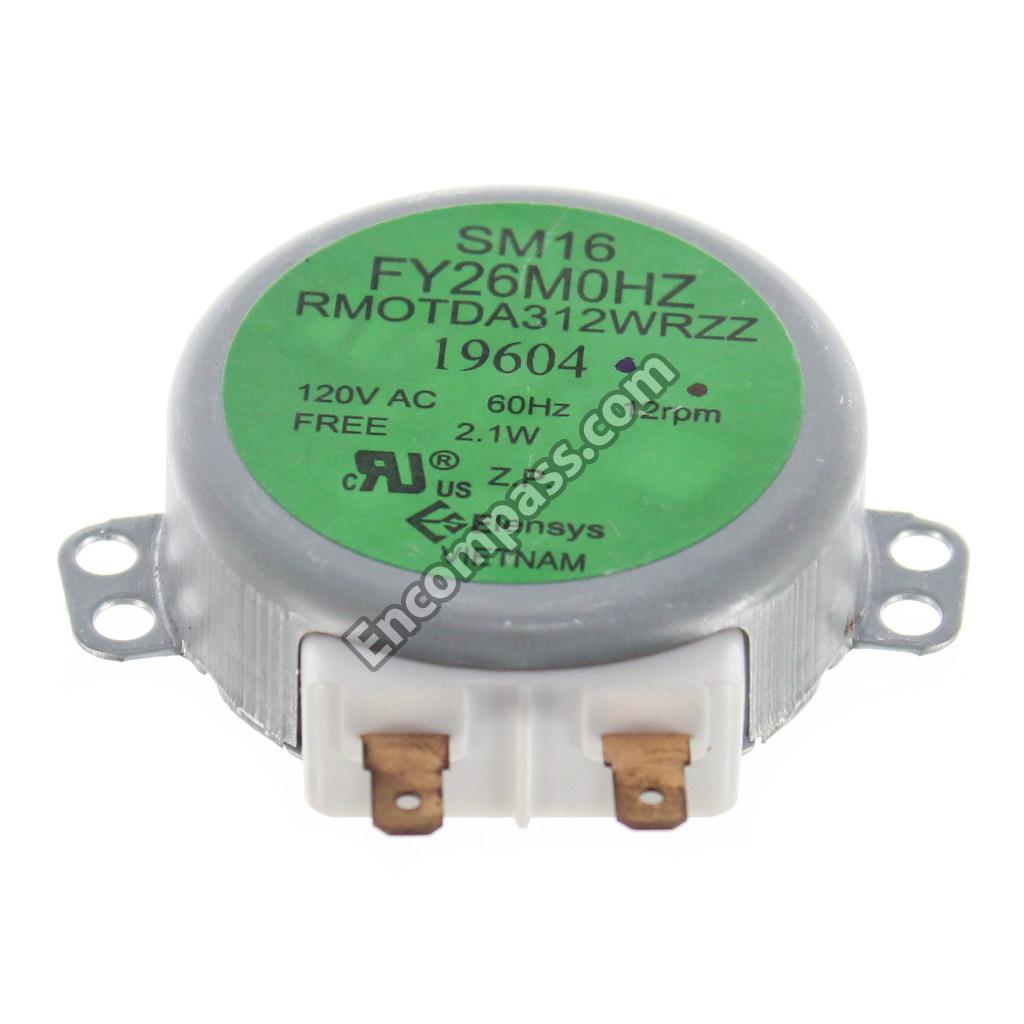

STIRRER MOTOR1-14 |
|
|
SWITCH HARNESS6-3 |
|
|
SWITCH LEVER A4-5 |
|
|
SWITCH LEVER B4-6 |
|
|
SWITCH LEVER C4-7 |
|
|
SWITCH LEVER SPRING C4-44 |
|
|
SWITCH LEVER4-42 |
|
|
SWITCH SPRING A4-8 |
|
|
SWITCH SPRING B4-9 |
|
|
TAB TERMINAL (TAB1 TAB2)3-1F |
|
|
TEMP. FUSE 150H I/O RTHM-A057W1-16 |
|
|
TOP MAG CUT OFF |
|
|
TOUCH CONTROL TRANSFORMER3-T1 |
|
|
TRANSISTOR (DTA123ES)3-Q2 |
|
|
TRANSISTOR (DTB143ES)3-Q20 |
|
|
TRANSISTOR (DTD143ES)3-Q22 |
|
|
TRANSISTOR (KRA101M)3-Q60 |
|
|
TRANSISTOR (KRC101M)3-Q3 |
|
|
UPPER OVEN HINGE4-24 |
|
|
USER CAUTION6-15 |
|
|
VIBRATION-PROOF CUSHION4-29 |
|
|
VOLTAGE CAUTION LABEL6-12 |
|
|
WATER-PROOF COVER4-20 |
|
|
WIRE SADDLE S6-9 |
|
|
ZD1 ON CONTROL PANEL |
|
|
ZD2; ZENER DIODE (HZA42) |
