Manufacturer
Sharp
Model Number
R330AK
Description
Homeuse Microwave Oven 1.0 Cft
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
12-PIN CONNECTOR (CN-G)3-1B |
|
|
2-PIN CONNECTOR (CN-A)3-1A |
|
|
3-2 CONTROL PANEL FRAME WITHKEY UNIT [R-33 |
|
|
3-7 OPEN BUTTON [R-330AK] |
|
|
ACTUATER4-1 |
|
|
AH. SENSOR ASSY |
|
|
ALARM I\O RALM-A014DRE0SP40 |
|
|
BOTTOM PLATE LEFT2-2 |
|
|
BOTTOM PLATE RIGHT2-3 |
|
|
C2 R330AK ONLY |
|
|
CABINET I/O GCABUA584WRT02-1 |
|
|
CAPACITOR 0.0LUF 16VC8-9 |
|
|
CAPACITOR 47UF 16VC5 |
|
|
CAPACITOR L000UF 16VC2 |
|
|
CHASSIS SUPPORT4-8 |
|
|
CHOKE COVER |
|
|
CONTROL UNIT BEFORE JANUARY 1997 |
|
|
COUPLING4-12 |
|
|
COVER, WAVE GUIDE |
|
|
CPU UNIT FOR MODELS AFTER JANUARY, 1997 |
|
|
CUSHION |
|
|
CUSHION4-13 |
|
|
CUSHION4-16 |
|
|
CUSHION4-17 |
|
|
CUSHION4-19 |
|
|
DHHS CAUTION LABEL6-6 |
|
|
DIODE (LSS270ATA)D20-22 |
|
|
DOOR FRAME [R-330AW]5-3 |
|
|
DOOR PANEL5-1 |
|
|
DOOR SCREEN [R-330AW]5-4 |
|
|
DOOR STOPPER5-8 |
|
|
DOOR SWITCHS(4 USED) |
|
|
DRAW DOOR ASSY |
|
|
DRAW DOOR ASSY - BLK |
|
|
FAN BLADE4-5 |
|
|
FAN DUCT4-6 |
|
|
FAN MOTOR |
|
|
FOOT |
|
|
FOOT |
|
|
FOOT I/O GLEGPA067WRE0 10-30-92-5 |
|
|
FUSE HOLDER1-2 |
|
|
GLASS TRAY (TURNTABLE TRAY) |
|
|
H.V. CAPACITOR |
|
|
H.V. DIODE ASSY |
|
|
HIGH VOLTAGE TRANSFORMER |
|
|
HIGH VOLTAGE WIRE B6-4 |
|
|
KEY UNIT ALONE |
|
|
KEY UNIT [R-330AW]3-2-1 |
|
|
LAMP |
|
|
LATCH HEAD5-6 |
|
|
LEAD WIRE HARNESS (WH-A)3-1F |
|
|
LED HOLDER I/O LHLD-A164WRF03-4 |
|
|
LED SHEET3-3 |
|
|
LSIIC1 |
|
|
MAGNETRON |
|
|
MAIN WIRE HARNESS (FROM OCTOBE6-3 |
|
|
MAIN WIRE HARNESS (UNTIL SEPTE6-3 |
|
|
MENU LABEL6-10 |
|
|
MG THERMO ANGLE4-10 |
|
|
MG. AIR GUIDE4-20 |
|
|
MONITOR CAUTION LABEL6-7 |
|
|
MONITOR SWITCH AND FUSE KIT |
|
|
OPEN BUTTON [R-330AW]3-7 |
|
|
OUTER CASE CABINET [R-330AK]2-1 |
|
|
OUTER DOOR SCREEN |
|
|
OVEN LAMP SOCKET1-10 |
|
|
PANEL I/O FPNLCB263WRK03-2 |
|
|
PARTITION ANGLE4-9 |
|
|
RANGE DOOR COV - BLK |
|
|
RESISTOR 27 OHM 1/4WR52 |
|
|
RESISTOR LM OHM 1/4WR80 |
|
|
SCREW : 3MM X 6MM7-2 |
|
|
SCREW : 4MM X 12MM7-5 |
|
|
SCREW : 4MM X 12MM7-6 |
|
|
SCREW : 4MM X 6MM5-9 |
|
|
SCREW : 4MM X 8MM [R-330AK]7-7 |
|
|
SCREW : 4MM X 8MM [R-330AW]7-7 |
|
|
SCREW : 4MM X 8MM7-1 |
|
|
SCREW : 4MM X 8MM7-3 |
|
|
SCREW: 3MM X 8MM3-9 |
|
|
SEALER FILM5-2 |
|
|
SUPPORT, TURNTABLE |
|
|
SWITCH HARNESS B (SN-B)3-1E |
|
|
SWITCH HOLDER4-2 |
|
|
SWITCH LEVER (DOOR OPEN LEVER BEHIND OPEN BUTT0 |
|
|
TERMINAL INSULATOR6-5 |
|
|

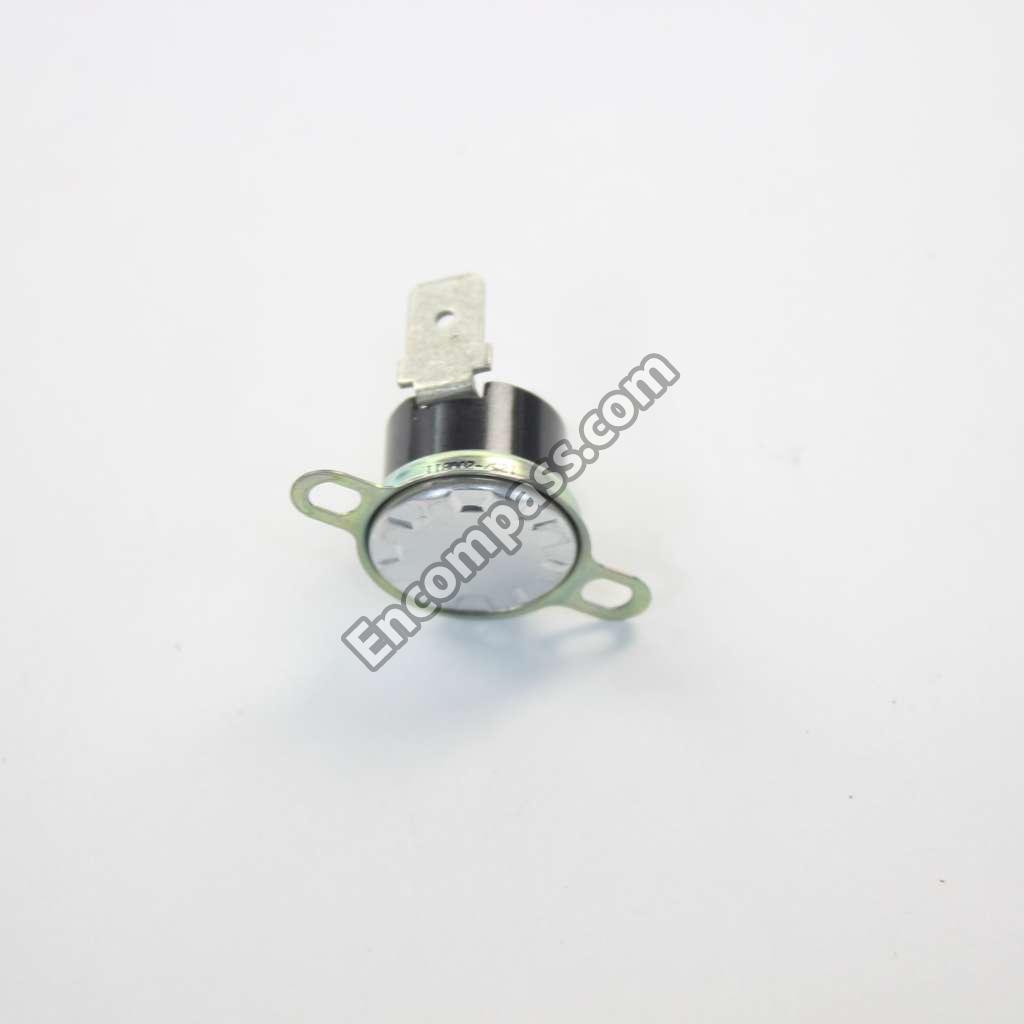

THERMAL CUT-OUT |
|
|
THERMAL CUT-OUT 12S DEG.1-4 |
|
|
TRANSFORMER I/O RTRN-A508WRE01-14 |
|
|
TRANSISTOR (2SB1238)Q1 |
|
|
TRANSISTOR (DTA123E TP)Q2 |
|
|
TRANSISTOR (KRAL0LM)Q3 |
|
|
TRANSISTOR (KRC243M)Q21 |
|
|
TRIM, BOTTOM |
|
|
TT MOT PACKING4-22 |
|
|
VARISTOR (L0G471K)VRS1 |
|
|
ZENER DIODE (HZ16-1)ZD1 |
|
|
ZENER DIODE (HZ4A2)ZD3 |
