Manufacturer
Sharp
Model Number
R3A38
Description
Microwave Oven,0.9 Cft,homeuse
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
12-PIN CONNECTOR (CN-G)3-1B |
|
|
2-PIN CONNECTOR (CN-A)3-1A |
|
|
AIR GUIDE4-12 |
|
|
ALARM I\O RALM-A014DRE03-SP40 |
|
|
BOTTOM PLATE LEFT2-3 |
|
|
CAPACITOR 0.01UF 16V3-C4 |
|
|
CAPACITOR 0.01UF 25V3-C10 |
|
|
CAPACITOR 470UF 25V3-C1 |
|
|
CAPACITOR 47UF 16V3-C3 |
|
|
CHASSIS SUPPORT4-6 |
|
|
CHOKE COVER5-3 |
|
|
CONTROL BOARD |
|
|
CONTROL PANEL FRAME WITH KEY U3-2 |
|
|
CONTROL UNIT I/O CPWBFA682WRK03-1 |
|
|
COUPLING |
|
|
CUSHION4-16 |
|
|
CUSHION5-8 |
|
|
DHHS CAUTION LABEL6-8 |
|
|
DIODE (1SS270ATA)3-D20 |
|
|
DOOR PANEL5-1 |
|
|
DOOR SCREEN |
|
|
DOOR SENSING SWITCH/INTERLOCKSWITCH 2 USED |
|
|
FAN BLADE4-3 |
|
|
FAN DUCT4-4 |
|
|
FAN MOTOR1-7 |
|
|
FOOT, FEET |
|
|
HIGH VOLTAGE CAPACITOR1-6 |
|
|
HIGH VOLTAGE RECTIFIER1-5 |
|
|
HIGH VOLTAGE WIRE B6-6 |
|
|
KEY UNIT3-2-1 |
|
|
LAMP FILTER4-13 |
|
|
LATCH HEAD5-6 |
|
|
LIGHT EMITTING DIODE3-1C |
|
|
LSI3-IC1 |
|
|
MAGNETRON1-8 |
|
|
MAIN WIRE HARNESS6-5 |
|
|
MG. CUSHION4-15 |
|
|
OPEN BUTTON3-3 |
|
|
OPERATION MANUAL6-3 |
|
|
OUTER CASE CABINET2-1 |
|
|
OVEN LAMP EHKN-122, 7/91 <ABC>1-10 |
|
|
OVEN LAMP SOCKET1-9 |
|
|
OVEN THERMAL CUTOUT (ON TOP OF CAVITY) |
|
|
RELAY (OJSH112LM-UL)3-RY1 |
|
|
RELAY (OMIF-S-112LM)3-RY2 |
|
|
SCREW : 3MM X 6MM7-2 |
|
|
SCREW : 4MM X 12MM7-5 |
|
|
SCREW : 4MM X 12MM7-6 |
|
|
SCREW : 4MM X 6MM5-9 |
|
|
SCREW : 4MM X 8MM7-1 |
|
|
SCREW : 4MM X 8MM7-3 |
|
|
SCREW: 3MM X 8MM3-5 |
|
|
SEALER FILM |
|
|

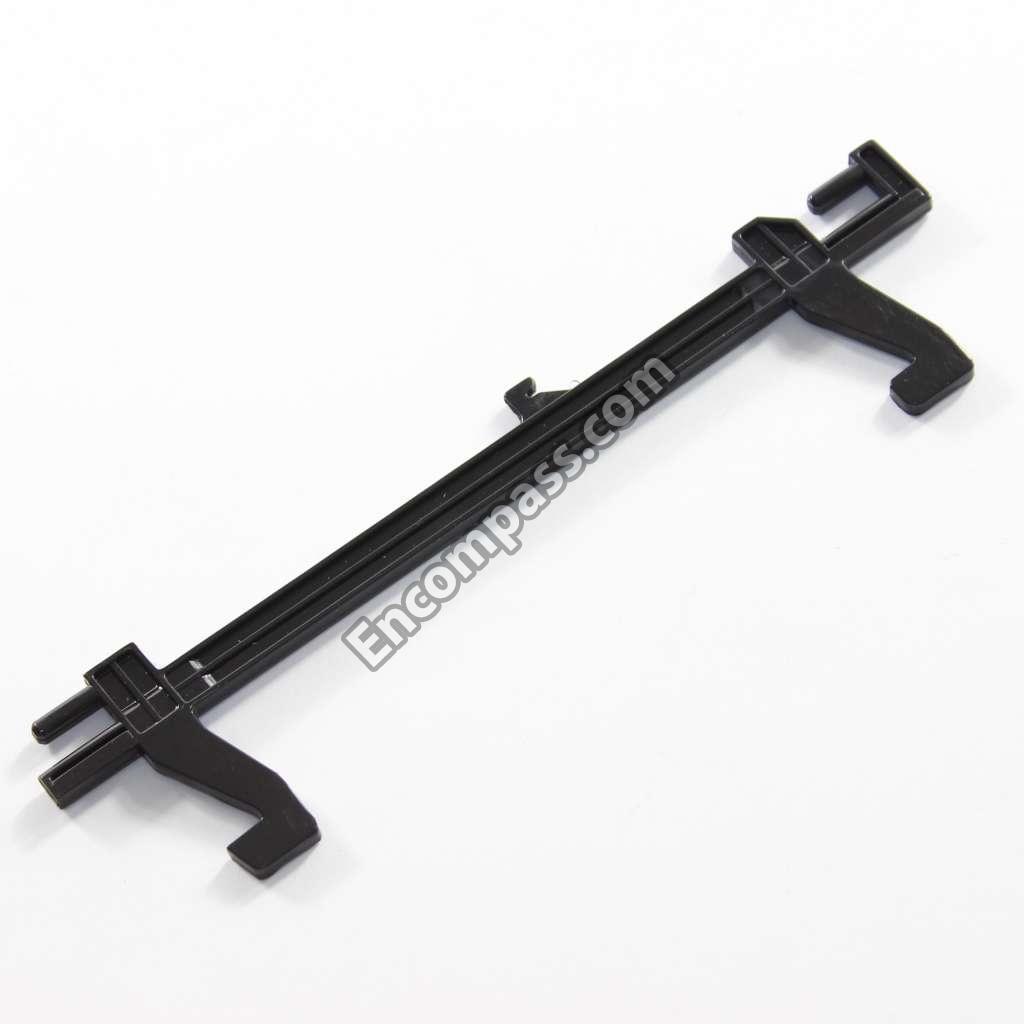

SW LEVER OPEN LEVER |
|
|
SWITCH HARNESS B3-1E |
|
|
TERMINAL INSULATOR6-7 |
|
|
TRANSFORMER BH - P/O RTRN-A4811-12 |
|
|
TRANSISTOR (KRA101M)3-Q2 |
|
|
TRANSISTOR (KRA222M)3-Q60 |
|
|
TRANSISTOR (KRC101M)3-Q64 |
|
|
TRANSISTOR (KRC243M)3-Q21 |
|
|
TTM PACKING4-14 |
|
|
TURNTABLE SUPPORT |
|
|
USER CAUTION LABEL3-2-2 |
|
|
WAVEGUIDE COVER |
|
|
ZENER DIODE (HZ4A2)3-ZD1 |
