Manufacturer
Sharp
Model Number
R530BK
Description
Sharp Microwave
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
2-6 LATCH LEVER- DOOR OPEN LEVER |
|
|

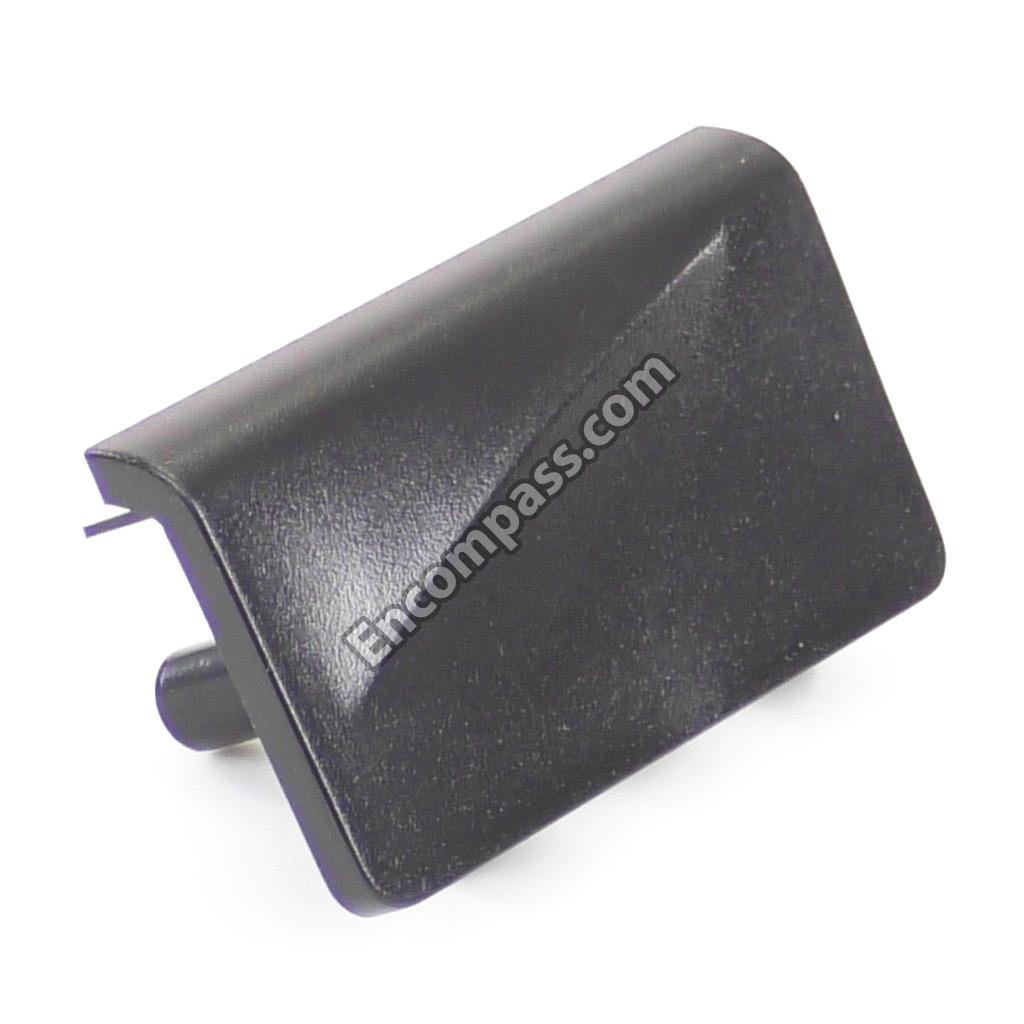

3-5 OPEN BUTTON(R-53OBK) |
|
|
4-1 DOOR SCREEN ASSEMBLY(R-53OBW) |
|
|
AH SENSOR ASS'Y CHECK W/QA FOR1-18 |
|
|
AH SENSOR DUCT CUSHION2-16 |
|
|
ALARM I\O RALM-A014DRE0SP1 |
|
|
BASE PLATE2-4 |
|
|
CABINET I/O GCABUB068MRP02-12 |
|
|
CAVITY TEMP FUSE |
|
|
CHASSIS SUPPORT2-2 |
|
|
CHOKE COVER4-4 |
|
|
COMPLETE DOOR ASSY |
|
|
CONTROL PANEL ASSEMBLY(R-53OBW3-3 |
|
|

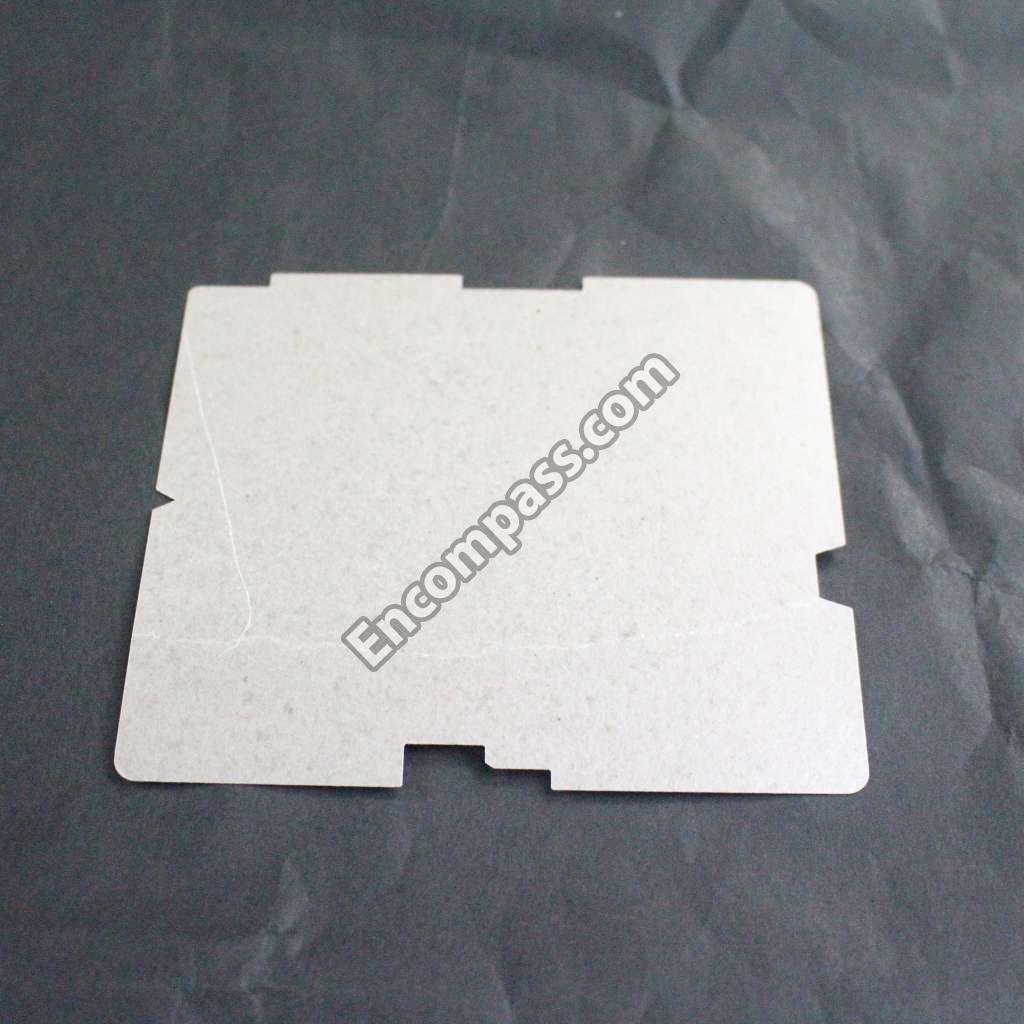

COVER, WAVE GUIDE |
|
|
COVER, WAVE GUIDE |
|
|
COVER, WAVEGUIDE |
|
|
COVER, WAVEGUIDE |
|
|
CPU UNIT |
|
|
DHHS CAUTION LABEL5-2 |
|
|
DIODE (1SS270A)D5 |
|
|
DOOR ASSY I/O CDORFB193MRK04-0 |
|
|
DOOR PANEL4-2 |
|
|
DOOR SCREEN(R-53OBK)4-7 |
|
|
DOOR SENSING & SECONDARY INTERLOCK SWITCH |
|
|
FAN BLADE |
|
|
FAN COVER OR FAN DUCT |
|
|
FAN MOTOR |
|
|
FOOT |
|
|
FUSE BLOCK1-6 |
|
|
H.V. CAPACITOR BAND2-1 |
|
|
H.V. CAPACITOR1-1 |
|
|
H.V. DIODE ASSEBLY1-2 |
|
|
H.V. WIRE A (TRANSFORMER-CAPAC1-15 |
|
|
IB-R430/530B |
|
|
KEY UNIT(R-53OBK)3-4 |
|
|
LAMP |
|
|
LAMP I\O RLMPTA068WRE01-4 |
|
|
LATCH HEAD4-5 |
|
|
LATCH HOOK2-3 |
|
|
LATCH SPRING4-6 |
|
|
LCD HOLDER3-2 |
|
|
LEAD WIRE HARNESS (WH-1)3-1C |
|
|
MAGNETRON |
|
|
MAGNETRON DUCT2-7 |
|
|
MAGNETRON TEMP FUSE |
|
|
MAIN WIRE HARNESS1-16 |
|
|
MONITOR SWITCH AND FUSE ASSY |
|
|
OUTER COVER |
|
|
OVEN LAMP SOCKET1-3 |
|
|
PLATE, GLASS |
|
|
RELAY (DU24DL-LP(M))RY1 |
|
|
REMOTE CONTROL |
|
|
RESISTOR 27 OHM 1/4WR4 |
|
|
SCREW; BASE PLATE MTG.6-1 |
|
|
SCREW; CONTROL UNIT MTG.3-8 |
|
|
SCREW; FAN MOTOR MTG.6-10 |
|
|
SCREW; LATCH HOOK & AH SENSOR6-2 |
|
|
SCREW; O.C. CABINET(R-53OBW)6-11 |
|
|
SCREW; TEMPERATURE FUSE MTG.6-7 |
|
|
SCREW; UL O.C. CABINET6-12 |
|
|
SEALER FILM4-3 |
|
|
STOP SWITCH HARNESS1-17 |
|
|
SUPPOR, T/T, ROLLER |
|
|
T.T. MOTOR PACKING2-15 |
|
|
TRANSFORMERT1 |
|
|
TRANSISTOR (2SB1238)Q1 |
|
|
TRANSISTOR (KRC243M)Q3 |
|
|
TT MOTOR |
|
|
TURNTABLE TRAY |
|
|
ZENER DIODE (HZ16-1)ZDL |
