Manufacturer
Sharp
Model Number
R530DK
Description
2.0 Cft Homeuse Microwave Oven
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
AH SENSOR |
|
|
CHOKE COVER5-4 DOOR PART |
|
|
CONTROL UNIT INCL LCD |
|
|
DOOR FRAME ASSY |
|
|
DOOR SEALER FILM |
|
|
FAN BLADE |
|
|
FAN MOTOR |
|
|
FOOT (4 USED) |
|
|
FUSE HOLDER |
|
|
HIGH VOLTAGE RECTIFIER ASSEMBLY (HV DIODE) |
|
|

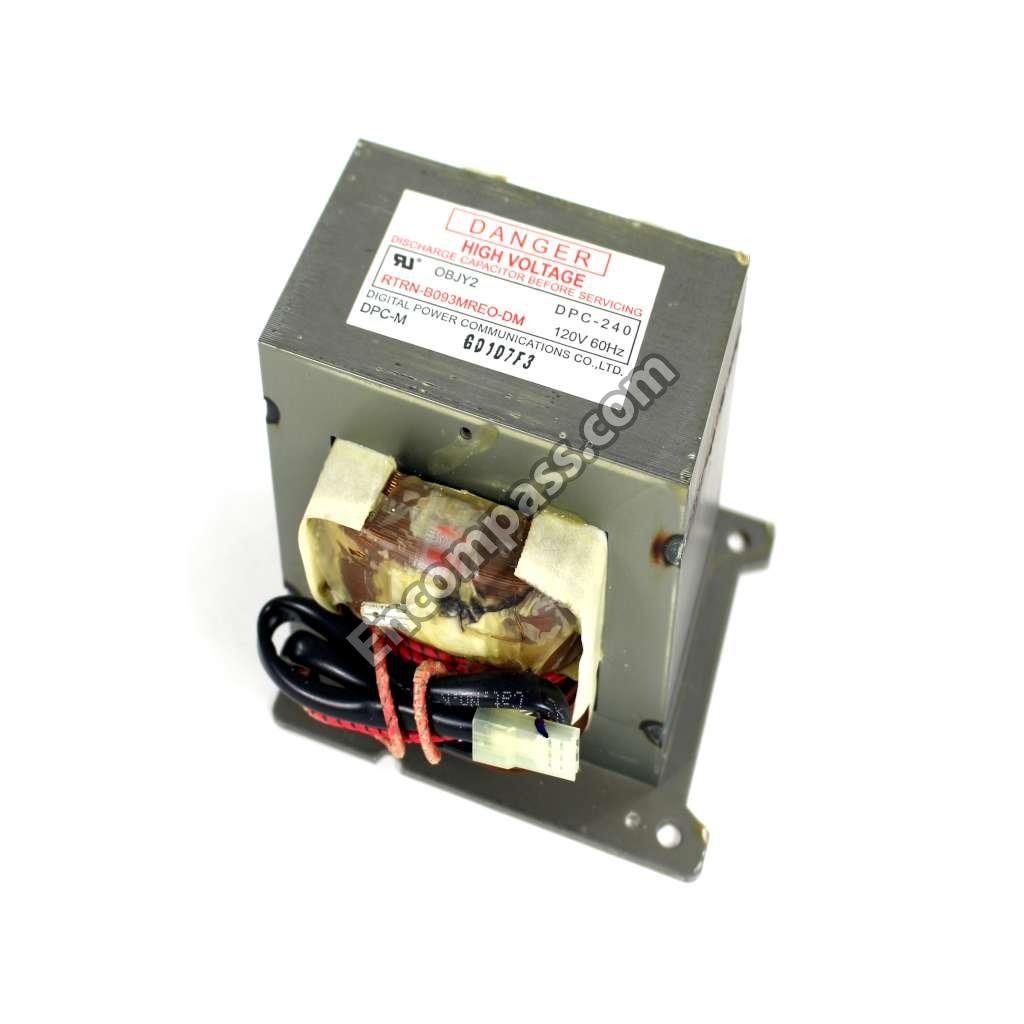

HV TRANSFORMER |
|
|
IC701 |
|
|
KEYPAD/MEMBRAIN SW ONLY |
|
|
LATCH HOOK REF 4-3 (HOLD SWITCHES) |
|
|
MAGNETRON |
|
|
MAGNETRON DUCT |
|
|
OUTER CABINET |
|
|
OVEN LAMP |
|
|
RECIPE CARD |
|
|
SENSOR DUCT |
|
|
T1 TRANSFORMER ON CONTROL PWB |
|
|
TT SUPPORT |
|
|
TURNTABLE MOTOR |
|
|
TURNTABLE MOTOR PACKING |
|
|
TURNTABLE TRAY |
|
|
WAVEGUIDE COVER |
