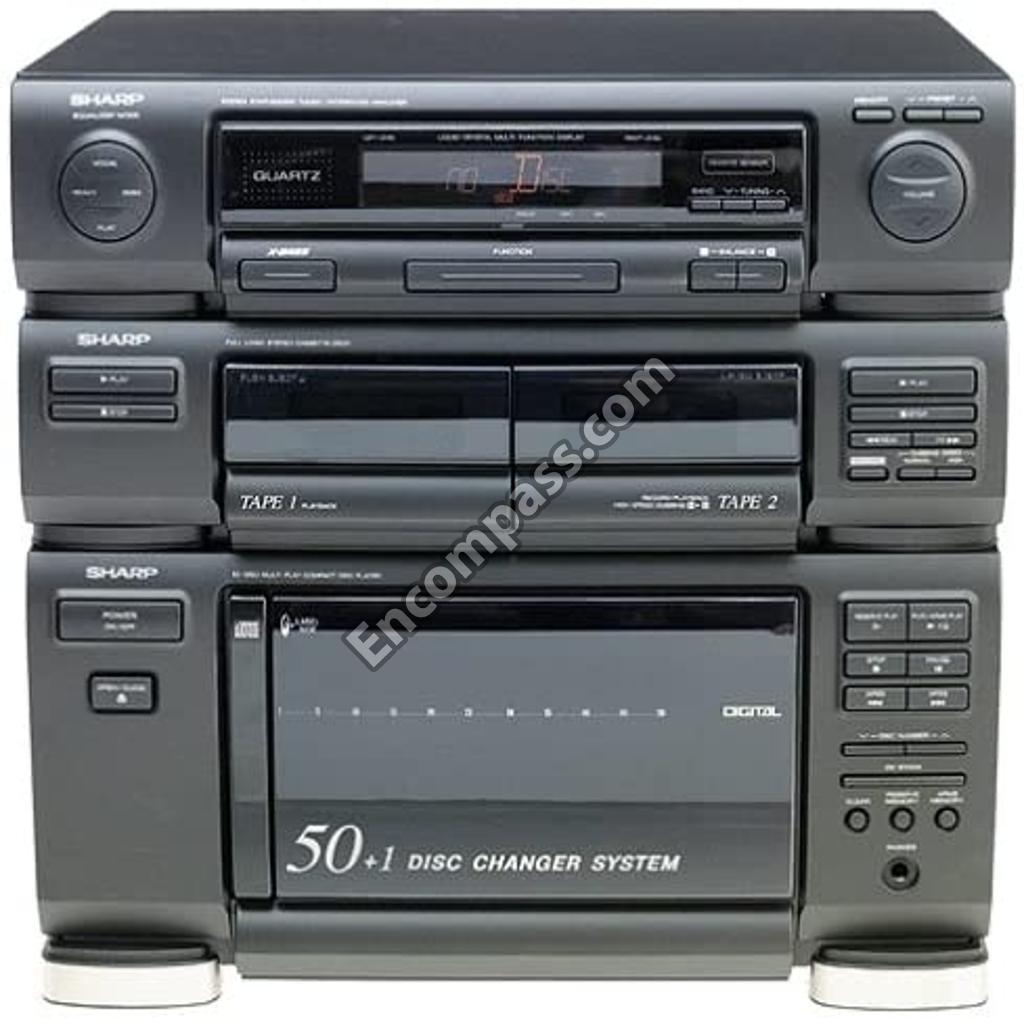

Manufacturer
Sharp
Model Number
SC9650
Description
Sys Comp W/50 Cd Chngr,dbl Cas
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
-IC101 PLAYBACK AND RECORD/PLAYBACK AMP., |
|
|
-XL2 CERAMIC,4.19 MHZ |
|
|
0 OHM,JUMPER,M1.4X3.5MM,IVORY- |
|
|
0.0022 UF,16V-C489 |
|
|
0.0022 UF,50V,MYLAR-C913 |
|
|
0.0027 UF,16V-C31 |
|
|
0.0033 UF,16V-C20 |
|
|
0.0039 UF,16V-C433 |
|
|
0.0082 UF,50V,MYLAR-C125 |
|
|
0.01 UF,16V-C1 |
|
|
0.01 UF,16V-C210 |
|
|
0.01 UF,16V-C303 |
|
|
0.01 UF,16V-C701 |
|
|
0.01 UF,50V,MYLAR-C427 |
|
|
0.047 UF,100V,MYLAR-C927 |
|
|
0.047 UF,50V-C109 |
|
|
0.082 UF,50V,MYLAR-C148 |
|
|
0.29 UH-L901 |
|
|
0.33 UF,CHOKE-L401 |
|
|
1 KOHM,1/6W-R28 |
|
|
1 MH,CHOKE-L353 |
|
|
1 PF,50V-C30 |
|
|
1 UF,50V,ELECTROLYTIC,NON-POLA-C911 |
|
|
1 UF,50V,ELECTROLYTIC-C18 |
|
|
1.2 KOHMS,1/4W-R309 |
|
|
1.5 KOHMS,1/6W-R203 |
|
|
1.8 KOHMS,1/6W-R702 |
|
|
1.8 KOHMS,1/8W-R209 |
|
|
10 KOHM,1/8W-R14 |
|
|
10 OHM,1/2W-R795 |
|
|
10 OHM,1/4W-R477 |
|
|
10 PF (UJ),50V-C309 |
|
|
10 UF,16V,ELECTROLYTIC-C921 |
|
|
10 UF,50V,ELECTROLYTIC-C45 |
|
|
100 KOHM,1/6W-R49 |
|
|
100 KOHM,1/8W-R2 |
|
|
100 OHM,1/4W-R963 |
|
|
100 OHM,1/6W-R767 |
|
|
100 OHM,1/8W-R6 |
|
|
100 PF,50V-C208 |
|
|
100 PF,50V-C316 |
|
|
100 UF,10V,ELECTROLYTIC-C37 |
|
|
12 KOHMS,1/6W-R706 |
|
|
12 KOHMS,1/8W-R8 |
|
|
12 OHMS,1/8W-R168 |
|
|
120 OHMS,1/6W-R911 |
|
|
120 PF,50V-C360 |
|
|
120 PF,50V-C707 |
|
|
15 KOHMS,1/8W-R3 |
|
|
150 KOHMS,1/6W-R155 |
|
|
150 OHMS,1/4W-R320 |
|
|
150 PF,50V-C447 |
|
|
18 KOHMS,1/8W-R411 |
|
|
180 KOHMS,1/8W-R221 |
|
|
180 PF,50V-C10 |
|
|
2.2 KOHMS,1/6W-R73 |
|
|
2.2 UF,50V,ELECTROLYTIC-C357 |
|
|
2.7 KOHMS,1/16W-R161 |
|
|
2.7 KOHMS,1/8W-R352 |
|
|
22 KOHMS,1/6W-R769 |
|
|
22 OHMS,1/6W-R43 |
|
|
22 PF (CH),50V-C318 |
|
|
22 PF,50V-C355 |
|
|
22 PF,50V-C915 |
|
|
22 UF,25V,ELECTROLYTIC-C110 |
|
|
220 KOHMS,1/8W-R26 |
|
|
220 OHMS,1/6W-R89 |
|
|
220 PF,50V-C413 |
|
|
220 UF,10V,ELECTROLYTIC-C146 |
|
|
220 UF,16V,ELECTROLYTIC-C444 |
|
|
27 KOHMS,1/8W-R9 |
|
|
27 PF,50V-C32 |
|
|
270 KOHMS,1/6W-R308 |
|
|
270 OHMS,1/4W-R161 |
|
|
270 OHMS,1/8W-R353 |
|
|
270 PF,50V-C477 |
|
|
3.3 KOHMS,1/6W-R473 |
|
|
3.3 MOHMS,1/6W-R59 |
|
|
3.3 UF,50V,ELECTROLYTIC-C128 |
|
|
3.9 KOHMS,1/6W-R704 |
|
|
33 KOHMS,1/6W-R791 |
|
|
33 KOHMS,1/8W-R13 |
|
|
33 OHMS,1/4W-R936 |
|
|
33 PF,50V-C306 |
|
|
33 UF,16V,ELECTROLYTIC-C149 |
|
|
330 OHMS,1/4W-R160 |
|
|
330 PF,50V-C12 |
|
|
330 UF,6.3V,ELECTROLYTIC-C51 |
|
|
390 KOHMS,1/8W-R487 |
|
|
390 OHMS,1/4W-R391 |
|
|
4.7 KOHMS,1/6W-R312 |
|
|
4.7 MOHMS,1/2W-R997 |
|
|
4.7 OHMS,1/2W-R747 |
|
|
4.7 PF (CH),50V-C304 |
|
|
47 KOHMS,1/8W-R15 |
|
|
47 OHMS,1/6W-R306 |
|
|
47 UF,25V,ELECTROLYTIC-C955 |
|
|
47 UF,50V,ELECTROLYTIC-C925 |
|
|
470 KOHMS,1/8W-R439 |
|
|
470 OHMS,1/4W-R158 |
|
|
470 OHMS,1/6W-R35 |
|
|
470 PF,50V-C903 |
|
|
4700 UF,63V,ELECTROLYTIC-C941 |
|
|
5.6 KOHMS,1/6W[SC-9660 ONLY]-R460 |
|
|
5.6 KOHMS,1/8W-R33 |
|
|
56 KOHMS,1/6W-R903 |
|
|
56 KOHMS,1/8W-R21 |
|
|
56 OHMS,1/6W-R119 |
|
|
560 OHMS,1/4W-R957 |
|
|
560 OHMS,1/6W-R905 |
|
|
560 OHMS,1/8W-R30 |
|
|
560 PF,50V-C103 |
|
|
6.8 KOHMS,1/6W-R5 |
|
|
6.8 KOHMS,1/8W-R20 |
|
|
68 KOHMS,1/8W-R134 |
|
|
680 OHMS,1/6W-R307 |
|
|
680 OHMS,1/8W-R58 |
|
|
7 PF,50V-C907 |
|
|
8.2 KOHMS,1/6W-R475 |
|
|
8.2 PF (UJ),50V-C317 |
|
|
82 KOHMS,1/8W-R17 |
|
|
820 OHMS,1/8W-R236 |
|
|
ANALOG SWITCHING,BU4066BC[SC-9-IC405 |
|
|
ARM,DISC-473 |
|
|
ARM,LOCK CNTION-470 |
|
|
ARM-431 |
|
|
BACK BOARD FOR CABINET |
|
|
BACK BOARD[SC-9660]-238 |
|
|
BADGE,CD TRAY COVER-203 |
|
|
BATTERY LID,REMOTE CONTROL-1 |
|
|
BELT FF/REW |
|
|
BELT MAIN (TYPE 1) |
|
|
BELT MAIN (TYPE 2) |
|
|
BELT,SELECT-486 |
|
|
BELT,TIMING-409 |
|
|
BRACKET,CD CHANGER MECHANISM-235 |
|
|
BRACKET,CD CHANGER MECHANISM-443 |
|
|
BRACKET,CD MECHANISM,LEFT-464 |
|
|
BRACKET,CD MECHANISM,RIGHT-463 |
|
|
BRACKET,HOLD-29 |
|
|
BRACKET,MOTOR-28 |
|
|
BRACKET,SPEAKER TERMINAL-233 |
|
|
BRACKET,SUB HEAT SINK-234 |
|
|
BRACKET,SUPPORT-490 |
|
|
BRACKET,SWITCH-30 |
|
|
BRACKET,TERMINAL-237 |
|
|
BUTTON,BAND-221 |
|
|
BUTTON,CD-215 |
|
|
BUTTON,FUNCTION-222 |
|
|
BUTTON,GRAPHIC EQUALIZER-213 |
|
|
BUTTON,POWER-220 |
|
|
BUTTON,TAPE 1-219 |
|
|
BUTTON,TAPE 2-214 |
|
|
BUTTON,VOLUME-216 |
|
|
CABINET-207 |
|
|
CASE ASS'Y,RIGHT-444 |
|
|
CASE,LEFT-467 |
|
|
CASS DOOR FOR TAPE 2 SIDE |
|
|
CASSETTE HOLDER ASS'Y[TAPE 1]-208 |
|
|
CD CONTROL MICROCOMPUTER,IX250-IC4 |
|
|
CD MOTOR (PWB ONLY)-PWB-G |
|
|
CD SERVO-PWB-D |
|
|
CD SWITCH/LOADING/PHOTO1,2/PUL-PWB-H1 |
|
|
CD WINDOW |
|
|
CERAMIC,16.93 MHZ-XL1 |
|
|
CERAMIC,456 KHZ-X351 |
|
|
CLEAR FILE- |
|
|
CONNECTOR ASS'Y,11-10PIN-BI951 |
|
|
CONNECTOR ASS'Y,12-11PIN-BI705 |
|
|
CONNECTOR ASS'Y,15-15PIN-BI201 |
|
|
CONNECTOR ASS'Y,2-2PIN-BI702 |
|
|
CONNECTOR ASS'Y,2PIN-CNS903 |
|
|
CONNECTOR ASS'Y,3PIN-CNS101 |
|
|
CONNECTOR ASS'Y,4PIN-CNS10 |
|
|
CONNECTOR ASS'Y,4PIN-CNS4 |
|
|
CONNECTOR ASS'Y,5-4PIN-BI701 |
|
|
CONNECTOR ASS'Y,5-4PIN-BI901 |
|
|
CONNECTOR ASS'Y,6-5PIN-BI904 |
|
|
CONNECTOR ASS'Y,6-6PIN-CNS3 |
|
|
CONNECTOR ASS'Y,8-8PIN-CNS2 |
|
|
CONNECTOR ASS'Y,8PIN-CNS102 |
|
|
CONNECTOR ASS'Y,9-8PIN-BI706 |
|
|
CONNECTOR ASSY 6-5PIN PLUGS INTO CNP1 |
|
|
CORD,SAFETY-500 |
|
|
COVER,CASSETTE HOLDER,TAPE 1-208 |
|
|
COVER,CASSETTE HOLDER,TAPE 2-209 |
|
|
COVER,CD SERVO PWB-488 |
|
|
COVER,CD TRAY-202 |
|
|
CRYSTAL,4.5 MHZ-X352 |
|
|
CUP-422 |
|
|
CUSHION-201 |
|
|
CUSHION-465 |
|
|
DECORATION PLATE,CASSETTE HOLD-205 |
|
|
DECORATION PLATE,CASSETTE HOLD-206 |
|
|
DECORATION PLATE,LCD-201 |
|
|
DECORATION RING,LEG-201 |
|
|
DECORATION RING,LEG-201 |
|
|
DIGITAL,NPN,DTC114 YS-Q204 |
|
|
DIGITAL,NPN,DTC144 ES-Q2 |
|
|
DISC HOLDER-417 |
|
|
DISC ROLLER M ASS'Y-408 |
|
|
DISC ROLLER S ASS'Y-405 |
|
|
E P.ROM,A93C46PC-IC703 |
|
|
ERASE HEAD I/O 92LM-EH1658A-56 |
|
|
F991 FUSE |
|
|
FF/REW ROLLER LEVER ASS'Y-10 |
|
|
FLAT CABLE,2PIN-FWM2 |
|
|
FLAT CABLE,4PIN-FWM1 |
|
|
FLYWHEEL ASS'Y [TAPE 1]-8 |
|
|
FLYWHEEL ASS'Y [TAPE 2]-9 |
|
|
FM BAND PASS FILTER-L301 |
|
|
FM IF DET./FM MPX./ AM IF,LA1-IC302 |
|
|
FM IF,10.7 MHZ-CF301 |
|
|
FM IF-T301 |
|
|
FM OSC-L303 |
|
|
FM RF-L302 |
|
|
FRONT PANEL ASS'Y-201 |
|
|
FUSE HOLDER-230 |
|
|
GEAR,ACTION-478 |
|
|
GEAR,BACK-479 |
|
|
GEAR,CAM-11 |
|
|
GEAR,CAM-448 |
|
|
GEAR,CENTER-429 |
|
|
GEAR,DISC DRIVE-406 |
|
|
GEAR,DRIVE-401 |
|
|
GEAR,FF-14 |
|
|
GEAR,FLYWHEEL-12 |
|
|
GEAR,MIDDLE-484 |
|
|
GEAR,PLAY IDLER-13 |
|
|
GEAR,SUPPLY REEL-6 |
|
|
GUIDE GEAR ASS'Y-480 |
|
|
GUIDE,ARM-435 |
|
|
GUIDE,CASSETTE[TAPE 1]-22 |
|
|
GUIDE,CASSETTE[TAPE 2]-21 |
|
|
GUIDE,SENSOR-481 |
|
|
HEAD,RECORD/PLAYBACK-55 |
|
|
HEAT SINK,SUB-232 |
|
|
HEAT SINK,SUB-255 |
|
|
HEAT SINK-247 |
|
|
HOLDER,BEARING-20 |
|
|
HOLDER,LCD-243 |
|
|
HOLDER,STABILIZER-416 |
|
|
I.C. I/O VHIBA5920FP-1-IC5 |
|
|
IC IC1 I/O VHILA9240M/-1-IC1 |
|
|
IC IC2 I/O VHILC78623E-1-IC2 |
|
|
IC3 |
|
|
IC401,AUDIO PROCESSOR,LC75394E |
|
|
IC5 |
|
|
IC901,POWER AMP |
|
|
IDLER LEVER ASS'Y [TAPE 1]-26 |
|
|
IDLER LEVER ASS'Y [TAPE 2]-27 |
|
|
LABEL,INDEX- |
|
|
LCD-LCD701 |
|
|
LEVER,CAM-447 |
|
|
LEVER,DISC CENTER (A)-445 |
|
|
LEVER,DISC CENTER (B)-433 |
|
|
LEVER,EJECT (A)-442 |
|
|
LEVER,EJECT OBSTRUCT [TAPE 1]-18 |
|
|
LEVER,EJECT OBSTRUCT [TAPE 2]-19 |
|
|
LEVER,EJECT-438 |
|
|
LEVER,LOCK PLATE CENTER-483 |
|
|
LEVER,LOCK[TAPE 1]-17 |
|
|
LEVER,OVER STROK [TAPE 1]-23 |
|
|
LEVER,POSITION-491 |
|
|
LEVER,PROTECT-436 |
|
|
LEVER,ROLLER CHANGE JOINT-452 |
|
|
LEVER,SWITCH-482 |
|
|
LEVER,TRIGGER-16 |
|
|
LOADING GUIDE RUB-420 |
|
|
LOADING GUIDE,LEFT-419 |
|
|
LOADING GUIDE,RIGHT-421 |
|
|
LOCK ARM ASS'Y-456 |
|
|
LOCK LEVER ASS'Y-457 |
|
|
LOCK PLATE ASS'Y,RIGHT-469 |
|
|
MAIN CHASSIS ASS'Y-1 |
|
|
MAIN CHASSIS-228 |
|
|
MAIN[SC-9650]-PWB-B |
|
|
MAIN[SC-9660]-PWB-B |
|
|
MODE LEVER ASS'Y-25 |
|
|
MOTOR BRACKET ASS'Y-428 |
|
|
MOTOR WITH GEAR [SLIDE]-M4 |
|
|
MOTOR WITH PULLEY [LOADING]-M1 |
|
|
MOTOR WITH PULLEY [SELECT]-M2 |
|
|
MOTOR WITH PULLEY [TAPE]-MM1 |
|
|
NYLON BAND,100MM-59 |
|
|
OPERATION MANUAL- |
|
|
OVER STROK LEVER ASS'Y [TAPE-24 |
|
|
PHOTO DIODE,SR33ST3F-PD2 |
|
|
PHOTO INTERRUPTER-PHM1 |
|
|
PHOTO TRANSISTOR I/O VHLRI38PB-PHT2 |
|
|
PHT1 |
|
|
PIN HEADER-CNPM2 |
|
|
PLATE,BASE-489 |
|
|
PLATE,GEAR-493 |
|
|
PLATE,HEAD[TAPE 1]-2 |
|
|
PLATE,HEAD[TAPE 2]-3 |
|
|
PLATE,LOCK,LEFT-472 |
|
|
PLATE,REAR-496 |
|
|
PLATE,SIDE,LEFT-495 |
|
|
PLATE,SIDE,RIGHT-494 |
|
|
PLATE,TOP-497 |
|
|
PLL (TUNER) LC72131-IC303 |
|
|
PLUG,12PIN-CNPM1 |
|
|
PLUG,13PIN-CNP404 |
|
|
PLUG,13PIN-CNP704 |
|
|
PLUG,15PIN-CNP406 |
|
|
PLUG,6PIN-CNP3 |
|
|
PLUG,8PIN-CNP2 |
|
|
PLUG,9PIN-CNP403 |
|
|
PLUG,9PIN-CNP705 |
|
|
POWER TRANSFORMER |
|
|
POWER/HEADPHONES (COMBINED ASS-PWB-A1 |
|
|
POWER/HEADPHONES (COMBINED ASS-PWB-A1 |
|
|
PULLEY,BELT-404 |
|
|
PULLEY,DRIVE-485 |
|
|
PULLEY,SAFETY-423 |
|
|
PWB |
|
|
RAIL,GUIDE-303 |
|
|
RECEIVER,REMOTE CONTROL, LSPS-UNT701 |
|
|
RELAY[SC-9660 ONLY]-RLY932 |
|
|
RESET,KIA7042P-IC702 |
|
|
RLY931 |
|
|
RLY941 |
|
|
ROLLER ARM ASS'Y-410 |
|
|
ROLLER CHANGE LEVER ASS'Y-453 |
|
|
ROLLER PLATE ASS'Y-403 |
|
|
ROLLER,ARM-413 |
|
|
ROLLER,GUIDE-459 |
|
|
ROLLER,ROLLER ARM-411 |
|
|
ROLLER,SUPPORT-461 |
|
|
RUBBER,ARM-432 |
|
|
RUBBER,DISC CENTER-434 |
|
|
RUBBER,STOCKER-427 |
|
|
SCREW,LOCK LEVER-506 |
|
|
SCREW,M2.6X14MM-815 |
|
|
SCREW,M2.6X6MM-701 |
|
|
SCREW,M2X2MM-806 |
|
|
SCREW,M2X3MM-804 |
|
|
SCREW,M2X4MM-620 |
|
|
SCREW,M2X4MM-821 |
|
|
SCREW,M2X5MM-507 |
|
|
SCREW,M2X5MM-702 |
|
|
SCREW,M3X10MM-604 |
|
|
SCREW,M3X10MM-605 |
|
|
SCREW,M3X16MM-617 |
|
|
SCREW,M3X4MM-615 |
|
|
SCREW,M3X5MM-819 |
|
|
SCREW,M3X5MM-820 |
|
|
SCREW,M3X6MM-608 |
|
|
SCREW,M3X8MM-603 |
|
|
SCREW,M3X8MM-607 |
|
|
SCREW,M3X8MM-612 |
|
|
SCREW,M3X8MM-822 |
|
|
SCREW,M4X8MM-610 |
|
|
SCREW,SPECIAL-803 |
|
|
SCREW,SPECIAL-817 |
|
|
SCREW,SPECIAL-818 |
|
|
SEAL,SENSOR-487 |
|
|
SENSOR,WING-15 |
|
|
SERVICE MANUAL |
|
|
SHAFT,CAM LEVER-449 |
|
|
SHAFT,DRIVE GEAR-402 |
|
|
SHAFT,GUIDE GEAR-475 |
|
|
SHAFT,GUIDE-304 |
|
|
SHAFT,LOADING GUIDE-424 |
|
|
SHAFT,LOCK CNTION-471 |
|
|
SHAFT,SAFETY PULLEY-425 |
|
|
SHAFT,SUPPORT ROLLER-460 |
|
|
SHEET,LCD-242 |
|
|
SHIELD PLATE-246 |
|
|
SILICON,KBPC803-D908 |
|
|
SILICON,NPN,KTC1026-Q901 |
|
|
SILICON,NPN,KTC3197-Q302 |
|
|
SOLENOID ASS'Y-SOLM1 |
|
|
SPIN MOTOR WITH CHASSIS |
|
|
SPRING,ARM SUPPORT-439 |
|
|
SPRING,ASSIST-441 |
|
|
SPRING,BACK TENTION-32 |
|
|
SPRING,CASSETTE HOLDER,TAPE 1-226 |
|
|
SPRING,CASSETTE HOLDER,TAPE 2-227 |
|
|
SPRING,CASSETTE-31 |
|
|
SPRING,DISC ARM-474 |
|
|
SPRING,DISC CENTER-418 |
|
|
SPRING,EJECT JOINT-440 |
|
|
SPRING,EJECT LEVER-499 |
|
|
SPRING,EJECT OBSTRUCT [TAPE 1-37 |
|
|
SPRING,EJECT OBSTRUCT [TAPE 2-42 |
|
|
SPRING,FF/REW LEVER-41 |
|
|
SPRING,LOCK LEVER [TAPE 1]-33 |
|
|
SPRING,LOCK PIN-458 |
|
|
SPRING,MODE LEVER-34 |
|
|
SPRING,OVER STROK LEVER-39 |
|
|
SPRING,PINCH ROLLER RETURN-38 |
|
|
SPRING,PINCH ROLLER-36 |
|
|
SPRING,PLAY IDLER LEVER-35 |
|
|
SPRING,POSITION LEVER-492 |
|
|
SPRING,PROTECT-437 |
|
|
SPRING,ROLLER BACK-451 |
|
|
SPRING,ROLLER CHANGE-450 |
|
|
SPRING,SHAFT HOLD-476 |
|
|
SPRING,STABILIZER ARM-468 |
|
|
SPRING,SUPPLY CAP-58 |
|
|
SPRING,TENSION-466 |
|
|
SPRING,TRIGGER LEVER-40 |
|
|
STABILIZER ARM ASS'Y-412 |
|
|
STABILIZER-414 |
|
|
STOCKER-426 |
|
|
SW6 |
|
|
SWITCH,LEAF TYPE [F.A.S]-SWM4 |
|
|
SWITCH,LEAF TYPE [FOOL PROOF]-SWM3 |
|
|
SWITCH,LEAF TYPE [PICKUP IN]-SW7 |
|
|
SWITCH,PUSH TYPE [CD DETECTIO-SW5 |
|
|
SWITCH,PUSH TYPE [LOADING A]-SW1 |
|
|
SWITCH,SLIDE TYPE[INPUT SELECT-SW401 |
|
|
TAKE-UP REEL ASS'Y [TAPE 1]-4 |
|
|
TAKE-UP REEL ASS'Y [TAPE 2]-5 |
|
|
TAPE MECHANISM (PWB ONLY)-PWB-F |
|
|
TENSION PLATE ASS'Y-407 |
|
|
TRANSPORTATION SCREW,LONG- |
|
|
TRANSPORTATION SCREW,SHORT- |
|
|
WASHER I/O 92L1R5WC3R8R5P-504 SU REEL |
|
|
WASHER,M1.2XM3.5X0.5MM-805 |
|
|
WASHER,M1.2XM3X0.25MM-801 |
|
|
WASHER,M1.5XM4X0.5MM-802 |
|
|
WASHER,M2.1XM5X0.5MM-808 |
|
|
WASHER,M2.1XM8X0.2MM-813 |
|
|
WASHER,M2.2X0.3MM-505 |
|
|
WASHER,M2.3XM3.4X0.25MM-508 |
|
|
ZENER,13V,MTZJ13C-ZD951 |
|
|
ZENER,6.8V,MTZJ6.8A-ZD954 |
