Model Image
Manufacturer

Sharp

Model Number

XA305

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
QJAKE0053GEZZ QJAKE0053GEZZ '''''OUTPUT '''
VCKYTV1HB102K VCKYTV1HB102K 0.0011.F, 50V, 10%, CERAMIC102
VCFYHA1HA104J VCFYHA1HA104J 0.1UF, 50V, 5%, MY1ARC713
VCFYHA1HA224J VCFYHA1HA224J 0.22UF, 50V, 5%, MYLARC1510
VCEAGA1AW107M VCEAGA1AW107M 100UF, 10V, 20%,ELECTROLYTICC532
VP-XF101K0000 VP-XF101K0000 100UHL202
RVR-M4226CEZZ RVR-M4226CEZZ 10K(B) PLAYBACK LEVELR610
VCE9EA1CW106M VCE9EA1CW106M 10UF, 16V, 20%,ELECTROLYTIC (NC726
95KUBC0112AZ 95KUBC0112AZ 11E1D902
VP-XF120K0000 VP-XF120K0000 12UHL5001
VP-XF151K0000 VP-XF151K0000 150UHL215
VP-XF180K0000 VP-XF180K0000 18UHL205
VRD-RA2EE223J VRD-RA2EE223J 22K OHM, 1/4W, 5%, CARBON348
VS2SA1037KQ-1Y VS2SA1037KQ-1Y 2SA1037(KQ)Q710
VS2SA1271-Y-1 VS2SA1271-Y-1 2SA1271(Y)Q811
VS2SC1815Y_-1 VS2SC1815Y_-1 2SC1740SQRQ711
VS2SC2120Y_-A VS2SC2120Y_-A 2SC2120YQ3001
VS2SC2412KQ-1Y VS2SC2412KQ-1Y 2SC2412(KQ)Q704
VS2SC383-WT-1 VS2SC383-WT-1 2SC383(WT)Q5001
95KUAD0031SZ 95KUAD0031SZ 2SD560Q904
VP-XF390K0000 VP-XF390K0000 39UHL204
VCQPSA2AA562J VCQPSA2AA562J 5600PF, 100V, 5%, POLYPRO FILMC623
QJAKE0055GEZZ QJAKE0055GEZZ AUDIO OUTPUT JACK
MLEVP0146GEZZ MLEVP0146GEZZ AUXILIARY FAST FORWARD BRAKE L86
LBNDK1002GEZZ LBNDK1002GEZZ BACK TENSION BAND
QTANZ0181PAZZ QTANZ0181PAZZ BATTERY TERMINAL (+)00000000
QTANZ0184PAZZ QTANZ0184PAZZ BATTERY TERMINAL (-)00000000
MSLIF0043GEZZ MSLIF0043GEZZ BRAKE SHIFTER34
JBTN-2279GESA JBTN-2279GESA BUTTON, COUTER501-8
RMOTN2019GEZZ RMOTN2019GEZZ CAPSTAN MOTOR

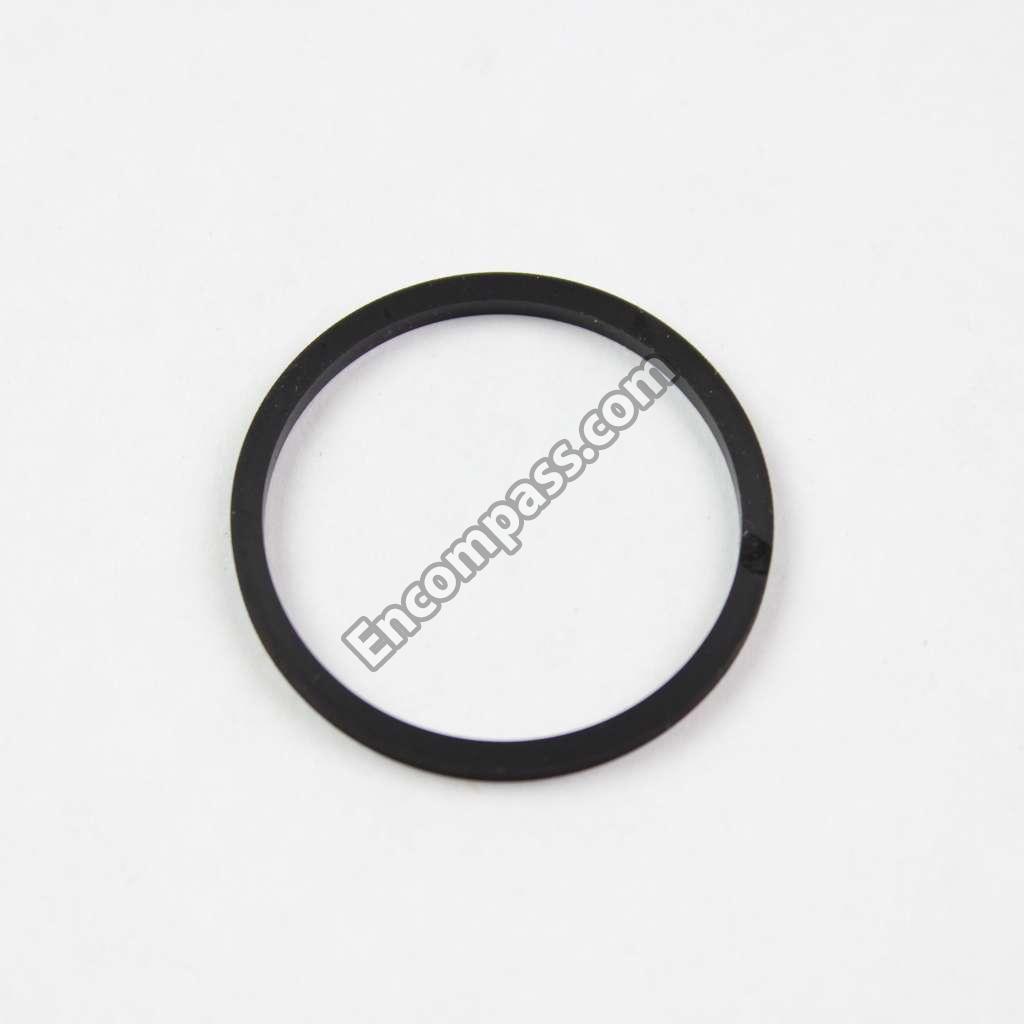

NBLTK0060GE00 NBLTK0060GE00 CASS LOADING BELT
CHLDX3050GE00 CHLDX3050GE00 CASSETTE HOUSING
RFILF0055PAZZ RFILF0055PAZZ CSB455JBCF3001
VHDMA151WK_-1 VHDMA151WK_-1 D601
VHD1SS119__-1 VHD1SS119__-1 D701
VSDTA114EK_-1 VSDTA114EK_-1 DTA114EKQ212
VSDTA124EKA-1Y VSDTA124EKA-1Y DTA124(EK)Q701
VSDTC114EK_-1 VSDTC114EK_-1 DTC114(EK)Q2251
VSDTC144EK_-1 VSDTC144EK_-1 DTC144(EK)Q1503
VSDTC144ES_-1 VSDTC144ES_-1 DTC144ESQ208
XRESJ30-06000 XRESJ30-06000 E RING-3211
QCNW-5313GEZZ QCNW-5313GEZZ FULL FLAT CABLE /CAPSTAN D.D.97
QFS-B1621GEZZ QFS-B1621GEZZ FUSE, 1.6A 125VF901
RMOTP1099GEZZ RMOTP1099GEZZ HEAD MOTOR (DD )
VHIBA6209__1E VHIBA6209__1E IC802
HINDP1592GESA HINDP1592GESA INDOOR INDICATION PLATE501-14
PFILW0113PASA PFILW0113PASA INFRARED FILTER00000000
RH-PX0174GEZZ RH-PX0174GEZZ LEDD5030
MLEVP0195GEZZ MLEVP0195GEZZ LEVER I/O MLEVP0133GEZZ52
NBLTK0058GE00 NBLTK0058GE00 LOADING BELT
NGERH1121GEZZ NGERH1121GEZZ LOADING RELAY GEAR60
RMOTM1074GEZZ RMOTM1074GEZZ MOTOR I/O RMOTM1049GEZZ E1 5/816
QEARP0277GEFW QEARP0277GEFW PANEL EARTH (B)501-16
MLEVF0281GEZZ MLEVF0281GEZZ PINCH ROLLER LEVER ASS'Y25
QPLGN1078GEZZ QPLGN1078GEZZ PLUG, 10 PIN (AD)00000000
QPLGN0478GEZZ QPLGN0478GEZZ PLUG, 4 PIN (AH)00000000
NBLTK0059GE00 NBLTK0059GE00 REEL BELT
XHPSD30P08000 XHPSD30P08000 SCREW S3P+8S237
LX-BZ3064GEFN LX-BZ3064GEFN SCREW SW3P+6S-NI233
XYBSF20P08000 XYBSF20P08000 SCREW00000000
XEBSD30P12000 XEBSD30P12000 SCREW610
XHPSD30P06WS0 XHPSD30P06WS0 SCREW611
XEBS740P12000 XEBS740P12000 SCREW612
XJBSD30P16000 XJBSD30P16000 SCREW632
QSOCN1079GEZZ QSOCN1079GEZZ SOCKET, 10 PIN (K201, K203)00000000
QSOCN0732REZZ QSOCN0732REZZ SOCKET, 7 PIN (ZA)00000000
PSPAZ0200GEZZ PSPAZ0200GEZZ SPACER621
PSPAZ0202GEZZ PSPAZ0202GEZZ SPACER622
PSPAV0118GEZZ PSPAV0118GEZZ SPACER633
PSPAZ0046GEZZ PSPAZ0046GEZZ SPACER634
PGIDH0036GEFW PGIDH0036GEFW SUPPLY IMPEDANCE ROLLER FLANGE106
DUNTK3194HE00 DUNTK3194HE00 SWITCH & START SENSOR PWB ASSY315
QSW-K0069CEZZ QSW-K0069CEZZ SWITCHES I/O 0052GEZZ,0077G,00S8101
RTRNH0053GEZZ RTRNH0053GEZZ T601
MLEVP0134GEZZ MLEVP0134GEZZ TENSION ADJUSTING LEVER51
VS2SC1815GW-1_ VS2SC1815GW-1_ TRANSISTOR I/O VS2SC1815YW-1Q906
LX-WZ1041GE00 LX-WZ1041GE00 WASHER W2.6-6-0. 5 (LM)209
NGERW1033GEZZ NGERW1033GEZZ WORM WHEEL GEAR310
LHLDZ1609GEZZ LHLDZ1609GEZZ Y/C HOLDER607
