Manufacturer
Samsung
Model Number
AR12KSWSPWKNCV
Description
Air Conditioner
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 0201-002668 | ADHESIVE-COM;1-2577 LOW VOC,TRANSLUCENT, |
| 0201-002354 | ADHESIVE-COM;1-2577,TRANSLUCENT,950 |
| 0201-002394 | ADHESIVE-EPOXY;HT-1331S(SPL-K4),RED,550~ |
| 0201-002081 | ADHESIVE-SIL;737,WHITE, |
| DB94-04149H | ASSEMBLY BACK BODY |
| DB98-30154A | ASSEMBLY BAR CODE BOX |
| DB94-40007B | ASSEMBLY BEARING |
| DB92-02890A | ASSEMBLY BLADE H |
| DB90-08173K | ASSEMBLY CASE CONTROL ELECTRIC |
| DB90-07763D | ASSEMBLY CASE-ELECTRIC |
| DB93-06677A | ASSEMBLY CONNECTOR WIRE |
| DB93-04688F | ASSEMBLY CONNECTOR WIRE |
| DB93-14237A | ASSEMBLY CONNECTOR WIRE-COMM |
| DB93-15445A | ASSEMBLY CONNECTOR WIRE-DC SIGNAL |
| DB93-14221A | ASSEMBLY CONNECTOR WIRE-DC SIGNAL |
| DB93-14208A | ASSEMBLY CONNECTOR WIRE-DC SIGNAL |
| DB93-14207A | ASSEMBLY CONNECTOR WIRE-DC SIGNAL |
| DB93-14206A | ASSEMBLY CONNECTOR WIRE-DC SIGNAL |
| DB93-14209B | ASSEMBLY CONNECTOR WIRE-DISPLAY |
| DB93-14245A | ASSEMBLY CONNECTOR WIRE-EARTH |
| DB93-14203A | ASSEMBLY CONNECTOR WIRE-POWER |
| DB94-01550E | ASSEMBLY FAN CROSS |
| DB98-13261A | ASSEMBLY GARANTIE CARD |
| DB92-02887B | ASSEMBLY GRILLE |
| DB90-07732A | ASSEMBLY HANGER |
| DB94-00458H | ASSEMBLY HOSE DRAIN |
| DB98-29143A | ASSEMBLY LABEL BAR CODE |
| DB98-28433A | ASSEMBLY LABEL BARCODE |
| DB92-02861A | ASSEMBLY MODULE |
| DB97-24011A | ASSEMBLY PACKING-CASE PCB |
| DB92-02888B | ASSEMBLY PANEL FRONT |
| DB92-02889A | ASSEMBLY PANEL-SUB |
| DB90-07859C | ASSEMBLY PLATE-CONTROL |
| DB90-07861A | ASSEMBLY PLATE-MIDDLE |
|
|
ASSEMBLY RUBBER BEARING |
| DB97-02418A | ASSEMBLY SCREW TAPPING |
| DB91-00309A | ASSEMBLY SCREW TAPPING;WW-INV,M3*2 |
|
|

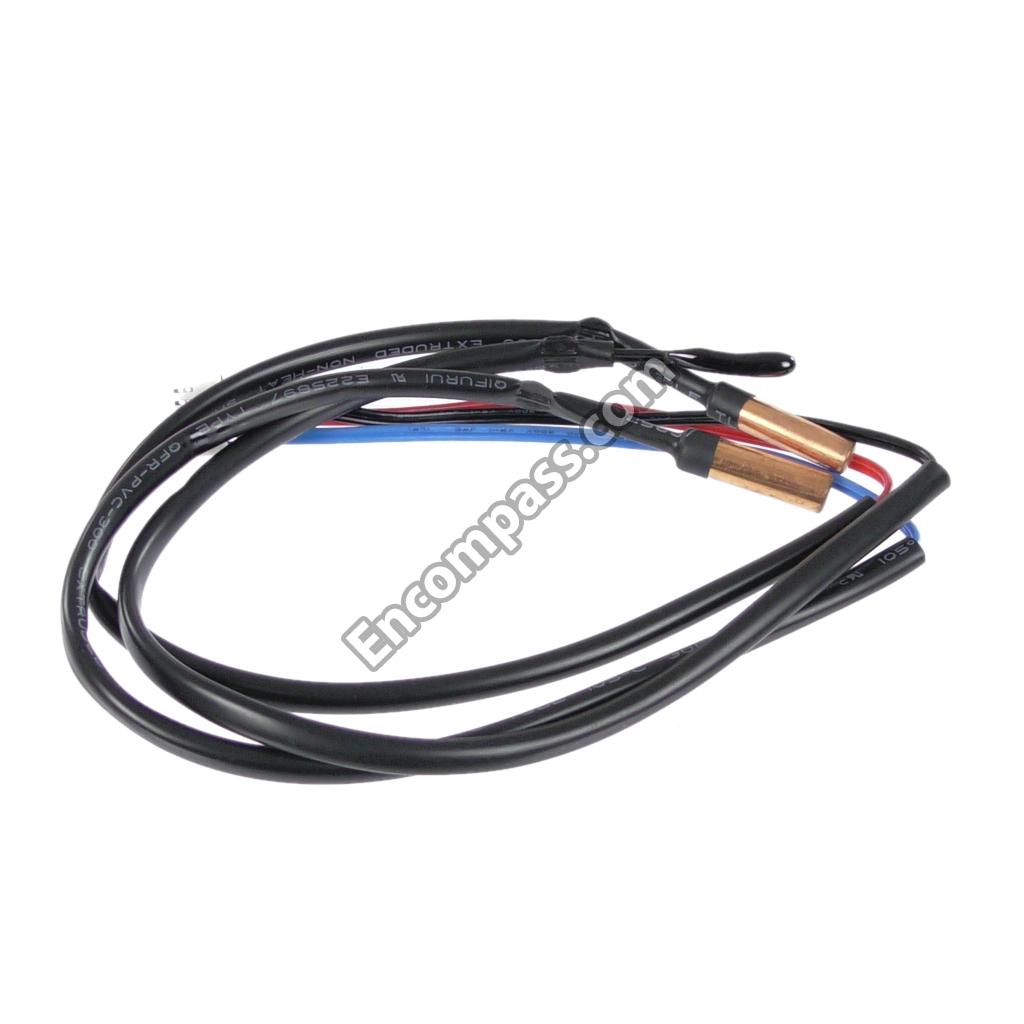

ASSEMBLY THERMISTOR IN |
| DB94-04148B | ASSEMBLY TRAY DRAIN |
| DB96-19793B | ASSEMBLY TUBE EVAP IN |
| DB96-19801D | ASSEMBLY TUBE EVAP OUT |
| DB96-10257A | ASSEMBLY TUBE U BEND |
| DB96-10256A | ASSEMBLY TUBE U BEND |
| DB93-50001A | ASSEMBLY WIRE RING SOLD |
| DB93-15883C | ASSEMBLY WIRELESS REMOTE CONTROL |
| DB90-07989A | ASSY CABI IN PARTS;SSEC |
| DB90-08116B | ASSY CASE PCB-DISPLAY;A3050 INV,FOR 88 D |
| DB90-07899A | ASSY CASE PCB-SUB;A3050-PJT,F-04,160MM |
| DB93-15731A | ASSY CONTROL IN PARTS;SSEC |
| DB94-04449A | ASSY DRAIN PARTS;SSEC |
| DB96-20231A | ASSY EVAP MAIN-UPPER;F04(AR09HSFSPWK),AS |
| DB96-18995D | ASSY EVAP MAIN;A3050,F04 |
| DB96-19834A | ASSY EVAP PARTS;A3050PJT,SSEC |
| DB96-20226A | ASSY EVAP SUB-UPPER;F04(AR09HSSDAWK),ASS |
| DB96-18996C | ASSY EVAP SUB;A3050,F04-1 |
| DB94-04182A | ASSY FAN CROSS-TOTAL;A3050,SSEC |
| DB94-05666A | ASSY FAN IN PARTS;SSEC |
| DB92-03569E | ASSY KIT;INDOOR,A3050-PJT,485-INV,F03/04 |
| DB98-36057A | ASSY MANUAL;AR09KSWSPWKNCV,SSEC |
| DB91-01766A | ASSY MICOM;16K RAC WIFI,STM-1551-OA,W25Q |
| DB91-01755A | ASSY MICOM;16T RAC INVERTER HVPS(PM2.5)/ |
| DB97-14988A | ASSY PACKING IN PARTS;VIVALDI |
| DB92-03930A | ASSY PANEL FRONT PARTS;AR09KSFSQWKNEE,SS |
| DB94-04104A | ASSY PCB AUTO;BETTER,BEST,A3050,64*36,DB |
| DB94-06077A | ASSY PCB AUTO;INDOOR, MAIN, WIFI(SHP),A3 |
| DB94-04099A | ASSY PCB AUTO;RECEIVER,A3050,24*40,DB92- |
| DB94-04105A | ASSY PCB SMD;BETTER,BEST,A3050,64*36,DB9 |
| DB94-06078A | ASSY PCB SMD;INDOOR, MAIN, WIFI(SHP),A30 |
| DB94-04100A | ASSY PCB SMD;RECEIVER,A3050,24*40,DB92-0 |
| DB97-29849A | ASSY PRINT IN PARTS;AR09KSWSPWKNCV,SSEC |
| DB96-19802B | ASSY TUBE EVAP-MID;A3050,NORDIC MODEL |
| DB96-03214D | ASSY TUBE U BEND;AR12FSSSBWKNSA,SSEC,A30 |
| DB96-19804A | ASSY U BEND;A3050,F04-1 |
| 6902-000286 | BAG PE |
| 6902-002293 | BAG PE;HDPE/PE FOAM,T0.012/T0.5,W1400,L5 |
| 6902-001775 | BAG ROLL;HDPE,T0.015,W500,L495M,WHT |
| 6902-001990 | BAG ROLL;HDPE/PE FOAM,NITRON,T0.015/0.5, |
| 6922-000041 | BAND |
| 4301-000121 | BATTERY-MN |
| DB61-05820A | BLADE H-BOTTOM;A3050, F-RAC-04,ABS,T2.0, |
| DB61-05819A | BLADE H-TOP;A3050, F-RAC-04,ABS,T2.0,DA |
| DB61-05846A | BLADE V |
| DB61-05824B | BODY BACK;F-RAC-04,ABS,T2.3,BLACK,NO SPI |
| 6009-001433 | BOLT-HEX |
| DB64-03045A | BUTTON POWER |
| 3002-001139 | BUZZER-PIEZO |
| 2401-003107 | C-AL |
| 2402-001368 | C-AL, SMD |
| 2402-001145 | C-AL, SMD |
| 2402-000120 | C-AL, SMD |
| 2203-007486 | C-CER, CHIP |
| 2203-006960 | C-CER, CHIP |
| 2203-005249 | C-CER, CHIP |
| 2203-001083 | C-CER, CHIP |
| 2203-001071 | C-CER, CHIP |
| 2203-000444 | C-CER, CHIP |
| 2203-000440 | C-CER, CHIP |
| 2203-000257 | C-CER, CHIP |
| 2203-000206 | C-CER, CHIP |
| 2203-000027 | C-CER, CHIP |
| 2203-006496 | C-CER,CHIP;2.2NF,10%,50V,X7R,TP,1608,T0. |
| 2301-002032 | C-FILM, LEAD-PPF |
| DB65-10088C | CABLE TIE |
|
|
CABLE TIE |
| DB65-10088B | CABLE-TIE |
| DB63-10371A | CAP |
|
|

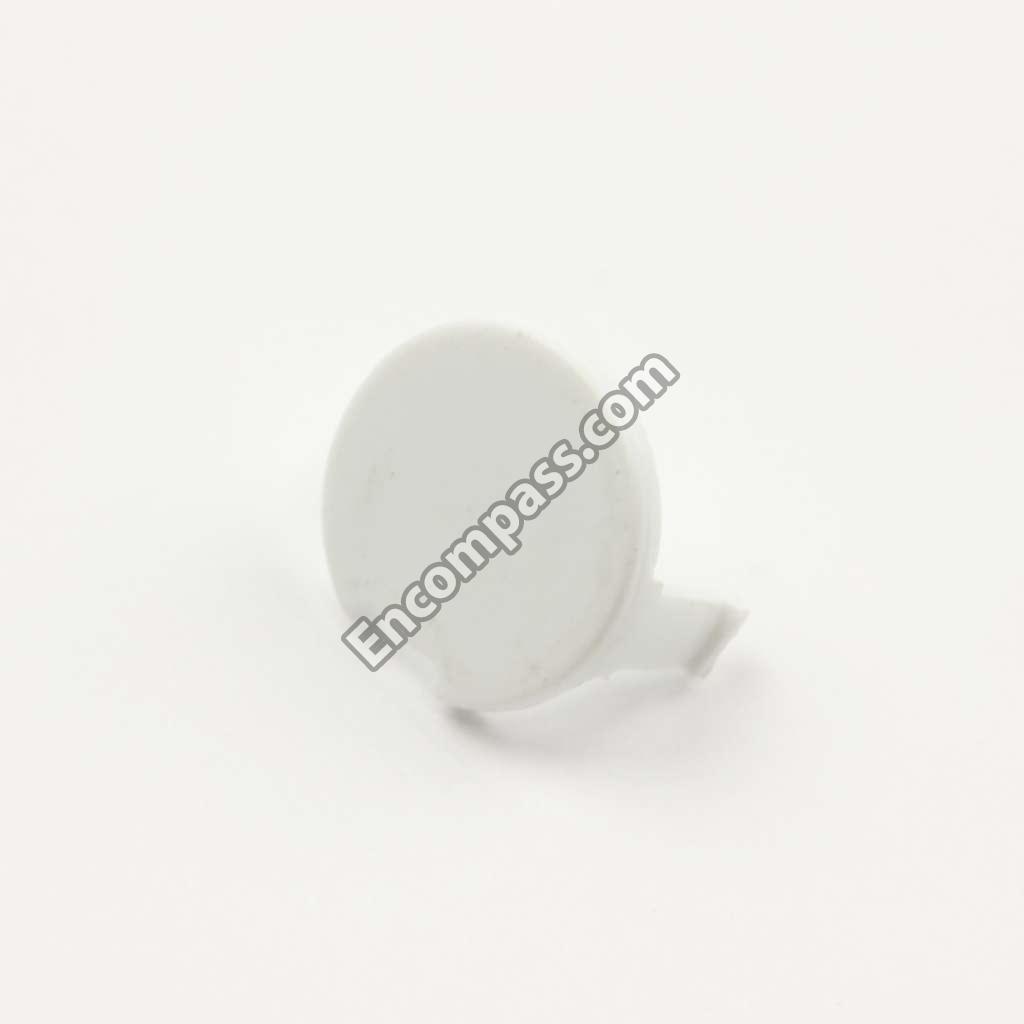

CAP-SCREW |
| 6801-002172 | CARD-WARRANTY;A3050,EN,MOJO,216,279,8 |
| DB61-05826B | CASE CONTROL-IN;A3050,F-RAC-03/F04,ABS,V |
| DB61-05847A | CASE PCB |
| DB61-06101A | CASE PCB-LOW |
| DB61-05854A | CASE PCB-REMOTE CONTROL |
| DB61-05827A | CASE-DISPLAY |
| DB61-03857A | CLIP-DRAIN HOSE;-,STS304,T1, |
| DB63-03274A | CLIP;STS301,T0.5,GRAY METAL,1/4" |
| DB27-00102A | COIL CHOKE;1MH,2.5A,8.4X3.4MM,MN-ZN,4P,D |
| DB27-00096A | COIL CHOKE;28MH,1.5A,13X10MM,MN-ZN,4P,DI |
| 3711-003404 | CONNECTOR-HEADER |
| 3711-000998 | CONNECTOR-HEADER |
| 3711-000177 | CONNECTOR-HEADER |
| 0102-001526 | COPPER TUBE , C1220T,O,6.35,0.6,ROLL, |
| 0102-001513 | COPPER TUBE;C1220T,O,4.76,0.6,ROLL, |
| 0102-001530 | COPPER TUBE;C1220T,O,7,0.41,ROLL |
| 0102-001533 | COPPER TUBE;C1220T,O,7,0.6,ROLL, |
| 0102-001539 | COPPER TUBE;C1220T,O,9.5,0.7,ROLL, |
| 0102-001542 | COPPER TUBE;C1220T,O,9.52,0.7,ROLL, |
| DB90-07851A | COVER ASSEMBLY DISPLAY |
| DB90-07762C | COVER ASSEMBLY-PANEL |
| DB63-03510A | COVER EVAP |
| DB63-03492A | COVER MOTOR |
| DB63-03494A | COVER PANEL-SUB |
| DB63-03488B | COVER PANEL;F-RAC-04,HIPS,T2.2,DA WHITE, |
| DB63-03503A | COVER PCB |
| DB63-00360B | COVER-FLARE |
| DB63-03547A | COVER-SENSOR;A3050,PA66,T1.2,NATURAL,A20 |
| DB63-03582A | COVER;A3050 F03/F04 DLX,PET+GF30%,W53.5, |
| DB69-01603L | CUSHION PAD |
| DB69-02959A | CUSHION-LEFT;A3050 F-RAC-0304,EPS,W325,L |
| DB69-02958A | CUSHION-RIGHT;A3050 F-RAC-0304,EPS,W325, |
| DB64-02979A | DECO-GRILLE;A3050, F-RAC-04, GOOD1,PMMA, |
| 0402-001741 | DIODE-RECTIFIER;S1M,1000V,1A,SMA,TP |
| 0406-001204 | DIODE-TVS |
| 0406-001005 | DIODE-TVS |
| 0403-000258 | DIODE-ZENER |
| DB64-02991A | DISPLAY WINDOW |
| DB75-00573A | EVAP-MAIN;AR12FSSSBWKXSA,2,8,705,H-FIN,F |
| DB75-00574A | EVAP-SUB;AR12FSSSBWKXSA,2,6,705,H-FIN,FP |
| DB75-00576A | EVAP-UP;AR12FSSSBWKXSA,1,4,705,H-FIN,FP1 |
| DB75-00575C | EVAP-UP;F04-1,H-FIN,FP1.3,F&T,NGS |
| DB96-18999E | EVAPERATER ASSEEMBLY TOTAL UNIT |
| DB67-00856B | FAN A;A3050,SAN+GF30%,ASG30,OD92.4,BLACK |
| DB67-00857B | FAN B;A3050,SAN+GF30%,ASG30,OD92.4,BLACK |
| DB67-00858B | FAN C;A3050,SAN+GF30%,ASG30,OD92.4,BLACK |
| DB60-30010B | FASTENER-NUT FLARE |
| DB60-30010A | FASTENER-NUT FLARE |
| DB63-03730A | FILTER AIR-PRE |
| DB62-11647B | FIN COND;A1100 |
| DB62-11647C | FIN COND;A1100,H,1.3,NGS |
| DB62-02907E | FIN EVAP-B |
| DB62-11642B | FIN EVAP;A1100,L168,D7,H,1.3,NGS, |
| 0204-004665 | FLUX;KSP-70M-S,MIXTURE,NO,FLUX,13% |
| DB01-00129A | FOIL |
| 3601-001765 | FUSE-RADIAL LEAD , 250V,3.15A,TIME-LAG,THE |
| 0205-001271 | GREASE;PL-50,40~150C |
| DB64-02972D | GRILLE INLET |
| DB63-03664A | GUARD-SCREEN;A3050 F-RAC-04,MSWR,T1.2,BL |
| DB61-05872A | GUIDE BLADE |
| DB61-05958A | HANGER-LINK |
| DB61-05898A | HANGER-MAIN;A3050 COMMON,GI-SGCC,T0.6 |
| 3711-005098 | HEADER-BOARD TO CABLE |
| 3711-004379 | HEADER-BOARD TO CABLE |
| 3711-004236 | HEADER-BOARD TO CABLE |
| 3711-004122 | HEADER-BOARD TO CABLE |
| 3711-004067 | HEADER-BOARD TO CABLE |
| 3711-003942 | HEADER-BOARD TO CABLE |
| 3711-003845 | HEADER-BOARD TO CABLE |
| 3711-002001 | HEADER-BOARD TO CABLE |
| 3711-000999 | HEADER-BOARD TO CABLE |
| 3711-000941 | HEADER-BOARD TO CABLE |
| 3711-000296 | HEADER-BOARD TO CABLE |
| 3711-000203 | HEADER-BOARD TO CABLE |
| 3711-000024 | HEADER-BOARD TO CABLE |
| 3711-005096 | HEADER-BOARD TO CABLE;BK,STRAIGHT,1R,5P, |
| 3711-005097 | HEADER-BOARD TO CABLE;BOX,5P,1R,2MM,STRA |
| DB61-05849A | HOLDER |
| DB61-05829A | HOLDER EVAP |
| DB61-06078A | HOLDER EVAP-SUB;A3050-PJT,PVC,BLACK,LF-G |
| DB61-06122A | HOLDER LED;A3050,ABS,T2,BLACK,HB,HF700,2 |
| DB61-03132A | HOLDER-BLADE OUT |
| DB61-05853A | HOLDER-PIPE |
| DB61-40055B | HOLDER-SENSOR |
| DB61-01717A | HOLDER-SENSOR |
| DB61-00854A | HOLDER-SENSOR;AVMCH052B10,C1220T-O,T0.55 |
| DB61-05871A | HOLDER-WIRE;A3050,ABS,T2.5,W16,L40.8,BLA |
| DB67-00944A | HOSE DRAIN;VIVALDI,PP,BLACK,HG-0760S,S |
| 1006-001325 | IC-BUS TRANSCEIVER |
| 0801-000393 | IC-CMOS LOGIC |
| 1003-002078 | IC-LED DRIVER |
| 0903-001864 | IC-MICROCONTROLLER;HART-M310,QFP,100P,20 |
| 1203-007526 | IC-POSI.FIXED REG.;7815,D-PAK/TO252,3P,6 |
| 1203-006245 | IC-VOL. DETECTOR |
| 1202-000104 | IC-VOLTAGE COMP. |
| DB62-05974A | INSULATION-HOSE;VIVALDI,PE FOAM,4,97,525 |
| DB62-03481H | INSULATION-PIPE;PE FOAM,T7,L1000,GRA |
| DB68-02809A | LABEL BAR CODE |
| DB98-32618A | LABEL BAR CODE;-,ALL (WIFI MODEL),ART, |
| DB68-05458A | LABEL BAR CODE;AM9000H,PAPER,W17.5,L18 |
| DB68-04014A | LABEL DIAGRAM;A3050,ART,60,160,STD#4,INV |
| DB98-33293A | LABEL INSTRUCTION;-,ART,15,5,H |
| DB98-33292A | LABEL INSTRUCTION;ART,5,15,H/P,INV |
| DB68-03068C | LABEL PRINT;PET,W55,L170,SILVER,LABEL RA |
| DB68-04028C | LABEL RATING;SWL-CQ51,EU,PET,52,28,A3050 |
| DB68-02813A | LABEL WARNING |
| DB68-01350A | LABEL-BAR CODE |
| DB07-00188A | LED DISPLAY;7S,2D,29MM*23MM*13.5MM,WHT,P |
| 0601-003285 | LED;ROUND,WHT,WHT CLEAR,D3.1,3.9X5.4MM,1 |
| DB66-01726A | LINK BLADE-A;A3050, F-RAC-04,POM,BLACK |
| DB66-01730A | LINK BLADE-B |
| DB92-02873F | MAIN PCB ASSEMBLY |
| DB68-03934A | MANUAL INSTALL;AR*FSSS*SA,SA,EN,MOJO,W25 |
| DB68-06226A | MANUAL USERS & INSTALL;AR09KSWSPWKNCV,CV |
| DB68-06227A | MANUAL USERS;AR09KSWSPWKNCV,CV,NEWS PAPE |
| 0609-001377 | MODULE REMOCON;VERTICAL,5.85MM,BK |
| DB31-00636B | MOTOR BLDC FAN |
| DB31-00369D | MOTOR STEP |
| DB67-00276A | NIPPLE |
| DB67-00276B | NIPPLE;C3604,5/8-18UNF |
| DB69-02966G | PACKING CASE;A3050_F-RAC-04,CB,DW2,L327, |
| DB69-02969G | PAD CUSHION;F-RAC-04,SIDE,EPS,200,300, |
| DB64-02980A | PANEL FRONT;A3050 F-RAC-04,ABS,HRABS-RS, |
| DB92-02877A | PCB ASSEMBLY DISPLAY |
|
|

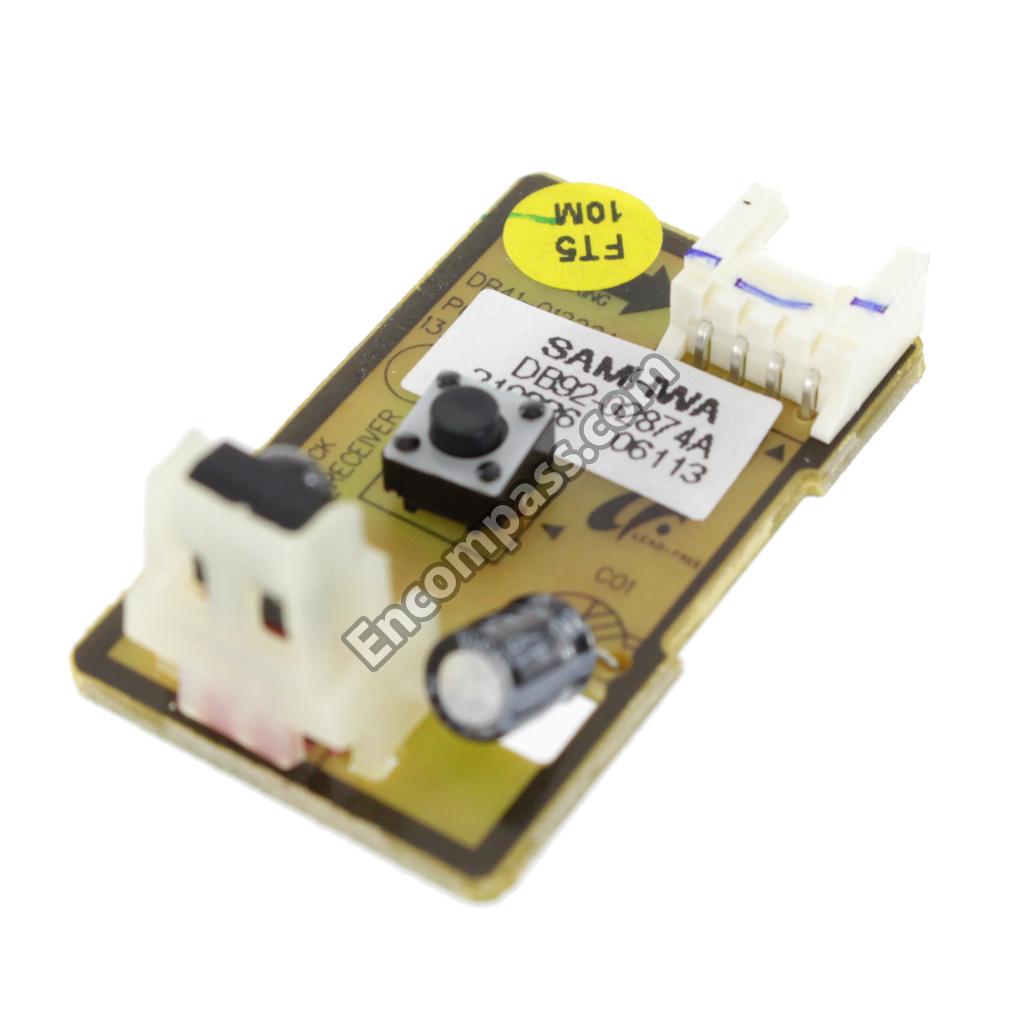

PCB ASSEMBLY SUB |
| DB41-01225A | PCB DISPLAY;FR-4,2L,T1.6,64*36,12,BETTER |
| DB41-01221A | PCB MAIN;FR-4,2LAYER,98.5*120,STD#4,INDO |
| DB41-01222A | PCB SUB;FR-1,1L,T1.6,24*40,24,RECEIVER,1 |
| 0604-001002 | PHOTO-COUPLER |
| DB61-06079A | PLATE CONTROL MIDDLE |
| DB61-05959A | PLATE CONTROL RIGHT |
| DB61-05812A | PLATE CONTROL SUB |
| DB61-05965A | PLATE CONTROL UP |
| DB61-05957A | PLATE CONTROL-LEFT;A3050,F-RAC-03,GI-SGC |
| DB61-06160A | PLATE CONTROL-SUB;A3050 KCV,GI-SGCC,T1 |
| DB61-05811A | PLATE EVAP-LOW;A3050,GI-SGCC,T0.8,L123.7 |
| DB61-05873A | PLATE EVAP-MIDDLE;A3050 F-RAC-04,GI-SGCC |
| DB61-05813A | PLATE EVAP-SUB;A3050,GI-SGCC,T0.8,L112.5 |
| DB61-05810A | PLATE EVAP-UP;A3050,GI-SGCC,T0.8,L168 |
| 2007-009922 | R-CHIP |
| 2007-001433 | R-CHIP |
| 2007-000979 | R-CHIP |
| 2007-000939 | R-CHIP |
| 2007-000924 | R-CHIP |
| 2007-000583 | R-CHIP |
| 2007-000475 | R-CHIP |
| 2007-000455 | R-CHIP |
| 2007-000385 | R-CHIP |
| 2007-000303 | R-CHIP |
|
|
R-CHIP |
| 2007-000130 | R-CHIP |
| 2007-000116 | R-CHIP |
| 2007-000090 | R-CHIP |
| 2007-000087 | R-CHIP |
| 2007-000084 | R-CHIP |
| 2007-000078 | R-CHIP |
| 2007-000076 | R-CHIP |
| 2007-000029 | R-CHIP |
| 0103-002637 | RESIN PA66;NY66/NATURAL,NATURAL,NC0001,N |
| 2802-001211 | RESONATOR-CERAMIC |
| DB67-01428A | RUBBER PLUG;A3050,SIR,505,WHITE |
| DB73-00181A | RUBBER-BEARING |
| DB73-00180B | RUBBER-CAP DRAIN |
|
|
SCREW-SPECIAL |
| 6002-001208 | SCREW-TAPPING |
|
|
SCREW-TAPPING |
| 6002-000536 | SCREW-TAPPING |
| 6002-000535 | SCREW-TAPPING |
|
|
SCREW-TAPPING |
| 6002-000231 | SCREW-TAPPING |
| DB62-11721A | SEAL BASE;PE FOAM,T2,45,46 |
| DB62-11708A | SEAL BODY-RIGHT;PE FOAM,T3,W65,90,NONFLA |
| DB62-11655A | SEAL CONTROL-LEFT;PVC,T1,W52,L91,NONFLAM |
| DB62-11674A | SEAL CONTROL-RIGHT;PVC,T1,W126,185,NONFL |
| DB62-11875A | SEAL CUSHION-BODY;EPS,T10,W110,752.6,P |
| DB62-11640G | SEAL CUTT |
| DB62-11639A | SEAL CUTT;EPDM,T3,5,NONFLAMMABLE |
| DB62-11640F | SEAL CUTT;FLOCKED,T0.5,W15 |
| DB62-11640J | SEAL CUTT;FLOCKED,T0.5,W18 |
| DB62-11640H | SEAL CUTT;FLOCKED,T0.5,W5 |
| DB62-11668C | SEAL CUTT;FOAM PE+FOAM PU,SSEC:T3+T5,TSE |
| DB62-11637N | SEAL CUTT;PE FOAM,T10,25,NONFLAMMABLE |
| DB62-11637C | SEAL CUTT;PE FOAM,T3,W10,GRAY |
| DB62-11637F | SEAL CUTT;PE FOAM,T3,W25 |
| DB62-11637T | SEAL CUTT;PE FOAM,T5,W10,L153 |
| DB62-11637S | SEAL CUTT;PE FOAM,T5,W50,DARK GRAY, |
| DB62-11641L | SEAL CUTT;PU FOAM,T3,L17,BLACK, |
| DB62-11641X | SEAL CUTT;PU FOAM,T3,W35 |
| DB62-11641Q | SEAL CUTT;PU FOAM,T3,W7 |
| DB62-11656D | SEAL CUTT;PVC,T1,W70 |
| DB62-11679A | SEAL DRAIN-OUT;FLOCKED,T0.5,W25,29,NONFL |
| DB62-11779A | SEAL-CASE PCB;PE FOAM,T3,W40 |
| DB62-00707A | SEAL-DISPALY COVER A;-,FOAM-LEX+AL,FOA |
| DB62-11626A | SEAL-DISPALY COVER B;LEX FOAM,T3,W35,HB |
| DB62-11627A | SEAL-DISPALY COVER C;LEX FOAM,T3,HB |
| DB62-11661A | SEAL-DISPALY COVER;PE FOAM,T3,W63,L55 |
| DB62-11586A | SEAL-PANEL FRONT B;PE FOAM,T3,92,132.4,N |
| DB62-11648A | SEAL-TRAY LEFT D;FLOCKED,T0.5,W51.8,NONF |
| DB62-11643A | SEAL-TRAY LF;PE FOAM,T3,W40,90,NONFLAMMA |
| DB62-11645A | SEAL-TRAY RH B;PE FOAM,T3,W13,125,NONFLA |
| DB62-11588A | SEAL-TRAY RH C;PE FOAM,T3,91.5,110,NONFL |
| DB62-11592A | SEAL-TRAY TOP A;PE FOAM,T3,24,790,NONFLA |
| DB63-03553D | SHEET-CONTROL;AR12FSSSBWKNSA,AL,T0.07,22 |
| DB63-03553G | SHEET-CONTROL;AR12FSSSBWKXSA,AL,T0.07 |
| DB63-03553F | SHEET-CONTROL;AR12FSSSBWKXSA,AL,T0.07 |
| 0202-001933 | SOLDER-CREAM;LFM-48W TM-HP,D20~38UM,96.5 |
| 0202-001022 | SOLDER-SILVER |
| 0202-001464 | SOLDER-SILVER;L450,91CU/1.9AG/6.95P |
| 0202-001463 | SOLDER-WIRE |
| 0202-001608 | SOLDER-WIRE FLUX |
| DB61-03845A | SPRING ETC-EVAP;RAC,STS-304,9.8,300,100, |
| DB67-60030A | SPRING-SENSOR |
| 0101-002929 | STEEL PLATE;GI,SGCC,0.6,Z12,NC |
| 0101-002932 | STEEL PLATE;GI,SGCC,0.8MM,647MM,Z12,NC |
| 0101-003236 | STEEL PLATE;STAINLESS,STS304,1MM,1000MM, |
| DB70-01013A | STEEL-EVAP UPPER;JUNGFRAU,GI-SGCC,T0.8,W |
| DB61-05963A | SUPPORT-CONTROL |
| 3404-001220 | SWITCH-TACT |
| DB02-00029B | TAPE ETC;RAC,OPP,0.05MM,80MM,500M,TRANSP |
| 0203-001512 | TAPE-DOUBLE FACE;3M-A-25-9448,T0.64,W15, |
| DA02-10017J | TAPE-FILAMENT |
| DB65-00326D | TERMINAL BLOCK |
| 1404-001194 | THERMISTOR-PTC |
| 0506-000175 | TR-ARRAY |
| 0504-001080 | TR-DIGITAL |
| 0502-000245 | TR-POWER |
| 0501-000465 | TR-SMALL SIGNAL |
| 0501-000362 | TR-SMALL SIGNAL |
| DB63-03487A | TRAY DRAIN;F-RAC-04,HIPS,T2,BLACK |
| DB62-02348Q | TUBE HAIR PIN;A3050 PJT,C1220T-0,T0.25,O |
| DB62-11576A | TUBE JUMP;AR09FCFSAWKNAF,C1220T-O,T0.6,O |
| DB62-06999A | TUBE-CU;C1220T-O,T0.25,OD7,L,ID6.3,TW0.2 |
| DB62-31003C | TUBE-FLARE |
| DB62-30369A | TUBE-U BEND |
| DB62-30368A | TUBE-U BEND;COMMON USE,C1220T-O,T0.41,OD |
| 1405-001239 | VARISTOR;680V,560VDC,6000A,17X10MM,TP,11 |
| 4709-002437 | W-LAN MODULE;SWL-CQ51/RAC,QCA4531,IEEE80 |
