Manufacturer
Samsung
Model Number
AR12TSFYBWKNCV
Description
Air Conditioner
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 0201-001982 | ADHESIVE-SIL;TSE3854DS-W,WHITE,2.2,MIL-A |
| DB94-07968B | ASSEMBLY BACK BODY;AR9500T,QMD RAC |
| DB94-40007B | ASSEMBLY BEARING |
| DB93-17055B | ASSEMBLY CONNECTOR WIRE-COMM;2,100 |
| DB93-17178A | ASSEMBLY CONNECTOR WIRE-DC SIGNAL; |
| DB93-17171A | ASSEMBLY CONNECTOR WIRE-DC SIGNAL; |
| DB93-14245D | ASSEMBLY CONNECTOR WIRE-EARTH;1,10 |
| DB93-17169A | ASSEMBLY CONNECTOR WIRE-POWER;3,10 |
| DB90-11928L | ASSEMBLY COVER-PANEL |
| DB93-17180B | ASSEMBLY DISPLAY;AR9500T,NO HOLE, |
| DB94-02195B | ASSEMBLY DRAIN-HOSE |
| DB96-24831E | ASSEMBLY EVAP-TOTAL;S1-5,L591, 1BY |
| DB94-02933B | ASSEMBLY FAN CROSS;QMD RAC1,PI106. |
| DB90-11453A | ASSEMBLY HANGER;AR9500T,QMD RAC 1, |
| DB90-11563B | ASSEMBLY HOLDER-PIPE |
| DB92-04821B | ASSEMBLY PANEL FRONT;GEO,DIT+BIXBY |
| DB92-04833B | ASSEMBLY PCB DISPLAY;DISPLAY_DLX,Q |
| DB92-04839A | ASSEMBLY PCB MAIN;MAIN,QMD RAC AR9 |
|
|
ASSEMBLY RUBBER BEARING |
| DB94-08007B | ASSEMBLY TRAY DRAIN;DA WHITE,Y,QMD |
| DB96-10256A | ASSEMBLY TUBE U BEND |
| DB93-50001A | ASSEMBLY WIRE RING SOLD |
|
|

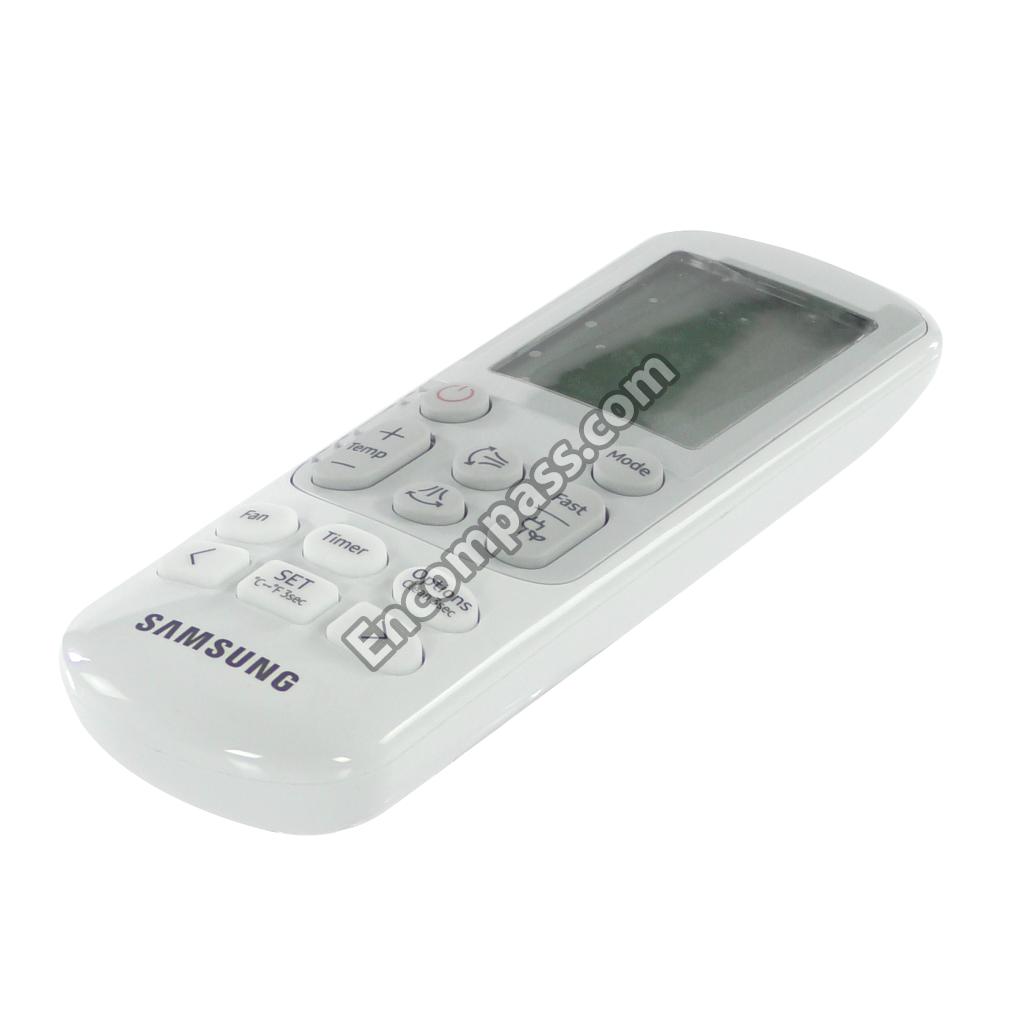

ASSEMBLY WIRELESS REMOCON;ARH-5207 |
| DB90-11880B | ASSY CABI IN-MODULE;QMD1,CV |
| DB93-00022X | ASSY CONTROL IN PARTS;FJM,485_3 |
| DB96-24830A | ASSY EVAP-MAIN;S1-5,2R 10S, L591 |
| DB96-24833B | ASSY EVAP-SUB;S1-5,2R 6S, L591 |
| DB94-02934A | ASSY FAN A;JUNGFRAU,SSEC |
| DB94-02935A | ASSY FAN C;JUNGFRAU,SSEC |
| DB94-08499A | ASSY FAN IN-MODULE;QMD1,GENERAL |
| DB90-11662N | ASSY FRAME IN HX PARTS;QMD RAC CV,Q1 , S |
| DB90-11665G | ASSY FRAME IN-HX UNITS;QMD RAC CV,Q1 , S |
| DB98-38444A | ASSY MANUAL;AR**TSFYBWK/CV,GEO WIND |
| DB91-02178A | ASSY MICOM;20K_AR9500T,STM-192F-OS,TMPM3 |
| DB98-00011N | ASSY PACKING IN PARTS;QMD1-GLOBAL |
| DB92-04971A | ASSY PANEL FRONT PARTS;Q1,GEO,88/WIFI,#5 |
| DB92-05066Q | ASSY PANEL-MODULE;PANEL MD #15 : Q1, GEO |
| DB92-04845D | ASSY PBA KIT-IN MODULE;INDOOR,QMD RAC AR |
| DB94-08038A | ASSY PCB AUTO;MAIN,QMD RAC AR9500T,142X1 |
| DB94-08137A | ASSY PCB SMD;DISPLAY_DLX,QMD RAC AR9500T |
| DB94-08039A | ASSY PCB SMD;MAIN,QMD RAC AR9500T,142X12 |
| DB97-00077S | ASSY PRINT IN PARTS;AR12TSFYBWKNCV,DB98- |
| DB96-24835A | ASSY TUBE EVAP-IN;S1-5, EU,1/4", PINCH |
| DB96-24870A | ASSY TUBE EVAP-JUMP;QMD RAC,OD7.0, T0.45 |
| DB96-24832A | ASSY TUBE EVAP-JUMP;QMD RAC,OD7.0, T0.45 |
| DB96-24836A | ASSY TUBE EVAP-OUT;S1-5, EU,3/8", CAP |
| DB96-12237G | ASSY-U BEND;RC024FQREA |
| 6902-001556 | BAG PE;HDPE,T0.015,W1400,L500,GRY,RECYCL |
| 6902-002371 | BAG PE;HDPE,T0.015,W200,L300,TRP,RECYCLE |
| 6902-003985 | BAG ROLL;HDPE,T0.015,W400,L1000,TRP,HOLE |
| 6902-002410 | BAG ROLL;HDPE,T0.015,W700,L1000,TRP,RECY |
| 6902-002196 | BAG ROLL;LDPE,T0.03,W140,L1500,TRP,RECYC |
| 6922-000009 | BAND PP |
| 4301-000121 | BATTERY-MN |
| 3301-002113 | BEAD-SMD;470 OHM/100MHZ 470 OHM/100MHZ,2 |
| DB66-02041A | BLADE H;AR9500,HIPS,T3.3,QMD RAC1_ WIND |
| DB66-02037A | BLADE V;AR9500,PP,T1.6,QMD RAC_WIND(MANU |
| DB61-07422A | BODY BACK;HIPS,T2.2,BLACK,QMD RAC 1 |
| 6009-001433 | BOLT-HEX |
| DB64-03071A | BUTTON-DISPLAY;STANDARD,RUBBER,LIGHT GRA |
| 3002-001129 | BUZZER-PIEZO |
| 2401-003607 | C-AL |
| 2401-003139 | C-AL |
| 2401-001838 | C-AL |
| 2401-001573 | C-AL |
| 2401-000481 | C-AL |
| 2401-000480 | C-AL |
| 2402-001268 | C-AL, SMD |
| 2401-004393 | C-AL;100UF,20%,500V,BK,25.4X30MM,10MM |
| 2203-008315 | C-CER, CHIP |
| 2203-007544 | C-CER, CHIP |
| 2203-007486 | C-CER, CHIP |
| 2203-007456 | C-CER, CHIP |
| 2203-006158 | C-CER, CHIP |
| 2203-005968 | C-CER, CHIP |
| 2203-005135 | C-CER, CHIP |
| 2203-002285 | C-CER, CHIP |
| 2203-001414 | C-CER, CHIP |
| 2201-002688 | C-CERAMIC,DISC;2.2NF,20%,400VAC,Y5U,TP,1 |
| 2201-002709 | C-CERAMIC,DISC;33PF,5%,1000V,SL,TP,6.3X5 |
| 2202-002252 | C-CERAMIC,MLC-RADIAL;1NF,10%,1000V,R,TP, |
| 2301-002032 | C-FILM, LEAD-PPF |
| DB65-10088C | CABLE TIE |
| 6501-000108 | CABLE TIE |
| 6501-001075 | CABLE TIE;TIC-140W-4.8,T1.2,W3.4,L157,NT |
| 6801-002246 | CARD-WARRANTY;USA,EN,MOJO,W216,L280,8P,C |
| DB61-07432A | CASE CONTROL-IN;AR9500T,ABS,L260,BLACK |
| DB61-06085A | CASE-BOTTOM;STANDARD,ABS,T1.8,L137.98,DA |
| DB61-06086A | CASE-FRONT;STANDARD,ABS,T1.4,L91.46,PM G |
| DB61-07412A | CASE-LED;AR9500T, QMD RAC,HIPS,T1.8,L69, |
| DB61-06083A | CASE-TOP;STANDARD,ABS,T2,L138,DA WHITE,H |
| DB61-03987A | CLIP-DRAIN HOSE;GI-SGCC,T1.2 |
| 0204-009273 | COATING AGENT;DS8802FL,50~60%,300CPS,TRA |
| DB27-00063A | COIL CHOKE;16MH,2.3A,13.0X10.0MM,MN-ZN,4 |
| DB27-00102A | COIL CHOKE;1MH,2.5A,8.4X3.4MM,MN-ZN,4P,D |
|
|
CONNECTOR-HEADER |
| 3711-000260 | CONNECTOR-HEADER |
| 0102-001525 | COPPER TUBE |
| 0102-001526 | COPPER TUBE , C1220T,O,6.35,0.6,ROLL, |
| 0102-001547 | COPPER TUBE;C1220T,O,15.88,0.7,ROLL, |
| 0102-001515 | COPPER TUBE;C1220T,O,6.35,0.7,ROLL, |
| 0102-001565 | COPPER TUBE;C1220T,O,7,0.41,ROLL, |
| 0102-001533 | COPPER TUBE;C1220T,O,7,0.6,ROLL, |
| 0102-001534 | COPPER TUBE;C1220T,O,7,0.7,ROLL, |
| 0102-001538 | COPPER TUBE;C1220T,O,7.94,0.7,ROLL, |
| 0102-001602 | COPPER TUBE;C1220T,O,8.0,0.55,ROLL |
| 0102-002344 | COPPER TUBE;C1220T,O,D7,T0.45,ROLL |
| DB63-03556A | COVER BATTERY |
| DB63-04256A | COVER CASE;QMD RAC,MABS,NATURAL,TX-0510 |
| DB63-04255C | COVER DISPLAY;AR9500T,PET,T0.27,W32.7,L8 |
| DB63-04230A | COVER EVAP;AR9500T,PP,T1.8,BLACK,RM60,QM |
| DB63-04215B | COVER MOTOR |
| DB63-04223A | COVER PANEL |
| DB63-00360B | COVER-FLARE |
| DB69-03362A | CUSHION LEFT;QMD NEXT,EPS,W365,L160,H277 |
| DB69-03363A | CUSHION RIGHT;QMD NEXT,EPS,W365,L200,H27 |
| 0402-000324 | DIODE-BRIDGE |
|
|
DIODE-RECTIFIER |
| 0402-001669 | DIODE-RECTIFIER |
| 0402-001192 | DIODE-RECTIFIER |
| 0404-001250 | DIODE-SCHOTTKY |
| 0401-001099 | DIODE-SWITCHING |
| 0406-001239 | DIODE-TVS |
| 0406-001230 | DIODE-TVS |
| 0406-001204 | DIODE-TVS |
| 0406-001005 | DIODE-TVS |
| 0403-000461 | DIODE-ZENER |
| DB67-01110A | FAN B;JUNGFRAU,SAN+GF30%,ASG30,OD106.5 |
| DB60-30010B | FASTENER-NUT FLARE |
| DB60-30010A | FASTENER-NUT FLARE |
| DB63-04207B | FILTER AIR PRE MODULE |
| DB62-03750B | FIN EVAP-A |
| DB62-02907L | FIN EVAP-B;AS10FAXST,A1100-H26,T0.092,W2 |
| 3601-001336 | FUSE-AXIAL LEAD;250V,3.15A,TIME-LAG,CERA |
| DB64-03457A | GRILLE INLET;AR9500T, QMD RAC1, WIND, GE |
| DB63-04248A | GUARD-SCREEN;AR9500T,MSWR,T1,BLACK,QMD1, |
| 3711-005098 | HEADER-BOARD TO CABLE |
| 3711-004484 | HEADER-BOARD TO CABLE |
| 3711-004122 | HEADER-BOARD TO CABLE |
| 3711-002001 | HEADER-BOARD TO CABLE |
| 3711-000880 | HEADER-BOARD TO CABLE |
| 3711-000296 | HEADER-BOARD TO CABLE |
| 3711-005096 | HEADER-BOARD TO CABLE;BK,STRAIGHT,1R,5P, |
| 3711-008640 | HEADER-BOARD TO CABLE;BOX,15P,1R,2.0MM,S |
| 3711-009520 | HEADER-BOARD TO CABLE;BOX,28P,2R,2.0MM,S |
| 3711-005097 | HEADER-BOARD TO CABLE;BOX,5P,1R,2MM,STRA |
| DB61-07418A | HINGE BLADE-A;AR9500,POM,T0.7,W10.1,F20- |
| DB61-07419A | HINGE BLADE-B;AR9500,POM,T0.7,W16.1,F20- |
| DB61-07451A | HOLDER BLADE;QMD RAC,POM,T2.5,NATURAL,F2 |
| DB61-07414B | HOLDER EVAP;AR9500,PP+TD30%,T2.2,BLACK, |
| DB61-07413B | HOLDER-PIPE |
| DB61-06087B | HOLDER-REMOCON |
|
|
HOLDER-SENSOR |
| DB61-00854A | HOLDER-SENSOR;AVMCH052B10,C1220T-O,T0.55 |
| DB61-05871A | HOLDER-WIRE;A3050,ABS,T2.5,W16,L40.8,BLA |
| DB67-00969A | HOSE DRAIN;VIVALDI,PP,L550,GRAY, |
| 1006-001325 | IC-BUS TRANSCEIVER |
| 0801-000393 | IC-CMOS LOGIC |
| 1003-002963 | IC-LED DRIVER;ADT8700A,LQFP,32P,7X7MM,50 |
| 0903-002261 | IC-MICROCONTROLLER;TMPM3HPFDFG,LQFP,128P |
| 1203-006759 | IC-POSI.ADJUST REG. |
| 1203-002722 | IC-POSI.FIXED REG. |
| 1203-009020 | IC-PWM CONTROLLER , TOP253P,DIP,7P,6.35X9. |
| 1203-006245 | IC-VOL. DETECTOR |
| 1202-000104 | IC-VOLTAGE COMP. |
| DB62-06453A | INSULATION-HOSE;PE FOAM,T3,W27,L495,WH |
| DB62-02291F | INSULATION-PIPE;PE FOAM,T7,L860,GRAY |
| DB68-08890A | LABEL AS LIST;AMERICA,CV,ART,ART+L/C,W10 |
| DB68-03058A | LABEL BAR CODE;ALL,ALL,PP,W55,L23,FOR PR |
| DB68-01350B | LABEL BAR CODE;CV,ART,W164,L50,4 SHEET,D |
| DB68-08680A | LABEL DIAGRAM;DLX(PF1-RAC),PRM(PF2-RAC), |
| DB68-08862A | LABEL INSTRUCTION;20Y FAC,SAMSUNG,YUPO,W |
| DB68-03070D | LABEL PACKING;THERMAL PAPER,52,65 |
| DB68-03070C | LABEL PACKING;THERMAL PAPER,98,65 |
| DB68-03068H | LABEL RATING;AMERICA,CV,PET,W55,L185,PET |
| DB68-02813B | LABEL WARNING;QMD,ART,W100,L60 |
| 0601-001986 | LED |
| DB68-08807A | MANUAL INSTALL;AR**TSFA**/AR**TSFY**,CV, |
| DB68-08648A | MANUAL USERS;AR**TSFYBWK/CV,CV,EN+ES+FR, |
| 0609-001484 | MODULE REMOCON;HORIZONTAL-SMD(TOP),6.0MM |
| DB31-00694A | MOTOR BLDC FAN;FMH2031SSA,1230RPM,310V,0 |
| DB31-00370B | MOTOR STEP |
| DB67-00276A | NIPPLE |
| DB67-00276B | NIPPLE;C3604,5/8-18UNF |
| DB69-03368E | PACKING CASE;QMD1-GLOBAL,CB,DW2,L366,W86 |
| DB69-03420A | PACKING SHEET;RAC,LDPE,T0.03,W100,L20000 |
| DB64-03463A | PANEL FRONT;AR9500T, QMD RAC1, WIND,HIPS |
| DB41-01436A | PCB DISPLAY;FR-4,2L,T1.6,84.5X50MM,8,QMD |
| DB41-01442A | PCB MAIN;FR-4,2L,T1.6,142X121MM,4,PF1-RA |
| 0604-001405 | PHOTO-COUPLER;TR,200-400%,200MW,SOP,TP |
| DB61-07430A | PLATE CONTROL RIGHT |
| DB61-07431A | PLATE CONTROL-LEFT;AR9500T,GI-SGCC,T0.3 |
| DB61-07428A | PLATE CONTROL-LOW;AR9500T,GI-SGCC,T0.6 |
| DB61-06160A | PLATE CONTROL-SUB;A3050 KCV,GI-SGCC,T1 |
| DB61-07427A | PLATE CONTROL-SUB;AR9500T,GI-SGCC,T0.3 |
| DB61-07429A | PLATE CONTROL-UP;AR9500T,GI-SGCC,T0.3 |
| DB61-07425A | PLATE EVAP-MAIN;AR9500T,GI-SGCC,T0.8,QMD |
| DB61-07424A | PLATE EVAP-MIDDLE;AR9500T,GI-SGCC,T0.6,Q |
| DB70-00583B | PLATE EVAP-SUB;QMD,GI-SGCC,T0.6, |
| DB61-07405A | PLATE-MAIN;AR9500,GI-SGCC,T0.6,QMD RAC |
| DB61-07407A | PLATE-SUB;AR9500,GI-SGCC,T0.6,QMD RAC1/2 |
| 2007-009922 | R-CHIP |
| 2007-008593 | R-CHIP |
| 2007-008175 | R-CHIP |
| 2007-008167 | R-CHIP |
| 2007-007942 | R-CHIP |
| 2007-007630 | R-CHIP |
| 2007-007587 | R-CHIP |
| 2007-001672 | R-CHIP |
| 2007-001297 | R-CHIP |
| 2007-001121 | R-CHIP |
| 2007-000924 | R-CHIP |
| 2007-000670 | R-CHIP |
| 2007-000476 | R-CHIP |
| 2007-000385 | R-CHIP |
| 2007-000029 | R-CHIP |
| 2007-007385 | R-CHIP;1.2MOHM,1%,1/4W,TP,3216,T0.6 |
| 2007-009149 | R-CHIP;6.8OHM,1%,1/16W,TP,1005 |
| 2003-002212 | R-METAL OXIDE(S) |
| 2802-001211 | RESONATOR-CERAMIC |
| DB73-00181A | RUBBER-BEARING |
| DB73-00180A | RUBBER-CAP DRAIN |
|
|
SCREW-TAPPING |
| 6002-000536 | SCREW-TAPPING |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPPING |
| 6002-001163 | SCREW-TAPPING;SWRCH18A,ZPC(WHT),L25,M3,P |
|
|
SCREW-TAPTYPE |
| DB62-13064A | SEAL BODY-RIGHT;PE FOAM,T3 |
| DB62-13026A | SEAL COVER-IN;PU FOAM,T3,W50 |
| DB62-12986A | SEAL CUSHION-BODY;EPS,T10,L658.8,S-350 |
| DB62-12990A | SEAL CUSHION-DRAIN;EPS,T7,W50,L613.2,S |
| DB62-11640H | SEAL CUTT;FLOCKED,T0.5,W5 |
| DB62-11637F | SEAL CUTT;PE FOAM,T3,W25 |
| DB62-11637K | SEAL CUTT;PE FOAM,T5,W30 |
| DB62-13027A | SEAL CUTT;POLYESTER,T0.5,W28,L93,BLA |
| DB62-11641Q | SEAL CUTT;PU FOAM,T3,W7 |
| DB62-13037A | SEAL DRAIN-FRONT;POLYESTER,T0.5,L613, |
| DB62-12993A | SEAL DRAIN-LEFT;PE FOAM/PU FOAM,T6 |
| DB62-13021A | SEAL DRAIN-RIGHT;PE FOAM,T3 |
| DB62-12995A | SEAL DRAIN-RIGHT;PE FOAM/PU FOAM,T6 |
| DB62-12994A | SEAL DRAIN-SIDE LEFT;PE FOAM/PU FOAM,T6, |
| DB32-00277A | SENSOR TEMP;103HW,L400,10KOHM |
| 0202-001976 | SOLDER-CREAM;LST-309M-K21 (PWM-118),D20~ |
| 0202-001463 | SOLDER-WIRE |
| 0202-001608 | SOLDER-WIRE FLUX |
| 0204-005794 | SOLVENT;S-1000,(CH3)2CHOH,100%,0.79 |
| DB67-60030A | SPRING-SENSOR |
| 3404-001222 | SWITCH-TACT |
| DB62-03356A | TAPE DOUBLE FACE;WW1-PJT,ACRYL FOAM,T0.1 |
| DB02-00003A | TAPE ETC;ALL MODEL,PET,T0.1,W7,L40,METAL |
| DA02-10005A | TAPE-MASKING |
| 0203-001109 | TAPE-OPP MASKING |
| 0203-007342 | TAPE-SINGLE FACE;OPP,T0.08,W20,L200M,BLU |
| DB37-00033B | TERMINAL BLOCK;4P,MELAMINE,300V,25A,47X3 |
| 1404-001413 | THERMISTOR-NTC |
| 1404-001194 | THERMISTOR-PTC |
| 0506-000175 | TR-ARRAY |
| 0502-001266 | TR-POWER |
| 0501-000467 | TR-SMALL SIGNAL |
| 0501-000465 | TR-SMALL SIGNAL |
| DC26-00053A | TRANS SWITCHING;AC85-265V,500MA,400MA,40 |
| DB63-04214A | TRAY DRAIN-STABILIZER;AR9500,HIPS,T2.5,L |
| DB63-04219A | TRAY DRAIN;AR9500,HIPS,T2.2,L724,BLACK,Q |
| DB62-13020A | TUBE EVAP-JUMP;QMD RAC,C1220T-O,T0.45,OD |
| DB62-13011A | TUBE EVAP-JUMP;QMD RAC,C1220T-O,T0.45,OD |
| DB62-13010A | TUBE HAIR PIN;S1-5,C1220T-O,T0.25,OD7,L5 |
| DB62-13013A | TUBE JOINT;QMD RAC,C1220T-O,T0.5,OD7,L,I |
| DB62-02351A | TUBE JUMP |
| DB62-03730A | TUBE JUMP-L |
| DB62-10375A | TUBE-FLARE;FO3,C1220T-O,T0.7,OD6.35,L70, |
| DB62-06119A | TUBE-SL;C1220T-O,OD7,L,TW0.23,HF0.12,SL |
| DB62-30368A | TUBE-U BEND;COMMON USE,C1220T-O,T0.41,OD |
| 1405-000160 | VARISTOR |
| 4709-002815 | W LAN MODULE |
| DB64-03469A | WINDOW DISPLAY;AR9500T, QMD RAC,MABS,TR5 |
| DB64-03476A | WINDOW DISPLAY;AR9500T, QMD RAC,PET,T0.2 |
| DB64-03062A | WINDOW DISPLAY;STANDARD,PMMA,T2.3,FT6120 |
| DB69-03424A | WRAP VINYL;RAC,LDPE,T0.04,W220,L200000,S |
| DB69-03422A | WRAP VINYL;RAC,LDPE,T0.04,W320,L200000,S |
| DB69-03423A | WRAP VINYL;RAC,LDPE,T0.04,W90,L200000,SE |
