Manufacturer
Samsung
Model Number
AR18CSDABWKXCV
Description
Air Conditioner
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| DB97-02066C | ACCESSORY ASSEMBLY |
| DB67-00839A | ACCUMULATOR;UH140GZM1C,ASSY,73,76,1.5,10 |
| DB90-10990H | ASSEMBLY BASE OUT;AR18TSFABWKXCV,P |
| DB90-11280A | ASSEMBLY BRACKET MOTOR;AJ068RCJ3EG |
| DB90-11282A | ASSEMBLY CABI FRONT;AJ068RCJ3EG/EU |
| DB90-11279B | ASSEMBLY CABI SIDE-LF;AR18TSFACWKX |
| DB90-11317E | ASSEMBLY CABI SIDE-RH |
| DB90-07183N | ASSEMBLY CABI TOP;P520,PMA |
| DB96-24633A | ASSEMBLY COND BENDING;P,L892.8MM |
| DB93-16403A | ASSEMBLY CONNECTOR WIRE-AC SIGNAL |
| DB93-16402A | ASSEMBLY CONNECTOR WIRE-COMM |
| DB93-10905B | ASSEMBLY CONNECTOR WIRE-COMP |
| DB93-11274B | ASSEMBLY CONNECTOR WIRE-COMP OUT |
| DB93-12121B | ASSEMBLY CONNECTOR WIRE-EARTH WIRE |
| DB93-17207A | ASSEMBLY CONNECTOR WIRE-POWER;2,10 |
| DB93-17175A | ASSEMBLY CONNECTOR WIRE-REACTOR;2, |
| DB90-07179K | ASSEMBLY COVER CONTROL;AR18TSFACWK |
| DB94-04381A | ASSEMBLY FAN PROPELLER |
| DB94-02525A | ASSEMBLY FAN-BOSS |
| DB98-28433A | ASSEMBLY LABEL BARCODE |
| DB94-07644A | ASSEMBLY PARTITION;AJ068RCJ3EG/EU, |
| DB92-04838Q | ASSEMBLY PCB INVERTER |
| DB90-03276A | ASSEMBLY PLATE COND |
| DB91-00933A | ASSEMBLY SCREW MACHINE |
| DB96-06998G | ASSEMBLY SOLENOID COIL |
| DB95-05164B | ASSEMBLY THERMISTOR OUT |
| DB96-24917A | ASSEMBLY TUBE 4WAY;P520,20-RIH-13, |
| DB96-24631A | ASSEMBLY TUBE EEV;AC071RXADKG/EU,A |
| DB96-10256A | ASSEMBLY TUBE U BEND |
| DB93-50001A | ASSEMBLY WIRE RING SOLD |
| DB82-07515A | ASSEMBLY-EEPROM OUT |
| DB97-04947C | ASSY ACCESSORY OUT PARTS;HP,NO,24K, |
| DB90-12799A | ASSY CABI OUT PARTS;AR18CSDABWKXCV,SSEC |
| DB90-12803A | ASSY CABI OUT-MODULE;AR18CSDABWKXCV,SSEC |
| DB95-05905A | ASSY COMP PARTS;AR24BSFCMWKXCV,SSEC |
| DB96-24964A | ASSY COND PARTS;AR18TSFACWKXCV,ASSY |
| DB96-24634A | ASSY COND SUB;P, CONDENSER,L892.8MM |
| DB96-24635A | ASSY COND;P,L892.8MM |
| DB93-17751A | ASSY CONTROL OUT PARTS;AR18CSDABWKXCV,SS |
| DB97-31624C | ASSY CUSHION BOTTOM;P520,SSEC |
| DB94-08952A | ASSY FAN OUT PARTS;AR24BSFCMWKXCV,SSEC |
| DB94-08953A | ASSY FAN OUT-MODULE;AR24BSFCMWKXCV,SSEC |
| DB94-08954A | ASSY FELT-MODULE;AR24BSFCMWKXCV,SSEC |
| DB94-06513A | ASSY HEAT SINK 1;17 S-INV,OUTDOOR PF3,BL |
| DB91-02299A | ASSY MICOM;20S_PF2 / PF3,STM-1905-OA,HAR |
| DB91-02472A | ASSY MICOM;22_RAC_USA_OUT,STM-221C-OA,HA |
| DB98-38664A | ASSY PACKING OUT PARTS;AR18TSFACWKXCV,AS |
| DB97-10870Q | ASSY PACKING-CASE;ASSY,P,SSEC |
| DB94-09448A | ASSY PATH-MODULE;AR18CSDACWKXCV,SSEC |
| DB92-05192A | ASSY PBA KIT-OUT MODULE;OUTDOOR,QMD RAC |
| DB94-09329A | ASSY PCB AUTO;INVERTER,QMD RAC AR9500T,1 |
| DB94-09330A | ASSY PCB SMD;INVERTER,QMD RAC AR9500T,19 |
| DB97-34459A | ASSY PRINT OUT PARTS;AR18CSDABWKXCV,SSEC |
| DB96-24636A | ASSY TUBE COND-IN;P |
| DB96-24637A | ASSY TUBE COND-OUT;P |
| DB96-26371A | ASSY TUBE OUT PARTS;AR18CSDACWKXCV,SSEC |
| DB98-27584A | ASSY-LABEL CAUTION;HP,INV,FOR KCV CONTRO |
| DB98-31449A | ASSY-LABEL MICOM;QFP,64P,WHT,9*9 |
| 6902-002353 | BAG PE;HDPE,T0.015,W1400,L1000,TRP,RECYC |
| 6922-000041 | BAND |
| DB61-07011P | BASE-OUT;P520 48F,GL-SGLCC,T1, |
| DB27-00034A | BEAD-AXIAL;55OHM/100MHZ,5.7X3.5MM,TP,55O |
| 3301-002113 | BEAD-SMD;470 OHM/100MHZ 470 OHM/100MHZ,2 |
| 6011-005068 | BOLT-ETC;M8,47.2,MSWR10,SSEC |
| 6009-001074 | BOLT-HEX |
| DB61-04419A | BOSS-FAN IN;MAN-U,PP+GLF40%,T5,L28,HLG74 |
| DB61-04420A | BOSS-FAN OUT;MAN-U,PP+GF30%,T5,W,L28,HG4 |
| DB61-07067B | BRACKET MOTOR;P520,GI-SGCC,T1.2,W207 |
| DB61-01593C | BRACKET-VALVE |
| DB61-05432B | BRACKET-VALVE PAINTING |
| 2401-003585 | C-AL |
| 2401-003395 | C-AL |
| 2401-003224 | C-AL |
| 2401-003139 | C-AL |
| 2401-003069 | C-AL |
| 2401-001838 | C-AL |
| 2401-000481 | C-AL |
| 2401-006176 | C-AL , 470UF,20%,25V,TP,10X12.5MM,5MM,40T |
| 2402-001268 | C-AL, SMD |
| 2402-001183 | C-AL, SMD |
| 2402-001144 | C-AL, SMD |
| 2401-004267 | C-AL;22UF,20%,500V,GP,TP,16X25MM,7.5MM |
| 2401-006183 | C-AL;330UF,20%,400V,WT,BK,25.4X50MM,10MM |
| 2203-007544 | C-CER, CHIP |
| 2203-007486 | C-CER, CHIP |
| 2203-007456 | C-CER, CHIP |
| 2203-006992 | C-CER, CHIP |
| 2203-006158 | C-CER, CHIP |
| 2203-005135 | C-CER, CHIP |
| 2203-002285 | C-CER, CHIP |
| 2203-006967 | C-CER,CHIP;2.2UF,10%,25V,X5R,TP,2012,T1. |
| 2201-002427 | C-CERAMIC,DISC;2.2NF,10%,2000V,Y5P,TP,12 |
| 2201-002688 | C-CERAMIC,DISC;2.2NF,20%,400VAC,Y5U,TP,1 |
| 2201-002705 | C-CERAMIC,DISC;3.3NF,20%,400VAC,Y5U,TP,1 |
| 2201-002707 | C-CERAMIC,DISC;4.7NF,10%,2000V,Y5P,TP,16 |
| 2201-002335 | C-CERAMIC,DISC;68PF,10%,2000V,SL,TP,8X5M |
| 2202-002252 | C-CERAMIC,MLC-RADIAL;1NF,10%,1000V,R,TP, |
| 2306-000123 | C-FILM, LEAD-PPF |
| 2301-001285 | C-FILM, LEAD-PPF |
| 2301-002457 | C-FILM,LEAD-MPPF;4.7NF,20%,300V,TP,5X11X |
| 2301-001949 | C-FILM,LEAD;3300NF,10%,275VAC,BK,31X21X3 |
| DB64-03361A | CABINET FRONT;P CHASSIS,GI-SGCC,T0.8,E |
| DB64-03422B | CABINET SIDE-LF;P520,GI-SGCC,T0.8 |
| DB64-03421B | CABINET SIDE-RH;AR18TSFACWKXCV,GI-SGCC,T |
| 6501-001108 | CABLE TIE;T1.2,W3.6,L146,BLK,NYLON66 |
| 6501-001110 | CABLE TIE;T1.2,W4.8,L200,NYLON66 |
| DB65-10088B | CABLE-TIE |
| DB61-05917A | CASE CONTROL |
| DB61-04910A | CASE CONTROL UPPER |
| 0204-008356 | COATING AGENT;PAS-7900,99%,80~250CPS,TRA |
| DB27-00078A | COIL CHOKE |
| DB27-00133A | COIL CHOKE;27UH,20A,7X14.5MM,HYBRID,6P |
| DB27-00090A | COIL CHOKE;31UH,4A,8.4X3.4MM,NI-ZN,4P,DI |
| DB27-00082A | COIL CHOKE;40MH,500MA,8.4X3.4MM,MN-ZN,4P |
| DB27-00043C | COIL HARMONIC |
| 3711-006337 | CONNECTOR-HEADER |
| 3711-004019 | CONNECTOR-HEADER |
| 3711-000760 | CONNECTOR-HEADER |
| 3711-000177 | CONNECTOR-HEADER |
| 3712-001139 | CONNECTOR-TERMINAL |
| 3712-001047 | CONNECTOR-TERMINAL |
| 0102-001526 | COPPER TUBE , C1220T,O,6.35,0.6,ROLL, |
| 0102-001431 | COPPER TUBE;C1220T,H,OD9.52,T0.7, |
| 0102-001545 | COPPER TUBE;C1220T,O,12.7,0.8,ROLL, |
| 0102-001549 | COPPER TUBE;C1220T,O,15.88,1,ROLL, |
| 0102-001515 | COPPER TUBE;C1220T,O,6.35,0.7,ROLL, |
| 0102-001530 | COPPER TUBE;C1220T,O,7,0.41,ROLL |
| 0102-001532 | COPPER TUBE;C1220T,O,7,0.5,ROLL, |
| 0102-001534 | COPPER TUBE;C1220T,O,7,0.7,ROLL, |
| 0102-001539 | COPPER TUBE;C1220T,O,9.5,0.7,ROLL, |
| 0102-001542 | COPPER TUBE;C1220T,O,9.52,0.7,ROLL, |
| DB63-10490L | COVER CONTROL;PP+TD20%,T2,EARTH BROWN,HG |
| DB63-02310A | COVER TERMINAL |
| DB63-10214D | COVER-TOP;NEW Q480,GI-SGCC,T0.8,W310,L88 |
| DB69-03266D | CUSHION BOTTOM;P520 OUTDOOR,EPS,W398,L10 |
| DB69-00667B | CUSHION TOP-OUT;Q/P,EPS,W1006,L398,H80,4 |
| 0402-000324 | DIODE-BRIDGE |
| 0402-002299 | DIODE-BRIDGE;PB3006,600V,30A,SIP-4(2S),S |
|
|
DIODE-RECTIFIER |
| 0402-001669 | DIODE-RECTIFIER |
| 0402-001427 | DIODE-RECTIFIER |
| 0402-001192 | DIODE-RECTIFIER |
| 0402-002300 | DIODE-RECTIFIER;IDW30C65D1,600V,30A,TO-2 |
| 0402-001741 | DIODE-RECTIFIER;S1M,1000V,1A,SMA,TP |
| 0401-001099 | DIODE-SWITCHING |
| 0401-000132 | DIODE-SWITCHING |
| 0406-001204 | DIODE-TVS |
| 0403-000461 | DIODE-ZENER |
| DB67-20011A | DRAIN-PLUG OUT |
| DB67-01439A | FAN PROPELLER;AF 9500N,PP+(GF+PD)40%,N |
| DB60-00405A | FASTENER-WASHER |
| DB63-03053A | FELT-COMP SOUND |
| DB63-03052A | FELT-COMP SOUND |
| DB63-02029B | FELT-COMP SOUND A |
| 0505-003681 | FET-SILICON , A0N7264E,N,60V,28A,27.5W,DFN |
| DB62-04985B | FIN COND;AC071FCADEH/EU,A1100-H26,T0.095 |
| 0204-004665 | FLUX;KSP-70M-S,MIXTURE,NO,FLUX,13% |
| 3601-001652 | FUSE-AXIAL LEAD |
| 3601-001674 | FUSE-RADIAL LEAD;250V,2.5A,TIME-LAG,TP,8 |
| DB63-00817B | GASKET |
| 0205-000178 | GREASE-SILICON |
| DB63-02297A | GROMMET ISOLATOR |
| DB63-04169B | GUARD COND |
| DB63-04021A | GUARD FAN;P CHASSIS,PP,T2.5,EARTH BROWN |
| DB64-00967B | HANDLE-OUTDOOR |
| 3711-007817 | HEADER-BOARD TO BOARD;3WALL,7P,1R,2MM,ST |
| 3711-003873 | HEADER-BOARD TO CABLE |
| 3711-003846 | HEADER-BOARD TO CABLE |
| 3711-003380 | HEADER-BOARD TO CABLE |
| 3711-002001 | HEADER-BOARD TO CABLE |
| 3711-000999 | HEADER-BOARD TO CABLE |
| DC62-00243C | HEAT SINK |
| DB62-13009A | HEAT SINK |
| DB61-05216A | HOLDER SENSOR;DVM MODEL,C1220T-O,T0.55,W |
| DB61-00533A | HOLDER-CLAMP COND |
| DB61-00250A | HOLDER-WIRE CLAMP |
| 1006-001325 | IC-BUS TRANSCEIVER |
| 0801-000393 | IC-CMOS LOGIC |
| 1003-002940 | IC-GATE DRIVER;SOIC,8P,5.0X4.0X1.75MM,TA |
| 0903-002197 | IC-MICROCONTROLLER;HART-I910Z,LQFP,64P,1 |
| 0903-002203 | IC-MICROCONTROLLER;HART-M320,MQFP,100P,2 |
| 1201-004379 | IC-OP AMP , TP1564AL1,TSSOP,14P,TP,5.0X4.4 |
| 1203-002835 | IC-POSI.FIXED REG. |
| 1203-002722 | IC-POSI.FIXED REG. |
| 1203-000242 | IC-POSI.FIXED REG. |
| 1203-008881 | IC-PWM CONTROLLER , INN2603K,ESOP-R16B,16P |
| 1203-006245 | IC-VOL. DETECTOR |
| 1203-004967 | IC-VOL. DETECTOR;KIA7042AT,TSM,3P,2.9X1. |
| DB72-60088H | INSULATION-CONTROL |
| DB62-00831A | INSULATION-COVER TOP |
| DB68-02988A | LABEL BAR CODE |
| DB68-02809A | LABEL BAR CODE |
| DB68-11576A | LABEL BAR CODE;AM9000A,EU,ART,W15,L15,QR |
| DB68-01350B | LABEL BAR CODE;CV,ART,W164,L50,4 SHEET,D |
| DB68-08687A | LABEL DIAGRAM;PF3_20S,ENGLISH,ART,W60,L1 |
| DB68-11714K | LABEL ENERGY;AR18CSDABWKX,CV,YUPO,W138,L |
| DB98-33293A | LABEL INSTRUCTION;-,ART,15,5,H |
| DB98-33292A | LABEL INSTRUCTION;ART,5,15,H/P,INV |
| DB68-03094D | LABEL INSTRUCTION;OUT,CV,PET,W110,L80,SI |
| DB68-03068G | LABEL RATING;PET,W55,L185 |
| DB68-03134A | LABEL WARNING;PET,W70,L160,EN+FR,SILVER+ |
| 0601-002956 | LED |
| 0601-002955 | LED |
| 0601-002423 | LED |
| DB61-01704B | LEG-BASE |
| DB64-03201B | LOGO |
| DB31-00579A | MOTOR FAN |
| DB67-70004A | MUFFLER |
| 0204-001386 | NON FREON |
| DB60-30028A | NUT-FLANGE |
| 6021-001142 | NUT-HEXAGON FLANGE |
| DB69-02095E | PACKING CASE-OUT;P,CB,DW2,L401,W1009,H86 |
| DB69-02790H | PAD-BOTTOM;Q,PP,T2,W398,L1006,SET, |
| DB67-01640B | PARTITION;P520,GI-SGCC,T0.7 |
| DB41-01441A | PCB INVERTER;FR-4,2L,T1.6,197X242MM,1,PF |
| 0604-001172 | PHOTO-COUPLER |
| DB60-70016A | PIN-STAPLE |
| DB61-07233A | PLATE COND-LEFT;NEW P CHASSIS,GI-SGCC,T0 |
| DB61-07232A | PLATE COND-RIGHT;NEW P CHASSIS,GI-SGCC,T |
| DB61-05018C | PLATE CONTROL-MAIN;AR18TSFACWKXCV,GI-SGC |
| DB61-05778A | PLATE-COVER CONTROL;Q CHASSIS,GI-SGCC,T0 |
| DB61-07706A | PLATE-SUB;AC018BXSCCC/AA,GI-SGCC,T0.6,W8 |
| 4719-003219 | POWER MODULE |
| 2007-008175 | R-CHIP |
| 2007-007942 | R-CHIP |
| 2007-002557 | R-CHIP |
| 2007-001297 | R-CHIP |
| 2007-000961 | R-CHIP |
| 2007-000945 | R-CHIP |
| 2007-000924 | R-CHIP |
| 2007-000762 | R-CHIP |
| 2007-000592 | R-CHIP |
| 2007-000476 | R-CHIP |
| 2007-000385 | R-CHIP |
| 2007-000297 | R-CHIP |
| 2007-000039 | R-CHIP |
| 2007-000033 | R-CHIP |
| 2007-010245 | R-CHIP;0.01OHM,1%,2W,TP,6432 |
| 2007-007385 | R-CHIP;1.2MOHM,1%,1/4W,TP,3216,T0.6 |
| 2003-000652 | R-METAL OXIDE(S) |
| UG8TH8265FEW | RCP, COMP, RCP, F, R410A |
|
|

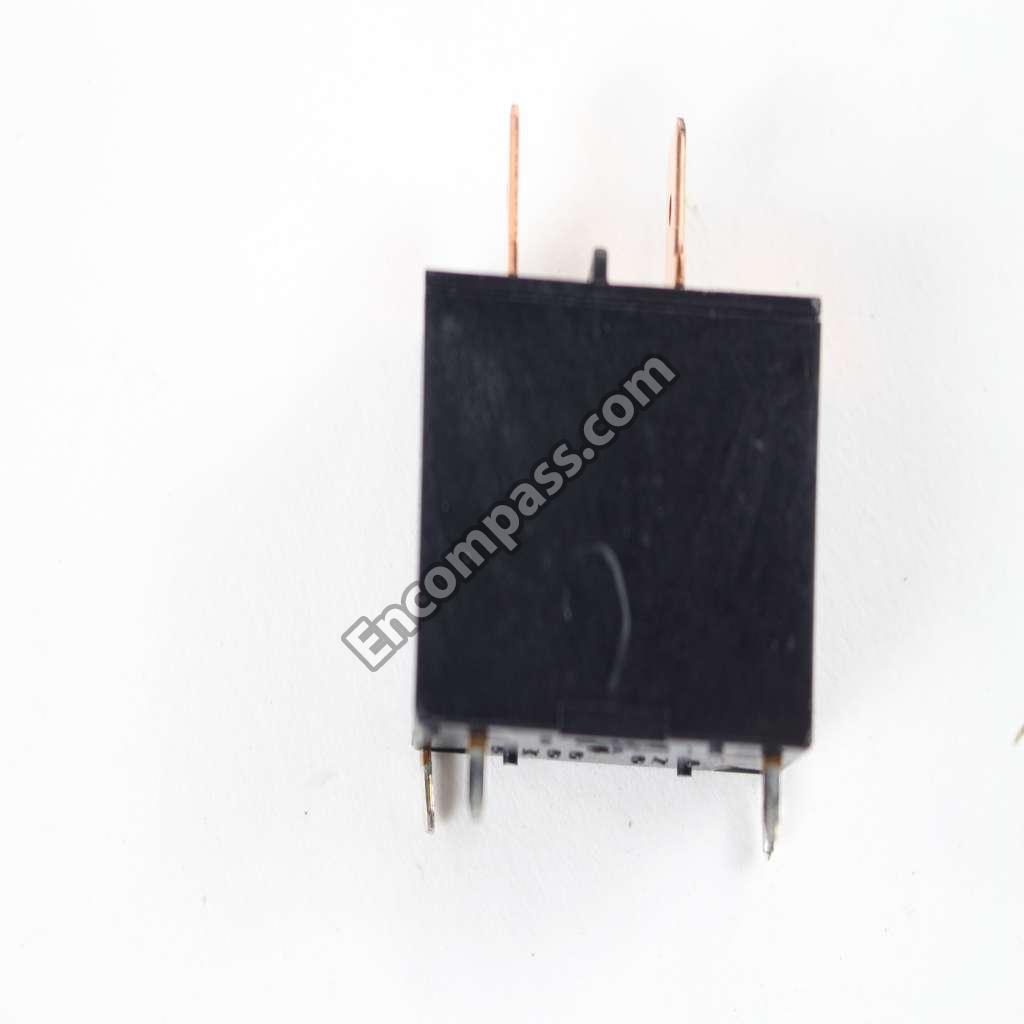

RELAY-MINIATURE |
|
|
RELAY-POWER |
| 2802-001211 | RESONATOR-CERAMIC |
| DB73-20054P | RUBBER PIPE;AC036NX1DKC1/TL,CHLOROPRENE |
| DB73-00404E | RUBBER-BUTYL;-,IIR,180*180,T3, |
| DB67-01533A | RUBBER-LEG |
| DB67-01713A | RUBBER;SILICON RUBBER,T0.3 |
| 6009-001369 | SCREW-HEX |
| 6001-000722 | SCREW-MACHINE |
|
|
SCREW-SPECIAL |
| 6009-001729 | SCREW-SPECIAL;HWH,+,M5,L26,ZPC(WHT),SWRC |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPPING |
| 6002-001117 | SCREW-TAPPING |
|
|
SCREW-TAPPING |
| 6002-000536 | SCREW-TAPPING |
| 6002-000527 | SCREW-TAPPING |
|
|
SCREW-TAPPING |
| 6002-000234 | SCREW-TAPPING |
| DB62-11637C | SEAL CUTT;PE FOAM,T3,W10,GRAY |
| DB62-11637U | SEAL CUTT;PE FOAM,T7,W10 |
| DB62-11641E | SEAL CUTT;PU FOAM,T10,W40 |
| DB62-11641S | SEAL CUTT;PU FOAM,T5,W35 |
| DB62-04566Q | SEAL-CABI UPPER;FORTE,PE FOAM,T3,208,2 |
| DB62-05804H | SEAL-DRAIN HOSE;-,EPDM,T3,W90,HB |
| DB62-06034V | SEAL-FILTER;EPDM,T3,W25,L180,HB |
| DB62-05112A | SEAL-PANEL LOW A;WW3,EPDM,3,20,130, |
| DB62-03479A | SEAL-PLATE COND CUSHION |
| 0202-001976 | SOLDER-CREAM;LST-309M-K21 (PWM-118),D20~ |
| 0202-001022 | SOLDER-SILVER |
| 0202-001464 | SOLDER-SILVER;L450,91CU/1.9AG/6.95P |
| 0202-001463 | SOLDER-WIRE |
| 0202-001608 | SOLDER-WIRE FLUX |
| 0204-005225 | SOLVENT;IT-700,R-OH,100%,0.786 |
| DB81-00635A | SPRING ETC-SENSOR |
| 0101-002932 | STEEL PLATE;GI,SGCC,0.8MM,647MM,Z12,NC |
| 0101-003199 | STEEL PLATE;GI,SGCC,1.5,Z14,NC |
| 0101-002982 | STEEL PLATE;STAINLESS,STS304,0.3MM,NO.4 |
| DB61-05796A | SUPPORT-PCB;AF28FVSDADFX,CR RUBBER,V0,NA |
| DB61-07448A | SUPPORT-PCB;PE3,PA66+GF30%,T1.8,KN333G30 |
| 4715-001093 | SURGE ABSORBER |
| DB62-05391C | TAPE AL;AR18NV3PAWKXNA,AL,40,40,WH |
| DA02-00013A | TAPE ETC |
| DB02-00029B | TAPE ETC;RAC,OPP,0.05MM,80MM,500M,TRANSP |
| DA02-10017J | TAPE-FILAMENT |
| 0203-000214 | TAPE-OPP |
| DB65-00274A | TERMINAL BLOCK |
| DB37-00036B | TERMINAL BLOCK;2P(4SCREW),MELAMINE,600V, |
| 1404-001413 | THERMISTOR-NTC |
| 1404-001862 | THERMISTOR-NTC;47KOHM,3975K,2MWC,TP,2X4M |
| 1404-001194 | THERMISTOR-PTC |
| 1404-001498 | THERMISTOR-PTC;40OHM,290VAC,7A,CASE,17.7 |
| 0506-000175 | TR-ARRAY |
| 0508-001265 | TR-IGBT;600V,30A,2.3V,94W |
| 0501-000467 | TR-SMALL SIGNAL |
| 0501-000465 | TR-SMALL SIGNAL |
| DB26-00143A | TRANS SWITCHING , AC85-265V,120MA,740MA,20 |
| DB62-02348U | TUBE HAIR PIN;AC071NX4SEC/TL,C1220T-O,T0 |
| DB62-06999A | TUBE-CU;C1220T-O,T0.25,OD7,L,ID6.3,TW0.2 |
| DB62-00541J | TUBE-FILTER;SI,C1220T-O,T1,OD19.05,L57,I |
| DB62-03333B | TUBE-RETURN |
| DB62-09344A | TUBE-TOTAL OUT;-,C1220T-O,T0.7,OD7.94,L1 |
| DB62-30368A | TUBE-U BEND;COMMON USE,C1220T-O,T0.41,OD |
| DB62-11421C | VALVE COIL EXPAN |
| DB63-04260A | VALVE COVER |
| DB62-11419B | VALVE EXPAN;STS304,T-TYPE,53.2,1.65MM,50 |
| DB62-09656A | VALVE SERVICE-SPINDLE |
| DB62-09652A | VALVE SERVICE-SPINDLE |
| DB62-11179A | VALVE-4WAY;.,2HP,COMMON |
| 1405-001438 | VARISTOR , 560V,450VDC,4500A,17.5X8MM,TP,9 |
| 1405-001239 | VARISTOR;680V,560VDC,6000A,17X10MM,TP,11 |
