Manufacturer
Samsung
Model Number
AVMWH032CA0
Description
Heat Pump Air Conditioner
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| DB94-00377B | ASSEMBLY BACK BODY |
| DB94-40007A | ASSEMBLY BEARING |
|
|

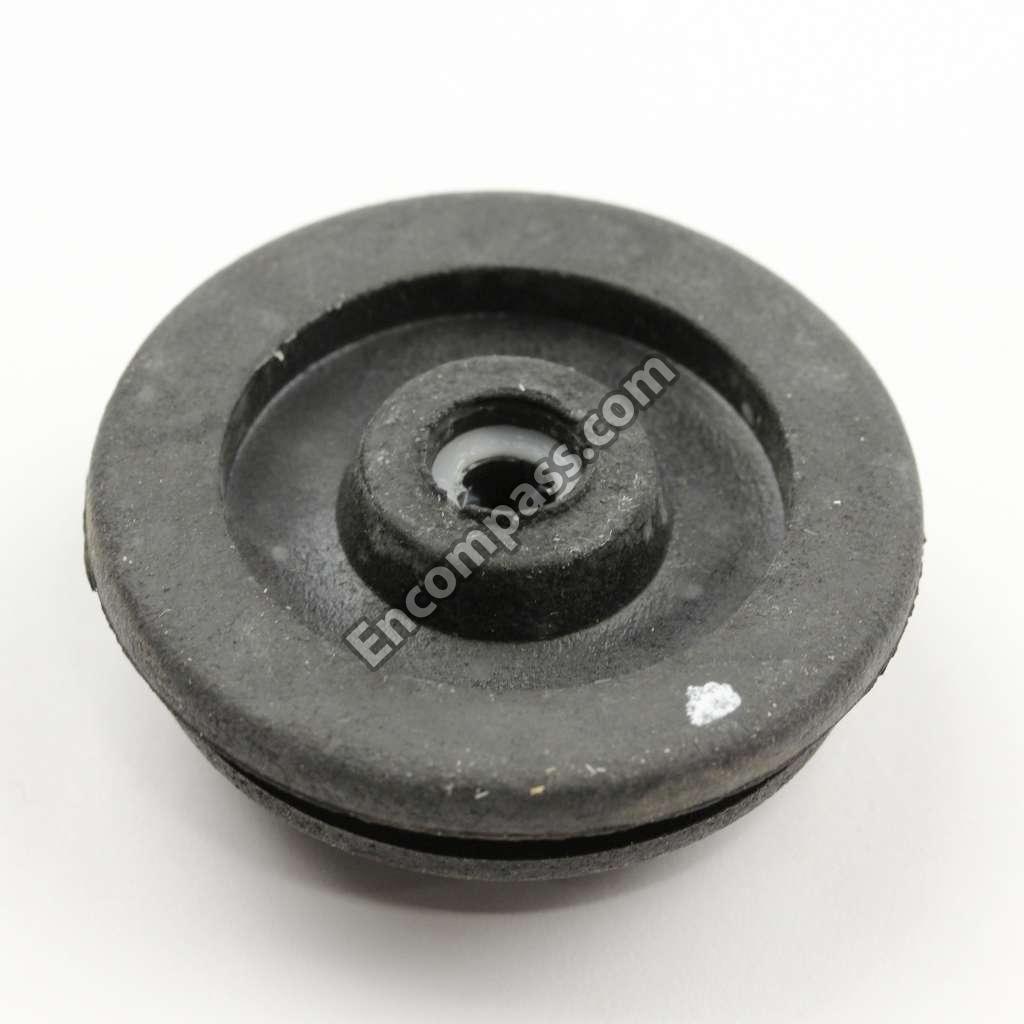

ASSEMBLY BEARING-RUBBER |
| DB98-05984A | ASSEMBLY CHANGE PART IN |
| DB95-00287G | ASSEMBLY CLEANER FILTER |
| DB94-00020D | ASSEMBLY CROSS FAN |
| DB94-00062E | ASSEMBLY DRAIN-HOSE |
| DB96-01097D | ASSEMBLY EVAP |
| DB96-01248J | ASSEMBLY EVAPORATOR UNIT |
| DB94-00104A | ASSEMBLY HOLDER MOTOR |
| DB98-07205A | ASSEMBLY INDOOR UNIT |
| DB98-05758A | ASSEMBLY LABEL WARNING IN |
| DB97-01211K | ASSEMBLY MANUAL |
| DB98-03846A | ASSEMBLY PACKING PART |
| DB92-00300B | ASSEMBLY PANEL FRONT |
| DB94-00376A | ASSEMBLY TRAY DRAIN |
| DB96-00648C | ASSEMBLY TUBE EVAP IN |
| DB96-00647D | ASSEMBLY TUBE EVAP OUT |
| DB96-10257A | ASSEMBLY TUBE U BEND |
| DB96-10256A | ASSEMBLY TUBE U BEND |
| DB93-50001A | ASSEMBLY WIRE RING SOLD |
| DB93-00938B | ASSY CONTROL IN;HP,220V,IN, |
| DB96-02147A | ASSY U BEND;SH12ZS8, |
| DB98-07226A | ASSY-CONTROL PART;AVMWH020CA0,RAC CONTRO |
| DB98-05803G | ASSY-LABEL RATING;HP,3200W(C), 3500W(H), |
| DB98-05603A | ASSY-MANUAL INSTALL;HP,AVMWH020EA0/EN,SP |
| DB98-05589A | ASSY-MANUAL INSTRUCTION;HP,AVMWH020EA0/E |
| 6902-000460 | BAG PE |
| 6902-000186 | BAG PE |
| 6902-000103 | BAG PE |
| DB66-00044A | BLADE-CONNECTOR |
| DB66-00127B | BLADE-H |
| DB66-00128B | BLADE-V |
| DB66-00128A | BLADE-V |
| DB61-00159A | BODY-BACK |
| DB60-20011A | BOLT-SPECIAL |
| DB61-00163A | BRACKET-EARTH |
| DB64-00084A | BUTTON-POWER |
| 2202-000780 | C-CERAMIC, MLC-AXIAL |
| 2301-001339 | C-FILM, LEAD-PPF |
| DB65-10088C | CABLE TIE |
| DB63-10371A | CAP |
| DB68-40091A | CARD-REGISTRATION |
| DB68-02302A | CARD-WARRANTY |
| DB39-00183A | CONNECT WIRE-CAPACITOR;UL1015 AWG22,AWG2 |
| DB39-00224C | CONNECT WIRE-DISPLAY-S |
| DB39-00148A | CONNECT WIRE-EARTH;1P,UL1015AWG16,L200, |
| DB39-20357A | CONNECT WIRE-MOTOR |
| DB39-00147A | CONNECT WIRE-STEP MOTOR |
| 0102-000253 | COPPER-TUBE |
| 0102-000252 | COPPER-TUBE |
| DB63-00252A | COVER-PANEL INLET |
| DB63-00067A | COVER-TEMINAL |
| DB63-00226A | COVER-TERMINAL BLOCK |
| DB63-00083A | COVER-U BEND |
| DB69-00253A | CUSHION-BODY BACK LF |
| DB69-00253B | CUSHION-BODY BACK RH |
| DB69-00123A | CUSHION-LEFT, IN |
| DB69-00125A | CUSHION-RIGHT, IN |
|
|
DIODE-BRIDGE |
| 0402-001194 | DIODE-RECTIFIER |
| 0406-001109 | DIODE-TVS |
| 0406-001086 | DIODE-TVS |
| 0403-001285 | DIODE-ZENER |
| 0403-000252 | DIODE-ZENER |
| DB75-00220A | EVAPORATOR |
| DB75-00090B | EVAPORATOR |
| DB67-00033C | FAN A;-,SAN+GF20%,OD86,SC-9842R(GREE |
| DB67-00034C | FAN B;-,SAN+GF20%,OD86,SC-98492R(GRE |
| DB67-00035C | FAN-C |
|
|
FILTER-CARBON |
| DB63-00435C | FILTER-CLEANER |
| DB74-90019A | FLUX-VAPOR |
| DB71-60024A | FOIL-AL ANTI |
| DB71-00038B | FOIL-EVAP FIN |
| DB71-00037A | FOIL-EVAP FIN |
| DB64-00085A | GRILLE-AIR INLET |
|
|

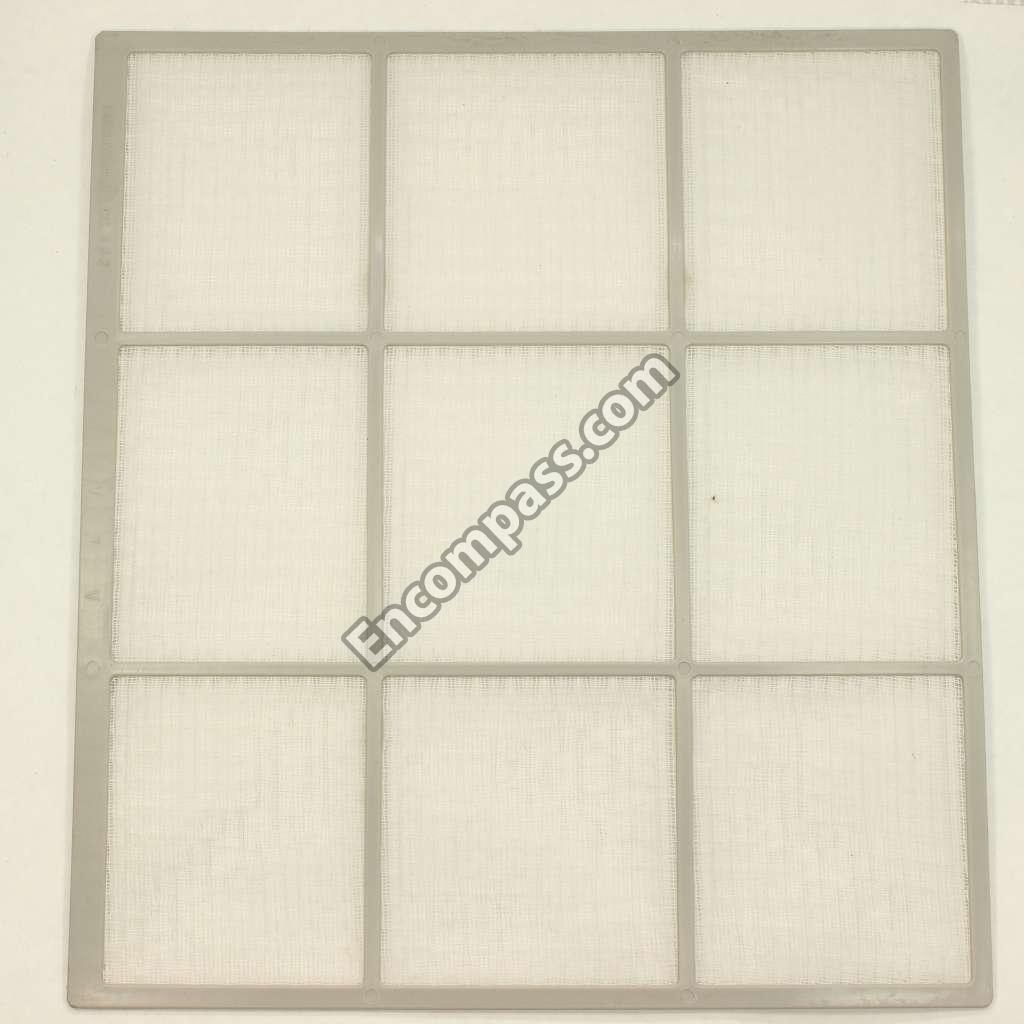

GUARD-AIR FILTER |
| DB61-00164A | GUIDE-CLEANER FILTER |
| DB61-00219A | HOLDER-CLAMP IN;-,SGCC-M,V21-PJ |
| DB61-00160B | HOLDER-CONTROL;-,ABS,UL94-5VA,BL |
| DB61-00273A | HOLDER-LED |
| DB61-00162A | HOLDER-MOTOR |
| DB61-00165A | HOLDER-PIPE |
| DB61-40251A | HOLDER-SENSOR |
|
|
HOLDER-SENSOR |
| DB09-00105D | IC MICOM |
| 1006-001210 | IC-BUS TRANSCEIVER |
| 1103-001175 | IC-EEPROM |
| 1203-000001 | IC-POSI.FIXED REG. |
|
|

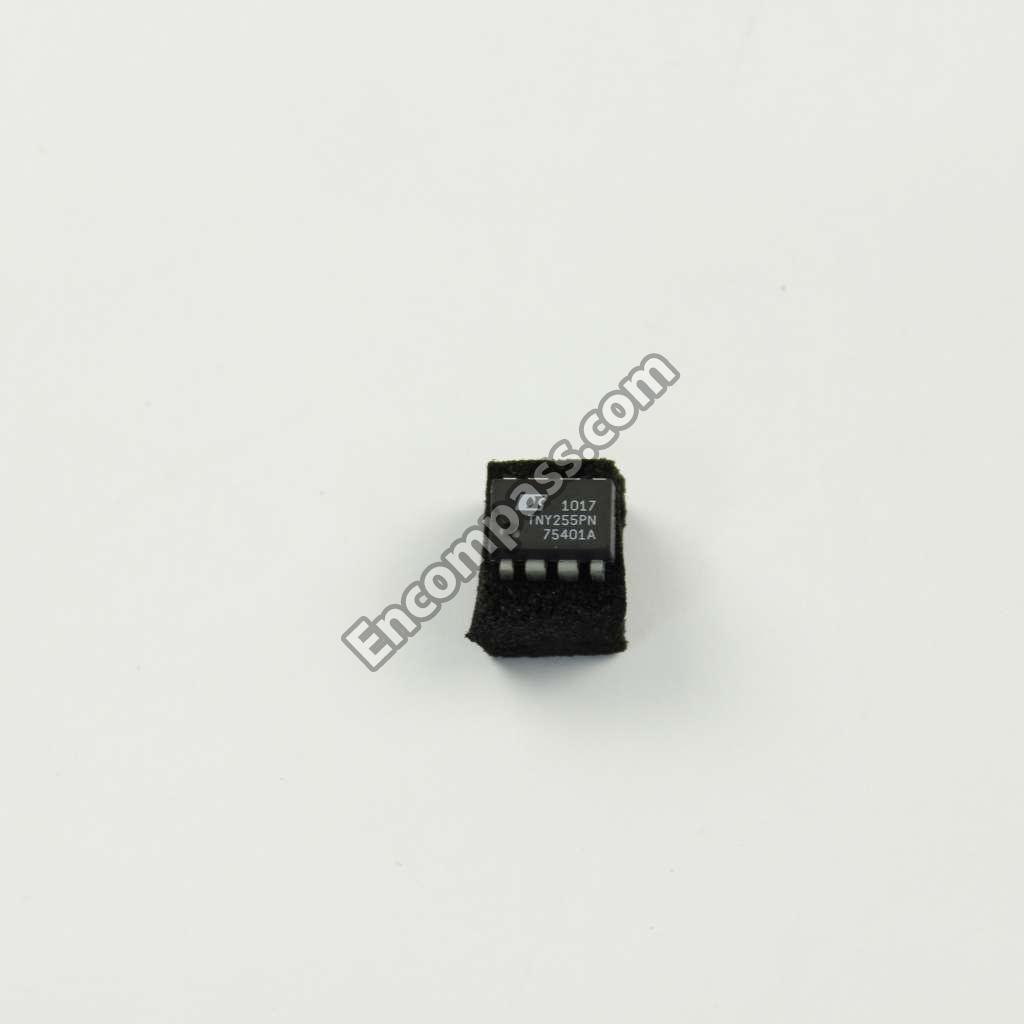

IC-PWM CONTROLLER |
| 1202-000001 | IC-VOLTAGE COMP. |
| DB72-00249A | INSULATION-BASE B |
| DB72-60061P | INSULATION-TUBE |
| DB72-00179D | INSULATION-TUBE ASSEMBLY |
| DB68-02782C | LABEL BAR CODE-SHEET |
| DB68-01975A | LABEL CAUTION |
| DB68-02653A | LABEL CAUTION-DIP |
| DB68-02360A | LABEL DIAGRAM;ADH4400G,ART90,T0.5,110,11 |
| DB98-05725B | LABEL INSTRUCTION |
| DB68-01349A | LABEL-BAR CODE-SHEET |
| DB68-10120G | LABEL-BARCODE |
| DB68-10328N | LABEL-SHEET |
| DB68-10869D | LABEL-WARNING |
| 0601-001196 | LED |
| 0601-001060 | LED |
| 0601-001059 | LED |
| 0601-001096 | LED;ROUND,RED/Y-GRN,RED DIFF/Y-GRN DIFF, |
| DB93-00820A | MAIN PCB ASSEMBLY-IN |
| 0609-001393 | MODULE REMOTE CONTROL |
|
|
MOTOR STEP |
| DB31-00033A | MOTOR-FAN-IN |
| DB67-60005F | NIPPLE |
| 0204-000410 | NITROGEN |
| DB60-30011B | NUT-FLARE |
| DB74-90018A | OXYGEN |
| DB69-00225B | PACKING CASE-IN |
| DB64-00210A | PANEL-DISPLAY |
| DB64-00081A | PANEL-FRONT |
| DB64-00212A | PANEL-LED |
| DB93-00892B | PCB ASSEMBLY SUB-DISPLAY |
| DB41-00048A | PCB DISPLAY-RAC |
| 0604-001148 | PHOTO-COUPLER |
| 0604-001038 | PHOTO-COUPLER |
| DB70-00034A | PLATE-EVAP LF |
| DB70-00290A | PLATE-EVAP LF;G1-P/J,SGCC-M,T0.8, |
| DB70-00291A | PLATE-EVAP RH |
| DB70-00035B | PLATE-EVAP RH |
|
|

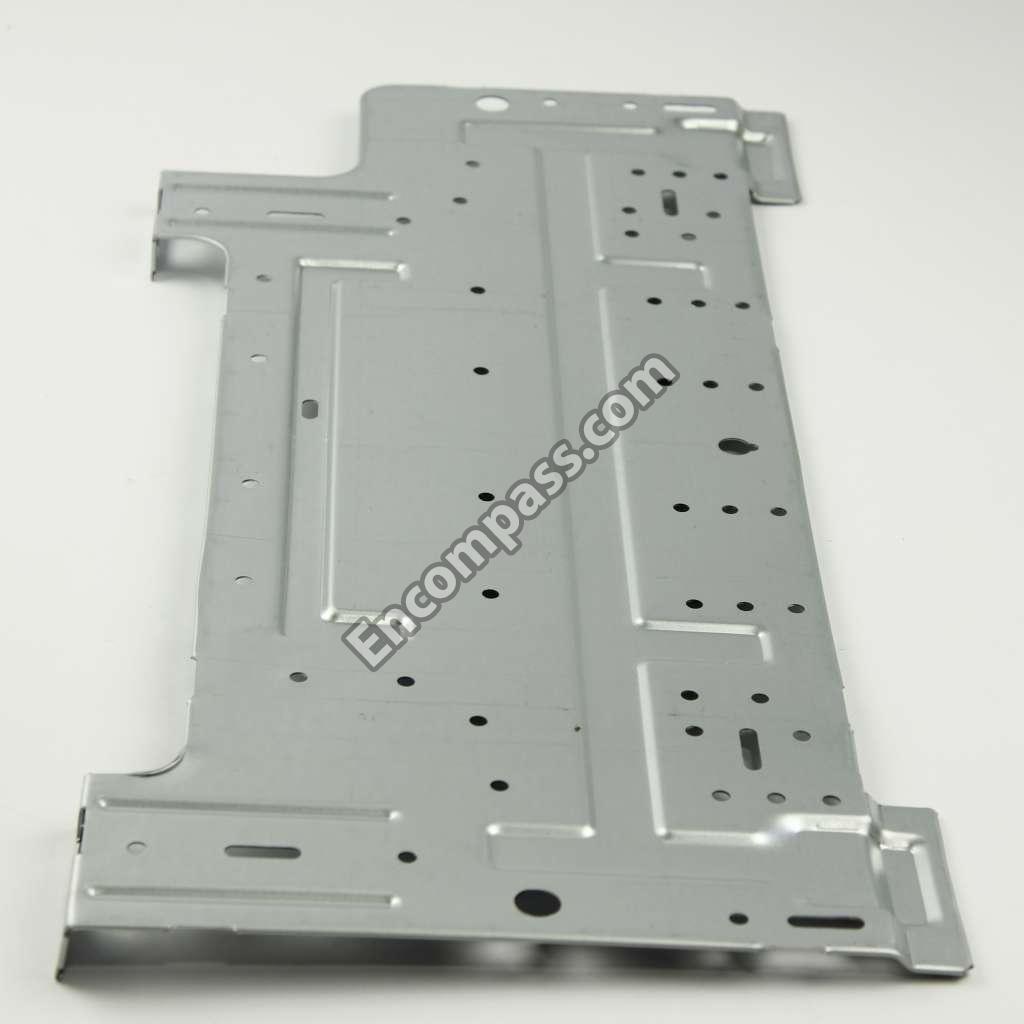

PLATE-HANGER |
| 2802-001198 | RESONATOR-CERAMIC |
| DB63-00082A | SCREEN-SAFETY WIRE |
| 6001-000929 | SCREW-MACHINE |
|
|
SCREW-SPECIAL |

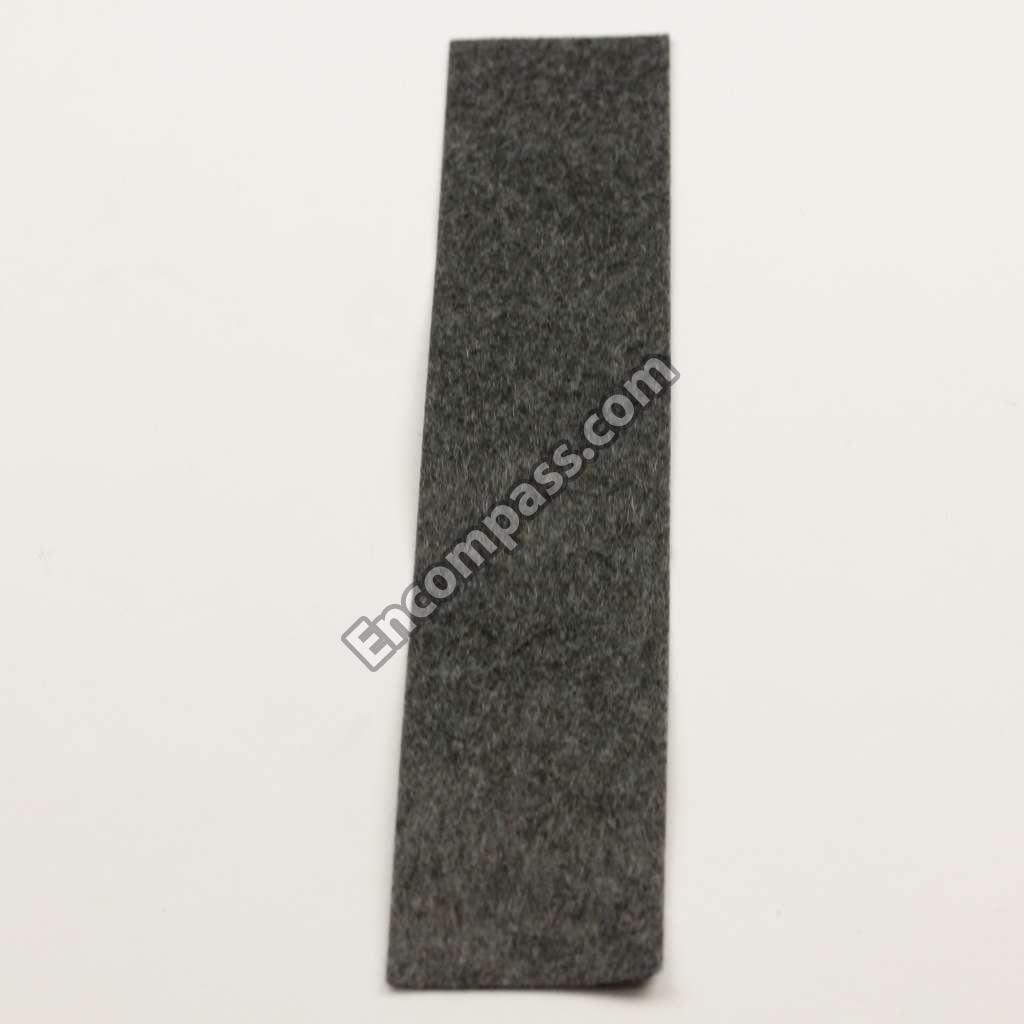

| 6002-000623 | SCREW-TAPPING |
| 6002-000535 | SCREW-TAPPING |
| 6002-000474 | SCREW-TAPPING |
| 6002-000234 | SCREW-TAPPING |
| DB62-02062F | SEAL-BACK BODY |
| DB62-02064A | SEAL-BLADE A |
| DB62-02066A | SEAL-BLADE B |
| DB72-00127R | SEAL-BODY DRAIN LF |
| DB72-00216A | SEAL-BODY DRAIN RH |
| DB72-00220A | SEAL-BODY FEAR LF |
| DB72-00127T | SEAL-BODY FRONT A |
| DB72-00127U | SEAL-BODY FRONT D |
| DB72-00264A | SEAL-BODY FRONT LOW A |
| DB62-02063A | SEAL-BODY FRONT LOW A |
| DB62-02065A | SEAL-BODY FRONT LOW B |
| DB72-00212B | SEAL-BODY LOW A |
| DB62-02062G | SEAL-BODY LOW A |
| DB72-00212C | SEAL-BODY LOW B |
| DB62-02062H | SEAL-BODY LOW B |
| DB72-00127W | SEAL-BODY LOW LF |
| DB72-00126J | SEAL-BODY REAR LOW |
| DB72-00126B | SEAL-BODY REAR UP |
| DB72-10191T | SEAL-CONTROL SIDE |
| DB72-00127V | SEAL-H/CONTROL FRONT |
| DB72-00126K | SEAL-HOLDER MOTOR |
| DB62-01235A | SEAL-INSULATION TUBE;-,T1,W130,L250, |
| DB72-00127P | SEAL-PANEL FRONT RH |
| DB72-00126F | SEAL-PANEL FRONT UP |
| DB72-00182A | SEAL-PANEL GUIDE LF |
| DB72-00125A | SEAL-PANEL LOW LF |
| DB72-00125B | SEAL-PANEL LOW RH |
| DB72-00125C | SEAL-PANEL LOW S |
| DB72-00212A | SEAL-SPACER EVAP |
| DB72-00126H | SEAL-STEPPING MOTOR |
| DB72-00126G | SEAL-TRAY FRONT |
| DB62-02062D | SEAL-TRAY LF |
| DB72-00272A | SEAL-TRAY LF A |
| DB72-00273A | SEAL-TRAY LF B |
| DB72-00274A | SEAL-TRAY LF C |
| DB72-00125H | SEAL-TRAY LF C |
| DB72-00193A | SEAL-TRAY LOW |
| DB62-02062B | SEAL-TRAY LOW A |
| DB62-02062C | SEAL-TRAY LOW B |
| DB62-02062E | SEAL-TRAY RH |
| DB72-00275A | SEAL-TRAY RH A |
| DB72-00276A | SEAL-TRAY RH B |
| DB72-00192A | SEAL-TRAY UP A |
| DB72-00125G | SEAL-TRAY UP B |
| DB72-00277A | SEAL-TRAY UP C |
| DB62-02062A | SEAL-TRAY-DRAIN A |
| 0202-001164 | SOLDER-SILVER |
| 0202-001022 | SOLDER-SILVER |
| DB67-00051A | SPACER-EVAP LOW |
| DB67-00032A | SPACER-EVAP UP |
| DB67-60030A | SPRING-SENSOR |
| 3502-000115 | SSR |
| DB65-00075D | TERMINAL BLOCK;AVMWH052CA0,C&C TYPE KCV, |
| DB32-00029D | THERMISTOR-EVA OUT |
|
|

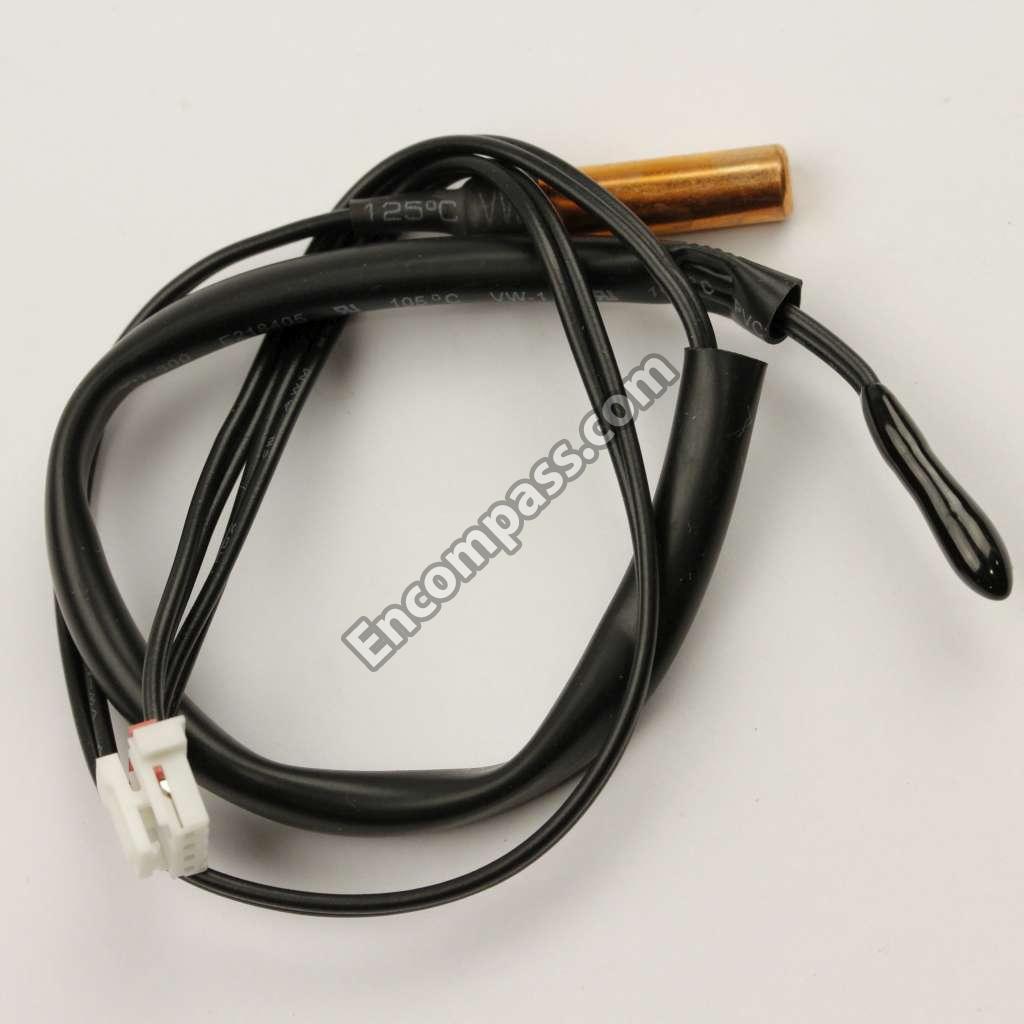

THERMISTOR-WIRE ASSEMBLY |
| 0506-000175 | TR-ARRAY |
| 0501-000463 | TR-SMALL SIGNAL |
| DB63-00108A | TRAY DRAIN |
| DB62-00462J | TUBE HAIR PIN-L;V2,PI7.0,GROOVED |
| DB62-00463E | TUBE HAIR PIN-S;V2,PI7.0,GROOVED |
| DB62-31597D | TUBE-DISTRIBUTOR A |
| DB62-31598B | TUBE-DISTRIBUTOR B |
| DB62-31370A | TUBE-EVAP IN MID |
| DB62-00192A | TUBE-EVAP JUMP L |
| DB62-30369A | TUBE-U BEND |
| DB62-30368A | TUBE-U BEND;COMMON USE,C1220T-O,T0.41,OD |
