Manufacturer
Samsung
Model Number
AVXC4H100CE
Description
Air Conditioner
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| DB97-04798A | ACCESSORY ASSEMBLY-CASSETTE |
| DB97-19233B | ACCESSORY ASSEMBLY-HOSE |
| DB97-06742A | ACCESSORY ASSEMBLY-HOSE |
| 0102-001603 | ALUMINUM INGOT;ALDC8 |
| DB97-03499A | ASSEMBLY BAG SHEET |
| DB98-30154A | ASSEMBLY BAR CODE BOX |
| DB90-02693A | ASSEMBLY BASE-CUSHION |
| DB94-01059A | ASSEMBLY BRACKET MOTOR |
| DB90-02690A | ASSEMBLY CABI FRONT |
| DB90-02688A | ASSEMBLY CABINET-BACK |
| DB90-02689A | ASSEMBLY CABINET-BASE |
| DB93-07219B | ASSEMBLY CONNECTOR WIRE-FAN MOTOR SUB |
| DB93-07219A | ASSEMBLY CONNECTOR WIRE-FAN MOTOR SUB |
| DB93-04404E | ASSEMBLY CONTROL IN |
| DB93-04404H | ASSEMBLY CONTROL IN;HP,NO,OUT,AVMC |
| DB97-11396A | ASSEMBLY CUSHION BOTTOM |
| DB94-01062A | ASSEMBLY DRAIN-CUSHION |
| DB94-03287A | ASSEMBLY DRAIN-HOSE JOINT |
| DB94-01064E | ASSEMBLY DRAIN-PUMP |
| DB94-01064C | ASSEMBLY DRAIN-PUMP |
| DB96-12282C | ASSEMBLY EVAP |
| DB96-12282A | ASSEMBLY EVAP |
| DB96-06707A | ASSEMBLY EVAP-UNIT |
| DB98-13261A | ASSEMBLY GARANTIE CARD |
| DB90-02694A | ASSEMBLY GUARD SAFETY |
| DB98-26361A | ASSEMBLY GUARD SAFETY INSTALLATION |
| DB94-03327B | ASSEMBLY HOSE DRAIN |
| DB94-01078B | ASSEMBLY HOSE DRAIN |
| DB98-29143A | ASSEMBLY LABEL BAR CODE |
| DB98-28433A | ASSEMBLY LABEL BARCODE |
| DB98-26365A | ASSEMBLY LABEL CAUTION |
| DB98-26362A | ASSEMBLY LABEL GUARD SAFETY |
| DB94-01067A | ASSEMBLY PARTITION |
| DB98-13260A | ASSEMBLY REGISTRATION CARD |

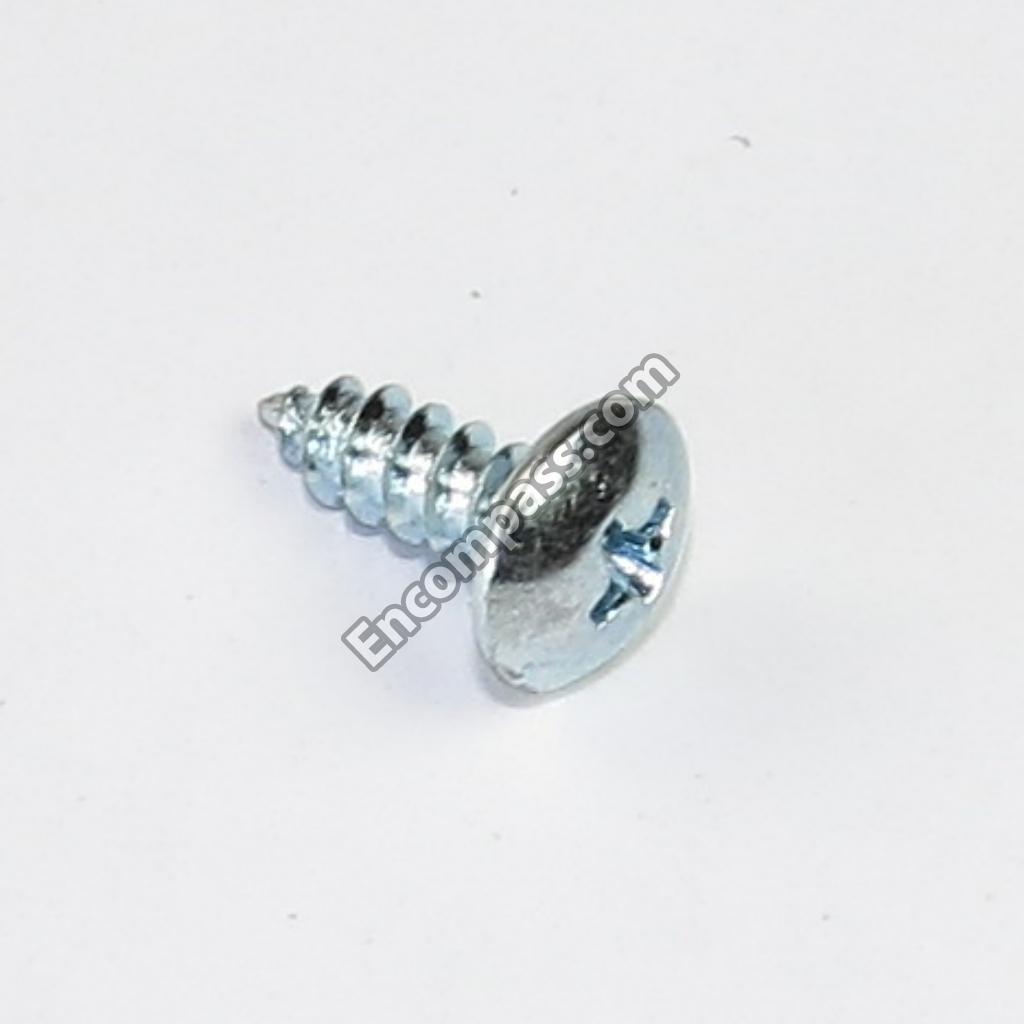

| DB97-02090B | ASSEMBLY SCREW MACHINE |
| DB95-01984A | ASSEMBLY THERMISTOR IN |
| DB95-01987B | ASSEMBLY THERMISTOR-EVAP |
| DB96-06705A | ASSEMBLY TUBE EVAP OUT |
| DB96-10257A | ASSEMBLY TUBE U BEND |
| DB93-50001A | ASSEMBLY WIRE RING SOLD |
| DB97-04566A | ASSY ACCESSORY IN PARTS;HP,T,48K,N,C |
| DB90-04818A | ASSY CABI IN PARTS;CH105CAV,SSEC |
| DB93-08319A | ASSY CONTROL IN PARTS;AVXC4H100 110 145C |
| DB90-02692B | ASSY COVER-PIPE;CH070CAV1,SSEC |
| DB97-18827B | ASSY CUSHION BOTTOM IN;915*915,VIPS CHAS |
| DB96-06597B | ASSY DISTRIBUTOR;DVM VIPS 4-WAY 10HOLE,S |
| DB94-01401A | ASSY DRAIN PARTS;-,R22,CH125EZVA |
| DB94-01500A | ASSY DRAIN-HOSE JOINT;-,CH070E |
| DB94-01063A | ASSY DRAIN-HOSE SOCKET;-,Y,R22,CH1 |
| DB94-01501A | ASSY DRAIN-HOSE;-,R410A,CH070EAM |
| DB96-06676B | ASSY EVAP PARTS;AVXC4H112EB,SSEC |
| DB96-06219C | ASSY EVAP SUB-BENDING;AVXC4H112EE,SSEC |
| DB96-16147A | ASSY EVAP SUB-BENDING;AVXC4H112EFXIA |
| DB96-16148A | ASSY EVAP SUB;AVXC4H112EFXIA |
| DB96-06220C | ASSY EVAP SUB;SSEC |
| DB94-01012A | ASSY FAN IN PARTS;CH140EAMC,SSEC |
| DB94-01001A | ASSY FAN-BOSS;CH140EAMC,SSEC |
| DB90-06701A | ASSY HOLDER-CLAMP;CH140EAMC,SSEC |
| DB97-12783A | ASSY MANUAL;AVXC4H052CE,DVM PLUS 3 INDOO |
| DB91-00919C | ASSY MICOM;DVM_INV SUPER2 MAIN MICOM,STM |
| DB91-00919B | ASSY MICOM;USA PLUS3_STAR, VIPS MICOM,ST |
| DB91-00919A | ASSY MICOM;USA PLUS3_STAR, VIPS MICOM,ST |
| DB97-04564A | ASSY PACKING IN PARTS;CH140EAMC,N,N,R410 |
| DB97-15140A | ASSY PACKING IN;D-1,E/S/F/I/P/D |
| DB97-14753A | ASSY PACKING-CASE IN;VIPS,D-2 |
| DB97-12788C | ASSY PRINT IN PARTS;AVXC4H100CE,DVM PLUS |
| DB96-06704A | ASSY TUBE-INLET;DVM VIPS 4-WAY 10PATH,SS |
| DB97-04799A | ASSY-GUARD SAFETY SCREW;HP,T,48K,Y,C |
| DB90-06843A | ASSY-GUARD SAFETY;CH140EAMC,PP |
| DB98-31758A | ASSY-INSTALLATION MANUAL;AVXC4H***CE ETC |
| DB98-30795A | ASSY-INSTALLATION MANUAL;AVXC4H110CE,SSE |
| DB98-30820A | ASSY-LABEL CAUTION DIP;HP,NO INV,USA PLU |
| DB98-13199A | ASSY-LABEL CAUTION;AVMCH140EA1 |
| DB98-31041A | ASSY-LABEL CAUTION;CO,NO,36K BTU,ENGLISH |
| DB98-31040E | ASSY-LABEL CAUTION;CO,NO,36K BTU,ENGLISH |
| DB98-27584A | ASSY-LABEL CAUTION;HP,INV,FOR KCV CONTRO |
| DB98-26630A | ASSY-LABEL DIAGRAM;HP,INV,48K BTU,AC 220 |
| DB98-30819C | ASSY-LABEL RATING IN;AVXC4H100CE,SILVER |
| DB97-03714B | ASSY-NUT;HP,INV,SLIM DUCT 1,SSEC |
| DB69-01022F | BAG ACCESSORY-PE |
| 6902-000103 | BAG PE |
| 6902-000092 | BAG PE |
| 6922-000041 | BAND |
| DB61-02706B | BASE-CONTROL;CH090EAS,ABS(5V),T1.6,569,5 |
| DB61-02738A | BOSS-FAN IN;CH140EAMC,AL(A30),D18.4,L2 |
| DB61-02740A | BOSS-FAN OUT;CH140EAMC,AL(A30),D33,L25 |
| DB61-02710A | BRACKET MOTOR;CH140EAMC,SGCC-M,T1.2,W59. |
| DB61-02708A | BRACKET-BASE CUSHION |
| DB61-03709A | BRACKET-CONDUIT;CH070CAV1,SGCC-M,0.7,40, |
| DB61-02699A | BRACKET-DRAIN BK |
| DB61-02697A | BRACKET-DRAIN LF |
| DB61-02709A | BRACKET-DRAIN PUMP |
| DB61-02698A | BRACKET-DRAIN RF |
| DB61-02700A | BRACKET-EARTH WIRE |
| DB61-01783A | BRACKET-WASHER FAN |
| 3002-001129 | BUZZER-PIEZO |
| 2401-002300 | C-AL |
| 2401-000832 | C-AL |
| 2401-000151 | C-AL |
| 2401-000038 | C-AL |
| 2401-000037 | C-AL |
| 2401-000027 | C-AL |
| 2401-004393 | C-AL;100UF,20%,500V,BK,25.4X30MM,10MM |
| 2203-000444 | C-CER, CHIP |
| 2203-000257 | C-CER, CHIP |
| 2203-000192 | C-CER, CHIP |
| 2203-001562 | C-CERAMIC, CHIP |
| 2201-000007 | C-CERAMIC, DISC |
| 2301-001414 | C-FILM,LEAD-PEF;470NF,20%,275V,BK,18X11X |
| DB64-01561A | CABINET BACK;CH140EAMC,GI-SGCC,T0.7,W298 |
| DB64-01560A | CABINET FRONT;CH140EAMC,GI-SGCC,T0.7,W29 |
| DB64-01563A | CABINET-BASE;CH140EAMC,GI-SGCC,T1.0, |
| DB64-01562A | CABINET-SIDE |
| DB65-10074D | CABLE CLAMP |
| DB65-10088C | CABLE TIE |
| 6501-001052 | CABLE TIE |
|
|
CABLE TIE |
| DB67-01188A | CAP-HOSE A;CH140EAMC,PVC,P-1000,GRAY,SSE |
| DB67-01189A | CAP-HOSE B;CH140EAMC,LS170,P-1000,GRAY,S |
| DB63-10374B | CAP-TUBE |
| DB67-00942A | CAP;VIVALDI-P/J,SHP2,1,5.2,11.5,18.5, |
| DB68-40091A | CARD-REGISTRATION |
| DC02-10009A | CHEMICALS-LOCK SCREW |
| DB65-10074B | CLAMP-CABLE |
| DB65-10074K | CLAMPER CORE |
| DB61-02349A | CLIP-BRUSH |
| DB27-00032A | COIL CHOKE |
| DB39-01251C | CONNECT WIRE |
| DB39-01251B | CONNECT WIRE |
| DB39-01250A | CONNECT WIRE |
| DB39-01259A | CONNECT WIRE-FAN MOTOR SUB |
| DB39-01252A | CONNECT WIRE-POWER |
| DB39-01249B | CONNECT WIRE-POWER;AVXC4H140EB,AWG#18,UL |
| 3711-003406 | CONNECTOR-HEADER |
| 3711-003405 | CONNECTOR-HEADER |
| 3711-003404 | CONNECTOR-HEADER |
| 3711-000997 | CONNECTOR-HEADER |
| 3711-000940 | CONNECTOR-HEADER |
| 3711-000796 | CONNECTOR-HEADER |
| 3711-000177 | CONNECTOR-HEADER |
| 3711-000176 | CONNECTOR-HEADER |
| 0102-001526 | COPPER TUBE , C1220T,O,6.35,0.6,ROLL, |
| 0102-001766 | COPPER TUBE;C1220T,0,7.94,0.6 |
| 0102-001761 | COPPER TUBE;C1220T,0,9.52,0.6 |
| 0102-001548 | COPPER TUBE;C1220T,O,15.88,0.8,ROLL, |
| 0102-001549 | COPPER TUBE;C1220T,O,15.88,1,ROLL, |
| 0102-001511 | COPPER TUBE;C1220T,O,3.25,0.6,ROLL, |
| 0102-001515 | COPPER TUBE;C1220T,O,6.35,0.7,ROLL, |
| 0102-001530 | COPPER TUBE;C1220T,O,7,0.41,ROLL |
| 0102-001537 | COPPER TUBE;C1220T,O,7.94,0.5,ROLL, |
| 0102-001536 | COPPER TUBE;C1220T,O,7.94,0.7,ROLL |
| 0102-001538 | COPPER TUBE;C1220T,O,7.94,0.7,ROLL, |
| 0102-001539 | COPPER TUBE;C1220T,O,9.5,0.7,ROLL, |
| 0102-001542 | COPPER TUBE;C1220T,O,9.52,0.7,ROLL, |
| 0102-000252 | COPPER-TUBE |
| DB31-40005A | CORE ROTOR |
| DB90-04523A | COVER ASSEMBLY CONTROL |
| DB90-01950B | COVER ASSEMBLY-DRAIN PUMP |
| DB63-01482A | COVER PIPE;CH140EAMC,GI-SGCC,T0.6, |
| DB63-01481B | COVER-CONTROL |
| DB63-00309A | COVER-DRAIN PUMP |
| DB69-01415A | CUSHION-BASE;CH140EAMC,1110G,W |
| DB69-02759A | CUSHION-BOTTOM IN;4-WAY (VIPS),EPS,45,W9 |
| DB69-01418A | CUSHION-BOTTOM;CH140EAMC,EPS,750 |
| DB69-01417A | CUSHION-TOP |
| DB69-02758A | CUSHION-TOP IN;4-WAY (VIPS),EPS,45,W498, |
| 0402-001227 | DIODE-BRIDGE |
| 0402-001194 | DIODE-RECTIFIER |
|
|
DIODE-SWITCHING |
| 0406-001257 | DIODE-TVS |
| 0406-001204 | DIODE-TVS |
| 0403-001285 | DIODE-ZENER |
| 0403-000252 | DIODE-ZENER |
| DB67-00674A | DRAIN HOSE-HOUSING IN;ADP-E075SEC,ABS,T2 |
| DB67-00675A | DRAIN HOSE-HOUSING OUT;ADP-E075SEC,ABS,T |
| DB67-00838A | DRAIN HOSE-HOUSING OUTLET;CH070EAMC,PVC, |
| DB67-01174A | DRAIN HOSE-SOCKET |
| DB67-00668A | DRAIN HOSE-SOCKET;CH140EAMC,POM,T3,SSE |
| DB69-01416A | DRAIN-CUSHON;CH140EAMC,EPS,EPS |
| 6042-001015 | EYELET |
| 6042-001014 | EYELET;ID2.0,OD2.4,L3.05,NI PLT,BRASS |
| DB67-00682A | FAN TURBO |
| DB60-00282A | FASTENER-BOLT WELD;CH140EAMC,MSWR10,D10, |
| DB60-30010D | FASTENER-NUT FLARE |
| DB60-30010B | FASTENER-NUT FLARE |
| DB62-04362A | FIN-FOIL;CH140EAMC,A1100,T 0.095,25.4,26 |
| DB01-00129A | FOIL |
| 3601-001308 | FUSE |
| 3601-000263 | FUSE-CARTRIDGE |
| DB63-01480A | GUARD-SAFETY;CH140EAMC,HSWR-SWRH,1.5MM, |
| DB63-03100A | GUARD-SAFETY;PP,T2.0,352.5,BLACK |
| 3711-005716 | HEADER-BOARD TO CABLE |
|
|
HEADER-BOARD TO CABLE |
| 3711-000939 | HEADER-BOARD TO CABLE |
| 3711-000794 | HEADER-BOARD TO CABLE |
| 3711-000577 | HEADER-BOARD TO CABLE |
| 3711-000296 | HEADER-BOARD TO CABLE |
| 3711-000203 | HEADER-BOARD TO CABLE |
| 3711-000178 | HEADER-BOARD TO CABLE |
| 3711-000015 | HEADER-BOARD TO CABLE |
| DB62-03085A | HEAT SINK |
| DB61-02701A | HOLDER-EVAP |
| DB61-00924A | HOLDER-FUSE |
|
|
HOLDER-SENSOR |
| DB61-00854A | HOLDER-SENSOR;AVMCH052B10,C1220T-O,T0.55 |
| DB61-02707A | HOLDER-SIDE CABINET;CH140EAMC,GI-SGCC,T2 |
| DB61-03149A | HOLDER-WIRE |
| DB61-00250A | HOLDER-WIRE CLAMP |
| DB67-00665A | HOSE DRAIN |
| DB67-01191A | HOSE DRAIN;CH140EAMC,PVC,BLACK,GRAY,SSEC |
| DB09-00338A | IC MICOM |
| 1006-001325 | IC-BUS TRANSCEIVER |
| 0801-000393 | IC-CMOS LOGIC |
| 1103-001228 | IC-EEPROM |
| 1103-001175 | IC-EEPROM |
| 1006-001371 | IC-LINE TRANSCEIVER |
| 1203-000274 | IC-POSI.FIXED REG. |
| 1203-002710 | IC-PWM CONTROLLER |
| 1203-003334 | IC-RESET |
| 2702-001123 | INDUCTOR-RADIAL |
| DB62-04318J | INSULATION PARTITION-SIDE;CH140EAMC,PUR |
| DB62-04318K | INSULATION PARTITION-TOP;CH140EAMC,EPDM, |
| DB62-04318W | INSULATION-CABI OUT |
| DB62-04956B | INSULATION-CABI OUT A |
| DB62-04318Y | INSULATION-CABI OUT A |
| DB62-04956C | INSULATION-CABI OUT B |
| DB62-07868A | INSULATION-CABI OUT B;TOWER,EPDM,3,95,59 |
| DB62-07868B | INSULATION-CABI OUT C;VIPS,EPDM,3,75,560 |
| DB62-04318S | INSULATION-COVER BAND;CH140EAMC,EPDM,T5, |
| DB62-01559A | INSULATION-COVER DRAIN |
| DB62-04318T | INSULATION-COVER DRAIN OUT;CH140EAMC,EDP |
| DB62-04282C | INSULATION-COVER IN PIPE SUB;PU FOAM,20 |
| DB62-04282B | INSULATION-COVER PIPE IN SUB;CH140EAMC,P |
| DB62-04282A | INSULATION-COVER PIPE IN SUB;CH140EAMC,P |
| DB62-04317A | INSULATION-COVER PIPE IN;CH140EAMC,EPDM, |
| DB62-04286A | INSULATION-COVER PIPE OUT;CH140EAMC,EPDM |
| DB62-04318H | INSULATION-COVER SIDE;CH140EAMC,EPDM,T5, |
| DB62-03438B | INSULATION-COVER TOP;CH140EAMC,PE FOAM,T |
| DB62-04318B | INSULATION-CUSHION BASE A;CH140EAMC,PUR |
| DB62-04318D | INSULATION-CUSHION BASE C;CH140EAMC,PE F |
| DB62-04318E | INSULATION-CUSHION BASE D;CH140EAMC,PUR |
| DB62-04318F | INSULATION-CUSHION BASE E;CH140EAMC,PUR |
| DB62-04318A | INSULATION-CUSHION BASE EVAP;CH140EAMC,E |
| DB62-04318G | INSULATION-CUSHION BASE F;-,PU FOAM,T10, |
| DB62-04319A | INSULATION-CUSHION FRONT LF;CH140EAMC,PU |
| DB62-04320A | INSULATION-CUSHION FRONT RH;CH140EAMC,PU |
| DB62-03440L | INSULATION-DRAIN HOSE;CH140EAMC,FOAM-PE, |
| DB62-11028A | INSULATION-DRAIN HOSE;CH140EAMC,PE FOAM, |
| DB62-11028G | INSULATION-DRAIN HOSE;PU FOAM,5,30,480,S |
| DB62-04318N | INSULATION-DRAIN-PAN BOTTOM A;CH140EAMC, |
| DB62-04318P | INSULATION-DRAIN-PAN BOTTOM B;CH140EAMC, |
| DB62-04318L | INSULATION-DRAIN-PAN CORNER;CH140EAMC,PU |
| DB62-04318Q | INSULATION-DRAIN-PAN OUTSIDE A;CH140EAMC |
| DB62-04318R | INSULATION-DRAIN-PAN OUTSIDE B;CH140EAMC |
| DB62-04318M | INSULATION-DRAIN-PAN SIDE;CH140EAMC,EPDM |
| DB62-04318X | INSULATION-DRAIN-PIPE;CH140EAMC,PUR FOAM |
| DB62-03440M | INSULATION-DRAIN;CH140EAMC,FOAM-PE,T10,W |
| DB62-04321A | INSULATION-FAN STOP |
| DB62-11028B | INSULATION-HOSE A;CH070EAMC,PE FOAM,SSEC |
| DB62-11028C | INSULATION-HOSE B;PE FOAM,3,MB9500,SSEC |
| DB62-11028E | INSULATION-HOSE D;PE FOAM,10,150,MB9500, |
| DB72-00143E | INSULATION-INSTALL INLET |
| DB72-00143D | INSULATION-INSTALL OUTLET |
| DB62-03439J | INSULATION-OUT;-,EPDM,T5,200,230, |
| DB62-11028F | INSULATION-TUBE OUT;PE FOAM,10,200,GRA |
| DB73-00461W | INSULATION;CH140EZMC/SER,BUTYL,L260*W180 |
| DB68-02809A | LABEL BAR CODE |
| DB68-03065A | LABEL BAR CODE;PET,45,15,E-PASS |
| DB98-33749A | LABEL CAUTION;-,ART,W148,L210,ZH+EN+KO |
| DB68-02813A | LABEL WARNING |
| DB98-31132A | LABEL WARNING;-,PET,WW1,WB |
| DB68-01350A | LABEL-BAR CODE |
| DB39-01276A | LEAD CONNECTOR-WIRE GROUND;CH140EAMC,UL1 |
| DB39-01251E | LEAD CONNECTOR-WIRE POWER COMMUNICATION; |
| 0601-001377 | LED |
| 0601-001375 | LED |
| 0601-001373 | LED |
| DB93-08895D | MAIN PCB ASSEMBLY-IN |
| DB93-05981G | MAIN PCB ASSEMBLY-IN |
| DB31-00364C | MOTOR FAN |
| DB31-00364A | MOTOR FAN |
| DB61-02501A | MOUNT-TIE |
| DB67-60003A | NIPPLE |
| DB67-60023B | NIPPLE;W-PJT,MBS,25.5,5/8-18UNF |
| DB60-30028A | NUT-FLANGE |
| DB60-30004A | NUT-FLANGE |
| DB81-00668A | O RING |
| DB69-01460A | PACKING CASE-IN |
| DB69-02461A | PACKING CASE-IN;VIPS,CB,D-3,360,926,925, |
| DB69-02482A | PACKING CASE;VIPS1,CB,D-1,340,917,918,SS |
| DB69-00165A | PAD--STOPPER |
| DB69-01463A | PAD-BOTTOM IN |
| DB69-01463B | PAD-BOTTOM IN;CH140EAMC,CB,W874,L874, |
| DB69-01490C | PAD-INSTALL |
| DB67-00667A | PARTITION-FRONT EVAP |
| DB41-00490A | PBA LOGIC BOARD;CH140EAMC,FR-1,T1.6 |
| DB41-00489A | PBA LOGIC BOARD;CH140EAMC,FR-1,T1.6 |
| DB93-04119D | PCB ASSEMBLY SUB-POWER |
| DB41-00908A | PCB MAIN-IN;CH140EAMC,CEM-3,60209A6,T1.6 |
| 0604-001038 | PHOTO-COUPLER |
| 0604-001003 | PHOTO-COUPLER |
| DB60-70016A | PIN-STAPLE |
| DB61-02703A | PLATE-EVAP LF |
| DB61-02702A | PLATE-EVAP RH |
| DB67-00790A | PUMP DRAIN |
| 2007-001118 | R-CHIP |
| 2007-001074 | R-CHIP |
| 2007-001067 | R-CHIP |
| 2007-000944 | R-CHIP |
| 2007-000938 | R-CHIP |
| 2007-000931 | R-CHIP |
| 2007-000872 | R-CHIP |
| 2007-000766 | R-CHIP |
| 2007-000613 | R-CHIP |
| 2007-000493 | R-CHIP |
| 2007-000477 | R-CHIP |
| 2007-000468 | R-CHIP |
| 2007-000355 | R-CHIP |
| 2007-000300 | R-CHIP |
| 2007-000030 | R-CHIP |
| 2007-000023 | R-CHIP |
| 2003-002246 | R-METAL OXIDE |
| 2003-000448 | R-METAL OXIDE(S) |
| 3501-001248 | RELAY-MINIATURE |
|
|
RELAY-MINIATURE |
| 0103-004031 | RESIN ABS;ABSPC100,BLACK,BK0003 |
| 0103-003325 | RESIN PA66;FR50/BK0001,BLACK,BK0001,V-0, |
| 0103-002637 | RESIN PA66;NY66/NATURAL,NATURAL,NC0001,N |
| 0103-004066 | RESIN PC ABS;PC-510,GRAY,GY0001,N |
| 0103-002190 | RESIN PC;3022IR/NATURAL,NATURAL,NC0001,V |
| 0103-001494 | RESIN POM;K300/WHITE,INNER WHITE,WT0001, |
| 0103-004034 | RESIN SAN;ASG20,NATURAL,NC0001,GF20%,N |
| 0103-002713 | RESIN-PVC |
| 2802-001179 | RESONATOR-CERAMIC |
| DB73-00461Q | RUBBER-BUTYL;-,IIR,260*180,T3, |
| DB73-00552A | RUBBER-BUTYL;CH105EAV,IIR,180*260, |
| DB73-00552C | RUBBER-BUTYL;CH140EAV,IIR,T2,180*260,BLA |
| DB73-00349A | RUBBER-CAP DRAIN SOCKET |
| DB73-00023B | RUBBER-COVER WIRE |
| DB73-00348A | RUBBER-GROMMET MOTOR |
| DB73-00346A | RUBBER-PLUG |
| DB73-00345A | RUBBER-PUMP |
| DB62-10475A | RUBBER-PUMP;RC018FQREA,SIR,10MM,1.5MM,60 |
| DB73-00347A | RUBBER-WIRE |
|
|
SCREW-SPECIAL |
| DB60-00149A | SCREW-SPECIAL REACTOR |
| 6002-001117 | SCREW-TAPPING |
|
|
SCREW-TAPPING |
| 6002-000536 | SCREW-TAPPING |
| 6002-000527 | SCREW-TAPPING |
| 6002-000240 | SCREW-TAPPING |
|
|
SCREW-TAPPING |
| 6002-000234 | SCREW-TAPPING |
| 6002-000214 | SCREW-TAPPING |
|
|
SCREW-TAPPING |
| 6003-000336 | SCREW-TAPTYPE |
| DB62-06951A | SEAL-COVER PIPE;-,FOAM-PE+FELT,T7,OD36 |
| DB62-06951B | SEAL-COVER PIPE;-,FOAM-PE+FELT,T8.5,OD |
| DB62-04273F | SEAL-COVER SIDE E |
| DB62-05780S | SEAL-CUSHION BASE G;CASSETTE,PUR FOAM, |
| DB62-05780T | SEAL-CUSHION BASE H;-,PE FOAM,T3,40,15 |
| DB62-05780U | SEAL-DRAIN PAN A;CASSETTE,PUR FOAM,T5, |
| DB62-05780V | SEAL-DRAIN PAN B;-,PE FOAM,T3,22,15, |
| DB62-05780W | SEAL-DRAIN PAN C;CASSETTE,PUR FOAM,T3, |
| DB62-05780X | SEAL-DRAIN PAN D;CASSETTE,PUR FOAM,T3, |
| DB62-05579C | SEAL-INSULATION;-,FOAM-PE+FOAM-PU,T13, |
| DB63-01478A | SHEET-DRAIN;CH140EAMC,HIPS,T1.5, |
| 0202-001163 | SOLDER-SILVER |
| 0202-001022 | SOLDER-SILVER |
| 0202-001464 | SOLDER-SILVER;L450,91CU/1.9AG/6.95P |
| DB69-00137A | SPRING ETC |
| DB67-60030A | SPRING-SENSOR |
| 0101-002930 | STEEL PLATE;GI,SGCC,0.7,Z12,NC |
| 0101-002932 | STEEL PLATE;GI,SGCC,0.8MM,647MM,Z12,NC |
| 0101-002933 | STEEL PLATE;GI,SGCC,1,Z14,NC |
| 0101-002935 | STEEL PLATE;GI,SGCC,1.2MM,700MM,Z14,NC |
| 0101-002940 | STEEL PLATE;GI,SGCC,2,Z14,NC |
| 0101-003144 | STEEL PLATE;STAINLESS,STS430,0.8MM,NO.2B |
| DB34-00059A | SWITCH FLOAT |
| DB34-00009A | SWITCH-DIGITAL |
| 3407-000121 | SWITCH-DIP |
| 3406-001106 | SWITCH-ROTARY;24VDC,15MA,10,L14MM |
| DA02-10149A | TAPE ETC |
| DA02-00013A | TAPE ETC |
| DB02-00045B | TAPE ETC-PVC;NS1004PXEA,PVC,0.15MM,25,26 |
| DB02-00045A | TAPE ETC-PVC;NS1004PXEA,PVC,0.15MM,25,30 |
| DB02-00029B | TAPE ETC;RAC,OPP,0.05MM,80MM,500M,TRANSP |
| DE02-00029B | TAPE FILAMENT |
| DA02-10017J | TAPE-FILAMENT |
| DB65-00230C | TERMINAL BLOCK;4WAY,PC,4MM^2,67.5*30*19M |
| DB65-00230B | TERMINAL BLOCK;4WAY,PC,4MM^2,90.5*30*19M |
| 1404-001316 | THERMISTOR-NTC |
| 0506-000175 | TR-ARRAY |
| 0504-000001 | TR-DIGITAL |
| 0501-002296 | TR-SMALL SIGNAL |
| 0501-000534 | TR-SMALL SIGNAL |
| DB26-00101A | TRANS SWITCHING;-,DVMPLUS3 INDIA,310V,20 |
| DB62-02813A | TUBE HAIR PIN |
| DB62-03832A | TUBE-BONNET;EH070EZMC,X1220T-0,0.6,7.94, |
| DB62-07671G | TUBE-CAP A;C1220T-0,T1.0,L5 |
| DB62-07672B | TUBE-CAPI A;C1220T-0,L350 |
| DB62-07672C | TUBE-CAPI B;C1220T-0,L250 |
| DB62-07672D | TUBE-CAPI C;C1220T-0,L250 |
| DB62-07672E | TUBE-CAPI D;C1220T-0,L200 |
| DB62-07672F | TUBE-CAPI E;C1220T-0,L500 |
| DB62-07671E | TUBE-COLLECTOR A;C1220T-0,T0.8,OD 15.88, |
| DB62-06999A | TUBE-CU;C1220T-O,T0.25,OD7,L,ID6.3,TW0.2 |
| DB62-00541C | TUBE-FILTER;AVMCC052EA0,C1220T-H,T1,OD19 |
| DB62-04322A | TUBE-HAIR PIN;CH140EAMC,C1220T-0,0.25,7. |
| DB62-07671A | TUBE-INLET A;C1220T-0,T0.6,OD6.35,L91.8, |
| DB62-07672A | TUBE-INLET A;C1220T-O,T0.7,OD9.52,L168, |
| DB62-07671B | TUBE-INLET B;C1220T-0,T0.7,OD 6.35,L87.8 |
| DB62-07672G | TUBE-INLET B;C1220T-0,T0.7,OD9.52,L208, |
| DB62-07671C | TUBE-INLET C;C1220T-0,T0.7,OD 6.35,L87.5 |
| DB62-07671D | TUBE-INLET D;C1220T-0,T0.7,OD 6.35,L84.7 |
| DB62-30369A | TUBE-U BEND |
| DB62-04068A | VALVE COIL EXPAN |
| DB62-04066A | VALVE EXPAN |
| 1405-000160 | VARISTOR |
| DB68-01675A | WARRANTY CARD |
