Manufacturer
Samsung
Model Number
AVXWNH052CE
Description
Air Conditioner
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| DB94-00615D | ASSEMBLY BACK BODY |
| DB98-30154A | ASSEMBLY BAR CODE BOX |
| DB94-40007B | ASSEMBLY BEARING |
| DB97-02075A | ASSEMBLY BOLT SPECIAL |
| DB94-00479A | ASSEMBLY BOSS FAN |
| DB93-06766A | ASSEMBLY CONNECTOR WIRE |
| DB93-05903B | ASSEMBLY CONNECTOR WIRE |
| DB93-05903A | ASSEMBLY CONNECTOR WIRE |
| DB93-04832A | ASSEMBLY CONNECTOR WIRE |
| DB93-04685A | ASSEMBLY CONNECTOR WIRE |
| DB93-04547C | ASSEMBLY CONNECTOR WIRE |
| DB93-04547B | ASSEMBLY CONNECTOR WIRE |
| DB93-04635A | ASSEMBLY CONNECTOR WIRE-COMMUNICATION |
| DB93-09647A | ASSEMBLY CONNECTOR WIRE-DISPLAY |
| DB93-10962A | ASSEMBLY CONNECTOR WIRE;8,1007,26,RED,SMH200 |
| DB93-09813A | ASSEMBLY CONTROL IN |
| DB93-06038F | ASSEMBLY CONTROL IN |
| DB93-02867C | ASSEMBLY DISPLAY |
| DB96-06587D | ASSEMBLY EVAP |
| DB96-07606A | ASSEMBLY EVAP-MAIN |
| DB96-06525B | ASSEMBLY EVAP-SUB |
|
|

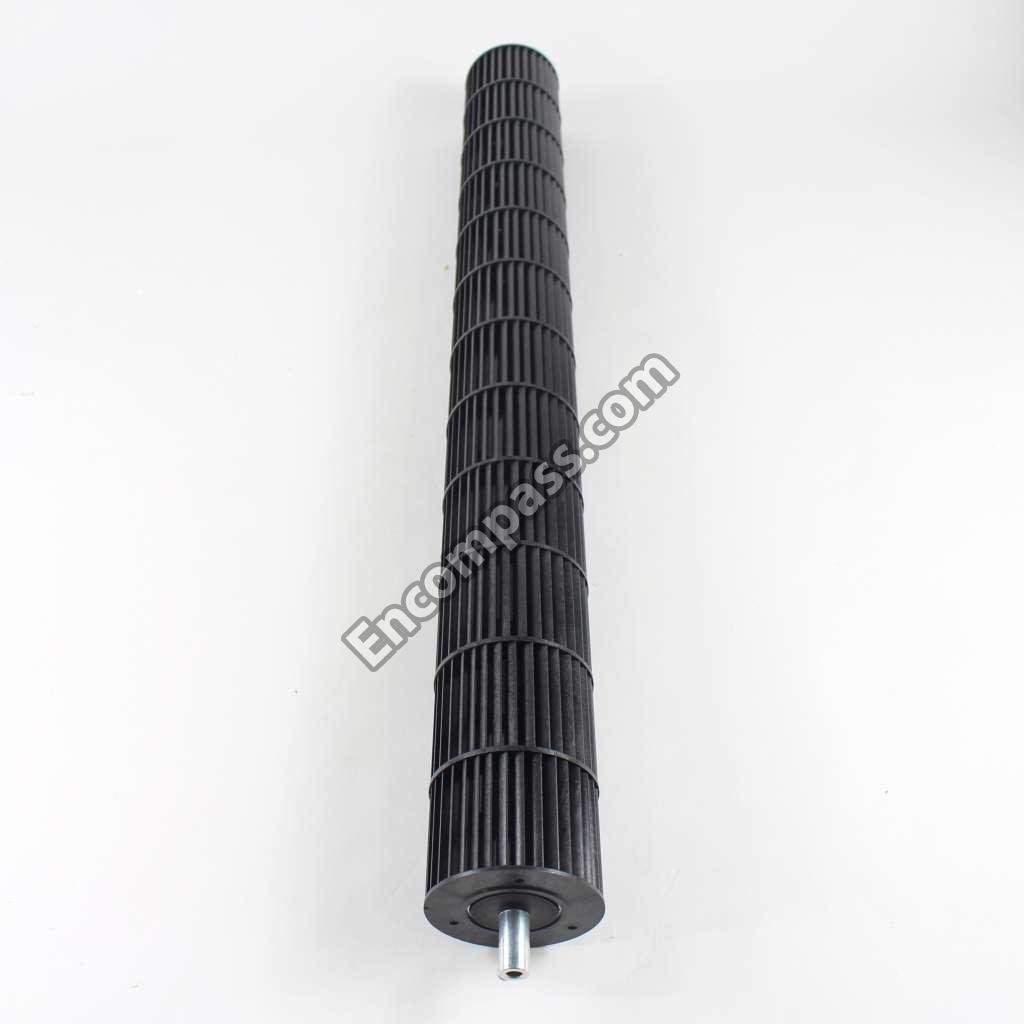

ASSEMBLY FAN CROSS |
| DB94-01140A | ASSEMBLY FAN IN PARTS |
|
|
ASSEMBLY FILTER BIO |
| DB98-13261A | ASSEMBLY GARANTIE CARD |
| DB92-01196A | ASSEMBLY GRILLE AIR INLET |
| DB94-00458E | ASSEMBLY HOSE DRAIN |
| DB94-00458D | ASSEMBLY HOSE DRAIN |
| DB96-03813A | ASSEMBLY INSULATION TUBE |
| DB98-29143A | ASSEMBLY LABEL BAR CODE |
| DB98-28433A | ASSEMBLY LABEL BARCODE |
| DB98-28879A | ASSEMBLY LABEL DIAGRAM |
| DB98-28031A | ASSEMBLY LABEL EVAP |
| DB92-01901A | ASSEMBLY PANEL FRONT |
| DB92-01235A | ASSEMBLY PANEL FRONT |
| DB90-02738A | ASSEMBLY PLATE HANGER |
| DB98-13260A | ASSEMBLY REGISTRATION CARD |
|
|
ASSEMBLY REMOTE CONTROL |
|
|
ASSEMBLY RUBBER BEARING |
| DB97-02086A | ASSEMBLY SCREW |
| DB97-02418A | ASSEMBLY SCREW TAPPING |
| DB97-02417A | ASSEMBLY SCREW TAPPING |
| DB90-04857A | ASSEMBLY SUPPORT EVAP |
|
|

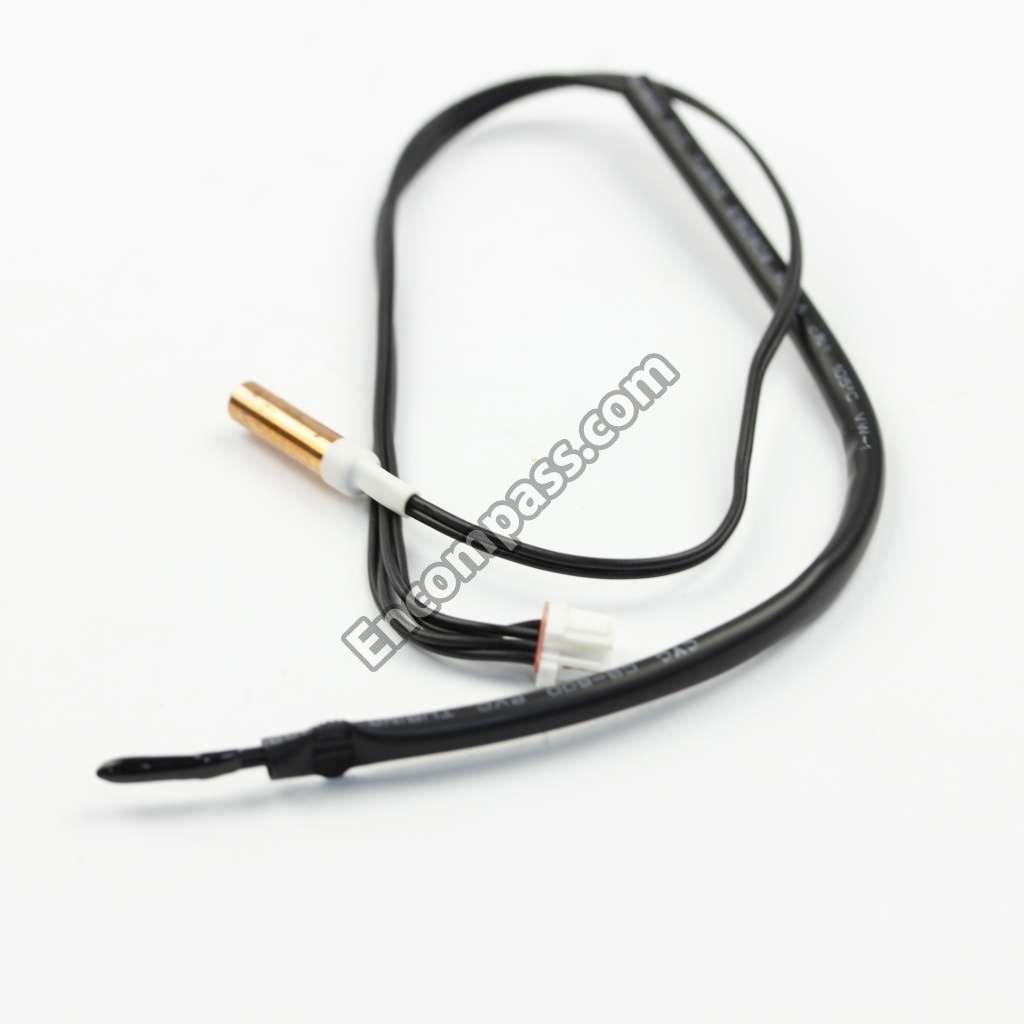

ASSEMBLY THERMISTOR |
| DB95-01985A | ASSEMBLY THERMISTOR |
| DB95-01990A | ASSEMBLY THERMISTOR IN |
| DB94-00616K | ASSEMBLY TRAY DRAIN |
| DB94-00616H | ASSEMBLY TRAY DRAIN |
| DB96-07589A | ASSEMBLY TUBE EVAP IN |
| DB96-07590A | ASSEMBLY TUBE EVAP OUT |
| DB96-10257A | ASSEMBLY TUBE U BEND |
| DB96-10256A | ASSEMBLY TUBE U BEND |
| DB93-50001A | ASSEMBLY WIRE RING SOLD |
| DB90-04995A | ASSY CABI IN PARTS;INDOOR FORTE 2,DVM PL |
| DB93-08327A | ASSY CONTROL IN PARTS;AVXWNH052 060CE,FO |
| DB90-03966H | ASSY COVER-TERMINAL;INDOOR FORT 2,DVM PL |
| DB94-02013A | ASSY DRAIN PARTS;-,EXPORT,SSEC |
| DB96-07600A | ASSY EVAP PARTS;MH052FVEA,FJM SSEC |
| DB97-12787A | ASSY MANUAL;AVXWNH020CE,DVM PLUS 3 NEO-F |
| DB91-00923B | ASSY MICOM;USA PLUS3-NEO FORTE MICOM,STM |
| DB91-00923A | ASSY MICOM;USA PLUS3-NEO FORTE MICOM,STM |
| DB97-12800A | ASSY PACKING IN PARTS;INDOOR NEO-FORTE 2 |
| DB92-01726A | ASSY PANEL FRONT PARTS;DVM INDOOR NEO-FO |
| DB97-12792D | ASSY PRINT IN PARTS;AVXWNH052CE,FORTE DV |
| DB98-31762A | ASSY-INSTALLATION MANUAL;AVXWNH***CE ETC |
| DB98-30797A | ASSY-INSTALLATION MANUAL;AVXWNH052CE,SSE |
| DB98-30815A | ASSY-INSTRUCTION MANUAL;AVXWNH020CE,SSEC |
| DB98-27584A | ASSY-LABEL CAUTION;HP,INV,FOR KCV CONTRO |
| DB98-32398A | ASSY-LABEL DIAGRAM;HP,INV,ENGLISH,OUT,FJ |
| DB98-30816J | ASSY-LABEL RATING IN;AVXWNH052CE,TRP PET |
| DB97-11984A | ASSY-SCREW;-,RAC,SSEC |
| DB69-00921A | BAG CARRYING;HDPE,T0.02,W95,L200,TRP,REC |
| 6902-000535 | BAG PE |
| 6902-000103 | BAG PE |
| 6902-001146 | BAG PE;HDPE,T0.015,W250,L500,WHT,NONE,2 |
| 6902-001458 | BAG PE;HDPE,T0.02,W1300,L500,WHT,28LANGU |
| DB47-90024A | BATTERY-MN |
| DB61-01975C | BLADE-H |
| DB61-01976A | BLADE-V |
| DB61-01974B | BODY BACK |
| DB69-01039A | BODY BACK-CUSHION |
| DB61-01977A | BRACKET-EVAP |
| 3002-001129 | BUZZER-PIEZO |
| 2401-004219 | C-AL |
| 2401-002300 | C-AL |
| 2401-000151 | C-AL |
| 2401-000037 | C-AL |
| 2203-000444 | C-CER, CHIP |
| 2203-000257 | C-CER, CHIP |
| 2203-000192 | C-CER, CHIP |
| 2203-001562 | C-CERAMIC, CHIP |
| 2201-000987 | C-CERAMIC, DISC |
| 2201-000983 | C-CERAMIC, DISC |
| 2202-000780 | C-CERAMIC, MLC-AXIAL |
| 2202-000173 | C-CERAMIC, MLC-AXIAL |
| 2301-001916 | C-FILM, LEAD |
| 2301-001220 | C-FILM, LEAD-PPF |
| 2301-001439 | C-FILM,LEAD-PPF;220NF,10%,275V,BK,18X10X |
| DB65-10088C | CABLE TIE |
| DB65-10088D | CABLE-TIE |
| DB67-00499D | CAP-SCREW |
| DB67-00942A | CAP;VIVALDI-P/J,SHP2,1,5.2,11.5,18.5, |
| DB68-40091A | CARD-REGISTRATION |
| DB61-01979B | CASE-CONTROL IN |
| DC02-10009A | CHEMICALS-LOCK SCREW |
| DB61-03857A | CLIP-DRAIN HOSE;-,STS304,T1, |
| DB27-00011A | COIL CHOKE |
| DB39-01107B | CONNECT WIRE-POWER |
| 3711-003404 | CONNECTOR-HEADER |
| 3711-000997 | CONNECTOR-HEADER |
| 3711-000760 | CONNECTOR-HEADER |
| 3711-000262 | CONNECTOR-HEADER |
| 3711-000177 | CONNECTOR-HEADER |
| 3711-000176 | CONNECTOR-HEADER |
| 0102-001525 | COPPER TUBE |
| 0102-001526 | COPPER TUBE , C1220T,O,6.35,0.6,ROLL, |
| 0102-001515 | COPPER TUBE;C1220T,O,6.35,0.7,ROLL, |
| 0102-001530 | COPPER TUBE;C1220T,O,7,0.41,ROLL |
| 0102-001533 | COPPER TUBE;C1220T,O,7,0.6,ROLL, |
| 0102-001534 | COPPER TUBE;C1220T,O,7,0.7,ROLL, |
| 0102-001537 | COPPER TUBE;C1220T,O,7.94,0.5,ROLL, |
| 0102-001539 | COPPER TUBE;C1220T,O,9.5,0.7,ROLL, |
| 0102-001544 | COPPER-TUBE |
| 0102-000252 | COPPER-TUBE |
| DB90-02082D | COVER ASSEMBLY-PCB |
| DB90-02082A | COVER ASSEMBLY-PCB |
| DB63-01659A | COVER PCB |
| DB63-01987B | COVER TERMINAL;MH052FNCA,ABS,5,116,123,V |
| DB63-01065A | COVER-BEARING |
| DB63-01062C | COVER-DISPLAY |
| DB63-01005A | COVER-FLARE |
| DB63-00851A | COVER-LAMP |
| DB69-01024A | CUSHION |
| DB69-01564A | CUSHION-LF |
| DB69-01565A | CUSHION-RH |
| DB64-02046A | DECORATION-GRILLE AIR INLET;NEO FRONT,AB |
| DB64-02048A | DECORATION-GRILLE LF |
| DB64-02047A | DECORATION-GRILLE RH |
|
|
DIODE-BRIDGE |
| 0402-001194 | DIODE-RECTIFIER |
|
|
DIODE-RECTIFIER |
|
|
DIODE-SWITCHING |
| 0401-000005 | DIODE-SWITCHING |
| 0406-001257 | DIODE-TVS |
| 0406-001204 | DIODE-TVS |
| 0403-001285 | DIODE-ZENER |
| 0403-000252 | DIODE-ZENER |
| DB75-00281E | EVAPORATOR-MAIN;AQT24W6WE,ASSY,2,10,850, |
| DB75-00282K | EVAPORATOR-SUB |
| DB67-00394A | FAN-CROSS A |
| DB67-00395A | FAN-CROSS B |
| DB67-00396A | FAN-CROSS C |
| DB60-30010C | FASTENER-NUT FLARE |
| DB60-30010A | FASTENER-NUT FLARE |
| DB63-00615B | FILTER-CLEANER |
|
|
FILTER-DEODORIZATION |
| DB62-02906E | FIN EVAP-A;AQT24W6WE,A1100-H26,T0.095, |
| DB62-02907E | FIN EVAP-B |
| DB01-00129A | FOIL |
| 3601-000263 | FUSE-CARTRIDGE |
| 3601-001209 | FUSE-RADIAL LEAD |
| DB64-02045A | GRILLE-AIR INLET;NEO FORTE,ABS,2.5,230.4 |
| DB63-01592C | GUARD-AIR FILTER |
| DB63-01592B | GUARD-AIR FILTER |
| 3711-005716 | HEADER-BOARD TO CABLE |
| 3711-004484 | HEADER-BOARD TO CABLE |
| 3711-004379 | HEADER-BOARD TO CABLE |
| 3711-004352 | HEADER-BOARD TO CABLE |
| 3711-004236 | HEADER-BOARD TO CABLE |
| 3711-003942 | HEADER-BOARD TO CABLE |
| 3711-003846 | HEADER-BOARD TO CABLE |
| 3711-002001 | HEADER-BOARD TO CABLE |
| 3711-000879 | HEADER-BOARD TO CABLE |
| 3711-000178 | HEADER-BOARD TO CABLE |
| DB61-00924A | HOLDER-FUSE |
| DB61-01981B | HOLDER-PIPE |
| DB61-03873A | HOLDER-REMOTE CONTROL |
|
|
HOLDER-SENSOR |
| DB61-00854A | HOLDER-SENSOR;AVMCH052B10,C1220T-O,T0.55 |
| DB61-01097A | HOLDER-WIRE CLAMP |
| DB67-00944B | HOSE DRAIN;VIVALDI,PP+LDPE,ID15.6,OD20.0 |
| DB67-00944A | HOSE DRAIN;VIVALDI,PP,BLACK,HG-0760S,S |
| DB09-00338A | IC MICOM |
| 1006-001325 | IC-BUS TRANSCEIVER |
| 0801-000393 | IC-CMOS LOGIC |
| 1103-001228 | IC-EEPROM |
| 1103-001175 | IC-EEPROM |
| 1006-001371 | IC-LINE TRANSCEIVER |
| 1203-000429 | IC-POSI.FIXED REG. |
| 1203-000274 | IC-POSI.FIXED REG. |
| 1203-002662 | IC-PWM CONTROLLER |
| 1203-002545 | IC-PWM CONTROLLER |
| 1203-003334 | IC-RESET |
| 1003-001462 | IC-SOURCE DRIVER |
| DB62-03481A | INSULATION TUBE |
| DB62-05974B | INSULATION-HOSE;VIVALDI,PE FOAM,3,82.5,3 |
| DB62-05974A | INSULATION-HOSE;VIVALDI,PE FOAM,4,97,525 |
| DB68-02809A | LABEL BAR CODE |
| DB98-05725B | LABEL INSTRUCTION |
| DB68-02813A | LABEL WARNING |
| DB98-30437A | LABEL WARNING;-,ART,W45,L55,L/ |
| DB98-31132A | LABEL WARNING;-,PET,WW1,WB |
| DB68-01350A | LABEL-BAR CODE |
| 0601-001375 | LED |
| 0601-001373 | LED |
| DB93-09456R | MAIN PCB ASSEMBLY-IN |
| DB93-08297D | MAIN PCB ASSEMBLY-IN |
| 0609-001204 | MODULE REMOTE CONTROL |
|
|

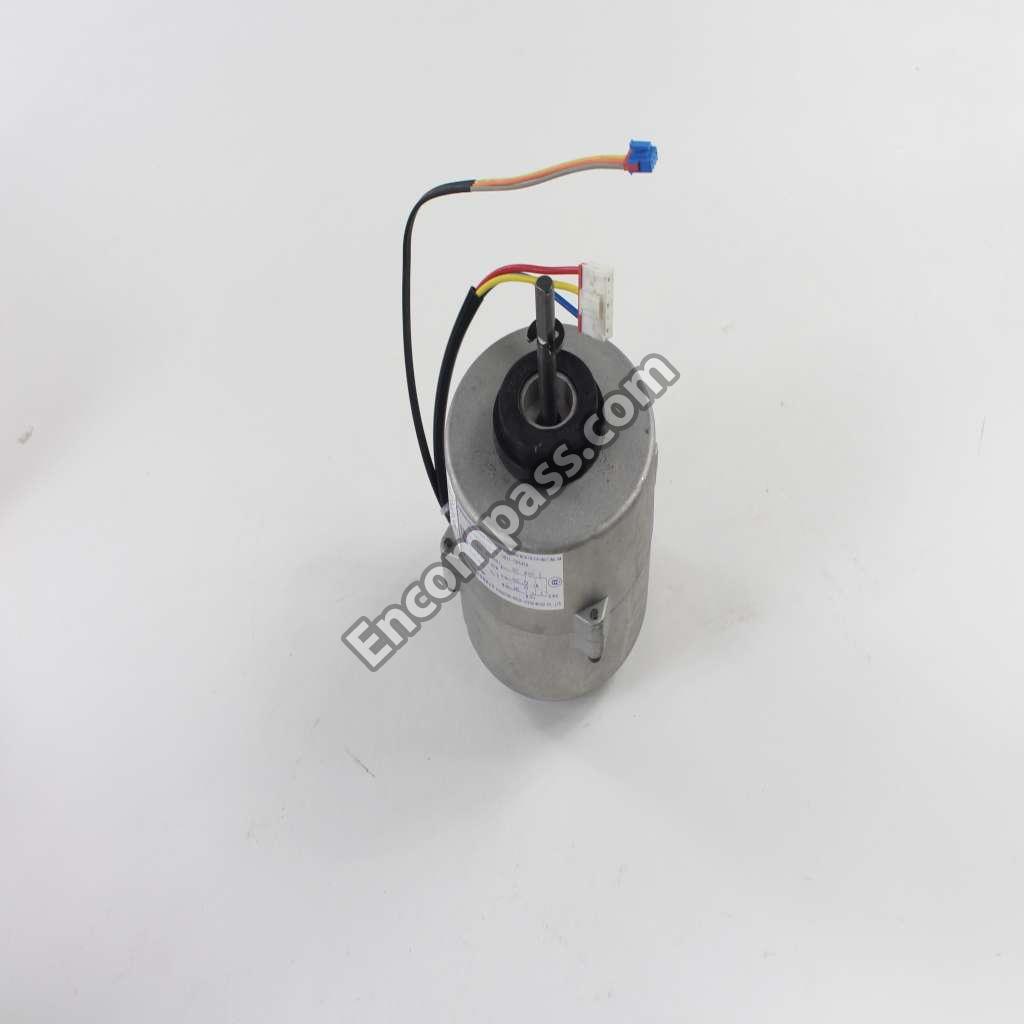

MOTOR FAN |
| DB31-00370A | MOTOR STEP |
| DB31-00285A | MOTOR STEPPING |
| DB67-00276A | NIPPLE |
| DB67-60023A | NIPPLE-1/4' |
| DB67-00276F | NIPPLE;C3604,3/4-16UNF |
| DB69-02264B | PACKING CASE-IN;VIVACE 2,CB,D-3,281,386, |
| DB69-02585B | PACKING CASE-IN;WW2-PJT,CB,DW2,L368,W112 |
| DB69-00899D | PAD CUSHION |
| DB69-01050A | PAD-TOP IN |
| DB64-01184C | PANEL FRONT |
| DB93-04640D | PCB ASSEMBLY SUB |
|
|
PCB ASSEMBLY SUB |
| DB93-10977A | PCB ASSEMBLY SUB-DISPLAY |
| DB41-00943A | PCB MAIN-IN;FJM RAC,CEM-3,T1.6,2,600V |
| DB41-00565A | PCB MAIN;FJM-VIVACE,FR-4,2,1.0,T1.6,120* |
| DB41-00352A | PCB SUB |
| DB41-00566A | PCB SUB;FJM-VIVACE,FR-4,2,1.0,T1.6,50*35 |
| 0604-001148 | PHOTO-COUPLER |
| 0604-001038 | PHOTO-COUPLER |
| 0604-001003 | PHOTO-COUPLER |
| 0604-000117 | PHOTO-COUPLER |
| DB60-70016A | PIN-STAPLE |
| DB70-00507A | PLATE-CONTROL IN |
| DB70-00507C | PLATE-CONTROL IN;EXPORT,SGCC-M,1,92.2,10 |
| DB61-03902A | PLATE-CONTROL LOW;RVXIHF040EAXIA,GI-SGCC |
| DB61-02316A | PLATE-COVER PCB;AQT24W6WE,SGCC-M,T0.4, |
| DB70-00502A | PLATE-EVAP A |
| DB70-00943A | PLATE-EVAP A;VIVALDI-3,GI-SGCC,T0.8 |
| DB70-00503A | PLATE-EVAP B |
| DB70-00504A | PLATE-EVAP C |
| DB70-00704A | PLATE-HANGER LINK |
| DB70-00703A | PLATE-HANGER MAIN |
| DB61-02761A | PLATE-KNOCK OUT |
| DB63-00014A | PLUG-RUBBER |
| 2001-000109 | R-CARBON(S) |
| 2007-001071 | R-CHIP |
| 2007-001067 | R-CHIP |
| 2007-000944 | R-CHIP |
| 2007-000941 | R-CHIP |
| 2007-000931 | R-CHIP |
| 2007-000872 | R-CHIP |
| 2007-000766 | R-CHIP |
| 2007-000493 | R-CHIP |
| 2007-000468 | R-CHIP |
| 2007-000300 | R-CHIP |
|
|
R-CHIP |
| 2007-000285 | R-CHIP |
| 2007-000030 | R-CHIP |
| 2007-000023 | R-CHIP |
| 2002-001104 | R-COMPOSITION;12MOHM,5%,1/2W,AA,TP,3.4X9 |
| 2003-000448 | R-METAL OXIDE(S) |
| 3501-001248 | RELAY-MINIATURE |
| 0103-004031 | RESIN ABS;ABSPC100,BLACK,BK0003 |
| 0103-001464 | RESIN ABS;ES-0163,PAPER WHITE,WT0047 |
| 0103-003102 | RESIN ABS;HG-0760H,INOX,NC0001 |
| 0103-004017 | RESIN ABS;HI-121H,NATURAL,NC0001 |
| 0103-003982 | RESIN ABS;HI121H,BLACK,BK0001,HB |
| 0103-004073 | RESIN GPPS;PG33,NATURAL,NC0001 |
| 0103-003269 | RESIN HIPS;F-744/NATURAL,NATURAL,NC0001, |
| 0103-000286 | RESIN HIPS;HR-1360,NATURAL,NC0001 |
| 0103-004092 | RESIN HIPS;PH-88,FRAME GRAY,SC-01623R |
| 0103-003376 | RESIN LDPE;MB9500,NATURAL,NC0001,N |
| 0103-004066 | RESIN PC ABS;PC-510,GRAY,GY0001,N |
| 0103-004069 | RESIN PC ABS;PC-510,GRAY,GY0020,N |
| 0103-003481 | RESIN PP;BJ730,WHITE,WT0054 |
| 0103-004053 | RESIN PP;M1600,NATURAL,NC0001 |
| 0103-004036 | RESIN SAN;ASG30,NATURAL,NC0001 |
| 0103-002713 | RESIN-PVC |
| 2802-001179 | RESONATOR-CERAMIC |
| DB73-00461R | RUBBER BUTYL |
| DB73-00242B | RUBBER-BAND;WW2-P/J,SI,SSEC,BLACK,L125*W |
| DB73-00181A | RUBBER-BEARING |
| DB73-00180B | RUBBER-CAP DRAIN |
| DB73-00486A | RUBBER-HOSE;VIVALDI,NBR,L19.7,SSEC,BLA |
| DB73-00292H | RUBBER-PCB;AW07P2AXTC,SI,B5R1,90,50,XTC, |
| DB73-00292J | RUBBER-PCB;EXPORT,SI,77X25,50,BLACK,V0 |
| DB73-00292B | RUBBER-PCB;WW2-PJ,SI,70X20XT1,BLACK,V0 |
| 6001-001054 | SCREW-MACHINE |
| 6001-000929 | SCREW-MACHINE |
|
|
SCREW-SPECIAL |
| 6002-000535 | SCREW-TAPPING |
| 6002-000534 | SCREW-TAPPING |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPPING |
| DB62-02912E | SEAL-B/B RH |
| DB62-04716A | SEAL-BACK BODY RH |
| DB62-02912U | SEAL-EVAP UP;-,LEX FOAM,3,23,865,N |
| DB62-03482A | SEAL-INSULATION TUBE |
| DB62-01567D | SEAL-MOTOR |
| DB62-02912N | SEAL-PANEL;-,PU FOAM,T15,W15,15, |
| DB62-02912H | SEAL-SUPPORT EVAP |
| DB62-02942A | SEAL-TRAY LF |
| DB62-02939A | SEAL-TRAY LF |
| DB62-03031E | SEAL-TRAY MID |
| DB62-02912C | SEAL-TRAY MID |
| DB62-02912B | SEAL-TRAY MID |
| DB62-02912M | SEAL-TRAY MID E |
| DB62-02912P | SEAL-TRAY MID F |
| DB62-02941A | SEAL-TRAY RH A |
| 0202-001163 | SOLDER-SILVER |
| 0202-001022 | SOLDER-SILVER |
| 0202-001464 | SOLDER-SILVER;L450,91CU/1.9AG/6.95P |
| DB60-00192A | SPACER-EVAP LOW |
| DB67-60064E | SPRING ETC-EVAP |
| DB61-03845J | SPRING ETC-EVAP;RAC,STS-304,0.9,13.1,450 |
| DB61-03845G | SPRING ETC-EVAP;RAC,STS-304,12.7,13.4, |
| DB67-60030A | SPRING-SENSOR |
| 3502-000115 | SSR |
| 0101-002928 | STEEL PLATE |
| 0101-002929 | STEEL PLATE;GI,SGCC,0.6,Z12,NC |
| 0101-002932 | STEEL PLATE;GI,SGCC,0.8MM,647MM,Z12,NC |
| 0101-002933 | STEEL PLATE;GI,SGCC,1,Z14,NC |
| 0101-003236 | STEEL PLATE;STAINLESS,STS304,1MM,1000MM, |
| DB61-01978B | SUPPORT-EVAP;VIVALDI-3,ABS,T3,63.6,5 |
| DB34-00009A | SWITCH-DIGITAL |
| 3407-000121 | SWITCH-DIP |
| 3406-001154 | SWITCH-ROTARY;24VDC,15MA,10 |
| 3404-001220 | SWITCH-TACT |
| DB02-00002A | TAPE ETC |
| DA02-00013A | TAPE ETC |
| DB02-00029B | TAPE ETC;RAC,OPP,0.05MM,80MM,500M,TRANSP |
| DA02-10017J | TAPE-FILAMENT |
| DB65-00176C | TERMINAL BLOCK |
| 1404-001274 | THERMISTOR-NTC;22OHM,1.4A,3100K,17MWC,8M |
| 0506-000175 | TR-ARRAY |
| 0501-002296 | TR-SMALL SIGNAL |
| 0501-000534 | TR-SMALL SIGNAL |
| DB26-00065A | TRANS SWITCHING |
| DB26-00113A | TRANS SWITCHING;EL1916-V7P,MH035FAEA,DC |
| DB63-01071A | TRAY-DRAIN |
| DB63-01066A | TRAY-STABILIZER |
| DB62-02349B | TUBE HAIR PIN;AQT24W6WE,C1220T-0,T0.25,O |
| DB62-02348B | TUBE HAIR PIN;AQT24W6WE,C1220T-O,T0.25,O |
| DB62-02905A | TUBE JUMP |
| DB62-02904A | TUBE JUMP |
| DB62-06999A | TUBE-CU;C1220T-O,T0.25,OD7,L,ID6.3,TW0.2 |
| DB62-31796B | TUBE-DISTRIBUTOR |
| DB62-31795A | TUBE-DISTRIBUTOR A |
| DB62-07054A | TUBE-EVAP IN A;C1220T-O,0.7,4.76,469.3 |
| DB62-07054B | TUBE-EVAP IN B;C1220T-0,0.6,288.9+63.6 |
| DB62-07054C | TUBE-EVAP IN C;C1220T-0,0.6,7.0,225 |
| DB62-07054D | TUBE-EVAP IN D;C1220T-0,0.6,224.1+61 |
| DB62-07054E | TUBE-EVAP IN E;C1220T-0,0.6,7.0,296 |
| DB62-07054F | TUBE-EVAP IN F;C1220T-0,T0.6,6.35,674.8 |
| DB62-07054G | TUBE-EVAP OUT A;C1220T-0,0.6,7,40.3 |
| DB62-07054H | TUBE-EVAP OUT B;C1220T-0,0.6,7,89.7 |
| DB62-07054J | TUBE-EVAP OUT C;C1220T-0,0.6,7,141.1 |
| DB62-07054K | TUBE-EVAP OUT D;C1220T-0,0.7,12.7,893.8 |
| DB62-31003C | TUBE-FLARE |
| DB62-02965A | TUBE-JUMP |
| DB62-07401A | TUBE-JUMP;C1220T-O,T0.6,OD7,L89.4,SSEC |
| DB62-30369A | TUBE-U BEND |
| DB62-30368A | TUBE-U BEND;COMMON USE,C1220T-O,T0.41,OD |
| 1405-000160 | VARISTOR |
| DB68-01675A | WARRANTY CARD |
| DB64-01183A | WINDOW LED |
