Manufacturer
Samsung
Model Number
AVXWVH052CE
Description
Air Conditioner
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| DB98-30154A | ASSEMBLY BAR CODE BOX |
| DB94-40007B | ASSEMBLY BEARING |
| DB97-02075A | ASSEMBLY BOLT SPECIAL |
| DB94-00479A | ASSEMBLY BOSS FAN |
| DB93-06766A | ASSEMBLY CONNECTOR WIRE |
| DB93-05903B | ASSEMBLY CONNECTOR WIRE |
| DB93-05903A | ASSEMBLY CONNECTOR WIRE |
| DB93-04695A | ASSEMBLY CONNECTOR WIRE |
| DB93-04547A | ASSEMBLY CONNECTOR WIRE |
| DB93-04484A | ASSEMBLY CONNECTOR WIRE |
| DB93-04635A | ASSEMBLY CONNECTOR WIRE-COMMUNICATION |
| DB93-04622A | ASSEMBLY CONNECTOR WIRE-DISPLAY |
| DB93-09811A | ASSEMBLY CONTROL IN;AVXWVH052CE,SS |
| DB94-02075A | ASSEMBLY CROSS FAN UNIT |
| DB97-08548A | ASSEMBLY CUSHION LF |
| DB97-08547A | ASSEMBLY CUSHION RH |
| DB93-04452F | ASSEMBLY DISPLAY |
| DB96-06587D | ASSEMBLY EVAP |
| DB96-07606A | ASSEMBLY EVAP-MAIN |
| DB96-06525B | ASSEMBLY EVAP-SUB |
|
|
ASSEMBLY FAN CROSS |
| DB94-01244A | ASSEMBLY FILTER OPTION |
| DB98-13261A | ASSEMBLY GARANTIE CARD |
| DB94-00458E | ASSEMBLY HOSE DRAIN |
| DB94-00458D | ASSEMBLY HOSE DRAIN |
| DB96-03813A | ASSEMBLY INSULATION TUBE |
| DB98-29143A | ASSEMBLY LABEL BAR CODE |
| DB98-28433A | ASSEMBLY LABEL BARCODE |
| DB98-28031A | ASSEMBLY LABEL EVAP |
| DB92-01899D | ASSEMBLY PANEL FRONT |
| DB90-02738A | ASSEMBLY PLATE HANGER |
| DB98-13260A | ASSEMBLY REGISTRATION CARD |
|
|
ASSEMBLY REMOTE CONTROL |
|
|
ASSEMBLY RUBBER BEARING |
| DB97-02086A | ASSEMBLY SCREW |
| DB97-02418A | ASSEMBLY SCREW TAPPING |
| DB93-08656A | ASSEMBLY SPI SLIM COMPACT |
| DB90-04857A | ASSEMBLY SUPPORT EVAP |
| DB98-08894A | ASSEMBLY TAPE |
|
|
ASSEMBLY THERMISTOR |
| DB95-01985A | ASSEMBLY THERMISTOR |
| DB94-01245D | ASSEMBLY TRAY DRAIN |
| DB94-01245C | ASSEMBLY TRAY DRAIN |
| DB94-01245A | ASSEMBLY TRAY DRAIN |
| DB96-07589A | ASSEMBLY TUBE EVAP IN |
| DB96-07590A | ASSEMBLY TUBE EVAP OUT |
| DB96-10257A | ASSEMBLY TUBE U BEND |
| DB96-10256A | ASSEMBLY TUBE U BEND |
| DB93-50001A | ASSEMBLY WIRE RING SOLD |
| DB94-02532C | ASSY BACK BODY;E,Y,L,VIVALDI,SSEC |
| DB90-04514A | ASSY CABI IN PARTS;VIVACE2 KCV,SSEC |
| DB93-04557B | ASSY CONNECTOR WIRE--DISPLAY;11,1007,26, |
| DB93-04485B | ASSY CONNECTOR WIRE;5,1007,26,YEL,25045H |
| DB93-04487A | ASSY CONNECTOR WIRE;5,1007,28,RED,25045H |
| DB93-08325A | ASSY CONTROL IN PARTS;AVXWVH052 060CE,VI |
| DB94-01309A | ASSY DRAIN PARTS;-,18K,SSEC |
| DB96-07600A | ASSY EVAP PARTS;MH052FVEA,FJM SSEC |
| DB94-01306A | ASSY FAN IN PARTS;18K,SSEC |
| DB90-03327B | ASSY FRAME GRILLE;VIVACE2 NON INVERTER,H |
| DB97-12786A | ASSY MANUAL;AVXWVH020CE,DVM PLUS3 VIVACE |
| DB91-00922B | ASSY MICOM;USA PLUS3-VIVACE MICOM,STM-09 |
| DB91-00922A | ASSY MICOM;USA PLUS3-VIVACE MICOM,STM-09 |
| DB97-12798A | ASSY PACKING IN PARTS;INDOOR VIVACE 2,DV |
| DB97-20988A | ASSY PACKING IN PARTS;VIVACE2,6LAN,OPEN |
| DB92-01724A | ASSY PANEL FRONT PARTS;DVM INDOOR VIVACE |
| DB97-12791D | ASSY PRINT IN PARTS;AVXWVH052CE,VIVACE D |
| DB92-01052B | ASSY WINDOW MIRROR;MODERATO,SSEC |
| DB94-01243A | ASSY-ANTI ALLERGY FILTER;VIVACE,SSEC |
| DB98-31761A | ASSY-INSTALLATION MANUAL;AVXWVH***CE ETC |
| DB98-30801A | ASSY-INSTRUCTION MANUAL;AVXWVH020CE,SSEC |
| DB98-33053A | ASSY-INSTRUCTION MANUAL;VIVACE,AMERICA,N |
| DB98-27584A | ASSY-LABEL CAUTION;HP,INV,FOR KCV CONTRO |
| DB98-27715A | ASSY-LABEL DIAGRAM;HP,DVM RAC,AVXWVH036E |
| DB98-30816D | ASSY-LABEL RATING IN;AVXWVH052CE,TRP PET |
| DB97-11984A | ASSY-SCREW;-,RAC,SSEC |
| DB69-00921A | BAG CARRYING;HDPE,T0.02,W95,L200,TRP,REC |
| 6902-000535 | BAG PE |
| 6902-001146 | BAG PE;HDPE,T0.015,W250,L500,WHT,NONE,2 |
| 6922-000041 | BAND |
| DB47-90024A | BATTERY-MN |
| DB61-02914A | BLADE-H |
| DB61-01976A | BLADE-V |
| DB61-03029A | BODY BACK |
| DB61-01977A | BRACKET-EVAP |
| DB64-01651A | BUTTON-POWER |
| 3002-001129 | BUZZER-PIEZO |
| 2401-004219 | C-AL |
| 2401-003107 | C-AL |
| 2401-002300 | C-AL |
| 2401-000151 | C-AL |
| 2401-000037 | C-AL |
| 2203-000444 | C-CER, CHIP |
| 2203-000257 | C-CER, CHIP |
| 2203-000192 | C-CER, CHIP |
| 2203-001562 | C-CERAMIC, CHIP |
| 2201-000987 | C-CERAMIC, DISC |
| 2201-000983 | C-CERAMIC, DISC |
| 2202-000780 | C-CERAMIC, MLC-AXIAL |
| 2202-000173 | C-CERAMIC, MLC-AXIAL |
| 2301-001916 | C-FILM, LEAD |
| 2301-001220 | C-FILM, LEAD-PPF |
| 2301-001439 | C-FILM,LEAD-PPF;220NF,10%,275V,BK,18X10X |
| DB65-10088C | CABLE TIE |
| DB65-10088D | CABLE-TIE |
| DB67-00499C | CAP-SCREW |
| DB67-00942A | CAP;VIVALDI-P/J,SHP2,1,5.2,11.5,18.5, |
| DB68-40091A | CARD-REGISTRATION |
| DB61-02912B | CASE CONTROL IN |
| DC02-10009A | CHEMICALS-LOCK SCREW |
| DB65-10074B | CLAMP-CABLE |
| DB61-03857A | CLIP-DRAIN HOSE;-,STS304,T1, |
| DB27-00011A | COIL CHOKE |
| DB39-01047A | CONNECT WIRE |
| DB39-00943D | CONNECT WIRE |
| DB39-01107B | CONNECT WIRE-POWER |
| 3711-003404 | CONNECTOR-HEADER |
| 3711-000997 | CONNECTOR-HEADER |
| 3711-000760 | CONNECTOR-HEADER |
| 3711-000262 | CONNECTOR-HEADER |
| 3711-000177 | CONNECTOR-HEADER |
| 3711-000176 | CONNECTOR-HEADER |
| 0102-001525 | COPPER TUBE |
| 0102-001526 | COPPER TUBE , C1220T,O,6.35,0.6,ROLL, |
| 0102-001515 | COPPER TUBE;C1220T,O,6.35,0.7,ROLL, |
| 0102-001530 | COPPER TUBE;C1220T,O,7,0.41,ROLL |
| 0102-001533 | COPPER TUBE;C1220T,O,7,0.6,ROLL, |
| 0102-001534 | COPPER TUBE;C1220T,O,7,0.7,ROLL, |
| 0102-001537 | COPPER TUBE;C1220T,O,7.94,0.5,ROLL, |
| 0102-001539 | COPPER TUBE;C1220T,O,9.5,0.7,ROLL, |
| 0102-001544 | COPPER-TUBE |
| 0102-000252 | COPPER-TUBE |
| DB90-02082D | COVER ASSEMBLY-PCB |
| DB63-01659A | COVER PCB |
| DB63-01065A | COVER-BEARING |
| DB63-01630A | COVER-DISPLAY |
| DB63-01005A | COVER-FLARE |
| DB63-02650A | COVER-MPI;VIVALCE 1.2,HIPS,2.0,51.8,92.2 |
| DB63-01063D | COVER-TERMINAL |
| DB69-01024A | CUSHION |
| DB69-01603D | CUSHION PAD |
| DB69-01603R | CUSHION PAD;RAC,EPS,T32,W500,L364,3 |
| DB69-01540A | CUSHION-LF |
| DB69-02801A | CUSHION-LF;VIVACE 2,EPS,35,W365,L277,H16 |
| DB69-01541A | CUSHION-RH |
| DB69-02802A | CUSHION-RH;VIVACE 2,EPS,35,W365,L277,H17 |
|
|
DIODE-BRIDGE |
| 0402-001194 | DIODE-RECTIFIER |
|
|
DIODE-RECTIFIER |
|
|
DIODE-SWITCHING |
| 0401-000005 | DIODE-SWITCHING |
| 0406-001204 | DIODE-TVS |
| 0403-001285 | DIODE-ZENER |
| 0403-000252 | DIODE-ZENER |
| DB75-00281E | EVAPORATOR-MAIN;AQT24W6WE,ASSY,2,10,850, |
| DB75-00282K | EVAPORATOR-SUB |
| DB67-00394A | FAN-CROSS A |
| DB67-00395A | FAN-CROSS B |
| DB67-00396A | FAN-CROSS C |
| DB60-30010C | FASTENER-NUT FLARE |
| DB60-30010A | FASTENER-NUT FLARE |
| DB63-01673A | FILTER-ANTI ALLERGY |
|
|
FILTER-DEODORIZATION |

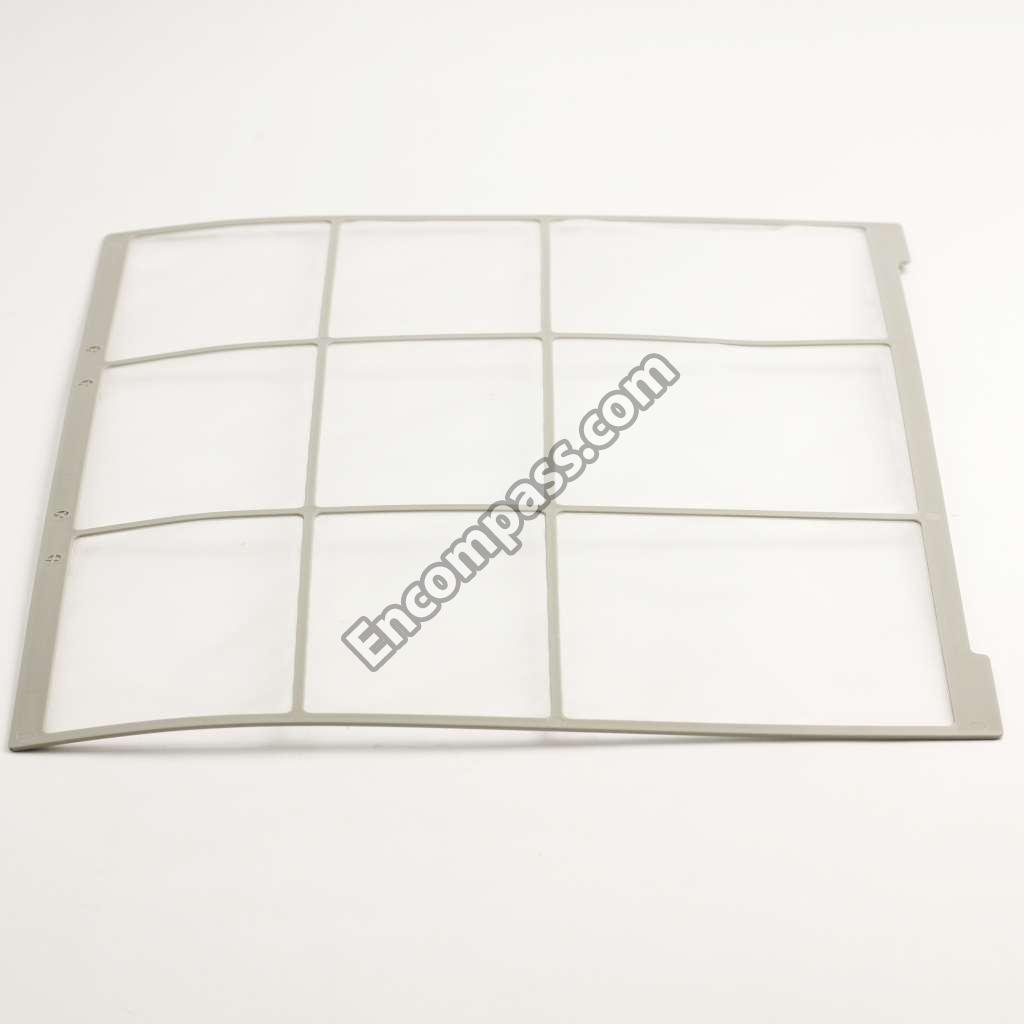

| DB63-01594E | FILTER-PRE |
|
|
FILTER-PRE |
| DB62-02906E | FIN EVAP-A;AQT24W6WE,A1100-H26,T0.095, |
| DB62-02907E | FIN EVAP-B |
| DB01-00129A | FOIL |
| DB61-02913A | FRAME-GRILLE |
| 3601-000263 | FUSE-CARTRIDGE |
| 3601-001209 | FUSE-RADIAL LEAD |
| DB66-01155A | GEAR-PINION |
| DB66-01156A | GEAR-RACK |
| 3711-005716 | HEADER-BOARD TO CABLE |
| 3711-004484 | HEADER-BOARD TO CABLE |
| 3711-004379 | HEADER-BOARD TO CABLE |
| 3711-004352 | HEADER-BOARD TO CABLE |
| 3711-004067 | HEADER-BOARD TO CABLE |
| 3711-003942 | HEADER-BOARD TO CABLE |
| 3711-002001 | HEADER-BOARD TO CABLE |
| 3711-000999 | HEADER-BOARD TO CABLE |
| 3711-000941 | HEADER-BOARD TO CABLE |
| 3711-000879 | HEADER-BOARD TO CABLE |
| 3711-000178 | HEADER-BOARD TO CABLE |
| DB47-00043D | HOLDER |
| DB61-00924A | HOLDER-FUSE |
| DB61-01981B | HOLDER-PIPE |
|
|
HOLDER-SENSOR |
| DB61-00854A | HOLDER-SENSOR;AVMCH052B10,C1220T-O,T0.55 |
| DB61-01097A | HOLDER-WIRE CLAMP |
| DB61-03156A | HOLDER-WIRE;VIVACE,PC,1.5,10.5,18.6,WH |
| DB67-00944B | HOSE DRAIN;VIVALDI,PP+LDPE,ID15.6,OD20.0 |
| DB67-00944A | HOSE DRAIN;VIVALDI,PP,BLACK,HG-0760S,S |
| DB09-00338A | IC MICOM |
| 1006-001325 | IC-BUS TRANSCEIVER |
| 0801-000393 | IC-CMOS LOGIC |
| 1103-001228 | IC-EEPROM |
| 1103-001175 | IC-EEPROM |
| 1203-000274 | IC-POSI.FIXED REG. |
| 1203-002662 | IC-PWM CONTROLLER |
| 1203-003334 | IC-RESET |
| 1003-001462 | IC-SOURCE DRIVER |
| DB62-03481A | INSULATION TUBE |
| DB62-04475A | INSULATION-BODY BACK |
| DB62-05974B | INSULATION-HOSE;VIVALDI,PE FOAM,3,82.5,3 |
| DB62-05974A | INSULATION-HOSE;VIVALDI,PE FOAM,4,97,525 |
| DB68-02809A | LABEL BAR CODE |
| DB98-05725B | LABEL INSTRUCTION |
| DB98-27335A | LABEL INSTRUCTION;-,PET,W35,L17, |
| DB68-01350A | LABEL-BAR CODE |
| DB66-01152A | LINK-GRILLE |
| DB66-01176A | LINK-SUPPORT |
| DB93-09456P | MAIN PCB ASSEMBLY-IN |
| 0609-001391 | MODULE REMOCON;6.5MM,TR,0,38KHZ,2.0MM |
| 0609-001204 | MODULE REMOTE CONTROL |
|
|
MOTOR FAN |
| DB31-00370A | MOTOR STEP |
| DB31-00369B | MOTOR STEP |
| DB67-00276A | NIPPLE |
| DB67-60023A | NIPPLE-1/4' |
| DB67-00276F | NIPPLE;C3604,3/4-16UNF |
| DB69-02264B | PACKING CASE-IN;VIVACE 2,CB,D-3,281,386, |
| DB69-02692M | PACKING CASE-IN;VIVALDI-3,CB,DW2,L368,W1 |
| DB69-02585B | PACKING CASE-IN;WW2-PJT,CB,DW2,L368,W112 |
| DB69-01603S | PAD CUSHION;RAC,EPS,W370,L255,H30,SSEC |
| DB69-01679C | PAD-ANGLE |
| DB64-01638A | PANEL FRONT |
| DB64-01639A | PANEL-MID |
| DB93-04640D | PCB ASSEMBLY SUB |
| DB93-04430A | PCB ASSEMBLY SUB |
| DB41-00943A | PCB MAIN-IN;FJM RAC,CEM-3,T1.6,2,600V |
| DB41-00566A | PCB SUB;FJM-VIVACE,FR-4,2,1.0,T1.6,50*35 |
| DB41-00555A | PCB-MODULE;VIVACH,FR-1,REVISION 1,1.6T |
| 0604-001172 | PHOTO-COUPLER |
| 0604-001148 | PHOTO-COUPLER |
| 0604-001038 | PHOTO-COUPLER |
| 0604-001003 | PHOTO-COUPLER |
| 0604-001002 | PHOTO-COUPLER |
| DB60-70016A | PIN-STAPLE |
| DB70-00507C | PLATE-CONTROL IN;EXPORT,SGCC-M,1,92.2,10 |
| DB61-02316A | PLATE-COVER PCB;AQT24W6WE,SGCC-M,T0.4, |
| DB70-00943A | PLATE-EVAP A;VIVALDI-3,GI-SGCC,T0.8 |
| DB70-00503A | PLATE-EVAP B |
| DB70-00504A | PLATE-EVAP C |
| DB70-00759B | PLATE-GRILLE;VIVACE1,SGCC-M,1,16,976,SSE |
| DB70-00704A | PLATE-HANGER LINK |
| DB70-00703A | PLATE-HANGER MAIN |
| DB61-02761A | PLATE-KNOCK OUT |
| 2001-000793 | R-CARBON |
| 2007-001071 | R-CHIP |
| 2007-001067 | R-CHIP |
| 2007-000944 | R-CHIP |
| 2007-000941 | R-CHIP |
| 2007-000931 | R-CHIP |
| 2007-000872 | R-CHIP |
| 2007-000766 | R-CHIP |
| 2007-000493 | R-CHIP |
| 2007-000468 | R-CHIP |
| 2007-000300 | R-CHIP |
|
|
R-CHIP |
| 2007-000285 | R-CHIP |
| 2007-000030 | R-CHIP |
| 2007-000023 | R-CHIP |
| 2002-001104 | R-COMPOSITION;12MOHM,5%,1/2W,AA,TP,3.4X9 |
| 2003-000448 | R-METAL OXIDE(S) |
| 3501-001248 | RELAY-MINIATURE |
| 0103-003103 | RESIN ABS;HG-0760H,2000 PXIGE,WT0021,N |
| 0103-004017 | RESIN ABS;HI-121H,NATURAL,NC0001 |
| 0103-004073 | RESIN GPPS;PG33,NATURAL,NC0001 |
| 0103-003269 | RESIN HIPS;F-744/NATURAL,NATURAL,NC0001, |
| 0103-000286 | RESIN HIPS;HR-1360,NATURAL,NC0001 |
| 0103-004092 | RESIN HIPS;PH-88,FRAME GRAY,SC-01623R |
| 0103-004086 | RESIN HIPS;PH-88,HURRICANE,SC-03101R,N |
| 0103-004109 | RESIN HIPS;PH-888G,GRAY,GY0020 |
| 0103-003376 | RESIN LDPE;MB9500,NATURAL,NC0001,N |
| 0103-004066 | RESIN PC ABS;PC-510,GRAY,GY0001,N |
| 0103-004069 | RESIN PC ABS;PC-510,GRAY,GY0020,N |
| 0103-003369 | RESIN PC;HF5025/INNER WHITE,INNER WHITE, |
| 0103-004065 | RESIN PC;PC-110,DAC-BK0821R |
| 0103-003378 | RESIN PET , FR530/NATURAL,NATURAL,NC0001,V |
| 0103-004116 | RESIN POM;K300/NTR,NATURAL,NC0001,HB,N |
| 0103-003481 | RESIN PP;BJ730,WHITE,WT0054 |
| 0103-004036 | RESIN SAN;ASG30,NATURAL,NC0001 |
| 0103-002713 | RESIN-PVC |
| 2802-001179 | RESONATOR-CERAMIC |
| DB73-00461R | RUBBER BUTYL |
| DB73-00181A | RUBBER-BEARING |
| DB73-00180B | RUBBER-CAP DRAIN |
| DB73-00486A | RUBBER-HOSE;VIVALDI,NBR,L19.7,SSEC,BLA |
| DB73-00292H | RUBBER-PCB;AW07P2AXTC,SI,B5R1,90,50,XTC, |
| DB73-00292J | RUBBER-PCB;EXPORT,SI,77X25,50,BLACK,V0 |
| 6001-001054 | SCREW-MACHINE |
| 6001-000929 | SCREW-MACHINE |
|
|
SCREW-SPECIAL |
| 6002-000588 | SCREW-TAPPING |
| 6002-000535 | SCREW-TAPPING |
| 6002-000534 | SCREW-TAPPING |
|
|
SCREW-TAPPING |
| 6002-000234 | SCREW-TAPPING |
|
|
SCREW-TAPPING |
| DB62-02912E | SEAL-B/B RH |
| DB62-04716A | SEAL-BACK BODY RH |
| DB62-05265H | SEAL-COVER MPI |
| DB62-04922A | SEAL-COVER MPI;MODERATO,FLOCKED,SSEC,1,6 |
| DB62-02912U | SEAL-EVAP UP;-,LEX FOAM,3,23,865,N |
| DB62-04764D | SEAL-FILTER;VIVACE,PE,2,3,149,NONF |
| DB62-04764F | SEAL-GRILLE UP;VIVACE,LEX FOAM,5,10,30 |
| DB62-03482A | SEAL-INSULATION TUBE |
| DB62-02912N | SEAL-PANEL;-,PU FOAM,T15,W15,15, |
| DB62-04764G | SEAL-PLATE GRILLE;FLOCKED,T0.5,W20,L35,S |
| DB62-02912H | SEAL-SUPPORT EVAP |
| DB62-02942A | SEAL-TRAY LF |
| DB62-02939A | SEAL-TRAY LF |
| DB62-03031E | SEAL-TRAY MID |
| DB62-02912C | SEAL-TRAY MID |
| DB62-02912B | SEAL-TRAY MID |
| DB62-02912M | SEAL-TRAY MID E |
| DB62-02912P | SEAL-TRAY MID F |
| DB62-02941A | SEAL-TRAY RH A |
| 0202-001163 | SOLDER-SILVER |
| 0202-001022 | SOLDER-SILVER |
| 0202-001464 | SOLDER-SILVER;L450,91CU/1.9AG/6.95P |
| DB60-00192A | SPACER-EVAP LOW |
| DB61-03845J | SPRING ETC-EVAP;RAC,STS-304,0.9,13.1,450 |
| DB61-03845B | SPRING ETC-EVAP;RAC,STS-304,12.7,13.1, |
| DB61-03845G | SPRING ETC-EVAP;RAC,STS-304,12.7,13.4, |
| DB61-03139D | SPRING ETC-GRILLE |
| DB61-03139C | SPRING ETC-GRILLE;VIVACE,STAINLESS-STS30 |
| DB67-60030A | SPRING-SENSOR |
| 3502-000115 | SSR |
| 0101-002928 | STEEL PLATE |
| 0101-002929 | STEEL PLATE;GI,SGCC,0.6,Z12,NC |
| 0101-002932 | STEEL PLATE;GI,SGCC,0.8MM,647MM,Z12,NC |
| 0101-002933 | STEEL PLATE;GI,SGCC,1,Z14,NC |
| 0101-003236 | STEEL PLATE;STAINLESS,STS304,1MM,1000MM, |
| DB61-01978B | SUPPORT-EVAP;VIVALDI-3,ABS,T3,63.6,5 |
| DB34-00009A | SWITCH-DIGITAL |
| 3407-000121 | SWITCH-DIP |
| 3406-001154 | SWITCH-ROTARY;24VDC,15MA,10 |
| 3404-001220 | SWITCH-TACT |
| DB02-00002A | TAPE ETC |
| DB02-00029B | TAPE ETC;RAC,OPP,0.05MM,80MM,500M,TRANSP |
| DA02-10017J | TAPE-FILAMENT |
| DB65-00176C | TERMINAL BLOCK |
| 1404-001274 | THERMISTOR-NTC;22OHM,1.4A,3100K,17MWC,8M |
| 0506-000175 | TR-ARRAY |
| 0501-002296 | TR-SMALL SIGNAL |
| 0501-000534 | TR-SMALL SIGNAL |
| DB26-00113A | TRANS SWITCHING;EL1916-V7P,MH035FAEA,DC |
| DB63-01581A | TRAY DRAIN |
| DB63-01066A | TRAY-STABILIZER |
| DB62-02349B | TUBE HAIR PIN;AQT24W6WE,C1220T-0,T0.25,O |
| DB62-02348B | TUBE HAIR PIN;AQT24W6WE,C1220T-O,T0.25,O |
| DB62-02905A | TUBE JUMP |
| DB62-02904A | TUBE JUMP |
| DB62-06999A | TUBE-CU;C1220T-O,T0.25,OD7,L,ID6.3,TW0.2 |
| DB62-31796B | TUBE-DISTRIBUTOR |
| DB62-31795A | TUBE-DISTRIBUTOR A |
| DB62-07054A | TUBE-EVAP IN A;C1220T-O,0.7,4.76,469.3 |
| DB62-07054B | TUBE-EVAP IN B;C1220T-0,0.6,288.9+63.6 |
| DB62-07054C | TUBE-EVAP IN C;C1220T-0,0.6,7.0,225 |
| DB62-07054D | TUBE-EVAP IN D;C1220T-0,0.6,224.1+61 |
| DB62-07054E | TUBE-EVAP IN E;C1220T-0,0.6,7.0,296 |
| DB62-07054F | TUBE-EVAP IN F;C1220T-0,T0.6,6.35,674.8 |
| DB62-07054G | TUBE-EVAP OUT A;C1220T-0,0.6,7,40.3 |
| DB62-07054H | TUBE-EVAP OUT B;C1220T-0,0.6,7,89.7 |
| DB62-07054J | TUBE-EVAP OUT C;C1220T-0,0.6,7,141.1 |
| DB62-07054K | TUBE-EVAP OUT D;C1220T-0,0.7,12.7,893.8 |
| DB62-31003C | TUBE-FLARE |
| DB62-02965A | TUBE-JUMP |
| DB62-07401A | TUBE-JUMP;C1220T-O,T0.6,OD7,L89.4,SSEC |
| DB62-30369A | TUBE-U BEND |
| DB62-30368A | TUBE-U BEND;COMMON USE,C1220T-O,T0.41,OD |
| 1405-000160 | VARISTOR |
| DB68-01675A | WARRANTY CARD |
| DB64-01799B | WINDOW-DISPLAY FILM |
| DB64-01725A | WINDOW-MIRROR;VIVACE,ACRYL,1.6,179.7,101 |
