Manufacturer
Samsung
Model Number
CLP-550
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| JC66-20901A | AUTO CLOSE-TIMING BELT;B32S2M280,CR+FG+N |
| 6902-000332 | BAG CONDUCTIVE;LDPE,T0.07,W250,L500,BLK, |
| 6902-000288 | BAG PE;LDPE,T0.05,W250,L450,TRP,8,2,10.5 |
| 3301-000319 | BEAD-SMD;11OHM,2X1.25X0.9MM,TP |
| 3301-000317 | BEAD-SMD;120OHM,2012,TP,-,- |
| 3301-001067 | BEAD-SMD;600OHM,1608 |
| JC61-00699A | BUSH-D6/L4;CLP-500,FE+CU+ZN-SLEARATE,?6, |
| JC61-00772A | BUSH-DEV DR;CLP-500,BRONZE SINTERED(KAB- |
| JC61-00984A | BUSH-M-D8 L5;CLP-510,POM(M90-44),?8,?11. |
| JC61-00812A | BUSH-M-WASTE CAM;CLP-500,POM,?3.5,?5.1,W |
| 2401-000042 | C-AL;100UF,20%,16V,GP,TP,6.3X7,5 |
| 2401-000207 | C-AL;100UF,20%,50V,WT,TP,8X12,5 |
| 2401-000802 | C-AL;220UF,20%,16V,GP,TP,10X9MM,5MM |
| 2401-002144 | C-AL;47UF,20%,16V,GP,TP,5X11,5 |
| 2401-002300 | C-AL;47UF,20%,50V,GP,TP,6.3X11,5MM |
| 2203-000426 | C-CER,CHIP;0.018NF,5%,50V,C0G,1608 |
| 2203-000041 | C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608 |
| 2203-000626 | C-CER,CHIP;0.022NF,5%,50V,C0G,1608 |
| 2203-000681 | C-CER,CHIP;0.027NF,5%,50V,C0G,1608 |
| 2203-000998 | C-CER,CHIP;0.047NF,5%,50V,C0G,1608 |
| 2203-001683 | C-CER,CHIP;0.068NF,5%,50V,NP0,1608 |
| 2203-001656 | C-CER,CHIP;0.47NF,5%,50V,NP0,1608 |
| 2203-000476 | C-CER,CHIP;1000NF,+80-20%,16V,Y5V,2012 |
| 2203-000192 | C-CER,CHIP;100NF,+80-20%,50V,Y5V,TP,2012 |
| 2203-000257 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1608 |
| 2203-000440 | C-CER,CHIP;1NF,10,50V,X7R,TP,1608 |
| 2201-000119 | C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,8X3 |
| 2404-000284 | C-TA,CHIP;10UF,20%,16V,-,TP,3528 |
| 6502-000132 | CABLE CLAMP;DAWS-1NE,ID11,L21.0,NTR,NYLO |
| 6502-001093 | CABLE CLAMP;DAWS-3NE,ID11*L34.8,NYLON66, |
| 6501-000004 | CABLE TIE;DA-80,T1,W2.5,L80,NTR,NYLON66 |
| JC66-00050A | CAM-CATCH;ML-9400W,POM,34X18X7,WHITE |
| JC66-00649A | CAM-M-WASTE DUCT OUTLET;CLP-500,POM,WHIT |
| JC39-00302A | CBF HARNESS-100M_GND;CLP-500,1 PIN,50MM, |
| JC39-00114A | CBF HARNESS-BRUSH GND;ML-7050,UL1007,300 |
| JC39-00263A | CBF HARNESS-DEVE-HVPS(SUPPLY);CLP-500,WI |
| JC39-00287A | CBF HARNESS-DEVE_MOTOR;CLP-500,WIRE HARN |
| JC39-00290A | CBF HARNESS-ERASER_BOARD;CLP-500,WIRE HA |
| JC39-00264A | CBF HARNESS-HVPS_CHARGE;CLP-500,WIRE HAR |
| JC39-00292A | CBF HARNESS-HVPS_DEVE OEM;CLP-500,WIRE H |
| JC39-00265A | CBF HARNESS-HVPS_T1;CLP-500,WIRE HARNESS |
| JC39-00266A | CBF HARNESS-HVPS_T2;CLP-500,WIRE HARNESS |
| JB39-00103A | CBF HARNESS-LIU GND;SCX-1110F,WIRE,UL100 |
| JC39-00277A | CBF HARNESS-MAIN ERASER;CLP-500,WIRE HAR |
| JC39-00276A | CBF HARNESS-MAIN FSR_ROLL;CLP-500,WIRE H |
| JC39-00271A | CBF HARNESS-MAIN LSU;CLP-500,WIRE HARNES |
| JC39-00304A | CBF HARNESS-MAIN TEMP_2;CLP-500,WIRE HAR |
| JC39-00273A | CBF HARNESS-MAIN-SET DRAWER;CLP-500,WIRE |
| JC39-00285A | CBF HARNESS-MAIN-TEMPERATURE;CLP-500,WIR |
| JC39-00262A | CBF HARNESS-MAIN_DEVE DRIVE;CLP-500,WIRE |
| JC39-00283A | CBF HARNESS-MAIN_EXIT;CLP-500,WIRE HARNE |
| JC39-00284A | CBF HARNESS-MAIN_FEED;CLP-500,WIRE HARNE |
| JC39-00293A | CBF HARNESS-MAIN_MOTOR;CLP-500,WIRE HARN |
| JC39-00286A | CBF HARNESS-MAIN_MP.EMPTY;CLP-500,WIRE H |
| JC39-00282A | CBF HARNESS-MAIN_P.EMPTY;CLP-500,WIRE HA |
| JC39-00281A | CBF HARNESS-MAIN_PANEL;CLP-500,WIRE HARN |
| JC39-00291A | CBF HARNESS-MAIN_PTL;CLP-500,WIRE HARNES |
| JC39-00294A | CBF HARNESS-MAIN_S/W(5V);CLP-500,WIRE HA |
| JC39-00296A | CBF HARNESS-MAIN_SMPS;CLP-500,WIRE HARNE |
| JC39-00289A | CBF HARNESS-MAIN_WASTE;CLP-500,WIRE HARN |
| JC39-00229A | CBF HARNESS-OPC_FUSE;SCX-5312F,WIRE HARN |
| JC39-00036A | CBF HARNESS-OPE GND;SF-5100,#18,UL 1007, |
| JC39-00082A | CBF HARNESS-SCF;ML-6060,WIRE HARNESS,UL1 |
| JC39-00288A | CBF HARNESS-SMPS_AC WIRE;CLP-500,WIRE HA |
| JC39-00295A | CBF HARNESS-SMPS_COVER S/W;CLP-500,WIRE |
| JC39-00280A | CBF HARNESS-SMPS_INLET;CLP-500,WIRE HARN |
| JC39-00299A | CBF HARNESS-WASTE_MOTOR;CLP-500,WIRE HAR |
| JC39-40511A | CBF HARNESS;ML-80,JUMPER,AWG22,52MM,SILV |
|
|
CBF-POWER CORD;DT,EU,FP3/YES,IEC320 C13/ |
| 3702-001121 | CONNECTOR-RIBBON;60P,MALE,STRAIGHT,AUF |
| 3712-001047 | CONNECTOR-TERMINAL;TAB,MALE,N,0.5/4.75MM |
| JC63-00179A | COVER-FRONT HINGE F;CLP-500,POM,WHITE,M9 |
| JC63-00180A | COVER-FRONT HINGE R;CLP-500,POM,WHITE,M9 |
| JC63-00207A | COVER-M-BASE BAR;CLP-500,HIPS,HB,IVORY,H |
| JC63-00308A | COVER-M-LSU;CLP-500,HIPS,T2.0,HB,BLACK,H |
| JC63-00549A | COVER-M-SMPS;CLP-510,ABS,BLK,5V |
| JC63-00175A | COVER-SCREW LOCKING MP;CLP-500,POM,WHITE |
| 2801-003582 | CRYSTAL-UNIT;30MHZ,50PPM,28-AAA,18PF,80O |
| JC69-00419A | CUSHION-EPS DEVE(B/B);CLP-500,EPS,508,35 |
| 0402-000129 | DIODE-RECTIFIER;1N4003,200V,1A,DO-41,TP |
| 0402-001189 | DIODE-RECTIFIER;M4,400V,1A,TS-1,TP |
| 0404-000112 | DIODE-SCHOTTKY;RB420D,40V,100MA,SOT-23,T |
| 0401-000005 | DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T |
| 0407-000122 | DIODE-SWITCHING;KDS226,80V,100MA,SOT-23, |
| 0401-000116 | DIODE-SWITCHING;MMSD914T1,100V,200MA,SOD |
| 0403-001507 | DIODE-ZENER;ZT10-300B,5%,1000MW,DO-41,BK |
| JC67-00052A | DUCT-M-WASTE LIFTER;CLP-500,HIPS,BLACK,H |
| JC67-00053A | DUCT-M-WASTE TONER INLET1;CLP-500,HIPS,B |
| JC67-00054A | DUCT-M-WASTE TONER INLET2;CLP-500,PC/ABS |
| JC96-02798A | ELA HOU-COVER FRONT;CLP-500,SEC,EXPORT,- |
| JC96-02876A | ELA UNIT-COVER OPEN SENSOR;CLP-500,SEC,E |
| JC96-02930A | ELA UNIT-DEVE DRIVE;CLP-500,SEC,EXPORT,D |
| JC96-02772A | ELA UNIT-DE_DRIVE;CLP-500,SEC,EXPORT,-,- |
| JC96-02795A | ELA UNIT-DUMMY FUSER BASE;CLP-500,SEC,EX |
| JC96-02881A | ELA UNIT-FRAME BASE;CLP-500,SEC,EUROPE,- |
| JC96-02879A | ELA UNIT-FRAME FRONT;CLP-500,SEC,EXPORT, |
| JC96-02880A | ELA UNIT-FRAME REAR;CLP-500,SEC,KOREA,-, |
| JC96-02773A | ELA UNIT-FUSER 230V;MLC-500,SEC,EXPORT,2 |
| JC96-02797A | ELA UNIT-GUIDE PAPER T2;CLP-500,SEC,KORE |
| JC96-02931A | ELA UNIT-ITB CAM;CLP-500,SEC,SEE,ITB CAM |
| JC96-02771A | ELA UNIT-MAIN DRIVE;CLP-500,SEC,EXPORT,- |
| JC96-02875A | ELA UNIT-SMPS 230V;MLC-500,SEC,EXPORT,23 |
| JC96-02882A | ELA UNIT-TONER MOTOR;CLP-500,SEC,EXPORT |
| JC96-02796A | ELA UNIT-TONER SENSOR;CLP-500,SEC,EXPORT |
| JC31-00025A | FAN-DC;AD0624MSA70GL(R1)DOL,CLP-500,PBT+ |
| 2901-001178 | FILTER-EMI SMD;25V,2A,100000PF,2X1.25X1M |
| JC61-40001A | FOOT-ML80;ML-80,NBR,GRAY |
| JC66-00654A | GEAR WORM-WASTE TONER;CLP-500,POM,0.6,Z1 |
| JC66-00653A | GEAR WORM-WHEEL IDLE;CLP-500,POM,0.6,Z33 |
| JC66-00651A | GEAR WORM-WHEEL Z35;CLP-500,POM,0.6,Z33, |
| JC66-00463A | GEAR-DEVE CLUTCH 2_Z33;CLP-500,POM M90-4 |
| JC66-00464A | GEAR-DEVE DRIVE 1_Z25;CLP-500,POM,0.8,Z2 |
| JC66-00465A | GEAR-DEVE DRIVE 2_Z20;CLP-500,POM,0.8,Z2 |
| JC66-00466A | GEAR-DEVE IDLE_Z41;CLP-500,POM,0.8,Z41,W |
| JC66-00467A | GEAR-DEVE IDLE_Z53;CLP-500,POM M90-44,0. |
| JC66-00468A | GEAR-DEVE RDCN;CLP-500,POM M90-44,A:0.5, |
| JC66-40911A | GEAR-DP,IDLE;ML-165,POM,1,Z21,WHITE,NW-0 |
| JC66-00513A | GEAR-DUPLEX IDLER_Z25;CLP-500,POM,0.8,Z2 |
| JC66-40912A | GEAR-DUPLEX;ML-165,POM,1,Z16,WHITE,NW-02 |
| JC66-40964A | GEAR-EXIT,IDLE(Z17);ML-5000,NYLON,1,Z17, |
| JC66-40211B | GEAR-EXIT/U,ID;ML-1605,POM,1,Z16,BLACK |
| JC66-00470A | GEAR-FEED DRIVE_Z37;CLP-500,POM,0.8,Z37, |
| JC66-00332A | GEAR-FEED;SCX-5100,POM M90-44,A:0.8,B:0. |
| JC66-00471A | GEAR-FUSER DRIVE 1_Z47;CLP-500,POM,0.8,Z |
| JC66-00510A | GEAR-FUSER_Z35;CLP-500,PPS OFL4036,1,Z35 |
| JC66-00473A | GEAR-IDLE Z51;CLP-500,POM,0.8,Z51,BLUE,H |
| JC66-00474A | GEAR-IDLE Z53;CLP-500,POM,0.8,Z53,WHITE, |
| JC66-00469A | GEAR-ITB CLEAN RDCN;CLP-500,POM,A:0.5,B: |
| JC66-00475A | GEAR-ITB DRIVE 1_Z90;CLP-500,POM,0.5,Z90 |
| JC66-00476A | GEAR-ITB DRIVE 2_Z30;CLP-500,POM,0.5,Z30 |
| JC66-00473B | GEAR-M-DEVE IDEL Z51;CLP-500,POM,0.8,Z51 |
| JC66-00477A | GEAR-OPC DRIVE 1_Z120;CLP-500,POM,0.5,Z1 |
| JC66-00479A | GEAR-OPC RDCN_Z120/Z60;CLP-500,POM,A:0.5 |
| JC66-00335A | GEAR-PICK_UP;SCX-5100,POM,0.8,Z47,NTR,SP |
| JC66-00343A | GEAR-RDCN FEED OUTER;SCX-5100,POM,0.8,Z3 |
| JC66-00480A | GEAR-RDCN Z110/Z37;CLP-500,POM,A:0.5,B:0 |
| JC66-00481A | GEAR-RDCN Z62/Z48;CLP-500,POM,A:0.8,B:0. |
| JC66-00482A | GEAR-SWING DRIVE;CLP-500,POM,A:0.8,B:1,Z |
| JC66-00483A | GEAR-T2 DRIVE_Z25;CLP-500,POM,0.8,Z25,BL |
| JC66-00484A | GEAR-T2 IDEL_Z27;CLP-500,POM,0.8,Z27,BLA |
| JC66-00485A | GEAR-T2 RDCN_Z32/Z23;CLP-500,POM M90-44, |
| JC66-00515A | GEAR-TRANSFER IDLER_Z47;CLP-500,POM,0.8, |
| JC66-00514A | GEAR-TRANSFER_Z23;CLP-500,POM,0.8,Z23,BL |
| JC61-00866A | GUIDE-M-PAPER T2;CLP-500,PC+SUM24L,HB,BL |
| JC39-00306A | HARNESS-LCD;CLP-500,WIRE,UL2877,14-14,35 |
| 3711-000164 | HEADER-BOARD TO CABLE;1WALL,2P,1R,2.5MM, |
| 3711-000198 | HEADER-BOARD TO CABLE;1WALL,3P,1R,2.5MM, |
| 3711-002813 | HEADER-BOARD TO CABLE;BOX,12P,1R,2MM,STR |
| 3711-002001 | HEADER-BOARD TO CABLE;BOX,20P,2R,2MM,STR |
| 3711-002003 | HEADER-BOARD TO CABLE;BOX,26P,2R,2MM,STR |
| 3711-003981 | HEADER-BOARD TO CABLE;BOX,28P,2R,2MM,STR |
| 3711-003408 | HEADER-BOARD TO CABLE;BOX,2P,1R,2MM,STRA |
| 3711-003409 | HEADER-BOARD TO CABLE;BOX,3P,1R,2MM,STRA |
| 3711-003411 | HEADER-BOARD TO CABLE;BOX,5P,1R,2MM,STRA |
| 3711-002809 | HEADER-BOARD TO CABLE;BOX,8P,1R,2MM,STRA |
| 3711-002810 | HEADER-BOARD TO CABLE;BOX,9P,1R,2MM,STRA |
| JC61-00841A | HOLDER-M-SAW;CLP-500,PC,219,13,BLACK(K22 |
| JC61-00813A | HOLDER-M-WASTE TONER SENSOR;CLP-500,HIPS |
| JC61-00814A | HOUSING-M-WASTE TONER ITB;CLP-500,HIPS,H |
| JC44-00058A | HVPS-BIGBANG;CLP-500,24V,21.6V~26.4V,MAX |
| JC13-00020A | IC ASIC-ENGINE CONTROL;LPEC1,CLP-500,128 |
| JB13-00004A | IC ASIC-OPE;HT48C50-1-SPPF,SF-3100,48P,+ |
| 1001-000170 | IC-ANALOG SWITCH;MC14051BD,SPDT CMOS,SOP |
| 0803-003263 | IC-CMOS LOGIC;74LCX07,HEX BUFFER,SOIC,14 |
| 0801-002326 | IC-CMOS LOGIC;74LCX32,OR GATE,TSSOP,14,1 |
| 0801-002327 | IC-CMOS LOGIC;74LCX74,D FLIP-FLOP,TSSOP, |
| 1105-001384 | IC-DRAM;K4S561632,256MBIT,4X4MX16,TSOP(I |
| 1103-001328 | IC-EEPROM;93C86,16KBIT,2KX8/1KX16,DIP,8P |
| 1107-001475 | IC-FLASH MEMORY;29LV320,32MBIT,4MX8/2MX1 |
| 1006-001250 | IC-LINE DRIVER;DS90LV017A,SOIC,8P,150MIL |
| 1006-001224 | IC-LINE TRANSCEIVER;74LVX161284,TSSOP,48 |
| 0902-001446 | IC-MICROPROCESSOR;SPC603IFT266,64BIT,QFP |
| 1201-000167 | IC-OP AMP;358,SOP,TP,8P,150MIL,DUAL,100V |
| 1203-002454 | IC-POSI.FIXED REG.;1117,TO-252,3P,257MIL |
| 1203-002351 | IC-POSI.FIXED REG.;LF25C,DPAK,3P,240MIL, |
| 0803-001393 | IC-TTL;7407,BUFFER/DRIVER,SOP,14,150MIL, |
| 1202-000164 | IC-VOLTAGE COMP.;393,SOP,8P,150MIL,DUAL, |
| JB70-00168A | ICT-PIN ADF;SCX-1110F,STS303,L10.0,D2.0 |
| JC70-00237A | IPR-BRACKET SOLENOIDE;SCX-5100,SECC,1.2T |
| JC70-00379A | IPR-BRKT BASE BAR;CLP-500,SECC,T1.6 |
| JC70-00404A | IPR-BRKT DEVE HINGE F;CLP-500,SECC,T1.2 |
| JC70-00405A | IPR-BRKT DEVE HINGE R;CLP-500,SECC,T1.2 |
| JC70-00341A | IPR-BRKT MAIN FRONT;CLP-500,SECC,T1.2,ST |
| JC70-00344A | IPR-BRKT MAIN REAR;CLP-500,SECC,T1.2 |
| JC70-00415A | IPR-BRKT SMPS;CLP-500,SECC,T1.0 |
| JC70-00390A | IPR-CHANNEL FRAME BASE;CLP-500,SECC,T1.6 |
| JC70-00220A | IPR-FINGER;SPCC,SCX-5100,T1.2,NI |
| JC70-00359A | IPR-GROUND FEED;CLP-500,C5210P,T0.2 |
| JB70-10906A | IPR-GUIDE LATCH;STS C304-CSP-3/4H,AMUNDS |
| JC70-00356A | IPR-GUIDE PLATE PAPER;CLP-500,SUS304,T0. |
| JC70-00346A | IPR-LINK SOLENOID;CLP-500,SECC,T1.6 |
| JC70-00357A | IPR-PLATE K/UP;CLP-500,SECC,T1.0 |
| JC70-10232A | IPR-PLATE SAW;ML-80,SUS304 CSP 1/2H,T0.1 |
| JC70-10230A | IPR-SHAFT FEED IDLER;ML-80,SUM24L,NI |
| JC70-00358A | IPR-SPRING PLATE G/SIDE;CLP-500,SUS301,T |
| JC70-10961A | IPR-TERMINAL FU;ML-165,C5210P,T0.3 |
| 3722-001101 | JACK-USB;4P/1C,AU,IVR,ANGLE,B TYPE |
| JB68-00916A | LABEL RATING-BLANK;SF-340,SEC,TETRON,0.0 |
| JC68-10914G | LABEL SERIAL-MAGENTA;COMMON,SEC,ART100G, |
| JC68-10914E | LABEL SERIAL-YELLOW;COMMON,SEC,ART100G,7 |
| JC68-10932A | LABEL(P)-BLANK(ML);ML-85,ART,G100,WHT,CO |
| JB68-00073A | LABEL(R)-BAR CODE;SF-3000,PY,T0.5,6.5,34 |
| JC68-01505A | LABEL(R)-M;COMMON,ART,100G/CM2,W15.0,L7. |
| JC68-01898A | LABEL-INFORMATION;CLP-300/SEE,SAMSUNG,AR |
| 4713-001178 | LAMP-HALOGEN;230V,300W,10X293MM |
| 4713-001176 | LAMP-HALOGEN;230V,500W,10X295.3MM |
| JG07-20001A | LCD;SF4000,UC-162937-TNAR5-A,BLK/G |
| 0601-000353 | LED;ROUND,RED/Y-GRN,5MM,630/570NM |
| JC66-00666A | LEVER-ITB LOCK FRONT;CLP-500,PC+ABS,3,HB |
| JC66-00667A | LEVER-ITB LOCK REAR;CLP-500,PC 1023,T3.0 |
|
|

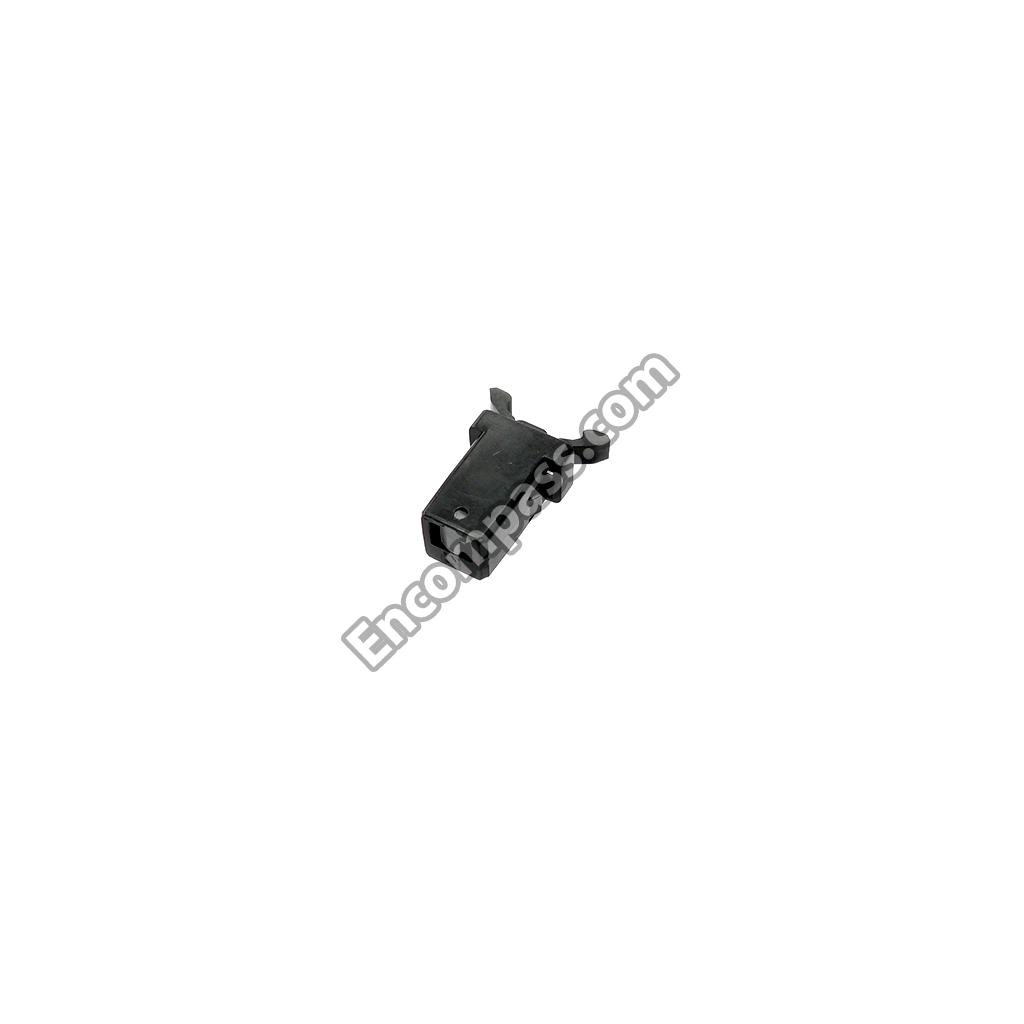

LOCKER-LATCH PUSH;MJC-3305/CPQ,POM,BLACK |
| JC64-00080A | LOCKER-M-WASTER TANK;CLP-500,PC,87128,HB |
| JC64-00087A | LOCKER-TANK PIN;CLP-500,SUS 304,D0.8*L71 |
| JC68-01889A | MANUAL-INSTALL;SCX-4200,SEC,23 LANQUAQE, |
| JC97-01766A | MEA HOU-COVER DEVE;CLP-500,SEC,EXPORT |
| JC97-01764A | MEA HOU-COVER REAR;CLP-500,SEC,EXPORT,-, |
| JC97-01758A | MEA HOU-COVER RIGHT;CLP-500,SEC,EXPORT,- |
| JC97-01765A | MEA HOU-COVER TOP;CLP-500,SEC,EXPORT,-,- |
| JC97-01760A | MEA UNIT-BRKT ECU UPPER;CLP-500,SEC,-,-, |
| JC97-01767A | MEA UNIT-BRKT HVPS;CLP-500,SEC,EXPORT,-, |
| JC97-01949A | MEA UNIT-DUCT FUSER;CLP-500,SEC,EXPORT,- |
| JC97-01828A | MEA UNIT-DUPLEX;CLP-500,SEC,EXPORT,-,- |
| JC97-01763A | MEA UNIT-EXIT FRAME;CLP-500,SEC,EXPORT,- |
| JC97-01812A | MEA UNIT-ITB LIFTER;CLP-500,SEC,WORLD,-, |
| JC97-01813A | MEA UNIT-ITB TONER HOUSING;CLP-500,SEC,- |
| JC97-01838A | MEA UNIT-LSU CLEANER;CLP-500,SEC,EXPORT, |
| JC97-01810A | MEA UNIT-LSU GUIDE BRKT;CLP-500,SEC,EXPO |
| JC97-01834A | MEA UNIT-OPC TONER DUCT;CLP-500,SEC,EXPO |
| JC97-01814A | MEA UNIT-OPC TONER HOUSING;CLP-500,SEC,E |
| JC97-01761A | MEA UNIT-T2;CLP-500,SEC,EXPORT,-,50K,- |
| JC97-01771A | MEA UNIT-TERMINAL S;CLP-500,SEC,EXPORT,S |
| JC97-01410A | MEA UNIT-TERMINAL:L;ML-5000A,SAMSUNG,KOR |
| JC97-01759A | MEA UNIT-TRAY MP;CLP-500,SEC,EXPORT,-,- |
| JC97-01753A | MEA-CASSETTE;CLP-500,SEC,EXPORT,-,- |
| JC97-01756A | MEA-DUPLEX;CLP-500,SEC,EXPORT,-,- |
| JC97-01754A | MEA-EXIT;CLP-500,SEC,EXPORT,-,- |
| JC97-01768A | MEA-HOLDER PINCH C3;CLP-500,SEC,EXPORT,- |
| JC97-01769A | MEA-HOLDER PINCH C5;CLP-500,SEC,EXPORT,- |
| JC97-01770A | MEA-HOLDER PINCH M;CLP-500,SEC,EXPORT,-, |
| JC97-01755A | MEA-PICKUP;CLP-500,SEC,-,-,-,- |
| JC75-00049A | MEC-TERMINAL;SF-5100,SAMSUNG |
| JC47-00007B | MEP-CLUTCH CAM SOLENOID;CLP-500,3.1W,DC |
| JC47-00007A | MEP-CLUTCH CAM SOLENOID;CLP-500,3.1W,DC |
| JC47-00008A | MEP-CLUTCH ELECTRIC FEED;CLP-500,4.0W,DC |
| JC47-00006A | MEP-CLUTCH SPRING DEVE;CLP-500,4.0W,DC 2 |
| JC31-00021A | MOTOR DC-MAIN(BLDC);50M8432021,1600RPM,D |
| JB31-00020B | MOTOR DC-WASTE TONER;HC385G,10200RPM,160 |
| JG74-10541A | MPR-RING CHARGE;SF6000,POLYSLIDER |
| JC74-10901A | MPR-WASHER SUPPLY;POLY,ID4.1*OD11*T0.13, |
| 6021-001194 | NUT-SQUARE;M3,PASS,SWCH+ZN COATING,SQUAR |
| 2804-001568 | OSCILLATOR-CLOCK;19.900614MHZ,50PPM,HCMO |
|
|

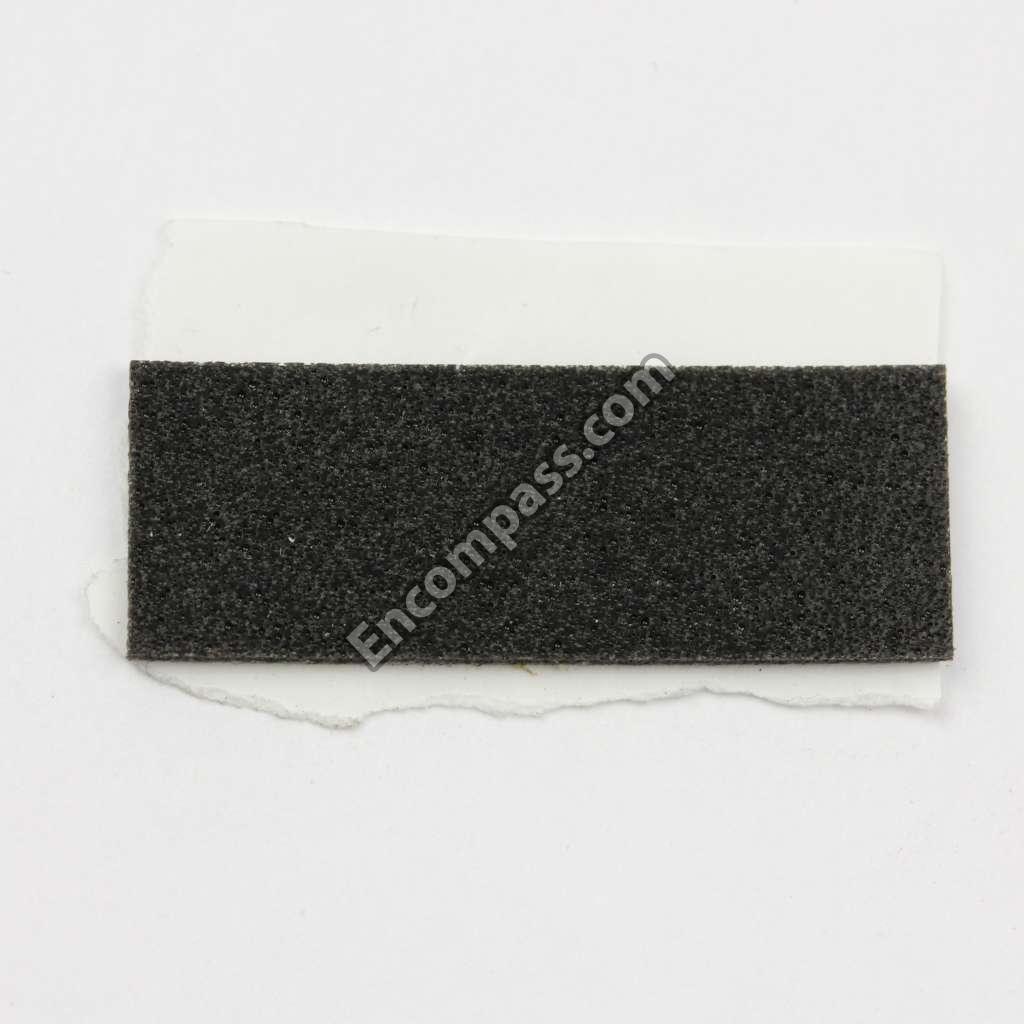

PAD-MP(PLUS);EPU,SCX-5315F,0.9T,W31*L11. |
| JC92-01441G | PBA MAIN-CONTROLLER;CLP-550,SEC,EXPORT,C |
| JC92-01442A | PBA SUB-DEVE_DRIVE;CLP-500,SEC,-,220V,C- |
| JC92-01533A | PBA SUB-DEVE_OEM_KEY;CLP-500,SEC,-,DEVE_ |
| JC92-01780A | PBA SUB-EMPTY SENSOR;CLP-550/SEE,SEE,-,- |
| JC92-01450A | PBA SUB-ERASER;CLP-500,SEC,-,ERASER,LED, |
| JC92-01454A | PBA SUB-EXIT SENSOR;CLP-500,SEC,-,EXIT S |
| JC92-01768A | PBA SUB-EXIT SENSOR;CLP-550/SEE,SEE,-,-, |
| JC92-01455A | PBA SUB-FEED SENSOR;CLP-500,SEC,-,FEED S |
| JC92-01770A | PBA SUB-FEED SENSOR;CLP-550/SEE,SEE,-,-, |
| JC92-01500A | PBA SUB-MP_EMPTY SENSOR;CLP-500,SEC,-,MP |
| JC92-01453A | PBA SUB-P.EMPTY SENSOR;CLP-500,SEC,-,P.E |
| JC92-01443A | PBA SUB-PANEL;CLP-500,SEC,-,220V,BIGBANG |
| JC92-01766A | PBA SUB-PANEL;CLP-550/SEE,SEE,-,-,-,-,-, |
| JC92-01769A | PBA SUB-PEMPTY SENSOR;CLP-550/SEE,SEE,-, |
| JC92-01451A | PBA SUB-PTL;CLP-500,SEC,-,PTL,LED,-,218* |
| JC92-01538A | PBA SUB-TEMP_2;CLP-500,SEC,-,TEMP_2,-,-, |
| JC92-01452A | PBA SUB-WASTE SENSOR;CLP-500,SEC,-,WASTE |
| JC72-20901A | PEX-ROLLER EXIT F_UP;ML-5000A,TEFLON,PI1 |
| 0603-001021 | PHOTO TR;NPN,20V,5V,20MA,75MW,TP |
| 6043-001097 | PIN-SPRING;W,D2,L14,PB+NI PLATING, T0.3 |
| JC62-00129A | PIPE-WASTE BAR;CLP-500,SILICON,ID1.0,OD5 |
| JC61-00707A | PLATE-S/W DUPLEX;CLP-500,SUS304 1/2H,T0. |
| JC72-00719A | PMO-ACTUATOR EMPTY;SCX-5100,ABS,HB,BLK |
| JC72-01056A | PMO-ACTUATOR EXIT;CLP-500,PET+GF30%,BLAC |
| JC72-01135A | PMO-ACTUATOR FEED SENSOR;CLP-500,PC+ABS, |
| JC72-00767A | PMO-ACTUATOR,MP;SCX-5100,PC,BLACK |
| JC72-00768A | PMO-ADJUSTER,MP;SCX-5100,POM,BLACK |
| JC72-40978A | PMO-BEARING LARGE DP;ML-165,POM,BLACK |
| JC72-41191A | PMO-BEARING SHAFT;ML-6000,POM,WHT,M90-44 |
| JC72-01134A | PMO-BRKT FEED;CLP-500,PC/ABS+SUS430 1.5T |
| JC72-00730A | PMO-BUSHING FEED;SCX-5100,POM,BLACK,N109 |
| JG72-40744A | PMO-BUSHING TX(B4);CF5700,POM,NTR+WHT,HB |
| JC72-41364A | PMO-BUSHING_P/U,MP;ML-6100,POM,BLACK,CF- |
| JC72-01217A | PMO-C/EXIT LOCK COVER;CLP-500,HIPS,HB,LI |
| JC72-00769A | PMO-CAM PICK UP,MP;SCX-5100,PC,BLACK,141 |
| JC72-00463A | PMO-CAP CONNECTOR L;ML-6060A,POM,BLACK |
| JC72-00465A | PMO-CAP CONNECTOR U;ML-6060A,POM,V0,BLAC |
| JC72-01215A | PMO-COVER DEV SPRING CAP;CLP-500,POM,WHI |
| JC72-01214A | PMO-COVER DEVE INNER;CLP-500,HIPS,HB,IVO |
| JC72-01213A | PMO-COVER DEVE;CLP-500,HIPS,HB,L.GRAY,HR |
| JC72-01081A | PMO-COVER DUP LOCKER F;CLP-500,POM,WHITE |
| JC72-01082A | PMO-COVER DUP LOCKER R;CLP-500,POM,WHITE |
| JC72-01099A | PMO-COVER EXIT;CLP-500,HIPS,LIGHT GRAY,H |
| JC72-01139A | PMO-COVER FEED SENSOR;CLP-500,PC+ABS,HB, |
| JC72-01192A | PMO-COVER FRONT DECO;CLP-500,HIPS,HB,BLU |
| JC72-01195A | PMO-COVER FRONT PUSH;CLP-500,POM,WHITE,M |
| JC72-01140A | PMO-COVER FUSER AC;CLP-500,PBT+GF30%,BLA |
| JC72-01201A | PMO-COVER REAR;CLP-500,HIPS,HB,L.GRAY,HR |
| JC72-01207A | PMO-COVER TOP STACKER;CLP-500,HIPS,HB,L. |
| JC72-01204A | PMO-COVER TOP;CLP-500,HIPS,HB,L.GRAY,VE- |
| JC72-01234A | PMO-DEVE CAP TONER;CLP-500,PP,H550,BLACK |
| JC72-01232A | PMO-DUMMY CLUTCH;CLP-500,POM,DEL 500P,WH |
| JC72-01142A | PMO-DUMMY FUSER BASE;CLP-500,PBT+GF30%,B |
| JC72-01156A | PMO-FRAME BASE;CLP-500,HIPS,HB,L/GRAY,G7 |
| JC72-01106A | PMO-FRAME FEED;CLP-500,ABS+GF20%,GP2200, |
| JC72-00770A | PMO-FRAME,MP;SCX-5100,PC/ABS,HB,C8726 |
| JC72-00056A | PMO-GEAR P/U MPF;ML-6100,POM,WHT |
| JC72-01160A | PMO-GUIDE PAPER PATH;CLP-500,HIPS,HB,HR- |
| JC72-01076A | PMO-GUIDE PAPER;CLP-500,HIPS,HB,BLACK,HR |
| JC72-01161A | PMO-GUIDE SCT PAPER;CLP-500,HIPS,HB,HR-1 |
| JC72-01218A | PMO-HOLDER ERASER;CLP-500,PP,BLACK |
| JC72-01233A | PMO-HOLDER GROUND BALL;CLP-500,PC,BLACK, |
| JC72-01216A | PMO-HOLDER GUIDE EXIT UP;CLP-500,POM,M90 |
| JC72-00771A | PMO-HOLDER PAD,MP;SCX-5100,PC/ABS,BLACK, |
| JC72-00772A | PMO-HOLDER SENSOR,MP;SCX-5100,ABS,BLACK |
| JC72-00773A | PMO-HOUSING PICK UP,MP;SCX-5100,POM,BLAC |
| JC72-01064A | PMO-HUB CLUTCH;CLP-500,POM,DE8903,BLACK |
| JC72-41027A | PMO-IDLE PICK UP MP;ML-165,POM,BLK |
| JC72-01090A | PMO-LEVER TR FRONT;CLP-500,PC+GF20%,BLAC |
| JC72-01073A | PMO-LOCKER PLATE;CLP-500,POM,WHITE,M90-4 |
| JC72-01200A | PMO-OPE KEY 2 CAP;CLP-500,PMMA,IH830-001 |
| JC72-00775A | PMO-PLATE KNOCK UP,MP;SCX-5100,ABS+GF20% |
| JC72-01110A | PMO-PULLEY FEED L;CLP-500,POM,WHITE,Z=61 |
| JC72-01111A | PMO-PULLEY FEED S;CLP-500,POM,WHITE,Z=32 |
| JC72-01112A | PMO-PULLEY IDLE;CLP-500,POM,WHITE,PI=10, |
| JC72-00761A | PMO-ROLLER CAM.MP;SCX-5100,POM,WHITE,K70 |
| JC72-41007A | PMO-ROLLER FD F;ML-165,POM,BLACK |
| JC72-40261A | PMO-ROLLER FEED L;ML-80,POM,WHT |
| JC72-01113A | PMO-ROLLER FEED MID;CLP-500,POM/GF25%+UR |
| JC72-40262A | PMO-ROLLER FEED S;ML-80,POM,NTR |
| JC72-00727A | PMO-ROLLER FEED;SCX-5100,POM+URETAN,BLAC |
| CALL_1-800-SAMSUNG | PMO-ROLLER_EXIT;SCF(XR),POM,NATURAL,M90- |
| JC72-00764A | PMO-SHAFT DUP DRIVER;SCX-5100,PC,BLACK,1 |
| JC72-00729A | PMO-SHAFT PICK UP;SCX-5100,PC,BLACK |
| JC72-00547H | PMO-SIDE GUIDE MP;CLP-500,ABS,HB,LIGHT G |
| JC72-40266A | PMO-SUB HOLDER FEED;ML-80,POM,BLK |
| JC72-00766A | PMO-TIE STOPPER;SCX-5100,NYLON66,NTR |
| JC72-01189A | PMO-TONER DETACTER;CLP-500,HIPS,HR-1360, |
| JC72-00777B | PMO-TRAY COVER MP;CLP-500,HIPS,HB,LIGHT |
| JC72-00857B | PMO-TRAY LINK MP;CLP-500,PC/ABS,NH-1000A |
| JC72-00836A | PPR-SHEET/GUIDE PAPER;SCX-5100,PC SHEET, |
| 2001-000281 | R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2001-000290 | R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2001-000111 | R-CARBON;150OHM,5%,1/4W,AA,TP,2.4X6.4MM |
| 2001-000008 | R-CARBON;15KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2001-000047 | R-CARBON;2.2KOHM,5%,1/4W,AA,TP,2.4X6.4MM |
| 2001-000812 | R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2001-000935 | R-CARBON;68OHM,5%,1/4W,AA,TP,2.4X6.4MM |
| 2001-000063 | R-CARBON;7.5KOHM,5%,1/4W,AA,TP,2.4X6.4MM |
| 2007-000122 | R-CHIP;1.2KOHM,5%,1/10W,TP,1608 |
| 2007-000123 | R-CHIP;1.5KOHM,5%,1/10W,TP,1608 |
| 2007-000102 | R-CHIP;100KOHM,5%,1/10W,TP,1608 |
| 2007-000074 | R-CHIP;100OHM,5%,1/10W,TP,1608 |
| 2007-000090 | R-CHIP;10KOHM,5%,1/10W,TP,1608 |
| 2007-000309 | R-CHIP;10OHM,5%,1/10W,TP,1608 |
| 2007-000312 | R-CHIP;10OHM,5%,1/4W,TP,3216 |
| 2007-008567 | R-CHIP;15.4KOHM,1%,1/10W,TP,1608 |
| 2007-000092 | R-CHIP;15KOHM,5%,1/10W,TP,1608 |
| 2007-000078 | R-CHIP;1KOHM,5%,1/10W,TP,1608 |
| 2007-000124 | R-CHIP;2.2KOHM,5%,1/10W,TP,1608 |
| 2007-000066 | R-CHIP;20KOHM,1%,1/10W,TP,1608 |
| 2007-000071 | R-CHIP;22OHM,5%,1/10W,TP,1608 |
| 2007-000082 | R-CHIP;3.3KOHM,5%,1/10W,TP,1608 |
| 2007-000736 | R-CHIP;30KOHM,1%,1/10W,TP,1608 |
| 2007-000134 | R-CHIP;33KOHM,5%,1/10W,TP,1608 |
| 2007-007726 | R-CHIP;35.7OHM,1%,1/10W,TP,1608 |
| 2007-000839 | R-CHIP;39OHM,5%,1/10W,TP,1608 |
| 2007-000842 | R-CHIP;3KOHM,1%,1/10W,TP,1608 |
| 2007-000084 | R-CHIP;4.7KOHM,5%,1/10W,TP,1608 |
| 2007-000107 | R-CHIP;470KOHM,5%,1/10W,TP,1608 |
| 2007-000939 | R-CHIP;47KOHM,1%,1/10W,TP,1608 |
| 2007-000097 | R-CHIP;47KOHM,5%,1/10W,TP,1608 |
| 2007-000965 | R-CHIP;5.1KOHM,5%,1/10W,TP,1608 |
| 2007-000086 | R-CHIP;5.6KOHM,5%,1/10W,TP,1608 |
| 2007-001134 | R-CHIP;68OHM,5%,1/10W,TP,1608 |
| 2007-007445 | R-CHIP;9.09KOHM,1%,1/10W,TP,1608 |
| 2008-000166 | R-FUSIBLE;56OHM,5%,1/4W,AA,TP,2.6X6.7MM |
| 2003-000557 | R-METAL OXIDE(S);2.2OHM,5%,3W,AA,TP,6X16 |
| 2003-000631 | R-METAL OXIDE(S);3.3OHM,5%,3W,AA,TP,6X16 |
| 2011-001011 | R-NETWORK;10KOHM,5%,1/16W,L,CHIP,8P,TP,3 |
| 2011-000002 | R-NETWORK;22OHM,5%,1/16W,L,CHIP,8P,TP,32 |
| 2011-001094 | R-NETWORK;39OHM,5%,1/16W,L,CHIP,8P,TP,3. |
| 6044-000159 | RING-C;ID3,OD7,T0.6,PASS,STSC |
| 6044-000001 | RING-CS;ID2.8,OD8,T0.25,BLACK,SK-5 |
| 6044-000121 | RING-E;ID2,OD5,T0.4,PASS,STSC |
| 6044-000125 | RING-E;ID4,OD9,T0.6,STSC |
| 6044-000231 | RING-E;ID5.0,OD11.0,T0.6,PASS,STS304 |
| JC66-00607A | ROLLER-EXIT DRIVE;CLP-500,EPDM+SUM24L,F1 |
| JC66-00516A | ROLLER-HEAT;CLP-500,AL5052+RUBBER,D34.8, |
| JC73-10910A | RPR-PAD CST;ML-165,CORK,25.8*24.6,NTR,NI |
|
|
RPR-RCT PAD PICKUP,MP;SCX-5100,SILICON,T |
| JC73-10203A | RPR-RUBBER EXIT;ML-80,EDPM RUBBER,BLACK, |
| JC81-00427A | RPR-RUBBER PICK UP,MP;SCX-5100,EPDM,BLAC |
| 6001-000125 | SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1 |
| 6001-000485 | SCREW-MACHINE;PH,+,-,M2.6,L4,ZPC(WHT),SW |
| 6001-000568 | SCREW-MACHINE;PH,+,M3,L8,NI PLT,SWRCH18A |
| 6006-001193 | SCREW-MACHINE;PH,+,WSP,M3,L10,ZPC(WHT),S |
| 6002-000175 | SCREW-TAPPING;PWH,+,2,M3,L8,ZPC(WHT),SM2 |
| 6003-000261 | SCREW-TAPTYPE;BH,+,-,B,M3,L6,ZPC(WHT),SW |
|
|
SCREW-TAPTYPE;BH,+,-,B,M3,L8,ZPC(BLK),SW |
|
|
SCREW-TAPTYPE;BH,+,-,S,M3,L6,ZPC(WHT),SW |
|
|
SCREW-TAPTYPE;BH,+,B,M3,L6,ZPC(BLK),SWRC |
| 6003-000301 | SCREW-TAPTYPE;BH,+,S,M4,L6,ZPC(WHT),SWRC |
|
|
SCREW-TAPTYPE;FH,+,B,M3,L8,ZPC(BLK),SWRC |
| 6003-000152 | SCREW-TAPTYPE;PH,+,-,B,M2,L10,ZPC(WHT),S |
| 6002-000308 | SCREW-TAPTYPE;PH,+,-,B,M2.6,L6,ZPC(WHT), |
| 6006-001078 | SCREW-TAPTYPE;PH,+,WSP,B,M3,L10,ZPC(WHT) |
| 6003-000264 | SCREW-TAPTYPE;PWH,+,-,B,M3,L6,ZPC(WHT),S |
| 6003-000266 | SCREW-TAPTYPE;PWH,+,-,S,M3,L6,ZPC(WHT),S |
| 6003-000267 | SCREW-TAPTYPE;PWH,+,-,S,M3,L8,ZPC(WHT),S |
| 6003-000196 | SCREW-TAPTYPE;PWH,+,B,M3,L10,NI PLT,SWRC |
| JC62-00140A | SEAL-BLADE SIDE_BK;CLP-500,PE FORM,GRAY, |
| JC66-00616A | SHAFT-COVER EXIT HINGE;CLP-500,SUM24L,L7 |
| JC66-00544A | SHAFT-DEVE CLUTCH;CLP-500,SUM24L,L45.9,D |
| JC66-00545A | SHAFT-DEVE DRIVE;CLP-500,SUM24L,L67.5,D8 |
| JC66-00740A | SHAFT-FEED DRIVE;CLP-510,SUM24L,L62.0,D8 |
| JC66-00617A | SHAFT-FEED;CLP-500,SUM24L,L67.1,F6.0,NI |
| JC66-00547A | SHAFT-FUSER DRIVE;CLP-500,SUM24L,L60.8,D |
| JC66-00548A | SHAFT-ITB CLEAN CAM;CLP-500,SUM24L,L160. |
| JC66-00549A | SHAFT-ITB DRIVE;CLP-500,SUM24L,L60.1,D8. |
| JC66-00652A | SHAFT-M-WASTE DUCT INLET;CLP-500,POM,F9. |
| JC66-00550A | SHAFT-OPC DRIVE;CLP-500,SUM24L,L52.4,D8. |
| JC66-00551A | SHAFT-T2 CAM;CLP-500,SUM24L,L75.8,D8.0,N |
| JC63-00570A | SHEET-AGITATOR_D;CLP-510,PET,0.1,DIAMETE |
| JC63-00184C | SHEET-COVER FRONT OPE;CLP-550,PC SHEET,0 |
| JC63-00247A | SHEET-ERASER LAMP;CLP-500,PET,0.5,220,11 |
| JC63-00264A | SHEET-HARNESS GUIDE;CLP-500,PC,0.5,34.4, |
| JC63-00248A | SHEET-HV HARNESS;CLP-500,PET,0.5,33.6,16 |
| JC63-00235A | SHEET-PAPER GUIDE;CLP-500,PC,0.38,31.6,3 |
| JC63-00240A | SHEET-PAPER MP;CLP-500,PC,0.25,38,15 |
| JC63-00236A | SHEET-SMPS;CLP-500,PVC,0.5,258,174 |
| JC33-00011A | SOLENOID-DEVE HVPS;CLP-500,DC24V,190?,4M |
| JC33-00008B | SOLENOID-DUPLEX;CLP-500,DC24V,38.4?,30*2 |
| JC33-00006B | SOLENOID-MP;CLP-500,DC24V,82.0?,27.8*22. |
| JC33-00007B | SOLENOID-PICK UP;CLP-500,DC24V,80.0?,40* |
| JC72-01283A | SPONGE-DUST ITB COVER;CLP-500,PE FORM,2, |
| JC72-01284A | SPONGE-DUST OPC COVER;CLP-500,PE FORM,3, |
| JC72-01290A | SPONGE-WASTE COVER;CLP-500,PE FORM+PET F |
| JC72-01285A | SPONGE-WASTE DUCT OPC;CLP-500,PE FORM+PE |
| JC72-01278A | SPONGE-WASTE LIFTER 1;CLP-500,PE FORM+PE |
| JC72-01279A | SPONGE-WASTE LIFTER 2;CLP-500,PE FORM+PE |
| JC61-00003A | SPRING ETC--CAM MP;ML-6100,SUS304-WPB,0. |
| JC61-00485A | SPRING ETC-ACTUATOR6G;SCX-5100,SUS304-WP |
| JC61-00050A | SPRING ETC-ACTUATOR;ML-6060A,SUS304-WPB, |
| JB61-70922A | SPRING ETC-CLUTCH;MJC-810L,SUS304,ID4.1, |
| JC61-00484A | SPRING ETC-EXIT LOWER IDLE;SCX-5100,SUS3 |
| JC61-00481A | SPRING ETC-FEED MP;SCX-5100,SUS304-WPB,P |
| JC61-00011A | SPRING ETC-FEED;SF-5100,SUS304WPB,0.6,13 |
| JC61-70929A | SPRING ETC-HV LARGE;ML-5000A,SUS304-WPB, |
| JC61-70930A | SPRING ETC-HV SMALL;ML-5000A,PI0.3,L12.5 |
| JC61-00483A | SPRING ETC-KNOCKUP,MP;SCX-5100,SUS304-WP |
| JG61-70531A | SPRING ETC-LOCKER,PLATE;SF6000,SUS304WPB |
| JC61-00549A | SPRING ETC-PICKUP,MP;SCX-5312F,SUS304-WP |
|
|
SPRING ETC-PICKUP;SCX-5100,SUS304-WPB,PI |
| JC61-70915A | SPRING ETC-SOLENOID DP;ML-165,SUS304-WPB |
| 6107-001196 | SPRING-CS;SUS304-WPB,PI0.85,D5.65,L21.5, |
| 6107-001193 | SPRING-CS;SUS304-WPB,YEL,PI1.1,D6.1,L19. |
| 6107-001194 | SPRING-CS;SWP-B,BLK,PI0.9,D6.95,L20,ID6. |
| 6107-001214 | SPRING-ES;SWP(PW-2),BLACK,PI0.45,D5.35,L |
| 6107-001223 | SPRING-TS;SUS304 WPB,PI1.2,D9.9,L29,ID8. |
| JC61-00714A | STOPPER-STACKER F;CLP-500,POM,32,WHITE,M |
| JC61-00715A | STOPPER-STACKER R;CLP-500,POM,32,WHITE,M |
| 3404-000165 | SWITCH-TACT;12V,50MA,160GF,6X6X5,SPST |
| 0203-000007 | TAPE-FILAMENT;T0.15,L55M,TRP,FILAMENT |
| 0203-001100 | TAPE-OPP MASKING;OPP/W75/CLR,T0.075,W75, |
| 0502-000245 | TR-POWER;KSB1151-Y,PNP,1300MW,TO-126,160 |
| 0502-001048 | TR-POWER;KSD1691,NPN,1.3W,TO-126,BK,160 |
| 0504-000144 | TR-SMALL SIGNAL;2SC1008,NPN,800MW,TO-92, |
| 0501-000338 | TR-SMALL SIGNAL;2SC2812,NPN,200MW,SOT-23 |
| 0501-000279 | TR-SMALL SIGNAL;KSA1182-Y,PNP,150MW,SOT- |
| 0501-000294 | TR-SMALL SIGNAL;KSA708-Y,PNP,800MW,TO-92 |
| 0501-000457 | TR-SMALL SIGNAL;MMBT2222A/KST2222A,NPN,3 |
| JC59-00020A | UNIT-LSU BIGBANG;CLP-500,600DPI,20PPM,CW |
| 6031-001255 | WASHER-PLAIN;NYLON,CUTTING,ID5,OD9,T0.5, |
| 6031-000023 | WASHER-PLAIN;POLY,ID5.9,OD10.0,T0.5,BLK |
| 6031-000019 | WASHER-PLAIN;POLY,ID6.1,OD8.5,T0.1,BLK |
| 6031-001490 | WASHER-PLAIN;POLYMIDE,ID7.1,OD14,T0.13,B |
