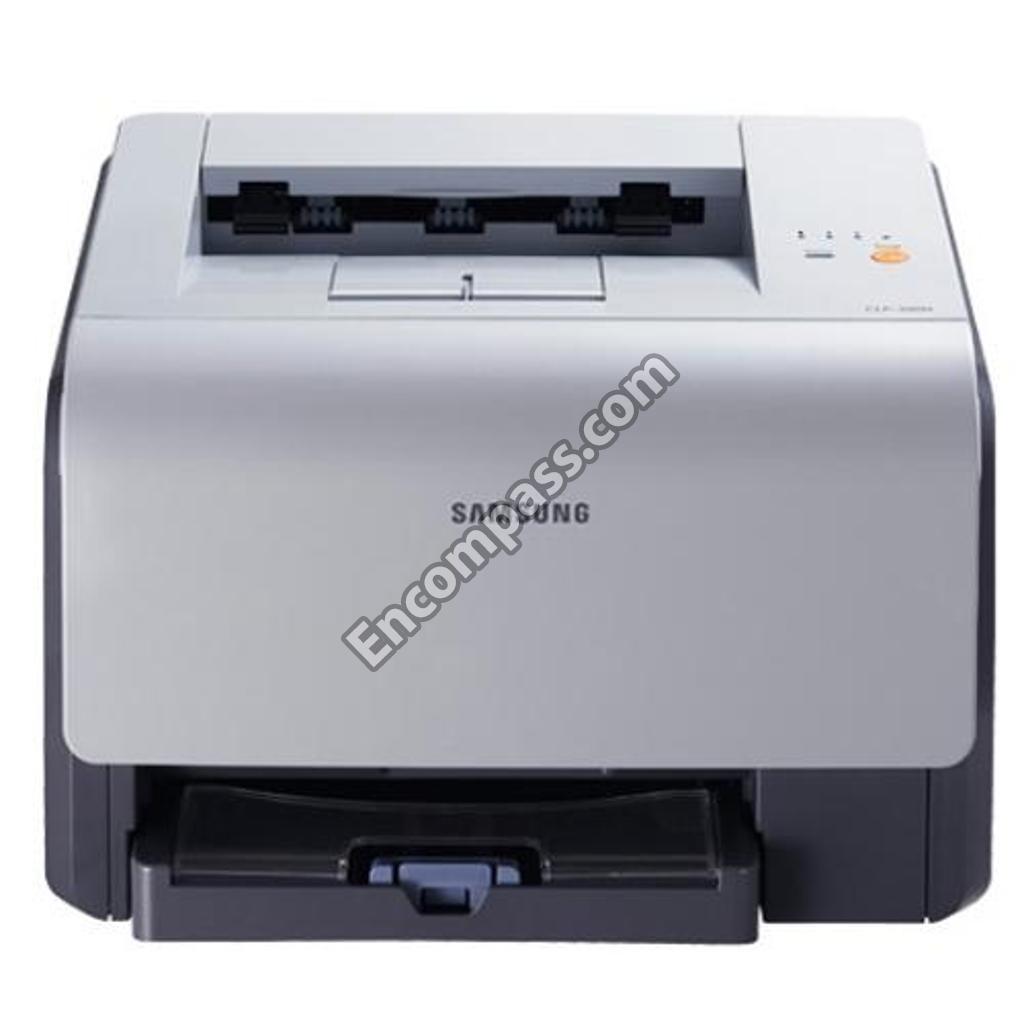

Manufacturer
Samsung
Model Number
CLP300N
Description
Color Laser Printer Network Ready, Compact Design
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| JC70-00517A | ADJUST-M-CASSETTE L: CLP-300,ABS HB,T2.5, |
| JC70-00516A | ADJUST-M-CASSETTE R: CLP-300,ABS HB,T2.5, |
|
|
BEARING-H/R L: ML-165,PPS(RBA313),ID26.2, |
| JC69-00920A | BOX(P)-MAIN: CLP-300N,OFFSET4,A-1,515,424 |
| JC61-00424A | BUSH-4: ML-9400W,NTN B-F4-42,-,NTR,- |
| JC61-00699A | BUSH-D6/L4: MLC-500,BRONZE+ST,ID6.0,OD9.0 |
| 2402-001049 | C-AL,CHIP: 10UF,20%,16V,GP,TP,3.3X3.3X5.4 |
| 2401-000042 | C-AL: 100UF,20%,16V,GP,6.3X7MM,2.5MM |
| 2401-002300 | C-AL: 47UF,20%,50V,GP,6X11MM,5MM,TP |
| 2203-006348 | C-CER,CHIP: 1000NF,10%,25V,X5R,1608 |
| 2203-000426 | C-CERAMIC,CHIP |
| 2203-000257 | C-CERAMIC,CHIP: 10NF,10%,50V,X7R,1608,T |
| 2203-000384 | C-CERAMIC,CHIP: 15PF,5%,50V,CH,1608,TP |
| 2203-000440 | C-CERAMIC,CHIP: 1NF,10%,50V,X7R,1608,TP |
| 2203-000491 | C-CERAMIC,CHIP: 2.2NF,10%,50V,X7R,1608, |
| 2203-000626 | C-CERAMIC,CHIP: 22PF,5%,50V,CH,1608,TP |
| 2203-005384 | C-CERAMIC,CHIP: 4700NF,+80-20%,10V,Y5V,TP |
| 2201-000021 | C-CERAMIC,DISC: 100NF,+80-20%,50V,Y5 |
| 6502-001093 | CABLE CLAMP: DAWS-3NE,ID11*L34.8,NYLON6 |
| 6501-000115 | CABLE TIE: DA100,T1,W2.5,L102,NTR,NYLON66 |
| JC66-00050A | CAM-CATCH: ML-9400W,POM,34187,WHITE |
| JC67-00188A | CAP-BOTTLE BK: CLP-300,PET,T0.65,R39.1,L5 |
| JC67-00187A | CAP-BOTTLE Y: CLP-300,PET,T0.65,W64.53,L5 |
| JC67-00199A | CAP-DEVE: CLP-300,PP,31.5,62,- |
| JC67-00130A | CAP-M-PUSH COUPLING: CLP-300,POM,T2.0,D13 |
| JC39-00302A | CBF HARNESS-100M_GND: CLP-500,-,1 PIN,5 |
| JC39-00486A | CBF HARNESS-BLDC: CLP-300,WIRE HARNESS,UL |
| JC39-00498A | CBF HARNESS-COVER S/W: CLP-300,WIRE HARNE |
| JC39-00580A | CBF HARNESS-DEVE_HOME: CLP-300,WIRE HARNE |
| JC39-00495A | CBF HARNESS-EXIT: CLP-300,WIRE HARNESS,UL |
| JC39-00581A | CBF HARNESS-FUSER_AC: CLP-300,WIRE HARNES |
| JC39-00500A | CBF HARNESS-FUSE_LINK1: CLP-300,WIRE HARN |
| JC39-00501A | CBF HARNESS-FUSE_LINK2: CLP-300,WIRE HARN |
| JC39-00578A | CBF HARNESS-GND_BRK: CLP-300,WIRE HARNESS |
| JC39-00485A | CBF HARNESS-HVPS: CLP-300,WIRE HARNESS,UL |
| JC39-00483A | CBF HARNESS-LSU: CLP-300,WIRE HARNESS,UL1 |
| JC39-00496A | CBF HARNESS-LSU_GND: CLP-300,WIRE HARNESS |
| JC39-00579A | CBF HARNESS-LSU_S/W: CLP-300,WIRE HARNESS |
| JC39-00488A | CBF HARNESS-MAIN_DRAW: CLP-300,WIRE HARNE |
| JC39-00036A | CBF HARNESS-OPE GND: SF-5100,#18,UL 1007, |
| JC39-00487A | CBF HARNESS-OPE: CLP-300,WIRE HARNESS,UL1 |
| JC39-00494A | CBF HARNESS-REGI_EMT: CLP-300,WIRE HARNES |
| JC39-00493A | CBF HARNESS-THER: CLP-300,WIRE HARNESS,UL |
|
|
CBF-POWER CORD: DT,US,BP3/YES,I(IEC C13/C |
| 6502-000132 | CLAMP-CABLE: DAWS-1NE,ID11,NTR, |
| JC61-40001A | COM,FOOT-RUBBER: CR70,BLK |
| 3711-000198 | CONNECTOR-HEADER: 1WALL,3P,1R,2.5MM,STRAI |
| 3711-000203 | CONNECTOR-HEADER: 1WALL,3P,1R,3.96MM,ANGL |
| 3711-003035 | CONNECTOR-HEADER: BOX,14P,2R,2MM,STRAIGHT |
| 3711-003340 | CONNECTOR-HEADER: BOX,16P,2R,2MM,STRAIGHT |
| 3711-003204 | CONNECTOR-HEADER: BOX,24P,2R,2MM,STRAIGHT |
| 3711-005561 | CONNECTOR-HEADER: BOX,5P,1R,2MM,SMD-S,SN, |
| 3711-002001 | CONNECTOR-HEADER:, 20P,2R,2MM,STRAIGHT,S |
| 3301-000319 | CORE-FERRITE BEAD: AB,2.0X1.25X0.9MM,1000 |
| JC63-00855A | COVER-M-CASSETTE: CLP-300,ABS,T2.5,77,224 |
| JC63-00847A | COVER-M-DUMMY FRONT: CLP-300,ABS FR,T2.5, |
| JC63-00842A | COVER-M-LEFT SIDE: CLP-300,ABS FR,T2.5,23 |
| JC63-00845A | COVER-M-RIGHT SIDE: CLP-300,ABS FR,T2.5,2 |
| 0407-000122 | DIODE-ARRAY: 1SS226,80V,300MA,C2-3,SOT-23 |
| 0407-000101 | DIODE-ARRAY: DA204K,20V,100MA,C2-3,SOT-2 |
| 0402-001189 | DIODE-RECTIFIER: M4,400V,1A,SMD-2,TP |
| JC96-04002A | ELA HOU-REGI_EMP: CLP-300,KOREA,KOREA,REG |
| JC96-04001A | ELA UNIT-CONNECTOR: CLP-300,SEC,EXPORT, |
| JC96-03608A | ELA UNIT-DRIVE MAIN: CLP-300,SEC,WORLD, |
| JC96-03609B | ELA UNIT-FUSER 110V: CLP-300,SEC,WORLD, |
|
|
ELA UNIT-ITB_SET: CLP-300,SEC,WORLD,SET,- |
|
|
ELA UNIT-OPC DEV_SET: CLP-300,SEC,WORLD,S |
| 0505-001326 | FET-SILICON: SI2308DS,N,60V,2A,0.22OHM,1. |
| 2901-001178 | FILTER-EMI SMD: 25V,2A,100000PF,2X1.25X |
| JG61-40001A | FOOT: SF4000,CR,3,BLK |
| JC66-01069A | GEAR-CLUTCH DEVE CAM: CLP-300,POM,M0.6,Z2 |
| JC66-01041A | GEAR-DEVE COUPLING: CLP-300,POM,M0.8,Z18, |
| JC66-00810A | GEAR-EXIT_DRV17 |
| JC66-01044A | GEAR-FUSER DRIVE 1: CLP-300,POM,M0.8,Z45, |
|
|
GEAR-FUSER: SCX-5315F,PPS, OFL4036,1,34,P |
| JC66-01042A | GEAR-IDLE DEVE Z19: CLP-300,POM,M0.8,Z19, |
| JC66-01045A | GEAR-IDLE ITB Z43: CLP-300,POM,M0.5,Z43,- |
| JC66-01046A | GEAR-IDLE Z33: CLP-300,POM,M0.8,Z33,WHI |
| JC66-01064A | GEAR-IDLE Z37: CLP-300,POM,M0.8,Z37,WHI |
| JC66-01047A | GEAR-IDLE Z39: CLP-300,POM,M0.8,Z39,WHI |
| JC66-01048A | GEAR-ITB DRIVE: CLP-300,POM,M0.5/M0.5,Z10 |
| JC66-00763A | GEAR-M-PICK UP IDLE: CLP-600,POM,M0.8,SPU |
| JC66-01049A | GEAR-OPC DRIVE: CLP-300,POM,M0.6/M0.6,Z53 |
| JC66-01076A | GEAR-PICK UP A: CLP-300,POM,M0.8,Z45,WH |
| JC66-01077A | GEAR-PICK UP B: CLP-300,POM,M0.8,Z45,WH |
| JC66-01050A | GEAR-PICK UP DRIVE: CLP-300,POM,M0.8/M0.8 |
| JG66-40003A | GEAR-PINION: SF4000,POM,WHT,M1,Z16 |
| JC66-01052A | GEAR-RDCN DEVE CAM: CLP-300,POM,M0.8/M0.6 |
| JC66-01051A | GEAR-RDCN DEVE: CLP-300,POM,M0.5/M0.8,Z73 |
| JC66-01053A | GEAR-RDCN EXIT: CLP-300,POM,M0.8/M0.8,Z51 |
| JC66-01208A | GEAR-RDCN FUSER CAM: CLP-300,POM,M0.8/Z0. |
| JC66-01054A | GEAR-RDCN OPC: CLP-300,POM,M0.5/M0.6,Z79/ |
| JC66-01055A | GEAR-RDCN P_PATH: CLP-300,POM,M0.5/M0.8,Z |
| JC66-01081A | GEAR-RDCN T2 DRIVE: CLP-300,POM,M0.8/M0.8 |
| JC66-01056A | GEAR-REGI DRIVE: CLP-300,POM,M0.8,Z32,W |
| JC66-01073A | GEAR-T2 ROLLER: CLP-300,POM,M0.8,Z28,WH |
| JC66-01065A | GEAR-TONER DRIVE: CLP-300,POM,M0.8/Z0.8,Z |
| JC66-01057A | GEAR-WORM DEVE CAM: CLP-300,POM,M0.6/M0.6 |
| JC66-00771A | GEAR-_M_IDLE PICKUP: CLP-600,POM,M0.8,SPU |
| JC61-01473A | GUIDE-M-PICK UP: CLP-300,PC+ABS,HB,T2.5,5 |
| JC39-00583A | HARNESS-GND_FRAME: CLP-300,WIRE HARNESS,U |
| JC39-00671A | HARNESS-INLET: CLP-300,HARNESS,UL1617,2,7 |
| JC39-00670A | HARNESS-SMPS: CLP-300,HARNESS,UL1061,16,2 |
| 3711-005851 | HEADER-BATTERY: NOWALL,2P,1R,4.25MM,BATTE |
|
|
HOLDER-BEARING EXIT F/DOWN: SCX-4216F,POM |
| JC61-01453A | HOLDER-M-LINK BLACK: CLP-300,PC+ABS,T2.5, |
| JC61-01572A | HOLDER-M-SHAFT CLUTCH: CLP-300,POM,T1.5,D |
| JC61-01787A | HOLDER-PAD: CLP-300,PC+ABS,T2.5,W39.5,B |
|
|
HOUSING-M-PICK_U |
|
|
HOUSING-M-PICK_UP B |
| JC44-00138A | HVPS:, 24V,21.6V~27.6V,MAX 5KV,MAX-2KV |
| JC13-00031C | IC ASIC-CHORUSM: CHORUSM,SCX-5530FN,496PI |
| 1001-000170 | IC-ANALOG SWITCH: MC14051BD,SPDT CMOS,SOP |
| 1205-002339 | IC-CLOCK GENERATOR: CY25811SC,SOIC,8P,150 |
| 1105-001384 | IC-DRAM: K4S561632,4X4MX16BIT,TSOP(II),54 |
| 1103-000170 | IC-EEPROM |
| 1203-001455 | IC-POSI.FIXED REG.: 1117,DPAK,3P,265MIL,P |
| 0803-000634 | IC-TTL: 74LS07,NONINVERTED BUFFER,SOP, |
| 0904-001989 | IC-USC: ISP1582BS,HVQFN56,56P,8X8X0.85M |
| 1202-000164 | IC-VOLTAGE COMP.: 393,SOP,8P,150MIL,DUAL, |
| JC70-10232A | IPR-PLATE SAW: ML-80,SUS304-CSP,T0.1,- |
| JC70-10961A | IPR-TERMINAL FU: ML-165,C5210P,T0.3,- |
| 3722-002376 | JACK-MODULAR: 8P/8C,STANDARD,Y,ANLGE,YEL/ |
| 3722-002303 | JACK-USB |
| JC64-00211A | KEY-M-OP1: CLP-300,ABS,-,36024,HF-066 |
| JC68-01584A | LABEL(P)-BLANK 90*25: CLP-510,SEE,ART 100 |
|
|
LAMP-HALOGEN: 115V,850W,-,10X299.6M |
| 0601-000003 | LED: ROUND,RED/GRN,3.1MM,650/563 |
| BN94-01666B | LENS-PTL: ML-1400,PC,NTR,-,- |
| JC66-01119A | LEVER-M-ACTUATOR EMPTY: CLP-300,PC,T2.5,5 |
|
|
LEVER-M-KICKER P/U |
| JC66-01148A | LEVER-M-LINK FUSER: CLP-300,PET+GF30%,T1. |
| JC66-01097A | LINK-M-PUSH BLACK CAP: CLP-300,POM,22,T2. |
| JC64-00223A | LOCKER-M-KNOCK UP L: CLP-300,POM (M90-44) |
| JC64-00222A | LOCKER-M-KNOCK UP R: CLP-300,POM (M90-44) |
| JC97-02656A | MEA UNIT-COVER LSU: CLP-300,SEC,EXPORT, |
| JC97-02440A | MEA UNIT-COVER REAR: CLP-300,SEC,WORLD, |
| JC97-02439A | MEA UNIT-COVER TOP: CLP-300,SEC,WORLD,- |
| JC97-02362A | MEA UNIT-DRAW: CLP-300,SEC,WORLD,-,- |
| JC97-02642A | MEA UNIT-EMPTY ACT: CLP-300,SEC,EXPORT, |
| JC97-02641A | MEA UNIT-EXIT ROLLER: CLP-300,SEC,EXPORT, |
| JC97-02931A | MEA UNIT-FRAME: CLP-300,SEC,WORLD,-,- |
| JC97-02639A | MEA UNIT-FU TERMINAL: CLP-300,SEC,EXPORT, |
| JC97-02688A | MEA UNIT-PICK UP GEAR: CLP-300,SEC,WORLD, |
| JC97-02829A | MEA UNIT-PLATE K_UP: CLP-300,SEC,WORLD, |
| JC97-02640A | MEA UNIT-REGIACTUATOR: CLP-300,SEC,EXPORT |
| JC97-02628A | MEA UNIT-T2 ROLLER: CLP-300,SEC,WORLD,- |
| JC97-02638A | MEA UNIT-TERMINAL GND: CLP-300,SEC,EXPORT |
| JC97-01771A | MEA UNIT-TERMINAL S: MLC-500,SEC,EXPORT,S |
| JC97-01401A | MEA UNIT-TERMINAL:TR: ML-5000A,SAMSUNG,KO |
|
|
MEA-UNIT CASSETTE: CLP-300,SEC,WORLD,-, |
| JC97-02659A | MEA-UNIT COVER FRONT: CLP-300,SEC,WORLD,- |
| JC97-02660A | MEA-UNIT COVER RIGHT: CLP-300,SEC,WORLD,- |
| JC47-00007E | MEP-CLUTCH CAM:, CLP-300,DC24V,0.133A, |
| JC47-00014A | MEP-CLUTCH CAM:, CLP-300,DC24V,0.18A,C |
| JC47-00009C | MEP-CLUTCH REGI:, CLP-300,3.0W,DC24V,125 |
| JC31-00041A | MOTOR DC-DEVE DRIVE: 50M843A152,CLP-600,2 |
|
|
PAD-FRICTION: CLP-300,NBB,T1.0,W9.0,L39.5 |
| JC92-01901A | PBA MAIN-CONTROLLER: CLP-300N,SEC,XAA,VE, |
| JC92-01720A | PBA SUB-DEVE_HOME: CLP-300,SEC,KOREA,DEVE |
| JC92-01718A | PBA SUB-EXIT: CLP-300,SEC,KOREA,EXIT SENS |
| JC92-01714A | PBA SUB-PANEL: CLP-300,SEC,KOREA,PANEL, |
| JC92-01723A | PBA SUB-WASTE_T: CLP-300,SEC,KOREA,WASTE_ |
| JC72-20902A | PEX-ROLLER F/UP(2): ML-5000A,TE |
| 0603-001021 | PHOTO-TR: NPN,20V,5V,20MA,75MW,TP |
|
|
PLATE-M-KNOCK_UP |
|
|
PMO-BEARING H/R-F: SCX-5100,PPS,BLK,V0, |
| JC72-00382B | PMO-BUSHING FEED: ML-1710,DELRIN8903,WHIT |
|
|
PMO-BUSHING_TR(L): SF-5100,POM ,BLK,- |
| JC72-00463A | PMO-CAP CONNECTOR L: ML-6060A,PC,VO,- |
| JC72-00465A | PMO-CAP CONNECTOR U: ML-6060A,PC,VO,- |
| JC72-41010A | PMO-HOUSING TERMINAL: ML-165,ABS GF20%,BL |
| JC72-01004A | PMO-IDLE KNOCK UP MP: ML-2060,POM,WHITE,- |
|
|
PMO-SUB_M_STACKER: ML-1520,PC,BLACK,40*30 |
| 2001-000281 | R-CARBON: 100OHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2001-000831 | R-CARBON: 510OHM,5%,1/4W,AA,TP,2.4X6.4MM |
| 2007-000729 | R-CHIP |
| 2007-001014 | R-CHIP |
| 2007-000033 | R-CHIP: 0OHM,5%,1/8W,DA,TP,3216 |
| 2007-000122 | R-CHIP: 1.2KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000239 | R-CHIP: 1.5KOHM,1%,1/16W,DA,TP,1608 |
| 2007-000123 | R-CHIP: 1.5KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000074 | R-CHIP: 100OHM,5%,1/16W,DA,TP,1608 |
| 2007-000090 | R-CHIP: 10KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000309 | R-CHIP: 10OHM,5%,1/16W,DA,TP,1608 |
| 2007-002901 | R-CHIP: 12.1KOHM,1%,1/16W,DA,TP,1608 |
| 2007-000402 | R-CHIP: 150OHM,5%,1/16W,DA,TP,1608 |
| 2007-000067 | R-CHIP: 15KOHM,1%,1/16W,DA,TP,1608 |
| 2007-000078 | R-CHIP: 1KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000475 | R-CHIP: 1MOHM,1%,1/16W,DA,TP,1608 |
| 2007-000105 | R-CHIP: 200KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000066 | R-CHIP: 20KOHM,1%,1/16W,DA,TP,1608 |
| 2007-000094 | R-CHIP: 22KOHM,5%,1/16W,DA,TP,1608 |
|
|
R-CHIP: 2KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000082 | R-CHIP: 3.3KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000730 | R-CHIP: 300OHM,5%,1/8W,DA,TP,3216 |
| 2007-007239 | R-CHIP: 31.6KOHM,1%,1/10W,TP,1608 |
| 2007-000134 | R-CHIP: 33KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000113 | R-CHIP: 33OHM,5%,1/16W,DA,TP,1608 |
| 2007-000839 | R-CHIP: 39OHM,5%,1/16W,DA,TP,1608 |
| 2007-000084 | R-CHIP: 4.7KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000077 | R-CHIP: 470OHM,5%,1/16W,DA,TP,1608 |
| 2007-000097 | R-CHIP: 47KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000965 | R-CHIP: 5.1KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000086 | R-CHIP: 5.6KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000119 | R-CHIP: 560OHM,5%,1/16W,DA,TP,1608 |
| 2007-001056 | R-CHIP: 6.2KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000100 | R-CHIP: 68KOHM,5%,1/16W,DA,TP,1608 |
| 2011-001261 | R-NETWORK: 33OHM,5%,1/32W,L,CHIP,8P,TP |
| 6044-000159 | RING-C: ID3,OD7,T0.6,PASS,STSC |
| 6044-001005 | RING-CS: ID4.8,OD10.0,T0.25,PASS,SUS-30 |
| 6044-000125 | RING-E: ID4,OD9,T0.6,PASS,STSC |
| 6044-000231 | RING-E: ID5.0,OD11.0,T0.6,STS304 |
| JC66-01149A | ROLLER-EXIT MAIN: CLP-300,PFA,D8.5,L23,BL |
| JC66-02722A | ROLLER-HEAT: CLP-300,AL5052+RUBBER,D27.5, |
|
|
RUBBER-PICK_UP |
| 6001-000130 | SCREW-MACHINE: BH,+,M3,L6,ZPC(WHT),SM20C, |
| 6002-000308 | SCREW-TAPPING: PH,+,2,M2.6,L6,ZPC(YEL),SM |
| 6002-000440 | SCREW-TAPPING: RWH,+,2,M3,L8,ZPC(BLK),SWR |
| 6003-000152 | SCREW-TAPTITE |
|
|
SCREW-TAPTITE: BH,+,B,M3,L8,ZPC(BLK),SWCH |
|
|
SCREW-TAPTITE: BH,+,S,M3,L6,ZPC(YEL),SWRC |
| 6003-000196 | SCREW-TAPTITE: PWH,+,B,M3,L10,NI PLT,SWRC |
| JC66-01207A | SHAFT-M-CLUTCH FUSER: CLP-300,POM,L39.8,D |
| JC66-01066A | SHAFT-M-DEVE CAM: CLP-300,POM,L116,D18.3, |
| JC66-01067A | SHAFT-M-ITB CLEAN CAM: CLP-300,POM,L44,D2 |
| JC66-01068A | SHAFT-M-T2 CAM: CLP-300,POM,L52,D20,BLACK |
| JC66-00720A | SHAFT-P-CORE: ML-1750,SECC 1.6T,220,-,- |
| JC63-01102A | SHEET-COVER TOP: CLP-300,PC SHEET,T0.5,W7 |
| JC44-00095A | SMPS-PSP_TYPE2_V1: SCX-4521F,*,AC/DC,10 |
| JC33-00020A | SOLENOID-PICK UP:, CLP-300,DC-24V,120, |
| JC61-01271A | SPRING ETC-ACTUATOR: CLP-600,SUS304 ,0.35 |
| JC61-01685A | SPRING ETC-DUMMY: CLP-600,SUS,0.5,-,20. |
| JC61-01546A | SPRING ETC-OPC LOCK L: CLP-300,C5210W,D1. |
| JC61-01547A | SPRING ETC-OPC LOCK R: CLP-300,C5210W,D1. |
| 6107-001282 | SPRING-CS: C5210W,PI0.6,L12.5,-,ID3 |
| 6107-001290 | SPRING-CS: SUS304 WPB,PI0.55,D5.55,L16, |
| 6107-001271 | SPRING-CS: SUS304 WPB,PI0.55,D6.75,L9.0 |
| 6107-001278 | SPRING-CS: SUS304 WPB,PI0.7,D6.9,L20, |
| 6107-001325 | SPRING-CS: SUS304-WPB,GROUND ENDS,PI0.6,D |
| 6107-001167 | SPRING-CS: SUS304-WPB,PI0.25,D3.25,L9.6 |
| 6107-001163 | SPRING-CS: SUS304-WPB,PI0.4,D3.9,L13, |
| 6107-001306 | SPRING-CS: SUS304-WPB,PI0.55,D6.45,L11, |
| 6107-001309 | SPRING-CS: SWP-B,PI0.5,L10,-,ID4.0, |
| JC61-70911A | SPRING-EXIT ROLL FD: ML-165,SUS304 WPB,PI |
| JC61-70929A | SPRING-HV LARGE: ML-5000A,SUS304 WPB,PI0. |
| JG61-70531A | SPRING-LOCKER,PLATE: SF6000,STS304WPB,PI0 |
|
|
SPRING-TORSION DOC (CC2-F): SCX-1110F/XRX |
| JC61-70940A | SPRING-TR(12): ML-5500,SUS304-WPB,0.5,4.5 |
| 6107-001268 | SPRING-TS: SUS304 WPB,PI0.9,D8.9,L7,- |
| 6107-001283 | SPRING-TS: SWRS82A,1.0X0.6,D13.70,L12.1 |
| 3404-000165 | SWITCH-TACT: 12V,50MA,160GF+-50GF,6X6MM,S |
| 0501-000457 | TR-SMALL SIGNAL |
| 0501-000462 | TR-SMALL SIGNAL |
| JC59-00018E | UNIT-LSU: CLP-300,-,STANDARD SINGLEBEAM |
| 6031-001255 | WASHER-PLAIN: NYLON,CUTTING,ID5,OD9,T0.5, |
| 6031-001528 | WASHER-PLAIN: POLYMIDE,ID6,OD13.5,T0.5, |
| 6031-000019 | WASHER-PLAIN:, ID6.1,OD8.5,T0.1,BLK,POLY |
| JC39-00490A | WIRE HARNESS-WASTE_T: CLP-300,WIRE HARNES |
