Manufacturer
Samsung
Model Number
CLP600
Description

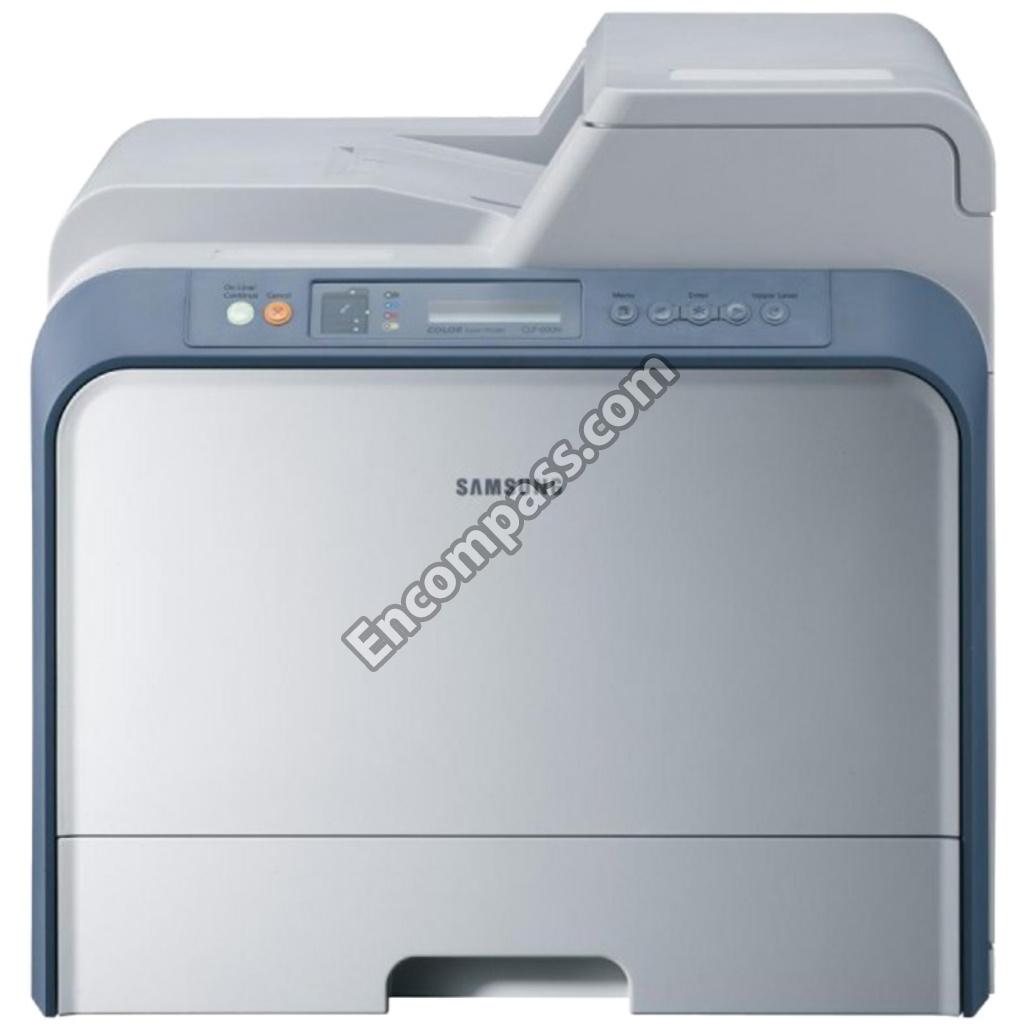

Color Laser Printer
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 6902-000390 | BAG PE: LDPE,T0.05,W350,L500,TRP,8,2- |
| 3301-001655 | BEAD-SMD: 33OHM,3216,3000MA,TP,16OHM/39M |
|
|
BEARING-BALL: 688ZZ,ID8,OD16,L5,SUJ2,- |
| JC66-10202A | BEARING-PICK UP: ML-80,POM,-,- |
| JC69-00737A | BOX(P)-MAIN (SEA): CLP-600,DW,A-1,599,630 |
| JC61-00991A | BRACKET-P-CONT LOWER: CLP-600,SECC,T0.8,W |
| JC61-00995A | BRACKET-P-DRAW_PTB: CLP-600,SECC,T1.0,W45 |
| JC67-00104A | BRUSH-CARBON: ML-3560,SM190,D9,8.5,- |
| JC61-00423A | BUSH-6_D: ML-9400W,REARING OIL,-,NTR, |
| JC61-00426A | BUSH-8/5: ML-9400W,NTN B-F8-12,-,NTR, |
| JC61-00699A | BUSH-D6/L4: MLC-500,BRONZE+ST,ID6.0,OD9.0 |
| JC61-00653A | BUSH-M-FINGER,F: ML-2060,POM(M90-44),-, |
| JC61-01639A | BUSH-M-RELEASE LEVER: CLP-600,PET GF 30%, |
| JC61-00669A | BUSH-M-ROLLER REGI U: ML-2060,POM(M90-44) |
| JC61-01145A | BUSH-_M_ROLLER FEED: CLP-600,CH15,ID6.0,O |
| JC61-01146A | BUSH-_M_ROLLER REGI L: CLP-600,POM,ID6.0, |
| 2402-001049 | C-AL,CHIP: 10UF,20%,16V,GP,TP,3.3X3.3X5.4 |
| 2402-001042 | C-AL,SMD |
| 2402-001178 | C-AL,SMD: 10UF,20%,16V,WT,TP,4.3X4.3X5.8 |
| 2402-001106 | C-AL,SMD: 33UF,20%,50V,WT,TP,8.3X8.3X10 |
| 2401-000042 | C-AL: 100UF,20%,16V,GP,6.3X7MM,2.5MM |
| 2401-001946 | C-AL: 330UF,20%,50V,GP,10X16,5MM,TP |
| 2401-004099 | C-AL: 330UF,20%,6.3V,NXB,TP,6.3X11MM,5 |
| 2401-002300 | C-AL: 47UF,20%,50V,GP,6X11MM,5MM,TP |
| 2402-000008 | C-ALUMINUM,SMD: 47UF,+-20%,16V,6.6X6.6X5. |
| 2203-006818 | C-CER,CHIP: 47000NF,20%,6.3V,X5R,3216 |
| 2203-000426 | C-CERAMIC,CHIP |
| 2203-000783 | C-CERAMIC,CHIP |
| 2203-000998 | C-CERAMIC,CHIP |
| 2203-000192 | C-CERAMIC,CHIP: 100NF,+80-20%,50V,Y5V,201 |
| 2203-000257 | C-CERAMIC,CHIP: 10NF,10%,50V,X7R,1608,T |
| 2203-000440 | C-CERAMIC,CHIP: 1NF,10%,50V,X7R,1608,TP |
| 2203-002392 | C-CERAMIC,CHIP: 220NF,+80-20%,50V,Y5V,TP, |
| 2203-001607 | C-CERAMIC,CHIP: 220PF,5%,50V,CH,1608,1.6M |
| 2203-000626 | C-CERAMIC,CHIP: 22PF,5%,50V,CH,1608,TP |
| 2203-001071 | C-CERAMIC,CHIP: 56PF,5%,50V,CH,1608,TP |
| 2203-005105 | C-CERAMIC,CHIP: 680PF,5%,50V,CH,TP,1608,1 |
| 2203-000041 | C-CERAMIC,CHIP: TC,10PF,+-0.25PF,50V,COG, |
| 2404-000284 | C-TA,CHIP |
| 6502-001093 | CABLE CLAMP: DAWS-3NE,ID11*L34.8,NYLON6 |
| JC66-00050A | CAM-CATCH: ML-9400W,POM,34187,WHITE |
| JC67-00047A | CAP-M_BUSHING ACTUATOR: ML-2060,POM,-,- |
| JC39-00302A | CBF HARNESS-100M_GND: CLP-500,-,1 PIN,5 |
| JC39-00452A | CBF HARNESS-AC_INLET: CLP-600,CBF HARNESS |
| JC39-00432A | CBF HARNESS-BLDC: CLP-600,CBF HARNESS,UL1 |
| JC39-00510A | CBF HARNESS-BLDC_2: CLP-600,CBF HARNESS,U |
| JC39-00427A | CBF HARNESS-DEVE_IF: CLP-600,CBF HARNESS, |
| JC39-00426A | CBF HARNESS-DRIVER: CLP-600,CBF HARNESS,U |
| JC39-00424A | CBF HARNESS-EXIT: CLP-600,CBF HARNESS,UL1 |
| JC39-00575A | CBF HARNESS-FAN: CLP-600,CBF-HARNESS,UL10 |
| JC39-00430A | CBF HARNESS-FCF_EMPT: CLP-600,CBF HARNESS |
| JC39-00420A | CBF HARNESS-FEED: CLP-600,CBF HARNESS,UL1 |
| JC39-00506A | CBF HARNESS-FUSER1: CLP-600,CBF HARNESS,U |
| JC39-00444A | CBF HARNESS-FUSER2: CLP-600,CBF HARNESS,U |
| JC39-00561A | CBF HARNESS-FUSER3: CLP-600,CBF HARNESS,U |
| JC39-00505A | CBF HARNESS-FUSER_AC: CLP-600,CBF HARNESS |
| JC39-00509A | CBF HARNESS-GND ZENER: SCX-4521F,UL1007 |
| JC39-00508A | CBF HARNESS-GND2: CLP-600,CBF HARNESS,UL1 |
| JC39-00418A | CBF HARNESS-MAIN_SMPS: CLP-600,CBF HARNES |
| JC39-00428A | CBF HARNESS-MP_1: CLP-600,CBF HARNESS,UL1 |
| JC39-00431A | CBF HARNESS-MP_EMP2: CLP-600,CBF HARNESS, |
| JC39-00503A | CBF HARNESS-M_FUSER: CLP-600,CBF-HARNESS, |
| JC39-00398A | CBF HARNESS-PANEL: CLP-600,WIRE HARNESS,U |
| JC39-00366A | CBF HARNESS-SCF GND: SCX-4920N,CBF,UL1007 |
| JC39-00425A | CBF HARNESS-SET_CR2: CLP-600,CBF HARNESS, |
| JC39-00422A | CBF HARNESS-SET_CR: CLP-600,CBF HARNESS,U |
| JC39-00421A | CBF HARNESS-SOLENOID: CLP-600,CBF HARNESS |
| JC39-00423A | CBF HARNESS-STEPMOTOR: CLP-600,CBF HARNES |
| JC39-00454A | CBF HARNESS-SWITCH: CLP-600,CBF HARNESS,U |
| JC39-00433A | CBF HARNESS-THER: CLP-600,CBF HARNESS,UL1 |
| JC39-00429A | CBF HARNESS-TH_NEW: CLP-600,CBF HARNESS,U |
|
|
CBF-POWER CORD: DT,US,BP3/YES,I(IEC C13/C |
| JC61-40001A | COM,FOOT-RUBBER: CR70,BLK |
| 3711-000198 | CONNECTOR-HEADER: 1WALL,3P,1R,2.5MM,STRAI |
| 3711-000203 | CONNECTOR-HEADER: 1WALL,3P,1R,3.96MM,ANGL |
| 3711-002813 | CONNECTOR-HEADER: BOX,12P,1R,2MM,STRAIGHT |
| 3711-003035 | CONNECTOR-HEADER: BOX,14P,2R,2MM,STRAIGHT |
| 3711-003981 | CONNECTOR-HEADER: BOX,28P,2R,2MM,STRAIGHT |
| 3711-003942 | CONNECTOR-HEADER: BOX,2P,1R,2MM,STRAIGHT, |
| 3711-000840 | CONNECTOR-HEADER: BOX,30P,2R,2MM,STRAIGHT |
| 3711-004349 | CONNECTOR-HEADER: BOX,3P,1R,2MM,STRAIGHT, |
| 3711-004379 | CONNECTOR-HEADER: BOX,4P,1R,2MM,STRAIGHT, |
| 3301-000317 | CORE-FERRITE BEAD: AB,2X1.25X0.9MM,- |
| JC63-00192B | COVER-M MAIN REAR DUMMY: CLP-600,HIPS,W |
| JC63-00207A | COVER-M-BASE BAR: MLC-500,HIPS,-,HB,- |
| JC63-00175A | COVER-SCREW LOCKING MP: MLC-500,POM,-,- |
| JC63-00579A | COVER-_M_AIR DUCT: CLP-600,PC+GF20%,2.5,3 |
| JC63-00581A | COVER-_M_DECO: CLP-600,HIPS,2.5,462.0,350 |
| JC63-00571A | COVER-_M_DEVE CRUM BD: CLP-600,HIPS,2.0,1 |
| JC63-00577A | COVER-_M_EXIT GUIDE: CLP-600,ABS,HB,2.5,2 |
| JC63-00582A | COVER-_M_FRONT: CLP-600,ABS,3.0,429.0,221 |
| JC63-00585A | COVER-_M_GEAR: CLP-600,HIPS,T2.0,W37.1,L9 |
| JC63-00576A | COVER-_M_LEFT: CLP-600,HIPS,2.5,391.0,292 |
| JC63-00583A | COVER-_M_OP FRAME LED: CLP-600,HIPS,2.5,3 |
| JC63-00589A | COVER-_M_RIGHT: CLP-600,HIPS,T2.5,W370.0, |
| JC63-00592A | COVER-_M_SIDE L: CLP-600,PET GF30%,T2.5,W |
| JC63-00593A | COVER-_M_SIDE R: CLP-600,PET GF30%,T2.5,W |
| JC63-00588A | COVER-_M_STACKER: CLP-600,ABS,T2.5,W119.5 |
| 2801-004451 | CRYSTAL-UNIT: 31.00504519MHZ,50PPM,49/S-4 |
| 0407-000101 | DIODE-ARRAY: DA204K,20V,100MA,C2-3,SOT-2 |
| 0402-000129 | DIODE-RECTIFIER: 1N4003,200V,1A,DO-41 |
| 0402-001189 | DIODE-RECTIFIER: M4,400V,1A,SMD-2,TP |
| JC67-00074A | DUCT-_M_FUSER FAN: CLP-600,HIPS,HB,T2.0,W |
| JC96-03368A | ELA HOU-COVER FRONT: CLP-600,SEC,EXPORT,- |
| JC96-03771A | ELA UNIT-BRKT DRAW: CLP-600,SEC,EXPORT, |
| JC96-03655A | ELA UNIT-CARBON&SP: ML-3560,SEC,USA,BRUSH |
| JC96-03369A | ELA UNIT-DRIVE MAIN: CLP-600,SEC,EXPORT,- |
| JC96-03437A | ELA UNIT-DUCT LEFT: CLP-600,SEC,EXPORT, |
| JC96-03933A | ELA UNIT-DUCT SMPS: CLP-600,SEC,EXPORT, |
| JC96-04239A | ELA UNIT-FUSER SOMO: CLP-600,EXPORT,110 |
| JC96-03772A | ELA UNIT-HOLDER AC: CLP-600,SEC,EXPORT, |
| JC96-03838A | ELA UNIT-HR 110V: CLP-600,SEC,EXPORT,-, |
| JC96-03332A | ELA UNIT-MPF: CLP-600,SEC,EXPORT,-,- |
|
|
ELA UNIT-ROLLER P/UP MP: ML-3560,XEROX/SE |
| JC70-00503A | ELECTRODE-HV A: CLP-600,SUS304 WPB DU NI- |
| JC70-00504A | ELECTRODE-HV B: CLP-600,SUS304 WPB DU NI- |
| JC70-00505A | ELECTRODE-HV C: CLP-600,SUS304 WPB DU NI- |
| JC70-00506A | ELECTRODE-HV D: CLP-600,SUS304WPB,10.0, |
| JC70-00513A | ELECTRODE-HV E: CLP-600,SUS304WPB,5,L32 |
| JC70-00508A | ELECTRODE-HV F: CLP-600,SUS304WPB,5,L32 |
| JC70-00488A | ELECTRODE-P-TERMINAL L: CLP-600,C5210P,T0 |
| JC70-00489A | ELECTRODE-P-TERMINAL R: CLP-600,C5210P,T0 |
| JC31-00012C | FAN-DC INVERTER: AD0624HS-A76GL(,SCX-6345 |
| 0505-001350 | FET-SILICON: NDT2955,P,-60V,-2.5V,0.3OHM, |
| 2901-001178 | FILTER-EMI SMD: 25V,2A,100000PF,2X1.25X |
| JC63-00896A | FILTER-TONER: CLP-600,PE FOAM,10.0T,W215. |
| JC61-01005A | FRAME-_M_BASE BOTTOM: CLP-600,HIPS,HR-136 |
| JC66-00466A | GEAR-DEVE IDLE_Z41: MLC-500,POM,M0.8,Z41, |
| JC66-00468A | GEAR-DEVE RDCN: MLC-500,POM,M0.5/M0.8,Z82 |
| JC66-00470A | GEAR-FEED DRIVE_Z37: MLC-500,POM,M0.8,Z37 |
| JC66-00471A | GEAR-FUSER DRIVE 1_Z47: MLC-500,POM,M0.8, |
| JC66-00473A | GEAR-IDLE Z51: MLC-500,POM,M0.8,Z51,-, |
| JC66-00759A | GEAR-M-MAIN: CLP-600,POM,M0.8,SPUR,Z31, |
| JC66-00760A | GEAR-M-MP IDLE: CLP-600,POM,M0.8,SPUR,Z20 |
| JC66-00762A | GEAR-M-PICK UP IDLE 2: CLP-600,POM,M0.8,S |
| JC66-00763A | GEAR-M-PICK UP IDLE: CLP-600,POM,M0.8,SPU |
| JC66-00761A | GEAR-M-PICK UP: CLP-600,POM,M0.8,SPUR,Z50 |
| JC66-00774A | GEAR-M-REGI: CLP-600,POM,M0.8,Z19,NTR, |
| JC66-00746B | GEAR-M_DEVE DRV2_Z21: CLP-600,POM,M0.8,Z2 |
| JG66-40003A | GEAR-PINION: SF4000,POM,WHT,M1,Z16 |
| JC66-00780A | GEAR-_M_CAP: CLP-600,PPS+PTEE+GF,M1.0,Z36 |
| JC66-00744A | GEAR-_M_DEVE CLUTCH_Z33: CLP-600,POM,M0.8 |
| JC66-00767A | GEAR-_M_DRIVE IDLE: CLP-600,POM,M0.8,SPUR |
| JC66-00781A | GEAR-_M_EXIT IDLE: CLP-600,PBT,M1.0,Z22,- |
| JC66-00782A | GEAR-_M_EXIT: CLP-600,POM,M1.0,Z14,WHT, |
| JC66-00752A | GEAR-_M_FEED DRV_Z42: CLP-600,POM,M0.6,Z4 |
| JC66-00773A | GEAR-_M_FEED: CLP-600,POM,M0.8,Z27,NTL, |
| JC66-00766A | GEAR-_M_HOLDER CAM: CLP-600,POM,M0.8,SPUR |
| JC66-00770A | GEAR-_M_IDLE FEED: CLP-600,POM,M0.8,SPUR, |
| JC66-00771A | GEAR-_M_IDLE PICKUP: CLP-600,POM,M0.8,SPU |
| JC66-00749A | GEAR-_M_IDLE_Z41: CLP-600,POM,M0.6,Z41, |
| JC66-00750A | GEAR-_M_IDLE_Z43: CLP-600,POM,M0.6,Z43, |
| JC66-00753A | GEAR-_M_IDLE_Z79: CLP-600,POM,M0.6,Z79, |
| JC66-00769A | GEAR-_M_MP FEED: CLP-600,POM,M0.8,SPUR,Z1 |
| JC66-00768A | GEAR-_M_MP PICK UP: CLP-600,POM,M0.8,SPUR |
| JC66-00745A | GEAR-_M_OPC DRV1_Z117: CLP-600,POM,M0.5,Z |
| JC66-00746A | GEAR-_M_OPC DRV2_Z21: CLP-600,POM,M0.8,Z2 |
| JC66-00747A | GEAR-_M_PTB DRIVE1_Z41: CLP-600,POM,M0.6, |
| JC66-00748A | GEAR-_M_PTB DRIVE2_Z30: CLP-600,POM,M0.6, |
| JC66-00754A | GEAR-_M_RDCN FEED1_Z69: CLP-600,POM,M0.6, |
| JC66-00751A | GEAR-_M_RDCN FU_Z52/Z22: CLP-600,POM,M0.8 |
| JC63-00837A | GROUND-P-COVER EXIT: CLP-600,SUS304,T0.2, |
| JC63-00648A | GROUND-P-FUSER BALL: CLP-600,SUS304,T0.3, |
| JC63-01154A | GROUND-ROLLER: CLP-600,SUS304-CSP 1/2H,T0 |
| JC61-01026A | GUIDE-M-REAR: CLP-600,HIPS,HB,3.0,128.0,4 |
| JC61-01025A | GUIDE-M-SIDE LOCK: CLP-600,ABS,HB,2.0,52. |
| JC61-01029A | GUIDE-P-GEAR BRACKET: CLP-600,SECC,T1.2,1 |
| JC61-01011A | GUIDE-_M_PTB TERMINAL: CLP-600,ABS,2.0,23 |
| JC61-01007A | GUIDE-_M_RAIL FRONT: CLP-600,HIPS,193.0 |
| JC61-01006A | GUIDE-_M_RAIL REAR: CLP-600,HIPS,144.76 |
| JC61-01149A | GUIDE-_M_SCT PAPER LOWER: CLP-600,HIPS,HB |
| JC61-01013A | GUIDE-_M_SCT PAPER UPPER: CLP-600,HIPS,2. |
| JC61-01010A | GUIDE-_M_TERMINAL CH: CLP-600,ABS,2.0,15. |
| JC61-01009A | GUIDE-_M_TERMINAL LOWER: CLP-600,ABS,2.0, |
| JC61-01008A | GUIDE-_M_TERMINAL UPPER: CLP-600,ABS,2.0, |
| JC64-00186A | HANDLE-M-FIX FUSER: CLP-600,PC+SUM,-,L4 |
| JC64-00176A | HANDLE-_M_COVER LEFT: CLP-600,HIPS,2.5,28 |
| JC39-00588A | HARNESS-TEMP: CLP-600,WIRE HARNESS,UL1061 |
| 3711-005851 | HEADER-BATTERY: NOWALL,2P,1R,4.25MM,BATTE |
| JC61-00671A | HOLDER-M-BUSHING TX: ML-2060,POM,-,BL |
| JC61-00705A | HOLDER-M-PICKUP MP: ML-2060,ABS,-,BLK |
| JC61-01040A | HOLDER-M-SENSOR: CLP-600,HIPS,2.0,23.0,32 |
| JC61-01176A | HOLDER-M-SPRING PR: CLP-600,PET+GF30%,W |
| JC61-01127A | HOLDER-_M_CLUTCH GEAR: CLP-600,POM,ID6.0, |
| JC61-01128A | HOLDER-_M_GEAR REGI: CLP-600,POM,T1.3,ID6 |
| JC61-01017A | HOLDER-_M_MIDDLE PART: CLP-600,PET+GF30%, |
| JC61-01019A | HOLDER-_M_PTB LOCKER: CLP-600,POM,3.0,3 |
| JC61-01061A | HOLDER-_M_SWITCH: CLP-600,HIPS,HB,T2.0,W3 |
| JC61-00685A | HOUSING-M-PICK UP MP: ML-2060,ABS,-,B |
| JC61-01018A | HOUSING-_M_MIDDLE PART: CLP-600,HIPS,V0,2 |
| JC61-01077A | HOUSING-_M_SENSOR EXIT: CLP-600,HIPS,HB,T |
| JC44-00098A | HVPS-DAVINCI:, 24V,21.6V~27.6V,MAX 5KV |
| JC13-00029A | IC ASIC-DAVINCI: LPEC2,CLP-600,208,3.3V,- |
| JC13-00030A | IC ASIC-HYPER_C: HYPER-C,CLP-600,256,3.3V |
| JB13-00004A | IC ASIC-OPE: SF-3100,HT48C5,SSOP,48P,16.1 |
| 1001-000170 | IC-ANALOG SWITCH: MC14051BD,SPDT CMOS,SOP |
| 1205-002339 | IC-CLOCK GENERATOR: CY25811SC,SOIC,8P,150 |
| 0801-002095 | IC-CMOS LOGIC: 74LCX245,BUFFERS,SOP,20P,- |
| 1105-001405 | IC-DRAM: K4S281632D-TL75,4X2MX16BIT,TSOP( |
| 1103-001183 | IC-EEPROM: 24C04,512X8BIT,SOP,8P,150MIL,- |
| 1103-001213 | IC-EEPROM: 24C16-PC27 C,2048X8BIT,DIP,8P |
| 1003-001535 | IC-MOTOR DRIVER: A3977SLP,TSSOP,28P,9.6X4 |
| 0803-003263 | IC-TTL: 74LCX07,HEX BUFFER,SOIC,14P,150MI |
| 0904-001989 | IC-USC: ISP1582BS,HVQFN56,56P,8X8X0.85M |
| 1202-000164 | IC-VOLTAGE COMP.: 393,SOP,8P,150MIL,DUAL, |
| 1203-002454 | IC-VOLTAGE REGULATOR: FAN1117A,TO-252,3P, |
| JB70-00168A | ICT-PIN ADF: SCX-1110F,SUM24L,NI PLATING, |
| JC70-00379A | IPR-BRKT BASE BAR: MLC-500,SECC,T1.0, |
| JC70-00390A | IPR-CHANNEL FRAME BASE: MLC-500,SECC,T1 |
| JC70-10234A | IPR-SHIELD SIMM: ML-80,SECC,T0.5,- |
| JC70-10961A | IPR-TERMINAL FU: ML-165,C5210P,T0.3,- |
| 3722-002303 | JACK-USB |
| JC68-01584A | LABEL(P)-BLANK 90*25: CLP-510,SEE,ART 100 |
| 0601-000003 | LED: ROUND,RED/GRN,3.1MM,650/563 |
| JC66-01200A | LEVER-M-RELEASE: CLP-600,PC,W36.0,L20.0 |
| JC66-00784A | LEVER-_M_ACTUATOR EXIT: CLP-600,PET GF30% |
| JC66-00798A | LEVER-_M_ACTUATOR SENSOR: CLP-600,POM,T2. |
| JC66-00778A | LINK-_M_FRONT: CLP-600,POM,L185.3,T3.7, |
| JC66-00776A | LINK-_M_REAR 1: CLP-600,POM,L112.4,T4.5,- |
| JC66-00777A | LINK-_M_REAR 2: CLP-600,POM,L135.0,T4.5,- |
| JC64-00177A | LOCKER-_M_PTB FRONT: CLP-600,PC+ABS,87182 |
| JC64-00178A | LOCKER-_M_PTB REAR: CLP-600,POM,WHT,HB, |
| JC97-02190A | MEA HOU-COVER LEFT: CLP-600,SEC,EXPORT, |
| JC97-02242A | MEA HOU-COVER REAR: CLP-600,SEC,EXPORT, |
| JC97-02191A | MEA HOU-COVER RIGHT: CLP-600,SEC,EXPORT,- |
| JC97-02194A | MEA HOU-COVER TOP: CLP-600,SEC,EXPORT,- |
| JC97-02400A | MEA UNIT-BRKT CONN: CLP-600,SEC,EXPORT, |
| JC97-02192A | MEA UNIT-CASSETTE: CLP-600,SEC,EXPORT,- |
| JC97-02247A | MEA UNIT-CLEANING,PTB: CLP-600,SECC+URE |
| JC97-02405A | MEA UNIT-COVER MPF: CLP-600,SEC,EXPORT, |
| JC97-02403A | MEA UNIT-DEV TERMINAL: CLP-600,SEC,EXPORT |
| JC97-02404A | MEA UNIT-GUIDE PAPER: CLP-600,SEC,EXPORT, |
| JC97-02211A | MEA UNIT-MAIN FRAME: CLP-600,SEC,EXPORT,- |
| JC97-02149A | MEA UNIT-PICK UP: CLP-600,SEC,EXPORT,-, |
| JC97-02617A | MEA UNIT-PR: CLP-600,SEC,EXPORT,-,- |
| JC97-02402A | MEA UNIT-PTB TERMINAL: CLP-600,SEC,EXPORT |
| JC97-02150A | MEA UNIT-REGI: CLP-600,SEC,EXPORT,-,- |
| JC97-01401A | MEA UNIT-TERMINAL:TR: ML-5000A,SAMSUNG,KO |
|
|
MEC- BRUSH ANTISTATIC: ML-6060A,SEC,NTR |
| JC31-00041A | MOTOR DC-DEVE DRIVE: 50M843A152,CLP-600,2 |
| JC31-00037C | MOTOR STEP-FU, DRIVE: M55SP-2NK,CLP-600,1 |
| JC92-01655C | PBA MAIN-EXP: CLP-600,SEC,KOREA,COLOR LBP |
| JC92-01671A | PBA SUB-DEVE_CRUM_IF: CLP-600,SEC,KOREA,D |
| JC92-01659A | PBA SUB-DRIVER: CLP-600,SEC,KOREA,DRIVER, |
| JC92-01661A | PBA SUB-FCF_EMP_SENSOR: CLP-600,SEC,KOREA |
| JC92-01662A | PBA SUB-MP_EMP_SENSOR: CLP-600,SEC,KOREA, |
| JC92-01656A | PBA SUB-PANEL: CLP-600,SEC,KOREA,PANEL,30 |
| JC92-01789A | PBA SUB-TEMP: CLP-600,SED,KOREA,-,-,- |
| JC92-01660A | PBA SUB-TEMP_SENSOR: CLP-600,SEC,KOREA,TE |
| JC72-20901A | PEX-ROLLER EXIT F_UP: ML-5000A, |
| 0604-001264 | PHOTO-INTERRUPTER: TR,-,REFLECTIVE,- |
|
|
PHOTO-INTERRUPTER: TR,90%,150MW,DIP-4,BK |
| JC61-00707A | PLATE-S/W DUPLEX: MLC-500,SUS304,T0.3,- |
| JC61-01754A | PLATE-SAW FUSER: CLP-600,SUS304-CSP 1/2H, |
| JC72-00719A | PMO-ACTUATOR EMPTY: SCX-5100,ABS,BLK,HB |
| JC72-00998A | PMO-ACTUATOR REGISHUTTER: ML-2060,PET G/F |
| JC72-41191B | PMO-BEARING SHAFT: ML-2150,POM,BLK,DE89 |
| JC72-00382B | PMO-BUSHING FEED: ML-1710,DELRIN8903,WHIT |
| JC72-41364A | PMO-BUSHING_P/U,MP: ML-6100,POM,WHT,V0,- |
| JC72-01081A | PMO-COVER DUP LOCKER F: MLC-500,ABS,GREEN |
| JC72-01082A | PMO-COVER DUP LOCKER R: MLC-500,ABS,GREEN |
| JC72-01140A | PMO-COVER FUSER AC: MLC-500,ABS+GF20%,BLA |
| JC72-01232A | PMO-DUMMY CLUTCH: MLC-500,POM,WHITE,M90 |
| JC72-00772A | PMO-HOLDER SENSOR,MP: SCX-5100,ABS,BLK, |
| JC72-01064A | PMO-HUB CLUTCH: MLC-500,POM,WHITE,SW-01 |
| JC72-01004A | PMO-IDLE KNOCK UP MP: ML-2060,POM,WHITE,- |
|
|
PMO-IDLE PICK UP MP: ML-2060,POM,WHITE, |
| JC72-01073A | PMO-LOCKER PLATE: MLC-500,POM,WHITE,M90 |
| JC72-01200A | PMO-OPE KEY 2 CAP: MLC-500,PMMA,TRP,-,- |
| JC72-01199B | PMO-OPE KEY 2: CLP-510,ABS,36024,-,HB,- |
| JC72-41007A | PMO-ROLLER FD F: ML-165,POM,BLK,HB,- |
| 2001-000281 | R-CARBON: 100OHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2007-000608 | R-CHIP |
| 2007-001014 | R-CHIP |
| 2007-000033 | R-CHIP: 0OHM,5%,1/8W,DA,TP,3216 |
| 2007-000122 | R-CHIP: 1.2KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000123 | R-CHIP: 1.5KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000079 | R-CHIP: 1.8KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000102 | R-CHIP: 100KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000074 | R-CHIP: 100OHM,5%,1/16W,DA,TP,1608 |
| 2007-000052 | R-CHIP: 10KOHM,1%,1/16W,DA,TP,1608 |
| 2007-000090 | R-CHIP: 10KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000309 | R-CHIP: 10OHM,5%,1/16W,DA,TP,1608 |
| 2007-002901 | R-CHIP: 12.1KOHM,1%,1/16W,DA,TP,1608 |
| 2007-000067 | R-CHIP: 15KOHM,1%,1/16W,DA,TP,1608 |
| 2007-000043 | R-CHIP: 1KOHM,1%,1/16W,DA,TP,1608 |
| 2007-000078 | R-CHIP: 1KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000109 | R-CHIP: 1MOHM,5%,1/16W,DA,TP,1608 |
| 2007-002425 | R-CHIP: 1OHM,5%,1/16W,DA,TP,1608 |
| 2007-000105 | R-CHIP: 200KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000093 | R-CHIP: 20KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000094 | R-CHIP: 22KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000071 | R-CHIP: 22OHM,5%,1/16W,DA,TP,1608 |
| 2007-000669 | R-CHIP: 2KOHM,1%,1/16W,DA,TP,1608 |
|
|
R-CHIP: 2KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000082 | R-CHIP: 3.3KOHM,5%,1/16W,DA,TP,1608 |
| 2007-002910 | R-CHIP: 30.1KOHM,1%,1/16W,DA,TP,1608 |
| 2007-000096 | R-CHIP: 30KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000076 | R-CHIP: 330OHM,5%,1/16W,DA,TP,1608 |
| 2007-000134 | R-CHIP: 33KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000113 | R-CHIP: 33OHM,5%,1/16W,DA,TP,1608 |
| 2007-000839 | R-CHIP: 39OHM,5%,1/16W,DA,TP,1608 |
| 2007-000083 | R-CHIP: 3KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000084 | R-CHIP: 4.7KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000077 | R-CHIP: 470OHM,5%,1/16W,DA,TP,1608 |
| 2007-000965 | R-CHIP: 5.1KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000086 | R-CHIP: 5.6KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000098 | R-CHIP: 56KOHM,5%,1/16W,DA,TP,1608 |
| 2007-001134 | R-CHIP: 68OHM,5%,1/16W,DA,TP,1608 |
| 2007-001179 | R-CHIP: 8.2KOHM,5%,1/16W,DA,TP,1608 |
| 2011-001261 | R-NETWORK: 33OHM,5%,1/32W,L,CHIP,8P,TP |
| 2011-001193 | R-NETWORK: 68OHM,5%,1/16W,L,CHIP,8P,TP |
| 2005-000168 | R-WIRE WOUND,NON: 0.22OHM,5%,2W,AA,BK,4X1 |
| 3501-001263 | RELAY-POWER: 5V,530MW,10000MA,1FORMA,7MS, |
| 6044-000125 | RING-E: ID4,OD9,T0.6,PASS,STSC |
| 6044-000231 | RING-E: ID5.0,OD11.0,T0.6,STS304 |
| JC66-00764A | ROLLER-IDLE FEED: CLP-600,POM,OD13.0,ID3. |
| JC66-00647A | ROLLER-M_REGI IDLE L25: ML-2150,POM,12.1, |
| JC66-00648A | ROLLER-M_REGI IDLE S25: ML-2150,POM,11.9, |
| JC66-00800A | ROLLER-PRESSURE: CLP-600,STKM+RUBBER,D36. |
| JC66-00765A | ROLLER-REGI LOWER: CLP-600,SUM24L,OD13.75 |
|
|
RPR-FRICTION PAD MP: ML-2060,NBB,54*10*T1 |
|
|
RPR-PAD CASSETTE: ML-1510,NBB,1T 10*45,52 |
|
|
RUBBER-PICK UP MP: ML-3560,IR,D29.8,35,27 |
| JC73-00226A | RUBBER-PICK UP: CLP-600,EPDM+IR,30,GR |
|
|
SCREW-TAPTITE: BH,+,B,M3,L12,ZPC(BLK),SWR |
|
|
SCREW-TAPTITE: BH,+,B,M3,L8,ZPC(BLK),SWCH |
|
|
SCREW-TAPTITE: BH,+,S,M3,L6,ZPC(YEL),SWRC |
| 6003-000196 | SCREW-TAPTITE: PWH,+,B,M3,L10,NI PLT,SWRC |
| 6003-000264 | SCREW-TAPTITE: PWH,+,B,M3,L6,ZPC(YEL),SWR |
| JC62-00169A | SEAL-SUPPLY: CLP-600,PORON LE-20,GRAY,5,1 |
| JC66-00453A | SHAFT-M-PICK UP MP: ML-2060,PC,-,-,- |
| JC66-00758A | SHAFT-PICK UP: CLP-600,PC+GF20%,72.5,4.0, |
| JC66-00446A | SHAFT-REGI UPPER: ML-2060,SUM,6,-,- |
| JC63-00591A | SHEET-COVER OP LED: CLP-600,PC SHEET,T0.5 |
| JC63-00904A | SHEET-FILTER TONER: CLP-600,PET,T0.125,W2 |
| JC63-00186A | SHEET-GUIDE ADF: SCX-6320F,PET,0.188T,- |
| JC63-01029A | SHEET-PTB CLEANING: CLP-600,PET,T0.188,W1 |
| JC44-00104A | SMPS-FUSER SUB B'D-V1: CLP-600,*,AC/AC, |
|
|
SMPS-PSP_TYPE5_V1: SCX-4521F,*,AC/DC,10 |
| JC33-00017A | SOLENOID-MP: DLH-34L080-08,CLP-600,24V,8O |
| JC61-01271A | SPRING ETC-ACTUATOR: CLP-600,SUS304 ,0.35 |
| JC61-01272A | SPRING ETC-BUSH REGI: CLP-600,SWP-B,0.4,- |
| JC61-01678A | SPRING ETC-DEV_FRONT: CLP-600,SWP-B,0.65, |
| JC61-01685A | SPRING ETC-DUMMY: CLP-600,SUS,0.5,-,20. |
| JC61-01264A | SPRING ETC-OPC F: CLP-600,SUS304 ,1.5,6.5 |
| JC61-01267A | SPRING ETC-OPC R: CLP-600,SUS304 ,1.5,6.5 |
| JC61-00387A | SPRING ETC-PAD: ML-9400W,SUS304WPB,7.55,- |
| JC61-01265A | SPRING ETC-PTB F: CLP-600,SUS304 ,1.5,6.5 |
| JC61-01266A | SPRING ETC-PTB R: CLP-600,SUS304 ,1.5,6.5 |
| JC61-01274A | SPRING ETC-ROLLER: CLP-600,SUS304-WPB,0.7 |
| JC61-00003A | SPRING--CAM MP: ML-6100,SUS304-WPB,2.4,0. |
|
|
SPRING-CS: SUS304,PI0.5,D6.7,L17.5,-, |
| 6107-001194 | SPRING-CS: SUS304-WPB,BLK,PI0.95,D7,L20,- |
| 6107-001214 | SPRING-ES: SUS304 WPB,PI0.45,D5.35,L21, |
| JC61-70911A | SPRING-EXIT ROLL FD: ML-165,SUS304 WPB,PI |
| JC61-70950A | SPRING-EXTENSION: ML-5000A,SUS304WPB,PI0. |
| JC61-70932A | SPRING-GUIDE DEVE: ML-5000A,SUS304 WPB,PI |
| JC61-70929A | SPRING-HV LARGE: ML-5000A,SUS304 WPB,PI0. |
| JC61-70913A | SPRING-KNOCK UP MP: ML-165,SUS304 WPB,PI0 |
| JG61-70531A | SPRING-LOCKER,PLATE: SF6000,STS304WPB,PI0 |
| JC61-70935A | SPRING-SEPERATE P/UP: ML-5000A,SUS304WPB, |
| JC61-00047A | SPRING-TR L HAWK: ML-6060A,SUS 304 WPB, |
| JC61-70967A | SPRING-TR R: ML-5000A,SUS304 WPB,PI0.5,D4 |
| 6107-001158 | SPRING-TS: SUS304-WPB,PI0.4,D6.7,-, |
| JC61-01037A | STOPPER-M-GUIDE SIDE: CLP-600,POM,OD12.0, |
| 3404-000165 | SWITCH-TACT: 12V,50MA,160GF+-50GF,6X6MM,S |
| 1404-001359 | THERMISTOR-NTC ASSY: 1KOHM,4537K,0.25MW |
| 0501-000457 | TR-SMALL SIGNAL |
| 0501-000279 | TR-SMALL SIGNAL: KSA1182,PNP,-35V,-30V,-5 |
| 0501-000294 | TR-SMALL SIGNAL: KSA708,PNP,-80V,-60V,-70 |
| 0504-000144 | TR-SMALL SIGNAL: KSC1008,NPN,80V,60V,700M |
| JC63-00587A | TRAY-_M_LINK MP L: CLP-600,HIPS,T3.0,W55. |
| JC59-00022A | UNIT-LSU DAVINCI: CLP-600,-,COLOR 16PPM |
| 6031-001255 | WASHER-PLAIN: NYLON,CUTTING,ID5,OD9,T0.5, |
| 6031-000023 | WASHER-PLAIN:, ID5.9,OD10.0,T0.5,BLK,POL |
