Model Image
Manufacturer

Samsung

Model Number

CLX-3175FW

Description

Multi-function Color Laser Printer

Interactive Exploded View

Parts List

Part Number Description
JC66-01787A ACTUATOR-EMPTY;CLP-310,POM F20-02,2.0,6.
JC66-01775A ACTUATOR-EXIT FUSER;CLP-310,PET+GF30%,3.
JC66-01739A ACTUATOR-FEED;CLP-310,POM F20-02,2.0,23.
JC66-01426A ACTUATOR-STACKER;CLX-2160,PC,V0,NH-1023P
JC70-00517A ADJUST-M-CASSETTE L;CLP-300,ABS HB,T2.5,
JC70-00516A ADJUST-M-CASSETTE R;CLP-300,ABS HB,T2.5,
4301-001042 4301-001042 BATTERY-LI;3V,220MAH,CR2032,20X3.2MM,CON
3301-000344 BEAD-RADIAL;200OHM,3.5X0.6X6.5MM,7000MA,
3301-000319 BEAD-SMD;11OHM,2X1.25X0.9MM,TP
3301-000317 BEAD-SMD;120OHM,2012,TP,-,-
3301-001655 BEAD-SMD;33OHM,3216,3000MA,TP,16OHM/39MH
3301-001067 BEAD-SMD;600OHM,1608
3301-001594 BEAD-SMD;90OHM,2.0*1.2*1.3MM,TP,-,-

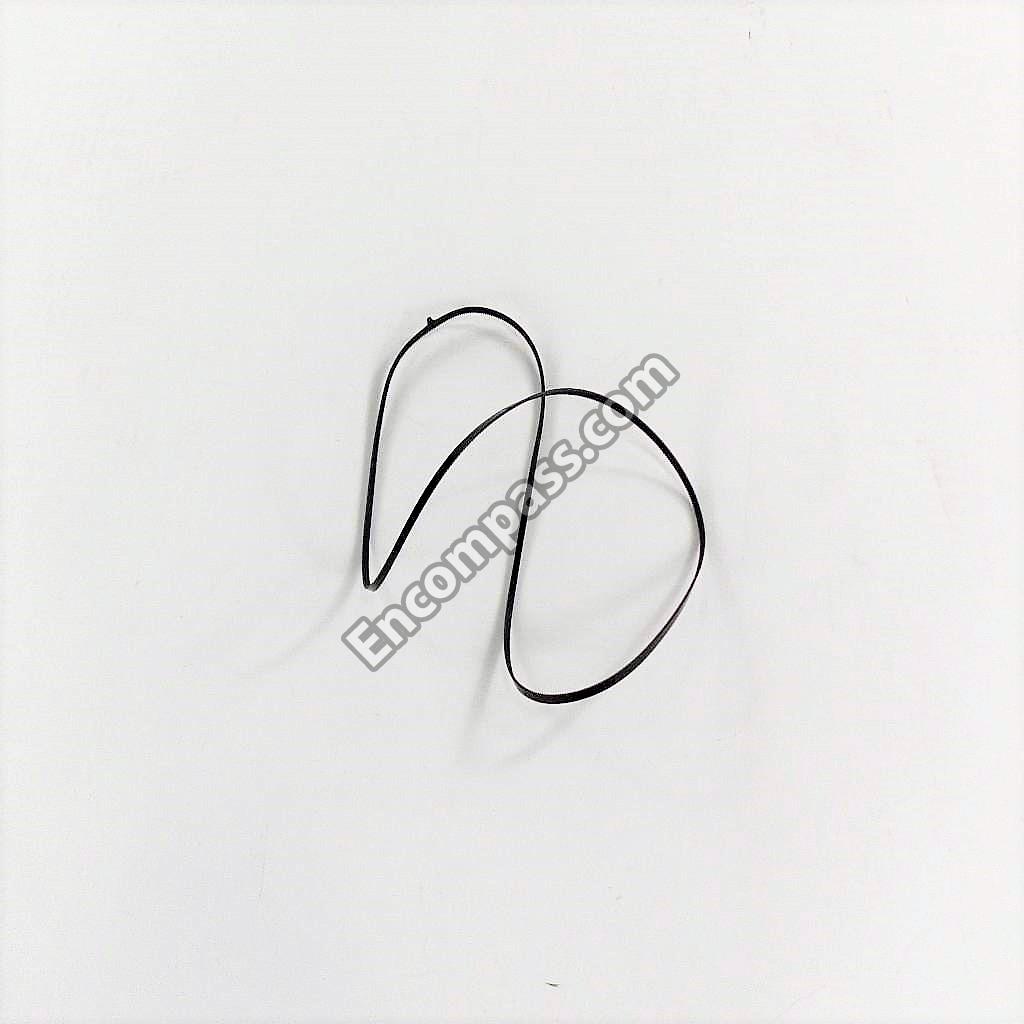

6602-001637 6602-001637 BELT-TIMING GEAR;POLY URETHANE,T0.98,L73
JC61-02372A BUSH-D6/L4;POM,CLP-310,ID4,OD8,L4,WHITE,
JC61-02392A BUSH-HR L;CLP-310,PPS,26.2,31.8,BLACK,T4
JC61-02393A JC61-02393A BUSH-HR R;CLP-310,PPS,26.2,31.8,BLACK,T5
JC61-00845A BUSH-M-EXIT;ML-2550,DE8903(NTR),?5,?7,7,
3002-001139 BUZZER-PIEZO;80DB,9V,2KHZ,BK
2402-000204 C-AL,SMD;10UF,20%,16V,WT,TP,4.3X4.3X5.4
2402-000125 C-AL,SMD;1UF,20%,50V,GP,TP,3.3X3.3X5.4,
2402-000209 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3MM
2402-000008 C-AL,SMD;47UF,20%,16V,GP,TP,6.6X6.6X5.4
2401-000207 C-AL;100UF,20%,50V,WT,TP,8X12,5
2401-000414 C-AL;10UF,20%,16V,GP,TP,4X7,5
2401-004100 C-AL;220UF,20%,10V,NXB,TP5,6.3X11MM,5
2401-002463 C-AL;470UF,20%,16V,GP,TP,10X12.5,5
2401-002300 C-AL;47UF,20%,50V,GP,TP,6.3X11,5MM
2203-000426 C-CER,CHIP;0.018NF,5%,50V,C0G,1608
2203-000626 C-CER,CHIP;0.022NF,5%,50V,C0G,1608
2203-000627 C-CER,CHIP;0.022NF,5%,50V,C0G,TP,1005
2203-000998 C-CER,CHIP;0.047NF,5%,50V,C0G,1608
2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,1608
2203-006467 C-CER,CHIP;0.68NF,10%,3000V,X7R,4520
2203-006676 C-CER,CHIP;10000NF,+80-20%,10V,Y5V,TP,20
2203-005819 C-CER,CHIP;1000NF,+80-20%,16V,Y5V,TP,160
2203-006348 C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,0.
2203-002709 C-CER,CHIP;100NF,+80-20%,16V,Y5V,1005
2203-000192 C-CER,CHIP;100NF,+80-20%,50V,Y5V,TP,2012
2203-005249 C-CER,CHIP;100NF,10%,50V,X7R,TP,1608
2203-006468 C-CER,CHIP;10NF,10%,250V,X7R,-,2012
2203-000257 C-CER,CHIP;10NF,10%,50V,X7R,TP,1608
2203-000440 C-CER,CHIP;1NF,10,50V,X7R,TP,1608
2203-000491 C-CER,CHIP;2.2NF,10%,50V,X7R,1608
2203-002392 C-CER,CHIP;220NF,+80-20%,50V,Y5V,2012
2203-000888 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1608
2203-006818 C-CER,CHIP;47000NF,20%,6.3V,X5R,3216
2305-000385 C-FILM,LEAD-PEF;470NF,10%,250V,BK,18X6X1
6502-001093 CABLE CLAMP;DAWS-3NE,ID11*L34.8,NYLON66,
JC66-00050A CAM-CATCH;ML-9400W,POM,34X18X7,WHITE
JC96-04837L CARTRIDGE-DRUM;CLP-310,SEC,CRU,-,-,-,-
JC96-04840C JC96-04840C CARTRIDGE-TRANSFER;CLP-310,SEC,WORLD,863
JC39-40511A CBF HARNESS;ML-80,JUMPER,AWG22,52MM,SILV
JC39-00969A CBF IF-CROSS CABLE;SCX-4500W,8,UL10991,1
JF39-50094B CBF LINE CORD;MINI FAX,IVR
3903-000085 3903-000085 CBF-POWER CORD;US,BP3/YES,3P_LUG,125/125
JB61-00232A CLIP-P-BELT;SF-457,SUS,0.2,NTR,HALF HARD
JC47-00019A CLUTCH-DEVE CAM;CLP-310,DC24V,0.125A,2.5
JC47-00020A CLUTCH-FUSER CAM;CLP-310,DC24V,0.180A,4.
JC47-00007F CLUTCH-ITB CAM;CLP-310,DC24V,0.133A,3.5K
3708-001986 CONNECTOR-FPC/FFC/PIC;10P,1MM,SMD-A,SN,N
3708-001408 CONNECTOR-FPC/FFC/PIC;12P,1MM,STRAIGHT,S
3708-001252 CONNECTOR-FPC/FFC/PIC;16P,1MM,STRAIGHT,S
3711-006574 CONNECTOR-HEADER;BOX,2P,1R,1.5MM,STRAIGH
3711-006573 CONNECTOR-HEADER;BOX,3P,1R,1.5MM,STRAIGH
0609-001305 CONTACT IMAGE SENSOR;216MM,10368DOT,6.3M
JC67-00493A COUPLER-EXIT;CLP-325,POM,NATURAL
JC63-01574A COVER-CABLE;CLP-310,POM,T1.5,19.7,37.3,H
JC63-01668A COVER-CST;CLP-310,SAN,2.5,224.9,87,HB,SM
JC63-01802A COVER-LCD;CLX-3170FN,PC,1.0,90.6,HB,CLR
JC63-01771B COVER-RIGHT;CLX-3170,ABS,2.5,331.3,233,V
2801-000111 CRYSTAL-SMD;0.032768MHZ,20PPM,28-AAW,12.
0404-000112 DIODE-SCHOTTKY;RB420D,40V,100MA,SOT-23,T
0407-000123 DIODE-SWITCHING;DAN202K,80V,100MA,SOT-23
0407-000122 DIODE-SWITCHING;KDS226,80V,100MA,SOT-23,
0401-000116 DIODE-SWITCHING;MMSD914T1,100V,200MA,SOD
0403-000287 DIODE-ZENER;MMBZ5251B,20.9-23.1V,225MW,S
0403-001401 DIODE-ZENER;MMSZ5260B,40.85/45.15V,500MW

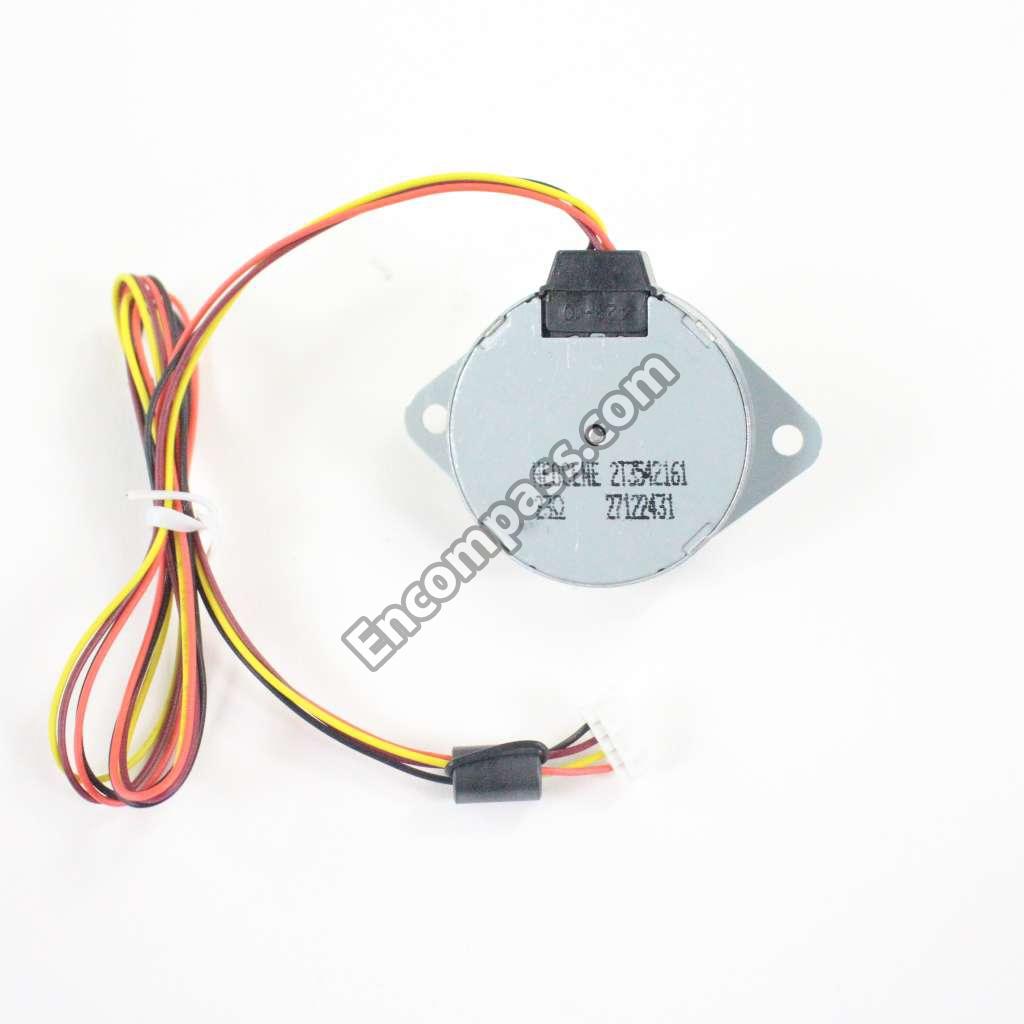

JC96-05005A ELA HOU-ADF MOTOR;CLX-3170,SEC,WORLD,-,-
JC96-05008B ELA HOU-ADF;CLX-3175FN,SEC,WORLD,-,-,-
JC96-04940A ELA HOU-FUSE_ERA;CLP-310,SEC,SEC,-,-,-,-
JC96-04938A ELA HOU-ITB_TEMP;CLP-310,SEC,KOREA,-,-,-
JC96-05010W ELA HOU-PLATEN;CLX-3175FW,-,-,ENGLISH,-,
JC96-05009W ELA HOU-SCAN;CLX-3175FW,-,-,ENGLISH,-,-
JC96-04750B JC96-04750B ELA UNIT-DRIVE MAIN;CLP-310,SEC,WORLD,-,
JC96-05014W ELA UNIT-OPE;CLX-3175FW,-,-,ENGLISH,-,-
JC96-05006B ELA UNIT-PATH LOWER;CLX-3170,SEC,WORLD,-
JC96-04757A ELA UNIT-PTL LAMP;CLP-310,SEC,WORLD
JC96-05013A ELA UNIT-SCAN DRIVE;CLX-3170,-,-,-,-,-
JC96-05011B ELA UNIT-SCAN LOWER;CLX-3175FN,-,-,-,-,-
JC96-04756A ELA UNIT-SENSOR WASTE;CLP-310,SEC,WORLD,
JC96-05007B ELA UNIT-STANDARD ADF;CLX-3175FN,SEC,WOR
JC96-01673A ELA UNIT-TERMINAL TR S;ML-6060A,SEC,-,-,
JC31-00111A FAN;CLX-3170
JC01-00022A FILM-LOCKER;SCX-4500,PET,0.05,10,15
JC39-00867A FLAT CABLE;CLP-310,16,0.05,420MM,AWM 206
JC39-00866A FLAT CABLE;CLP-310,26,0.05,540MM,AWM 206
JC39-00925A FLAT CABLE;CLX-3170,12,0.05,730MM,AWM 20
JC39-00924A FLAT CABLE;CLX-3170,20,0.05,130MM,AWM 20
JC61-40001A FOOT-ML80;ML-80,NBR,GRAY
JC96-05492B JC96-05492B FUSER;CLP-310,SEC,WORLD,ROLLER,115V,FOR
JC66-01913A GEAR-47_25;CLX-3170FN,POM,0.5,47,WHT,24.
JC66-01914A GEAR-DRV SCAN;CLX-3170FN,POM,0.5,33,WHT,
JC66-01155B GEAR-FUSER RDCN OUT V;ML-4551N,NYLON,1,2

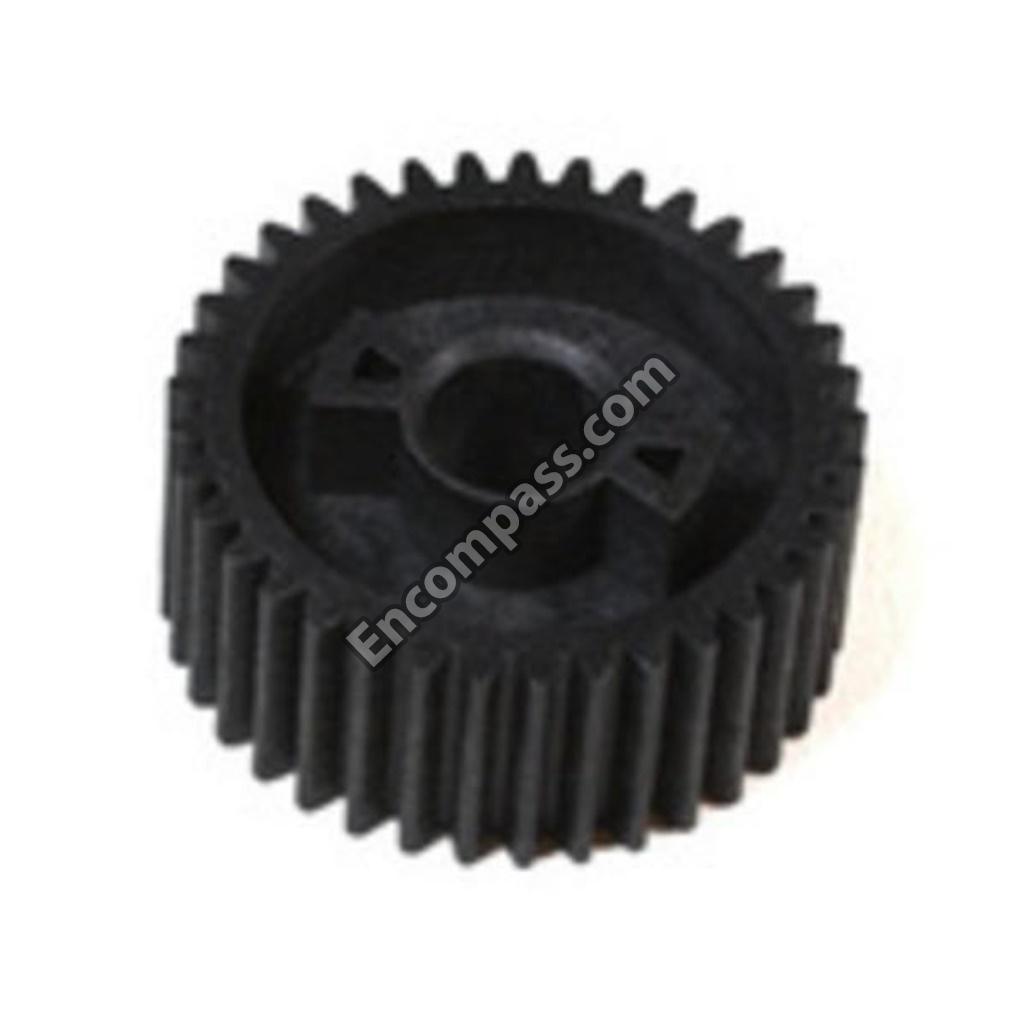

JC66-01699A GEAR-FUSER;CLP-325,PPS,1,34,PCD 34,BROWN
JC66-00396A JC66-00396A GEAR-IDLE 23;ML-1710,POM,0.8,23,BLK,HB
JC66-01042A GEAR-IDLE DEVE Z19;CLP-300,POM M90-44,0.
JC66-01918A GEAR-IDLE PICK UP;CLX-3170FN,POM,0.5,20,
JC66-01201A GEAR-M_PULLEY;SCX-4200,POM,0.4,73,31.874
JC66-01843A GEAR-PADDLE OPC;CLP-310,POM (DELRIN500P)
JC66-01744A GEAR-PICKUP A;CLP-310,POM DE-8903,0.8,47
JC66-01730A GEAR-PICKUP B;CLP-310,POM DE-8502,0.8,47
JG66-40003A GEAR-PINION;SF4000,POM,1,Z16,WHT
JC66-01745A GEAR-RDCN T2 DRIVE;CLP-310,POM,0.6 / 0.8
JC66-01721A GEAR-REGI DRIVE;CLP-310,POM,M0.6,Z44,PCD
JC66-01722A GEAR-REGI RELAY;CLP-310,POM,M0.6,Z48,PCD
JC66-02749A GEAR-SPUR;CLP-325,POM,0.8,17,NATURAL,15.
JC66-01743A GEAR-T2 ROLLER;CLP-310,POM F20-02,0.8,35
JC66-01057A GEAR-WORM DEVE CAM;CLP-300,POM,A:0.6,B:0
JC01-00002A GLASS-SCAN MONTBLANC;356*247,2.85
JC61-02361A GUIDE-INPUT FUSER;CLP-310,PET+GF30%,2.5T
JC61-02364A GUIDE-OUTPUT FUSER;CLP-310,PET+GF30%,2.5
JC39-00927A HARNESS-ADF_DRIVE;CLX-3170,UL10272,12/3/
JC39-00926A HARNESS-ADF_JOINT;CLX-3170,UL10272,12,32
JC39-00899A HARNESS-BLDC;CLP-310,UL10272,10PIN,225MM
JC39-00906A HARNESS-CRUMJOINT;CLP-310,UL10272,5PIN,4
JC39-00912A HARNESS-DADF_P_SIZE;SCX-5235ND,UL10272,3
JC39-00916A HARNESS-EXIT;CLP-310,UL10272,3,75MM,BLK/
JC39-01367A HARNESS-FUSER_AC;CLP-325,UL3122,2PIN,450
JC39-00956A HARNESS-FUSER_GND;CLP-310,UL1007,1P,75MM
JC39-00908A HARNESS-INLET;CLP-310,UL3122,2PIN,400/25
JB39-00277A HARNESS-LCD;SF-375TP,WIRE,UL2877,14-14,4
JC39-00965A HARNESS-WLAN;CLX-3170,UL2725,6,500,RED/W
3711-000203 HEADER-BOARD TO CABLE;1WALL,2P/3P,1R,7.9
3711-006435 HEADER-BOARD TO CABLE;BOX,10P,1R,1.5MM,S
3711-006501 HEADER-BOARD TO CABLE;BOX,12P,1R,1.5MM,S
3711-003340 HEADER-BOARD TO CABLE;BOX,16P,2R,2MM,STR
3711-006431 HEADER-BOARD TO CABLE;BOX,4P,1R,1.5MM,ST
3711-003411 HEADER-BOARD TO CABLE;BOX,5P,1R,2MM,STRA
3711-002807 HEADER-BOARD TO CABLE;BOX,6P,1R,2MM,STRA
JC61-02425A HOLDER-CLUTCH;CLP-310,PC,2.0,31,67,BLACK
JC61-01548A HOLDER-M-CAM;CLP-300,POM (DE8903),18.5,2
JC61-01647A HOLDER-M-SHAFT FUSER;CLP-300,PC,T2.0,L22
JC61-02406A HOUSING-ACTUATOR;CLP-310,HIPS HR-1360T,3
JC61-02397A HOUSING-PICKUP A;CLP-310,POM F20-02,1.0,
JC61-02389A HOUSING-PICKUP B;CLP-310,POM F20-02,1.0,

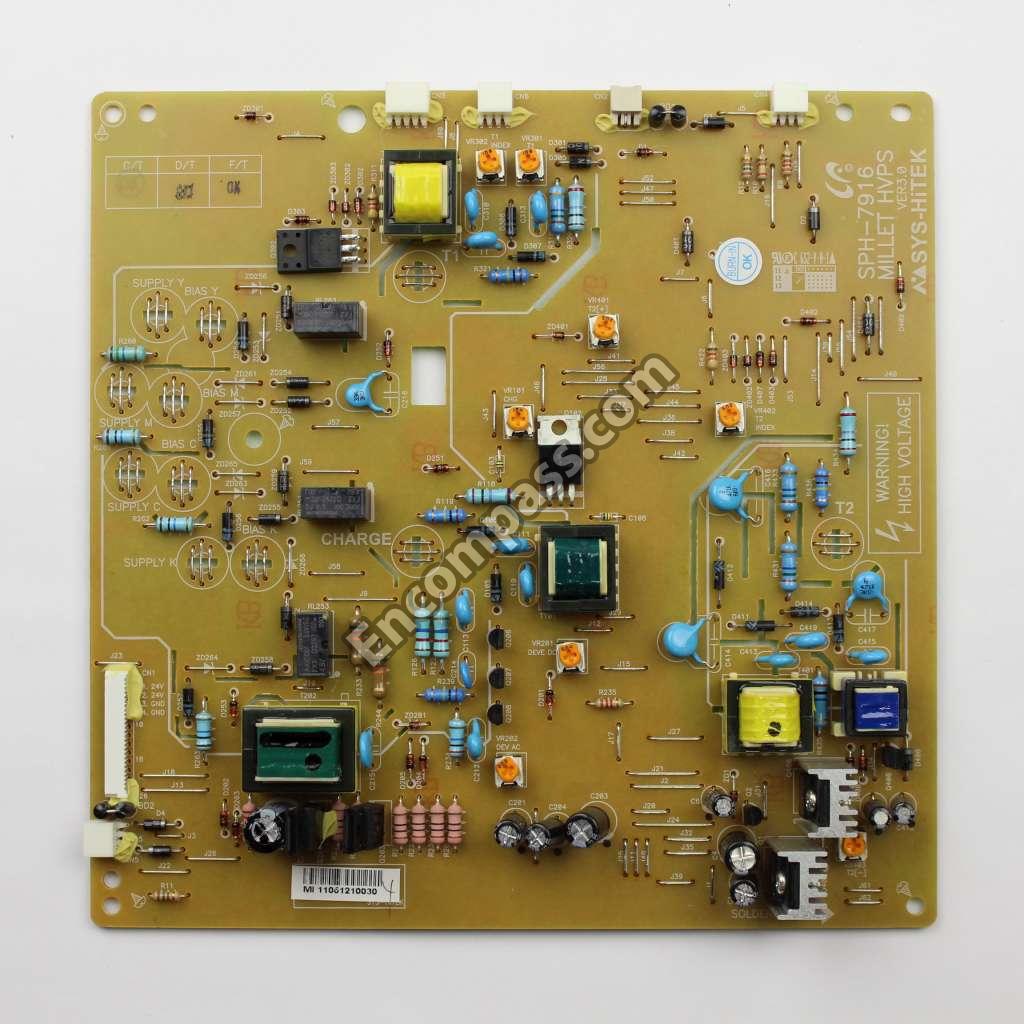

JC44-00164A JC44-00164A HVPS;24V,21.6V~27.6V,MAX 5KV,MAX-2KV
JC13-00034B IC ASIC-OPE_MICOM;HT48C70-1-COM,SCX-4828
1001-000170 IC-ANALOG SWITCH;MC14051BD,SPDT CMOS,SOP
1201-000105 IC-AUDIO AMP;34119,SOP,8P,150MIL,SINGLE,
0801-002469 IC-CMOS LOGIC;74HC14,SCHMITT INVERTER,TS
0801-002446 IC-CMOS LOGIC;74LCX14,SCHMITT INVERTER,T
0801-000794 IC-CMOS LOGIC;7S08,AND GATE,SC-70,5P,2.0
1205-002500 IC-DAA;SI3018-FS,SOIC,16P,9.9X3.9MM,PLAS
1203-003739 IC-DC/DC CONVERTER;MVPG31,DFN,12P,4X3MM,
1105-001745 IC-DRAM;HYB18TC512160BF,DDR2,512MBIT,16M
1107-001590 IC-NOR FLASH;S29GL064M,64MBIT,8MX8/4MX16
1107-001982 IC-NOR FLASH;W25Q16BVSSIG,16MBIT,2MBITX8
1203-001455 IC-POSI.FIXED REG.;1117,DPAK,3P,265MIL,P
1203-002454 IC-POSI.FIXED REG.;1117,TO-252,3P,257MIL
1203-002986 IC-POSI.FIXED REG.;7812,3P,6.6X6.1MM,PLA
1203-003394 IC-POWER SUPERVISOR;MIC2544-1YM,SOP,8P,4
1205-002762 IC-TRANSCEIVER;BCM5241A1KMLG,MLP,32P,5X5
0803-000634 IC-TTL;74LS07,BUFFER/DRIVER,SOP,14,150MI
0904-002093 IC-USC;ISP1761BE,32BIT,LQFP,128P,20X14MM
1202-000164 IC-VOLTAGE COMP.;393,SOP,8P,150MIL,DUAL,
JC70-10232A IPR-PLATE SAW;ML-80,SUS304 CSP 1/2H,T0.1
JC70-00111A IPR-SPRING MIRROR (A);ML-5200A,STSC301-C
JF70-10616A IPR-WASHER SPRING CU;CF3400,SUS301-CSP,T
3722-002345 JACK-MODULAR;6P/4C,INVERTED,N,ANGLE,N,GR
3722-002376 JACK-MODULAR;8P/8C,STANDARD,Y,ANLGE,YEL/
3722-001051 JACK-USB;4P/1C,AU,BLK,ANGLE,A TYPE
3722-002303 JACK-USB;4P/1C,AU30U,BLK,ANGLE,B TYPE
JC64-00386B KEY-EXTRA;CLX-3175FN,ABS,HB,BLACK
JC64-00387B KEY-FAX;CLX-3175FN,PC+ABS,HB,BLACK
JC64-00388B KEY-MENU;CLX-3175FN,PC+ABS,HB,BLACK
JC64-00389B KEY-OK;CLX-3175FN,ABS,HB,BLACK
JC64-00391B KEY-START;CLX-3175FN,ABS,HB,BLACK
JC64-00431A KEY-STATUS W;CLX-3170,ABS,HB
JC64-00393B KEY-STOP;CLX-3175FN,ABS,HB,BLACK
JC64-00394B KEY-TEL;CLX-3175FN,ABS,HB,BLACK
JB68-00916A LABEL RATING-BLANK;SF-340,SEC,TETRON,0.0
JC68-01584A LABEL(P)-BLANK 90*25;CLP-510,SEE,ART 100
JC68-10932A LABEL(P)-BLANK(ML);ML-85,ART,G100,WHT,CO
JB68-00073A LABEL(R)-BAR CODE;SF-3000,PY,T0.5,6.5,34
JC68-00573A LABEL(R)-BARCODE;ML-4500,PET,T0.05,20MM,
4713-001530 LAMP-HALOGEN;115V,850W,8X299.5MM
JC07-00003A LCD-DISPLAY(XEV);VHX1620BHRC9/YMC162197A

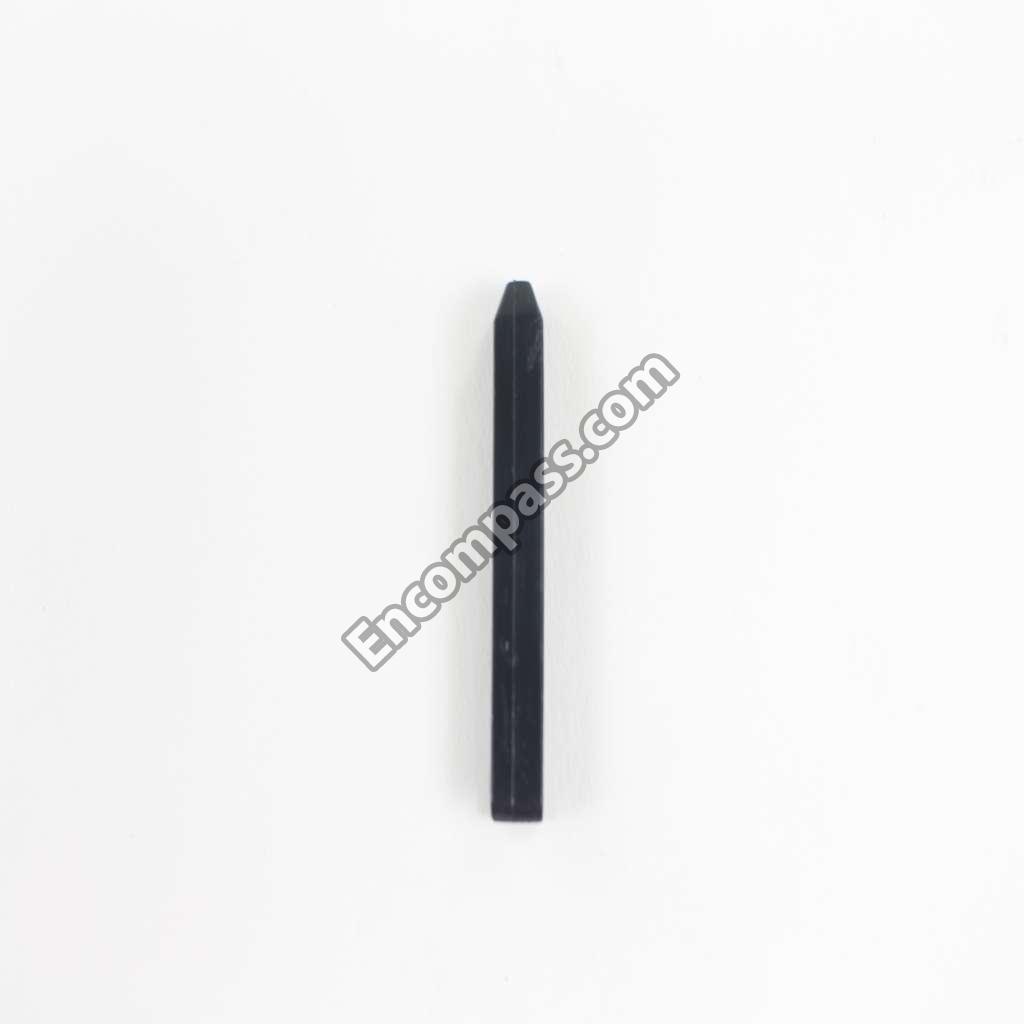

JC66-01748A JC66-01748A LEVER-LSU;CLP-310,POM,T1.5,5.0,41.0,BLAC
JC64-00384B LOCKER-FRONT L;CLX-3170,POM,BLK,HB
JC64-00365A LOCKER-ITB;CLP-310,PC,BLACK
JC64-00223A LOCKER-M-KNOCK UP L;CLP-300,POM M90-44,W
JC64-00222A LOCKER-M-KNOCK UP R;CLP-300,POM M90-44,W
JC64-00383B LOCKER;CLX-3170,POM,BLK,HB
JC96-04826B LSU;CLP-325,SEC,SINGLE,A4(LTR),600,S1,78
JC97-03195B MEA HOU-ADF SHEET;CLX-3175FN,-,-,-,-,-
JC97-03185B JC97-03185B MEA HOU-STACKER;CLX-3175FN,SEC,WORLD,-,-
JC97-03030A MEA UNIT-ACT REGI;CLP-310,SEC,EXPORT,-,-
JC97-03036A JC97-03036A MEA UNIT-CASSETTE;CLP-310,SEC,WORLD,-,-
JC97-03179B MEA UNIT-COVER FRONT;CLX-3170,SEC,-,-,-,
JC97-03177B MEA UNIT-COVER LEFT;CLX-3170,SEC,-,-,-,-
JC97-03176D MEA UNIT-COVER MIDDLE;CLX-3175FW,SEC,-,-
JC97-03192B MEA UNIT-COVER PLATEN;CLX-3175FN,SEC,WOR
JC97-03178B MEA UNIT-COVER REAR;CLX-3170,SEC,-,-,-,-

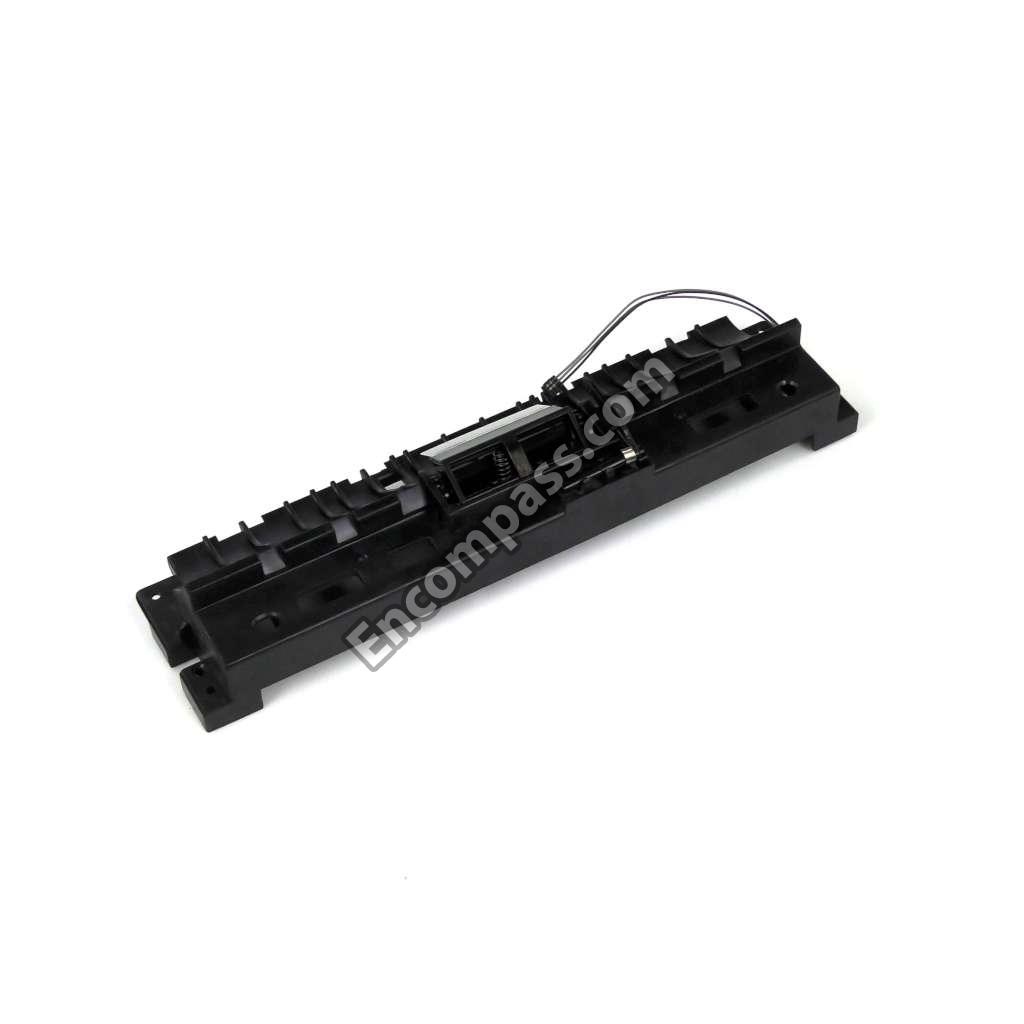

JC97-03024A MEA UNIT-FRAME EXIT;CLP-310,SEC,WORLD,-,
JC97-03198B MEA UNIT-FRAME;CLX-3175,SEC,-,-,-,-
JC97-03029A JC97-03029A MEA UNIT-GUIDE PICKUP;CLP-310,SEC,WORLD,

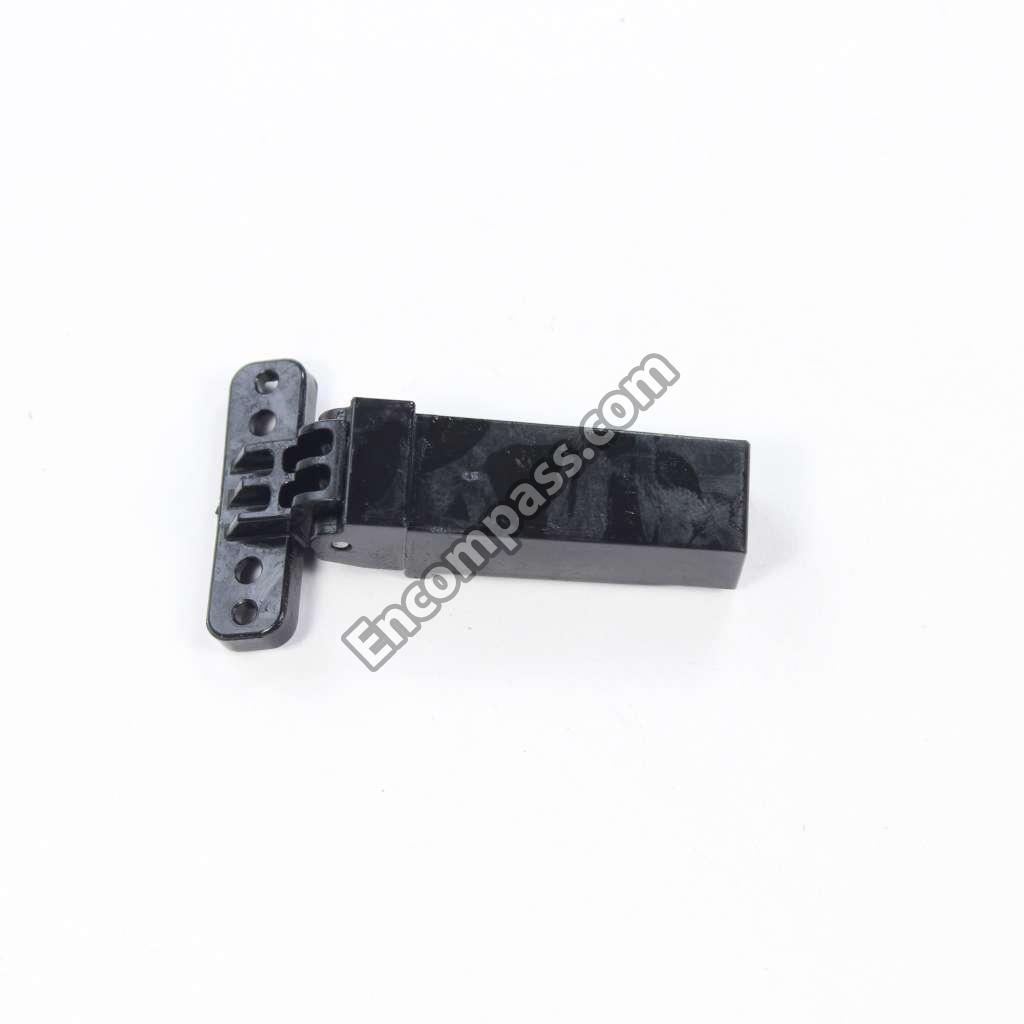

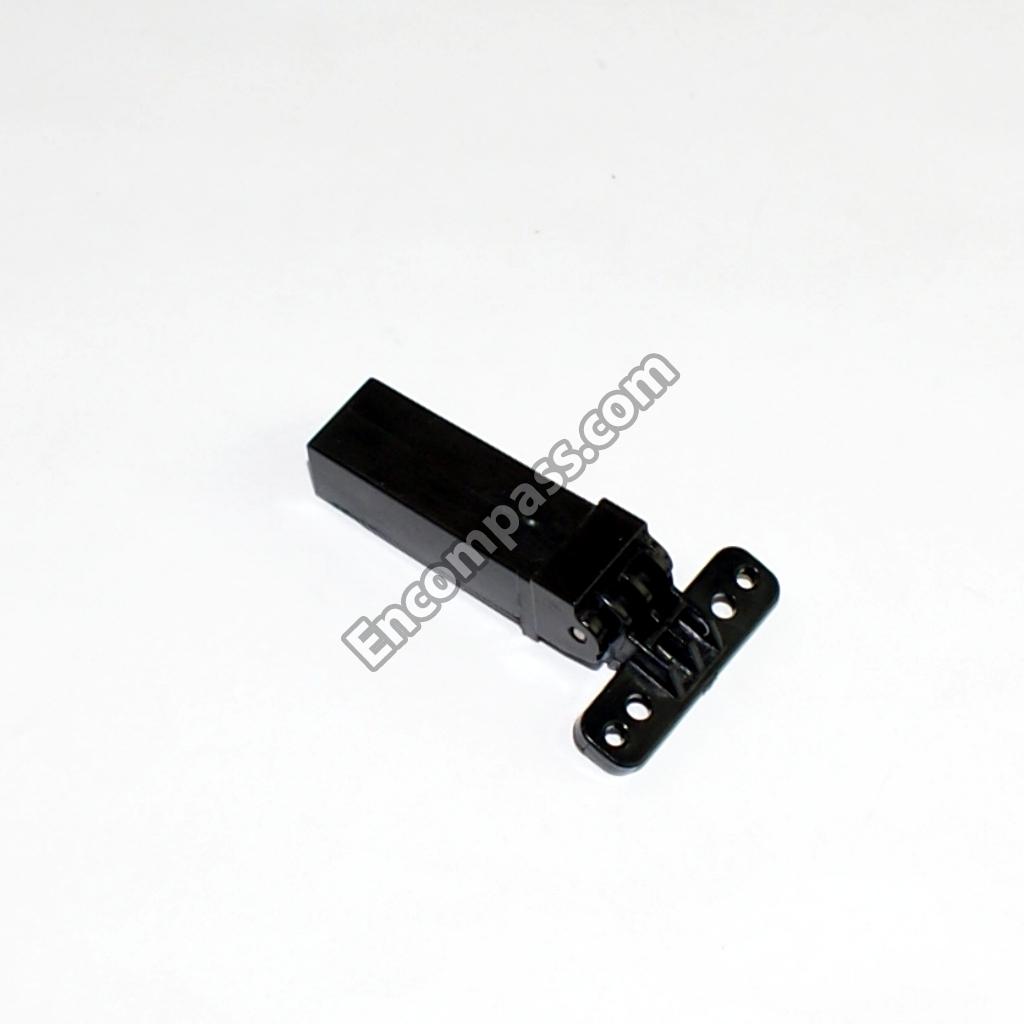

JC97-03191A JC97-03191A MEA UNIT-HINGE L;CLX-3170,SEC,WORLD,-,-
JC97-03190A JC97-03190A MEA UNIT-HINGE R;CLX-3170,SEC,WORLD,-,-
JC97-03187B MEA UNIT-OPEN;CLX-3175FN,SEC,WORLD,-,-,-
JC97-03188B MEA UNIT-PAD;CLX-3175FN,SEC,WORLD,-,-,-
JC97-03205B MEA UNIT-PATH PLATEN;CLX-3175FN,SEC,WORL
JC97-03027A MEA UNIT-PICK UP GEAR;CLP-310,SEC,WORLD,
JC97-03028A JC97-03028A MEA UNIT-PICK UP ROLL;CLP-310,SEC,WORLD,

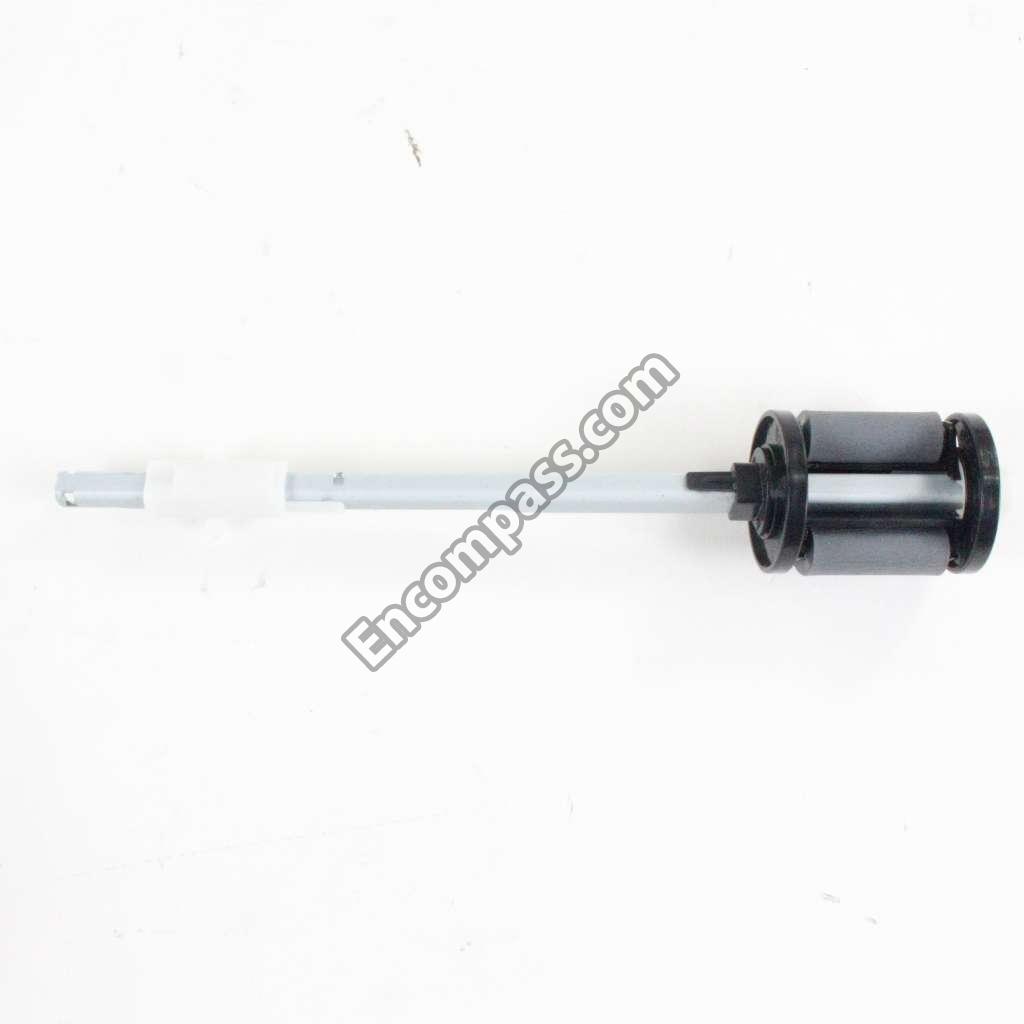

JC97-03186A JC97-03186A MEA UNIT-PICK UP ROLLER;CLX-3170,SEC,WOR
JC97-03040A MEA UNIT-PLATE K_UP;CLP-310,SEC,WORLD,-,
JC97-03025A MEA UNIT-ROLLER EXIT;CLP-310,SEC,WORLD,-
JC97-03194B MEA UNIT-SCAN UPPER;CLX-3175FN,-,-,-,-,-
JC96-08539A JC96-08539A MEA UNIT-TANK WASTE;CLP-310,SEC,WORLD
JC97-02638A MEA UNIT-TERMINAL GND;CLP-300,SEC,EXPORT
JC97-01771A MEA UNIT-TERMINAL S;CLP-500,SEC,EXPORT,S
JC97-03046A MEA UNIT-TRANSFER;CLP-310,SEC,EXPORT,-,-
JC97-03189B MEA UNIT-UPPER;CLX-3175FN,SEC,WORLD,-,-,
JC97-03039A MEA-CRUM TERMINAL;CLP-310,SEC,EXPORT,-,-
JC97-03180B MEA-HOU TRAY;CLX-3170,SEC,WORLD,-,-
JC75-00095A JC75-00095A MEC-BRUSH ANTISTATIC;ML-6060A,SEC,NTR
JC31-00091A MOTOR BLDC;48M843D010/BL55K-M01,1443.82R
JC31-00080A JC31-00080A MOTOR STEP;2T357278Q/SP-35RC-800S,SCX-45
JC31-00110A MOTOR STEP;CLX-3170,24V
JC92-02003A PBA SUB-5V_SWITCH;CLP-310,SEC,SEC,FR-1,1
JC92-02020A PBA SUB-ADF;CLX-3170,SEC,-,-,-,-,-,52.5X
JC92-02021A PBA SUB-CONNECTOR;CLX-3170,SEC,-,-,-,-,-
JC92-01989A PBA SUB-CRUMJOINT;CLP-310,SEC,SEC,FR-1,1
JC92-01986A JC92-01986A PBA SUB-DEVEHOME;CLP-310,SEC,SEC,FR-1,1L
JC92-01984A PBA SUB-EMPTY;CLP-310,SEC,SEC,FR-1,1LAYE
JC92-02050A PBA SUB-OPE;CLX-3170FW,SEC,-,-,-,-,-,348
JC92-01983A PBA SUB-REGI;CLP-310,SEC,SEC,FR-1,1LAYER
JC92-02025A PBA SUB-WLAN;SCX-4600W,SEC,SEC,WLAN,FR-4
JC92-02060A PBA-FAX CARD;SCX-5535ND,DELL,-,-,-,FR-4,
JC92-02046A PBA-MAIN;CLX-3170FW,SEC,-,FR-4,6LAYER,3A
JC92-02048A PBA-USB HOST;CLX-3170FN,SEC,-,-,-,-,-,45
0603-001021 PHOTO TR;NPN,20V,5V,20MA,75MW,TP
0604-001371 PHOTO-INTERRUPTER;TR
0604-001393 0604-001393 PHOTO-INTERRUPTER;TR,75MW,BGA,TR

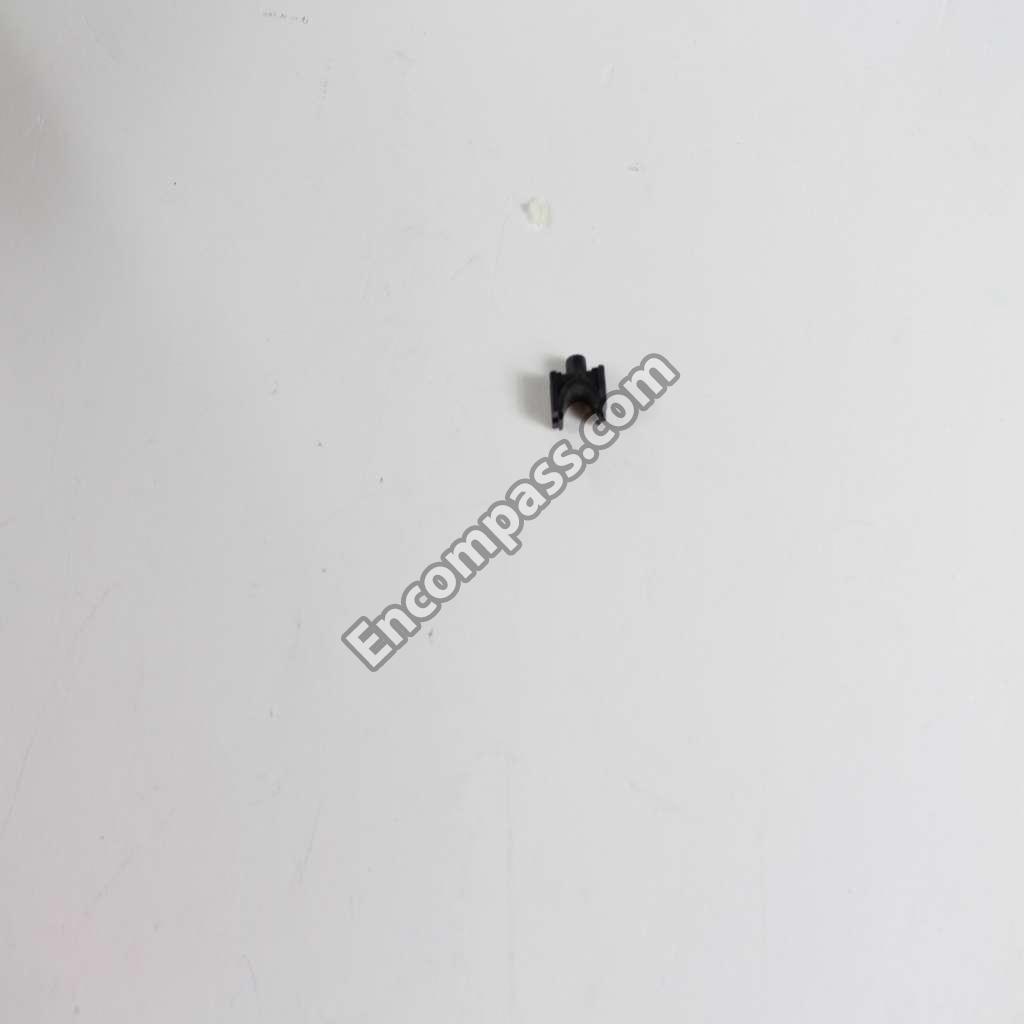

0604-001415 0604-001415 PHOTO-INTERRUPTER;TR,DIP-4,BK
JB72-00819A PMO-BUSH;SCX-1110F,POM,NTR
JC72-00102A JC72-00102A PMO-BUSHING_TR(L);SF-5100,POM (CH-15),BL
JB72-00845A PMO-PICK UP CLUTCH SUB;SCX-1110F,POM(DE8
2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
2007-008433 R-CHIP;0.33OHM,1%,1W,TP,6432
2007-000033 R-CHIP;0OHM,5%,1/4W,TP,3216
2007-008803 R-CHIP;1.07KOHM,1%,1/4W,TP,3216
2007-008453 R-CHIP;1.24KOHM,1%,1/16W,TP,1005
2007-000122 R-CHIP;1.2KOHM,5%,1/10W,TP,1608
2007-000239 R-CHIP;1.5KOHM,1%,1/10W,TP,1608
2007-000123 R-CHIP;1.5KOHM,5%,1/10W,TP,1608
2007-000102 R-CHIP;100KOHM,5%,1/10W,TP,1608
2007-000074 R-CHIP;100OHM,5%,1/10W,TP,1608
2007-000052 R-CHIP;10KOHM,1%,1/10W,TP,1608
2007-000090 R-CHIP;10KOHM,5%,1/10W,TP,1608
2007-000309 R-CHIP;10OHM,5%,1/10W,TP,1608
2007-000091 R-CHIP;12KOHM,5%,1/10W,TP,1608
2007-007768 R-CHIP;13KOHM,1%,1/10W,TP,1608
2007-007521 R-CHIP;14.7KOHM,1%,1/10W,TP,1608
2007-008567 R-CHIP;15.4KOHM,1%,1/10W,TP,1608
2007-000104 R-CHIP;150KOHM,5%,1/10W,TP,1608
2007-000402 R-CHIP;150OHM,5%,1/10W,TP,1608
2007-001306 R-CHIP;150OHM,5%,1/16W,TP,1005
2007-000078 R-CHIP;1KOHM,5%,1/10W,TP,1608
2007-000475 R-CHIP;1MOHM,1%,1/10W,TP,1608
2007-002589 R-CHIP;2.49KOHM,1%,1/4W,TP,3216
2007-007382 R-CHIP;20MOHM,5%,1/10W,TP,1608
2007-000075 R-CHIP;220OHM,5%,1/10W,TP,1608
2007-000094 R-CHIP;22KOHM,5%,1/10W,TP,1608
2007-000071 R-CHIP;22OHM,5%,1/10W,TP,1608
2007-000616 R-CHIP;24KOHM,5%,1/10W,TP,1608
2007-000080 2007-000080 R-CHIP;2KOHM,5%,1/10W,TP,1608
2007-000082 R-CHIP;3.3KOHM,5%,1/10W,TP,1608
2007-007525 R-CHIP;3.4KOHM,1%,1/10W,TP,1608
2007-002607 R-CHIP;3.65KOHM,1%,1/4W,TP,3216
2007-000704 R-CHIP;3.6KOHM,5%,1/10W,TP,1608
2007-000729 R-CHIP;300OHM,5%,1/10W,TP,1608
2007-007008 R-CHIP;300OHM,5%,1/16W,TP,1005
2007-000730 R-CHIP;300OHM,5%,1/4W,TP,3216
2007-000096 R-CHIP;30KOHM,5%,1/10W,TP,1608
2007-000740 R-CHIP;30KOHM,5%,1/4W,TP,3216
2007-000076 R-CHIP;330OHM,5%,1/10W,TP,1608
2007-000134 R-CHIP;33KOHM,5%,1/10W,TP,1608
2007-000113 R-CHIP;33OHM,5%,1/10W,TP,1608
2007-000839 R-CHIP;39OHM,5%,1/10W,TP,1608
2007-000083 R-CHIP;3KOHM,5%,1/10W,TP,1608
2007-000084 R-CHIP;4.7KOHM,5%,1/10W,TP,1608
2007-000107 R-CHIP;470KOHM,5%,1/10W,TP,1608
2007-002916 R-CHIP;475KOHM,1%,1/10W,TP,1608
2007-000939 R-CHIP;47KOHM,1%,1/10W,TP,1608
2007-000097 R-CHIP;47KOHM,5%,1/10W,TP,1608
2007-008298 R-CHIP;49.9OHM,1%,1/16W,TP,1005
2007-000965 R-CHIP;5.1KOHM,5%,1/10W,TP,1608
2007-000144 R-CHIP;5.1KOHM,5%,1/16W,TP,1005
2007-000086 R-CHIP;5.6KOHM,5%,1/10W,TP,1608
2007-001020 R-CHIP;536OHM,1%,1/4W,TP,3216
2007-000119 R-CHIP;560OHM,5%,1/10W,TP,1608
2007-001045 R-CHIP;56OHM,5%,1/4W,TP,3216
2007-001056 R-CHIP;6.2KOHM,5%,1/10W,TP,1608
2007-000120 R-CHIP;680OHM,5%,1/10W,TP,1608
2007-001134 R-CHIP;68OHM,5%,1/10W,TP,1608
2007-001139 R-CHIP;7.5KOHM,1%,1/10W,TP,1608
2007-000088 R-CHIP;7.5KOHM,5%,1/10W,TP,1608
2007-001179 R-CHIP;8.2KOHM,5%,1/10W,TP,1608
2007-000121 R-CHIP;820OHM,5%,1/10W,TP,1608
2008-000166 R-FUSIBLE;56OHM,5%,1/4W,AA,TP,2.6X6.7MM
2011-001011 R-NETWORK;10KOHM,5%,1/16W,L,CHIP,8P,TP,3
2011-001262 R-NETWORK;22OHM,5%,1/16W,L,CHIP,8P,TP,2.
3501-000203 RELAY-MINIATURE;5V,200MW,1000MA,1FORMC,6
6044-000159 RING-C;ID3,OD7,T0.6,PASS,STSC
6044-000001 RING-CS;ID2.8,OD8,T0.25,BLACK,SK-5
6044-000125 RING-E;ID4,OD9,T0.6,STSC
6044-000231 RING-E;ID5.0,OD11.0,T0.6,PASS,STS304
JC66-02722A ROLLER-HEAT;CLP-325,AL5052+LSR,D27.5,T0.
JC66-01253A ROLLER-PICK_UP IDLE;ML-2571N,POM,31.2,BL
JC66-01804A ROLLER-PRESSURE SHAFT;CLP-310,SUMM22+PFA
JC66-01780A ROLLER-PRESSURE;CLP-310,SUMM22+SI RUBBER
JC73-00140A JC73-00140A RPR-FRICTION PAD;ML-1510,NBB,1T 8.9*47,5
JC73-00141A JC73-00141A RPR-PAD CASSETTE;ML-1510,URETHANE SPONGE
JC73-00263A JC73-00263A RUBBER-EXIT F DOWN;CLP-310,EPDM,10,14.2,

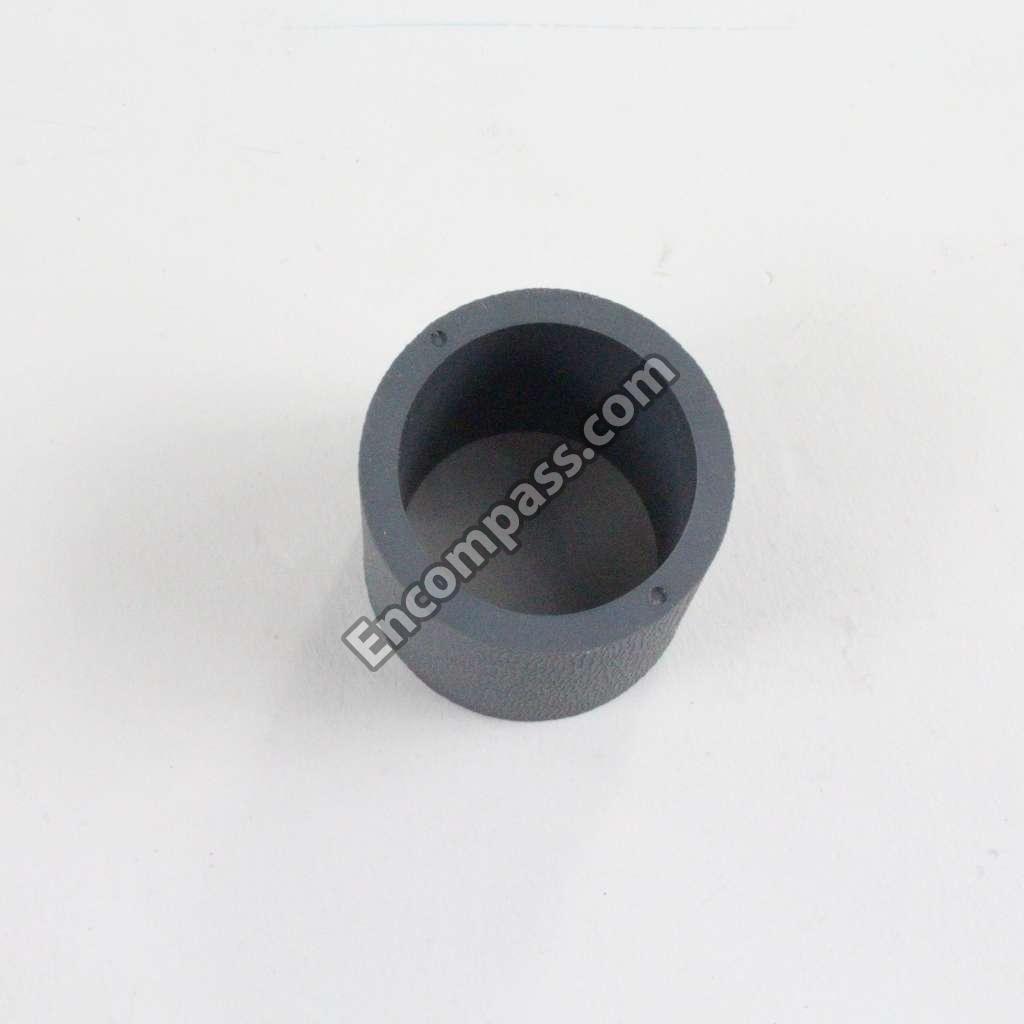

JC73-00309A JC73-00309A RUBBER-PICK_UP;CLP-310,EPDM,27.0,30.5,37
6001-000130 SCREW-MACHINE;BH,+,M3,L6,ZPC(WHT),SWRCH1
6001-000485 SCREW-MACHINE;PH,+,-,M2.6,L4,ZPC(WHT),SW
6002-000440 SCREW-TAPPING;PWH,+,2,M3,L8,ZPC(BLK),SWR
6003-000282 6003-000282 SCREW-TAPTYPE;BH,+,-,B,M3,L8,ZPC(BLK),SW
6003-000269 6003-000269 SCREW-TAPTYPE;BH,+,-,S,M3,L6,ZPC(WHT),SW
6003-000301 SCREW-TAPTYPE;BH,+,S,M4,L6,ZPC(WHT),SWRC
6003-000152 SCREW-TAPTYPE;PH,+,-,B,M2,L10,ZPC(WHT),S
6002-000308 SCREW-TAPTYPE;PH,+,-,B,M2.6,L6,ZPC(WHT),
6003-000264 SCREW-TAPTYPE;PWH,+,-,B,M3,L6,ZPC(WHT),S
6003-000196 SCREW-TAPTYPE;PWH,+,B,M3,L10,NI PLT,SWRC

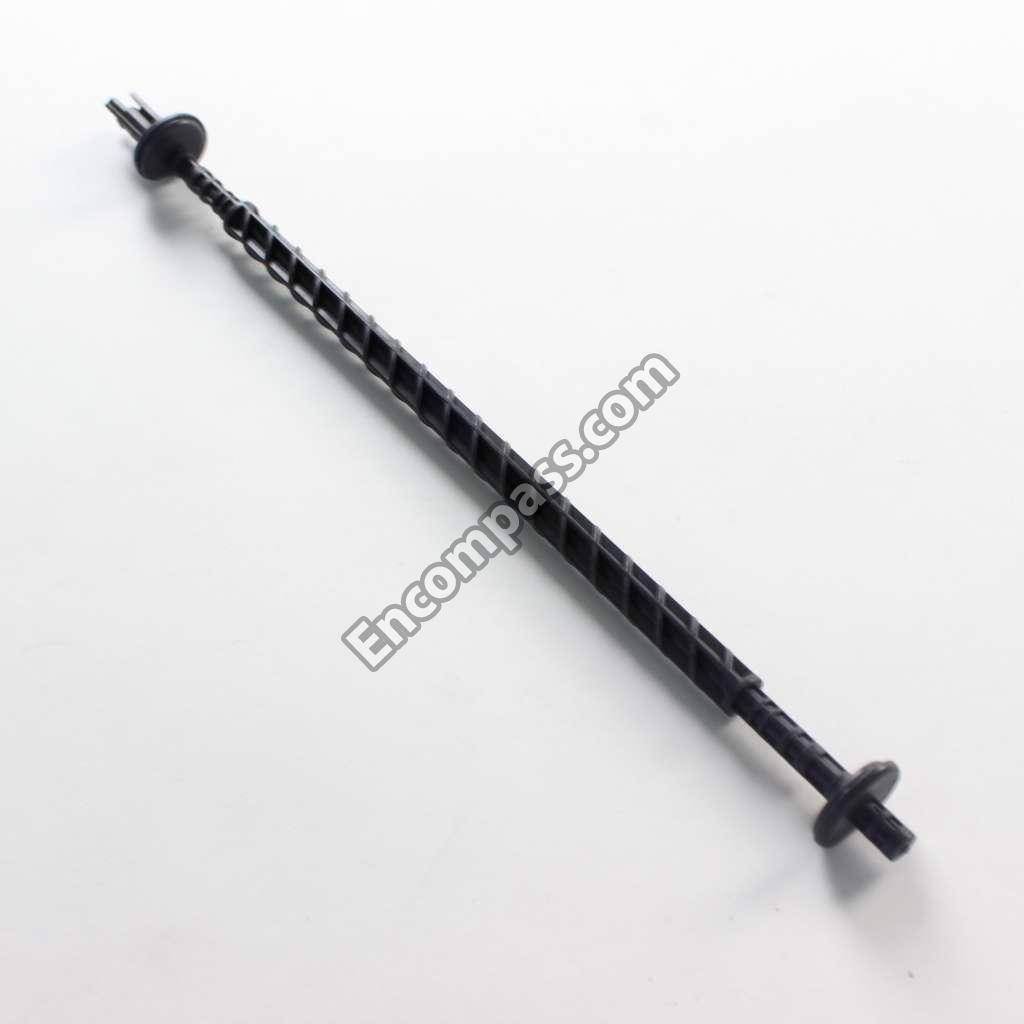

JC66-01737A JC66-01737A SHAFT-CAM FUSER;CLP-310,PBT+(MF+GF)40%,2
JC66-01448A SHAFT-CIS;SCX-4500,SUM22,382,6
JC66-01720A SHAFT-DEVE CAM;CLP-310,POM,L124.3,OD6,BL
JC66-01207A SHAFT-M-CLUTCH FUSER;CLP-300,POM,L39.8,D
JC70-20901A JC70-20901A SHAFT;ML-5000A,SUS304,17.2,1.9,PI1.9
JC63-01982C SHEET-OVERLAY_L;CLX-3175FW,PC,0.254,192,
JC63-01983B SHEET-OVERLAY_R;CLX-3175FN,PC,0.254,64,7
JC63-01786A SHEET-WHITE SPONGE;CLX-2170FN,SPONGE+SHE
JC66-01580A SLIDER-CIS;CLX-2160,RTP 899X93924,0.7,11
JC44-00095B SMPS-V1;ML-3051N,PSP-TYPE2-V1,AC/DC,70W,
JC33-00026A JC33-00026A SOLENOID-PICK UP;ML-2851ND,DC24V,120 OHM
3001-002262 SPEAKER;0.3W,8OHM,81DB,400HZ,50X16.4MM
JC61-00025A SPRING ETC-CS-CHARGE APOLLO;SF-5100,SUS
JC61-02423A SPRING ETC-EXIT;CLP-310,SUS304 WPB,PI0.3
JC61-00011A SPRING ETC-FEED;SF-5100,SUS304WPB,0.6,13
JC61-02419A SPRING ETC-GROUND OPC;CLP-310,SUS304 WPB
JC61-70929A SPRING ETC-HV LARGE;ML-5000A,SUS304-WPB,
JC61-02417A SPRING ETC-ITB L;CLP-310,SUS304,1.5,6.5,
JC61-02416A SPRING ETC-ITB R;CLP-310,SUS304,1.5,6.5,
JG61-70531A SPRING ETC-LOCKER,PLATE;SF6000,SUS304WPB
JC61-02415A SPRING ETC-OPC L;CLP-310,C5210P,1.5,6.5,
JB61-00076A JB61-00076A SPRING ETC-TORSION DOC (CC2-F);SCX-1110F
JC61-70940A SPRING ETC-TR(12);ML-5500,0.5,5,13,SUS30
6107-001282 SPRING-CS;C5210W,PI0.6,L12.5,ID3,OD5.4
6107-001391 SPRING-CS;SUS 304 WPB,PI0.5,D5,L8.8,ID4.
6107-001135 SPRING-CS;SUS304 WPB,PI0.3,L14,ID5.4,OD6
6107-001137 SPRING-CS;SUS304 WPB,PI0.4,D9.4,L11.5,ID
6107-001290 SPRING-CS;SUS304 WPB,PI0.55,D5.55,L16,ID
6107-001362 SPRING-CS;SUS304 WPB,PI0.55,L10.2,ID7.2,
6107-001278 SPRING-CS;SUS304 WPB,PI0.7,D6.9,L20,ID6.
6107-001387 SPRING-CS;SUS304,PI0.5,D5.0,L12.5
6107-001383 SPRING-CS;SUS304,PI0.5,D5.0,L12.5
6107-001386 SPRING-CS;SUS304,PI0.65,D4.5,L12
6107-001409 SPRING-CS;SUS304,PI0.65,D8.35,L38,ID7.7,
6107-001240 SPRING-CS;SUS304-WPB,GROUND END,PI0.6,D1
6107-001167 SPRING-CS;SUS304-WPB,PI0.25,D3.25,L9.6,I
6107-001358 SPRING-CS;SUS304-WPB,PI1,D7.3,L18.4,ID6.
6107-001194 SPRING-CS;SWP-B,BLK,PI0.9,D6.95,L20,ID6.
6107-001400 SPRING-CS;SWP-B,D1.0,L9.5,ID4.0,OD6.0
6107-001405 SPRING-CS;SWP-B,PI0.4,D3.9,L5.7,ID3.5,OD
6107-001309 SPRING-CS;SWP-B,PI0.5,L10,ID4.0,OD5.0
6107-001398 SPRING-CS;SWP-B,PI1.0,D7,L11,ID6.0,OD8.0
6107-001402 SPRING-CS;SWP-B,PI1.3,D4.2,L27,ID2.9,OD5
6107-001406 SPRING-CS;SWP-B,PI1.4,D3.6,L27,ID2.2,OD5
6107-001397 SPRING-CS;SWP-B,YELLOW,PI0.9,D5.8,L18.7,
6107-001497 SPRING-CS;SWPB,WHT,PI0.4,D6.4,L10.2,ID6.
6107-001185 SPRING-ES;SUS304WPB,ANNEALING,PI0.32,D4.
6107-001268 SPRING-TS;SUS304 WPB,PI0.9,D8.9,L7,ID8.0
6107-001507 SPRING-TS;SUS304,NATURAL,PI0.25,W5.3,ID4
6107-001382 SPRING-TS;SUS304,PI0.2,L10,ID4.3
6107-001392 SPRING-TS;SWP-B,PI1.3,L27.3,ID9.5
JC61-02484A STOPPER-ADJUSTER;CLP-350N,ABS,3.0,13.2,1
JC61-01714A STOPPER-PICK_UP L;ML-2571N,POM,D17,20,NA
3404-000165 SWITCH-TACT;12V,50MA,160GF,6X6X5,SPST
3404-001222 SWITCH-TACT;12VDC,50MA,160GF,6X6X5.0MM,S
1404-001065 THERMISTOR-PTC;0.11OHM,13.2VAC,40A,1.5A,
0506-001069 TR-ARRAY;MBT3904DW1T1,NPN,DUAL,150MW,SOT
0504-000144 TR-SMALL SIGNAL;2SC1008,NPN,800MW,TO-92,
0501-000279 TR-SMALL SIGNAL;KSA1182-Y,PNP,150MW,SOT-
0501-000294 TR-SMALL SIGNAL;KSA708-Y,PNP,800MW,TO-92
0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200MW,SOT-
0501-002326 TR-SMALL SIGNAL;KST06,NPN,350MW,SOT-23,T
0501-000479 TR-SMALL SIGNAL;KST42,NPN,350MW,SOT-23,T
0501-000481 TR-SMALL SIGNAL;KST92,PNP,350MW,SOT-23,T
0501-000457 TR-SMALL SIGNAL;MMBT2222A/KST2222A,NPN,3
0501-000462 TR-SMALL SIGNAL;MMBT2907A,PNP,350MW,SOT-
2602-000062 TRANS-PULSE;450UH,0.25/0.25OHM,1:1,12.8X
2103-000342 VR-SEMI;2KOHM,30%,1/10W,SIDE
6031-001255 WASHER-PLAIN;NYLON,CUTTING,ID5,OD9,T0.5,
6031-000019 WASHER-PLAIN;POLY,ID6.1,OD8.5,T0.1,BLK
6031-001490 WASHER-PLAIN;POLYMIDE,ID7.1,OD14,T0.13,B
6031-001584 WASHER-PLAIN;POLYSLIDER,ID4,OD7,T0.5,BLA
Main Menu x
