Model Image
Manufacturer

Samsung

Model Number

CLX-6240FX

Description

Multi-function Laser Printer

Interactive Exploded View

Parts List

Part Number Description
JC66-01766A ACTUATOR-FEED;CLX-6200FX,PC,2,BLACK
JC66-01403A ACTUATOR-FEED_EMPTY;CLP-660,ABS,21.6,35.
JC66-01404A ACTUATOR-FUSER;CLP-660,PET-GF30FR(17),1.
JC66-01762A JC66-01762A ACTUATOR-REGI;CLX-6200FX,POM,2,BLACK
JC66-02294A ACTUATOR-REGI_DALI;CLP-660,PC,18.08,77.6
JC66-01401A ACTUATOR-REGI_SHUTTER;CLP-660,PC-GF20 V0
JC66-01623A ACTUATOR-SW_OPEN;CLX-6200FN,PC
0201-001006 ADHESIVE-AA;#7452,TRP
JC70-00300A ADJUST-M-CASSETTE_L;ML-1400,ABS,VIOLET B
JC70-00301A ADJUST-M-CASSETTE_R;ML-1400,ABS,VIOLET B
JC90-00932A JC90-00932A ASF-PICK UP;CLP-660,DOM,-,-,-
6902-000332 BAG CONDUCTIVE;LDPE,T0.07,W250,L500,BLK,
JB72-00764A BAND;SCX-1110/XRX,POM,WHT
JC71-00042A BAR-P_CROSS BOTTOM;ML-2150,SECC T1.0
4301-001042 4301-001042 BATTERY-LI;3V,220MAH,CR2032,20X3.2MM,CON
3301-000344 BEAD-RADIAL;200OHM,3.5X0.6X6.5MM,7000MA,
3301-000319 BEAD-SMD;11OHM,2X1.25X0.9MM,TP
3301-000317 BEAD-SMD;120OHM,2012,TP,-,-
3301-001655 BEAD-SMD;33OHM,3216,3000MA,TP,16OHM/39MH
3301-001067 BEAD-SMD;600OHM,1608
3301-001594 BEAD-SMD;90OHM,2.0*1.2*1.3MM,TP,-,-

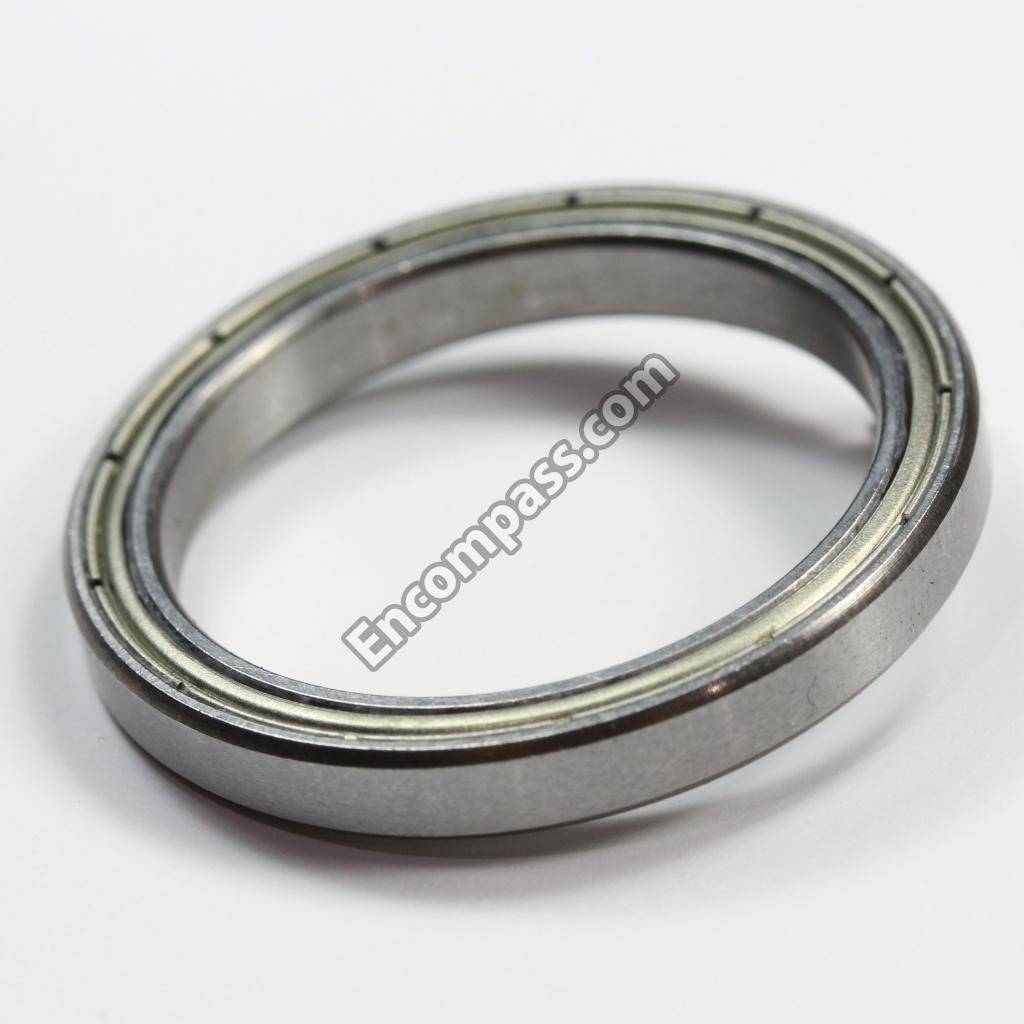

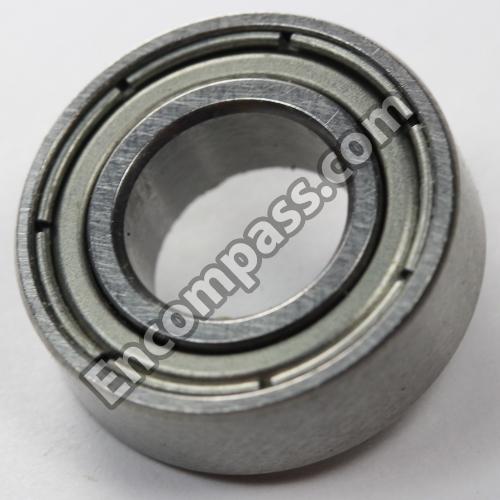

6601-001479 6601-001479 BEARING-BALL;6705ZZ,ID25.0,OD32.0,L4,CWB
6601-001341 6601-001341 BEARING-BALL;688ZZ,ID8,OD16,L5,SUJ2
6602-001084 BELT-TIMING GEAR;30S2M224,RUB(CR),T1.36,
6602-001067 BELT-TIMING GEAR;FIBER GLASS,T3.2,T80-40
JC61-01877A BRACKET-DRAWER-FUSER;CLP-660,SECC,1,16.9
JC67-00496A BRUSH-ANTISTATIC;CLP-660,AL+SUS FIBER,22
JC61-01686A BUSH-4D_FE;SCX-6345N,SBF2118,?4,?5.93,3.
JC61-00884A BUSH-6_D(L);SCX-6320F,BRONZE POWDER(KAB-
JC61-00423A BUSH-6_D;ML-9400W,BEARING,?6,NTR
JC61-00699A BUSH-D6/L4;CLP-500,FE+CU+ZN-SLEARATE,?6,
JC61-00665A BUSH-M-FEED, DUP;ML-2150,POM, SW01,4.0,7
JC61-00669A BUSH-M-ROLLER REGI U;ML-2150,POM CE20,?6
JC61-00750A JC61-00750A BUSH-M_ADF CLUTCH;SCX-6320F,PPS,7,11.85,
2402-001178 C-AL,SMD;10UF,20%,16V,WT,TP,4.3X4.3X5.8M
2402-001254 C-AL,SMD;10UF,20%,50V,WT,TP,6.3X5.2MM
2402-001158 C-AL,SMD;1UF,20%,50V,WT,TP,4X5.2MM
2402-000209 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3MM
2402-001106 C-AL,SMD;33UF,20%,50V,WT,TP,8.3X8.3X6.3M
2402-000008 C-AL,SMD;47UF,20%,16V,GP,TP,6.6X6.6X5.4
2402-001155 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
2401-000481 C-AL;10UF,20%,50V,WT,TP,5X11,5
2401-002463 C-AL;470UF,20%,16V,GP,TP,10X12.5,5
2203-005105 C-CER,CHIP;.68NF,5%,50V,C0G,TP,1608
2203-000160 C-CER,CHIP;0.0015NF,0.25PF,50V,C0G,1608
2203-000384 C-CER,CHIP;0.015NF,5%,50V,C0G,TP,1608,0.
2203-000426 C-CER,CHIP;0.018NF,5%,50V,C0G,1608
2203-000041 C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608
2203-000626 C-CER,CHIP;0.022NF,5%,50V,C0G,1608
2203-000998 C-CER,CHIP;0.047NF,5%,50V,C0G,1608
2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608
2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,1608
2203-006467 C-CER,CHIP;0.68NF,10%,3000V,X7R,4520
2203-006676 C-CER,CHIP;10000NF,+80-20%,10V,Y5V,TP,20
2203-005819 C-CER,CHIP;1000NF,+80-20%,16V,Y5V,TP,160
2203-002709 C-CER,CHIP;100NF,+80-20%,16V,Y5V,1005
2203-000192 C-CER,CHIP;100NF,+80-20%,50V,Y5V,TP,2012
2203-005249 C-CER,CHIP;100NF,10%,50V,X7R,TP,1608
2203-000206 C-CER,CHIP;100NF,10%,50V,X7R,TP,2012
2203-006468 C-CER,CHIP;10NF,10%,250V,X7R,-,2012
2203-000257 C-CER,CHIP;10NF,10%,50V,X7R,TP,1608
2203-000440 C-CER,CHIP;1NF,10,50V,X7R,TP,1608
2203-000491 C-CER,CHIP;2.2NF,10%,50V,X7R,1608
2203-006320 C-CER,CHIP;2200NF,10%,16V,X7R,TP,2012
2203-002392 C-CER,CHIP;220NF,+80-20%,50V,Y5V,2012
2203-006818 C-CER,CHIP;47000NF,20%,6.3V,X5R,3216
2203-005384 C-CER,CHIP;4700NF,+80-20%,10V,Y5V,TP,201
2305-000385 C-FILM,LEAD-PEF;470NF,10%,250V,BK,18X6X1
2503-001051 C-NETWORK;100NFX4,20%,16V,2012
6502-000132 CABLE CLAMP;DAWS-1NE,ID11,L21.0,NTR,NYLO
6502-001093 CABLE CLAMP;DAWS-3NE,ID11*L34.8,NYLON66,
JC66-00377A CAM-M-PICK_UP;ML-1710,POM(DELIN 8903),WH
JC66-01344A CAM-OPC COUPLING;CLP-660,POM M90-44,2,46
JC66-01343A CAM-PTB COUPLING;CLP-660,POM M90-44,1,46
JC66-01402A CAM-SHAFT_PICK UP;CLP-660,POM M90-44,WHT
JC67-00047A CAP-M_BUSHING ACTUATOR;ML-2150,POM
JC67-00214A CAP-OPC COUPLE;CLP-660,POM M90-44,1,43.4

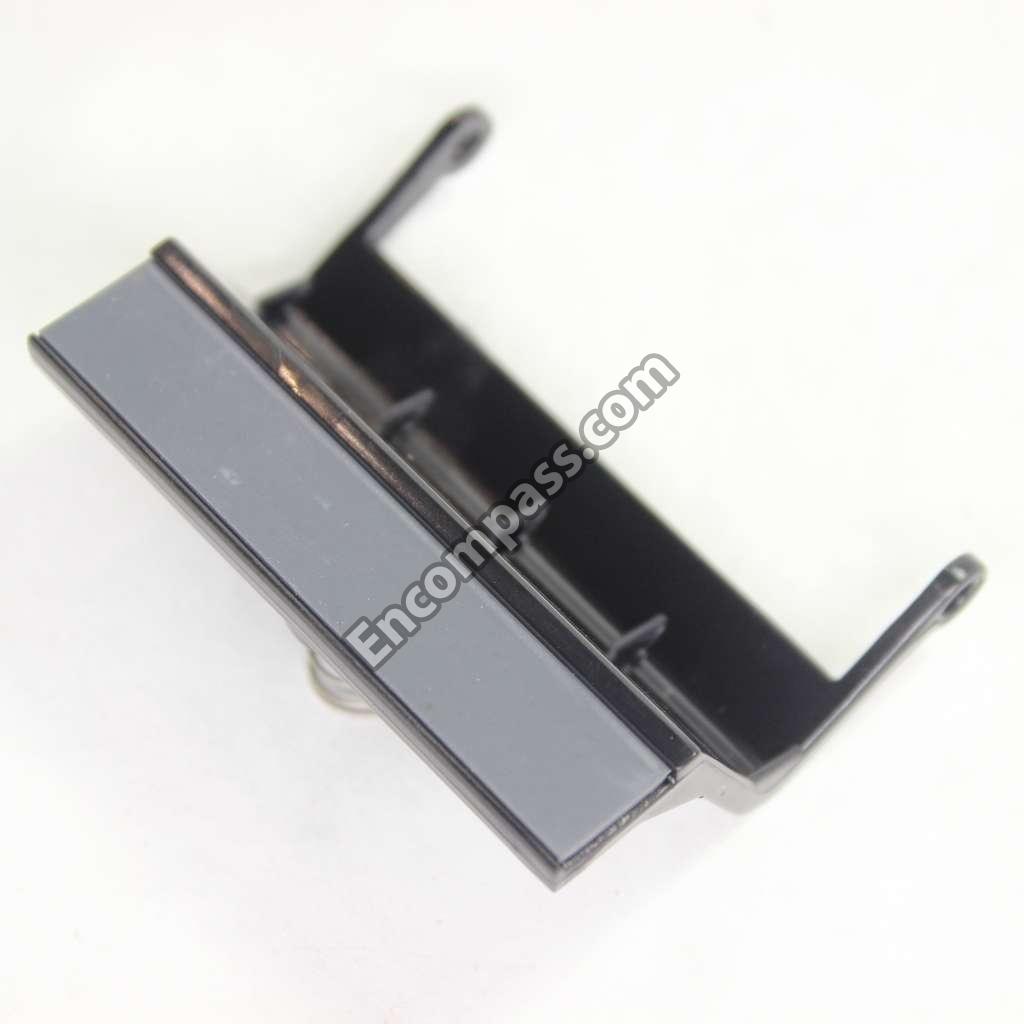

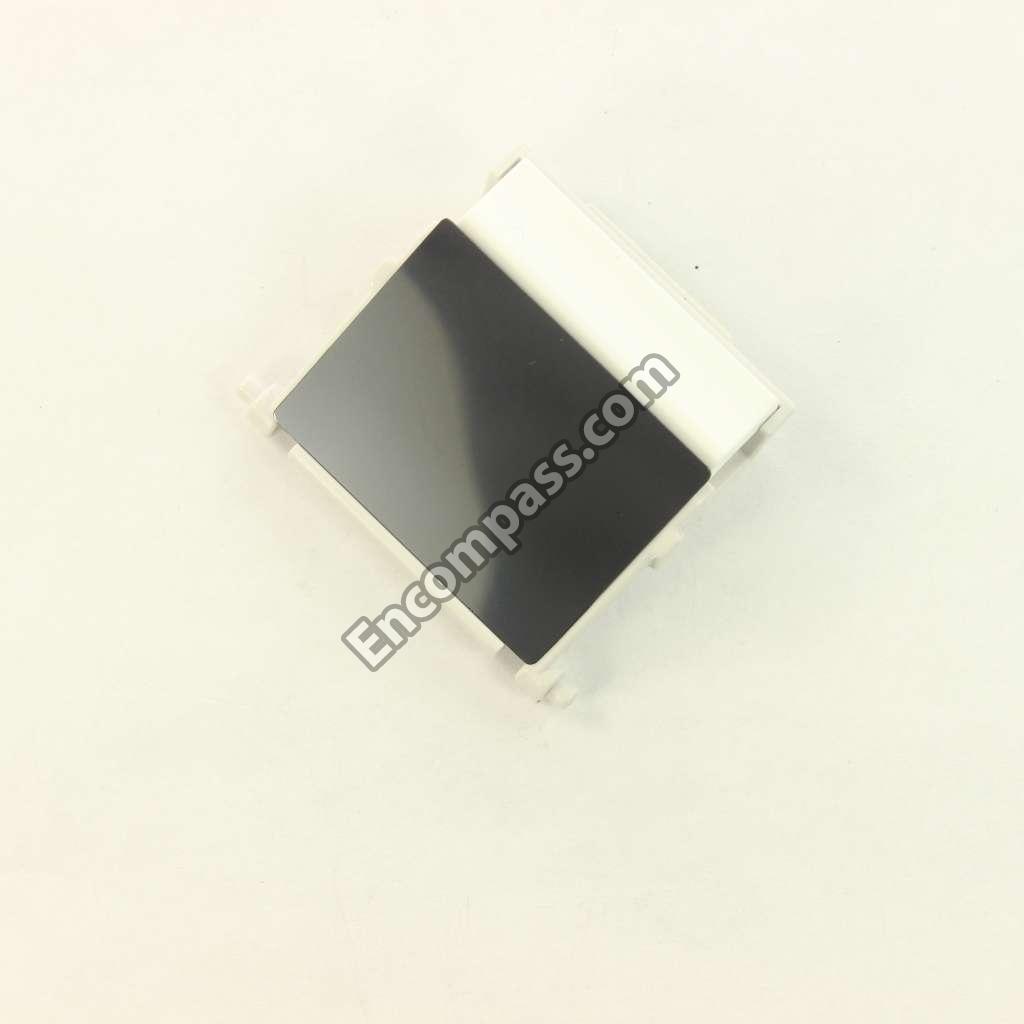

JC90-00993A JC90-00993A CASSETTE-HOLDER PAD;CLP-670ND,SEC
JC39-00509A CBF HARNESS-GND ZENER;SCX-4521F,UL1007,1
JC39-00507A CBF HARNESS-GND1;CLP-600,CBF HARNESS,UL1
JC39-00249A CBF HARNESS-LCD;ML-2150,WIRE,UL2877,8,40
JC39-00496A CBF HARNESS-LSU_GND;CLP-300,WIRE HARNESS
JF39-50094B CBF LINE CORD;MINI FAX,IVR
3903-000085 3903-000085 CBF-POWER CORD;US,BP3/YES,3P_LUG,125/125
JC47-00006D CLUTCH-BK DEVE;CLP-660,4.0W,DC24V,0.167A
JB27-00004A COIL CHOKE-DIP;DR 8X11(470UH),MJC-1450,4
3709-001320 CONNECTOR-CARD EDGE;200,0.6MM,AUF,SODIMM
3708-001637 CONNECTOR-FPC/FFC/PIC;24P,1MM,STRAIGHT,S
3708-001058 CONNECTOR-FPC/FFC/PIC;30P,1MM,STRAIGHT,S
3708-002121 CONNECTOR-FPC/FFC/PIC;40P,1MM,SMD-S,SN,N
3711-006588 CONNECTOR-HEADER;7P+15P,1R,1.27MM,STRAIG
3711-006574 CONNECTOR-HEADER;BOX,2P,1R,1.5MM,STRAIGH
3711-006573 CONNECTOR-HEADER;BOX,3P,1R,1.5MM,STRAIGH
3711-002349 CONNECTOR-HEADER;BOX,7P,1R,2MM,STRAIGHT,
3711-005644 CONNECTOR-HEADER;BOX,8P,1R,2MM,SMD-A,SN,
3711-006576 CONNECTOR-HEADER;NO WALL,4P,1R,6MM,SMD-S
3702-001158 CONNECTOR-RIBBON;60,FEMALE,STRAIGHT,AU
3702-001156 CONNECTOR-RIBBON;60P,MALE,ANGLE,AU
JC63-01521A COVER-FRONT;CLX-6200FX,HIPS,HB
JC63-01519A COVER-LEFT;CLX-6200FX,HIPS,HB
JC63-01567A COVER-LOCKER FRONT;CLX-6200FX,HIPS
JC63-01550A COVER-MIDDLE EXIT;CLX-6200FX,PC/GF 20%
JC63-01547A COVER-MIDDLE OPEN;CLX-6200FX,ABS,SR-0320
JC63-01543A COVER-MIDDLE;CLX-6200FX,ABS,HB,HF-0660I
JC63-00152F COVER-M_SCAN DUMMY;SCX-5530FN,HIPS,63.7,
2801-000111 CRYSTAL-SMD;0.032768MHZ,20PPM,28-AAW,12.
2801-004181 CRYSTAL-SMD;20MHZ,50PPM,28-AAN,16PF,30OH
JC97-03038C JC97-03038C DADF-HINGE;SCX-5133F,SEC/XEROX,DOM/EXP,W
0402-001189 DIODE-RECTIFIER;M4,400V,1A,TS-1,TP
0402-001212 DIODE-RECTIFIER;SS26,60V,2A,SMB,TP
0404-001084 DIODE-SCHOTTKY;BAT54A,30V,200MA,SOT-23,T
0404-000112 DIODE-SCHOTTKY;RB420D,40V,100MA,SOT-23,T
0407-000122 DIODE-SWITCHING;KDS226,80V,100MA,SOT-23,
0401-000116 DIODE-SWITCHING;MMSD914T1,100V,200MA,SOD
0403-000287 DIODE-ZENER;MMBZ5251B,20.9-23.1V,225MW,S
0403-001401 DIODE-ZENER;MMSZ5260B,40.85/45.15V,500MW
JC66-01413C DRUM-FUSER_BELT;CLP-770,A3003,ID40,OD40.
JC96-05285A ELA HOU-BRACKET MOTOR;CLX-6200FX,-,-,PRE
JC96-04960A ELA HOU-COVER PLATEN;CLX-6240FX,-,-,-,-,
JC96-04816A ELA HOU-DADF DRV;CLX-6240FX,-,-,-,-,-
JC96-04818A ELA HOU-DADF LOWER;CLX-6240FX,-,-,-,-,-
JC96-04815A ELA HOU-DADF UPPER;CLX-6240FX,-,-,-,-,-
JC96-04790A ELA HOU-DADF;CLX-6240FX,-,-,-,-,-
JC96-04995A ELA HOU-OPE;CLX-6240FX,-,DADF,-,-,ENGLIS
JC96-04793A ELA HOU-PLATEN;CLX-6240FX,-,-,-,-,-
JC96-04788A ELA HOU-SCAN LOWER;CLX-6240FX,-,-,-,-,-
JC96-04791A ELA HOU-SCAN;CLX-6240FX,-,-,4IN1,-,-
JC96-04498A ELA HOU-UNIT_CASSETTE;CLP-660,-,-,-,-
JC96-04961A ELA UNIT-BRACKET_MAIN;CLX-6200FX,-,-,-,-
JC96-04605A ELA UNIT-CCDM MIDDLE;ADVANCED - COLOR,EP
JC96-04821B ELA UNIT-COVER MIDDLE;CLX-6240FX,-,-,4IN
JC96-04488A ELA UNIT-DEVE_CRUM;CLP-660,SEC,-,-,-,-
JC96-04487A ELA UNIT-DUCT_FUSER;CLP-660,SEC,-,-,-,-
JC96-04479A ELA UNIT-FRAME_TOP;CLP-660,SEC,EXPORT,-,
JC96-04501B ELA UNIT-FUSER BLDC;CLP-660,SEC,-,24PPM,
JC96-04495A ELA UNIT-FUSER LV;CLP-660,SEC,ESPORT,SET
JC96-04817A ELA UNIT-HDD;CLX-6240FX,-,-,-,-,-,-,-
JC96-04500A ELA UNIT-LSU;CLP-660,-,-,24PPM,600DPI,SI
JC96-04814A ELA UNIT-MOTOR BRKT;CLX-6240FX,-,-,-,-
JC96-04481A ELA UNIT-OPE_LEFT;CLP-660,SEC,-,-,-,-
JC96-04491A ELA UNIT-PICK UP;CLP-660,-,EXPORT,-,-,-
JC96-04406A ELA UNIT-PTB SET_DUPLEX;CLP-660,SEC,-,SE

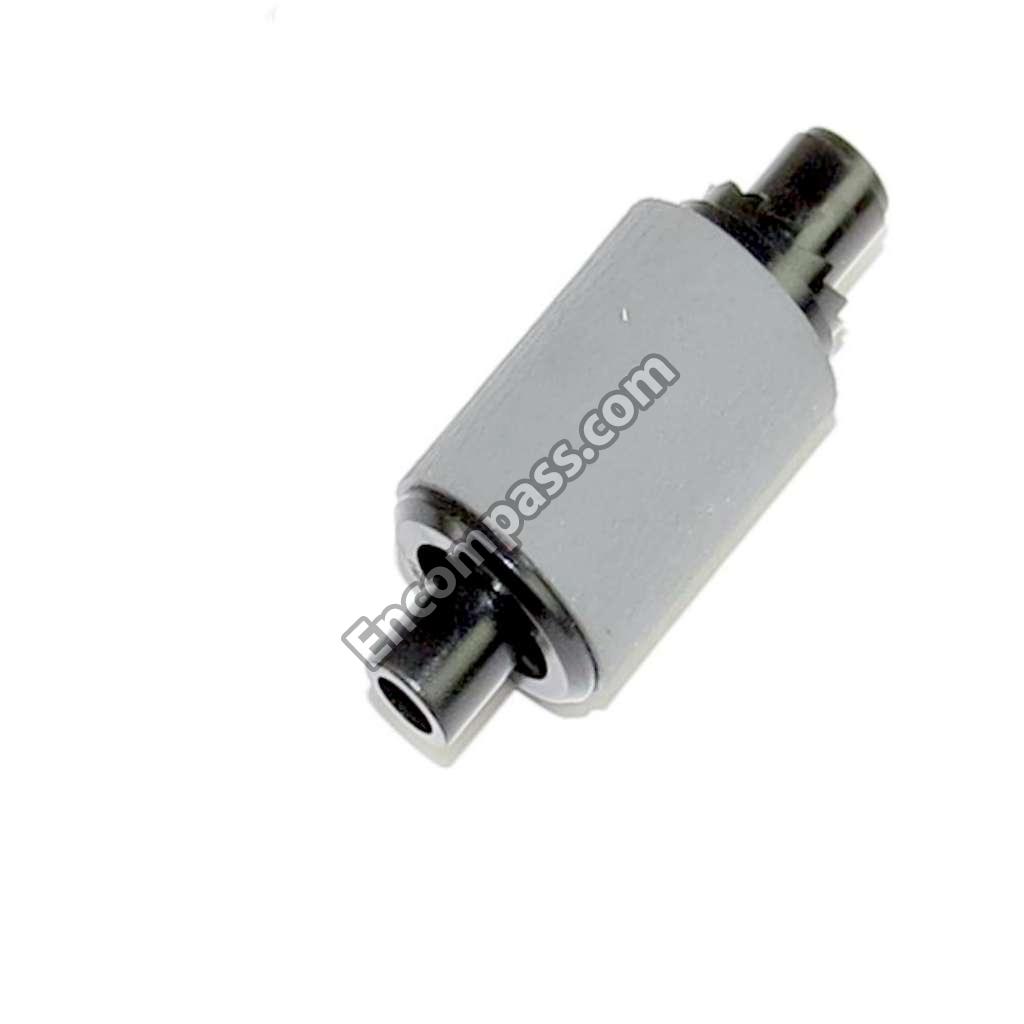

JC96-02686B JC96-02686B ELA UNIT-ROLLER P/UP MP;ML-3560,XEROX/SE

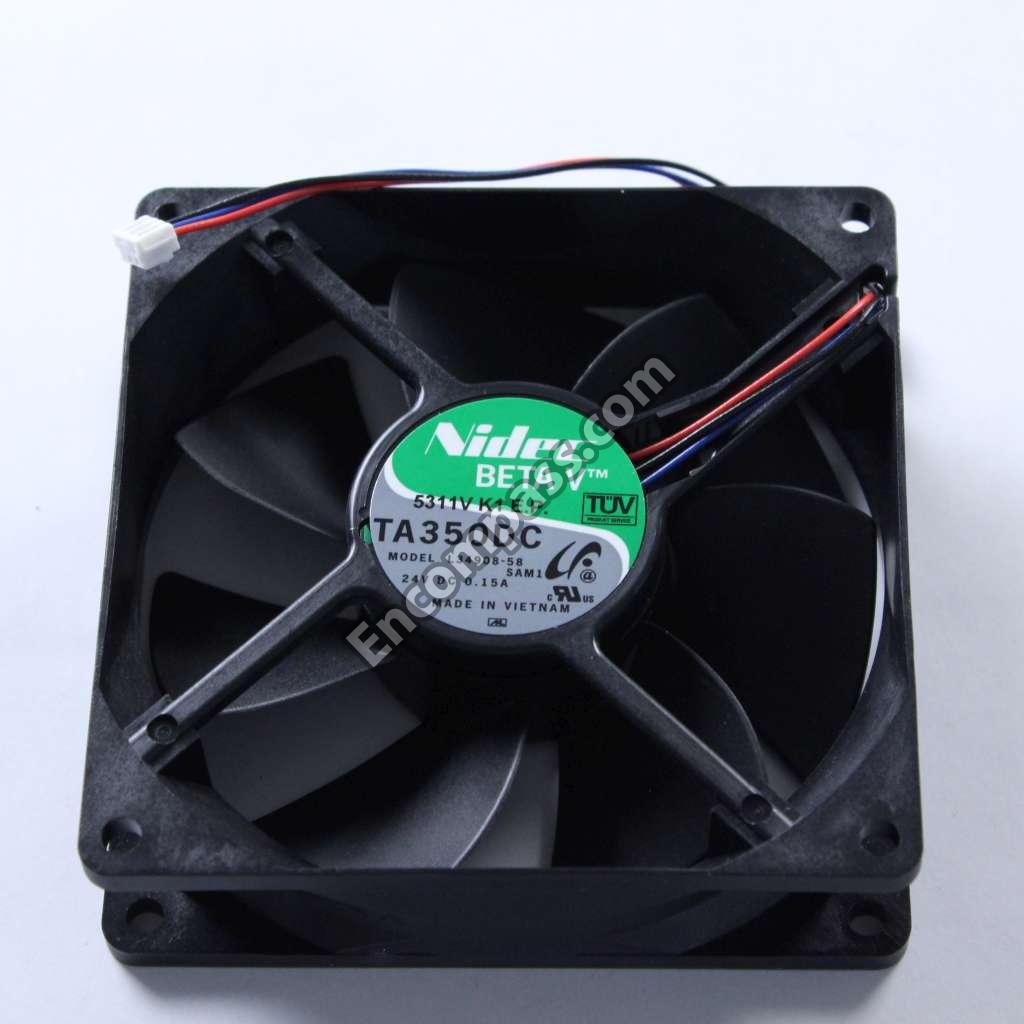

JC31-00088A JC31-00088A FAN-DC;CLX-8380ND/XAA,UL10272 AWG#26,AMP
JC31-00050A JC31-00050A FAN;AD0424HB-C56,CLP-600,PBT+GF,3PIN,NO
JC31-00072A FAN;CLP-660,PBT,68G,24,0.08MA,0.118MMH20
JC44-00142A FDB-MULTI_TRIAC V1;CLP-660,AC/AC,1300W,1
0505-001350 FET-SILICON;NDT2955,P,-60V,-2.5V,0.3OHM,
0505-001326 FET-SILICON;SI2308DS,N,60V,2A,0.22OHM,1.
2901-001178 FILTER-EMI SMD;25V,2A,100000PF,2X1.25X1M
JC39-00651A FLAT CABLE;CLP-660,24,0.05,390MM,AWM2062
JC39-00650A FLAT CABLE;CLP-660,30,0.05,410MM,AWM2062
JC39-00858A FLAT CABLE;CLX-6240FX,40P,730MM,AWM 2062
JC61-40001A FOOT-ML80;ML-80,NBR,GRAY
JC66-01372A GEAR- IDLE FEED;CLP-660,POM(M90-44),M0.8
JB66-00104A GEAR-ADF IDLE 34;SCX-1110F,POM,0.6,34,20
JC66-01362A JC66-01362A GEAR-DRV FU;CLP-660,POM(M90-44),M0.5,Z57
JC66-01757A GEAR-EXIT;CLX-6200FX,POM,M0.5,Z51,F26.5,
JC66-00810A GEAR-EXIT_DRV17;ML-1610,POM M90-44,0.8,1
JC66-01753A GEAR-FEED IDLE B;CLX-6200FX,POM,M0.5,Z47
JC66-01754A GEAR-FEED IDLE C;CLX-6200FX,POM,M0.5,Z19
JC66-01755A GEAR-FEED IDLE D;CLX-6200FX,POM,M0.5,Z23
JC66-01756A GEAR-FEED;CLX-6200FX,POM,M0.5,Z51,F26.5,
JC66-01155A JC66-01155A GEAR-FUSER RDCN OUT V;ML-3560,HTNFR,1,Z2
JC66-01405A GEAR-FUSER;CLP-660,PPS+GF,1.0,25,BROWN,?
JC66-01398A GEAR-HOLDER-CAM;CLP-660,POM,0.8,40,BLUE,
JC66-01376A GEAR-IDLE OPC;CLP-660,POM(M90-44),M0.5,Z
JC66-01406A GEAR-IDLE Z15;CLP-660,NYLON,1.0,15,?17,F
JC66-01407A GEAR-IDLE Z39;CLP-660,NYLON,1.0,39,?41,F
JC66-01397A GEAR-IDLE-FEED;CLP-660,POM,0.8,20,WHITE,
JB66-00083A GEAR-IDLE;SCX-1110/XRX,POM M90-44,0.5,31
JC66-01396A GEAR-LINK_FEED;CLP-660,POM,0.8,21,WHITE,
JC66-00774A GEAR-M-REGI;CLP-600,POM M90-44,0.8,Z19,N
JC66-01399A GEAR-MP-PICKUP;CLP-660,POM,0.8,40,BLUE,3
JB66-00105A GEAR-PICK UP 26;SCX-1110F,POM,0.6,26,15.
JC66-01077A GEAR-PICK UP B;CLP-300,POM M90-44,0.8,Z4
JB66-00102A GEAR-PICK UP IDEL 38;SCX-1110F,POM,0.6,3
JC66-01759A GEAR-PICKUP IDLE LOW;CLX-6200FX,POM,M0.5
JC66-01760A GEAR-PICKUP IDLE UP;CLX-6200FX,POM,M0.5,
JC66-01758A GEAR-PICKUP IDLE;CLX-6200FX,POM,M1.0/M0.
JC66-01761A GEAR-PICKUP;CLX-6200FX,POM,M1,Z25,F27.0,
JG66-40003A GEAR-PINION;SF4000,POM,1,Z16,WHT
JC66-00530A GEAR-REDUCTION73/37;SCX-6320F,POM M90-44
JC66-00531A GEAR-TIMING;SCX-6320F,POM M90-44,0.5,Z57
JC66-00782A GEAR-_M_EXIT;CLP-600,POM M90-44,1,Z14,WH
JC01-00001A GLASS-SCAN;329.9*247.5,2.8
JC63-01664A GROUND-BRUSH;CLX-6200FX,C5210P,0.2,7.0,4
JC63-01663A GROUND-DADF UPPER;CLX-6200FX,C5210P,0.2,
JC63-01661A GROUND-DADF;CLX-6200FX,C5210P,0.2,12.3,4
JC63-01662A GROUND-FEED EXIT;CLX-6200FX,C5210P,0.2,4
JC63-01660A GROUND-PLATEN;CLX-6200FX,C5210P,0.2,10.0
JC61-01935A GUIDE-DUPLEX;CLP-660,PET-GF30FR(17),2,27
JC61-01906A GUIDE-EXETENSION;CLP-660,ABS,254.2,191.4
JC61-01933A GUIDE-INPUT;CLP-660,N300X(PPHOX),2.2,227
JC61-01410A JC61-01410A GUIDE-M_PICKUP DOC;SCX-6345N/XRX,PC+ABS,
JC61-01934A GUIDE-OUTPUT;CLP-660,PET-GF30FR(17),2,29
JC61-00712D GUIDE-STACKER SUB;CLX-6210FX,PC ABS,T2.5
JC39-00943A HARNESS-AC INLET;CLX-6200FX,UL1617/UL101
JC39-00857A HARNESS-BIN FULL;CLX-6240FX,UL10272,3P/3
JC39-00938A HARNESS-BLDC_CLU_FAN;CLP-660,UL10272,10P
JC39-00856A HARNESS-CCD HOME;CLX-6240FX,UL10272,3P/3
JC39-00850A HARNESS-DADF LOWER;CLX-6240FX,UL10272,22
JC39-00852A HARNESS-DADF MOTOR;CLX-6240FX,UL10272,4P
JC39-00855A HARNESS-DADF REGI SOL;CLX-6240FX,UL10272
JC39-00853A HARNESS-DADF SENSOR 1;CLX-6240FX,UL10272
JC39-00854A HARNESS-DADF SENSOR 2;CLX-6240FX,UL10272
JC39-00851A HARNESS-DADF UPPER;CLX-6240FX,UL10272,22
JC39-00962A HARNESS-EDI;CLX-6240FX,UL2725,5P/5P,175M
JC39-00893A HARNESS-FAN EXTENSION;CLX-6240FX,UL10272
JC39-00675A HARNESS-FDB SMPS;CLP-660,UL1617,2PIN,100
JC39-00842A HARNESS-FUSER CONTROL;CLX-6240FX,UL10272
JC39-00668A HARNESS-FUSER DRAW_F;CLP-660,UL3398,2PIN
JC39-00667A HARNESS-FUSER DRAW_FR;CLP-660,UL1617/UL1
JC39-00849A HARNESS-OPE;CLX-6240FX,UL10272,7P/7P,650
JC39-00663A HARNESS-PTB DRAW_FR;CLP-660,UL10272,14PI
JC39-00845A HARNESS-REV MOT EXIT;CLX-6240FX,UL10272,
JC39-00846A HARNESS-REV SWING;CLX-6240FX,UL10272,3P/
JC39-00942A HARNESS-REVERSE JAM;CLX-6200FX,UL10272,3
JC39-00917A HARNESS-REVERSE SOL;CLX-6240FX,UL10272,2
JC39-00844A HARNESS-REVERSE;CLX-6240FX,UL10272,20P/2
JC39-00841A HARNESS-SCAN GND;CLX-6240FX,UL1007,1P,27
JC39-00890A HARNESS-SCAN MOTOR;CLX-6240FX,UL10272,4P
JC39-00848A HARNESS-SCAN;CLX-6240FX,UL10272,34P/34P,
JC39-00847A HARNESS-SCANNER OPEN;CLX-6240FX,UL10272,
JC39-00838A HARNESS-SMPS;CLX-6240FX,UL1061,28P/28P,1
JC59-00035A JC59-00035A HDD;160G,HTS545016B9A300,512BYTES,5400RP
JC59-00032A HDD;250G,HTS543225A7A384/HM250HI,S63,H16
3711-005982 HEADER-BOARD TO BOARD;BOX,60P,2R,0.8MM,S
3711-000203 HEADER-BOARD TO CABLE;1WALL,2P/3P,1R,7.9
3711-006436 HEADER-BOARD TO CABLE;BOX,11P,1R,1.5MM,S
3711-006501 HEADER-BOARD TO CABLE;BOX,12P,1R,1.5MM,S
3711-003981 HEADER-BOARD TO CABLE;BOX,28P,2R,2MM,STR
3711-006444 HEADER-BOARD TO CABLE;BOX,34P,2R,1.5MM,S
3711-000862 HEADER-BOARD TO CABLE;BOX,3P,1R,1.25MM,S
3711-003409 HEADER-BOARD TO CABLE;BOX,3P,1R,2MM,STRA
3711-003411 HEADER-BOARD TO CABLE;BOX,5P,1R,2MM,STRA
3711-006433 HEADER-BOARD TO CABLE;BOX,6P,1R,1.5MM,ST
JC61-00696A HINGE-M-FRAME;SCX-4216F,POM,WHITE
JC61-00697A HINGE-M-PRESSURE;SCX-4216F,PC(LF1025),NT
JC61-00671A HOLDER-M-BUSHING TX;ML-2150,POM,BLK
JC61-00705A HOLDER-M-PICKUP MP;ML-2150,POM,BLK,HB
JC61-03344A HOLDER-PAD;ML-2580N,POM,BLACK
JC61-01852A HOLDER-PTB SHAFT;CLP-660,POM M90-44,1.7,
JC61-01127A HOLDER-_M_CLUTCH GEAR;CLP-600,POM,ID6.0,
JC61-01128A HOLDER-_M_GEAR REGI;CLP-600,POM,T1.3,ID6
JC61-01978A JC61-01978A HOUSING-HOLDER PAD;ML-3471ND,ABS,2.0,45.
JC61-00685A HOUSING-M-PICK UP MP;ML-2150,PC+ABS,WHT
JC61-01601A HOUSING-M_PICK UP;SCX-5530FN,PC+ABS,17.0
JC44-00136A HVPS;24V,21.6V~27.6V,MAX 6KV,MAX-2KV
JC13-00038A IC ASIC-CIP5;CIP5,SCX-6345N,256P,3.3V,-4
JB13-00004A IC ASIC-OPE;HT48C50-1-SPPF,SF-3100,48P,+
1001-000170 IC-ANALOG SWITCH;MC14051BD,SPDT CMOS,SOP
1201-000105 IC-AUDIO AMP;34119,SOP,8P,150MIL,SINGLE,
1205-002339 IC-CLOCK GENERATOR;CY25811SC,SOIC,8P,150
0801-002469 IC-CMOS LOGIC;74HC14,SCHMITT INVERTER,TS
0803-003263 IC-CMOS LOGIC;74LCX07,HEX BUFFER,SOIC,14
0801-002326 IC-CMOS LOGIC;74LCX32,OR GATE,TSSOP,14,1
0801-000794 IC-CMOS LOGIC;7S08,AND GATE,SC-70,5P,2.0
1205-002500 IC-DAA;SI3018-FS,SOIC,16P,9.9X3.9MM,PLAS
1203-003739 IC-DC/DC CONVERTER;MVPG31,DFN,12P,4X3MM,
1105-001652 IC-DDR SDRAM;K4H511638,DDR,512MBIT,32MX1
1105-001384 IC-DRAM;K4S561632,256MBIT,4X4MX16,TSOP(I
1103-000170 IC-EEPROM;24C64A,64KBIT,8KX8BIT,SOP,8P,5
1006-001250 IC-LINE DRIVER;DS90LV017A,SOIC,8P,150MIL
1107-001590 IC-NOR FLASH;S29GL064M,64MBIT,8MX8/4MX16
1201-000167 IC-OP AMP;358,SOP,TP,8P,150MIL,DUAL,100V
1203-002220 IC-POSI.ADJUST REG.;1117,DPAK,3P,240MIL,
1203-003700 IC-POSI.ADJUST REG.;LD1117ADT-R,DPAK,3P,
1203-001455 IC-POSI.FIXED REG.;1117,DPAK,3P,265MIL,P
1205-002762 IC-TRANSCEIVER;BCM5241A1KMLG,MLP,32P,5X5
0904-002093 IC-USC;ISP1761BE,32BIT,LQFP,128P,20X14MM
1202-000164 IC-VOLTAGE COMP.;393,SOP,8P,150MIL,DUAL,
JB70-00236A ICT-HINGE SHAFT(4IN1);SCX-1150F,SWCH,32.
JB70-00168A ICT-PIN ADF;SCX-1110F,STS303,L10.0,D2.0
JC70-00457A ICT-STUD PAPER GUIDE, DP;ML-2150,SUM24L,
2703-002539 INDUCTOR-SMD;6.8UH,20%,6965
JB70-00148A IPR-HOLDER GLASS;SCX-1110/XRX,SUS304,12*
JF70-10616A IPR-WASHER SPRING CU;CF3400,SUS301-CSP,T
3722-000124 JACK-DIN;8P,AU,BLK,ANGLE
3722-002345 JACK-MODULAR;6P/4C,INVERTED,N,ANGLE,N,GR
3722-002376 JACK-MODULAR;8P/8C,STANDARD,Y,ANLGE,YEL/
3722-001051 JACK-USB;4P/1C,AU,BLK,ANGLE,A TYPE
3722-002303 JACK-USB;4P/1C,AU30U,BLK,ANGLE,B TYPE
JC64-00345A KEY-COPY;CLX-6200FX,ABS
JB68-00916A LABEL RATING-BLANK;SF-340,SEC,TETRON,0.0
JC68-10914G LABEL SERIAL-MAGENTA;COMMON,SEC,ART100G,
JC68-10914E LABEL SERIAL-YELLOW;COMMON,SEC,ART100G,7
JC68-01584A LABEL(P)-BLANK 90*25;CLP-510,SEE,ART 100
JC68-10932A LABEL(P)-BLANK(ML);ML-85,ART,G100,WHT,CO
JB68-00073A LABEL(R)-BAR CODE;SF-3000,PY,T0.5,6.5,34
JC68-00573A LABEL(R)-BARCODE;ML-4500,PET,T0.05,20MM,
JC68-01505A LABEL(R)-M;COMMON,ART,100G/CM2,W15.0,L7.
JC68-01639A LABEL-ONETOUCH;SCX-5530FN,SEC,ART PAPER,
4713-001222 LAMP-HALOGEN;115V,1300W,13X9.8X288MM
JC66-02071A LATCH-BOX;CLX-6200FX,PP,1.8,81.7,68.4,WH
JC66-01616A LATCH-MIDDLE A;CLX-6200FN,POM
JC66-01617A LATCH-MIDDLE B;CLX-6200FN,POM
JC66-00958A LATCH-M_ARM FRT;SCX-6345N/XRX,POM,T1.5,3
JC07-00005A LCD-PANEL;VHC1625SLYC9-1,ML-2150,16X2,36
0601-001226 LED;SMD(TOP VIEW),RED,1.2X0.8MM,660NM,1.
JC66-01187A LEVER-ACTUATOR EMPTY;SCX-5530FN,PC,F3,68
JC66-01408A LEVER-GUIDE_EXTENSION;CLP-660,POM M90-44
JC66-01523A LEVER-LOCKER;CLX-8380ND/XAA,ABS,HB,VIOLE
JC66-01342A LINK-CAM OPC;CLP-660,POM,17.4,1,4,WHITE,
JC64-00307A LOCKER-COVER_REGI;CLP-660,POM DELRIN-100
JC64-00304A LOCKER-PTB_L;CLP-660,POM,BLACK
JC64-00303A LOCKER-PTB_R;CLP-660,POM,BLACK
JC74-00021A MCT-GLASS ADF;SCX-4216F,GLASS,238.4*19.1
JC97-02853A MEA UNIT-COUPLING OPC;CLP-660,SEC
JC97-03058A MEA UNIT-COVER OPEN;CLX-6240FX,-,-,-,-,-
JC97-02883A MEA UNIT-COVER_OPEN;CLP-660,SEC,-,-,-,-,
JC97-03069A JC97-03069A MEA UNIT-DADF RUBBER;CLX-6240FX,-,-,-,-,
JC97-02854A MEA UNIT-FEED DRIVE;CLP-660,SEC,-,-,-
JC97-03070A JC97-03070A MEA UNIT-PICK UP DADF;CLX-6240FX,-,-,-,-
JC97-02897A MEA UNIT-REGISTRATION;CLP-660,-,WORLD,-,
JC97-03060A MEA UNIT-STOPPER;CLX-6240FX,-,-,-,-,-
JC97-03052A MEA-BRACKET REAR;CLX-6240FX,-,-,-,-,-
JC97-03053A MEA-COVER REVERSE;CLX-6240FX,-,-,-,-,-,-
JC97-03083C MEA-COVER RIGHT;CLX-6210FX,-,-,NOISEPROO
JC97-02885A MEA-COVER_CASSETTE;CLP-660,-,-,-,-
JC97-03051A MEA-COVER_FRONT;CLX-6240FX,-,-,-,-,-,-
JC97-03085A MEA-GEAR FEED;CLX-6240FX,-,-,-,-,-
JC97-02895A MEA-GEAR PICK UP;CLP-660,-,-,-,-
JC97-02893A MEA-GEAR PICKUP_MP;CLP-660,-,-,-,-
JC97-03146A MEA-GEAR REVERSE;CLX-6240FX,-,-,-,-
JC97-02890A MEA-GUIDE PAPER DUP;CLP-660,-,-,-,-
JC97-02887A MEA-GUIDE_EXETENSION;CLP-660,-,-,-,-
JC97-02892A JC97-02892A MEA-HOLDER PAD_MP;CLP-660,-,-,-,-
JC97-03054B MEA-MIDDLE REAR;CLX-6240FX,-,4IN1,DADF,2
JC97-03093A MEA-SCAN DUMMY UPPER;CLX-6240FX,-,-,-,-,
JC97-02894A MEA-TRAY MP;CLP-660,-,-,-,-
JC97-03047A MEA-TX STACKER;CLX-6240FX,-,-,-,-,-
JC97-03220A JC97-03220A MEA-UNIT_HINGE;CLX-6200FX,SEC,-,CLAMPPIN
JB75-00299A JB75-00299A MEC-ADF ROLLER ASSY;SCX-1110F/XRX,XEROX,
JC75-00095A JC75-00095A MEC-BRUSH ANTISTATIC;ML-6060A,SEC,NTR
JB75-00300A JB75-00300A MEC-PICK UP ROLLER ASSY;SCX-1110F/XRX,XE
JC31-00090A JC31-00090A MOTOR BLDC;2220 RPM,1400GF.CM,DC24V,2.1A
JC31-00075A MOTOR BLDC;DNQ08M05W37A,2400RPM,1,500 GF
JC31-00104A MOTOR STEP;M42SP,CLX-6240FX,24V
JC31-00106A MOTOR STEP;M49SP-2K,CLX-6240FX,24V
JC31-00096A MOTOR STEP;STP-42D1079,SCX-5135ND,0.8A,2
JG74-10541A MPR-RING CHARGE;SF6000,POLYSLIDER
JC92-01857A PBA SUB-CRUM;SCX-4725FN,SEC,KOREA,FR-4,2
JC92-01787A PBA SUB-SODIMM;CLP-650,SEC,KOREA,67.5*31
JC92-01881A PBA SUB-TEMP SENSOR;CLP-660,SEC,SEC,TEMP
JC92-01954A JC92-01954A PBA-DADF;CLX-6240FX,SEC,-,-,-,-,-,65MM*4
JC92-01950A PBA-HDD;CLX-6240FX,SEC,-,-,-,-,-,108MM*3
JC92-01956A PBA-MAIN;CLX-6240FX,SEC,-,-,-,-,-,247MM*
JC92-01951A PBA-OPE;CLX-6240FX,SEC,-,-,-,-,-,98.5MM*
JC92-01953A PBA-REVERSE;CLX-6240FX,SEC,-,-,-,-,-,45M
JC92-01952A PBA-SCAN;CLX-6240FX,SEC,-,-,-,-,-,80MM*3
JC41-00433A PCB-MAIN;CLX-6240FX,FR-4,6L,1.6T,247MM*2
0604-001415 0604-001415 PHOTO-INTERRUPTER;TR,90%,150MW,DIP-4,BK
6043-001097 PIN-SPRING;W,D2,L14,PB+NI PLATING, T0.3
6043-001042 PIN-SPRING;W,OD2,L8,PASS,STS304
JC61-02686A PLATE-WHITE BAR;CLX-6200FX,PC,2,20.2,226
JB72-00821A PMO-ADF COLAR;SCX-1110F,POM,NTR
JC72-41191B PMO-BEARING SHAFT;ML-2150,POM,BLK,DE8903
JC72-41191A PMO-BEARING SHAFT;ML-6000,POM,WHT,M90-44
JB72-00819A PMO-BUSH;SCX-1110F,POM,NTR
JC72-41364A PMO-BUSHING_P/U,MP;ML-6100,POM,BLACK,CF-
JG72-40960A PMO-CAP TONER;SF6000,PP,OD22,W6,BLK
JC72-00971A PMO-EXTENSION SMALL;ML-1710,ABS(HF-0660I
JC72-01003A JC72-01003A PMO-IDLE PICK UP MP;ML-2150,POM,HB,WHITE
JC72-00825A PMO-IMPELLER_DRV;ML-6200,NYLON66,V0,BLK
JC72-00755A PMO-LEVER SENSOR;SCX-5100,POM,HB,BLK
JC72-00983A PMO-LOCKER CST;ML-1710,POM(DELIN 900P),W
JB72-00845A PMO-PICK UP CLUTCH SUB;SCX-1110F,POM(DE8
JC72-00972A PMO-PLATE_LOCKER;ML-1710,POM(M90-44),WHT
JB72-00763A PMO-PULLEY;SCX-1110/XRX,POM,WHT
JC72-00761A PMO-ROLLER CAM.MP;SCX-5100,POM,WHITE,K70
JC72-41007A PMO-ROLLER FD F;ML-165,POM,BLACK
JC72-00744A PMO-SHAFT PICK UP;SCX-5150,ABS,BLK,HB
JB72-00822A PMO-SLEEVE ADF;SCX-1110F,POM,BLK
JB72-00823A PMO-SLEEVE PICK UP;SCX-1110F,POM,BLK
JC66-00900A PULLEY-M-18-DUMMY_DUP;ML-3560,POM,HB,WHI
2001-000019 R-CARBON(S);10OHM,5%,1/2W,AA,TP,2.4X6.4M
2007-008433 R-CHIP;0.33OHM,1%,1W,TP,6432
2007-000033 R-CHIP;0OHM,5%,1/4W,TP,3216
2007-008803 R-CHIP;1.07KOHM,1%,1/4W,TP,3216
2007-007482 R-CHIP;1.24KOHM,1%,1/10W,TP,1608
2007-000122 R-CHIP;1.2KOHM,5%,1/10W,TP,1608
2007-000239 R-CHIP;1.5KOHM,1%,1/10W,TP,1608
2007-000123 R-CHIP;1.5KOHM,5%,1/10W,TP,1608
2007-000079 R-CHIP;1.8KOHM,5%,1/10W,TP,1608
2007-008006 R-CHIP;10.7KOHM,1%,1/10W,TP,1608
2007-000102 R-CHIP;100KOHM,5%,1/10W,TP,1608
2007-000287 R-CHIP;100OHM,1%,1/10W,TP,1608
2007-000074 R-CHIP;100OHM,5%,1/10W,TP,1608
2007-000293 R-CHIP;100OHM,5%,1/4W,TP,3216
2007-000052 R-CHIP;10KOHM,1%,1/10W,TP,1608
2007-000090 R-CHIP;10KOHM,5%,1/10W,TP,1608
2007-000309 R-CHIP;10OHM,5%,1/10W,TP,1608
2007-002901 R-CHIP;12.1KOHM,1%,1/10W,TP,1608
2007-008426 R-CHIP;12.4KOHM,1%,1/10W,TP,1608
2007-000116 R-CHIP;120OHM,5%,1/10W,TP,1608
2007-000091 R-CHIP;12KOHM,5%,1/10W,TP,1608
2007-000402 R-CHIP;150OHM,5%,1/10W,TP,1608
2007-001306 R-CHIP;150OHM,5%,1/16W,TP,1005
2007-000403 R-CHIP;150OHM,5%,1/4W,TP,3216
2007-000067 R-CHIP;15KOHM,1%,1/10W,TP,1608
2007-007937 R-CHIP;17.4KOHM,1%,1/10W,TP,1608
2007-000043 R-CHIP;1KOHM,1%,1/10W,TP,1608
2007-000078 R-CHIP;1KOHM,5%,1/10W,TP,1608
2007-000475 R-CHIP;1MOHM,1%,1/10W,TP,1608
2007-000109 R-CHIP;1MOHM,5%,1/10W,TP,1608
2007-002425 R-CHIP;1OHM,5%,1/10W,TP,1608
2007-002589 R-CHIP;2.49KOHM,1%,1/4W,TP,3216
2007-007507 R-CHIP;2.74KOHM,1%,1/10W,TP,1608
2007-000536 R-CHIP;200OHM,1%,1/10W,TP,1608
2007-000066 R-CHIP;20KOHM,1%,1/10W,TP,1608
2007-000093 R-CHIP;20KOHM,5%,1/10W,TP,1608
2007-007382 R-CHIP;20MOHM,5%,1/10W,TP,1608
2007-000075 R-CHIP;220OHM,5%,1/10W,TP,1608
2007-000094 R-CHIP;22KOHM,5%,1/10W,TP,1608
2007-000071 R-CHIP;22OHM,5%,1/10W,TP,1608
2007-000616 R-CHIP;24KOHM,5%,1/10W,TP,1608
2007-000643 R-CHIP;270OHM,5%,1/10W,TP,1608
2007-000080 2007-000080 R-CHIP;2KOHM,5%,1/10W,TP,1608
2007-000082 R-CHIP;3.3KOHM,5%,1/10W,TP,1608
2007-002607 R-CHIP;3.65KOHM,1%,1/4W,TP,3216
2007-000704 R-CHIP;3.6KOHM,5%,1/10W,TP,1608
2007-002910 R-CHIP;30.1KOHM,1%,1/10W,TP,1608
2007-000729 R-CHIP;300OHM,5%,1/10W,TP,1608
2007-000096 R-CHIP;30KOHM,5%,1/10W,TP,1608
2007-000740 R-CHIP;30KOHM,5%,1/4W,TP,3216
2007-000133 R-CHIP;330KOHM,5%,1/10W,TP,1608
2007-000076 R-CHIP;330OHM,5%,1/10W,TP,1608
2007-000134 R-CHIP;33KOHM,5%,1/10W,TP,1608
2007-000113 R-CHIP;33OHM,5%,1/10W,TP,1608
2007-000799 R-CHIP;360OHM,5%,1/10W,TP,1608
2007-000839 R-CHIP;39OHM,5%,1/10W,TP,1608
2007-000083 R-CHIP;3KOHM,5%,1/10W,TP,1608
2007-000084 R-CHIP;4.7KOHM,5%,1/10W,TP,1608
2007-002916 R-CHIP;475KOHM,1%,1/10W,TP,1608
2007-000097 R-CHIP;47KOHM,5%,1/10W,TP,1608
2007-007226 R-CHIP;49.9OHM,1%,1/10W,TP,1608
2007-000965 R-CHIP;5.1KOHM,5%,1/10W,TP,1608
2007-000144 R-CHIP;5.1KOHM,5%,1/16W,TP,1005
2007-000086 R-CHIP;5.6KOHM,5%,1/10W,TP,1608
2007-001014 R-CHIP;51OHM,5%,1/10W,TP,1608
2007-001020 R-CHIP;536OHM,1%,1/4W,TP,3216
2007-000119 R-CHIP;560OHM,5%,1/10W,TP,1608
2007-000098 R-CHIP;56KOHM,5%,1/10W,TP,1608
2007-001044 R-CHIP;56OHM,5%,1/10W,TP,1608
2007-000087 R-CHIP;6.8KOHM,5%,1/10W,TP,1608
2007-000120 R-CHIP;680OHM,5%,1/10W,TP,1608
2007-001134 R-CHIP;68OHM,5%,1/10W,TP,1608
2007-001139 R-CHIP;7.5KOHM,1%,1/10W,TP,1608
2007-000088 R-CHIP;7.5KOHM,5%,1/10W,TP,1608
2007-001179 R-CHIP;8.2KOHM,5%,1/10W,TP,1608
2007-000121 R-CHIP;820OHM,5%,1/10W,TP,1608
2011-001427 R-NETWORK;0OHM,5%,1/16W,L,CHIP,8P,TP,2.0
2011-001011 R-NETWORK;10KOHM,5%,1/16W,L,CHIP,8P,TP,3
2011-001264 R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2.
2011-000660 R-NETWORK;1KOHM,5%,1/16W,L,CHIP-V,8P,TP,
2011-001482 R-NETWORK;1KOHM,5%,1/16W,L,CHIP-V,8P,TP,
2011-001449 R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1010
2011-001262 R-NETWORK;22OHM,5%,1/16W,L,CHIP,8P,TP,2.
2011-001261 R-NETWORK;33OHM,5%,1/16W,L,CHIP,8P,TP,2.
2011-001402 R-NETWORK;56OHM,5%,1/16W,L,CHIP,8P,TP,2.
3501-000203 RELAY-MINIATURE;5V,200MW,1000MA,1FORMC,6
3501-001312 RELAY-POWER;5V,540MW,10000MA,1FORMA,15MS
3501-001053 RELAY-POWER;5VDC,530MW,10000MA,1FORMA,15
JC90-01008B REVERSE-FRAME;CLX-6210FX,SEC
JC90-01009B REVERSE;CLX-6210FX,SEC
6044-000159 RING-C;ID3,OD7,T0.6,PASS,STSC
6044-000001 RING-CS;ID2.8,OD8,T0.25,BLACK,SK-5
6044-000125 RING-E;ID4,OD9,T0.6,STSC
6044-000231 RING-E;ID5.0,OD11.0,T0.6,PASS,STS304
JB73-00052A JB73-00052A RMO-ADF RUBBER;SCX-1110F,SILICON RUBBER,
JC66-01824A JC66-01824A ROLLER-EXIT;CLX-6240FX,SUM22L+NI, EPDM,1
JC66-01906A ROLLER-FEED-DUPLEX;CLP-660,NBR+SUM22L,12
JC66-01347A ROLLER-FEED;CLP-660,SUM 22,13.7,281.5
JC66-01823A ROLLER-FEED;CLX-6240FX,SUM22L+NI , EPDM,
JC66-01410C ROLLER-FUSER;CLP-770ND,LSR-RUBBER,10,274
JC66-01411A ROLLER-HEAT;CLP-660,STKM11A,?18,249
JC66-00764A ROLLER-IDLE FEED;CLP-600,POM,OD13.0,ID3.
JC66-01169A ROLLER-IDLE PICK UP;SCX-5530FN,POM,28.5,
JC66-00461A JC66-00461A ROLLER-M-ADF IDLE;SCX-4114F,POM,BLK
JC66-00529A JC66-00529A ROLLER-M-IDLE FEED;ML-1510,POM(DELRIN890
JC66-01822A ROLLER-MIDDLE;CLX-6240FX,SUM22L+NI, EPDM
JC66-00647A ROLLER-M_REGI IDLE L25;ML-2150,POM,12.4,
JC66-00648A ROLLER-M_REGI IDLE S25;ML-2150,POM,?11.9
JC66-01880A ROLLER-PICK-UP;CLP-660,EPDM+IR,25.4,NATU
JC66-01412B ROLLER-PRESSURE;CLP-770ND,SPONGE,14,256,
JC66-00922B ROLLER-TRANSFER;CLP-660,NBR FOAM+SUM22L,
JC72-40981A ROLLER;ML-165,POM,WHT,HB
JC73-00132A JC73-00132A RPR-FRICTION PAD MP;ML-2150,NBB,53*9.8*T
JC73-00140A JC73-00140A RPR-FRICTION PAD;ML-1510,NBB,1T 8.9*47,5
JC73-00141A JC73-00141A RPR-PAD CASSETTE;ML-1510,URETHANE SPONGE
JC73-00281A RUBBER-EDI;CLX-6240FX,EPDM,6.8,21*20,60,
JC73-00262A RUBBER-ONETOUCH;CLX-6200FX,SILICON,MILKY
JC73-00224A JC73-00224A RUBBER-PICK UP MP;ML-3560,IR,27,D29.8,35
JC73-00280A RUBBER-SUPPORT;CLX-6240FX,CR,20*20,6.2,6
JC73-00261A RUBBER-TEL;CLX-6200FX,SILICON,MILKY WHIT
JC46-00381A S/W APPLICATION-CD;CLX-6240FX,DRV,1.00,1
6001-000130 SCREW-MACHINE;BH,+,M3,L6,ZPC(WHT),SWRCH1
6006-001193 SCREW-MACHINE;PH,+,WSP,M3,L10,ZPC(WHT),S
6002-000440 SCREW-TAPPING;PWH,+,2,M3,L8,ZPC(BLK),SWR
6003-000261 SCREW-TAPTYPE;BH,+,-,B,M3,L6,ZPC(WHT),SW
6003-000282 6003-000282 SCREW-TAPTYPE;BH,+,-,B,M3,L8,ZPC(BLK),SW
6003-000269 6003-000269 SCREW-TAPTYPE;BH,+,-,S,M3,L6,ZPC(WHT),SW
6003-000301 SCREW-TAPTYPE;BH,+,S,M4,L6,ZPC(WHT),SWRC
6003-000152 SCREW-TAPTYPE;PH,+,-,B,M2,L10,ZPC(WHT),S
6003-000264 SCREW-TAPTYPE;PWH,+,-,B,M3,L6,ZPC(WHT),S
6003-000267 SCREW-TAPTYPE;PWH,+,-,S,M3,L8,ZPC(WHT),S
6003-000196 SCREW-TAPTYPE;PWH,+,B,M3,L10,NI PLT,SWRC
JC32-00006A SENSOR-CTD;YA-HA16,CLP-660,0~60C,+5V5%,
JC32-00005A SENSOR-HUMIDITY;CHS-CSC-20,CLP-660,0~50C
JC66-00444A SHAFT-IDLE ROLL, DUP;ML-2150,SUM24L,25,2
JC66-01348A SHAFT-MP_PICK_UP;CLP-660,PC-GF20,291.8,6
JC66-01336A SHAFT-PICK UP;CLP-660,SUM22+NI COATING,1
JC63-01734A SHEET-FAX;CLX-6240FX,PC SHEET,0.5T
JC63-00186A SHEET-GUIDE ADF;SCX-6320F,PET,0.125,37,2
JC63-01735A SHEET-MODE_4IN1;CLX-6240FX,PC SHEET,0.5T
JC63-00999A SHEET-ONETOUCH;SCX-5530FN,PC,0.38,66.5,6
JC63-01776A SHEET-PATH;CLX-6240FX,PET,0.188,12.0,30,
JC63-01736A SHEET-TEL_4IN1;CLX-6240FX,PC SHEET,0.5T
JC63-00209A JC63-00209A SHEET-WHITE SPONGE;SCX-4216F,POLYURETHAN
JC44-00093B JC44-00093B SMPS-V1;CLP-600,PSP TYPE5-V1,AC-DC,270W,
3704-001176 SOCKET-IC;200P,SO DIMM,AUF,0.6MM
JC33-00030A JC33-00030A SOLENOID-DADF;DLH-34L130-01,CLX-6240FX,D
JC33-00031A SOLENOID-LIFTING;DAH-10H080-01,CLX-6240F
JC33-00022A JC33-00022A SOLENOID-PICK_UP;CLP-660,DC24V,80HM,41.4
3001-002207 SPEAKER;0.3W,8OHM,81DB,400HZ,50X16.4MM
JC61-70903A SPRING ETC-ACTUATOR;ML-165,SUS304,PI0.2,
JC61-01272A SPRING ETC-BUSH REGI;CLP-600,SWP-B,0.4,2
JB61-70904A SPRING ETC-CLUTCH;AMUNDSEN,SWRS82A,D11.4
JC61-00025A SPRING ETC-CS-CHARGE APOLLO;SF-5100,SUS
JC61-02511A SPRING ETC-DAMPER;CLX-6240FX,SUS304 WPB
JC61-01885A SPRING ETC-DEVE;CLP-660,SUS304,0.5,5,31.
JC61-01277A SPRING ETC-DUP;ML-3560,SUS304,CD0.6,ID3.
JC61-70911A SPRING ETC-EXIT ROLL FD;ML-165,SUS304 WP
JC61-01887A SPRING ETC-GND_PTB;CLP-660,SUS304,0.5,4,
JC61-00038A SPRING ETC-GUIDE DEVE;SF-5100,SWP,0.7,17
JC61-00022A SPRING ETC-HOOK;SF-5100,SUS304-WPB,0.26,
JC61-70913A SPRING ETC-KNOCK UP MP;ML-2150,SUS304 WP
JG61-70531A SPRING ETC-LOCKER,PLATE;SF6000,SUS304WPB
JC61-02512A SPRING ETC-LOCKER;CLX-6240FX,SUS304 WPB
JC61-01900A SPRING ETC-LOCK_OPC_L;CLP-660,SUS304WPB,
JC61-01901A SPRING ETC-LOCK_OPC_R;CLP-660,SUS304WPB,
JC61-01879A SPRING ETC-LOCK_PTB_R;CLP-660,SUS304WPB,
JC61-00387A SPRING ETC-PAD;ML-9400W,SUS304WPB,PI0.5,
JC61-02489A JC61-02489A SPRING ETC-PICKUP;CLX-6240FX,SUS304 WPB,
JC61-01884A SPRING ETC-PTB_B;CLP-660,SUS304,7,5,11.9
JC61-01883A SPRING ETC-PTB_C;CLP-660,SUS304,7,5,19.4
JC61-02449A SPRING ETC-REVERSE;CLX-6240FX,SUS304 WPB
JC61-70935A SPRING ETC-SEPERATE P/UP;ML-5000A,SUS304
JC61-02448A SPRING ETC-SUPPORT;CLX-6240FX,SUS304 WPB
JB61-00076A JB61-00076A SPRING ETC-TORSION DOC (CC2-F);SCX-1110F
JC61-70967A SPRING ETC-TR R;ML-5000A,SUS304 WPB,D4.5
6107-001135 SPRING-CS;SUS304 WPB,PI0.3,L14,ID5.4,OD6
6107-001368 SPRING-CS;SUS304,PI0.35,D3.35,L8.5,ID3.0
6107-001363 SPRING-CS;SUS304,PI0.65,D8.35,L28.5,ID7.
6107-001167 SPRING-CS;SUS304-WPB,PI0.25,D3.25,L9.6,I
6107-001318 SPRING-CS;SUS304-WPB,PI0.5,D5.0,L25.0,ID
6107-001166 SPRING-CS;SUS304-WPB,PI0.65,D12.65,L59.3
6107-001317 SPRING-CS;SUS304-WPB,PI0.9,D12.0,L50.0,I
6107-001394 SPRING-CS;SUS304WPB,PI0.3,L31,ID6.4,OD7
6107-001194 SPRING-CS;SWP-B,BLK,PI0.9,D6.95,L20,ID6.
6107-001354 SPRING-CS;SWP-B,END CLOSE,PI2,L33,ID7,OD
6107-001345 SPRING-CS;SWP-B,PI0.7,D10,L60,D9.3,OD10.
6107-001138 SPRING-ES;SUS304 WPB,PI0.5,D3.8,L15,ID3.
6107-001320 SPRING-ES;SUS304-WPB,PI0.35,D4.3,L15.0,I
6107-001324 SPRING-ES;SUS304-WPB,PI0.6,D4.1,L24.8,ID
6107-001319 SPRING-ES;SUS304-WPB,PI0.65,D3.8,L16.68,
6107-001323 SPRING-ES;SUS304-WPB,PI1.1,D6.4,L31.7,ID
6107-001185 SPRING-ES;SUS304WPB,ANNEALING,PI0.32,D4.
6107-001360 SPRING-TS;SUS304,PI0.4,ID3.0,OD3.8
6107-001165 SPRING-TS;SUS304-WPB,PI0.2,D4,ID3.8,OD4.
6107-001158 SPRING-TS;SUS304-WPB,PI0.4,D6.7,ID6.5,OD
6107-001830 SPRING-TS;SWP B,PI0.9,L30,ID10.0,OD11.8
6107-001170 SPRING-TS;SWP-B,PI0.9,D6.0,ID5.2,OD7.0
6107-001171 SPRING-TS;SWRS82A,0.75X0.5,D14.2,ID13.7,
JC61-01848A SUPPORT-PTB L;CLP-660,HIPS,2.5,59,182,VI
JC61-01849A SUPPORT-PTB R;CLP-660,HIPS,2.5,59,182,VI
0203-001100 TAPE-OPP MASKING;OPP/W75/CLR,T0.075,W75,
1404-001486 THERMISTOR-NTC ASSY;7KOHM,3370K,0.3MW/C,
1404-001065 THERMISTOR-PTC;0.11OHM,13.2VAC,40A,1.5A,
4712-001046 THERMOSTAT;125/250VAC,15/10A,170+-5C,N/A
0506-001069 TR-ARRAY;MBT3904DW1T1,NPN,DUAL,150MW,SOT
0502-001258 TR-POWER;FJT44,NPN,SOT-223,TP,40-200
0501-000279 TR-SMALL SIGNAL;KSA1182-Y,PNP,150MW,SOT-
0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200MW,SOT-
0501-002326 TR-SMALL SIGNAL;KST06,NPN,350MW,SOT-23,T
0501-000479 TR-SMALL SIGNAL;KST42,NPN,350MW,SOT-23,T
0501-000481 TR-SMALL SIGNAL;KST92,PNP,350MW,SOT-23,T
0501-000457 TR-SMALL SIGNAL;MMBT2222A/KST2222A,NPN,3
2602-000062 TRANS-PULSE;450UH,0.25/0.25OHM,1:1,12.8X
JC63-02056A TRAY-ASF FOLDER;CLX-6210FX,ABS
JC63-01560B TRAY-ASF OUTPUT;CLX-6200FX,ABS,2.5,123.4
6031-001255 WASHER-PLAIN;NYLON,CUTTING,ID5,OD9,T0.5,
6031-000023 WASHER-PLAIN;POLY,ID5.9,OD10.0,T0.5,BLK
Main Menu x
