Model Image
Manufacturer

Samsung

Model Number

CLX-9350ND

Description

Color Laser Multi-function Printer

Interactive Exploded View

Parts List

Part Number Description
JC66-02201A ACTUATOR-CAM TR;CLX-9350,PC HN-1064I,BLA
JC66-02197A ACTUATOR-DUPLEX 1;CLX-9350,PC HN-1064I,B
JC66-02180A ACTUATOR-DUPLEX 2;CLX-9350,PC HN-1064I,B
JC66-02231A ACTUATOR-EMPTY PU;CLX-9350,PC,21,21,123,
JC66-02202A ACTUATOR-FACE UP EXIT;CLX-9350,PC HN-106
JC66-02198A ACTUATOR-FULL FACE UP;CLX-9350,PC HN-106
JC66-02206A ACTUATOR-FUSER IN;CLX-9350,PC HN-1064I,B
JC66-02351A ACTUATOR-FUSER OUT;CLX-9350,SUM22 + PET(
JC66-02219A ACTUATOR-F_D EXIT;CLX-9350,NORYL,BLACK
JC66-02217A ACTUATOR-F_D FULL EXIT;CLX-9350,PC,BLACK
JC66-02193A ACTUATOR-SIZE MP;CLX-9350,PC+ABS,HAZE GR
JC66-02203A ACTUATOR-TRAY FACE UP;CLX-9350,PC HN-106
JC66-02262A ARM-TR ROLLER FR;CLX-9350,ABS+GF20% GR40
JC81-08663A AS-GREASE;SCX-6555N,GREASE,G-8050
JC81-08664A AS-GREASE;SCX-6555N,GREASE,SPY272
4301-001042 4301-001042 BATTERY-LI;3V,220MAH,CR2032,20X3.2MM,CON
3301-000317 BEAD-SMD;120OHM,2012,TP,-,-
3301-001655 BEAD-SMD;33OHM,3216,3000MA,TP,16OHM/39MH
3301-001594 BEAD-SMD;90OHM,2.0*1.2*1.3MM,TP,-,-
6601-001341 6601-001341 BEARING-BALL;688ZZ,ID8,OD16,L5,SUJ2

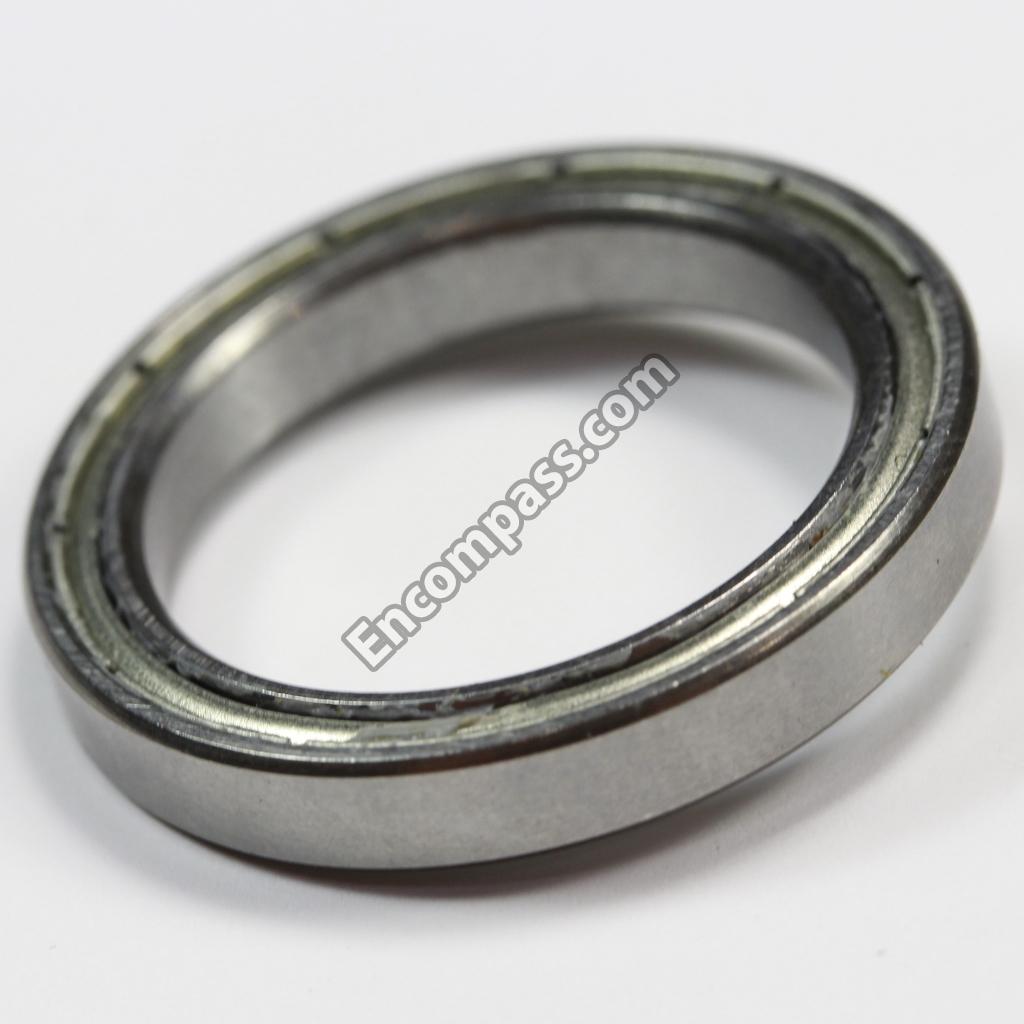

6601-001725 6601-001725 BEARING-BALL;SB6704ZZ,ID20,OD27,T4.0
6601-001726 BEARING-BALL;SB6706ZZ,ID30,OD37,T4.0
6602-001725 BELT-TIMING GEAR;366-1.5GT,RUBBER(CR),W6
6602-001730 BELT-TIMING GEAR;40S2M130,RUB,W4.0,L130,
6602-001722 BELT-TIMING GEAR;S2M180,RUB(CR),L180
6602-001721 BELT-TIMING GEAR;S2M250,RUB(CR),L250
6602-001720 BELT-TIMING GEAR;S2M328,RUB(CR),L328
JC69-02221A BOX-UNIT RIGHT OUTPUT TRAY;CLX-9350,CB,S
JC61-03094A BRACKET-APS;CLX-9350,SECC,T1.0,L68.6
JC61-02864A BRACKET-BEARING HR;CLX-9350,SECC,T1.0,W4
JC61-03410A BRACKET-BOTTOM;CLX-9350,SECC,T1.2,W370.7
JC61-02874A BRACKET-FRONT MAIN;CLX-9350,SECC,T1.6,W1
JC61-02860A BRACKET-FRONT;CLX-9350,SECC,T1.6,W366.2,
JC61-03200A BRACKET-GUIDE LOWER;CLX-9350,SECC,T1.2
JC61-03409A BRACKET-GUIDE LOWER;CLX-9350,SECC,T1.2,W
JC61-02948A BRACKET-HDD;CLX-9350,SECC,1.0,186,191
JC61-03045A BRACKET-HOME SENSOR;CLX-9350,SPCC,T0.8,W
JC61-02863A BRACKET-HR;CLX-9350,SECC,T1.2,W365.8,L46
JC61-02866A BRACKET-INLET GUIDE;CLX-9350,SECC,T1.0,W
JC61-02869A BRACKET-MOTOR PR;CLX-9350,A5052,T1.6,W63
JC61-03081A BRACKET-MOTOR;CLX-9350,SECC,1.2,46,123.8
JC61-03120A BRACKET-PBA SUB;CLX-9350,SECC,T1.0,W72,L
JC61-02870A BRACKET-PR FRONT;CLX-9350,SECC,T1.6,W66.
JC61-02871A BRACKET-PR REAR;CLX-9350,SECC,T1.6,W66.5
JC61-02875A BRACKET-REAR MAIN;CLX-9350,SECC,T1.6,W11
JC61-03112A BRACKET-SENSOR;CLX-9350,SECC,T1.0,W42.8
JC61-02862A BRACKET-SPRING FRONT;CLX-9350,SUS304,T1.
JC61-02861A BRACKET-SPRING REAR;CLX-9350,SUS304,T1.2
JC61-02873A BRACKET-TOP;CLX-9350,SECC,T1.2,W366.2,L5
JC67-00416A BRUSH-ANTI STATIC DOWN;CLX-9350,SUS FIBE
JC67-00488A BRUSH-ANTISTATIC SIDE DUPLEX;CLX-9350,SU
JC67-00417A BRUSH-RETURN EXIT;CLX-9350,SUS FIBER
JC61-00424A BUSH-4;ML-9400W,BEARING,?4,NTR
JC61-00884A BUSH-6_D(L);SCX-6320F,BRONZE POWDER(KAB-
JC61-00423A BUSH-6_D;ML-9400W,BEARING,?6,NTR
JC61-00426A BUSH-8/5;ML-9400W,BEARING,?8,OD12.0,L6.0
JC61-00699A BUSH-D6/L4;CLP-500,FE+CU+ZN-SLEARATE,?6,
JC61-03095A BUSH-HR;CLX-9350,PEEK,ID21.7,OD29.9,L24.
JC61-03329A BUSH-RETARD MP;CLX-9350,POM,6,13,10,NTR
3002-001139 BUZZER-PIEZO;80DB,9V,2KHZ,BK
2402-001042 C-AL,SMD;100UF,20%,16V,GP,TP,6.6X6.6X5.4
2402-001086 C-AL,SMD;100UF,20%,16V,WT,TP,6.6X6.6X5.3
2402-000117 C-AL,SMD;10UF,20%,35V,GP,TP,5.3X5.3X5.4
2402-001254 C-AL,SMD;10UF,20%,50V,WT,TP,6.3X5.2MM
2402-000209 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3MM
2402-001106 C-AL,SMD;33UF,20%,50V,WT,TP,8.3X8.3X6.3M
2402-000008 C-AL,SMD;47UF,20%,16V,GP,TP,6.6X6.6X5.4
2402-001155 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
2402-001080 C-AL,SMD;47UF,20%,50V,WT,TP,8X10MM
2401-000039 C-AL;1000UF,20%,16V,GP,TP,10X16,5
2401-000207 C-AL;100UF,20%,50V,WT,TP,8X12,5
2401-000880 C-AL;220UF,20%,50V,WT,TP,10X16MM,5M
2401-004058 C-AL;330UF,20%,35V,TP,10X16MM,5MM
2203-000384 C-CER,CHIP;0.015NF,5%,50V,C0G,TP,1608,0.
2203-000426 C-CER,CHIP;0.018NF,5%,50V,C0G,1608
2203-000041 C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608
2203-000626 C-CER,CHIP;0.022NF,5%,50V,C0G,1608
2203-000627 C-CER,CHIP;0.022NF,5%,50V,C0G,TP,1005
2203-000681 C-CER,CHIP;0.027NF,5%,50V,C0G,1608
2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608
2203-001656 C-CER,CHIP;0.47NF,5%,50V,NP0,1608
2203-007236 C-CER,CHIP;10000NF,10%,50V,X7R,TP,3225
2203-005819 C-CER,CHIP;1000NF,+80-20%,16V,Y5V,TP,160
2203-005617 C-CER,CHIP;1000NF,+80-20%,50V,Y5V,TP,201
2203-006348 C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,0.
2203-006960 C-CER,CHIP;1000NF,10%,50V,X7R,TP,2012
2203-002709 C-CER,CHIP;100NF,+80-20%,16V,Y5V,1005
2203-000192 C-CER,CHIP;100NF,+80-20%,50V,Y5V,TP,2012
2203-006158 C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,0.5
2203-006166 C-CER,CHIP;100NF,10%,25V,X5R,TP,1005
2203-005249 C-CER,CHIP;100NF,10%,50V,X7R,TP,1608
2203-000206 C-CER,CHIP;100NF,10%,50V,X7R,TP,2012
2203-000257 C-CER,CHIP;10NF,10%,50V,X7R,TP,1608
2203-000440 C-CER,CHIP;1NF,10,50V,X7R,TP,1608
2203-006460 C-CER,CHIP;2200NF,10%,16V,X5R,TP,1608,-
2203-002398 C-CER,CHIP;22NF,10%,50V,X7R,1608
2203-005384 C-CER,CHIP;4700NF,+80-20%,10V,Y5V,TP,201
2203-000975 C-CER,CHIP;47NF,10%,25V,X7R,TP,1608,-
2404-001272 C-TA,CHIP;100UF,20%,16V,-,TP,7343
6502-001131 CABLE CLAMP;DACS-2N,6.2*2.8,NYLON66
6502-001130 CABLE CLAMP;DACS-3N,14*5,NYLON66,BLACK
6502-001153 CABLE CLAMP;DAGM-20,17.9X20.2,NYLON66
6502-000126 CABLE CLAMP;DATL-600,ID14.5,NTR,NYLON66
6501-000004 CABLE TIE;DA-80,T1,W2.5,L80,NTR,NYLON66
JC67-00399A CAP-SCAN SCREW HOLE;CLX-9350,SILICON,T1
JC67-00368A CAP-TR ROLLER FR;CLX-9350,PC HN-1064I,BL
JC67-00389A CAP-TR ROLLER RE;CLX-9350,PC HN-1064I,BL
JC96-05664A CARTRIDGE-TRANSFER ITB BLADE;CLX-9350,SE
JC96-05690A JC96-05690A CARTRIDGE-TRANSFER ITB CLEAN;CLX-9350,SE
JC96-05689A CARTRIDGE-TRANSFER ITB;CLX-9350,SEC,-,-,
JC96-05661A CARTRIDGE-TRANSFER;CLX-9350,SEC,4920G
JC96-05657A CARTRIDGE-WTB;CLX-9350,SEC,WORLD,75K,-,-
JC90-00931A CASSETTE-BRACKET LIFT;CLX-9350,SEC,-,-,-
JC90-00938A CASSETTE-COVER;CLX-9350,SEC
JC90-00987A CASSETTE-GEAR LIFT;CLX-9350,SEC
JC90-00928A CASSETTE-GUIDE FRONT;CLX-9350,SEC,-,-,-
JC90-00929A CASSETTE-GUIDE REAR;CLX-9350,SEC,-,-,-
JC90-00927A CASSETTE;CLX-9350,SEC,-,-,-
JC39-00507A CBF HARNESS-GND1;CLP-600,CBF HARNESS,UL1
JC39-40511A CBF HARNESS;ML-80,JUMPER,AWG22,52MM,SILV
JC39-00001A JC39-00001A CBF IF-USB;ML-6100,4,UL2725,1800 +/- 50,
3903-000511 CBF-POWER CORD;IS-16L,US,SP-301,M,125V/1
JC66-02268A CLUTCH-AUGER MAG;CLX-9350,POM,NATURAL
JC47-00027A CLUTCH-MAG;CLX-9350,DC24V,125MA
JC66-00977A JC66-00977A CLUTCH-P_ONE WAY;SCX-6345N/XRX,OWC612GXR
JC47-00003D CLUTCH-SPUR;CLX-9350,3.48W,DC24V,145MA1
JC66-00994C JC66-00994C CLUTCH-SPUR;CLX-9350,5.0KGF,Z32,M1.0,OD3
JC02-00131A COATING-GLASS;CLX-9350ND,100ML,TRANSPARE
3709-001372 CONNECTOR-CARD EDGE;200P,0.6MM,SMD,AUF,S
3708-001058 CONNECTOR-FPC/FFC/PIC;30P,1MM,STRAIGHT,S
3708-002179 CONNECTOR-FPC/FFC/PIC;60P,0.5MM,SMD-A,AU
3711-006574 CONNECTOR-HEADER;BOX,2P,1R,1.5MM,STRAIGH
3711-006573 CONNECTOR-HEADER;BOX,3P,1R,1.5MM,STRAIGH
3711-006454 CONNECTOR-HEADER;BOX,7P,1R,1.27MM,STRAIG
3711-002349 CONNECTOR-HEADER;BOX,7P,1R,2MM,STRAIGHT,
JC67-00386A COUPLER-T1 ENGAGE;CLX-9350,POM,D20,BLACK
JC63-02387A COVER-CONNECTOR_SCAN;CLX-9350,ABS HF-066
JC63-02215A COVER-DUMMY FRONT LL;CLX-9350,ABS HF-066
JC63-02216A COVER-DUMMY RIGHT;CLX-9350,ABS HF-0660I,
JC63-02218A COVER-EXIT REAR;CLX-9350,ABS HF-0660I,T
JC95-01033A COVER-EXIT;CLX-9350,SEC,WORLD,-,-,-,-
JC63-02297A COVER-FRONT MP;CLX-9350,ABS HF-0660I
JC95-01027A COVER-FRONT RIGHT;CLX-9350,SEC,WORLD,-,-
JC95-01152A COVER-FRONT SCAN;CLX-9350,SEC,WORLD
JC95-01021A COVER-FRONT;CLX-9350,SEC,WORLD,-,-,-,-
JC63-02214A COVER-INNER LOWER;CLX-9350,ABS HF-0660I,
JC95-01026A COVER-INNER;CLX-9350,SEC,WORLD,-,-,-,-
JC63-02283A COVER-JAM;CLX-9350,PC+ABS,23,391.1,145.1
JC95-01024A COVER-LEFT LOWER;CLX-9350,SEC,WORLD,-,-,
JC95-01025A COVER-LEFT UPPER;CLX-9350,SEC,WORLD,-,-,
JC63-02222A COVER-OPE HINGE 2;CLX-9350,ABS HF-0660I,
JC95-01036A COVER-OPE HINGE;CLX-9350,SEC,WORLD,-,-,-
JC63-02220A COVER-REAR LOWER;CLX-9350,PC+ABS,T 2.5,W
JC63-02219A COVER-REAR UPPER;CLX-9350,PC+ABS,T 2.5,W
JC63-02274A COVER-RIGHT LOWER;CLX-9350,PC+ABS,T 2.5,
JC95-01032A COVER-RIGHT;CLX-9350,SEC,WORLD,-,-,-,-
JC63-02228A COVER-SCAN FAN;CLX-9350,ABS HF-0660I,T 2
JC63-02232A COVER-SCAN LEFT;CLX-9350,ABS HF-0660I,T
JC63-02227A COVER-SCAN REAR LEFT;CLX-9350,ABS HF-066
JC63-02340A COVER-SCAN REAR RIGHT;CLX-9350,ABS HF-06
JC63-02233A COVER-SCAN RIGHT;CLX-9350,ABS HF-0660I,T
JC95-01289A COVER-SHIELD;CLX-9350ND,SEC
JC95-01067A COVER-SIDE ACTUATOR DUPLEX LOWER;CLX-935
JC95-01063A COVER-SIDE ARM TRANSFER ROLLER REAR;CLX-
JC95-01060A COVER-SIDE DRAW CONNECTOR;CLX-9350,SEC
JC95-01058A COVER-SIDE DUPLEX FEED;CLX-9350,SEC
JC95-01037A COVER-SIDE DUPLEX;CLX-9350,SEC,-,-,-,-,-
JC95-01039A COVER-SIDE FACE UP EXIT LOWER;CLX-9350,S
JC95-01041A COVER-SIDE FEED;CLX-9350,SEC,-,-,-,-,-
JC95-01062A COVER-SIDE GUIDE GATE MIDDLE;CLX-9350,SE
JC95-01061A COVER-SIDE GUIDE LOWER SIDE;CLX-9350,SEC
JC95-01065A COVER-SIDE HOLDER PUSH FRONT;CLX-9350,SE
JC95-01064A COVER-SIDE HOLDER PUSH REAR;CLX-9350,SEC
JC95-01056A COVER-SIDE MOTOR DC;CLX-9350,SEC
JC95-01057A COVER-SIDE SHAFT CAM;CLX-9350,SEC
JC95-01038A JC95-01038A COVER-SIDE TRANSFER ROLLER;CLX-9350,SEC,
JC95-01205A COVER-SIDE TRAY FACE UP;CLX-9350,SEC
JC95-01034A COVER-TAKE AWAY;CLX-9350,SEC,-,-,-,-,-
0402-001189 DIODE-RECTIFIER;M4,400V,1A,TS-1,TP
0402-001098 DIODE-RECTIFIER;SK34,40V,3A,SMC,TP
0404-001084 DIODE-SCHOTTKY;BAT54A,30V,200MA,SOT-23,T
0404-000112 DIODE-SCHOTTKY;RB420D,40V,100MA,SOT-23,T
0407-000122 DIODE-SWITCHING;KDS226,80V,100MA,SOT-23,
0401-000116 DIODE-SWITCHING;MMSD914T1,100V,200MA,SOD
JC93-00057A DRIVE EXIT;CLX-9350,SEC
JC93-00059A DRIVE MAIN-CLUTCH DEVE;CLX-9350,SEC,-,-,
JC93-00127A DRIVE MAIN-COMMON;CLX-9350,SEC
JC93-00051A DRIVE MAIN-HOLDER SENSOR OPC;CLX-9350,SE
JC93-00058A DRIVE MAIN-JOINT BOARD;CLX-9350,SEC,-,-,
JC93-00044A DRIVE MAIN;CLX-9350,SEC
JC93-00069A DRIVE PLATEN;CLX-9350,SEC
JC93-00066A DRIVE-MP REGI;CLX-9350,SEC
JC93-00065A DRIVE-PICK UP;CLX-9350,SEC
JC93-00067A DRIVE-WTB;CLX-9350,SEC
JC66-02334A DRUM-BELT ITB;CLX-9350,PI,T0.085,D304.17
JC66-02300A DRUM-FUSER BELT;CLX-9350,PI,ID45.36,OD46
JC67-00360A DUCT-COOLING FRONT LOWER;CLX-9350,PC+ABS
JC67-00352A DUCT-COOLING FRONT UPPER;CLX-9350,PC+ABS
JC67-00353A DUCT-COOLING REAR LOWER;CLX-9350,PC+ABS,
JC90-00925A EXIT GUIDE-LOWER;CLX-9350,SEC,-,-,-
JC90-00923A EXIT GUIDE-RETURN LOWER;CLX-9350,SEC,-,-
JC90-00922A EXIT GUIDE-RETURN MIDDLE;CLX-9350,SEC,-,
JC90-00936A EXIT GUIDE-RETURN UP;CLX-9350,SEC
JC90-00924A EXIT GUIDE-RETURN;CLX-9350,SEC,-,-,-
JC90-00926A EXIT-BRACKET GEAR;CLX-9350,SEC,-,-,-
JC90-00968A EXIT-HOLDER COVER SENSOR;CLX-9350,SEC
JC90-00914A EXIT;CLX-9350,SEC,-,-,-
JC31-00130A FAN;CLX-9350,PLASTIC
JC31-00129A FAN;CLX-9350,PLASTIC
JC31-00127A FAN;R34140-57SAM,40G
JC63-02595A FELT-COVER FUSER;CLX-9350,PE,T1.0,W22,L2
JC63-02833A FELT-GATE;CLX-9350,POLYESTER NEEDLE FELT
JC63-02832A FELT-GUIDE FACE UP;CLX-9350,POLYESTER NE
JC63-02510A FELT-HANDLE EXIT;CLX-9350,PE,T1.0,W34.05
JC63-02430A FELT-INNERCLEAN ITB;CLX-9350,ESENU,T0.5,
0505-002507 FET-SILICON;FDC5614P,P,-60V,-3A,0.105OHM
0505-001350 FET-SILICON;NDT2955,P,-60V,-2.5V,0.3OHM,
0505-001326 FET-SILICON;SI2308DS,N,60V,2A,0.22OHM,1.
JC01-00043A FILM-FUSER FRONT;CLX-9350,PI FILM,T0.225
JC01-00042A FILM-FUSER REAR;CLX-9350,PI FILM,T0.225,
JC29-00001A FILTER BPF;CLX-9350
JC63-02704A FILTER-FAN SCAN;CLX-9350,POLYESTER,W54.7
JC61-01367A JC61-01367A FIXER-M_E RING 4PI;SCX-6345N/XRX,POM,T1.
JC39-01162A FLAT CABLE;CLX-9350,40,0.05,50MM,AWM2062
JC39-01230A FLAT CABLE;CLX-9350ND,30,0.33,60MM,AWM20
JC39-01191A FLAT CABLE;CLX-9350ND,60,475MM,AWM20624,
JC93-00191A FRAME MAIN-DUCT TONER;CLX-9350,SEC,BLACK
JC93-00015A FRAME MAIN-FRONT BRKT PHOTO INT;CLX-9350
JC93-00032A FRAME MAIN-FRONT INNER COVER;CLX-9350,SE
JC93-00006A FRAME MAIN-FRONT;CLX-9350,SEC,WORLD,-,-,
JC93-00029A FRAME MAIN-LEFT CST RAIL;CLX-9350,SEC,WO
JC93-00012A FRAME MAIN-LEFT SUPPORT SCAN;CLX-9350,SE
JC93-00020A FRAME MAIN-MIDDLE ACR SENSOR;CLX-9350,SE
JC93-00024A FRAME MAIN-MIDDLE COLOR KEY C;CLX-9350,S
JC93-00025A FRAME MAIN-MIDDLE COLOR KEY K;CLX-9350,S
JC93-00023A FRAME MAIN-MIDDLE COLOR KEY M;CLX-9350,S
JC93-00022A FRAME MAIN-MIDDLE COLOR KEY Y;CLX-9350,S
JC93-00010A FRAME MAIN-MIDDLE HOLDER LSU;CLX-9350,SE
JC93-00180A FRAME MAIN-MIDDLE PLATE LSU SIDE;CLX-935
JC93-00082A JC93-00082A FRAME MAIN-PICK UP FEED SENSOR;CLX-9350,
JC93-00074A FRAME MAIN-PICK UP FOWARD;CLX-9350,SEC,-
JC93-00080A FRAME MAIN-PICK UP GUIDE REAR;CLX-9350,S
JC93-00071A FRAME MAIN-PICK UP RETARD;CLX-9350,SEC,-
JC93-00081A JC93-00081A FRAME MAIN-PICK UP ROLLER FEED;CLX-9350,
JC93-00540A JC93-00540A FRAME MAIN-PICK UP RUBBER;CLX-9350,SEC
JC93-00174A FRAME MAIN-PICK UP SECOND;CLX-9350,SEC
JC93-00070A FRAME MAIN-PICK UP;CLX-9350,SEC,-,-,-,-
JC93-00014A FRAME MAIN-REAR BRKT FUSER;CLX-9350,SEC,
JC93-00016A FRAME MAIN-REAR DRAW TONER;CLX-9350,SEC,
JC93-00017A FRAME MAIN-REAR DUCT OZONE MAIN;CLX-9350
JC93-00008A FRAME MAIN-REAR DUCT OZONE;CLX-9350,SEC,
JC93-00013A FRAME MAIN-REAR FUSER HV;CLX-9350,SEC,WO
JC93-00018A FRAME MAIN-REAR HOLDER AUTOSIZE;CLX-9350
JC93-00021A FRAME MAIN-REAR HUMIDITY SENSOR;CLX-9350
JC93-00178A FRAME MAIN-REAR SUPPORT L;CLX-9350,SEC,W
JC93-00179A FRAME MAIN-REAR SUPPORT R;CLX-9350,SEC,W
JC93-00181A FRAME MAIN-REAR SUPPORT TOP;CLX-9350,SEC
JC93-00079A FRAME MAIN-REGI BRKT SENSOR;CLX-9350,SEC
JC93-00043A FRAME MAIN-REGI;CLX-9350,SEC,-,-,-,-
JC93-00030A FRAME MAIN-RIGHT CST RAIL;CLX-9350,SEC,W
JC93-00177A FRAME MAIN-RIGHT DRAW SIDE;CLX-9350,SEC,
JC93-00011A FRAME MAIN-RIGHT HANDLE;CLX-9350,SEC,WOR
JC93-00019A FRAME MAIN-UPPER SUPPORT TOP;CLX-9350,SE
JC93-00190A FRAME- REAR PLATE SUPPORT MID;CLX-9350,S
JC61-03215A FRAME-CASSETTE;CLX-9350,PC+ABS
JC61-02901A FRAME-FUSER FRONT;CLX-9350,PET G/F,BLACK
JC61-02902A FRAME-FUSER SIDE;CLX-9350,PET G/F,BLACK,
JC61-02903A FRAME-FUSER TOP;CLX-9350,PET G/F,BLACK,T
JC93-00185A FRAME-REAR HOLDER ALIGN;CLX-9350,SEC,WOR
JC93-00186A FRAME-REAR PICKUP JOINT;CLX-9350,SEC,WOR
JC93-00078B FRAME-REGI HOLDER DUST;SCX-8040,SEC,WORL
3601-001376 3601-001376 FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI
JC91-00959A FUSER-BIAS TERMINAL;CLX-9350,SEC,WORLD
JC91-00958A FUSER-BIAS;CLX-9350,SEC,WORLD
JC91-00956A FUSER-BRACKET REAR;CLX-9350,SEC,WORLD
JC91-00957A FUSER-BRACKET WHEEL;CLX-9350,SEC,WORLD
JC91-00937A FUSER-HANDLE LEFT;CLX-9350,SEC,-,-,-,-,-
JC91-00938A FUSER-HANDLE RIGHT;CLX-9350,SEC,-,-,-,-,
JC91-00955A FUSER-THERMISTOR;CLX-9350,SEC,WORLD
JC91-01102A JC91-01102A FUSER;CLX-9350,SEC,BELT,110V,5.88KG
JC66-02147A GEAR-AUGER ITB;CLX-9350,POM,M0.5,Z32,OD1
JC66-02163A GEAR-EXIT;CLX-9350,POM,1.0,16,18.39
JC66-02213A GEAR-FEED MP;CLX-9350,POM,0.8,15,14.07
JC66-02149A GEAR-FORWARD MP;CLX-9350,POM,0.8,20,7.4,
JC66-02122A GEAR-FUSER;CLX-9350,PPS,M1.0,Z28,OD31.8
JC66-02164A GEAR-IDLE A EXIT;CLX-9350,POM,1.0,33,35
JC66-02165A GEAR-IDLE B EXIT;CLX-9350,POM,1.0,21,23
JC66-02123A GEAR-IDLE FUSER A;CLX-9350,NYLON,M1.0,Z2
JC66-02124A GEAR-IDLE FUSER B;CLX-9350,NYLON,M1.0,Z2
JC66-02156A GEAR-IDLE ITB;CLX-9350,PC,M0.5,Z46,OD24
JC66-02214A GEAR-IDLE MP;CLX-9350,POM,0.8,19,16.96
JC66-02236A GEAR-IDLE RETARD;CLX-9350,POM,M0.5,Z24,W
JC66-02172A GEAR-IDLE_DUP;CLX-9350,POM,M1.0,Z31,BLAC
JC66-02171A GEAR-IDLE_MP;CLX-9350,POM,M1.0,Z20,WHITE
JC66-02174A GEAR-IDLE_REGI;CLX-9350,POM,M0.8,Z17,WHI
JC66-00940A GEAR-M_IDLE PU;SCX-6345N/XRX,POM,0.7,22,
JC66-00955A GEAR-M_LIFT COUPLING;SCX-6345N/XRX,POM,1
JC66-00941A GEAR-M_ONE WAY;SCX-6345N/XRX,POM,0.7,21,
JC66-01020A GEAR-M_PINION 24;SCX-6345N/XRX,POM,1,24,
JC66-00943A JC66-00943A GEAR-M_PU JOINT;SCX-6345N/XRX,POM,0.7,21
JC66-02237A GEAR-PICKUP;CLX-9350,POM,M1,Z19,WHITE,OD
JG66-40003A GEAR-PINION;SF4000,POM,1,Z16,WHT
JC66-02121A GEAR-PR;CLX-9350,NYLON,M1.0,Z34,OD36
JC66-02152A GEAR-RELAY COUPLING;CLX-9350,POM,M0.8,Z2
JC66-02146A GEAR-RETARD SUPPORT;CLX-9350,POM,M1,Z28,
JC66-02154A GEAR-TENSION ITB;CLX-9350,POM,M0.5,Z32,O
JC66-02153A GEAR-TR ENGAGE A;CLX-9350,POM DE500P,NAT
JC66-02155A GEAR-TR ENGAGE B;CLX-9350,POM DE500P,0.5
JC66-02126A GEAR-WORM WHEEL;CLX-9350,NYLON,M0.8/1.0,
JC66-02125A GEAR-WORM;CLX-9350,NYLON,M0.6/0.8,Z19,OD
JC66-02117A GEAR-WTB DRIVE;CLX-9350,POM,1.5,21,WHITE
JC01-00035A GLASS-SCAN ADF;346X35,4,TRANSMISSIVITY 4
JC01-00034A GLASS-SCAN;482X358,4,TRANSMISSIVITY 400~
JC63-02195A GROUND-BIAS TERMINAL;CLX-9350,SUS,T0.2,W
JC63-02194A GROUND-BIAS;CLX-9350,SUS,T0.2,W61.1,L26.
JC63-02241A GROUND-CONTACT B;CLX-9350,C5210P,T0.2,W4
JC63-02261A GROUND-HUB A;CLX-9350,C5210P,T 0.2,W 16.
JC63-02301A GROUND-SHAFT REGI;CLX-9350,SUS,T0.2,W22.
JC61-02857A GUIDE-DUPLEX;CLX-9350,PET+GF40%,T2.5,W33
JC61-02856A GUIDE-EXIT-LOWER;CLX-9350,PET+GF40%,T2.5
JC61-03430A GUIDE-GATE RETURN UP;CLX-9350,PPE+PS,T2.
JC61-03069A GUIDE-GATE RETURN;CLX-9350,PET+GF30%,PAT
JC61-03453A GUIDE-HARNESS_PICKUP;CLX-9350,PC ABS,W91
JC61-03139A GUIDE-LEFT;CLX-9350,ABS,43,78,PAPER
JC61-03060A GUIDE-LOWER EXIT;CLX-9350,PET+GF30%,PATH
JC61-03152A GUIDE-LOWER MP;CLX-9350,PC ABS,BLACK,PAT
JC61-02998A GUIDE-LOWER TAKE AWAY;CLX-9350,PC ABS,PA
JC61-03125A GUIDE-RACK FR;CLX-9350,POM,203.75,32.5,G
JC61-03127A GUIDE-RACK RE;CLX-9350,POM,198.75,29,GUI
JC61-03150A GUIDE-RETARD MP;CLX-9350,ABS+GF20%,51.2,
JC61-03056A GUIDE-RETURN LOWER EXIT;CLX-9350,PET+GF3
JC61-03318A GUIDE-RETURN PATH;CLX-9350,NORYL,166,221
JC61-03128A GUIDE-SIDE FR;CLX-9350,ABS,121,30,PAPER
JC61-03129A GUIDE-SIDE RE;CLX-9350,ABS,PAPER
JC61-03211A GUIDE-SLIDE PICKUP;CLX-9350,POM,GUIDE
JC61-03212A GUIDE-STOPPER PAPER;CLX-9350,POM,PART
JC61-02999A GUIDE-UPPER TAKE AWAY;CLX-9350,PC ABS,PA
JC64-00507A HANDLE-FIXER SCAN;CLX-9350,SUM22,9,9,54
JC64-00489A HANDLE-GUIDE FRONT;CLX-9350,ABS,24,71,24
JC64-00460A HANDLE-SIDE;CLX-9350,ABS HB HF-0660I,NAT
JC64-00461A HANDLE-TAKE AWAY;CLX-9350,PC+ABS,20,87.2
JC39-01177A HARNESS-APS SENSOR;CLX-9350,UL10272 #26,
JC39-01142A HARNESS-AUTO SIZE SENSOR;CLX-9350ND,UL10
JC39-01107A HARNESS-BOTTLE JOINT BOARD;CLX-9350ND,UL
JC39-01074A HARNESS-BOTTLE JOINT SIGNAL;CLX-9350ND,U
JC39-01105A HARNESS-CASSETTE JOINT;CLX-9350ND,UL1027
JC39-01147A HARNESS-CASSETTE LED;CLX-9350ND,UL10272,
JC39-01259A HARNESS-CASSETTE LED;SCX-8040ND,UL10272,
JC39-01152A HARNESS-CASSETTE PICKUP UNIT;CLX-9350ND,
JC39-01086A HARNESS-COVER OPEN SWITCH;CLX-9350ND,UL1
JC39-01179A HARNESS-COVER OPEN;CLX-9350,UL10272 #26,
JC39-01091A HARNESS-CTD SENSOR;CLX-9350ND,UL10272,20
JC39-01102A HARNESS-DCF IF;CLX-9350ND,UL10272/1617/1
JC39-01126A HARNESS-DEVE BLDC K;CLX-9350ND,UL10272,1
JC39-01106A HARNESS-DRIVE JOINT POWER;CLX-9350ND,UL1
JC39-01134A HARNESS-DUPLEX SENSOR;CLX-9350ND,UL10272
JC39-01133A HARNESS-DUPLEX UNIT;CLX-9350ND,UL10272,9
JC39-00872A HARNESS-DUPLEX_MOTOR;SCX-5235ND,UL10272,
JC39-01069A HARNESS-ENGINE POWER;CLX-9350ND,UL1061,1
JC39-01068A HARNESS-ENGINE POWER;CLX-9350ND,UL1061,1
JC39-01121A HARNESS-EXIT CLUTCH;CLX-9350ND,UL10272,2
JC39-01238A HARNESS-EXIT LED1;CLX-9350,UL10272 #26,3
JC39-01239A HARNESS-EXIT LED2;CLX-9350,UL10272 #26,3
JC39-01153A HARNESS-EXIT SENSOR;CLX-9350ND,UL10272,9
JC39-01122A HARNESS-EXIT STEP MOTOR;CLX-9350ND,UL102
JC39-01100A HARNESS-EXIT UNIT;CLX-9350ND,UL10272,11P
JC39-01196A HARNESS-FINISHER I/F;CLX-9350ND,UL10272,
JC39-01087A HARNESS-FUSER BIAS;CLX-9350ND,UL3239,1P,
JC39-01097A HARNESS-FUSER BLDC;CLX-9350ND,UL10272,10
JC39-01090A HARNESS-FUSER DRAWER;CLX-9350ND,UL1617/U
JC39-01128A HARNESS-FUSER INSIDE LAMP;CLX-9350ND,UL3
JC39-01108A HARNESS-FUSER OUT FAN;CLX-9350ND,UL10272
JC39-00956A HARNESS-FUSER_GND;CLP-310,UL1007,1P,75MM
JC39-01131A HARNESS-GND WIRE;CLX-9350ND,UL1007,1P,75
JC39-01154A HARNESS-HEATER I/F;CLX-9350ND,UL1617,2P,
JC39-01115A HARNESS-HEATER S/W;CLX-9350ND,UL1617,2P,
JC39-01103A HARNESS-HVPS1;CLX-9350ND,UL10272,28P,675
JC39-01104A HARNESS-HVPS2;CLX-9350ND,UL10272,34P,700
JC39-01085A HARNESS-INLET;CLX-9350ND,UL1617/UL1015,2
JC39-01182A HARNESS-INVERTER;CLX-9350,UL10272 #26,3,
JC39-01114A HARNESS-ITB BLDC;CLX-9350ND,UL10272,11P/
JC39-01143A HARNESS-LIFT DC;CLX-9350ND,UL10272,4P/2P
JC39-01155A HARNESS-LSU FAN;CLX-9350ND,UL10272,6P/3P
JC39-01096A HARNESS-LSU IF;CLX-9350ND,UL10272,32/34/
JC39-01127A HARNESS-LSU SHUTTER MOTOR;CLX-9350ND,UL1
JC39-01140A HARNESS-MP MEDIA SIZE SENSOR;CLX-9350ND,
JC39-01139A HARNESS-MP MEDIA SIZE UNIT;CLX-9350ND,UL
JC39-01137A HARNESS-MPF UNIT;CLX-9350,UL10272,7P,400
JC39-01138A HARNESS-MPF;CLX-9350ND,UL10272,7P,575MM2
JC39-00793A HARNESS-NEAR_SEN;RUSHMORE,UL10272,3P,75M
JC39-01124A HARNESS-OPC ENCODER CK;CLX-9350ND,UL1027
JC39-01206A HARNESS-OPE LCD;CLX-9350,40P/40P,60MM,BL
JC39-01164A HARNESS-OPE MAIN TO KEY;CLX-9350,UL10272
JC39-01101A HARNESS-OPE PANEL;CLX-9350ND,UL10272,22P
JC39-01231A HARNESS-OPE_POWER;CLX-9350,UL2725/UL2835
JC39-01092A HARNESS-OZONE FAN;CLX-9350ND,UL10272,3P,
JC39-01141A HARNESS-PAPER CURL DET SENSOR;CLX-9350ND
JC39-01148A HARNESS-PICK UP CLUTCH;CLX-9350ND,UL1027
JC39-01129A HARNESS-PICK UP ROLL STEP;CLX-9350ND,UL1
JC39-01323A HARNESS-PICK UP UNIT;CLX-9350ND,UL10272,
JC39-01144A HARNESS-REMAIN SENSOR;CLX-9350ND,UL10272
JC39-01203A HARNESS-SATA_POWER;CLX-9350,UL1061,4P,20
JC39-01202A HARNESS-SATA_SIGNAL;CLX-9350,FLAT,7P,200
JC39-01201A HARNESS-SATA_SIGNAL;CLX-9350,FLAT,UL2725
JC39-01089A HARNESS-SAW PLATE;CLX-9350ND,UL3239,1P,1
JC39-01186A HARNESS-SCAN HEATER1;CLX-9350,UL1617 #22
JC39-01178A HARNESS-SCAN JOINT;CLX-9350,UL10272 #26,
JC39-01185A HARNESS-SCAN POWER;CLX-9350,UL10272 #26,
JC39-01158A HARNESS-SCAN SUB;CLX-9350ND,UL10272,18P,
JC39-01075A HARNESS-SIDE COVER DRAWER;CLX-9350ND,UL1
JC39-01132A HARNESS-SIDE COVER EXIT UNIT;CLX-9350ND,
JC39-01073A HARNESS-SIDE COVER JOINT BOARD;CLX-9350N
JC39-01095A HARNESS-SMPS FAN;CLX-9350ND,UL10272,3P,7
JC39-01094A HARNESS-SMPS IF;CLX-9350ND,UL10272,20/10
JC39-01071A HARNESS-SMPS;CLX-9350ND,UL1061,12P,175MM
JC39-01072A HARNESS-SMPS;CLX-9350ND,UL1061,13P,125MM
JC39-01099A HARNESS-STEP MOTOR;CLX-9350ND,UL10272,12
JC39-01136A HARNESS-T2 ENGAGE DC & SENSOR;CLX-9350ND
JC39-01135A HARNESS-T2 ENGAGE UNIT;CLX-9350ND,UL1027
JC39-01088A HARNESS-T2;CLX-9350ND,UL3239,1P,875MM,BL
JC39-01123A HARNESS-TAKE AWAY SENSOR;CLX-9350ND,UL10
JC39-01110A HARNESS-TONER SUPPLY UNIT;CLX-9350ND,UL1
JC39-01109A HARNESS-TONER SUPPLY UNIT_DUAL;CLX-9350N
JC39-01145A HARNESS-TRAY1 WALL CONNECTOR;CLX-9350ND,
JC39-01146A HARNESS-TRAY2 WALL CONNECTOR;CLX-9350ND,
JC39-01070A HARNESS-VIDEO POWER;CLX-9350ND,UL1061,8P
JC59-00032A HDD;250G,HTS543225A7A384/HM250HI,S63,H16
3711-007001 HEADER-BOARD TO BOARD;BPX,30P,2R,1.27MM,
3711-007027 HEADER-BOARD TO CABLE;1WALL,12P,1R,3.96M
3711-007028 HEADER-BOARD TO CABLE;1WALL,13P,1R,3.96M
3711-000240 HEADER-BOARD TO CABLE;1WALL,4P,1R,3.96MM
3711-006436 HEADER-BOARD TO CABLE;BOX,11P,1R,1.5MM,S
3711-006501 HEADER-BOARD TO CABLE;BOX,12P,1R,1.5MM,S
3711-002001 HEADER-BOARD TO CABLE;BOX,20P,2R,2MM,STR
3711-002002 HEADER-BOARD TO CABLE;BOX,22P,2R,2MM,STR
3711-003204 HEADER-BOARD TO CABLE;BOX,24P,2R,2MM,STR
3711-006442 HEADER-BOARD TO CABLE;BOX,28P,2R,1.5MM,S
3711-006444 HEADER-BOARD TO CABLE;BOX,34P,2R,1.5MM,S
3711-007088 HEADER-BOARD TO CABLE;BOX,36P,2R,1.25MM,
3711-000862 HEADER-BOARD TO CABLE;BOX,3P,1R,1.25MM,S
3711-007089 HEADER-BOARD TO CABLE;BOX,40P,2R,1.25MM,
3711-006431 HEADER-BOARD TO CABLE;BOX,4P,1R,1.5MM,ST
3711-006432 HEADER-BOARD TO CABLE;BOX,5P,1R,1.5MM,ST
3711-003411 HEADER-BOARD TO CABLE;BOX,5P,1R,2MM,STRA
3711-006433 HEADER-BOARD TO CABLE;BOX,6P,1R,1.5MM,ST
3711-005912 HEADER-BOARD TO CABLE;BOX,6P,1R,2.54MM,S
3711-002809 HEADER-BOARD TO CABLE;BOX,8P,1R,2MM,STRA
JC61-03193A HOLDER-BEARING RELAY MAG.;CLX-9350,PC+AB
JC61-02877A HOLDER-BIAS TERMINAL;CLX-9350,PET GF40%,
JC61-02876A HOLDER-BIAS;CLX-9350,PET GF40%,T1.8,W79.
JC61-02878A HOLDER-EEPROM;CLX-9350,PET GF40%,T2.0,W7
JC61-02879A HOLDER-FRAME HR;CLX-9350,PPS+GF30%,T1.5,
JC61-02886A HOLDER-GEAR;CLX-9350,SECC,T1.2,W74.26,L4
JC61-02883A HOLDER-HARNESS DC;CLX-9350,PET GF40%,T2.
JC61-02880A HOLDER-HARNESS REAR;CLX-9350,PET GF40%,T
JC61-02885A HOLDER-HARNESS;CLX-9350,PET GF40%,T1.5,W
JC61-03356A HOLDER-INVERTER;CLX-9350,PC+ABS,W80,L182
JC61-03004A HOLDER-JOINT BOARD;CLX-9350,PC+ABS,T25,W
JC61-02887A HOLDER-LAMP;CLX-9350,SUS304,T0.3,W37,L41
JC61-03249A HOLDER-LENS;CLX-9350,ABS,2,103,75,BLACK
JC61-01288A HOLDER-M_IDLE ONE WAY;SCX-6345N/XRX,POM,
JC61-03220A HOLDER-OPEN SENSOR;CLX-9350,POM,W27,L37.
JC61-02910A HOLDER-PBA TONER;CLX-9350,ABS HB HF-0660
JC61-02888A HOLDER-PR FRONT;CLX-9350,SECC,T1.2,W83.9
JC61-03067A HOLDER-ROLLER F_D IDLE;CLX-9350,SUS,T0.2
JC61-03439A HOLDER-ROLLER IDLE F_U;CLX-9350,SUS 304
JC61-03192A HOLDER-SENSOR OPC;CLX-9350,ABS,W30,BLACK
JC61-02889A HOLDER-SENSOR;CLX-9350,SECC,T1.0,W51.5,L
JC61-03972A HOLDER-T1 F ITB;CLX-9350,POM,W13.6,L16.5
JC61-02882A HOLDER-THERMISTOR C;CLX-9350,PET GF40%,T
JC61-02884A HOLDER-THERMISTOR;CLX-9350,PET GF40%,T2.
JC61-02881A HOLDER-THERMOSTAT;CLX-9350,PET GF40%,T2.
JC61-03219A HOUSING-FAN;CLX-9350,PC+ABS,W67.8,L111,B
JC61-03264A HOUSING-ONE WAY FORWARD;CLX-9350,ABS HF-
JC44-00174A HVPS;24V,21.6V~27.6V,MAX 5KV,MAX-2KV
JC44-00173A HVPS;24V,21.6V~27.6V,MAX 7KV,MAX-8KV
JC13-00044A IC ASIC-CIP6;CIP6,CLX-9350,496P,3.3V,0TO
1001-000164 IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16
1205-002339 IC-CLOCK GENERATOR;CY25811SC,SOIC,8P,150
0801-003309 IC-CMOS LOGIC;74ACT540,BUFFER/LINE DRIVE
0803-003263 IC-CMOS LOGIC;74LCX07,HEX BUFFER,SOIC,14
0801-002403 IC-CMOS LOGIC;74LCX08,AND GATE,TSSOP,14P
0801-002379 IC-CMOS LOGIC;74LCX16245,TRANSCEIVER,TSS
0801-002270 IC-CMOS LOGIC;74LCX16373,LATCH,TSSOP,48P
0801-002095 IC-CMOS LOGIC;74LCX245,TRANSCEIVER,TSSOP
0801-002326 IC-CMOS LOGIC;74LCX32,OR GATE,TSSOP,14,1
0801-002591 IC-CMOS LOGIC;74LVX273,D FLIP-FLOP,TSSOP
0801-002143 IC-CMOS LOGIC;7S32,OR GATE,SOT-23,5P,63M
1203-003615 IC-DC/DC CONVERTER;MP1541DJ,TSOT-23,5P,2
1105-001839 IC-DDR2 SDRAM;HYB18TC256160BF-3S,DDR2,25
1105-001876 IC-DDR2 SDRAM;K4T51163QG-HCE6,DDR2 SDRAM
1103-001183 IC-EEPROM;24C04,4KBIT,512X8,SOP,8P,5X4MM
1103-000170 IC-EEPROM;24C64A,64KBIT,8KX8BIT,SOP,8P,5
1205-003692 IC-EXPANDER;STMPE811QTR,QFN16,16P,3X3MM,
1107-001475 IC-FLASH MEMORY;29LV320,32MBIT,4MX8/2MX1
1006-001250 IC-LINE DRIVER;DS90LV017A,SOIC,8P,150MIL
0902-002405 IC-MICROPROCESSOR;MPC8533EVTAQG,1GHZ,FC-
1003-002123 IC-MOTOR DRIVER;AN44061A,SOP,34P,14X8MM,
1107-001286 IC-NOR FLASH;29LV160,16MBIT,2MX8/1MX16,T
1107-001590 IC-NOR FLASH;S29GL064M,64MBIT,8MX8/4MX16
1201-000167 IC-OP AMP;358,SOP,TP,8P,150MIL,DUAL,100V
1203-002220 IC-POSI.ADJUST REG.;1117,DPAK,3P,240MIL,
1203-003700 IC-POSI.ADJUST REG.;LD1117ADT-R,DPAK,3P,
1203-001455 IC-POSI.FIXED REG.;1117,DPAK,3P,265MIL,P
1203-002454 IC-POSI.FIXED REG.;1117,TO-252,3P,257MIL
1203-002986 IC-POSI.FIXED REG.;7812,3P,6.6X6.1MM,PLA
1203-002159 IC-POWER PRESCALER;2026,SOP,8P,153MIL,PL
1203-003394 IC-POWER SUPERVISOR;MIC2544-1YM,SOP,8P,4
1206-001026 IC-TIMEKEEPER;M41T00M6TR,SOP,8P,150MIL,P
0803-000634 IC-TTL;74LS07,BUFFER/DRIVER,SOP,14,150MI
0904-002448 IC-USC;OXU210HP,LQFP,128P,14X14MM,120MHZ
0904-002329 IC-USC;USB2514B,QFN,36P,6.0X6.0X0.5MM,24
1202-000164 IC-VOLTAGE COMP.;393,SOP,8P,150MIL,DUAL,
JB70-00168A ICT-PIN ADF;SCX-1110F,STS303,L10.0,D2.0
JC64-00487A INDICATOR-SIZE REAR;CLX-9350,POM
JC64-00488A INDICATOR-SIZE SIDE;CLX-9350,PC+ABS,141X
2703-002836 INDUCTOR-SMD;22UH,20%,10X10.2MM
2703-002539 INDUCTOR-SMD;6.8UH,20%,6965
JC70-00064A IPR-PIN ROLLER EXIT;SUS304,SF-5100,L23,P
3722-002591 JACK-MODULAR;8P/8C,N,ANGLE,N,AU,1PORT
3722-001051 JACK-USB;4P/1C,AU,BLK,ANGLE,A TYPE
3722-001147 JACK-USB;4P/1C,AU,BLK,STRAIGHT,A TYPE
3722-002303 JACK-USB;4P/1C,AU30U,BLK,ANGLE,B TYPE
JC64-00472A KEY-JOB STATUS;CLX-9350,ABS,92.5*17,CREA
JC64-00474A KEY-M TEL;CLX-9350,ABS,66.89*79.43,NEUTR
JB68-00916A LABEL RATING-BLANK;SF-340,SEC,TETRON,0.0
JC68-01584A LABEL(P)-BLANK 90*25;CLP-510,SEE,ART 100
JC68-00780A LABEL(P)-CAUTION PRINTING;COMMON,WHITE P
JC68-00573A LABEL(R)-BARCODE;ML-4500,PET,T0.05,20MM,
JC68-02403A LABEL-CAUTION;CLX-9350,PPE FILM,0.1,10,4
JC68-02402A LABEL-CAUTION;CLX-9350,PPE FILM,0.1,10,4
JC68-02306A LABEL-INFORMATION;CLX-9350,47,116
JC68-02541A LABEL-REGULATION;SCX-6545NX,SEC,PC,0.125
4713-001263 LAMP-HALOGEN;115V,1300W,13X9.8X392MM
JC47-00029A LAMP-XE C;CLX-9350,10.4,375,24V,40000 LU
JC07-00016A LCD;HJA08901A-SA27AB18,CLX-9350ND,209X12
JC07-00015A LCD;HSD089IFW1,CLX-9350,1024(H) X 600(V)
0601-001226 LED;SMD(TOP VIEW),RED,1.2X0.8MM,660NM,1.
JC66-02278A LEVER-ACT FULL EXIT;CLX-9350,PC,BLACK
JC66-02277A LEVER-ACTURATOR F_D EXIT;CLX-9350,PC,BLA
JC66-02218A LEVER-ACTURATOR F_D FULL;CLX-9350,PC,HAZ
JC66-02234A LEVER-CAM TR ROLLER;CLX-9350,POM (500CL)
JC66-02196A LEVER-EMPTY PAPER;CLX-9350,PC,BLACK
JC66-02204A LEVER-GATE DUPLEX;CLX-9350,PC HN-1064I,B
JC66-02216A LEVER-GATE RETURN;CLX-9350,PC,BLACK
JC66-02200A LEVER-HANDELE CST;CLX-9350,POM,42,26,WHI
JC66-02205A LEVER-INPUT CST;CLX-9350,POM,40,22,WHITE
JC66-02240A LEVER-LINK SIZE;CLX-9350,PC,T9,W286,L30,
JC66-02311A LEVER-LOCKER GUIDE;CLX-9350,POM,T7.5,W37
JC66-02194A LEVER-SIZE SENSING;CLX-9350,PC,100.4,BLA
JC66-02195A LEVER-SOLENOID;CLX-9350,POM,32.5,33.2,WH
JC66-02181A LINK-GATE DUPLEX;CLX-9350,PC HN-1064I,BL
JC66-02182A LINK-GATE FACE UP EXIT;CLX-9350,PC HN-10
JC66-02215A LINK-GATE RETURN;CLX-9350,PC
JC66-02263A LINK-SOLENOID;CLX-9350,PC
JC66-02209A LINK-STOPPER PAPER;CLX-9350,POM,21.5,4,D
JC64-00482A LOCKER-CASSETTE;CLX-9350,POM,BLACK
JC64-00505A LOCKER-GUIDE FEED;CLX-9350,POM(F20-03),B
JC64-00462A LOCKER-SIDE;CLX-9350,POM F20-03,BLACK
JC64-00463A LOCKER-TAKE AWAY;CLX-9350,POM,BLACK
JC64-00480A LOCKER-TRAY MP;CLX-9350,POM,BLACK
JC97-03605A LSU;CLX-9350,SEC,TANDEM,A3,600,MW1,650NM
JC97-01771A MEA UNIT-TERMINAL S;CLP-500,SEC,EXPORT,S
JC67-00402A MIRROR-FR;CLX-9350,GLASS,320X13,5,REFLEC
JC67-00401A MIRROR-HR;CLX-9350,GLASS,300X23,5,REFLEC
JC31-00123B MOTOR BLDC;2000RPM,1200GFCM,24V,2.8A,150
JC31-00123A MOTOR BLDC;2000RPM,1200GFCM,24V,2.8A,150
JC31-00094A MOTOR DC;HF283LG,DC24V,CLX-8380ND/XAA,79
JC31-00137A MOTOR GEARED-LIFT 500;1.8RPM,2.94NM,DC24
JC31-00045A MOTOR GEARED-P LIFT;2.1RPM,1.5N.M,1/1513
JC31-00124A MOTOR GEARED-T_SUPPLY;125RPM/400RPM,0.78
JC31-00133A MOTOR STEP;17PM-K049-P1WS,0.9A,5.8W,3.24
JC31-00131A MOTOR STEP;CLX-9350,0.9A,3.78V,80? MAX
JC31-00132A MOTOR STEP;CLX-9350,1.3A,3.4V,80 MAX
JC31-00110C MOTOR STEP;CLX-9350,24V
JC31-00110B MOTOR STEP;M35SP-12N,CLX-9350,0.5A,24V,-
JC31-00102A MOTOR STEP;M42SP-13NK,SCX-6555N,0.6A,200
JC90-00916A MP GUIDE-LOWER;CLX-9350,SEC,-,-,-
JC90-00917A MP GUIDE-PICK UP;CLX-9350,SEC,-,-,-
JC90-00919A MP-BRACKET PICK UP;CLX-9350,SEC,-,-,-
JC90-00918A MP-ONE WAY;CLX-9350,SEC,-,-,-
JC90-00989A MP-PICK UP RUBBER;CLX-9350,SEC
JC90-00913A MP-TRAY;CLX-9350,SEC,-,-,-
JC90-00921A MP;CLX-9350,SEC
JC97-03708A OPE-COVER FRONT;CLX-9350,SEC,WORLD
JC97-03710A OPE-COVER RAIL;CLX-9350,SEC,WORLD
JC97-03711B OPE-DUMMY FRONT;CLX-9350,SEC,WORLD
JC97-03711A OPE-DUMMY FRONT;CLX-9350,SEC,WORLD
JC97-03712A OPE-FRAME LCD;CLX-9350,SEC,WORLD
JC97-03782A OPE;CLX-9350,SEC,WORLD
JC92-02157A PBA-CASSETTE;CLX-9350,SEC,-,-,-,-,FR-1,-
JC92-02271A PBA-CCDM;CLX-9350,SEC,FR-4,6LAYER,CCDM
JC92-02143A PBA-COVER OPEN SENSOR;CLX-9350,SEC,-,-,-
JC92-02261A PBA-DC POWER;CLX-9350,SEC,SEC
JC92-02163A PBA-DEVE CRUM JOINT;CLX-9350,SEC,-,-,-,-
JC92-02152A PBA-DEVE JOINT;CLX-9350,SEC,-,-,-,-,FR-4
JC92-02160A PBA-ENCODER;CLX-9350,SEC,-,-,-,-,FR-4,-
JC92-02129A PBA-ENGINE;CLX-9350,SEC,-,-,-,FR-4,4LAYE
JC92-02155A PBA-FUSER;CLX-9350,SEC,-,-,-,-,FR-1,-
JC92-02149A PBA-IMAGE COPROCESSOR;CLX-9350,SEC,-,-,-
JC92-02162A PBA-ITB JOINT;CLX-9350,SEC,-,-,-,-,FR-4,
JC92-02174A PBA-ITB JOINT;CLX-9350,SEC,-,-,-,CLEANIN
JC92-02173A PBA-ITB JOINT;CLX-9350,SEC,-,-,-,CLEANIN
JC92-02208A PBA-JOINT;CLX-9350,SEC,FR-4
JC92-02158A PBA-LED PANEL;CLX-9350,SEC,-,-,-,-,FR-1,
JC92-02291A PBA-LSU;CLX-9350,SEC,SEC
JC92-02150A PBA-MAIN;CLX-9350,SEC,-,-,-,FR-4,6LAYER,
JC92-02264A PBA-MP SIZE SENSOR;CLX-9350,FR-4
JC92-02267A PBA-MSOK;CLX9350,SEC,FR4
JC92-02140A PBA-OPE;CLX-9350,SEC,-,-,-,FR-4,-,-
JC92-02266A PBA-OPE;CLX9350,SEC,FR4
JC92-02193A PBA-RAM DIMM;CLX-9350,SEC,DDR2_DIMM,1GB,
JC92-02144A PBA-SCAN JOINT;CLX-9350,SEC,-,-,-,FR-4,2
JC92-02170A PBA-SCAN;CLX-9350,SEC,-,-,-,FR-4,6LAYER,
JC92-02156A PBA-SIDE JOINT;CLX-9350,SEC,-,-,-,-,FR-1
JC92-02262A PBA-TONER CONNECTOR;CLX-9350,SEC,SEC
JC92-02164A PBA-TONER CRUM JOINT;CLX-9350,SEC,-,-,-,
JC92-02265A PBA-USB HOST;CLX9350,SEC,FR4
JC92-02159A PBA-WASTE SENSOR RX;CLX-9350,SEC,-,-,-,-
0603-001021 PHOTO TR;NPN,20V,5V,20MA,75MW,TP
0604-001370 PHOTO-INTERRUPTER;CIRCUIT,BULK
0604-001381 PHOTO-INTERRUPTER;DIODE,DIP
0604-001399 PHOTO-INTERRUPTER;PHOTO TR,18MW
0604-001210 PHOTO-INTERRUPTER;TR,200MW,DIP-4,ST
0604-001393 0604-001393 PHOTO-INTERRUPTER;TR,75MW,BGA,TR
6043-001115 PIN-PARALLEL(KEY);A,OD2.0,L14.0,ZPC(YEL)
6043-001097 PIN-SPRING;W,D2,L14,PB+NI PLATING, T0.3
6043-001042 PIN-SPRING;W,OD2,L8,PASS,STS304
6043-001051 PIN-SPRING;W,OD2.35,L18,BLK,STS304
JC61-02890A PLATE-BAFFLE;CLX-9350,SECC,T1.0,W348,L41
JC61-03187A PLATE-CLIP LIGHT;CLX-9350,SUS,0.3,9,36
JC61-03186A PLATE-CLIP MIRROR;CLX-9350,SUS,0.3,12,33
JC61-03002A PLATE-GROUND CST;CLX-9350,SUS,0.2,66.1,2
JC61-03036A PLATE-GROUND OPC;CLX-9350,SUS,0.2,14.4,6
JC61-02891A PLATE-GROUND;CLX-9350,SUS304,T0.3,W43.7,
JC61-03206A PLATE-LEVER;CLX-9350,SECC,1.6T,73,60
JC61-02893A PLATE-PR SCREWFIX;CLX-9350,SECC,T1.6,W42
JC61-03054A PLATE-REFLECTOR;CLX-9350,AL,0.7,23,332,(
JC61-03260A PLATE-SAW;CLX-9350,SUS,T0.1
JC97-03726A PLATEN FR HR-ALIGN COVER;CLX-9350,SEC
JC97-03651A PLATEN FR HR-AUTO PAPER SENSOR;CLX-9350,
JC97-03621A PLATEN FR HR-CARRIAGE FR XE;CLX-9350,SEC
JC97-03729A PLATEN FR HR-COVER GLASS ADF;CLX-9350,SE
JC97-03724A PLATEN FR HR-COVER GLASS;CLX-9350,SEC
JC97-03725A PLATEN FR HR-COVER REAR;CLX-9350,SEC
JC97-03653A PLATEN FR HR-FAN;CLX-9350,SEC
JC97-03864A PLATEN FR HR-GLASS ADF;CLX-9350ND,SEC
JC97-03728A PLATEN FR HR-GUIDE ADF;CLX-9350,SEC
JC97-03727A PLATEN FR HR-GUIDE PAPER;CLX-9350,SEC
JC97-03655A PLATEN FR HR-OPEN SENSOR;CLX-9350,SEC
JC97-03666A PLATEN FR HR-RAIL UPPER;CLX-9350,SEC
JC66-02257A PULLEY-BELT;CLX-9350,POM,WHITE,ID8,OD39
2001-000325 R-CARBON;120OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
2007-007482 R-CHIP;1.24KOHM,1%,1/10W,TP,1608
2007-000122 R-CHIP;1.2KOHM,5%,1/10W,TP,1608
2007-000239 R-CHIP;1.5KOHM,1%,1/10W,TP,1608
2007-008006 R-CHIP;10.7KOHM,1%,1/10W,TP,1608
2007-000102 R-CHIP;100KOHM,5%,1/10W,TP,1608
2007-000287 R-CHIP;100OHM,1%,1/10W,TP,1608
2007-000074 R-CHIP;100OHM,5%,1/10W,TP,1608
2007-001255 R-CHIP;100OHM,5%,1W,TP,6432
2007-000052 R-CHIP;10KOHM,1%,1/10W,TP,1608
2007-000090 R-CHIP;10KOHM,5%,1/10W,TP,1608
2007-000309 R-CHIP;10OHM,5%,1/10W,TP,1608
2007-007467 R-CHIP;12.1KOHM,1%,1/16W,TP,1005
2007-008426 R-CHIP;12.4KOHM,1%,1/10W,TP,1608
2007-000116 R-CHIP;120OHM,5%,1/10W,TP,1608
2007-007613 R-CHIP;121OHM,1%,1/10W,TP,1608
2007-000091 R-CHIP;12KOHM,5%,1/10W,TP,1608
2007-007521 R-CHIP;14.7KOHM,1%,1/10W,TP,1608
2007-000104 R-CHIP;150KOHM,5%,1/10W,TP,1608
2007-000402 R-CHIP;150OHM,5%,1/10W,TP,1608
2007-000067 R-CHIP;15KOHM,1%,1/10W,TP,1608
2007-000092 R-CHIP;15KOHM,5%,1/10W,TP,1608
2007-000414 R-CHIP;15OHM,1%,1/10W,TP,1608
2007-007937 R-CHIP;17.4KOHM,1%,1/10W,TP,1608
2007-008105 R-CHIP;18.2OHM,1%,1/10W,TP,1608
2007-000458 R-CHIP;18KOHM,5%,1/10W,TP,1608
2007-000043 R-CHIP;1KOHM,1%,1/10W,TP,1608
2007-000078 R-CHIP;1KOHM,5%,1/10W,TP,1608
2007-000109 R-CHIP;1MOHM,5%,1/10W,TP,1608
2007-002425 R-CHIP;1OHM,5%,1/10W,TP,1608
2007-000124 R-CHIP;2.2KOHM,5%,1/10W,TP,1608
2007-010082 R-CHIP;2.61KOHM,1%,1/16W,TP,1005
2007-007507 R-CHIP;2.74KOHM,1%,1/10W,TP,1608
2007-000081 R-CHIP;2.7KOHM,5%,1/10W,TP,1608
2007-000105 R-CHIP;200KOHM,5%,1/10W,TP,1608
2007-000536 R-CHIP;200OHM,1%,1/10W,TP,1608
2007-000094 R-CHIP;22KOHM,5%,1/10W,TP,1608
2007-000071 R-CHIP;22OHM,5%,1/10W,TP,1608
2007-007455 R-CHIP;24.9KOHM,1%,1/10W,TP,1608
2007-000616 R-CHIP;24KOHM,5%,1/10W,TP,1608
2007-000643 R-CHIP;270OHM,5%,1/10W,TP,1608
2007-000669 R-CHIP;2KOHM,1%,1/10W,TP,1608
2007-000080 2007-000080 R-CHIP;2KOHM,5%,1/10W,TP,1608
2007-007550 R-CHIP;3.16KOHM,1%,1/10W,TP,1608
2007-000082 R-CHIP;3.3KOHM,5%,1/10W,TP,1608
2007-007525 R-CHIP;3.4KOHM,1%,1/10W,TP,1608
2007-000704 R-CHIP;3.6KOHM,5%,1/10W,TP,1608
2007-000125 R-CHIP;3.9KOHM,5%,1/10W,TP,1608
2007-002910 R-CHIP;30.1KOHM,1%,1/10W,TP,1608
2007-000729 R-CHIP;300OHM,5%,1/10W,TP,1608
2007-007008 R-CHIP;300OHM,5%,1/16W,TP,1005
2007-000730 R-CHIP;300OHM,5%,1/4W,TP,3216
2007-000745 R-CHIP;30OHM,5%,1/4W,TP,3216
2007-009913 R-CHIP;31.6KOHM,0.1%,1/10W,TP,1608
2007-000076 R-CHIP;330OHM,5%,1/10W,TP,1608
2007-000134 R-CHIP;33KOHM,5%,1/10W,TP,1608
2007-000113 R-CHIP;33OHM,5%,1/10W,TP,1608
2007-000118 R-CHIP;390OHM,5%,1/10W,TP,1608
2007-000839 R-CHIP;39OHM,5%,1/10W,TP,1608
2007-000083 R-CHIP;3KOHM,5%,1/10W,TP,1608
2007-000084 R-CHIP;4.7KOHM,5%,1/10W,TP,1608
2007-000875 R-CHIP;4.7KOHM,5%,1/4W,TP,3216
2007-009777 R-CHIP;4.99KOHM,1%,1/16W,TP,1005
2007-000107 R-CHIP;470KOHM,5%,1/10W,TP,1608
2007-000077 R-CHIP;470OHM,5%,1/10W,TP,1608
2007-008293 R-CHIP;475OHM,1%,1/16W,TP,1005
2007-000097 R-CHIP;47KOHM,5%,1/10W,TP,1608
2007-000072 R-CHIP;47OHM,5%,1/10W,TP,1608
2007-007226 R-CHIP;49.9OHM,1%,1/10W,TP,1608
2007-008298 R-CHIP;49.9OHM,1%,1/16W,TP,1005
2007-008300 R-CHIP;5.11KOHM,1%,1/16W,TP,1005
2007-000965 R-CHIP;5.1KOHM,5%,1/10W,TP,1608
2007-000144 R-CHIP;5.1KOHM,5%,1/16W,TP,1005
2007-007878 R-CHIP;5.62KOHM,1%,1/10W,TP,1608
2007-008169 R-CHIP;52.3OHM,1%,1/10W,TP,1608
2007-008133 R-CHIP;56.2KOHM,1%,1/10W,TP,1608
2007-000119 R-CHIP;560OHM,5%,1/10W,TP,1608
2007-001044 R-CHIP;56OHM,5%,1/10W,TP,1608
2007-007222 R-CHIP;6.04KOHM,1%,1/10W,TP,1608
2007-002768 R-CHIP;6.2KOHM,1%,1/10W,TP,1608
2007-001056 R-CHIP;6.2KOHM,5%,1/10W,TP,1608
2007-000087 R-CHIP;6.8KOHM,5%,1/10W,TP,1608
2007-000120 R-CHIP;680OHM,5%,1/10W,TP,1608
2007-001134 R-CHIP;68OHM,5%,1/10W,TP,1608
2007-001139 R-CHIP;7.5KOHM,1%,1/10W,TP,1608
2007-007238 R-CHIP;8.25KOHM,1%,1/10W,TP,1608
2007-001179 R-CHIP;8.2KOHM,5%,1/10W,TP,1608
2007-000121 R-CHIP;820OHM,5%,1/10W,TP,1608
2011-001011 R-NETWORK;10KOHM,5%,1/16W,L,CHIP,8P,TP,3
2011-001264 R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2.
2011-000660 R-NETWORK;1KOHM,5%,1/16W,L,CHIP-V,8P,TP,
2011-001482 R-NETWORK;1KOHM,5%,1/16W,L,CHIP-V,8P,TP,
2011-001449 R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1010
2011-001262 R-NETWORK;22OHM,5%,1/16W,L,CHIP,8P,TP,2.
2011-001261 R-NETWORK;33OHM,5%,1/16W,L,CHIP,8P,TP,2.
2011-000881 R-NETWORK;33OHM,5%,1/16W,L,CHIP,8P,TP,3.
2011-001468 R-NETWORK;3OHM,5%,1/16W,L,CHIP,8P,TH,201
2011-001396 R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,8P,TP,
2011-001474 R-NETWORK;47OHM,5%,1/16W,L,CHIP,8P,TP,2.
2011-001346 R-NETWORK;68OHM,5%,1/16W,L,CHIP,8P,TP,2.
3501-001312 RELAY-POWER;5V,540MW,10000MA,1FORMA,15MS
3501-001053 RELAY-POWER;5VDC,530MW,10000MA,1FORMA,15
6044-000107 RING-C;ID2.5,OD6,T0.4,PASS,STS304
6044-000159 RING-C;ID3,OD7,T0.6,PASS,STSC
6044-000121 RING-E;ID2,OD5,T0.4,PASS,STSC
6044-000125 RING-E;ID4,OD9,T0.6,STSC
6044-000231 RING-E;ID5.0,OD11.0,T0.6,PASS,STS304
6044-000129 RING-E;ID6,OD12,T0.8,ZPC,STSC
JC66-02360A ROLLER-DUPLEX 1;CLX-9350,EPDM + SUM22,16
JC66-02359A ROLLER-DUPLEX 2;CLX-9350,EPDM + SUM22,16
JC66-02373A ROLLER-EXIT;CLX-9350,EPDM,6
JC66-02372A ROLLER-FACE DOWN EXIT;CLX-9350,EPDM,6
JC66-02361A ROLLER-FACE UP EXIT;CLX-9350,EPDM,6
JC66-02348A ROLLER-FEED MP;CLX-9350,EPDM,6
JC66-02303A ROLLER-FUSER;CLX-9350,SI-RUBBER,?18,L389
JC66-02292A ROLLER-F_D IDLE EXIT;CLX-9350,POM(LZ750)
JC66-02304A ROLLER-HEAT;CLX-9350,STKM,22,L368.4
JC61-03331A ROLLER-IDLE CST;CLX-9350,POM,OD10,L16.5,
JC66-02305A ROLLER-PRESSURE;CLX-9350,SI-RUBBER,20,L3
JC66-02414A ROLLER-REGI;CLX-9350,EPDM,6
JC66-02314A ROLLER-RETURN EXIT;CLX-9350,EPDM,16
JC66-02347A ROLLER-TRANSFER2;CLX-9350,NBR+SUM,8,L391
JC72-20902A ROLLER;ML-5000A,TEFLON,WHT
JC73-00308A RUBBER-ENCODER ITB;CLX-9350,NBR,ID3.7,BL
JC73-00326A RUBBER-PICKUP;CLX-9350,URETHANE,OD20
JC73-00311A RUBBER-ROLLER_PICKUP;CLX-9350,EPDM,OD20
JC73-00330A RUBBER-SOLENOID;CLX-9350,PORON LE-20,ID1
6502-001132 SADDLE;CS4N,11.6X8.8,NYLON66,BLACK
6009-001684 SCREW-HEX;HWH,+,M3,L40,ZPC(WHT),SWRCH18A
6009-001665 SCREW-HEX;HWH,+,M3,L6,ZPC(WHT),SWRCH18A,
6009-001664 SCREW-HEX;HWH,+,M3,L8,ZPC(WHT),SWRCH18A,
6001-000130 SCREW-MACHINE;BH,+,M3,L6,ZPC(WHT),SWRCH1
6001-002284 6001-002284 SCREW-MACHINE;BH,+,M4,L8,ZPC(WHT),SWRCH1
6001-000485 SCREW-MACHINE;PH,+,-,M2.6,L4,ZPC(WHT),SW
6006-001193 SCREW-MACHINE;PH,+,WSP,M3,L10,ZPC(WHT),S
6006-001038 SCREW-MACHINE;PH,+,WSP,M4,L10,ZPC(WHT),S
6009-001697 SCREW-SPECIAL;PH,+,M3,L4.4(3),NI PLT,SWR
6002-000440 SCREW-TAPPING;PWH,+,2,M3,L8,ZPC(BLK),SWR
6003-001086 6003-001086 SCREW-TAPTYPE;BH,+,-,B,M3,L12,ZPC(BLK),S
6003-000282 6003-000282 SCREW-TAPTYPE;BH,+,-,B,M3,L8,ZPC(BLK),SW
6003-000269 6003-000269 SCREW-TAPTYPE;BH,+,-,S,M3,L6,ZPC(WHT),SW
6003-001070 SCREW-TAPTYPE;BH,+,B,M2,L4,ZPC(BLK),SWRC
6003-001474 SCREW-TAPTYPE;BH,+,B,M3,L30,ZPC(WHT),SWR
6003-000301 SCREW-TAPTYPE;BH,+,S,M4,L6,ZPC(WHT),SWRC
6003-001001 6003-001001 SCREW-TAPTYPE;FH,+,B,M3,L8,ZPC(BLK),SWRC
6003-000152 SCREW-TAPTYPE;PH,+,-,B,M2,L10,ZPC(WHT),S
6006-001078 SCREW-TAPTYPE;PH,+,WSP,B,M3,L10,ZPC(WHT)
6003-000264 SCREW-TAPTYPE;PWH,+,-,B,M3,L6,ZPC(WHT),S
6003-000196 SCREW-TAPTYPE;PWH,+,B,M3,L10,NI PLT,SWRC
JC62-00641A SEAL-FILTER LEFT;CLX-9350,PE FOAM,BLACK,
JC32-00012A SENSOR-CTD;GP2Y40011K0F,0 ~ 60,4.5 ~ 5.5
JC32-00011A SENSOR-ENCODER;KE-2E10-36,0~+60C,2.7~5.5
JC32-00005A SENSOR-HUMIDITY;CHS-CSC-20,CLP-660,0~50C
JC32-00013A SENSOR-PAPER_SIZE;DP12V032,5V,0.3A
JC66-02450A SHAFT-BAFFLE MAIN;CLX-9350,SUM22,367.6,5
JC66-02451A SHAFT-BAFFLE;CLX-9350,SUS303,13.5,1.8,NA
JC66-02358A SHAFT-CAM TR ROLLER;CLX-9350,SUM 22,357.
JC66-02393A SHAFT-CLUTCH;CLX-9350,SUM22,L66.8,6
JC66-02390A SHAFT-FRONT_PIN;CLX-9350,SWPB,L 50,4
JC66-00591A SHAFT-HUB IN;ML-2150,SUM 24L,8.5,1.9
JC66-00939A SHAFT;SCX-6345N/XRX,SUS303,L8,OD2,NTR
JC63-02633A SHEET-BRACKET HINGE;CLX-9350,PC,0.125,W3
JC63-02415A SHEET-COVER FEED ROLL;CLX-9350,PET,0.1
JC63-02636A SHEET-HINGE MONO;CLX-9350,PC,0.5,W27,L37
JC63-02414A SHEET-RETARD MP;CLX-9350,PET,0.188
JC66-02241A SLIDER-OPEN SENSOR;CLX-9350,POM,W28.1,L7
JC44-00175A SMPS-V1;CLX-9350,COSMOS-V1,AC/DC,551.1W,
JC33-00031B SOLENOID-LIFTING;CLX-9350,24,80OHM,-10'C
JC33-00029B SOLENOID-MP;CLX-9350,DC24V,18.4O,27*30,-
JC60-00043A SPACER-GUIDE FEED;CLX-9350,POM F20-03,ID
3001-002207 SPEAKER;0.3W,8OHM,81DB,400HZ,50X16.4MM
JC61-70929A SPRING ETC-HV LARGE;ML-5000A,SUS304-WPB,
6107-001749 SPRING-CS;SUS304,PI0.25,L7.3,ID2.5,OD5.4
6107-001732 SPRING-CS;SUS304,PI0.3,L17.3,ID5.6,OD6.2
6107-001763 SPRING-CS;SUS304,PI0.4,L13.5,ID4.5,OD5.3
6107-001744 SPRING-CS;SUS304,PI0.5,D5,L20.4,ID4.5,OD
6107-001756 SPRING-CS;SUS304,PI0.5,L15.0,ID6.4,OD7.4
6107-001718 SPRING-CS;SUS304,PI0.5,L15.8,ID4.7,OD5.7
6107-001729 SPRING-CS;SUS304,PI0.6,L15.8,ID4.7,OD5.9
6107-001720 SPRING-CS;SUS304,PI0.6,L15.8,ID5.3,OD6.5
6107-001719 SPRING-CS;SUS304,PI0.6,L16.4,ID4.5,OD5.7
6107-001731 SPRING-CS;SUS304,PI0.6,L16.6,ID4.7,OD5.9
6107-001772 SPRING-CS;SUS304,PI0.6,L20,ID6.5,OD7.2,3
6107-001709 SPRING-CS;SUS304,PI0.6,L8.2,ID4.6,OD5.8
6107-001760 SPRING-CS;SUS304,PI0.7,L22.0,ID8.0,OD9.4
6107-001748 SPRING-CS;SUS304,PI0.7,L7.5,ID6.1,OD8.2
6107-002599 SPRING-CS;SUS304,PI0.75,L38,ID17.2,OD19.
6107-001723 SPRING-CS;SUS304,PI0.8,L21.0,ID5.4,OD7.0
6107-001773 SPRING-CS;SUS304,PI1,L 64,ID 26,OD 28
6107-001724 SPRING-CS;SUS304,PI1.0,L29.1,ID6.2,OD8.2
6107-001740 SPRING-CS;SUS304,PI1.1,D19.7,L40.7,ID18.
6107-001745 SPRING-CS;SUS304,PI1.1,D8.4,L46.8,ID7.3,
6107-001728 SPRING-CS;SUS304,PI1.3,L15.7,ID6.4,OD9.0
6107-001764 SPRING-CS;SWP B,PI0.35,L12,ID6.1,OD6.8
6107-001812 SPRING-CS;SWP B,PI0.4,L15,ID6.6,OD7.4
6107-002728 SPRING-CS;SWP B,PI1,0.4,L42,3.5,3
6107-001813 SPRING-CS;SWP B,PI2.2,L32.6,ID9.6,OD14
6107-001697 SPRING-ES;SUS,PI0.32,L25,ID4.06,OD4.7
6107-001698 SPRING-ES;SUS,PI0.8,L42,OD6.4
6107-001739 SPRING-ES;SUS304,PI0.3,L11.6,ID4.1,OD4.7
6107-001716 SPRING-ES;SUS304,PI0.4,L25,ID4.1,OD4.9
6107-001743 SPRING-ES;SUS304,PI0.5,D5,L15,ID4.5,OD5.
6107-001742 SPRING-ES;SUS304,PI0.5,D6.4,L26,ID5.9,OD
6107-001750 SPRING-ES;SUS304,PI0.6,D7,L25,ID6.4,OD7.
6107-001816 SPRING-ES;SUS304,PI0.6,L16.6,ID3.8,OD5.0
6107-001815 SPRING-ES;SUS304,PI0.65,L21.0,ID3.7,OD5.
6107-001757 SPRING-ES;SUS304,PI0.7,L29.6,ID3.6,OD5.0
6107-001814 SPRING-ES;SUS304,PI0.75,L25.7,ID4.5,OD6.
6107-001715 SPRING-ES;SUS304,PI0.8,D6.2,L30,ID5.4,OD
6107-001761 SPRING-ES;SWP B,PI0.55,L27.9,ID4.35,OD4.
6107-001758 SPRING-ES;SWP B,PI0.55,L33.4,ID4.22,OD5.
6107-001721 SPRING-ES;SWP,PI0.45,L12.2,ID4,OD4.9
6107-001722 SPRING-ES;SWP,PI0.5,L17.5,ID4,OD5
6107-002598 SPRING-ETC;SUS304,PI1,L91.15,ID12,OD14,7
6107-001734 SPRING-TS;SUS304,PI0.2,ID3.3,OD3.7,67
6107-001747 SPRING-TS;SUS304,PI0.2,ID3.4,OD3.8,154.5
6107-001771 SPRING-TS;SUS304,PI0.25,ID3.3,OD3.8
6107-001737 SPRING-TS;SUS304,PI0.25,ID3.8,OD4.3,105
6107-001735 SPRING-TS;SUS304,PI0.25,ID4.8,OD5.3,29
6107-001730 SPRING-TS;SUS304,PI0.3,ID4.8,OD5.4,140
6107-001717 SPRING-TS;SUS304,PI0.4,ID4.6,OD5.4
6107-002654 SPRING-TS;SUS304,PI0.45,ID6.5,OD7.4,RIGH
6107-002614 SPRING-TS;SUS304,PI0.5,ID5.0,OD6.0,RIGHT
6107-001711 SPRING-TS;SUS304,PI0.5,L4.2,OD5.2
6107-001710 SPRING-TS;SUS304,PI0.6,L32,OD4.6
6107-001794 SPRING-TS;SUS304,PI0.85,ID4,OD5.7
6107-001733 SPRING-TS;SUS304,PI1.8,ID11.9,OD14.5,105
6107-001726 SPRING-TS;SUS304,PI2.0,ID9.4,OD13.0,232
6107-001738 SPRING-TS;SWP B,PI0.85,ID4,OD5.7
6107-001762 SPRING-TS;SWP B,PI0.95,ID9.75,OD11
6107-001727 SPRING-TS;SWP B,PI1.3,ID8.8,OD11.4
6107-001736 SPRING-TS;SWP B,PI1.3,ID8.8,OD11.4,155
JC61-03293A STOPPER-PAPER MP;CLX-9350,SUM22+PC,228.5
JC61-03294A STOPPER-TIE;CLX-9350,NYLON66,T 1.0,W 12,
JC61-02898A SUPPORT-CONNECTOR;CLX-9350,PET+GF40%,T2.
JC61-02899A SUPPORT-LAMP;CLX-9350,PPS+GF30%,T1.5,W36
JC61-02900A SUPPORT-LEVER BELT;CLX-9350,MPPO,T2.0,W7
3405-001094 SWITCH-MICRO;24VDC,10MA,69.95GF,2 POLES
3404-000165 SWITCH-TACT;12V,50MA,160GF,6X6X5,SPST
3404-000115 SWITCH-TACT;12V,50MA,160GF,6X6X7.85MM,SP
3404-001222 SWITCH-TACT;12VDC,50MA,160GF,6X6X5.0MM,S
0203-000007 TAPE-FILAMENT;T0.15,L55M,TRP,FILAMENT
0203-001100 TAPE-OPP MASKING;OPP/W75/CLR,T0.075,W75,
1404-001453 THERMISTOR-NTC ASSY;7KOHM,3370K
1404-001486 THERMISTOR-NTC ASSY;7KOHM,3370K,0.3MW/C,
4712-001059 THERMOSTAT;125/250VAC,15/7.5A,170+-5C,0C
0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200MW,SOT-
0501-000457 TR-SMALL SIGNAL;MMBT2222A/KST2222A,NPN,3
0501-000462 TR-SMALL SIGNAL;MMBT2907A,PNP,350MW,SOT-
0501-000465 TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2
JC63-02265A TRAY-FACE UP LOWER;CLX-9350,ABS HB HF-06
JC63-02264A TRAY-FACE UP UPPER;CLX-9350,ABS HB HF-06
6031-001255 WASHER-PLAIN;NYLON,CUTTING,ID5,OD9,T0.5,
6031-001965 WASHER-PLAIN;POLY,ID5.9,OD10,T0.5,BLACK,
6031-000019 WASHER-PLAIN;POLY,ID6.1,OD8.5,T0.1,BLK
6031-001584 WASHER-PLAIN;POLYSLIDER,ID4,OD7,T0.5,BLA
Main Menu x
